SCHNEIDER ELECTRIC BMXDDI1602 BMXFTB2020

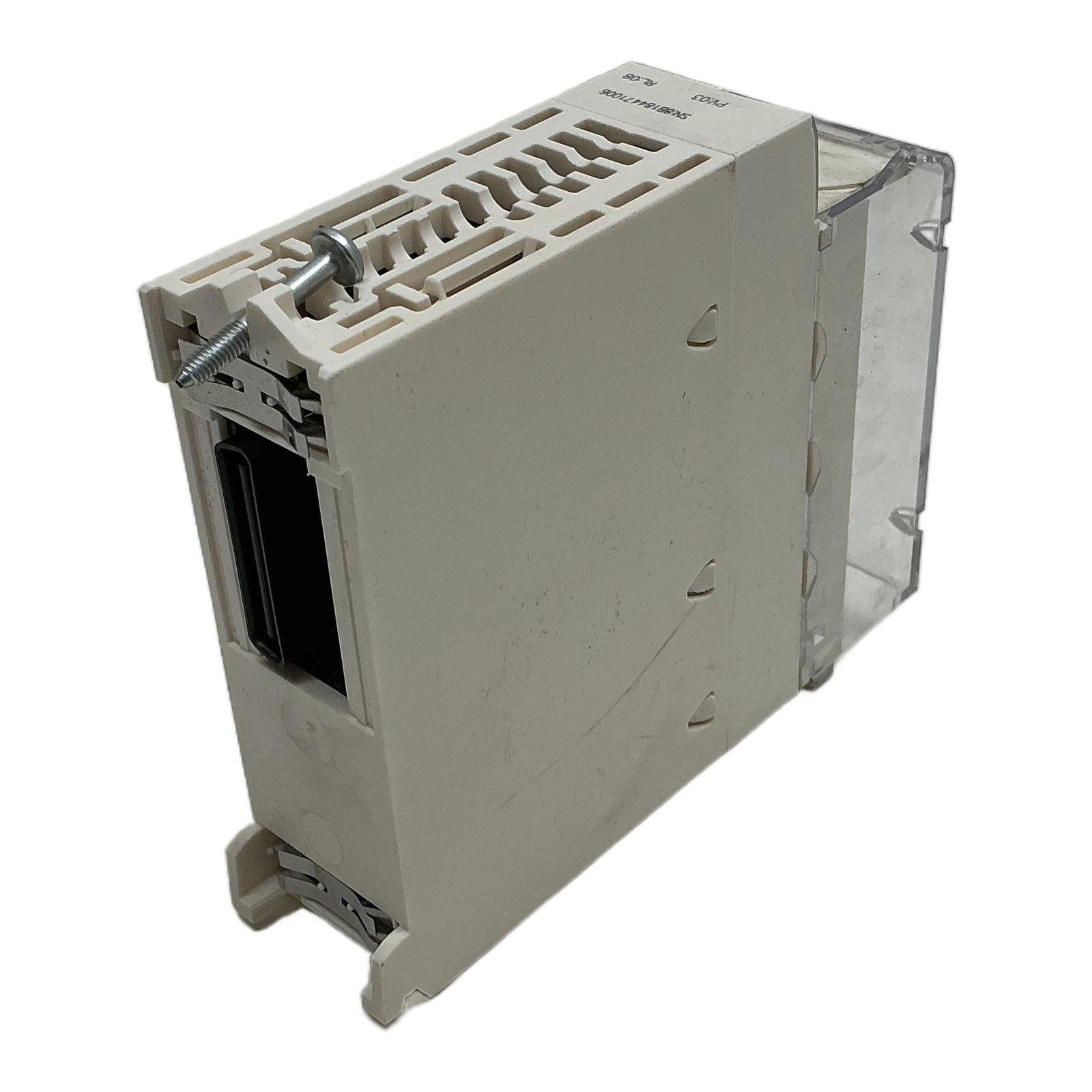

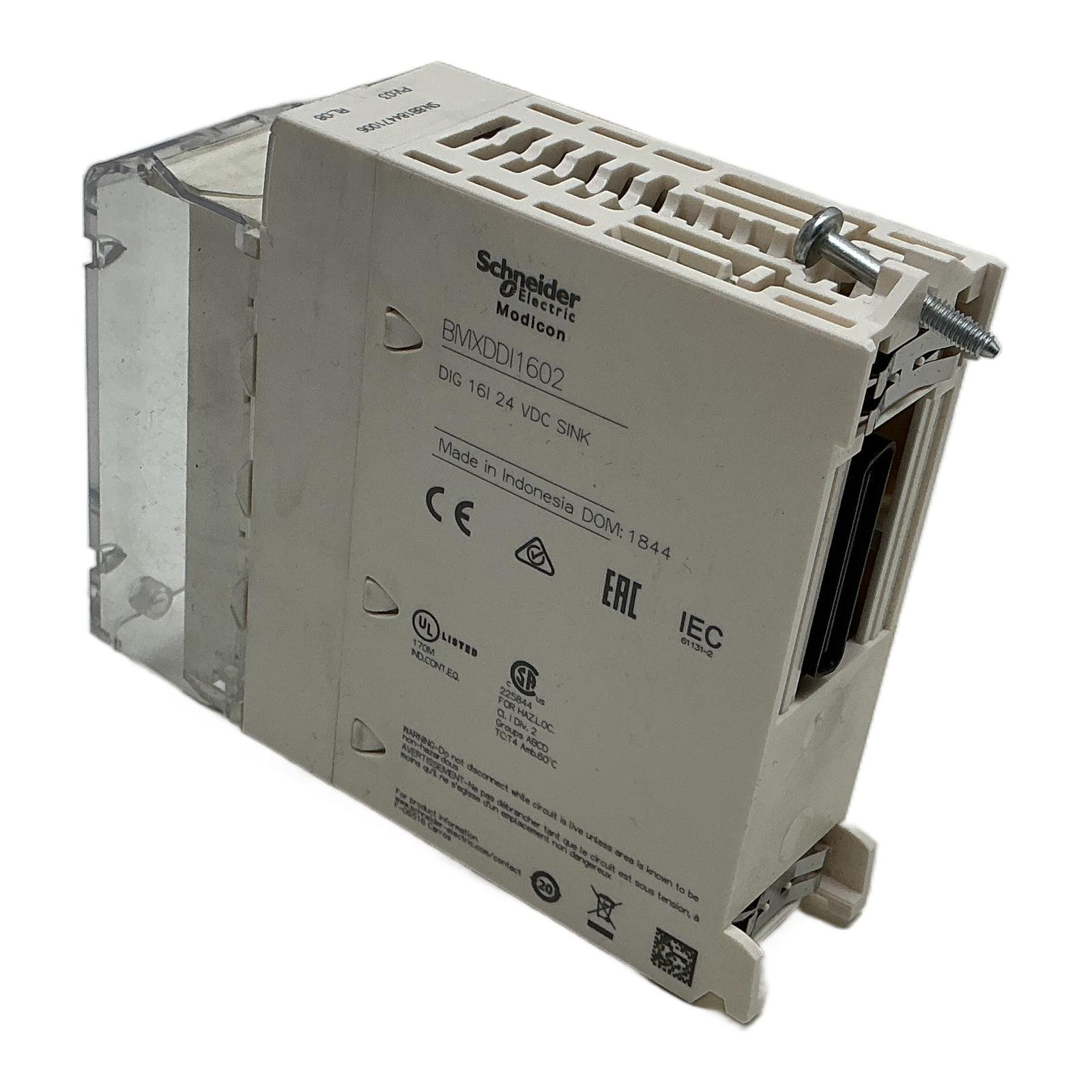

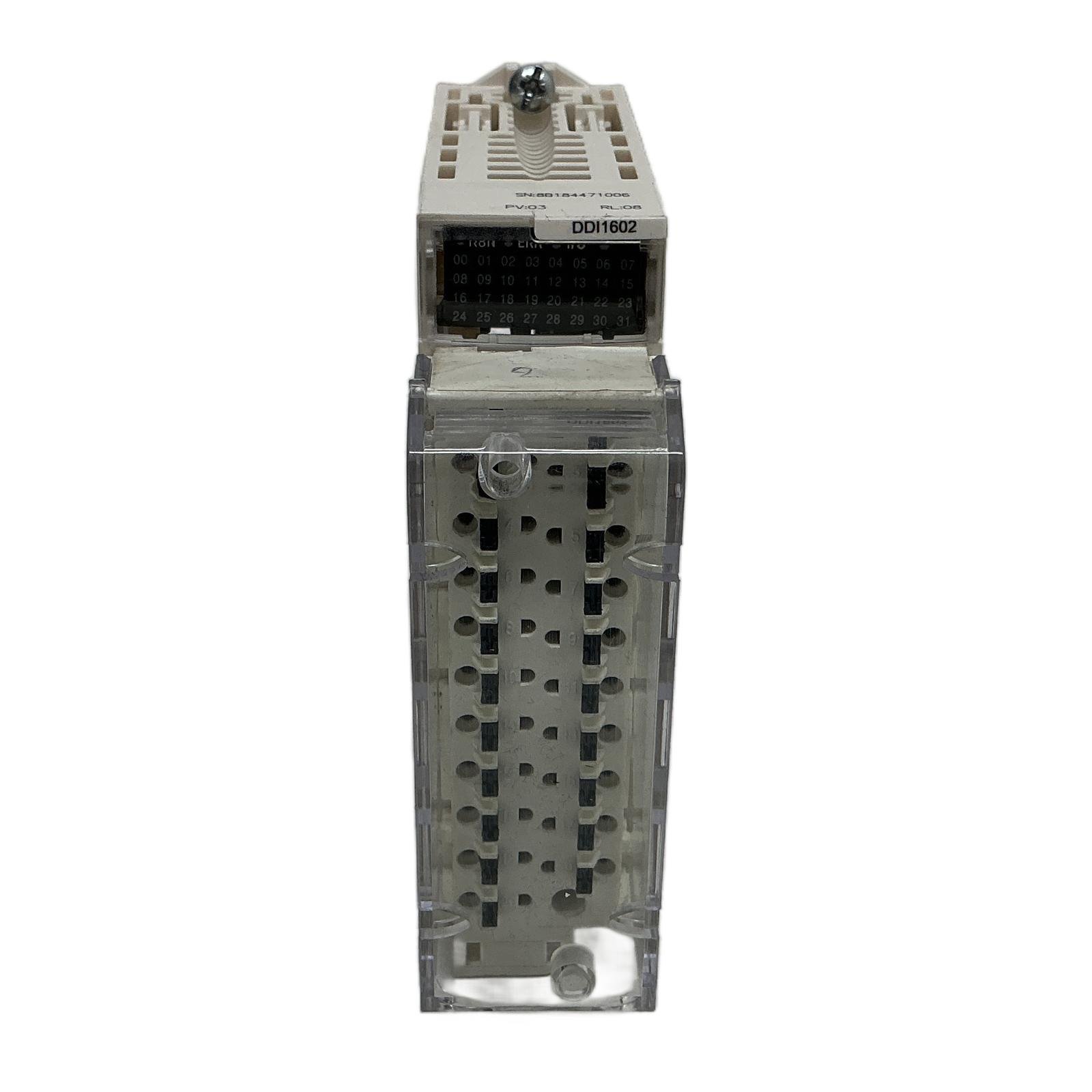

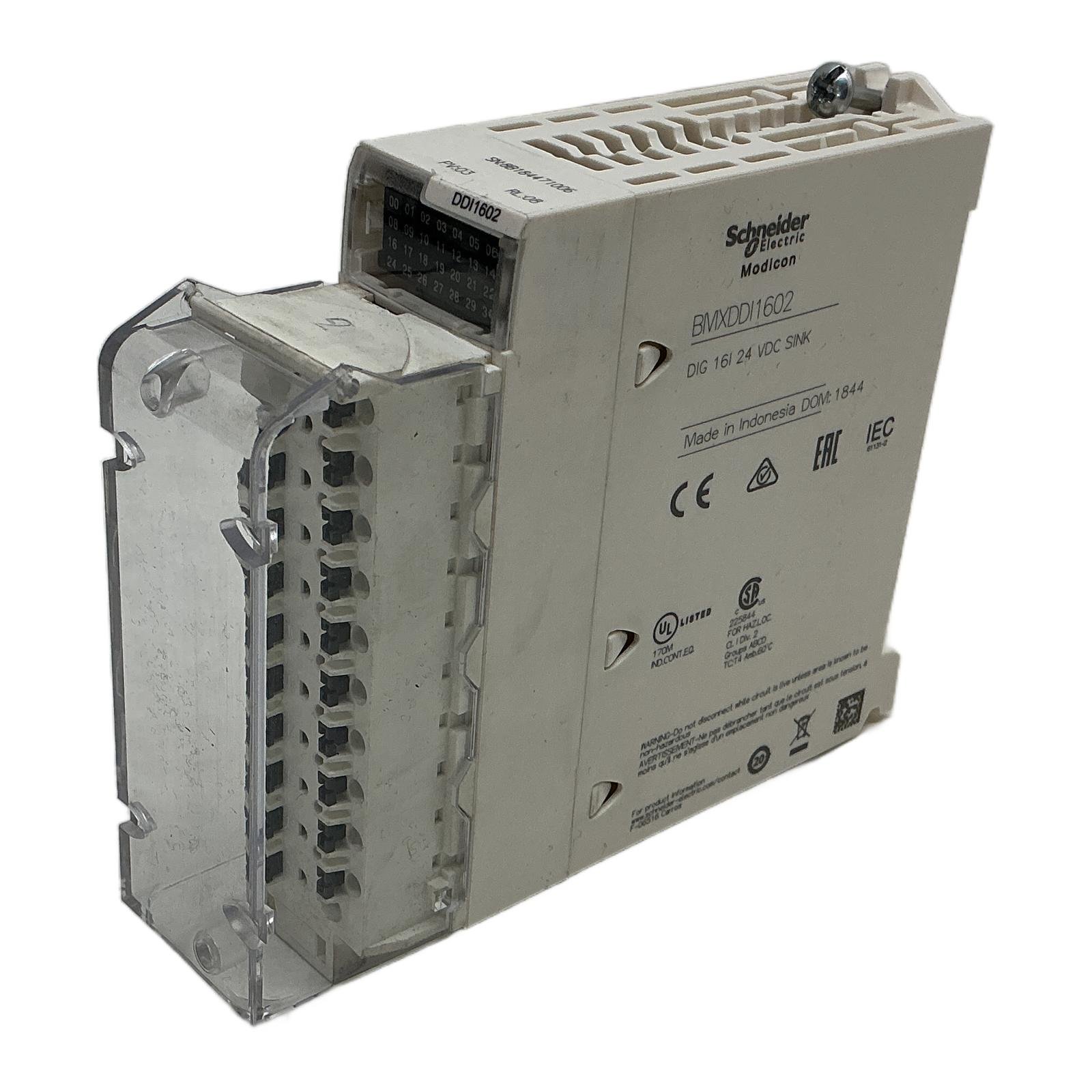

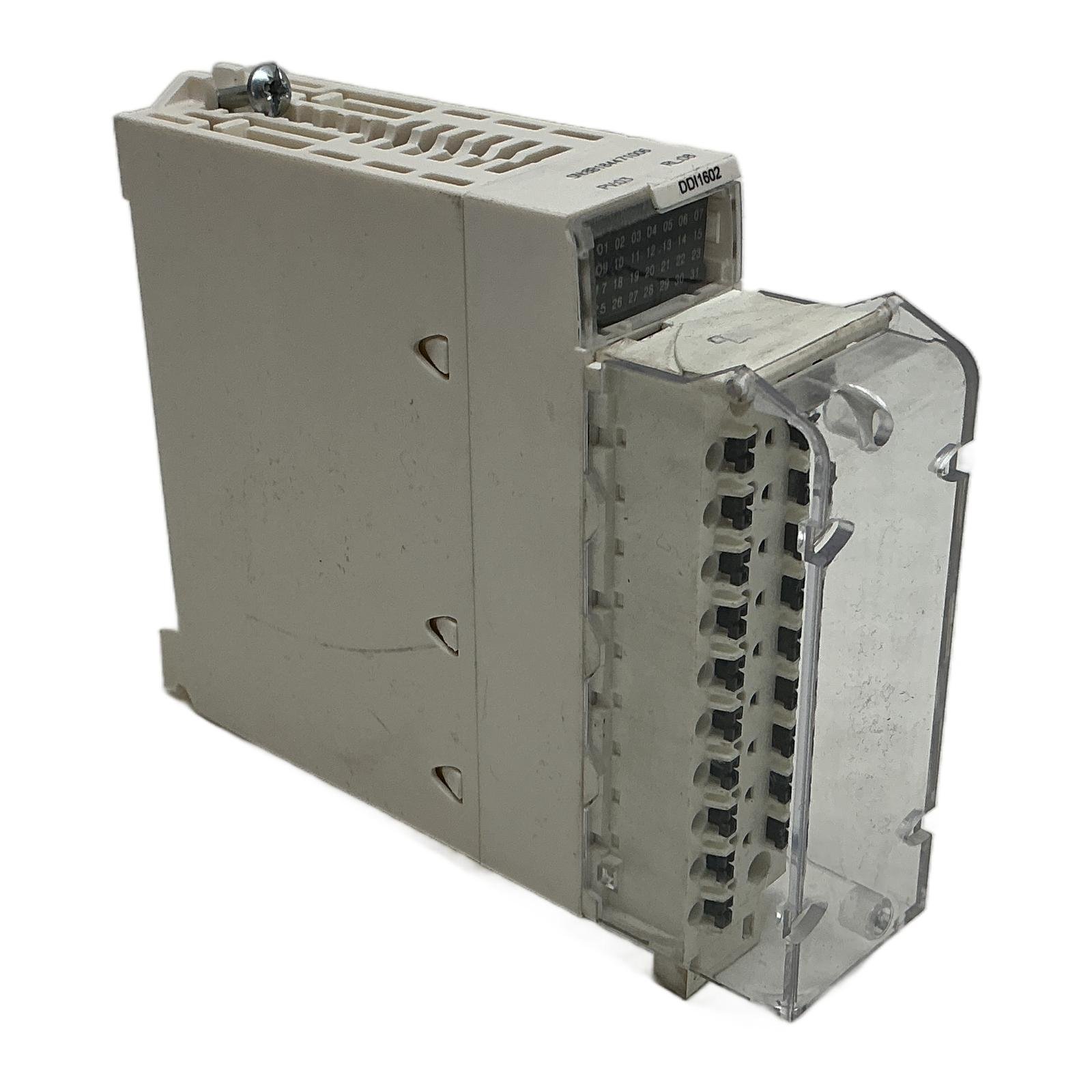

Schneider Electric Modicon X80 16-Channel Digital Input Module Description The BMXDDI1602 is a discrete digital input module from Schneider Electric’s Modicon X80 series. It is designed to interface with 16 digital sensors or switches, providing reliable signal processing for your PLC system. This module operates with a 24V DC nominal voltage and features sink-type inputs, suitable for a wide range of industrial applications. It includes the BMXFTB2020 removable screw terminal block for convenient wiring. Specifications Manufacturer: Schneider Electric Series: Modicon X80 Model: BMXDDI1602 Product Type: Digital Input Module Number of Inputs: 16 Input Voltage: 24V DC Input Logic: Sink (Positive logic) Terminal Block: BMXFTB2020 (20-pin screw type) Label Info DOM (Date of Manufacture): 1844 (Week 44, 2018) Certifications: CE, UL Listed, CSA, EAC, IEC 61131-2 Application This module is perfectly suited for use in complex automation systems within the Modicon M340, M580, and X80 platforms. It is commonly used in manufacturing, process control, and infrastructure applications to monitor the status of push buttons, limit switches, proximity sensors, and other digital field devices. Country of Origin Made in Indonesia. CO2 Impact Choosing this pre-owned module over a new one avoids the emission of approximately 4.8 kg of CO2, which is comparable to the emissions of a 24 km car ride. Opting for circular solutions significantly reduces your environmental footprint. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What PLC platforms is the BMXDDI1602 compatible with?This module is part of the Modicon X80 I/O platform and is compatible with Modicon M340, M580, and certain Quantum PLC systems when used with the appropriate rack and adapter. What is the significance of the ‘SINK’ input type?A sink input module provides the ground connection (0V) to the field device. The sensor or switch must be powered by an external +24V DC supply, and when it activates, it completes the circuit to the module’s input terminal. This is also known as positive logic (PNP). Does this module require a separate terminal block?Yes, it requires a removable terminal block for field wiring. This specific unit comes with the compatible 20-pin screw terminal block, model BMXFTB2020, as shown in the images. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
