ENDRESS+HAUSER TPR100-AAR2CC000

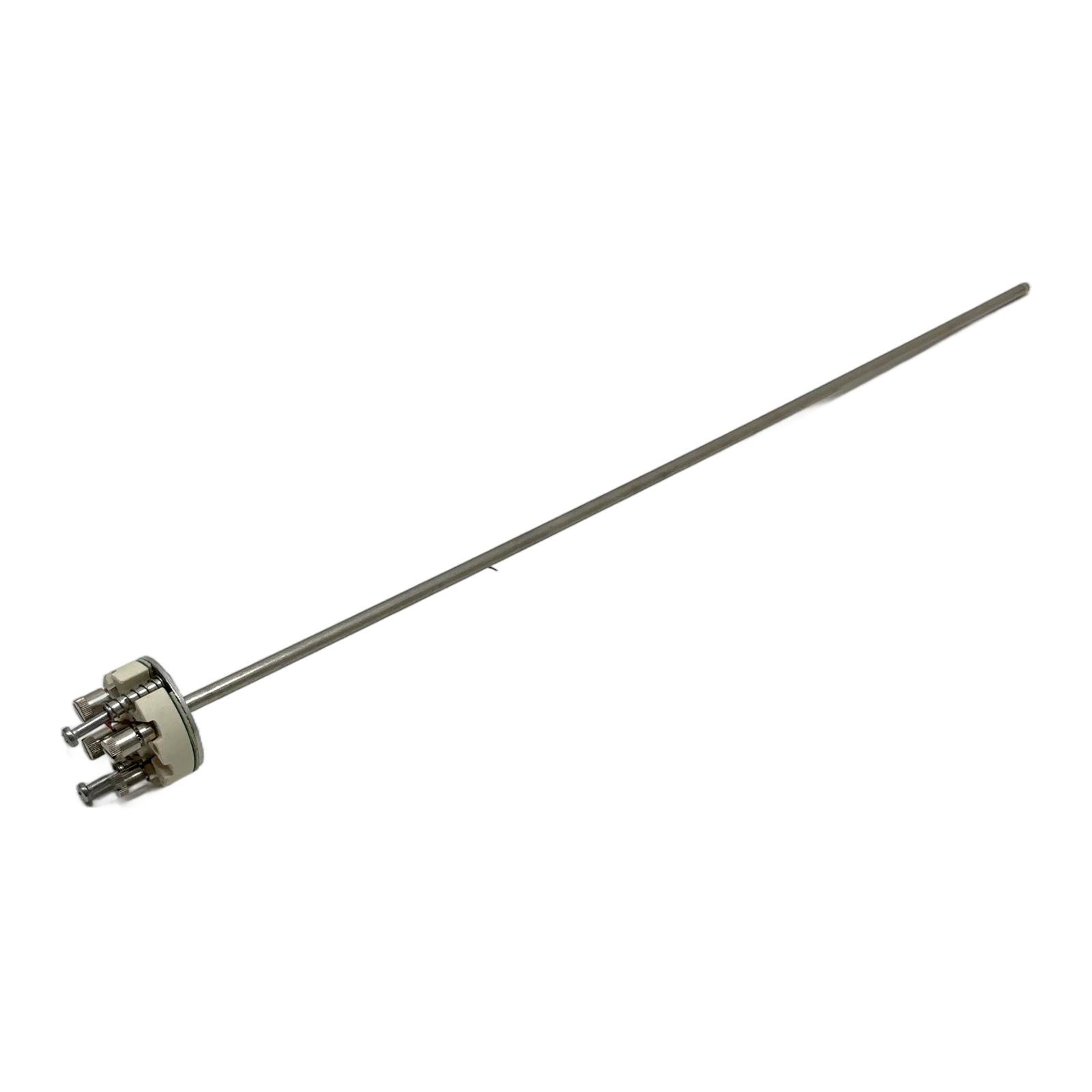

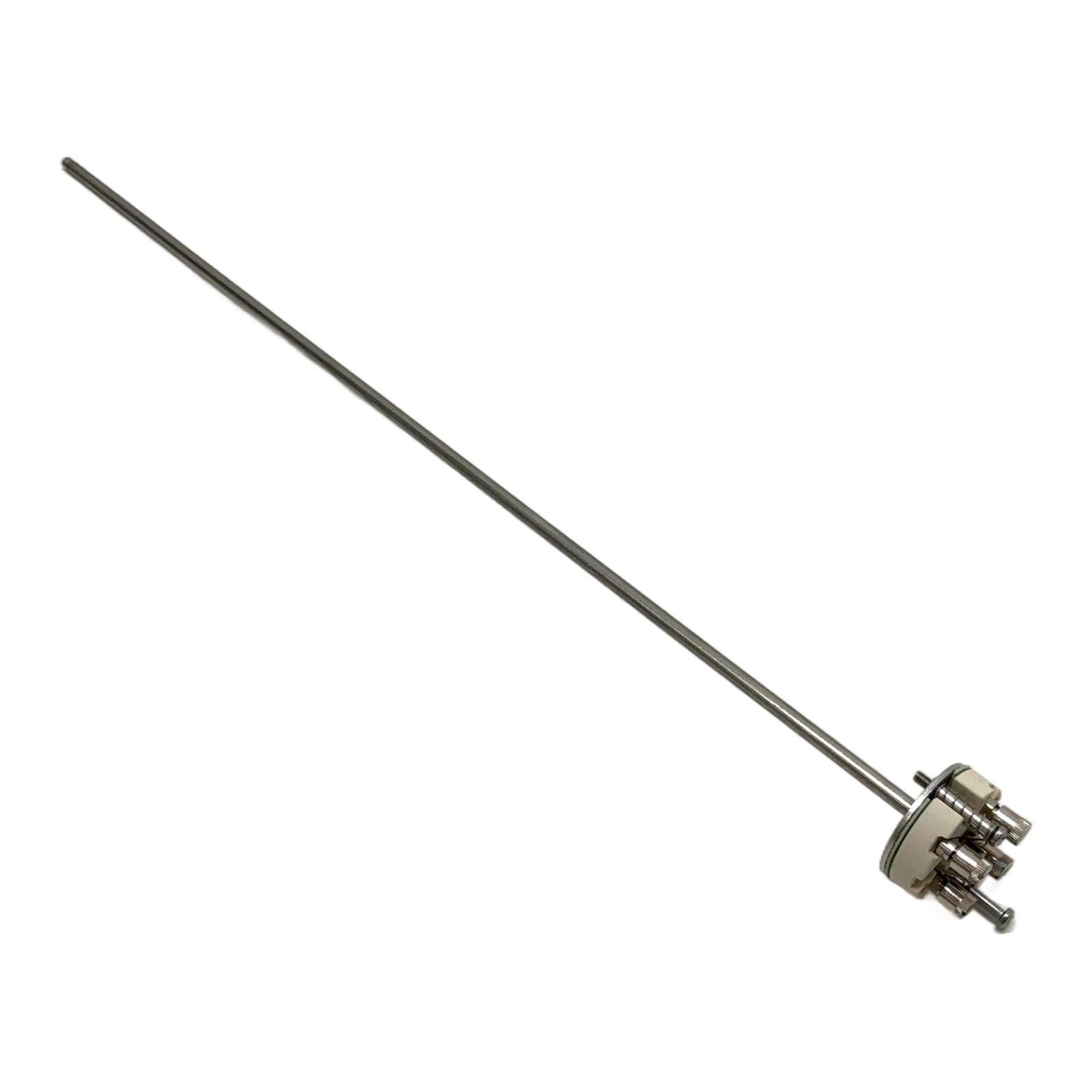

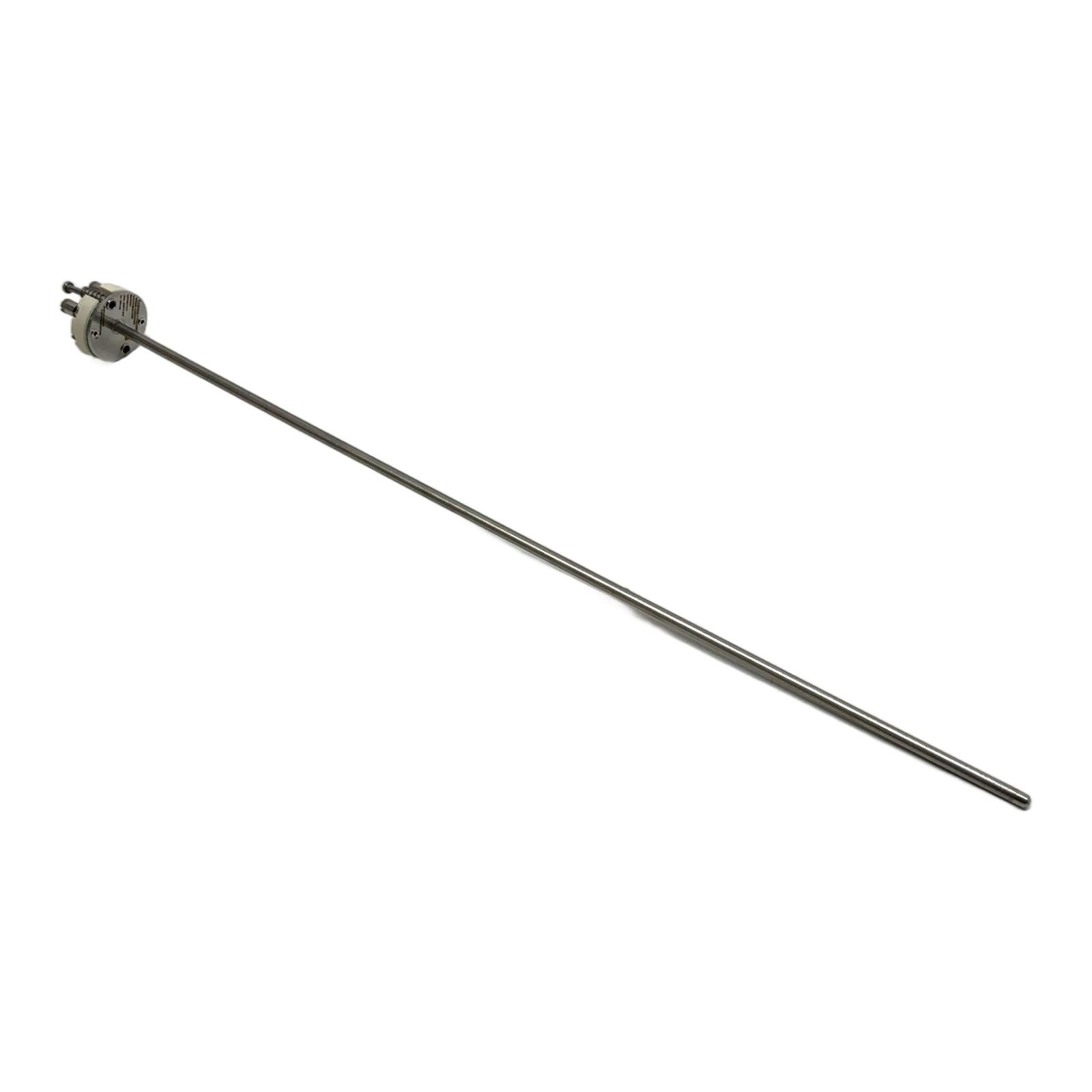

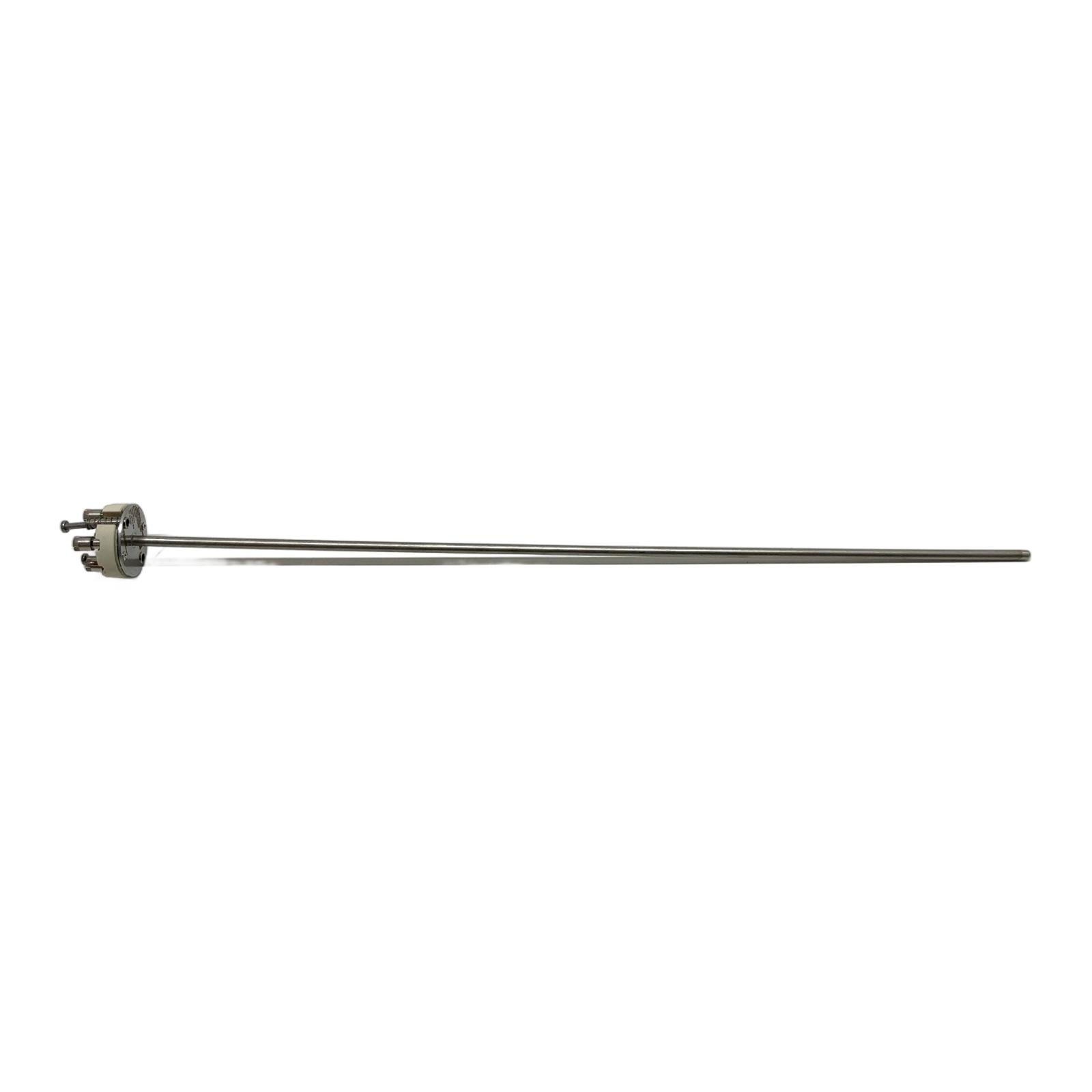

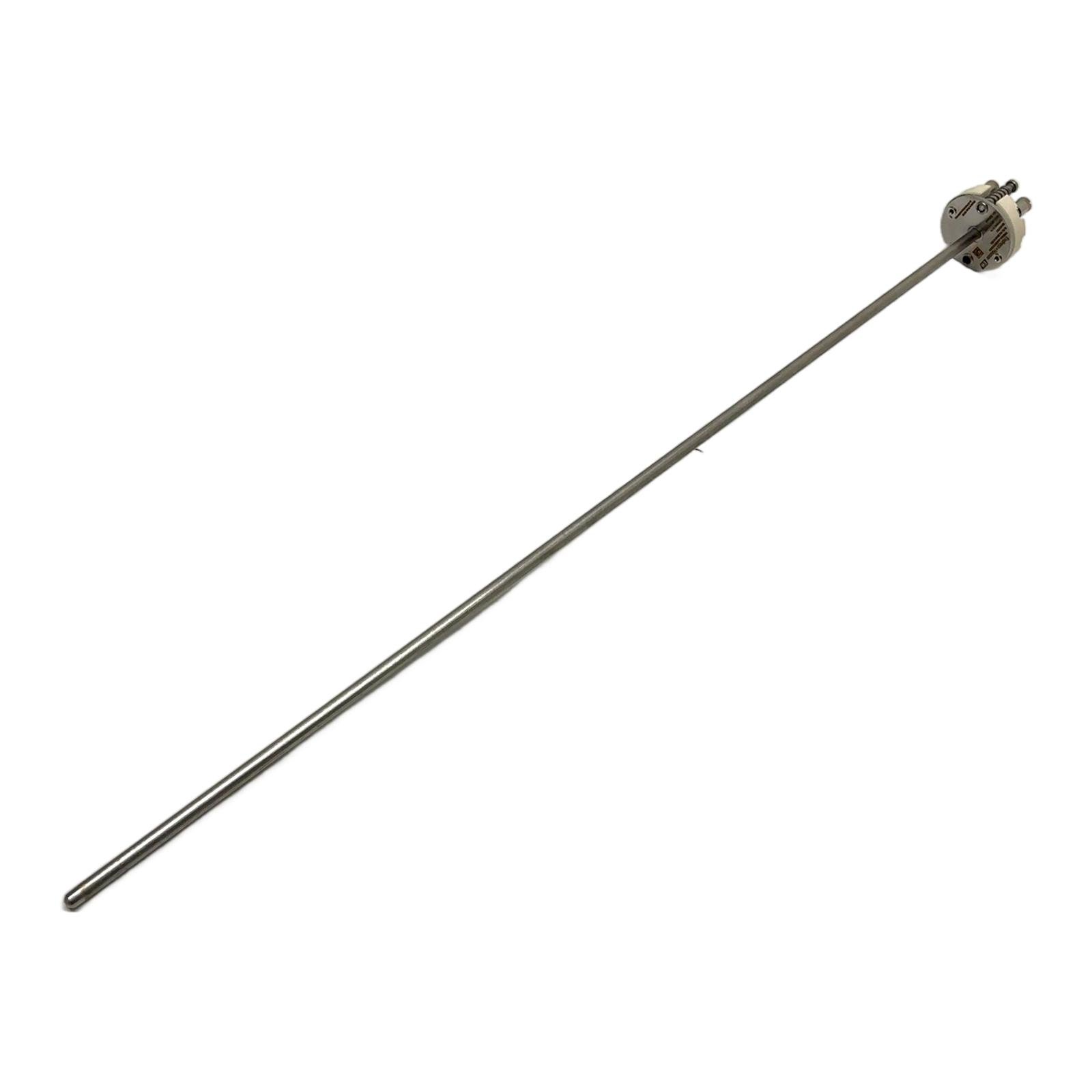

Endress+Hauser iTHERM TPR100 Temperature Sensor Description The Endress+Hauser iTHERM TPR100 is a high-quality RTD (Resistance Temperature Detector) sensor designed for universal use in industrial engineering. This specific model offers a wide temperature measurement range and high accuracy, making it suitable for critical process monitoring and control. The 4-wire Pt100 configuration provides the most accurate measurement by compensating for lead wire resistance. Specifications Manufacturer: Endress+Hauser Model: iTHERM TPR100 Order Code: TPR100-AAR2CC000 Sensor Element: 1x Pt100 Connection: 4-wire Accuracy: Class A as per EN 60751 Measuring Range: -200 to 600 deg C Immersion Length (IL): 525 mm Label Info S/N: PA1B4314180 Year of Manufacture: 2019 Application Ideal for temperature measurement in various industries, including chemical, power & energy, food & beverage, and primaries & metal. Suitable for installation in pipes, vessels, and other industrial equipment. Country of Origin Made in Italy. CO2 Impact By purchasing this pre-owned sensor, you help avoid approximately 20 kg of CO2 emissions associated with the production of a new one. This saving is comparable to the emissions from charging a smartphone over 2400 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a 2-wire, 3-wire, and 4-wire Pt100 sensor like this one?A 4-wire connection, as used in this sensor, is the most accurate. It uses two wires to carry the excitation current and two separate wires to measure the voltage drop across the Pt100 element, completely eliminating the influence of the lead wire resistance from the measurement. Can this TPR100 sensor be connected directly to a PLC’s analog input?Typically, no. A Pt100 sensor requires a dedicated RTD input module on a PLC or a separate signal transmitter/conditioner that converts the resistance value into a standard analog signal like 4-20mA or 0-10V. What is the accuracy class ‘A’ according to EN 60751?Class A specifies a tighter tolerance than the standard Class B. For a Pt100 sensor, the tolerance is plus/minus (0.15 + 0.002 * |t|), where t is the temperature in degrees Celsius. This ensures higher precision in critical temperature measurements. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
