SOCOMEC SIRCO M 22003000

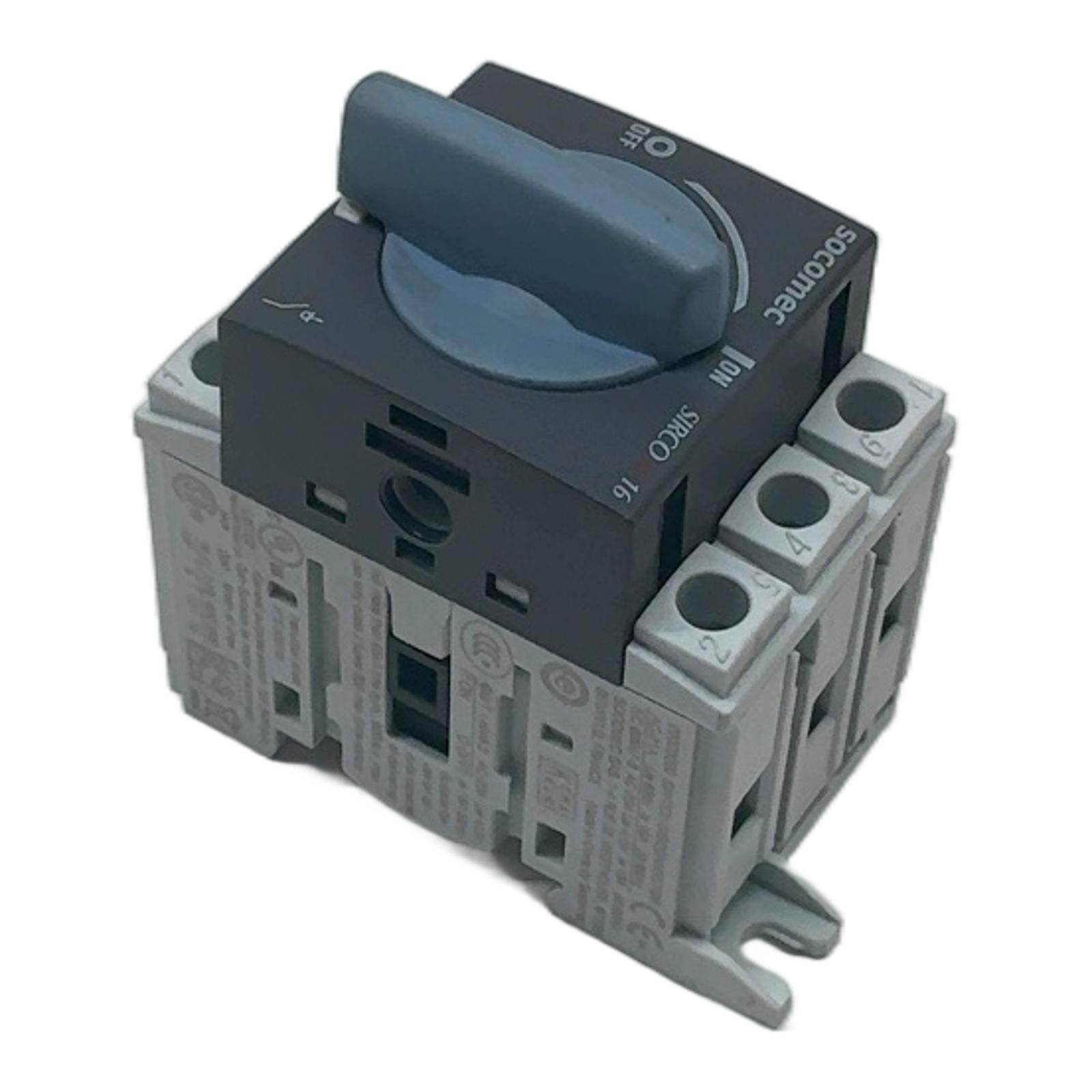

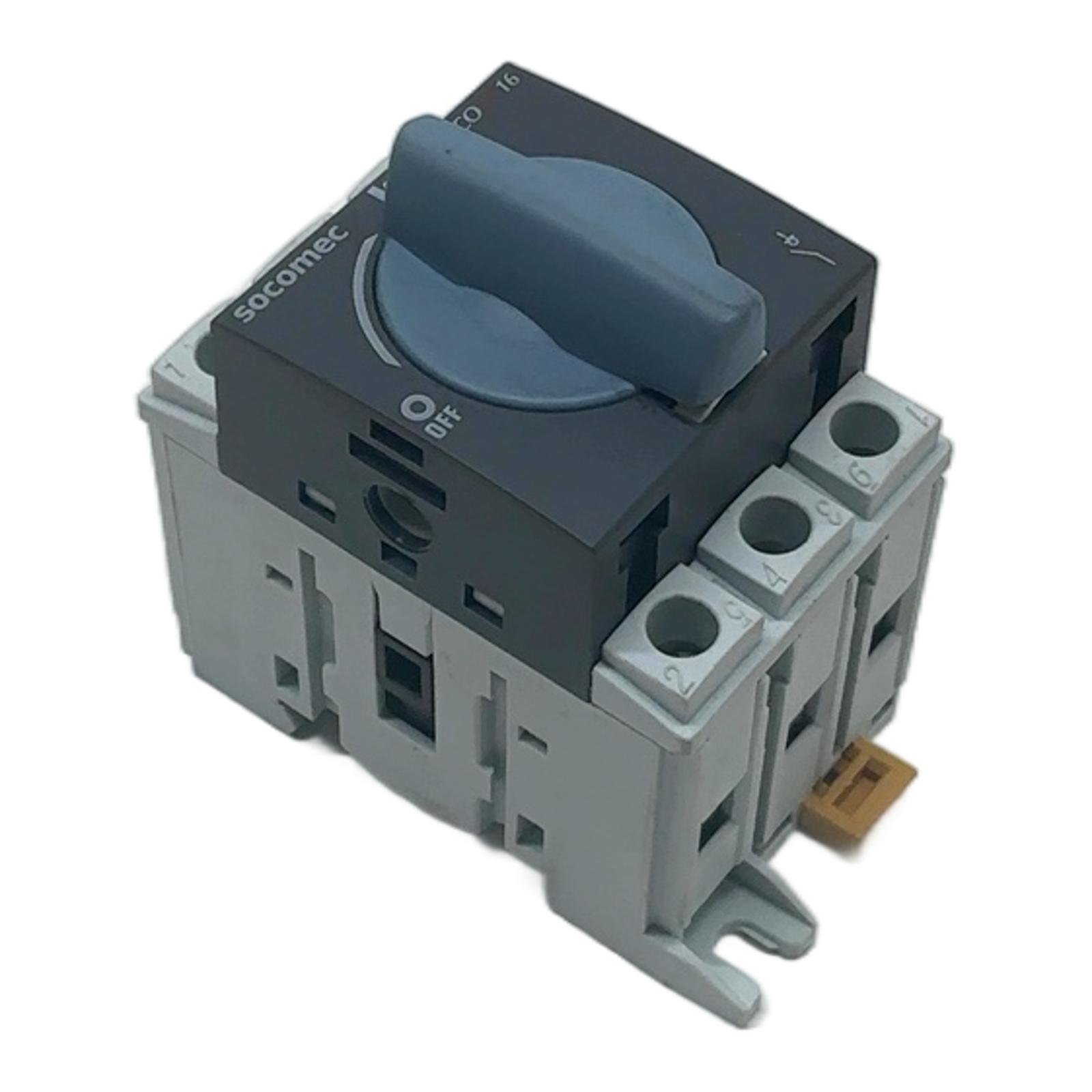

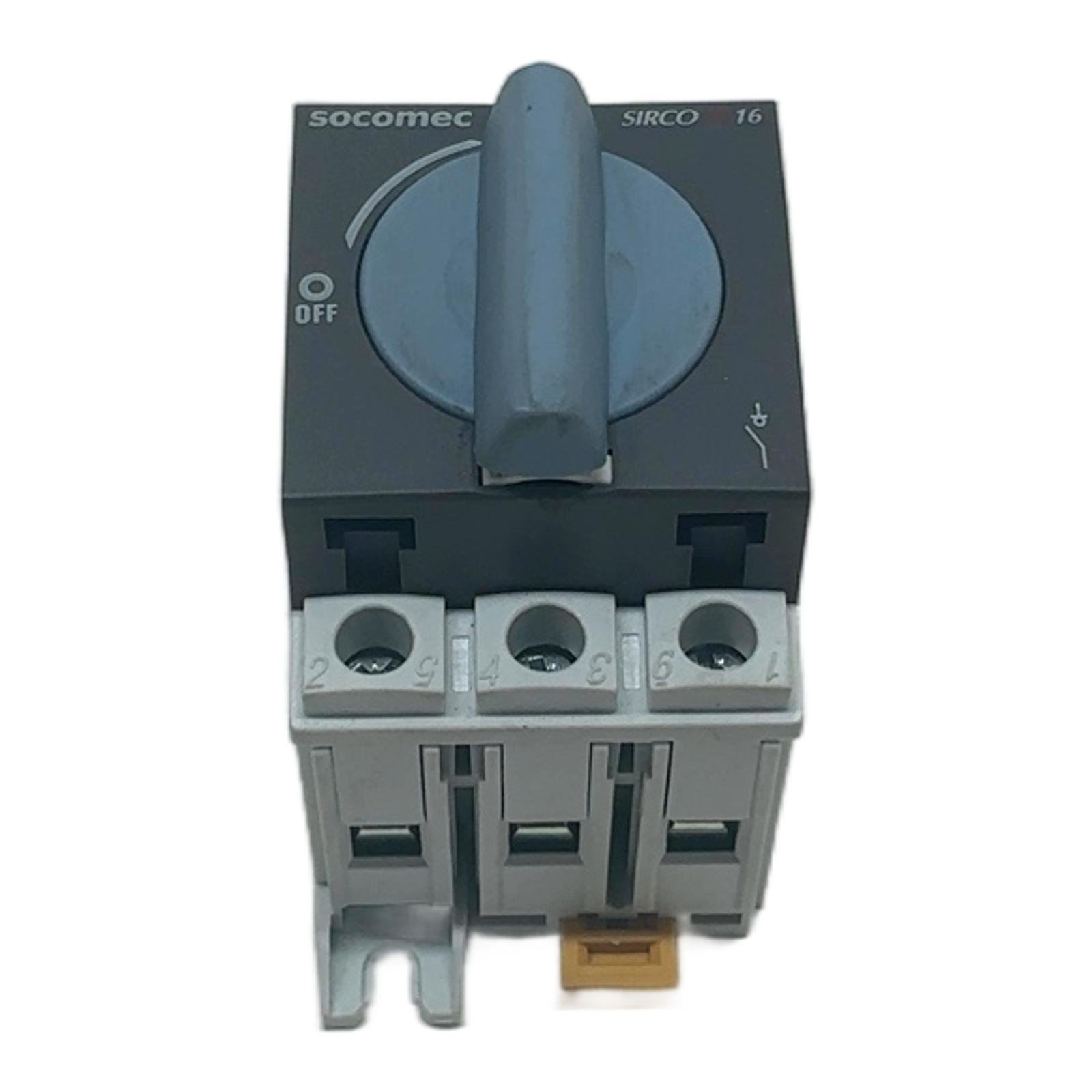

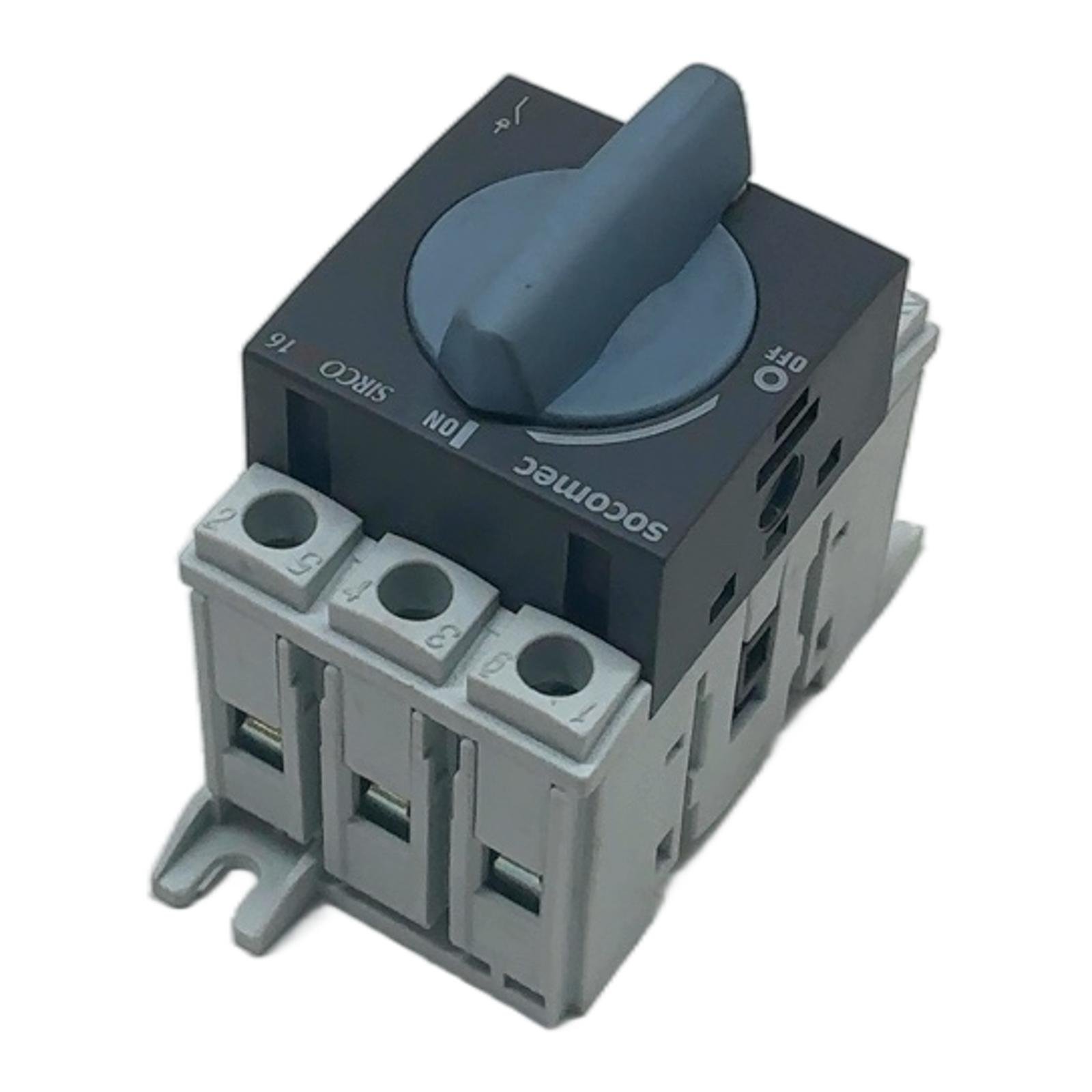

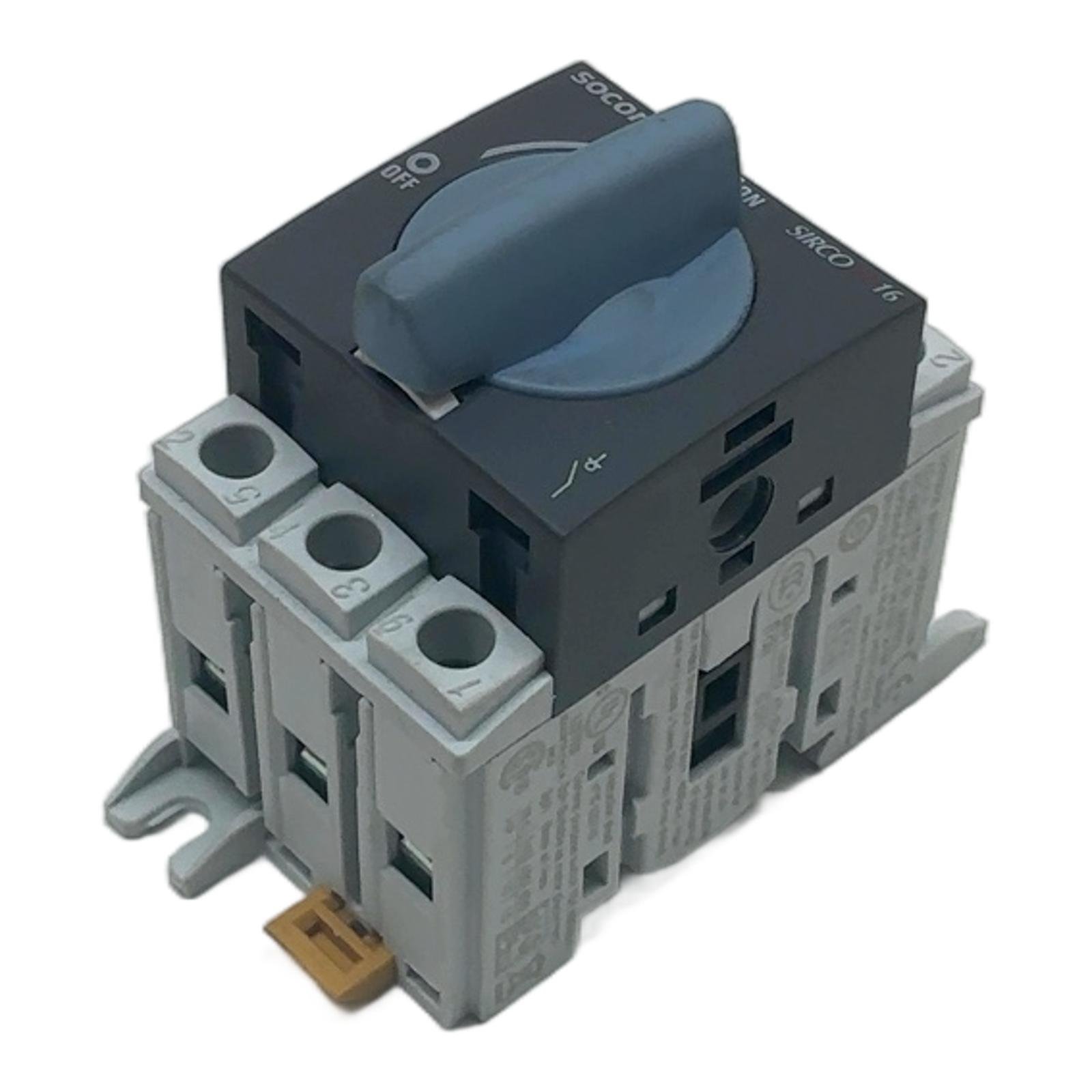

Socomec SIRCO M 16A 3-Pole Switch Disconnector Description The Socomec 22003000 is a modular switch disconnector from the SIRCO M series, engineered for safety and reliability in low-voltage electrical installations. This 3-pole device provides dependable on-load breaking and making, serving as an excellent main switch or motor disconnect. Its compact design allows for easy integration into control panels via DIN rail or direct panel mounting. Specifications Manufacturer: Socomec Series: SIRCO M Part Number: 22003000 Rated Operational Current (Ie): 16A Rated Operational Voltage (Ue): up to 690V AC Number of Poles: 3 Mounting: DIN Rail or Panel Mount Standards: IEC 60947-3, UL, CSA Label Info AC-21A: Ue 690V, Ie 16A, 50/60Hz AC-23A: Ue 415V, Ie 16A, 50/60Hz UL Listed: General purpose switch 16A 600V AC Motor Rating: 5 HP at 240V, 10 HP at 480/600V Application Ideal for use as a local safety isolation switch, main switch in distribution boards, or as a motor disconnect switch in various industrial machinery and commercial building applications. Country of Origin This product is designed by Socomec in France and manufactured in China. CO2 Impact Opting for this component helps avoid the emission of approximately 4.8 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the carbon sequestered by a young tree over several months. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Can this switch be used for motor control applications? Answer:Yes, the Socomec SIRCO M 22003000 is UL listed and rated as suitable for motor disconnect applications. According to the label, it can handle up to 10 HP at 480/600V AC. Question?What type of mounting is this switch designed for? Answer:This switch is designed for versatile mounting. It features integrated clips for standard 35mm DIN rail mounting and also has provisions for direct panel mounting with screws. Question?What is the short-circuit withstand capability of this device? Answer:The label indicates it is suitable for use on circuits capable of delivering up to 65kA rms symmetrical current at 600V AC, provided it is protected by Class J fuses with a maximum rating of 30A (time-delay). profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
