AHW ELEKTRONIK NG756 1798

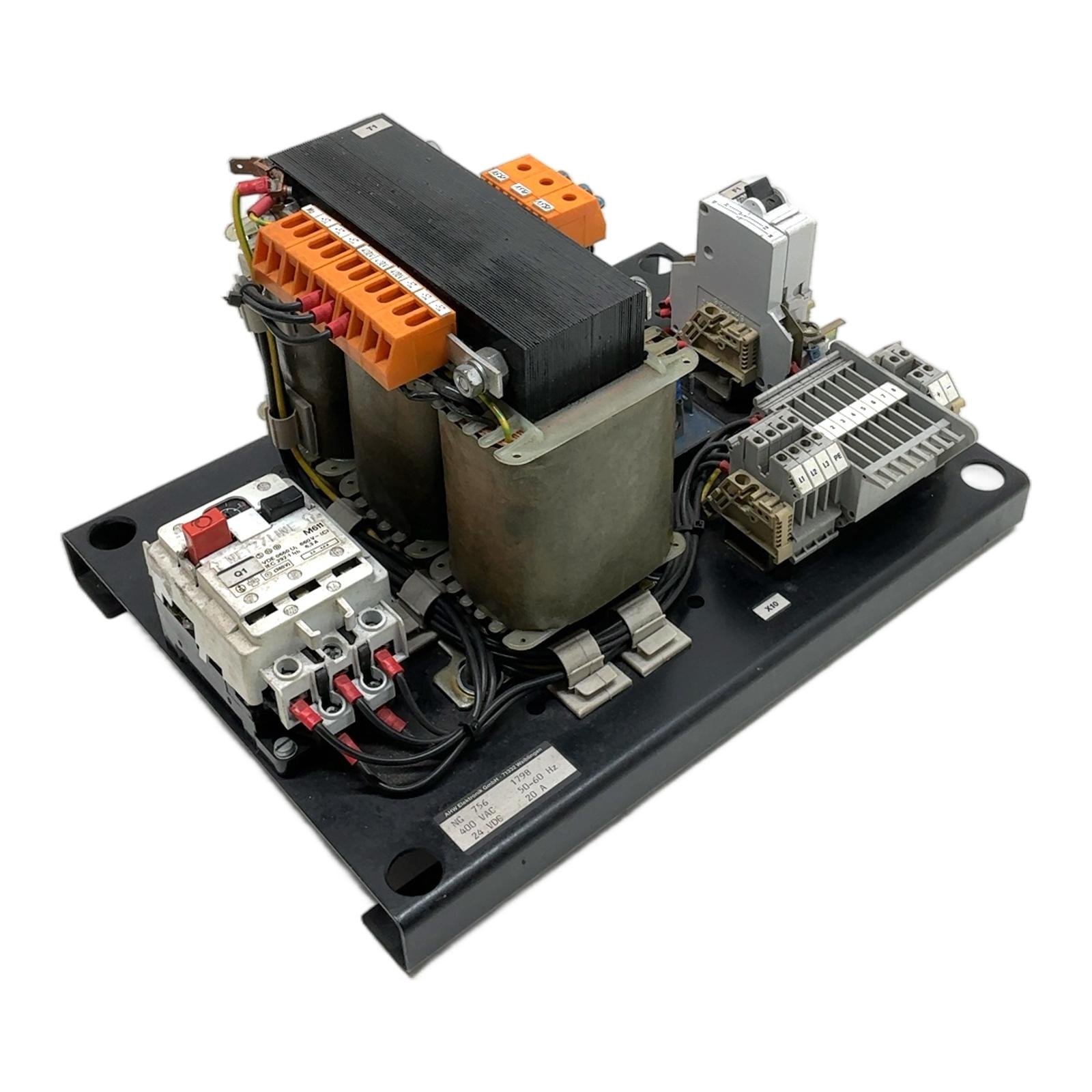

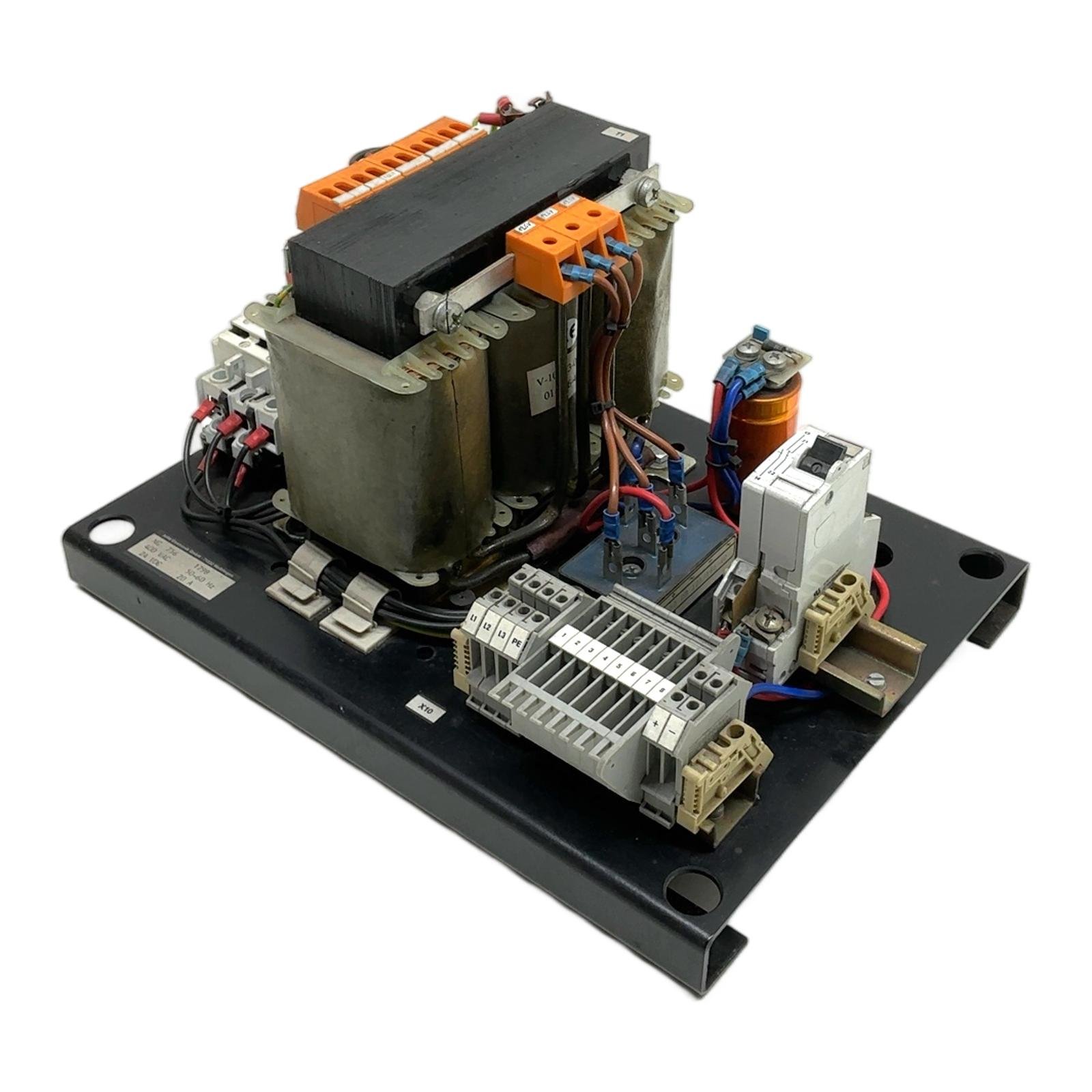

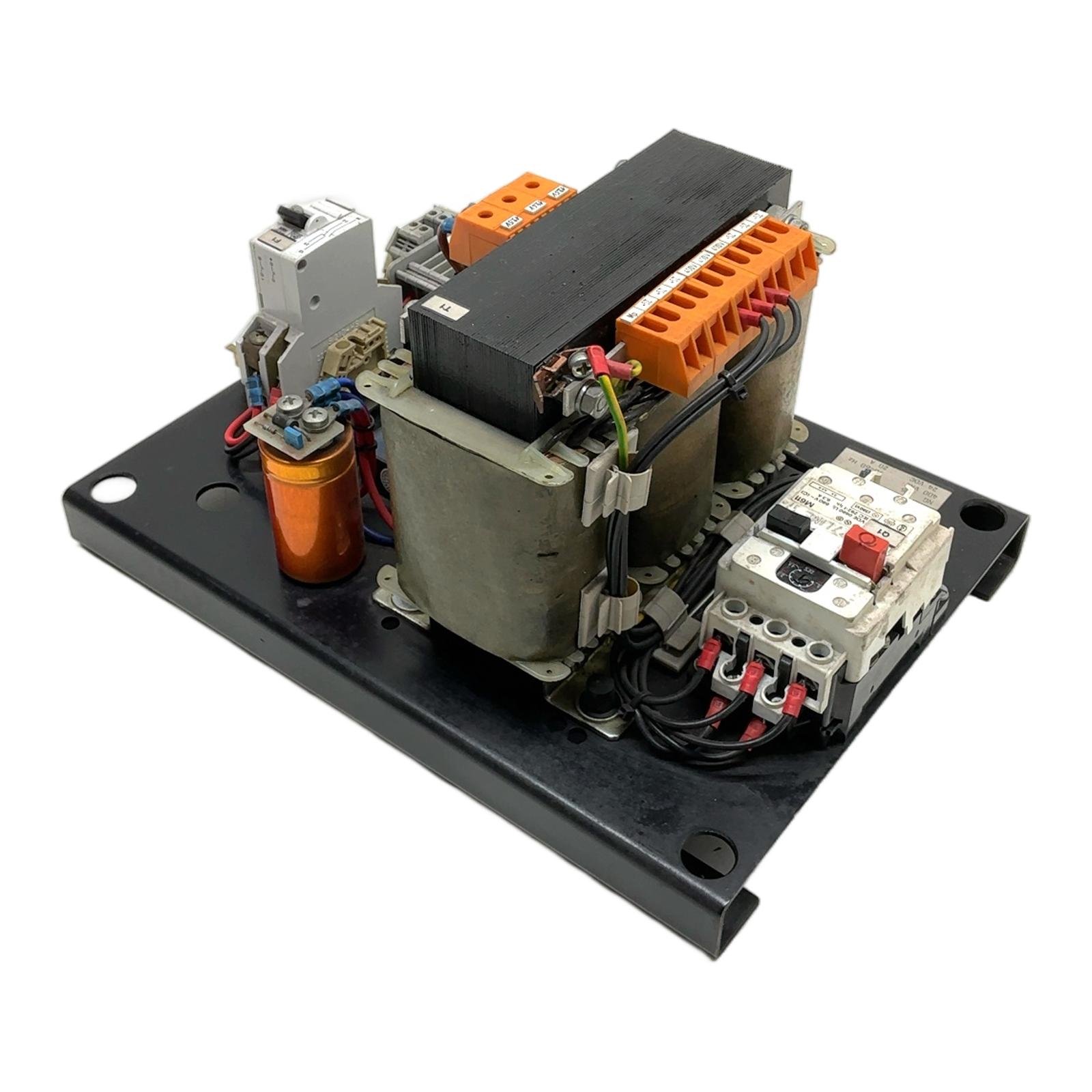

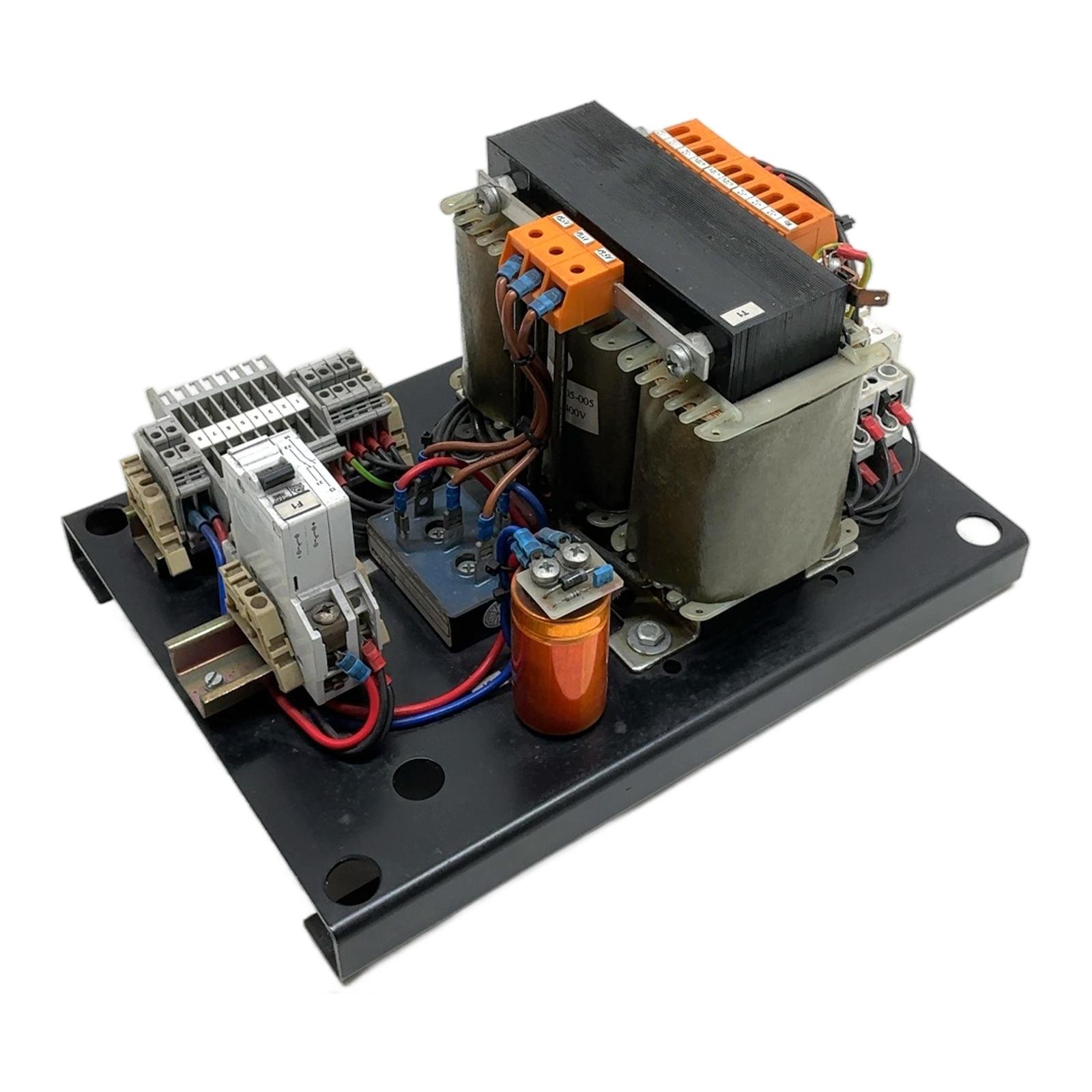

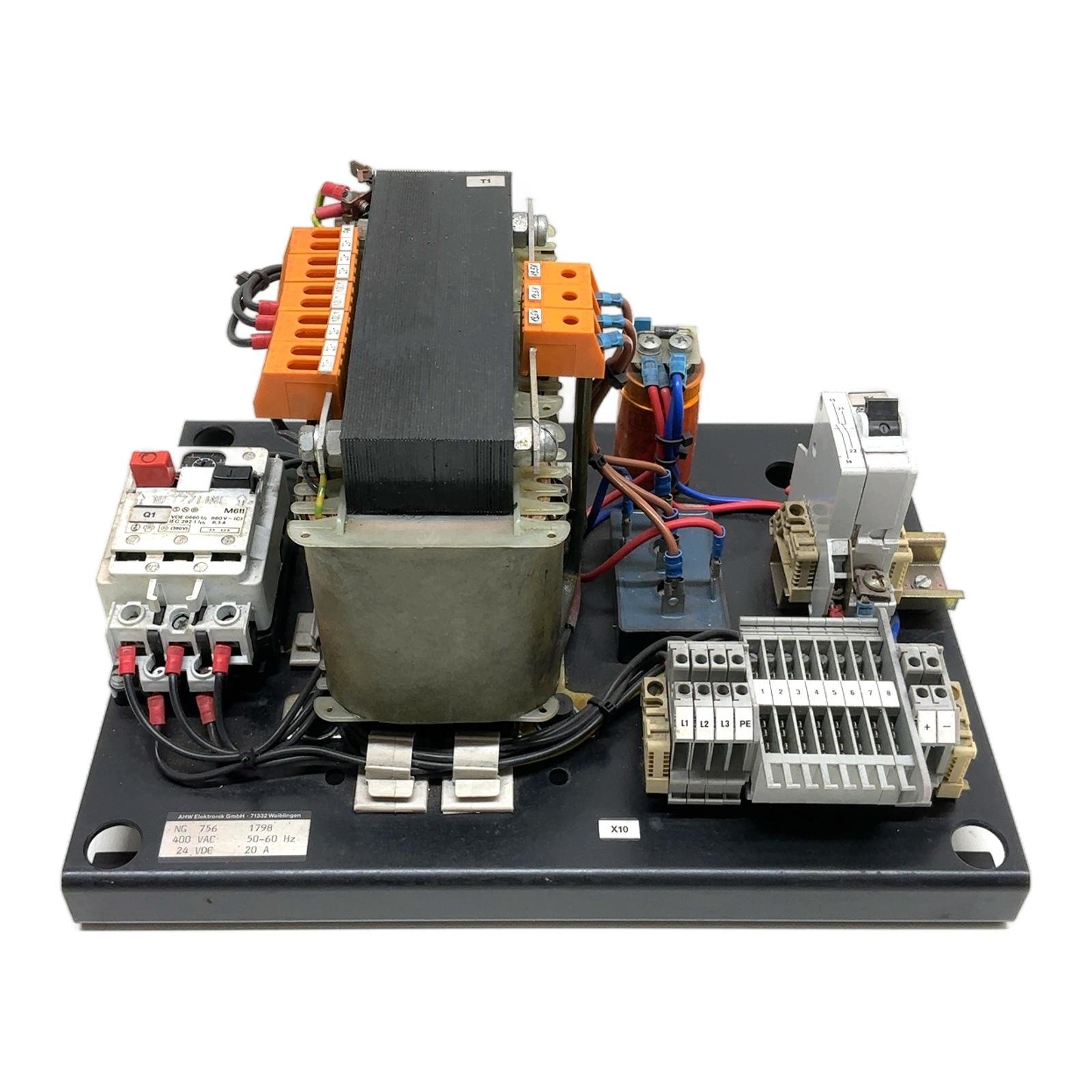

AHW Elektronik Power Supply Unit NG 756 Description This is a heavy-duty industrial power supply assembly, model NG 756, manufactured by AHW Elektronik GmbH. It is designed to provide a reliable 24 VDC power source from a 400 VAC input. The unit is built on a solid metal chassis and integrates key components, including a large transformer for galvanic isolation and voltage conversion, and a Klockner-Moeller (Eaton) PKZM0-10 motor protection circuit breaker. This makes it a complete and robust power solution for industrial control systems, motors, and other automation equipment. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: AHW Elektronik GmbH Model: NG 756 Input Voltage: 400 VAC Frequency: 50-60 Hz Output Voltage: 24 VDC Output Current: 20 A Configuration: Assembled unit on mounting plate Label Info AHW Elektronik GmbH – 71332 Waiblingen NG 756 1798 400 VAC, 50-60 Hz 24 VDC, 20 A Application Ideal for powering control cabinets, small machinery, solenoid valves, and other 24 VDC components in an industrial environment where a 400V AC source is available. Country of Origin Made in Germany. CO2 Impact By purchasing this reused item, you are contributing to a circular economy and helping to avoid approximately 54 kg of CO2 emissions that would be generated from manufacturing a new one. Availability This is an obsolete item, but it is in stock and ready for immediate dispatch. Its durable linear design ensures a long service life. FAQ What is the input voltage connection for this unit?The unit is designed for a 400 VAC input. Given the typical industrial application, it is likely intended for connection between two phases of a three-phase system, but you should always verify the connection scheme based on the machine it was removed from or consult an electrical expert. Is the 24VDC output regulated?As a linear power supply with a large transformer and capacitor, the output is smoothed and filtered DC. However, it may be an unregulated supply, meaning the voltage could vary slightly with input voltage and load. For highly sensitive electronics, you should verify if its voltage stability meets your requirements. What is the function of the integrated Klockner-Moeller PKZM0-10 component?The PKZM0-10 is a motor protection circuit breaker. Its inclusion suggests this power supply was likely used to power a DC motor or a system with inductive loads, providing both overcurrent protection and a manual disconnect function. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
