SCHNEIDER ELECTRIC GV2L16

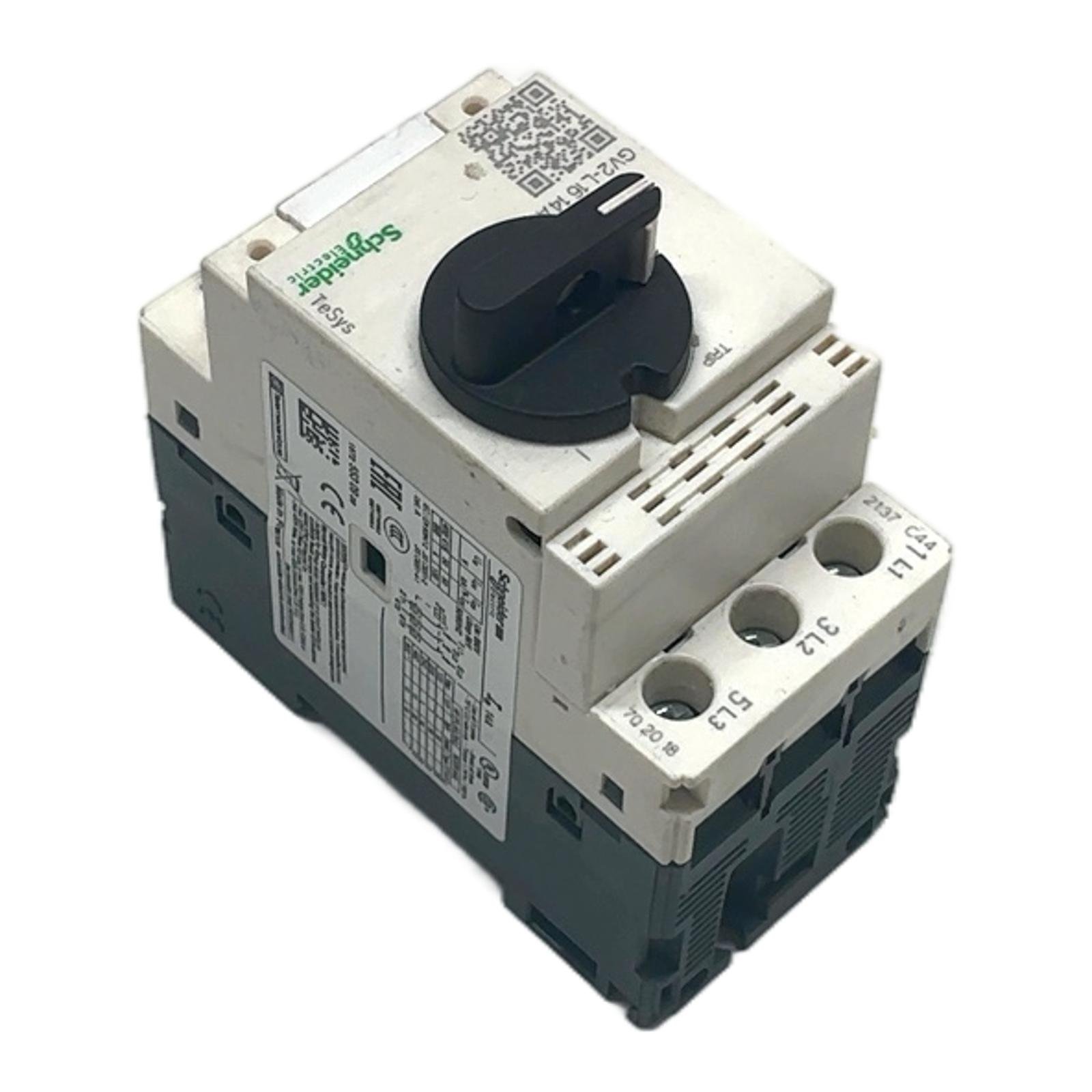

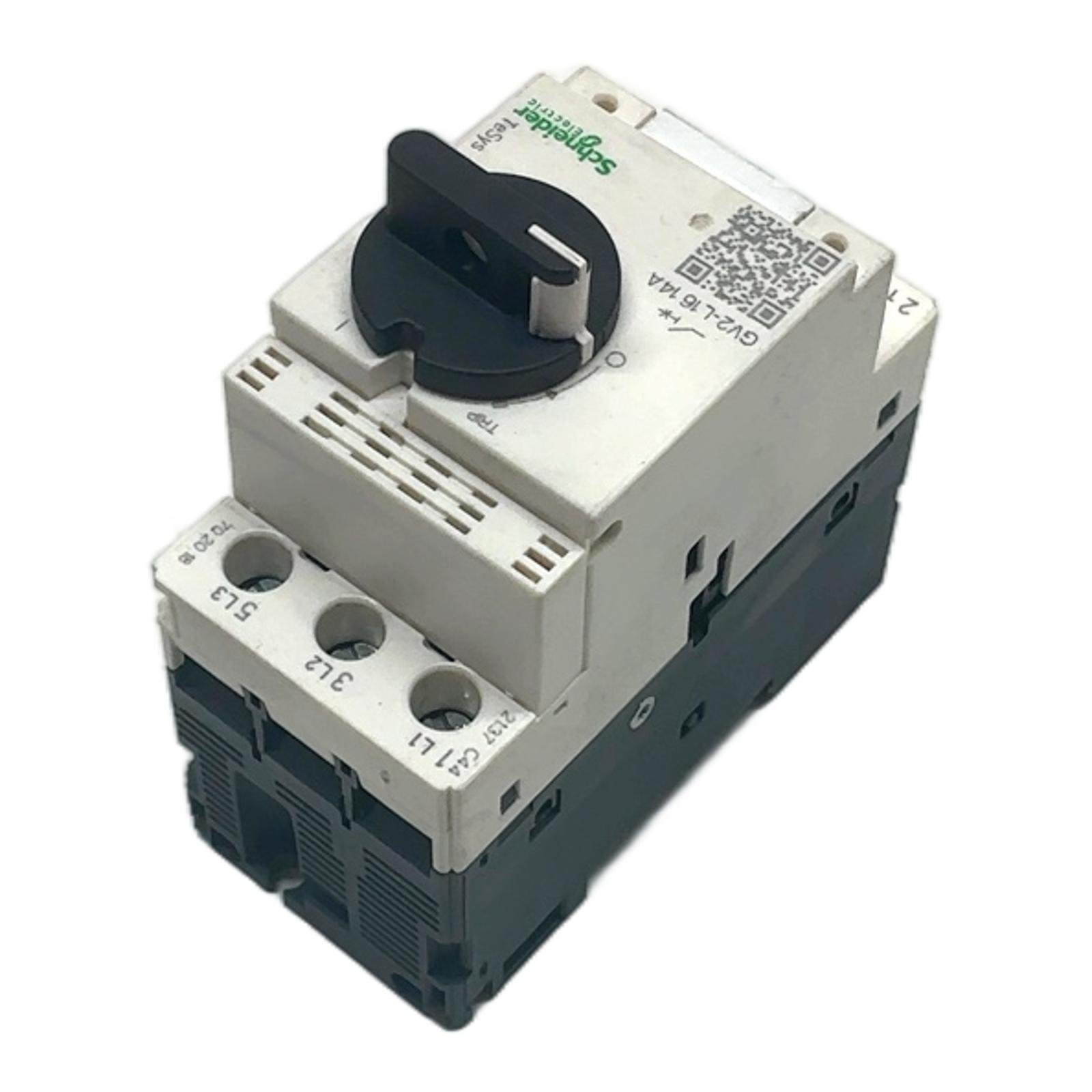

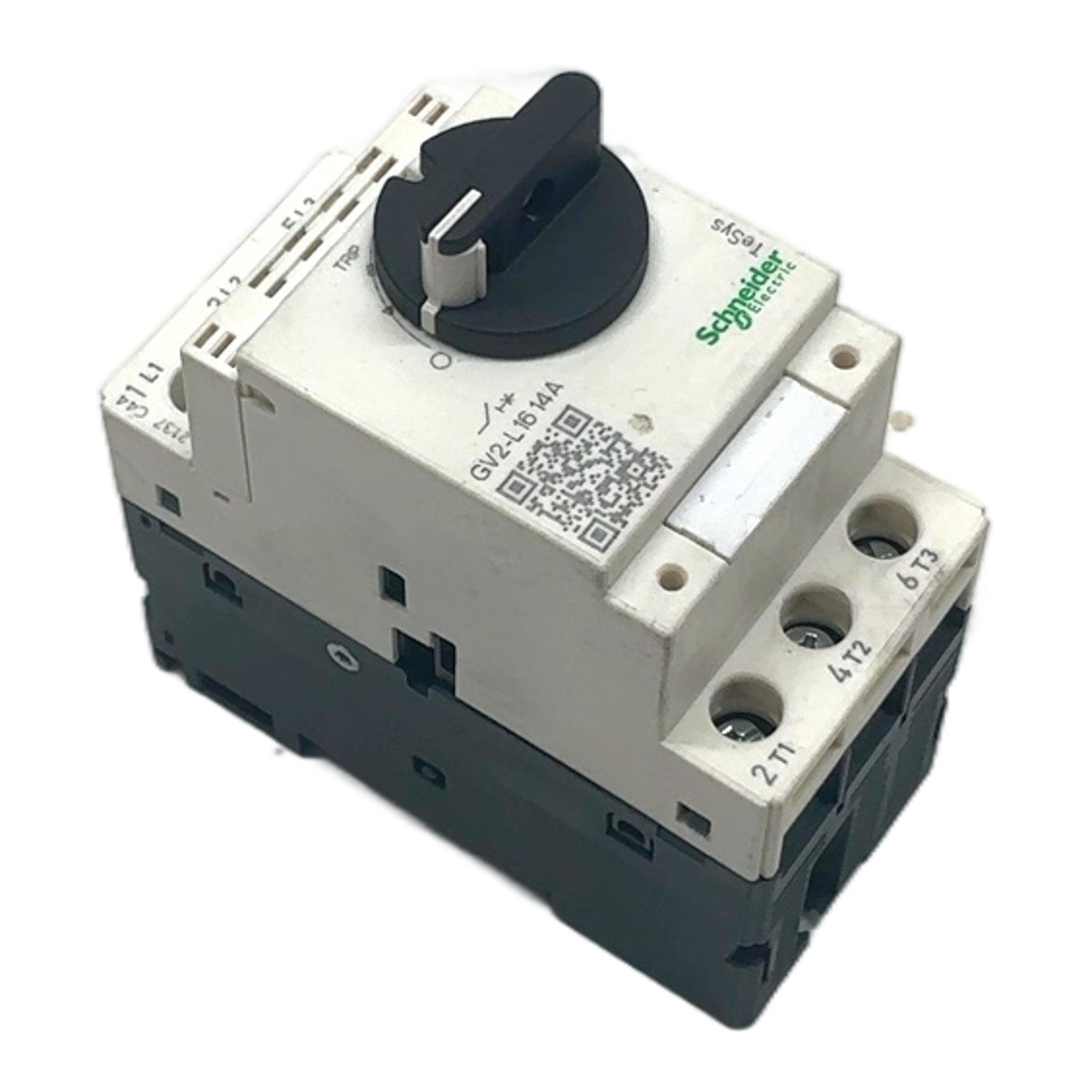

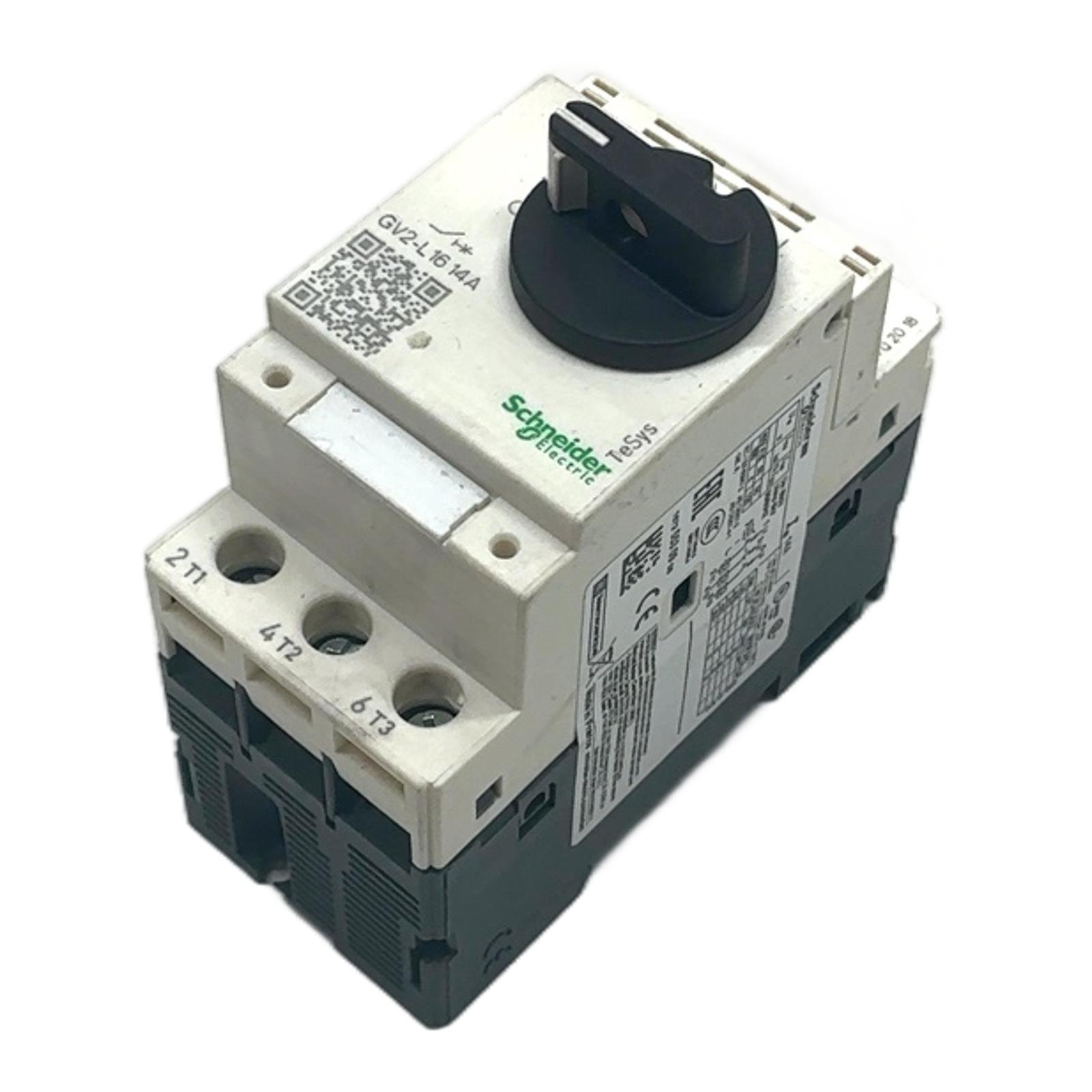

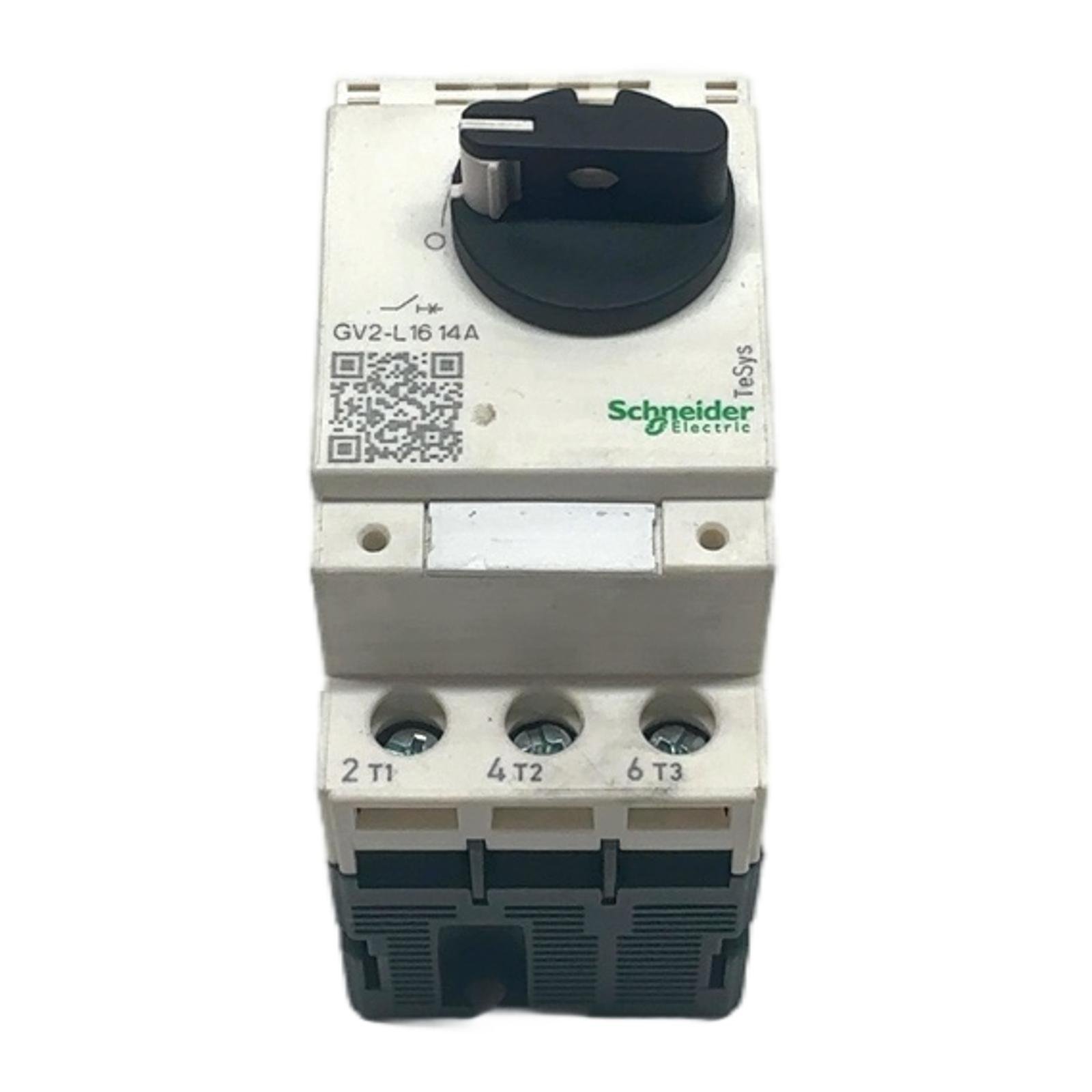

Schneider Electric TeSys GV2 Magnetic Circuit Breaker Description The GV2L16 is a high-performance 3-pole magnetic circuit breaker from the Schneider Electric TeSys GV2 series. It is specifically engineered to provide short-circuit protection for electric motors. With a rated current of 16A and a voltage rating up to 690V, it offers robust protection in a compact form factor suitable for DIN rail mounting. The rotary knob provides clear and easy manual control for starting and stopping motors. Specifications Manufacturer: Schneider Electric Product Range: TeSys Model: GV2L16 Type: Magnetic Motor Circuit Breaker Poles: 3-Pole Rated Current (Ith): 16 A Rated Operational Voltage (Ue): 690V AC 50/60 Hz Rated Impulse Withstand Voltage (Uimp): 6 kV Terminals: Screw Clamp Mounting: 35mm DIN Rail Label Info Standards: IEC/EN 60947-2, IEC/EN 60947-4-1 Breaking Capacity (Icu) at 400/415V: 50 kA UL Listed: 170M Application This circuit breaker is ideal for use in industrial control panels for the protection of three-phase AC motors against short circuits. It is commonly found in applications such as conveyor systems, pumps, fans, and other machinery requiring reliable motor control. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you help avoid the 10.4 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the GV2L (magnetic) and GV2M (thermal-magnetic) series?The GV2L series, like this GV2L16, provides only magnetic (short-circuit) protection and must be used in conjunction with a separate thermal overload relay. The GV2M series combines both thermal (overload) and magnetic (short-circuit) protection in a single device. Can this GV2L16 breaker be used for single-phase motor applications?Yes, it can be used for single-phase applications. To do so, the three poles must be wired in series according to the manufacturer’s instructions to ensure proper operation and protection. What is the recommended tightening torque for the terminal screws?As indicated on the device label, the recommended torque for the screw clamp terminals is 1.7 Nm (or 15 lb.in) to ensure a secure and reliable connection. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
