SCHNEIDER ELECTRIC STB XTS 6610

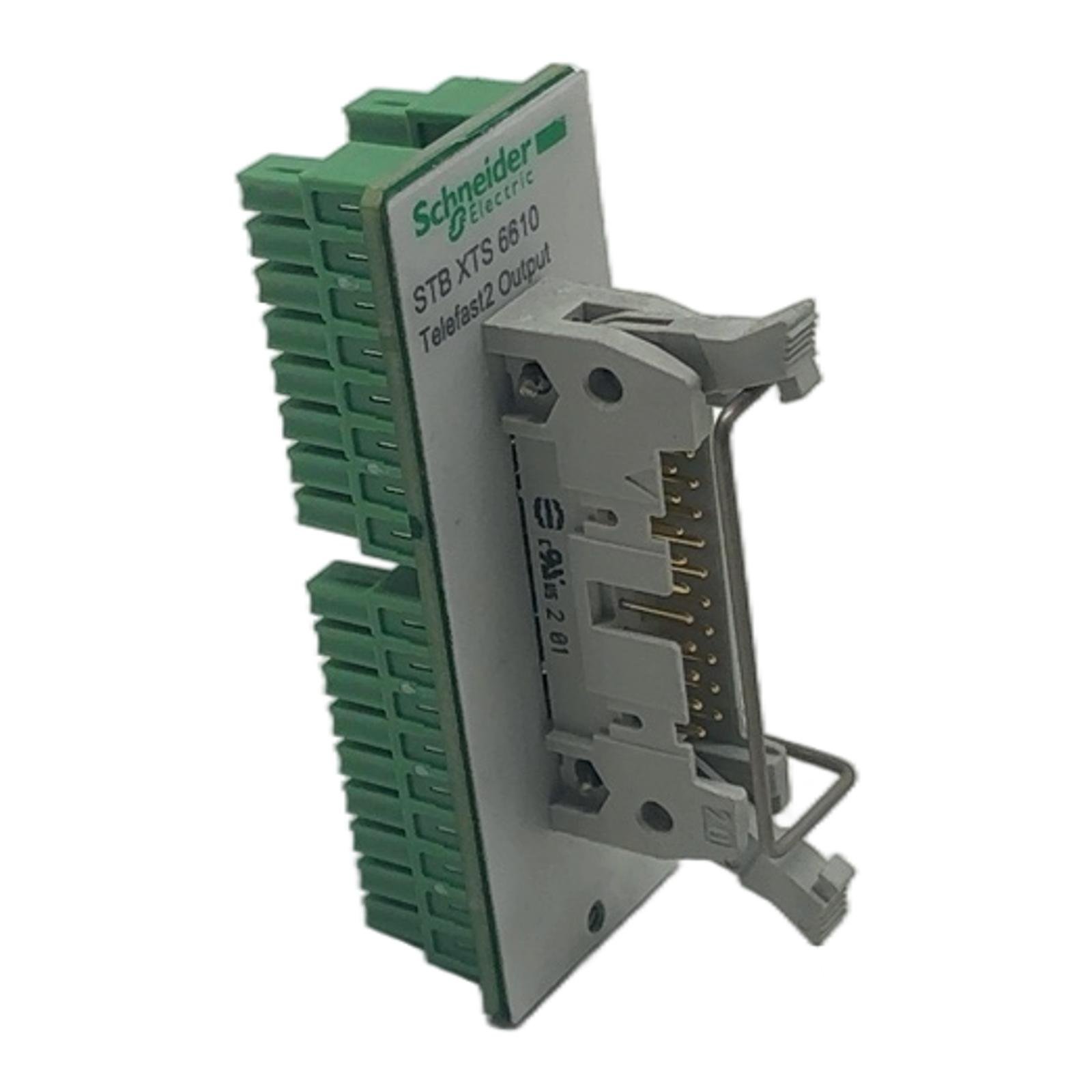

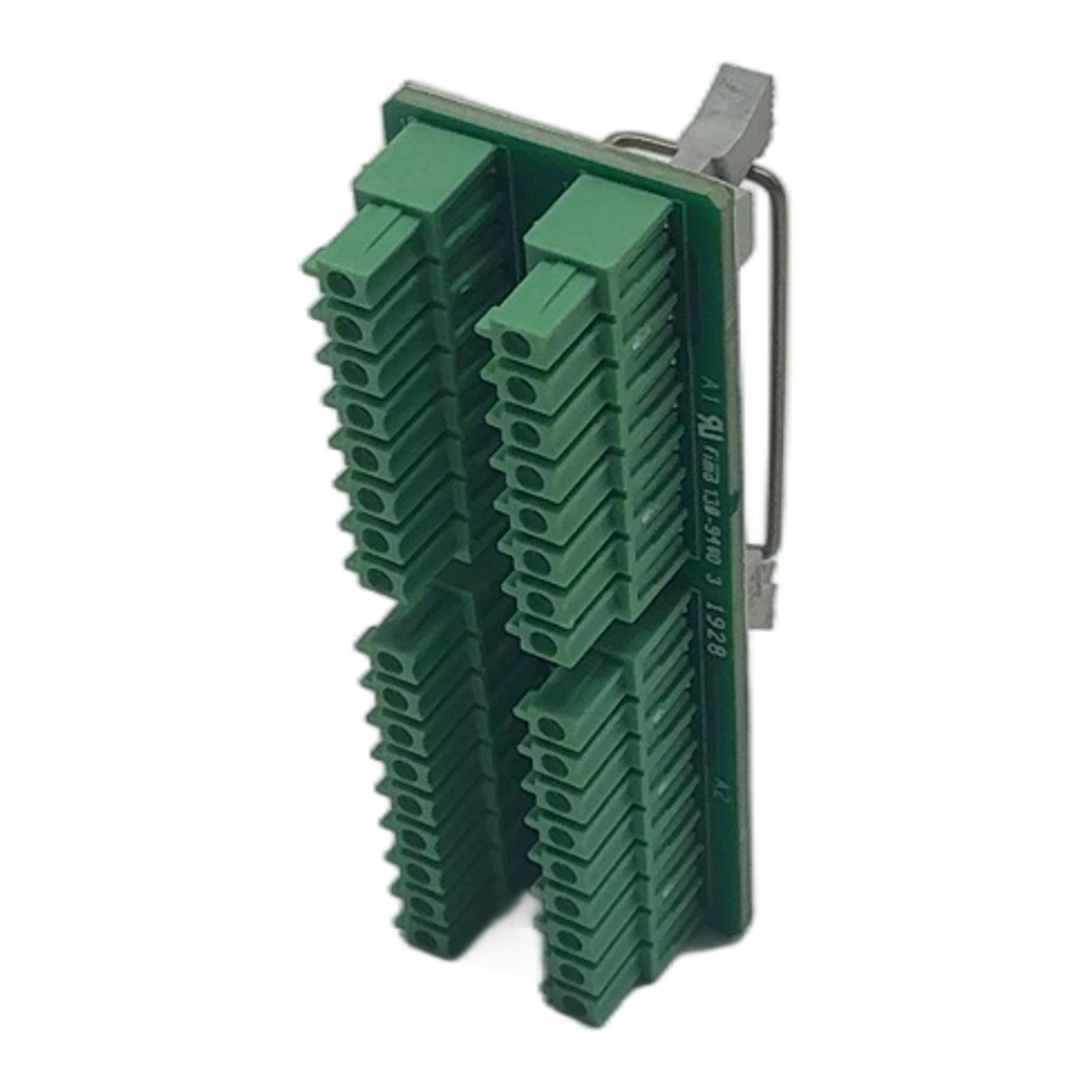

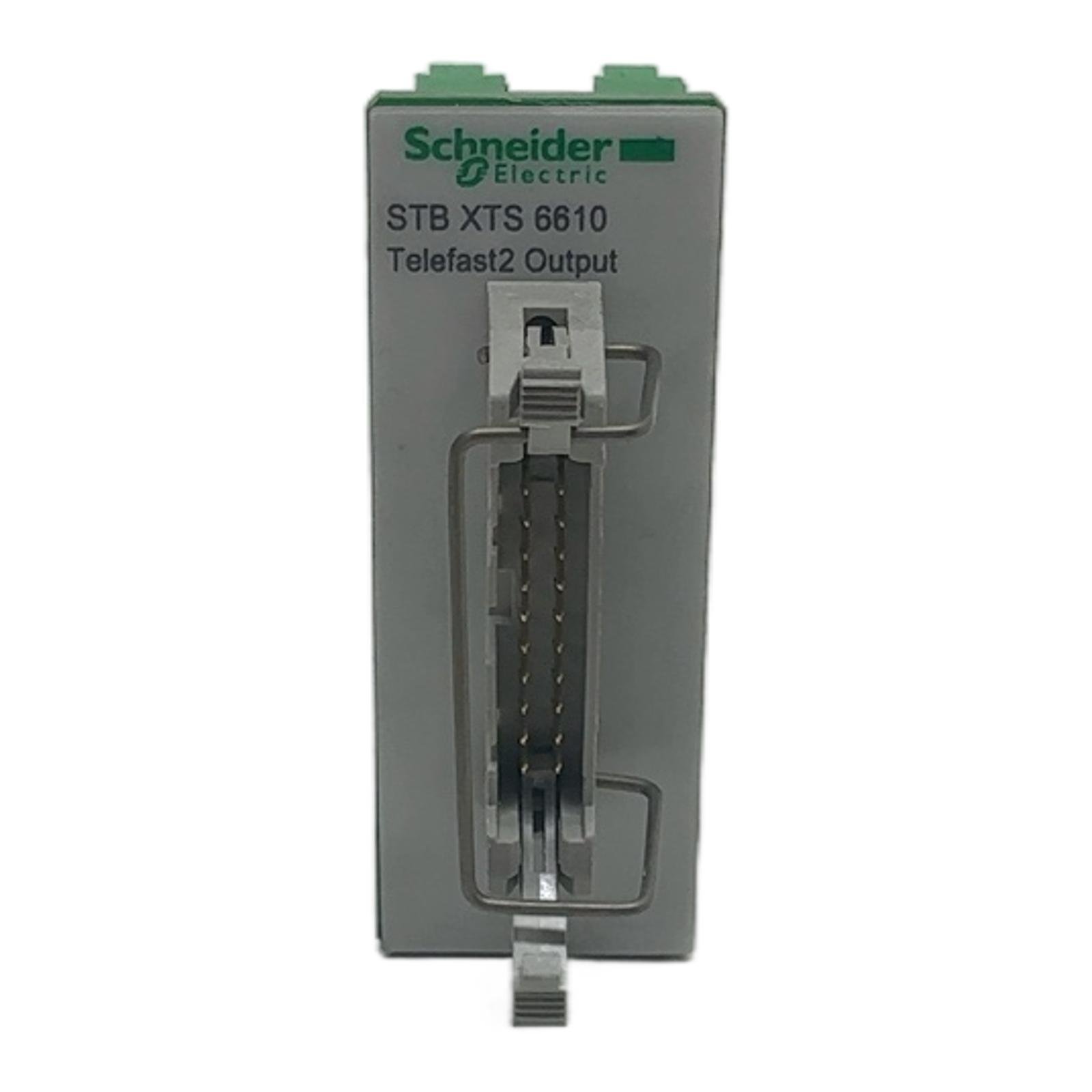

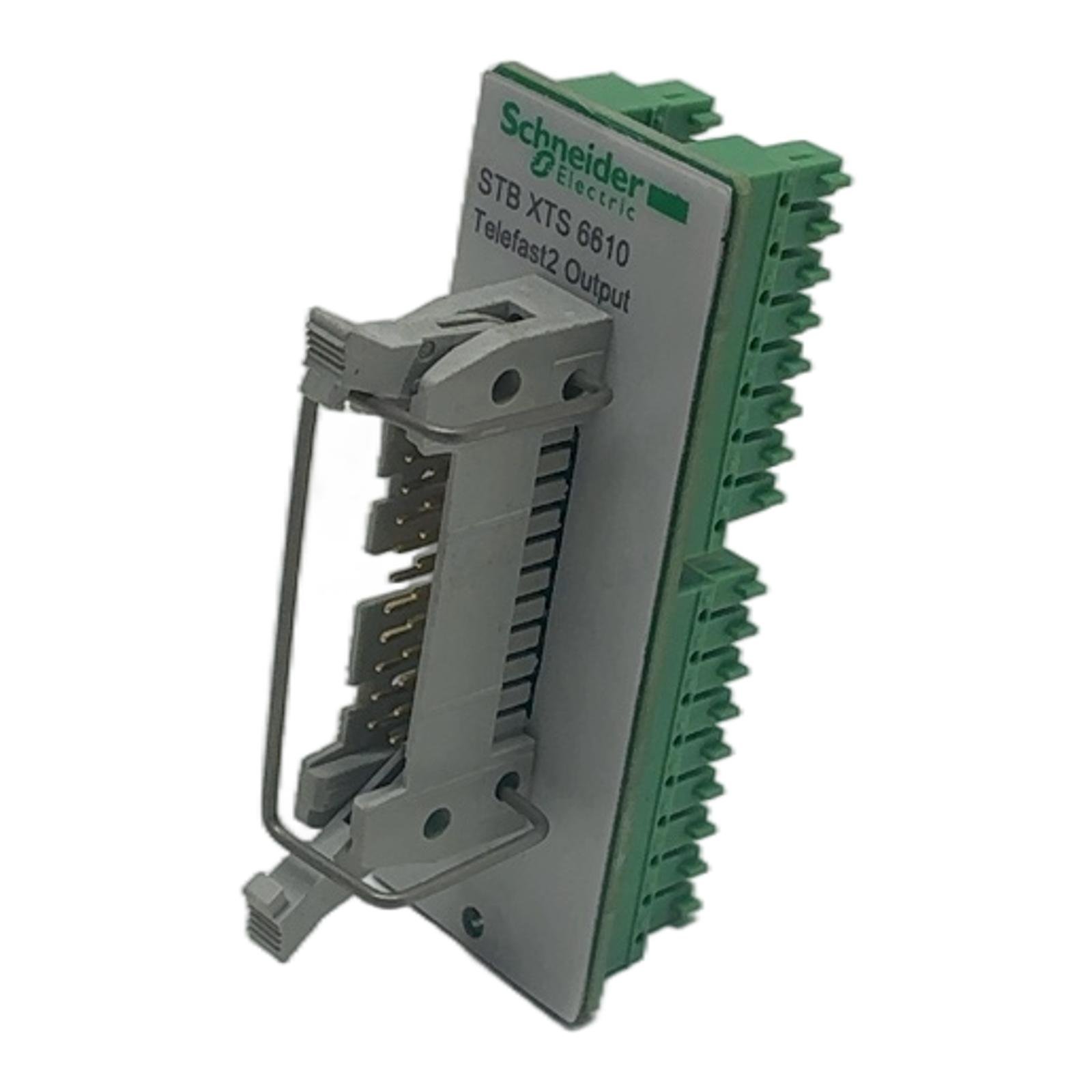

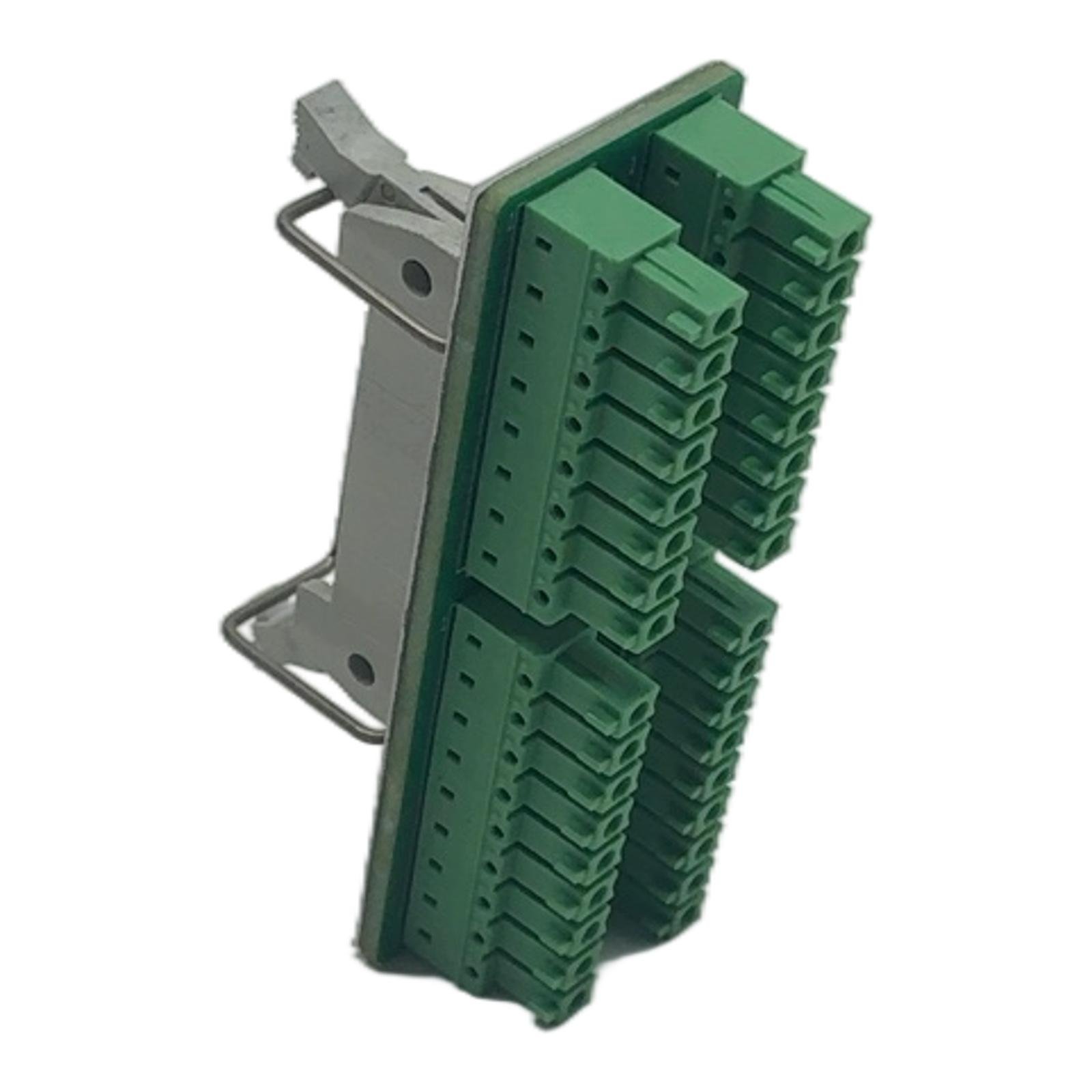

Schneider Electric STB XTS 6610 Telefast 2 Connection Base Description The STB XTS 6610 is a Telefast 2 connection base for the Schneider Electric Modicon STB distributed I/O system. It provides a straightforward and reliable method for connecting field wiring to 20-pin I/O modules, significantly accelerating commissioning and maintenance tasks. This base is specifically designed for output modules. Specifications Manufacturer: Schneider Electric Part Number: STB XTS 6610 Product Range: Modicon STB Product Type: Telefast 2 Connection Base Number of Terminals: 20 Connection Type: Screw terminals Connector: 20-pin HE10 connector Lifecycle Status: Obsolete Label Info Brand: Schneider Electric Model: STB XTS 6610 Description: Telefast2 Output Application This terminal block is ideal for industrial automation systems using the Modicon STB platform, where it serves as the interface between a PLC output module and sensor/actuator cables. It is commonly used in manufacturing, material handling, and process control applications. Country of Origin This product is typically manufactured in France. CO2 Impact By purchasing this refurbished product, you are contributing to a circular economy and have helped avoid approximately 6.0 kg of CO2 emissions that would have been generated from manufacturing a new one. Availability This is an obsolete item but is available from our stock. Ensure your system’s continuity without a complete redesign. Order now from profideals for expert support and fast delivery. FAQ What is the primary application for the STB XTS 6610? The STB XTS 6610 is primarily used as a wiring interface for Schneider Modicon STB digital output modules. It converts a single 20-pin connector from the I/O module into 20 individual screw terminals for field wiring, greatly simplifying installation and maintenance. Is this terminal block compatible with all Modicon STB I/O modules? This connection base is specifically designed for 20-pin Modicon STB I/O modules. It is crucial to verify the pin-out and module type in your system’s documentation, as different modules (e.g., analog, input, relay) may require different Telefast bases. What is the wire gauge range accepted by the screw terminals? The screw terminals on the STB XTS 6610 typically accept a wire gauge from 0.08 to 1.5 mm squared (approximately AWG 28 to 16), which covers most standard control cabinet wiring applications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
