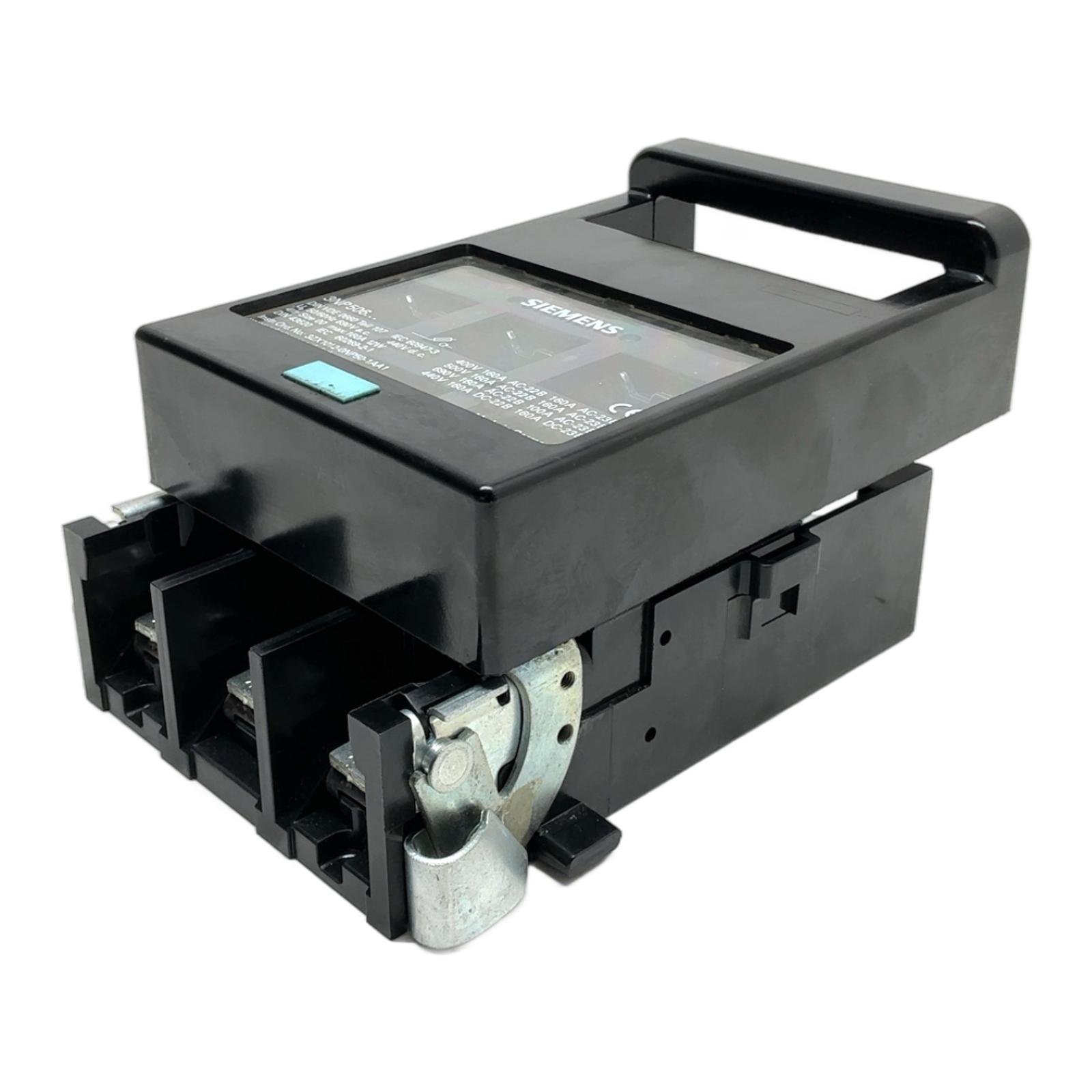

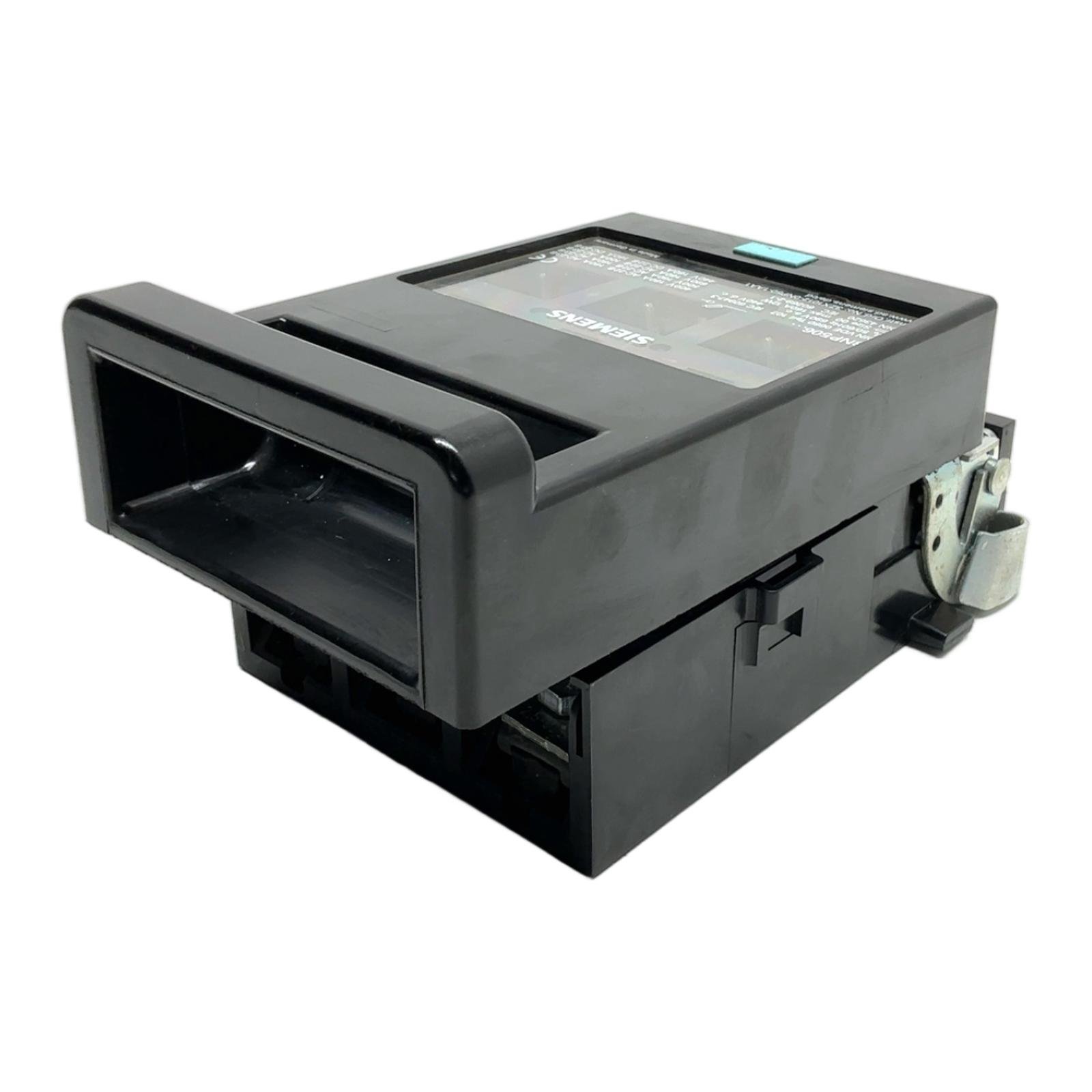

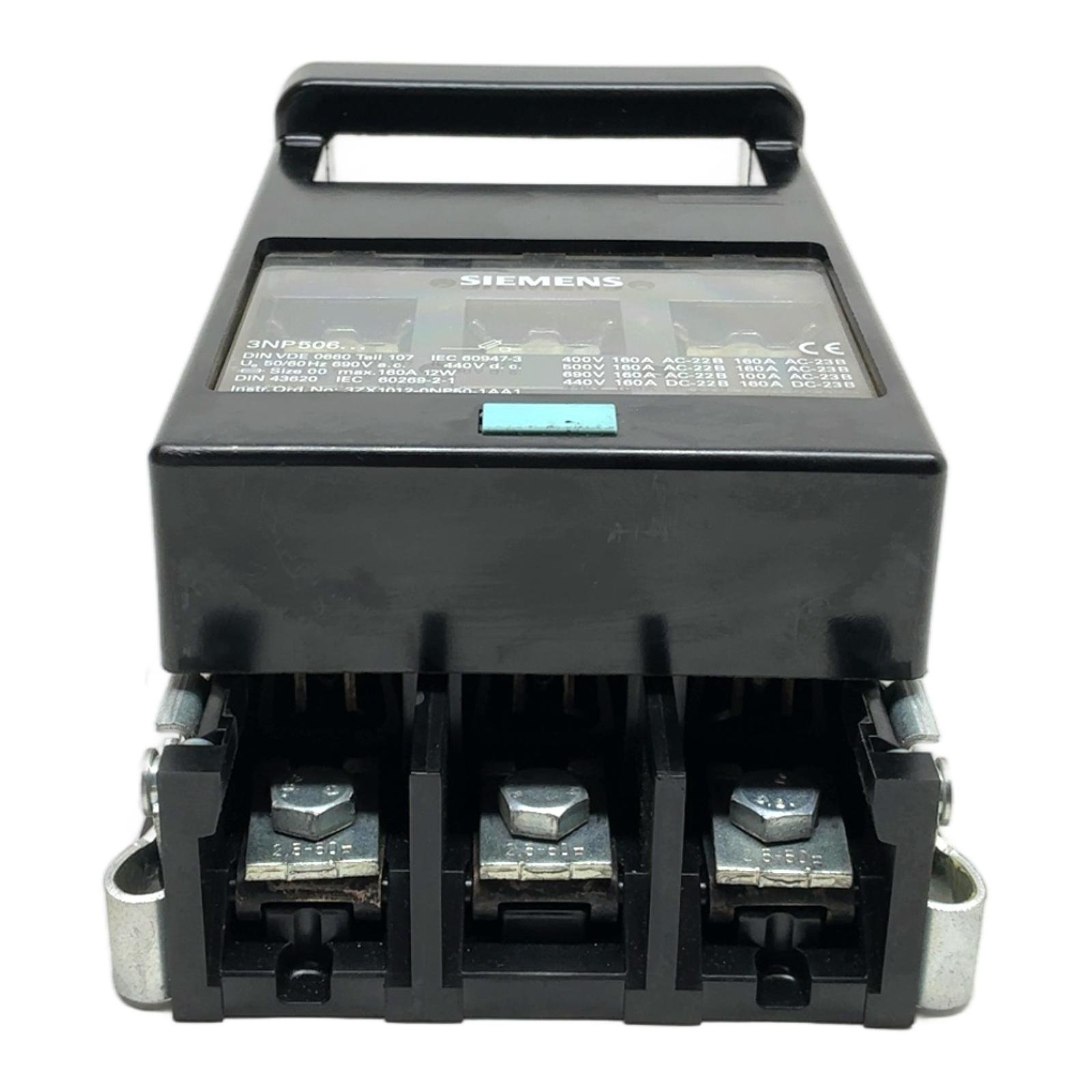

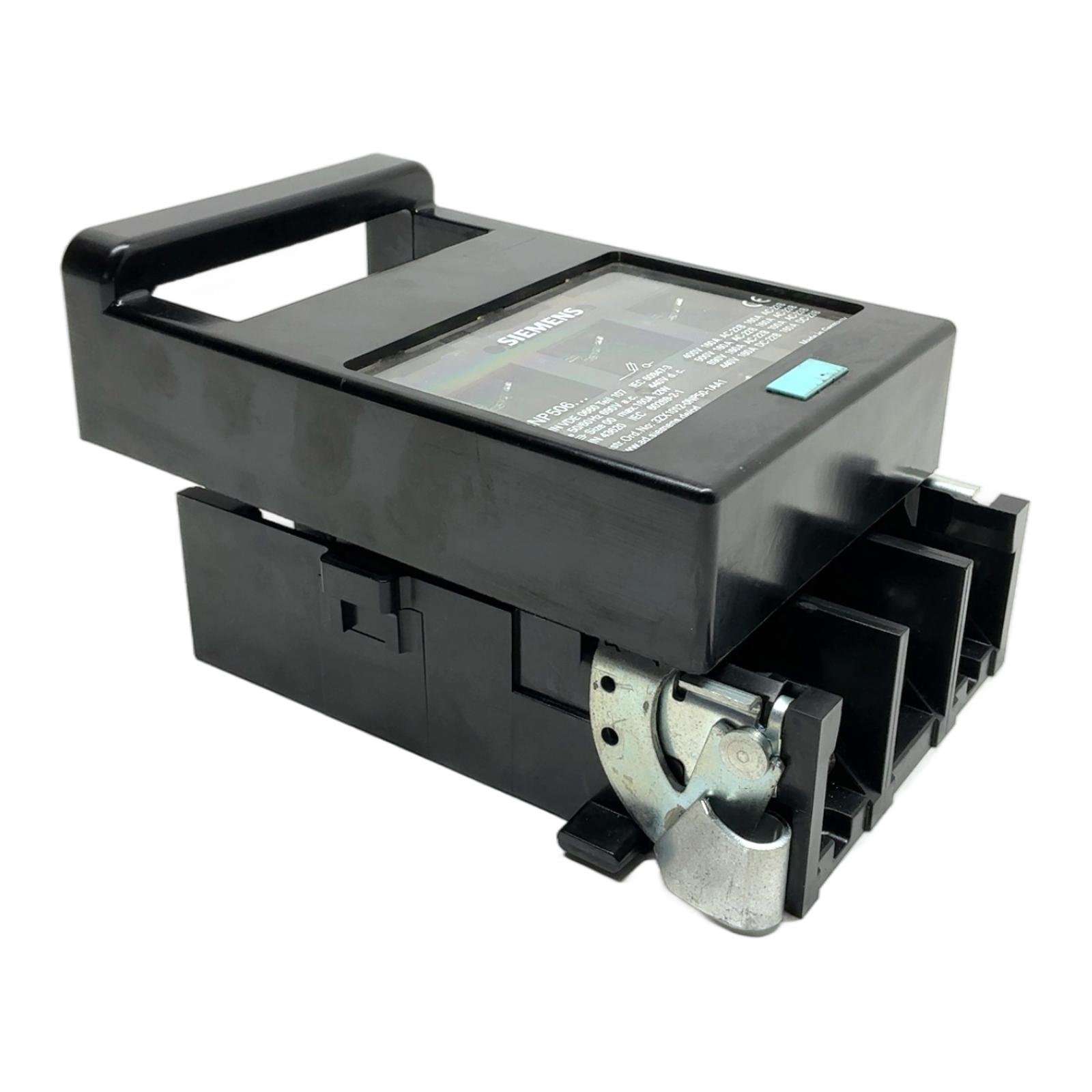

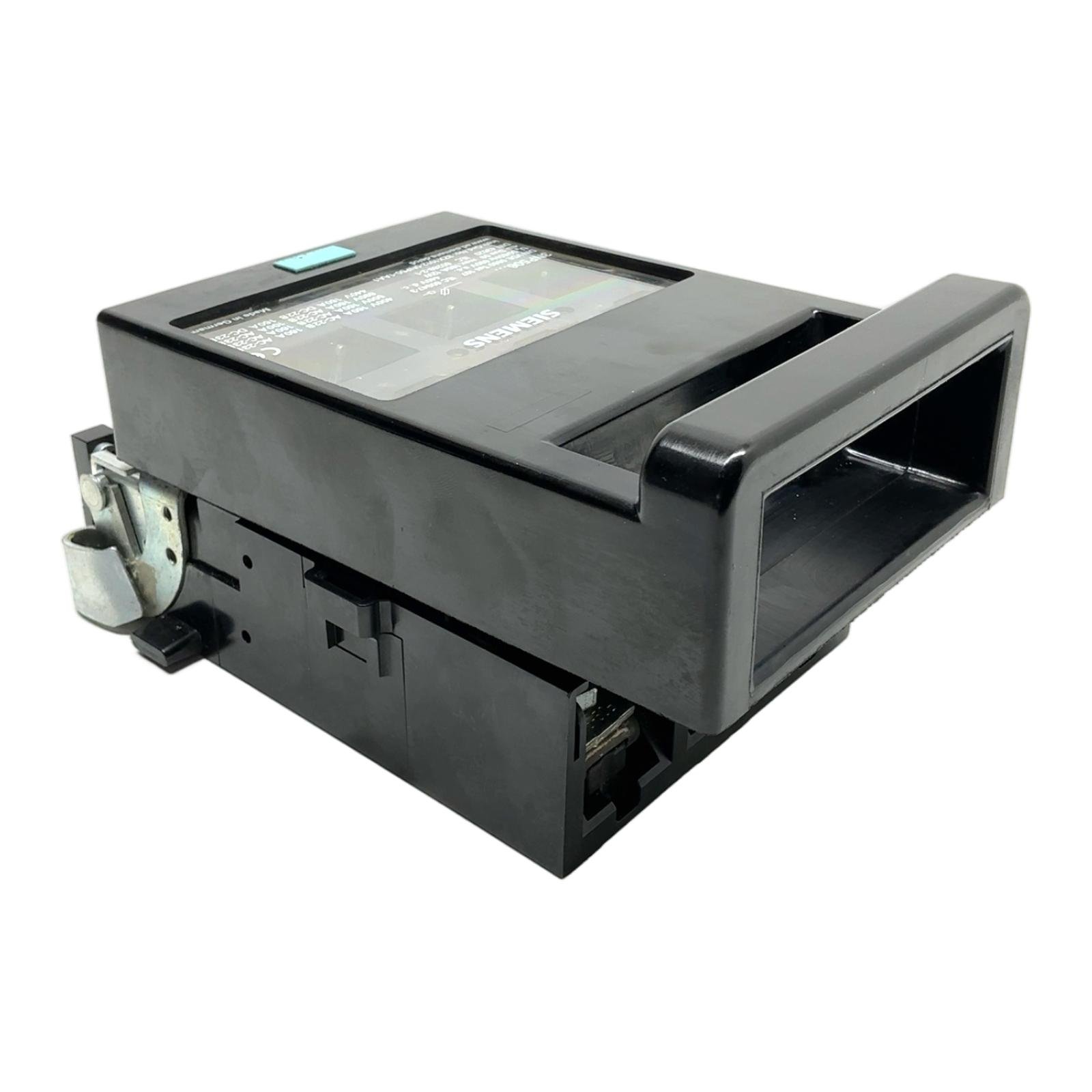

SIEMENS 3NP5060-0CA10 + SITOR 100A (3x)

Siemens SITOR 3NP5060 Fuse Switch Disconnector Description The Siemens 3NP5060 is a high-quality, 3-pole fuse switch disconnector from the SITOR series, designed for industrial applications requiring reliable overcurrent protection and safe circuit isolation. This size 00 unit can handle a maximum current of 160A and is suitable for voltages up to 690V AC. It provides robust protection for semiconductors, inverters, and other power electronics. This unit comes equipped with 100A SITOR fuses. Specifications Manufacturer: Siemens Type: 3NP5060 Poles: 3 Maximum Current: 160A Rated Voltage (Ue): 690V AC, 440V DC Frequency: 50/60 Hz Fuse Size: 00 Maximum Power Dissipation: 12W Standards: IEC 60947-3, DIN VDE 0660 Part 107 Label Info 400V: 160A AC-22B / 160A AC-23B 500V: 160A AC-22B / 160A AC-23B 690V: 160A AC-22B / 100A AC-23B 440V: 160A DC-22B / 160A DC-23B Application Ideal for use in power distribution panels, motor control centers, and as a main switch for industrial machinery. It is specifically designed to protect power semiconductors from short-circuits due to its fast-acting SITOR fuses. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned device, you are contributing to a more sustainable economy. Reusing this Siemens 3NP5060 saves approximately 48.0 kg of CO2, which is comparable to the emissions from driving a car for 240 kilometers. Availability This is a used item in excellent working condition. It has been tested to ensure full functionality. Order now from profideals for expert support and fast delivery. FAQ What type and size of fuses are compatible with this 3NP5060 unit?This unit is designed for size 00 fuses according to DIN 43620 and IEC 60269. It is typically used with Siemens SITOR gR/gS semiconductor fuses up to a maximum rating of 160A. The label shows different ratings for AC-23B and DC-23B. What is the significance of these utilization categories?These categories, defined by IEC 60947-3, describe the intended use. AC-22B/DC-22B refers to switching of mixed resistive and inductive loads, including moderate overloads. AC-23B/DC-23B is for frequent switching of motor loads or other highly inductive loads, which is a more demanding application. How is this device typically mounted in an electrical cabinet?The Siemens 3NP5 series is designed for base mounting. It is typically screwed directly onto a mounting plate within an electrical enclosure or control panel. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
