IMI NORGREN 1258133

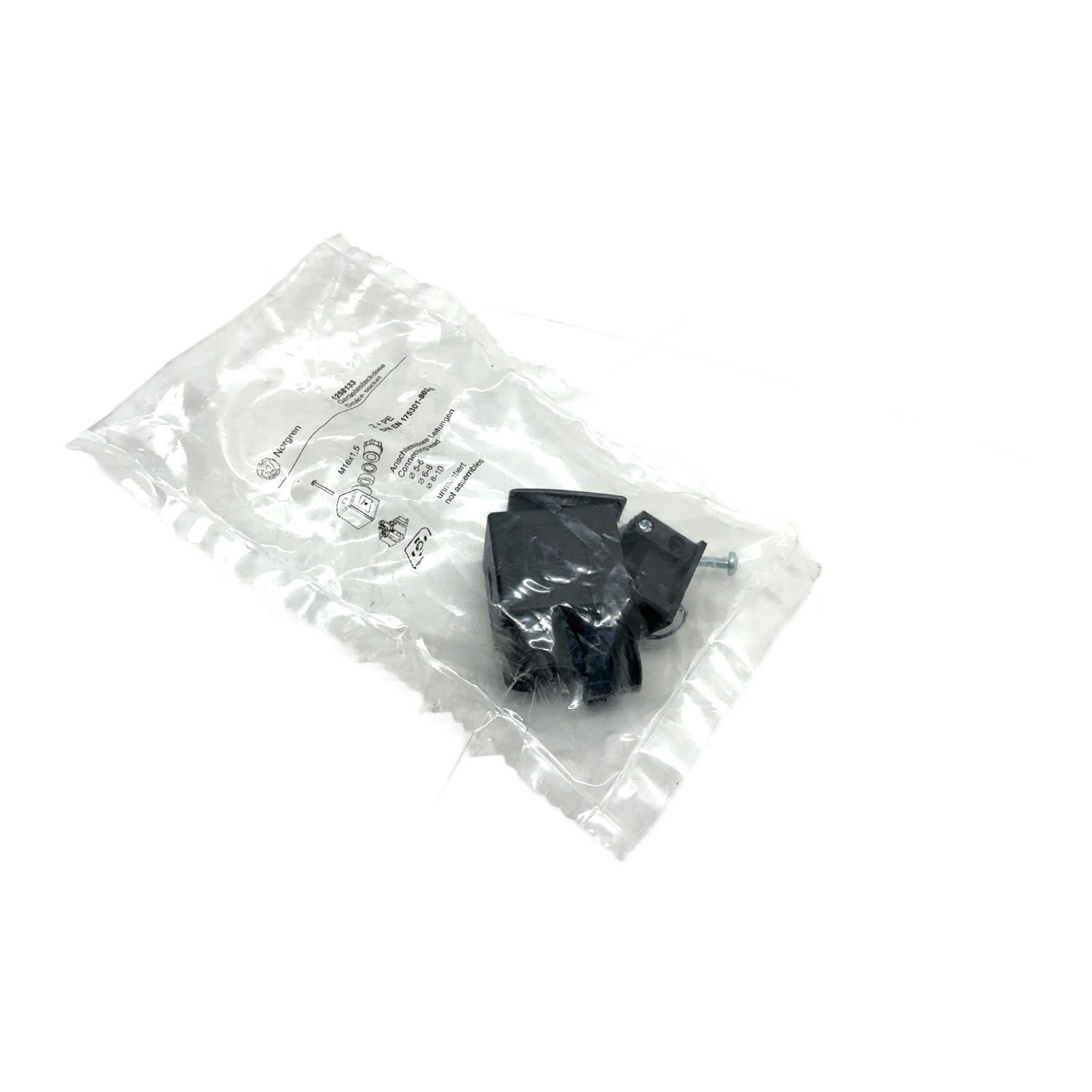

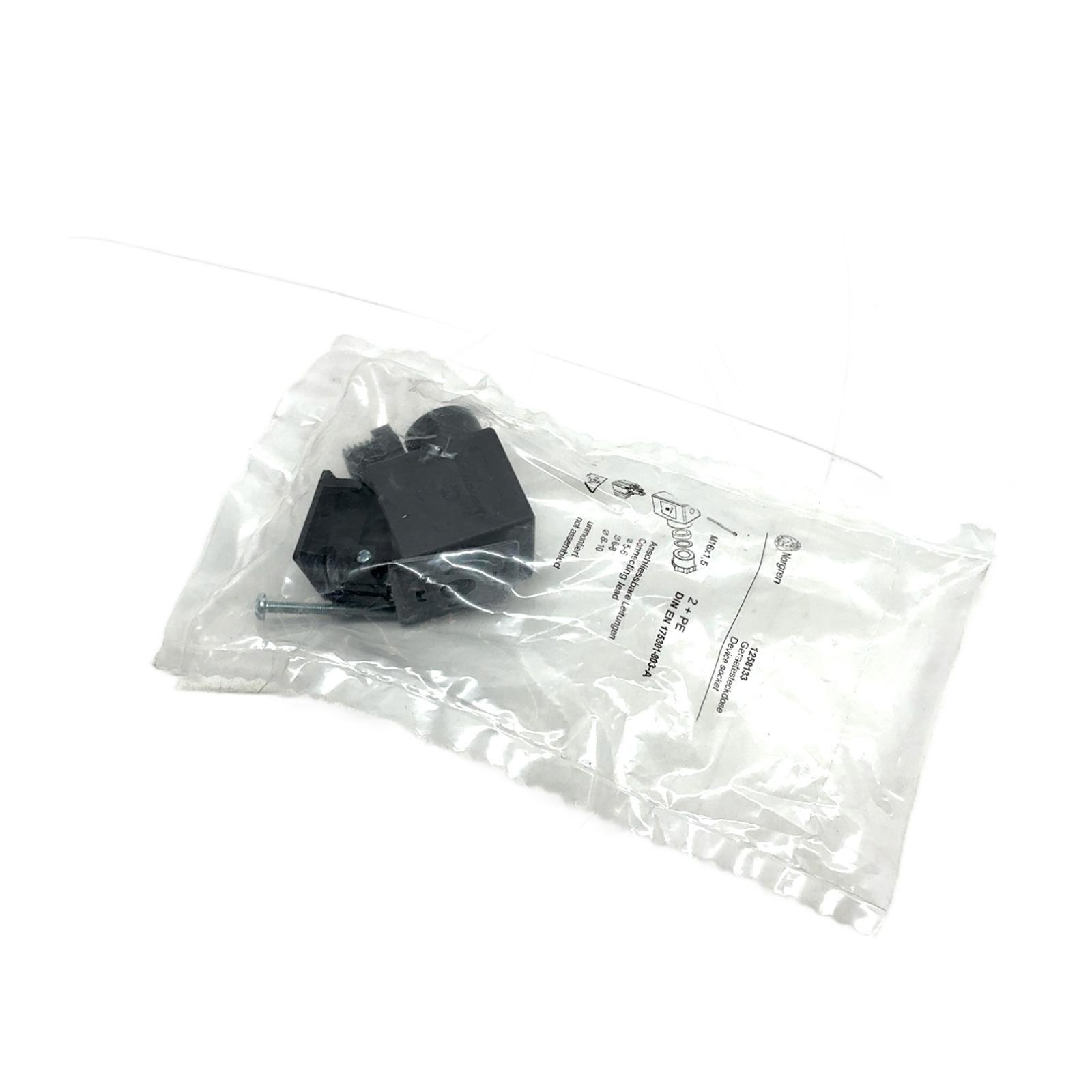

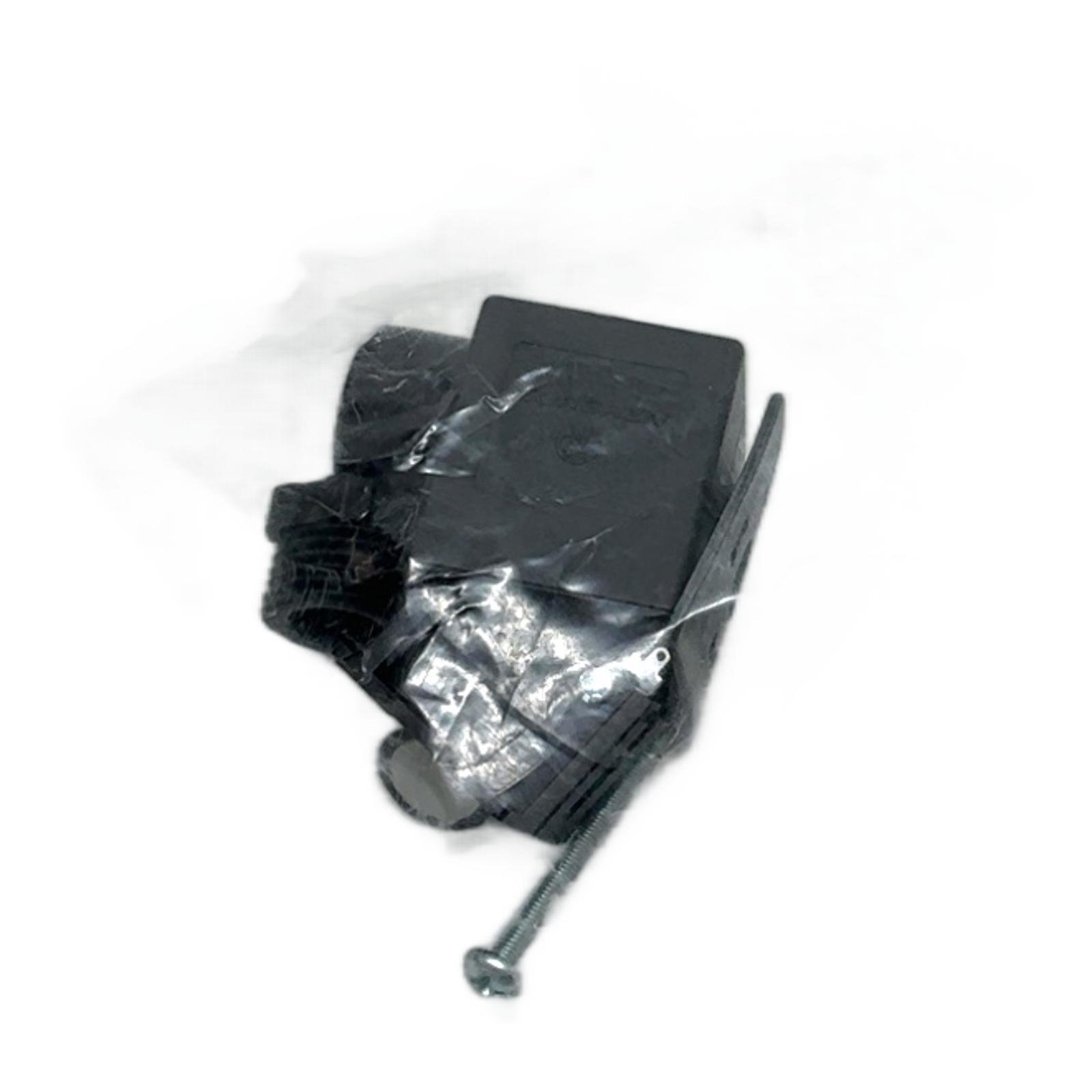

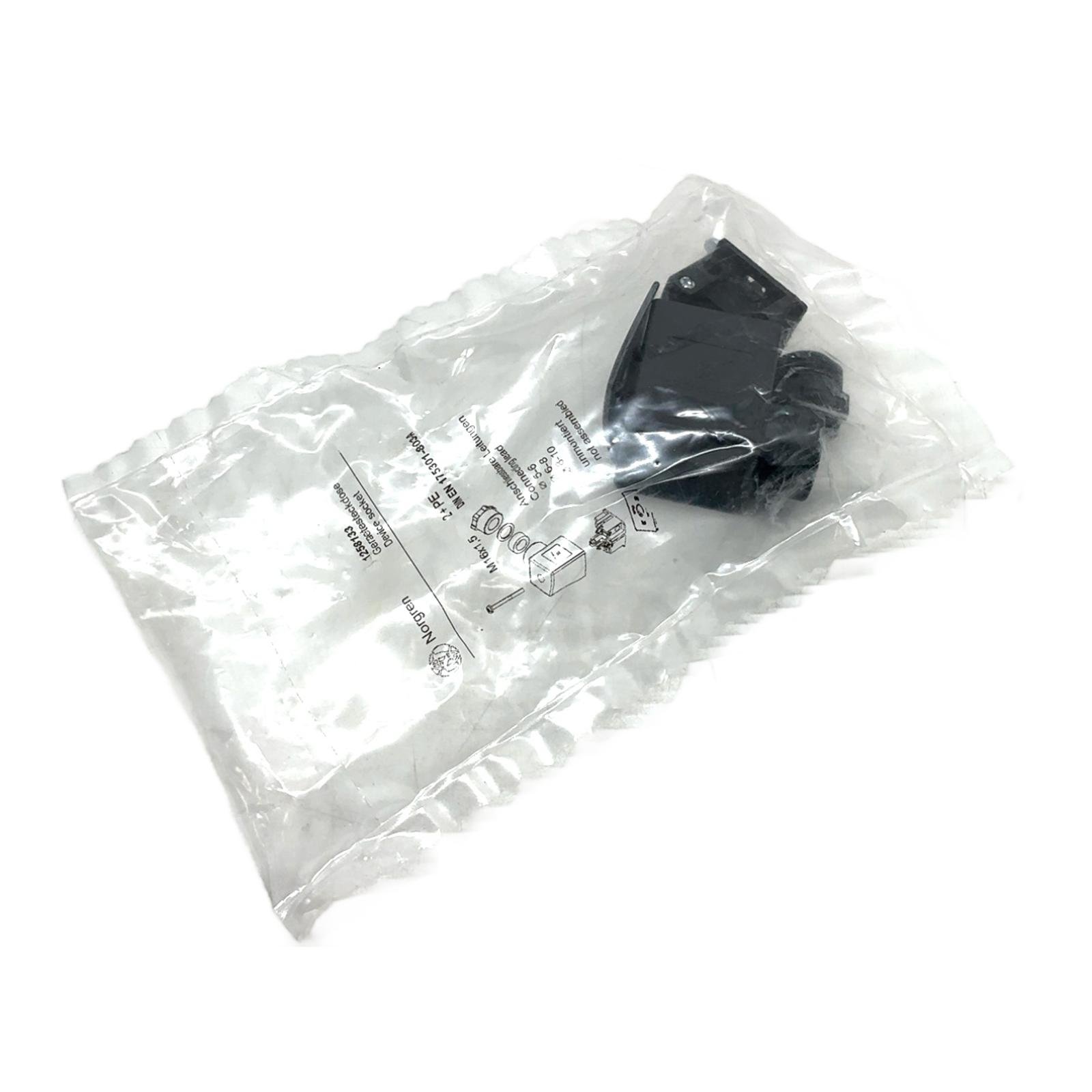

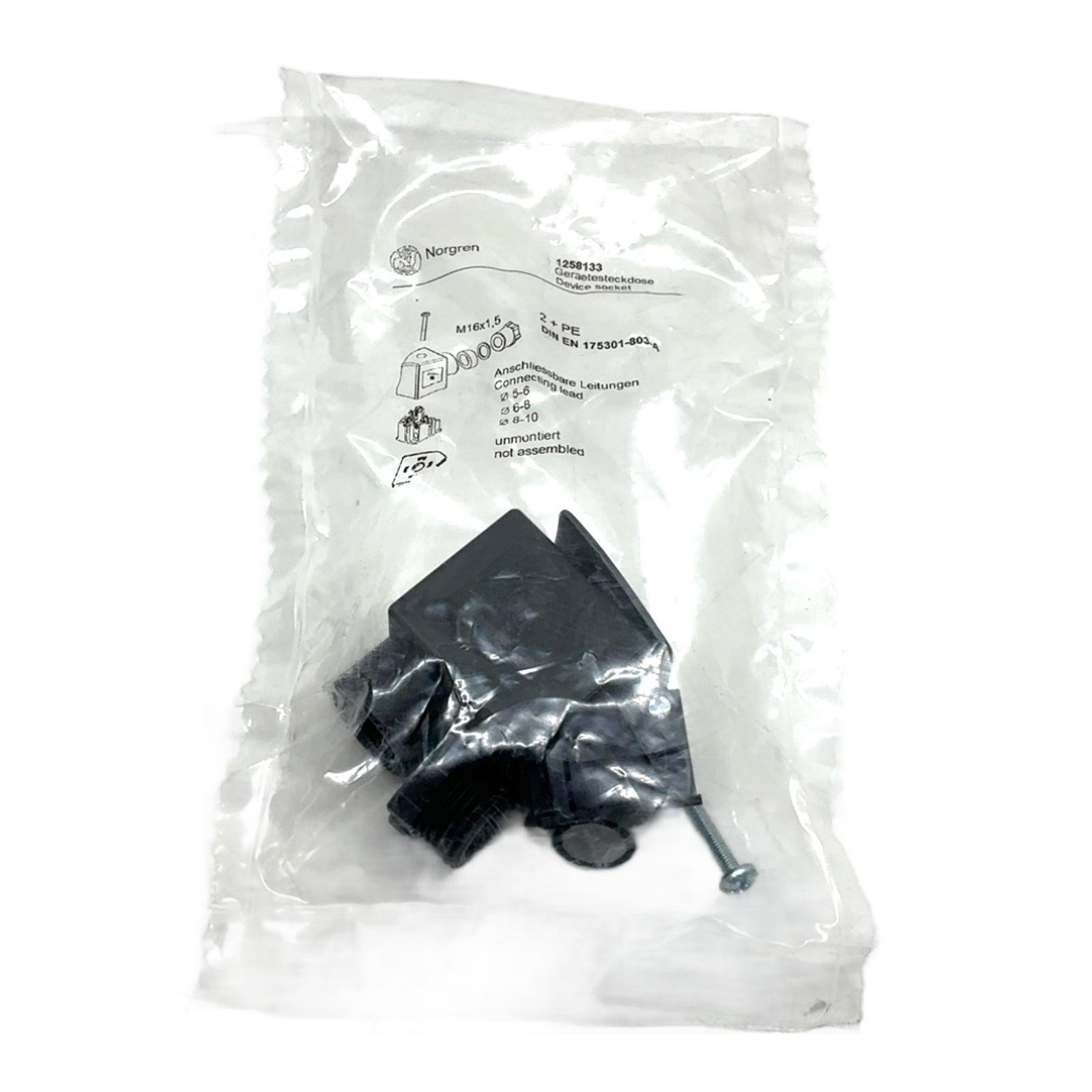

Norgren 1258133 DIN Form A Solenoid Valve Connector Description The Norgren 1258133 is a robust device socket designed for industrial applications, primarily for connecting solenoid valves, pressure switches, and sensors. It adheres to the DIN EN 175301-803 Form A standard, ensuring interchangeability and a secure connection. This unassembled kit allows for easy field wiring and provides excellent protection against dust and moisture when installed correctly. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Norgren Part Number: 1258133 Connection Standard: DIN EN 175301-803 Form A Number of Poles: 2 + PE (Protective Earth) Cable Entry: M16 x 1.5 Cable Gland Compatible Cable Diameter: 5 mm to 10 mm Housing Material: Polyamide Contact Material: Brass, Tin-plated Label Info Norgren 1258133 Geraetesteckdose / Device socket 2 + PE DIN EN 175301-803 Application Ideal for use in pneumatic systems, hydraulic machinery, factory automation, and general machine building where reliable electrical connections to actuators and sensors are critical. Country of Origin Germany CO2 Impact By purchasing this re-used component, you are avoiding the production of a new one, saving an estimated 1.2 kg of CO2. This is equivalent to the emissions of a 6 km car ride. Availability This item is in stock and ready for immediate dispatch. FAQ What is the difference between DIN Form A, B, and C connectors? DIN Forms A, B, and C differ in pin spacing and housing size. Form A is the largest with 18mm pin spacing, Form B has 10mm or 11mm spacing, and Form C is the smallest with 8mm or 9.4mm spacing. This 1258133 model is Form A. Is this connector suitable for outdoor or wet environments? When correctly assembled with the proper cable diameter, this connector typically achieves an IP65 protection rating, making it dust-tight and resistant to water jets. Always verify the specifications of the connected device. What tools are required for assembling the Norgren 1258133 connector? Assembly requires basic hand tools: a small flat-head screwdriver for the terminal screws and a wrench or pliers to tighten the M16 cable gland nut for a secure seal. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
