SICK WL34-V540 1019248

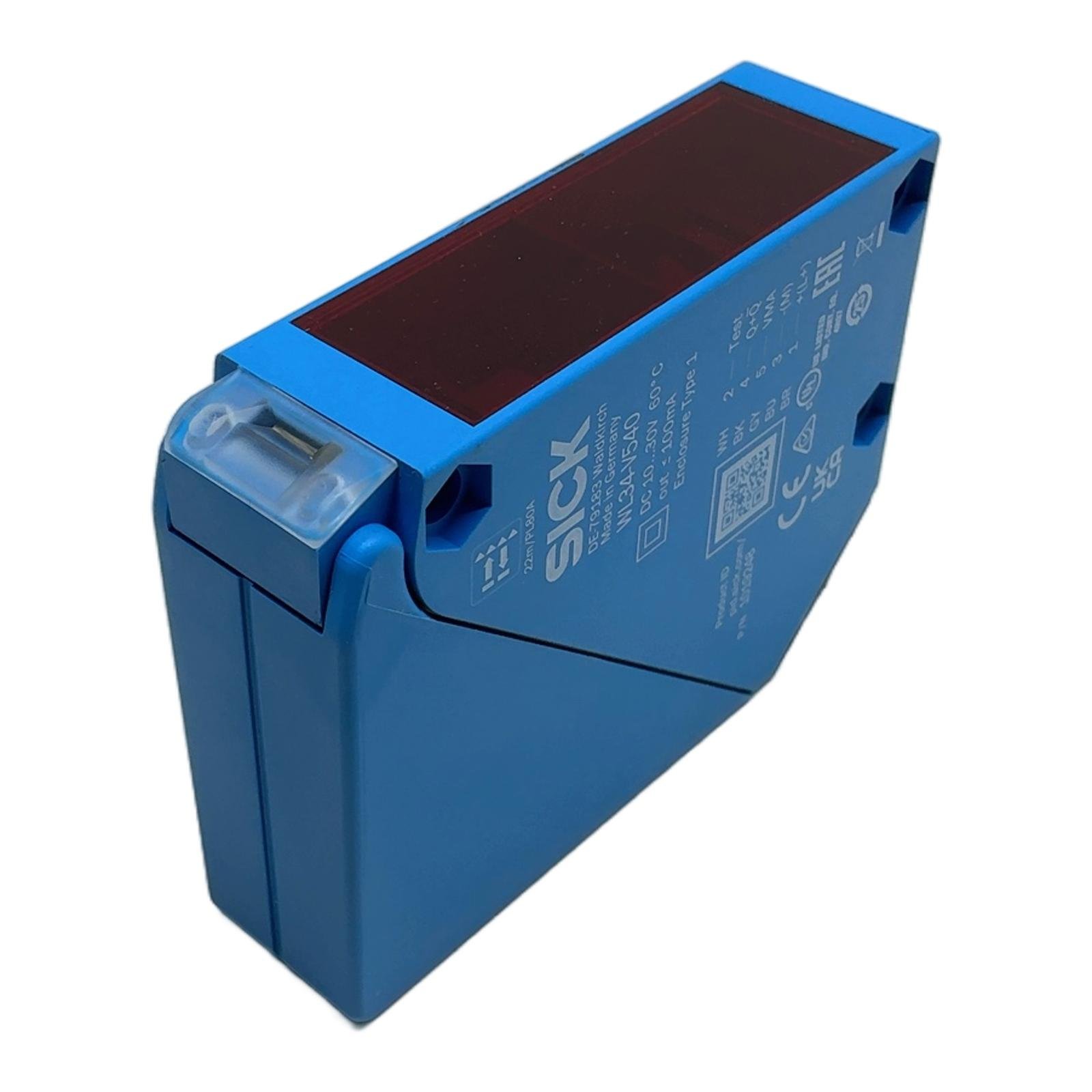

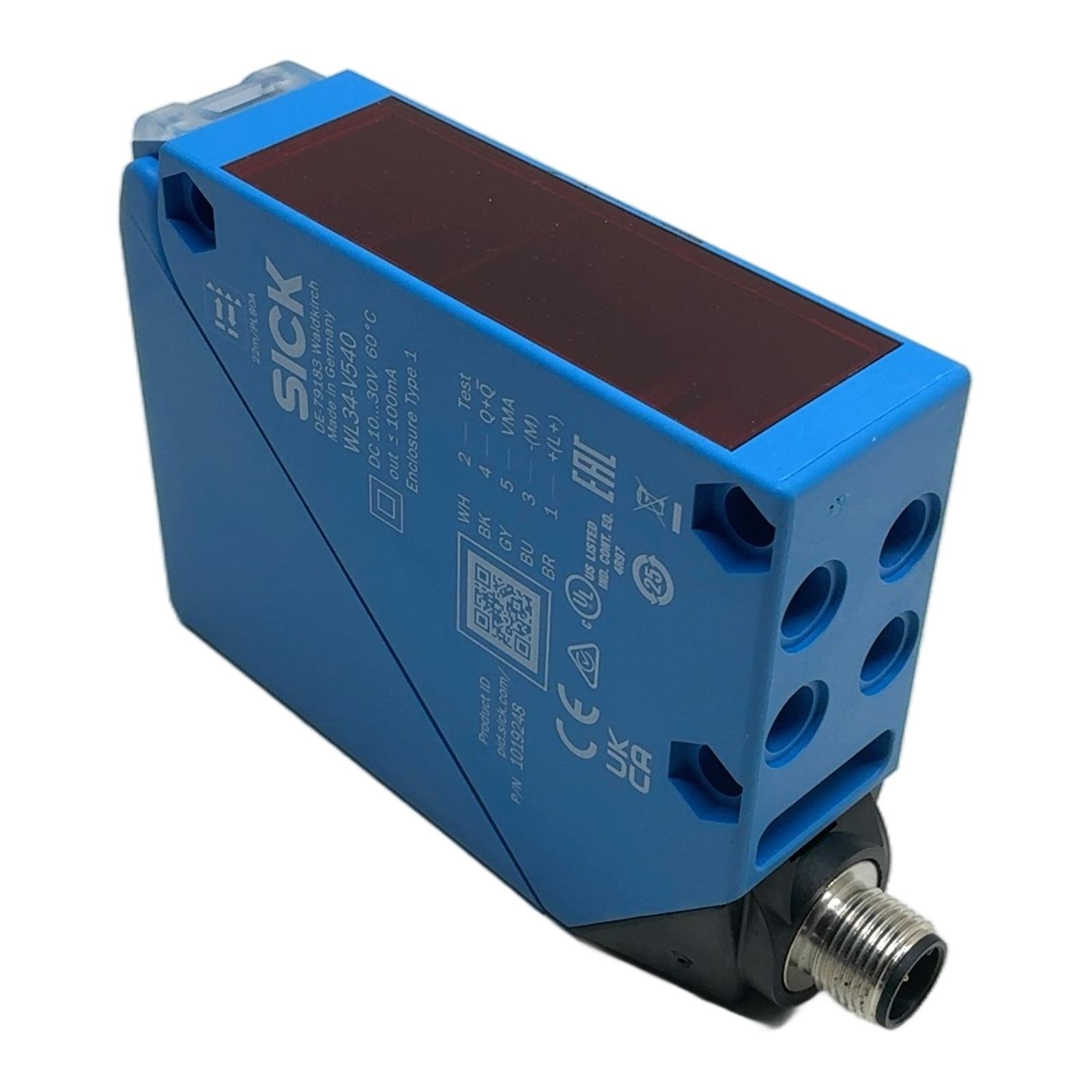

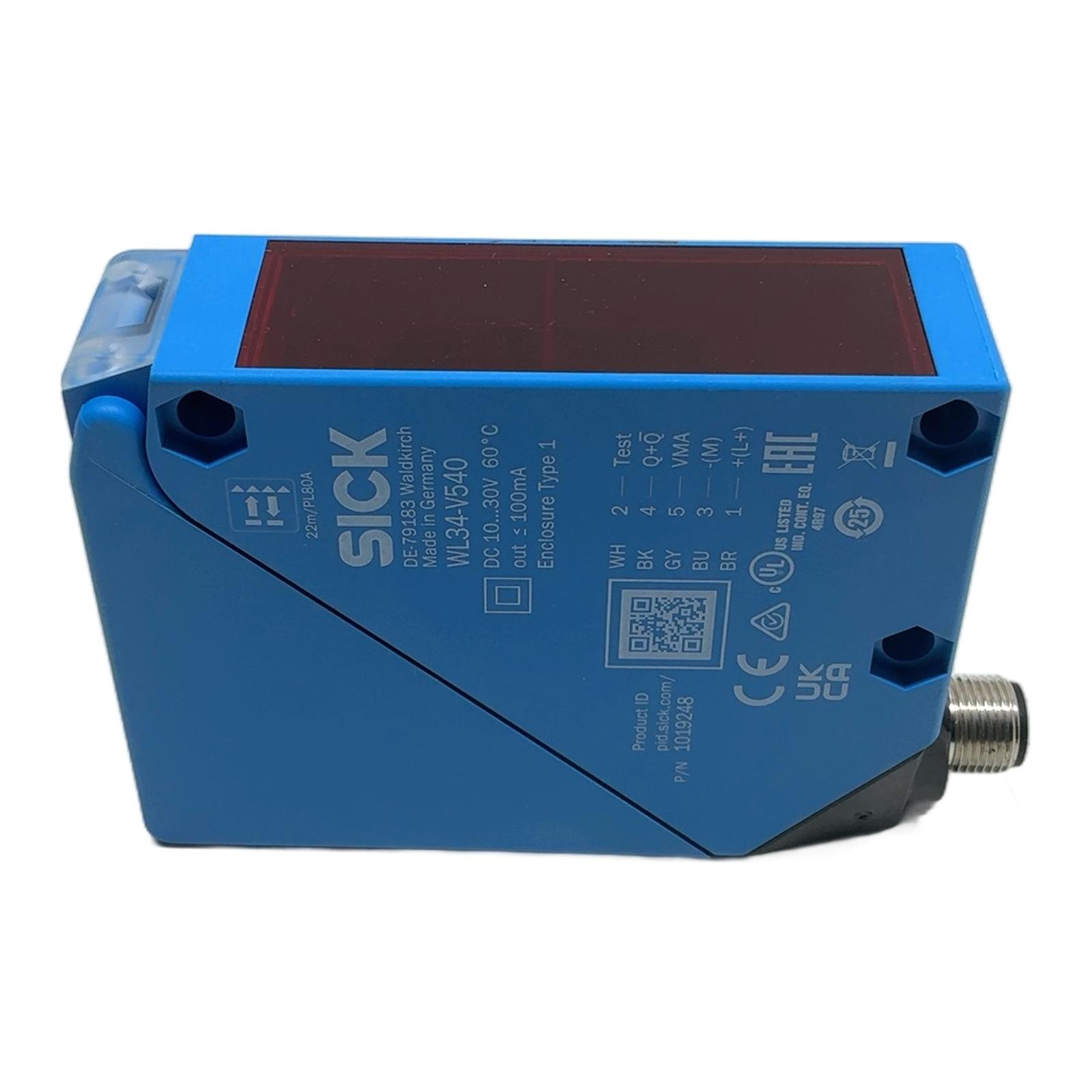

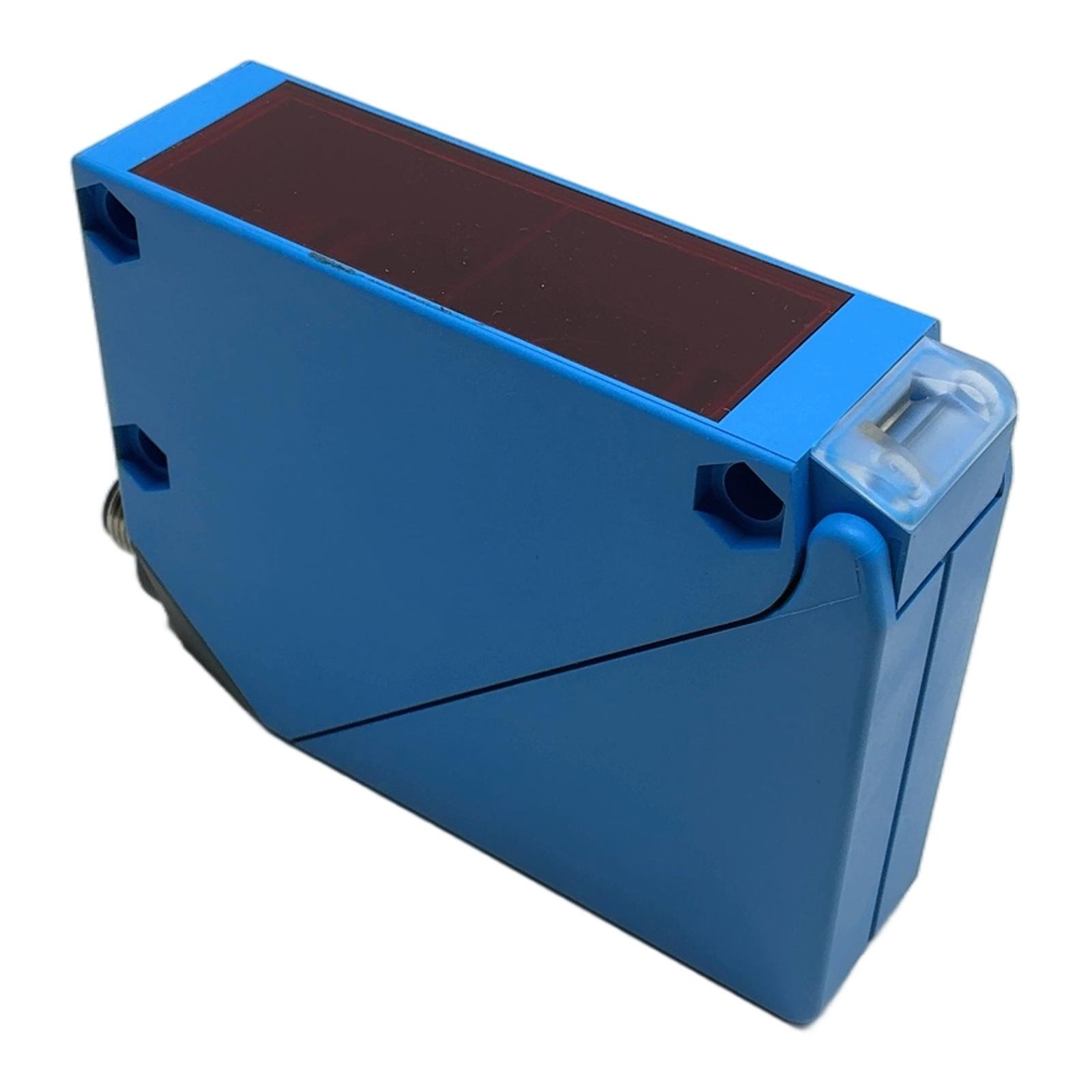

<h2>SICK WL34-V540 Photoelectric Retro-Reflective Sensor</h2> <h3>Description</h3> <p>The SICK WL34-V540 is a high-performance photoelectric retro-reflective sensor from the W34 product family. It is engineered for reliable object detection in challenging industrial applications, offering a long sensing range and robust construction. Its visible red light source simplifies alignment, while the M12 connector provides a standardized and secure connection.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: SICK</li> <li>Type: WL34-V540</li> <li>Part Number: 1019248</li> <li>Sensor Principle: Photoelectric retro-reflective, dual lens</li> <li>Sensing Range: 0.05 m to 18 m (with PL80A reflector)</li> <li>Supply Voltage: 10 V DC to 30 V DC</li> <li>Switching Output: PNP, Light/dark switching selectable</li> <li>Connection Type: Male connector M12, 5-pin</li> <li>Light Source: LED, Visible Red</li> <li>Enclosure Rating: IP67</li> <li>Housing Material: ABS Plastic</li> </ul> <h3>Label Info</h3> <ul> <li>DC 10…30V</li> <li>Temp: 60 deg C</li> <li>out < 100mA</li> <li>Enclosure Type 1</li> </ul> <h3>Application</h3> <p>This sensor is ideal for a wide range of applications including conveyor systems, packaging machinery, automated storage and retrieval systems (AS/RS), and access control gates where reliable long-distance detection is critical.</p> <h3>Country of Origin</h3> <p>Made in Germany.</p> <h3>CO2 Impact</h3> <p>By purchasing this reused sensor, you help avoid the emission of approximately 6 kg of CO2. This saving is comparable to the emissions from driving a standard car for 30 kilometers.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <p><strong>What type of reflector is recommended for achieving the maximum 18m sensing range?</strong><br><p>For the maximum sensing range, SICK recommends using their PL80A reflector. Using smaller or less efficient reflectors will reduce the maximum operating distance.</p></p> <p><strong>How do you configure the Light/Dark switching function on the WL34-V540?</strong><br><p>The Light/Dark switching function is typically selected via a control wire. Depending on how this wire is connected (e.g., to +L+ or M), the sensor will switch when the light beam is received (light-on) or interrupted (dark-on).</p></p> <p><strong>What is the purpose of the ‘Test’ input (pin 2) on the M12 connector?</strong><br><p>The test input allows for remote verification of the sensor’s functionality. Applying a specific voltage to this pin can disable the light emitter, simulating a detected object. This is useful for system diagnostics without physically blocking the sensor’s beam.</p></p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Friday, March 13, 2026</p>
