STEUTE RF Rx SW868-4W

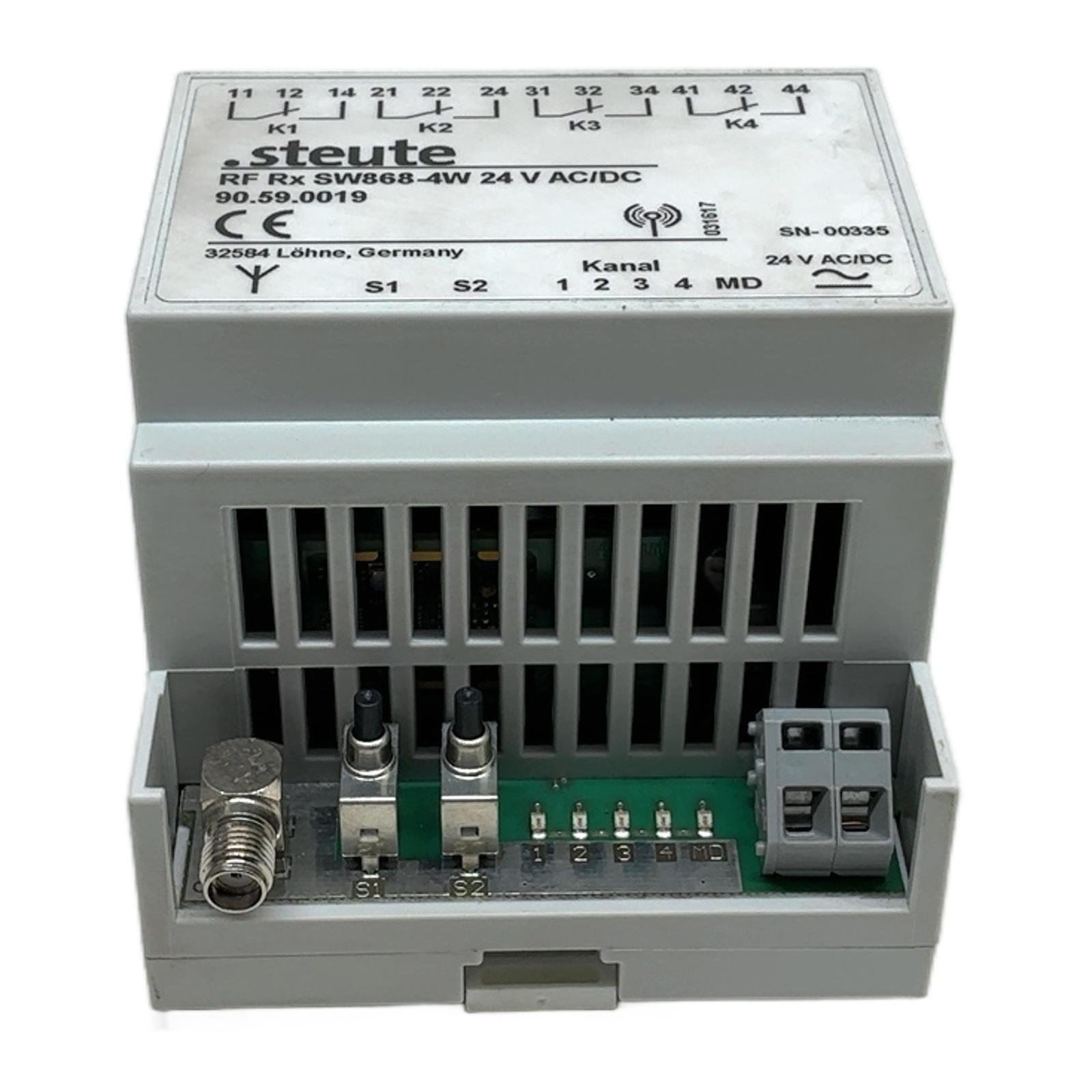

Steute 4-Channel Wireless Receiver Module Description This is the RF Rx SW868-4W, a 4-channel universal receiver from Steute, designed for reliable wireless signal reception in industrial environments. It operates on the 868 MHz frequency band and is compatible with a wide range of Steute wireless transmitters. The unit features four independent relay outputs, allowing for versatile control of different machine functions or applications from a single receiver. Its compact, DIN-rail mountable housing makes for straightforward installation in control cabinets. Specifications Manufacturer: Steute Type: RF Rx SW868-4W Part Number: 90.59.0019 Supply Voltage: 24 V AC/DC Number of Channels: 4 Outputs: 4 Relay Outputs (Normally Open / Normally Closed contacts) Frequency: 868 MHz Mounting: DIN Rail Antenna Connection: SMA Label Info Brand: Steute Model: RF Rx SW868-4W 24 V AC/DC Part No: 90.59.0019 Serial No: SN-00335 Application Ideal for applications in material handling, machine control, building automation, and logistics where cabled connections are impractical or undesirable. It can be used to receive signals from wireless position switches, foot switches, pushbuttons, and other command devices. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you contribute to the circular economy and avoid the emission of approximately 8.0 kg of CO2, which would be generated during the production of a new unit. This saving is comparable to the energy needed to charge a smartphone 960 times. Availability This is an obsolete item, perfect as a direct spare part for maintaining existing installations. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ What type of antenna is required for this receiver?This receiver uses a standard SMA connector, designed for an 868 MHz monopole or dipole antenna. The choice of antenna and its placement are critical for achieving the optimal reception range. Is this receiver compatible with Steute’s newer sWave.NET transmitters?No, this model operates on an older Steute wireless protocol. It is only compatible with transmitters from the same SW868 generation and is not interoperable with the newer sWave or sWave.NET systems. How are the four output channels configured?The four relay outputs (K1-K4) are paired with specific transmitters through a learning procedure. Each channel can be assigned to a transmitter signal, and the relay contacts (e.g., terminals 11-12-14 for K1) provide both normally open and normally closed connections for wiring into control circuits. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
