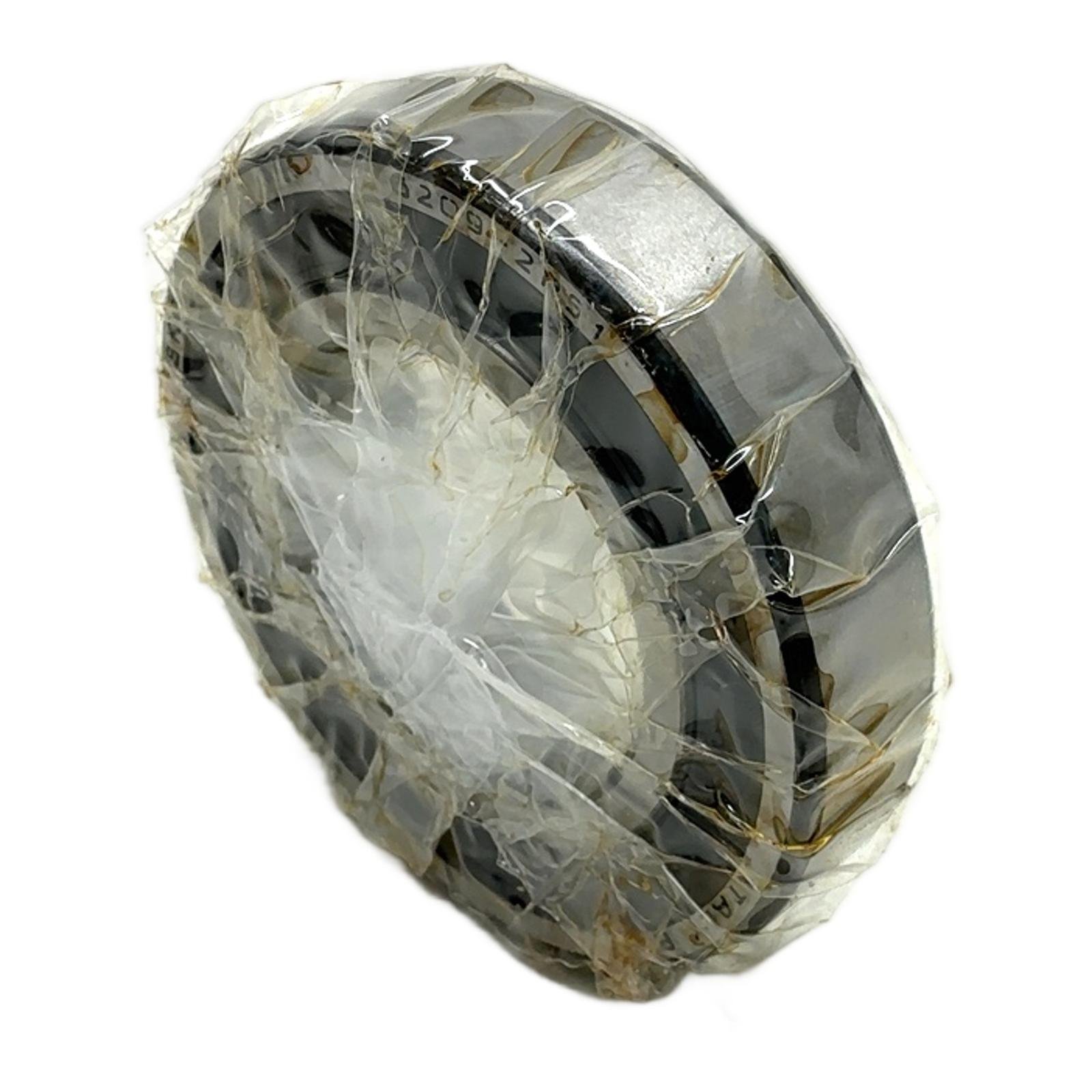

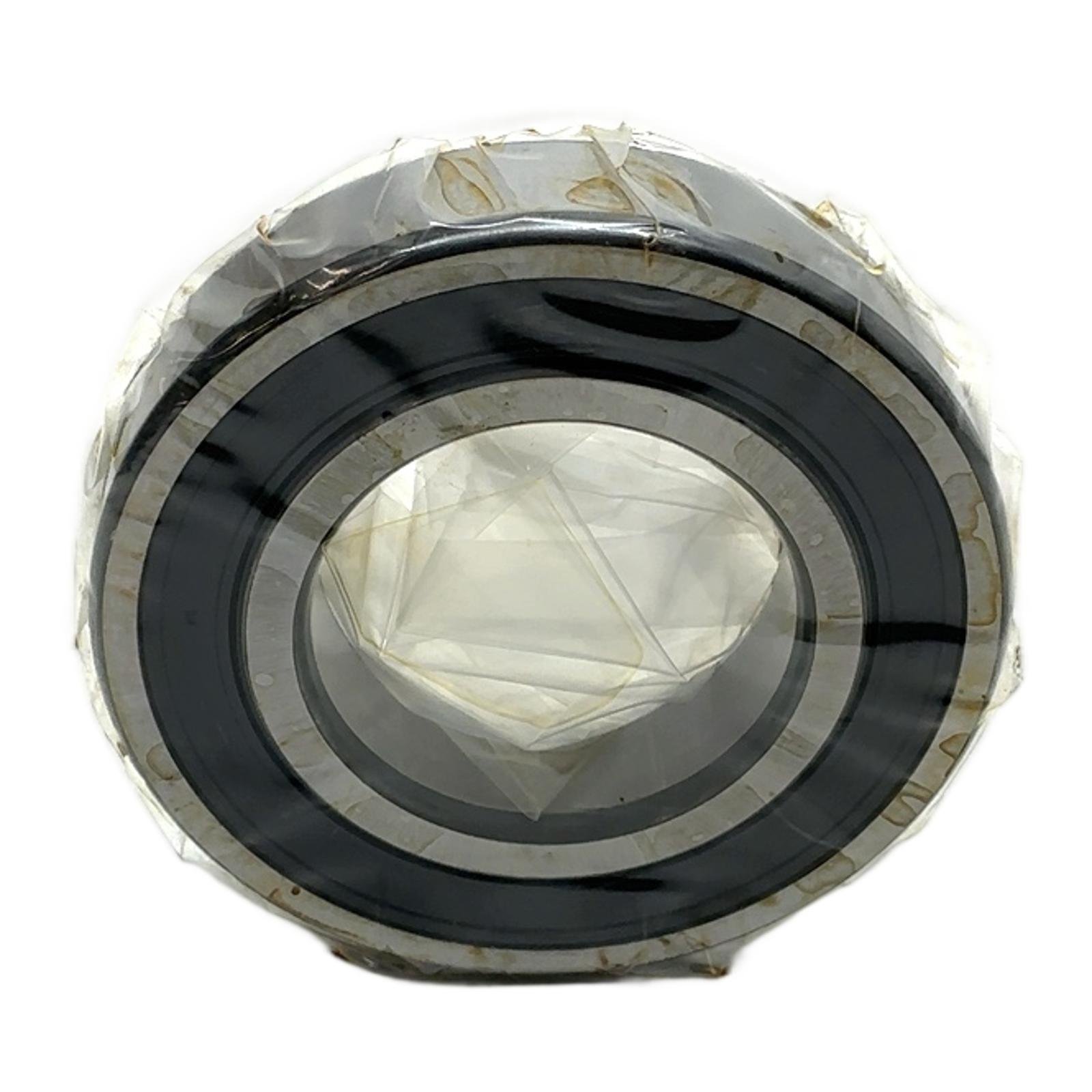

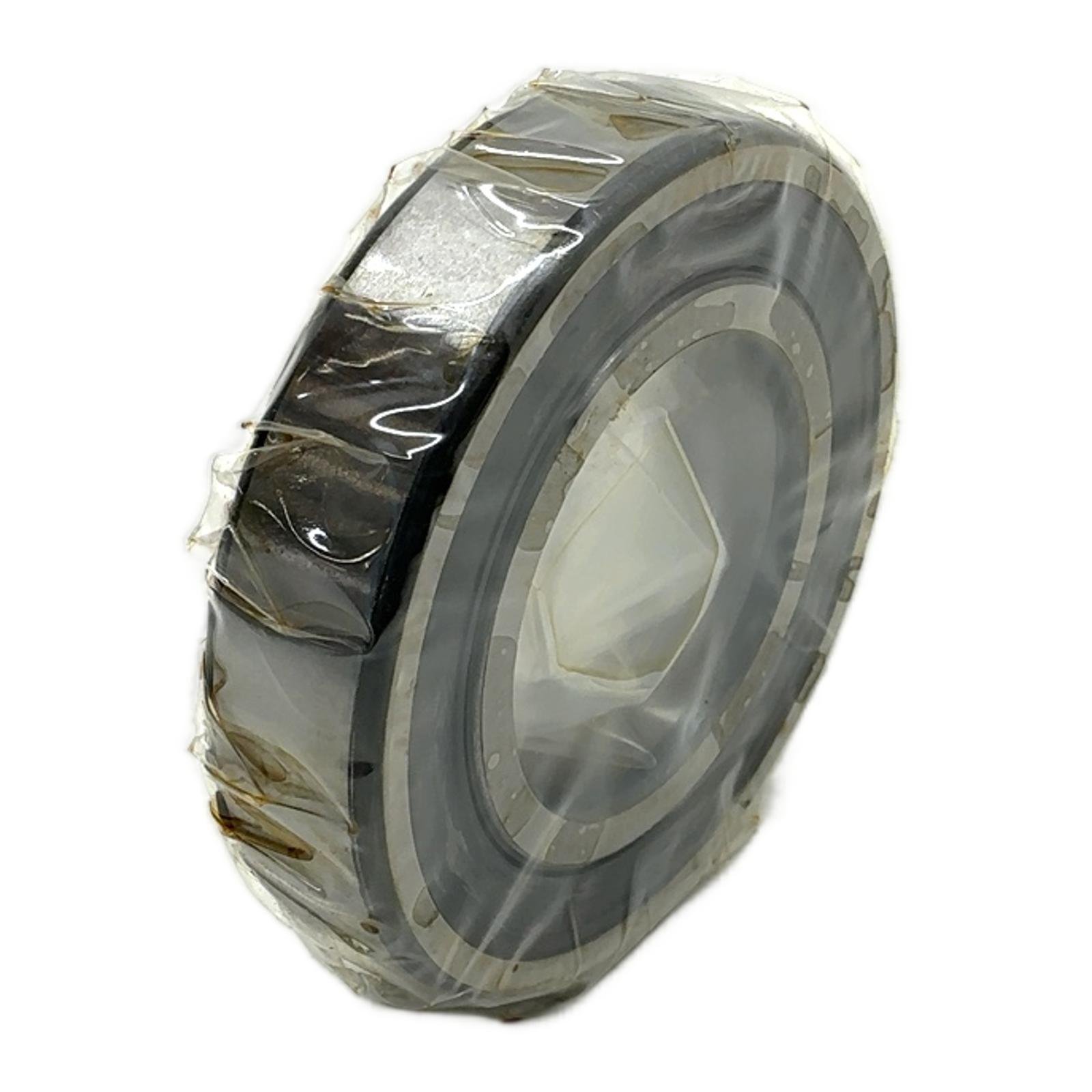

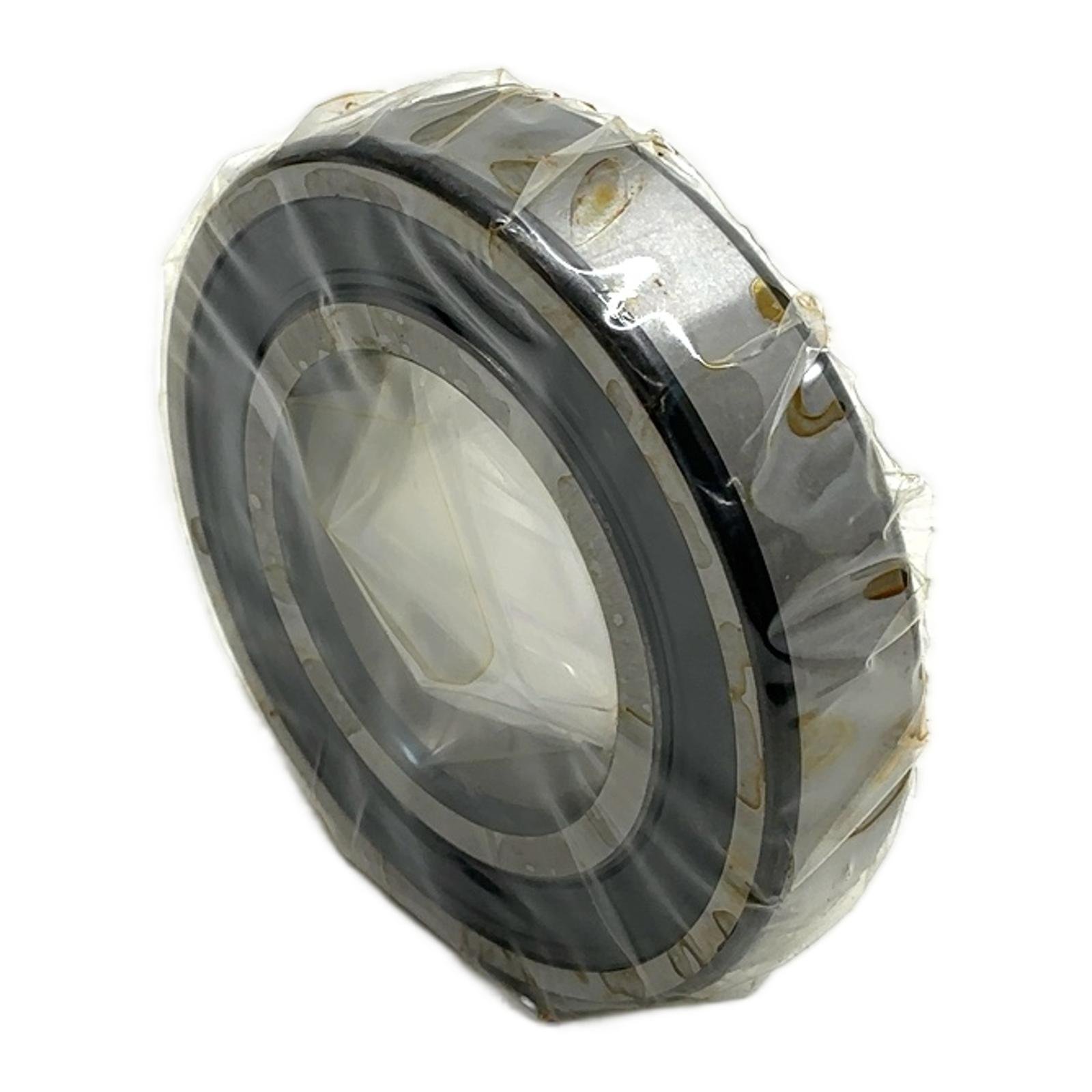

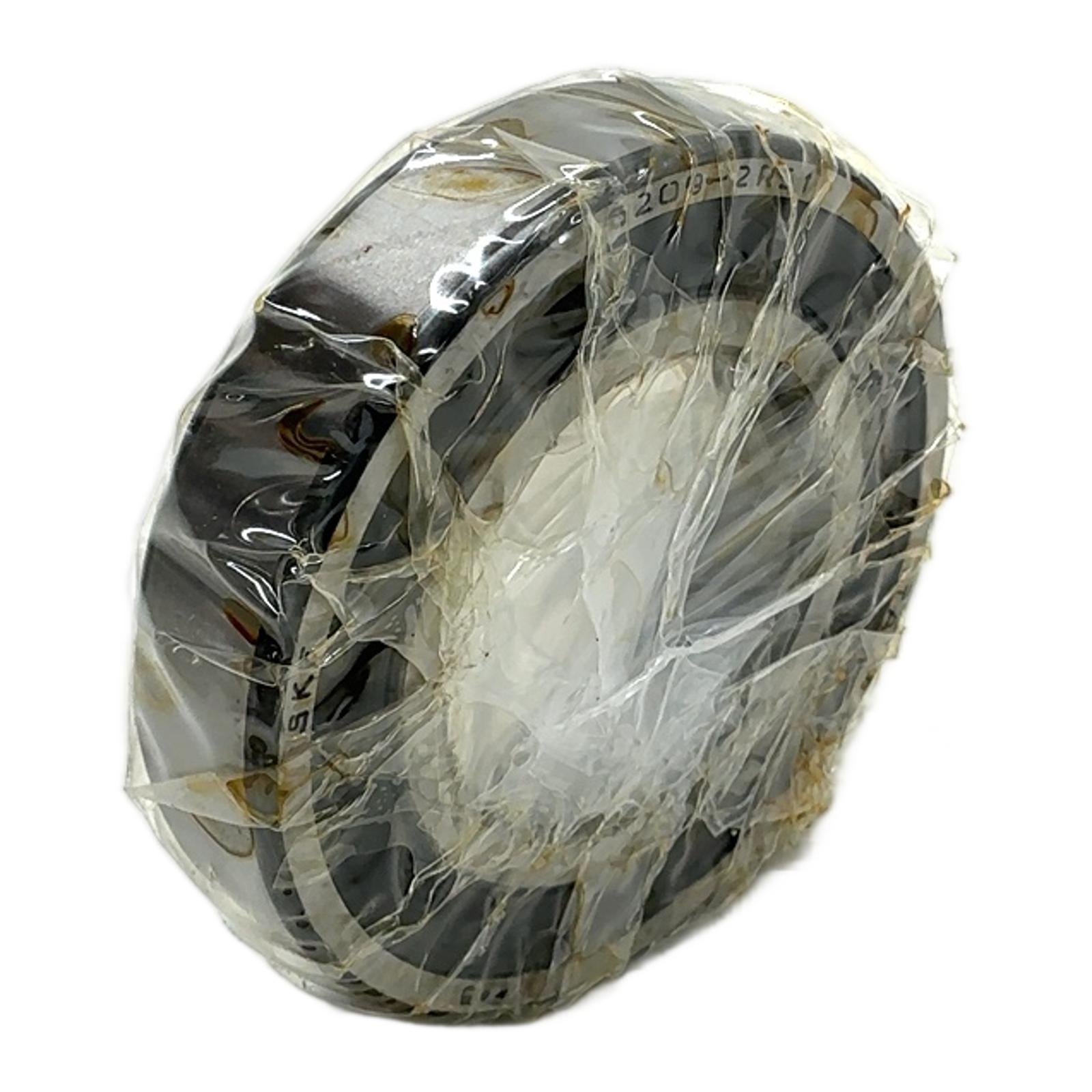

SKF 6209-2RS1

SKF 6209-2RS1 Deep Groove Ball Bearing Description The SKF 6209-2RS1 is a versatile and robust single-row deep groove ball bearing. It is designed to accommodate radial and axial loads in both directions and is suitable for high-speed operation. This bearing comes pre-lubricated and is equipped with contact seals on both sides to retain the lubricant and protect against contamination, ensuring a long service life. Specifications Bore Diameter (d): 45 mm Outer Diameter (D): 85 mm Width (B): 19 mm Seals: Two NBR contact seals (2RS1 designation) Material: High-quality bearing steel Static Load Rating: 20 kN Dynamic Load Rating: 32.5 kN Label Info Manufacturer: SKF Model: 6209-2RS1 Application This bearing is widely used in applications such as electric motors, pumps, gearboxes, agricultural machinery, and material handling equipment where reliability and performance are critical. Country of Origin Made in Italy. CO2 Impact By choosing this new old stock bearing, you help avoid the production of a new one, saving approximately 0.82 kg of CO2 emissions. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does ‘2RS1’ signify in the SKF 6209-2RS1 bearing?The ‘2RS1’ designation indicates that the bearing is sealed on both sides (‘2R’) with a sheet steel reinforced contact seal made of Acrylonitrile-butadiene rubber (NBR) (‘S1′). These seals provide excellent protection against contaminants and moisture. Is this bearing suitable for high-speed applications?Yes, while the contact seals (2RS1) introduce more friction than non-contact shields (2Z), this bearing is still designed for high-speed operation. However, for extremely high speeds, a bearing with 2Z shields might be more appropriate. Always check the limiting speed in the manufacturer’s datasheet for your specific application. What kind of lubrication does this bearing contain and does it need re-lubrication?The SKF 6209-2RS1 is lubricated for life with a high-quality grease and does not require re-lubrication. The seals are designed to retain the grease and prevent contamination throughout the bearing’s operational life. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
