REXROTH MS2N04-B0BNN-CMSG1-NNNNN-NN R911383968 + AF060-S2-P0

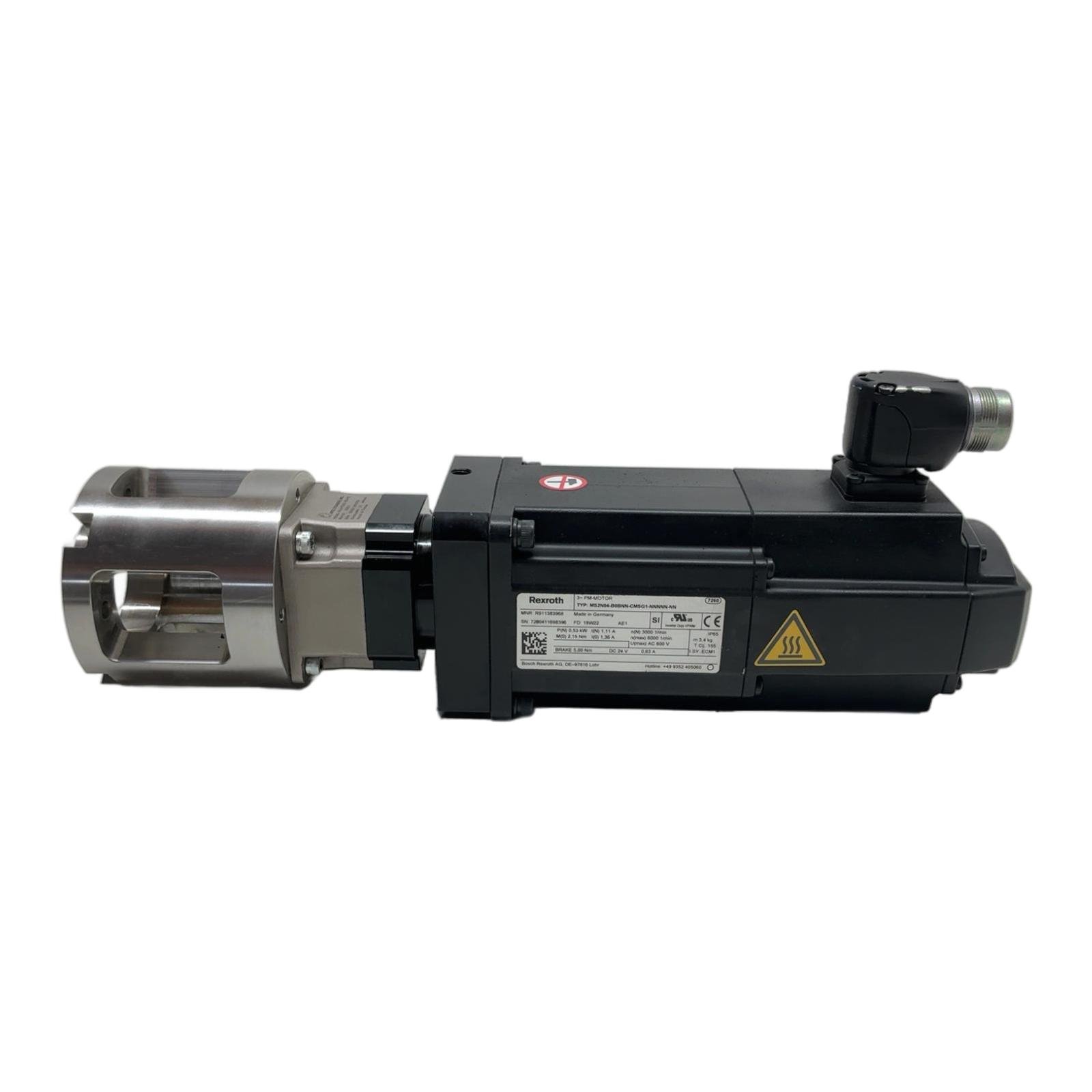

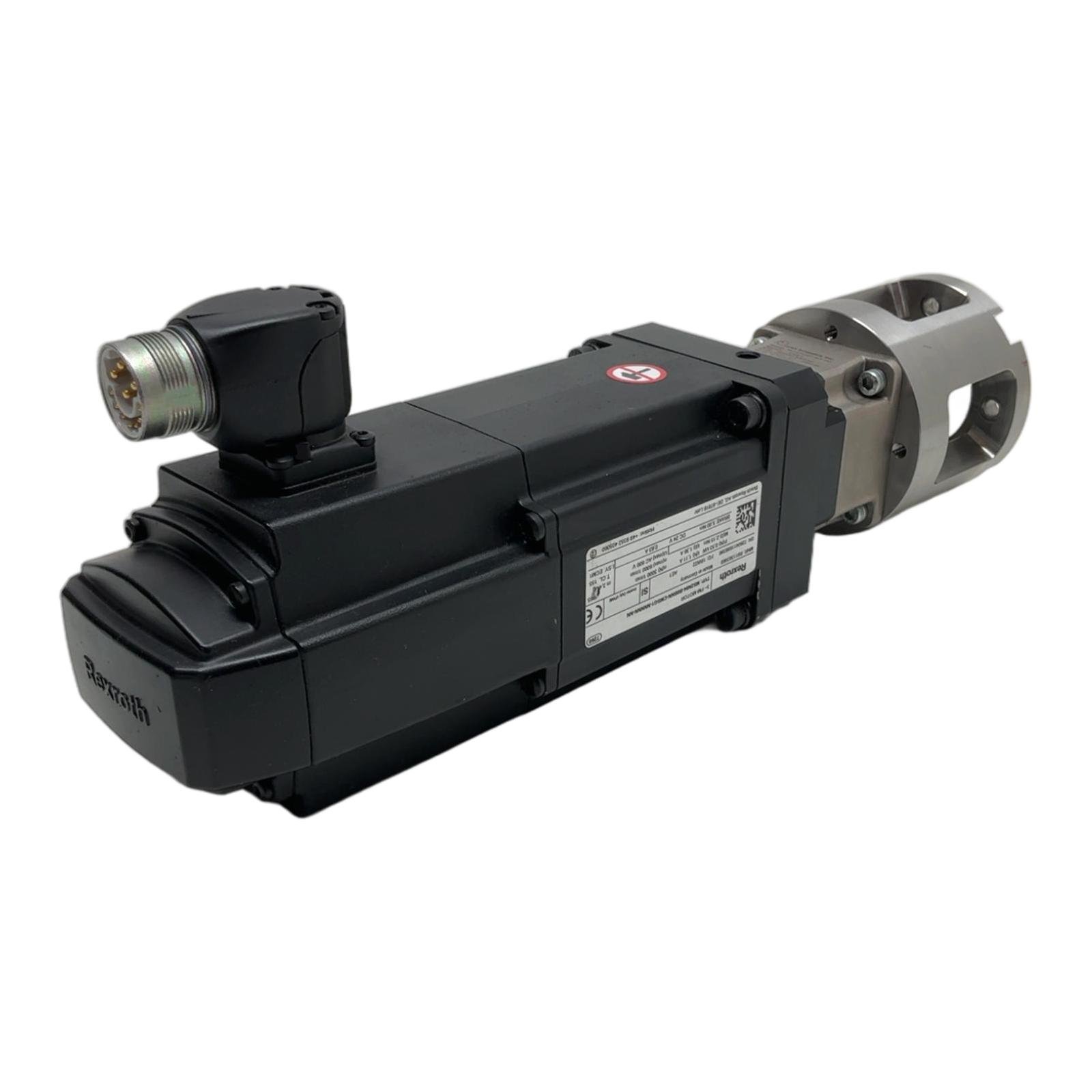

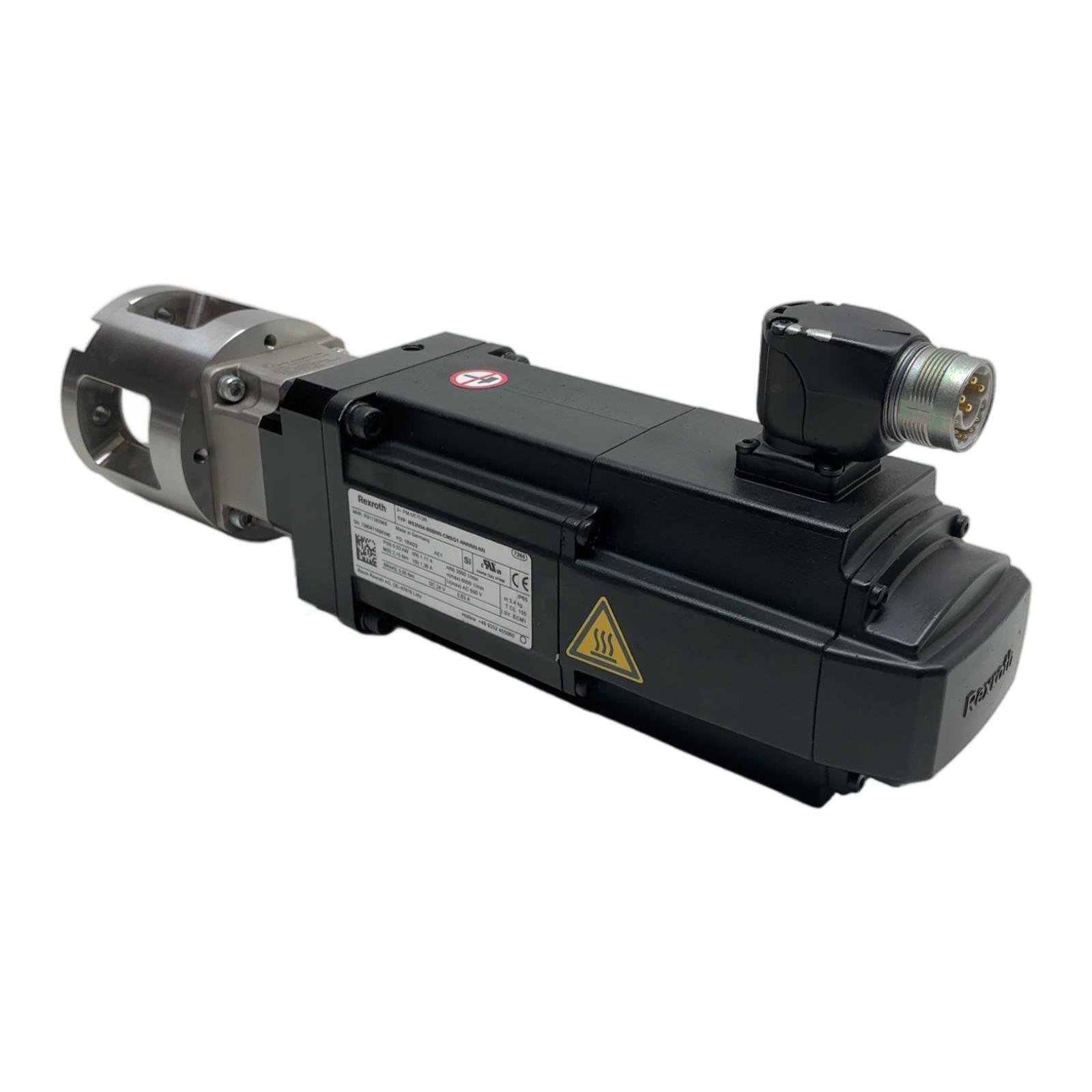

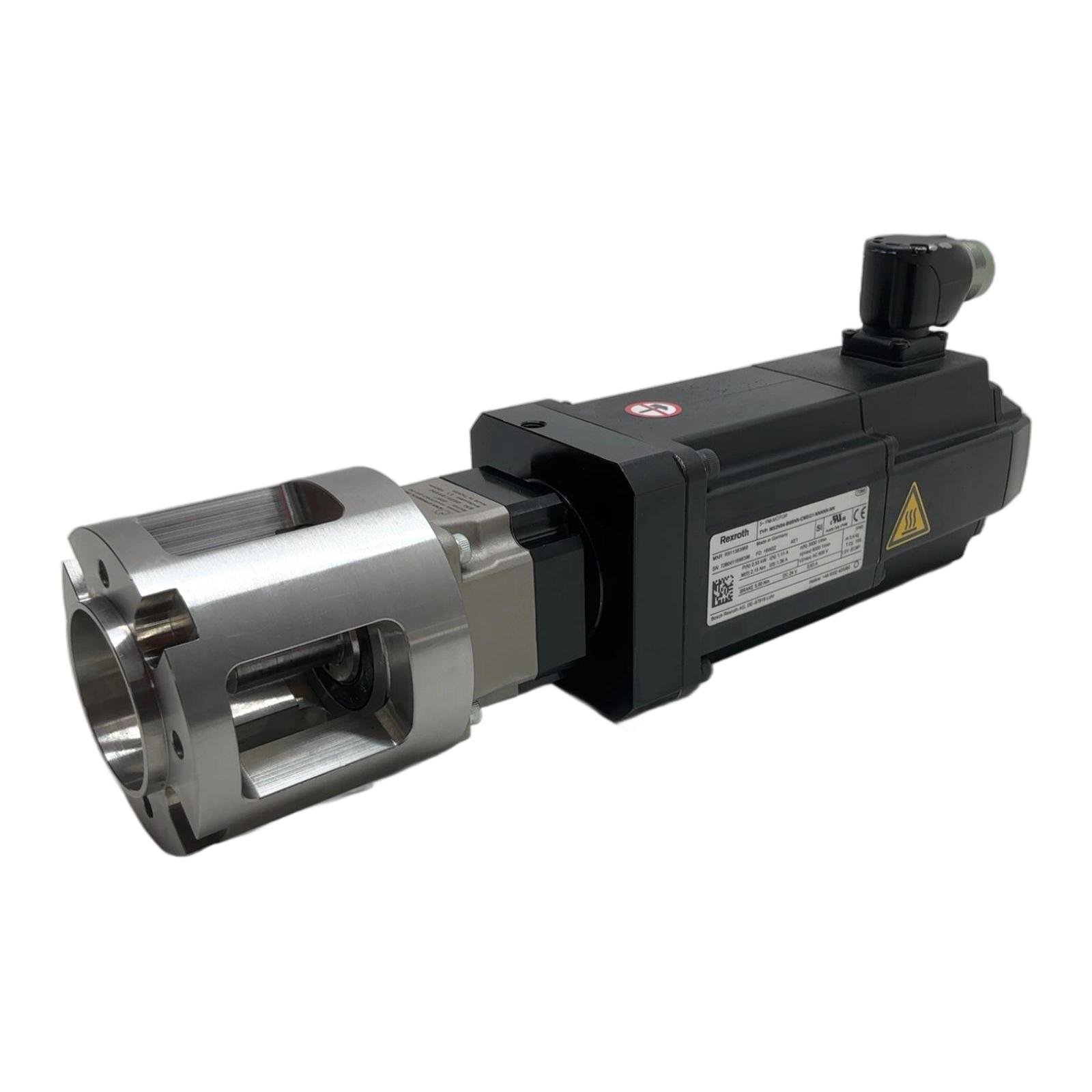

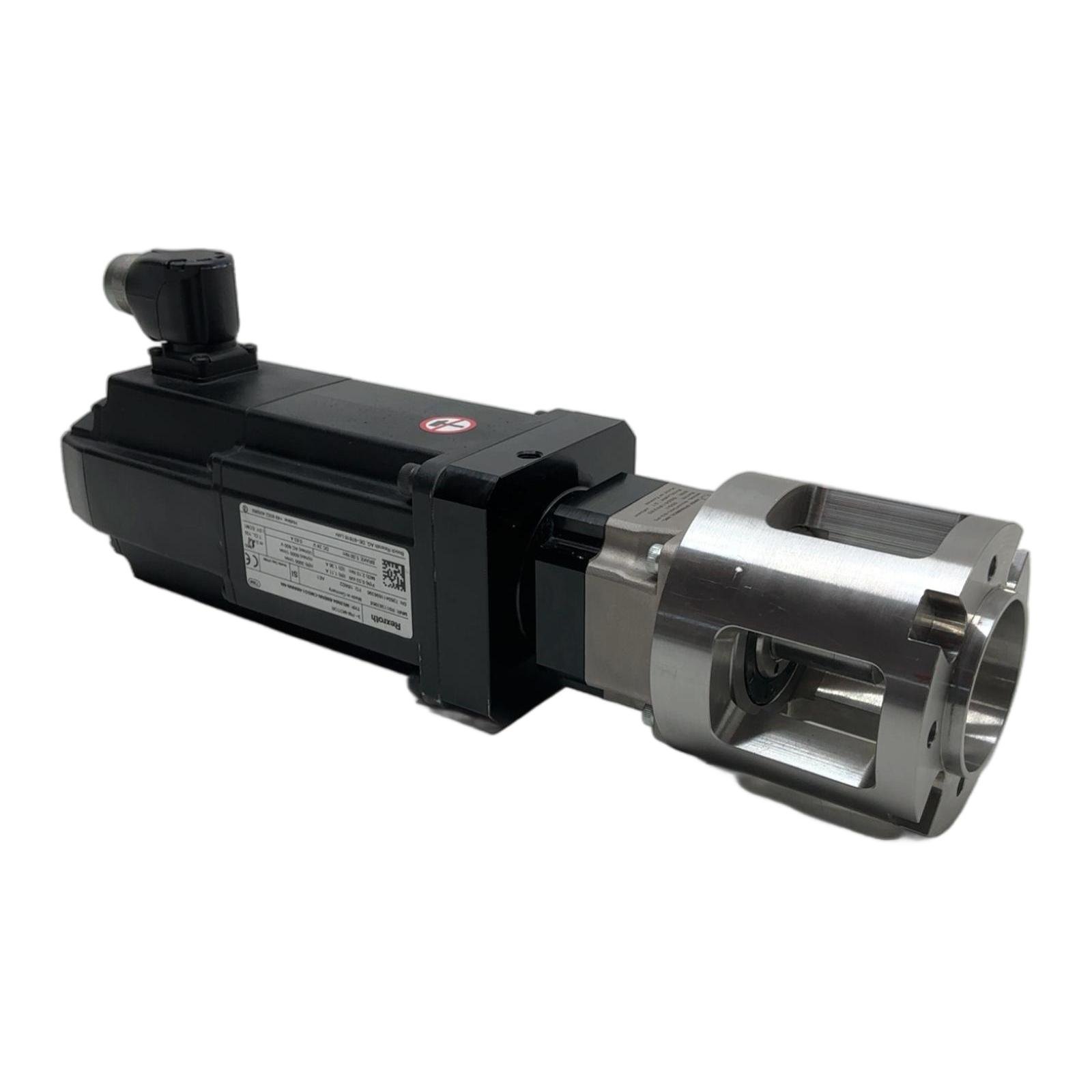

Rexroth Servo Motor with Apex Dynamics Precision Gearbox Description This is a pre-assembled drive unit featuring a Rexroth MS2N synchronous servo motor and an Apex Dynamics AF060 planetary gearbox. The motor delivers a nominal power of 0.53 kW at 3000 rpm and is equipped with a 24V DC holding brake. The attached high-precision gearbox offers a 5:1 reduction ratio with a backlash of less than or equal to 1 arcminute, ensuring superior accuracy for demanding motion control applications. This assembly is an excellent choice for robotics, CNC machinery, and high-speed automation systems. Specifications Manufacturer (Motor): Rexroth Type (Motor): MS2N04-B0BNN-CMSG1-NNNNN-NN Part Number (Motor): R911383968 Nominal Power: 0.53 kW Nominal Speed: 3000 rpm Stall Torque: 2.15 Nm Holding Brake: 5.00 Nm, 24V DC Manufacturer (Gearbox): Apex Dynamics, Inc. Model (Gearbox): AF060-S2-P0 Gear Ratio: 5:1 Max. Backlash: 1 arcmin Label Info Motor S/N: 7260411698396 Motor FD: 18W22 Gearbox S/N: D205189230 Application Ideal for applications requiring precise positioning, high torque, and compact design, such as packaging machines, pick-and-place robots, and material handling systems. Country of Origin Motor: Germany. Gearbox: Taiwan. CO2 Impact By purchasing this reconditioned assembly, you help avoid the emission of 208 kg of CO2, which is comparable to driving a car for 1040 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the benefit of the attached Apex Dynamics AF060-S2-P0 gearbox?The Apex AF060 is a high-precision planetary gearbox with a backlash of 1 arcminute or less. This feature is critical for applications requiring exact positioning and repeatability, as it minimizes lost motion during direction changes. What type of encoder is used in this Rexroth MS2N motor with the CMSG1 option?The ‘CMSG1′ designation in the type code indicates that the motor is equipped with a single-turn absolute encoder featuring the HIPERFACE DSL protocol, which allows for robust digital communication over a single cable. Is the 24V DC brake on this motor a holding brake or a dynamic brake?This is a permanent magnet holding brake. It is designed to hold a load in position when the motor is de-energized. It is not intended for dynamically stopping a moving load, which should be handled by the drive’s control system. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
