SCHNEIDER ELECTRIC LC1D25BD

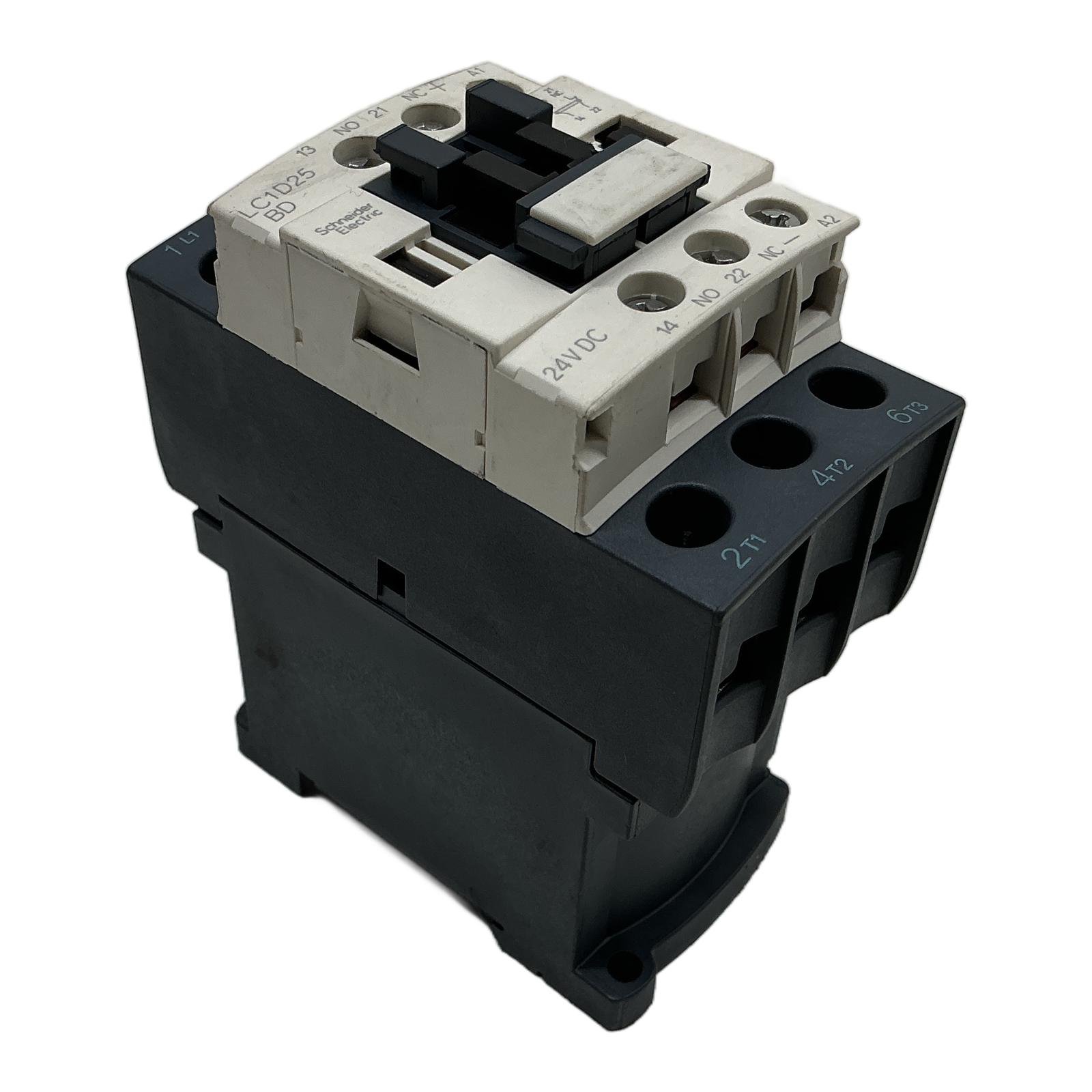

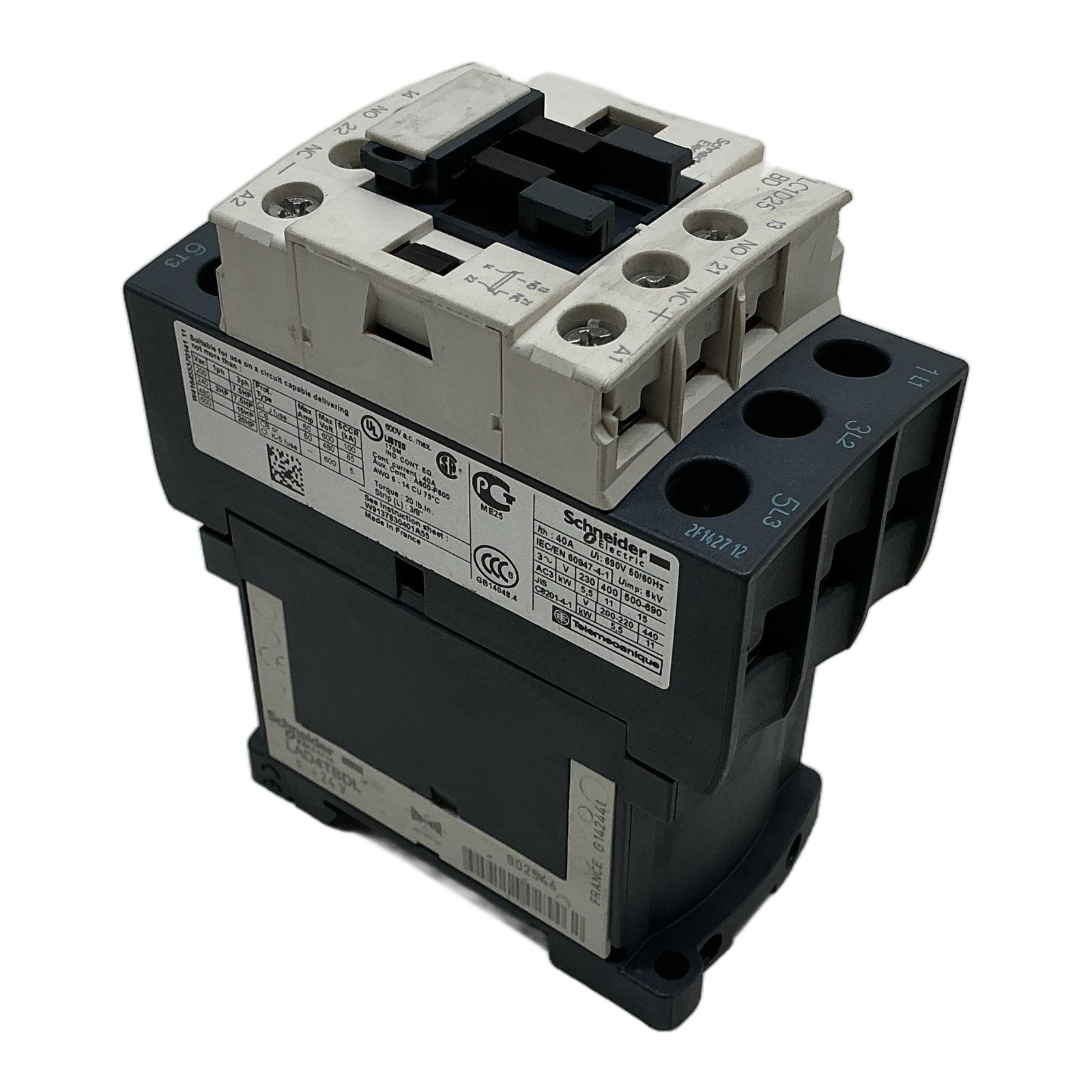

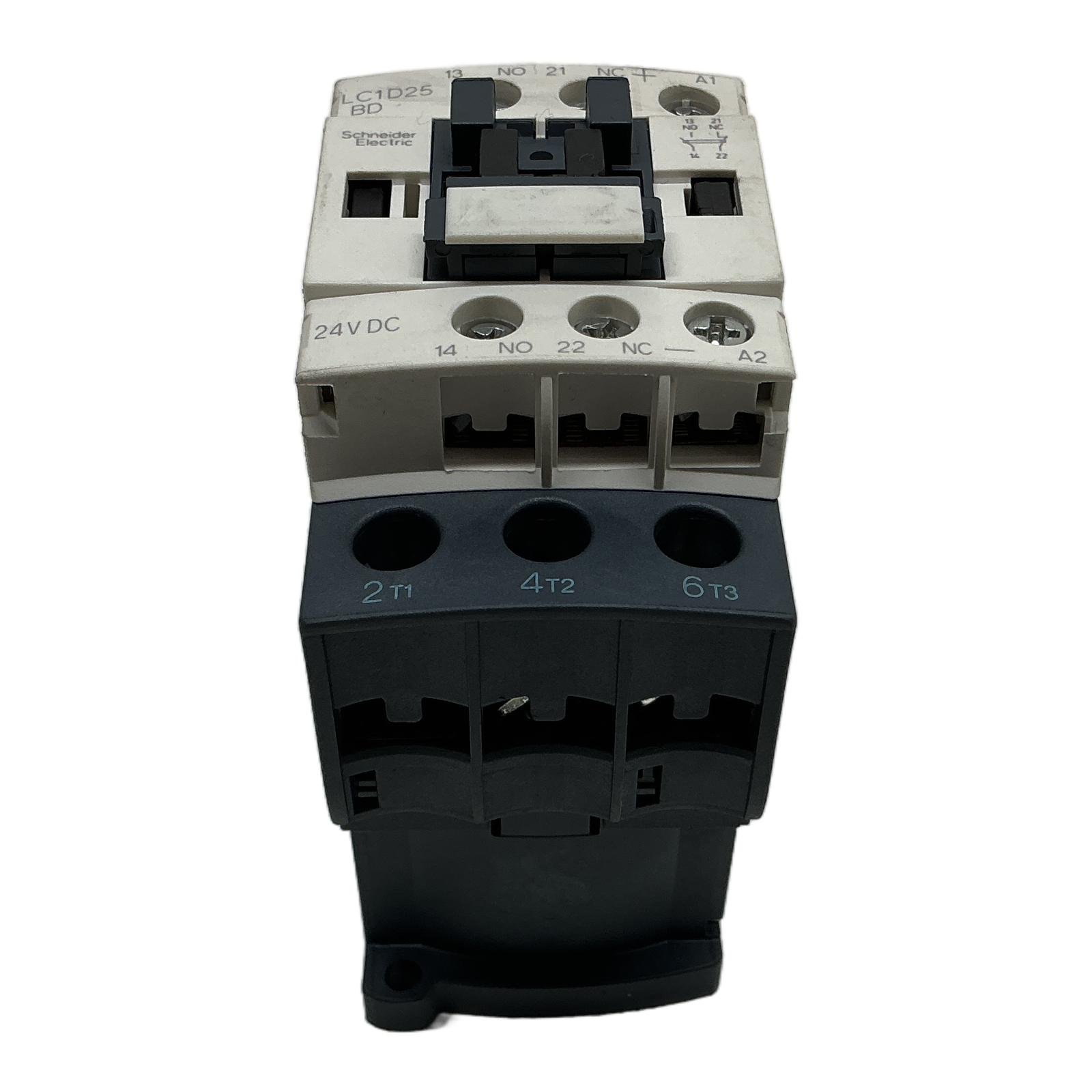

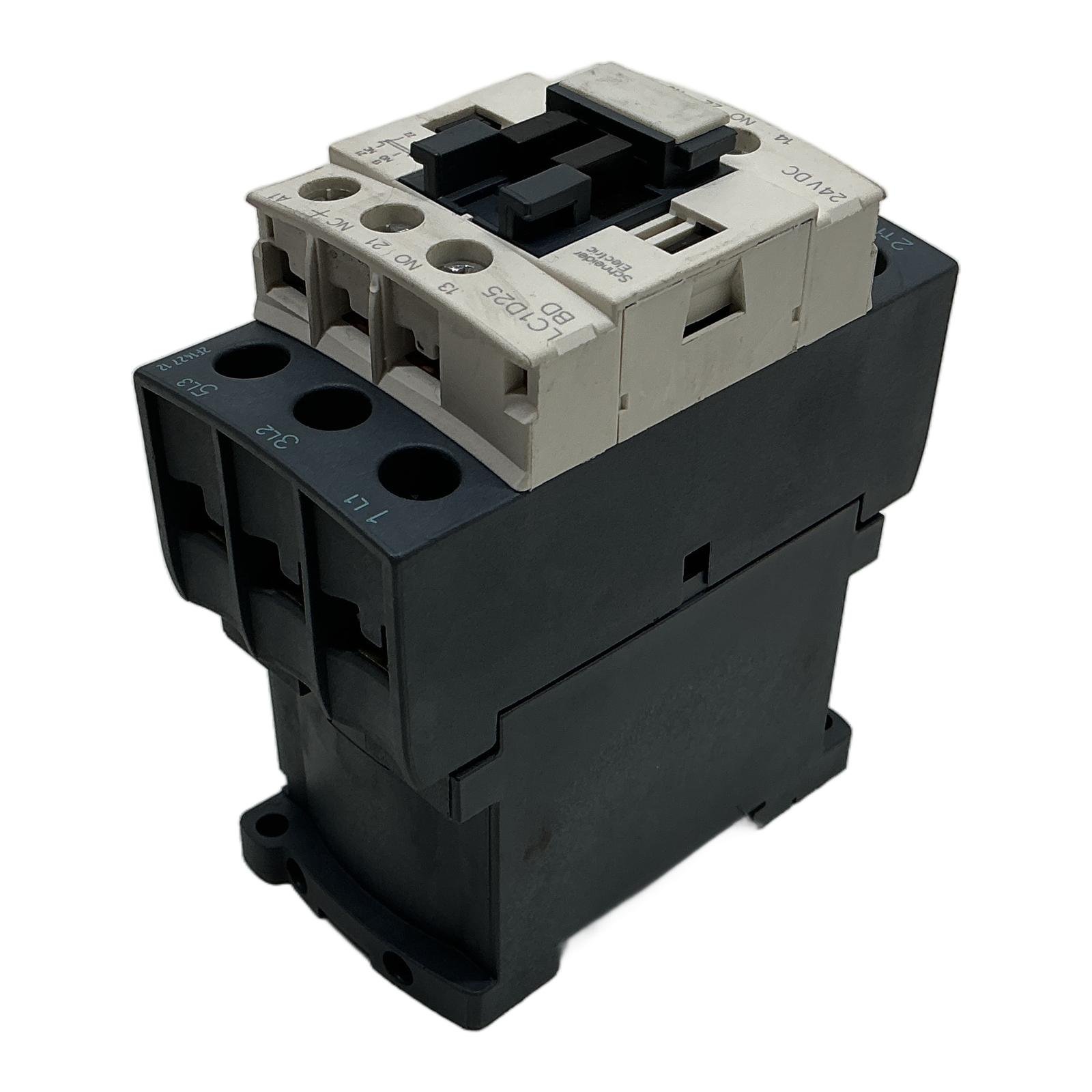

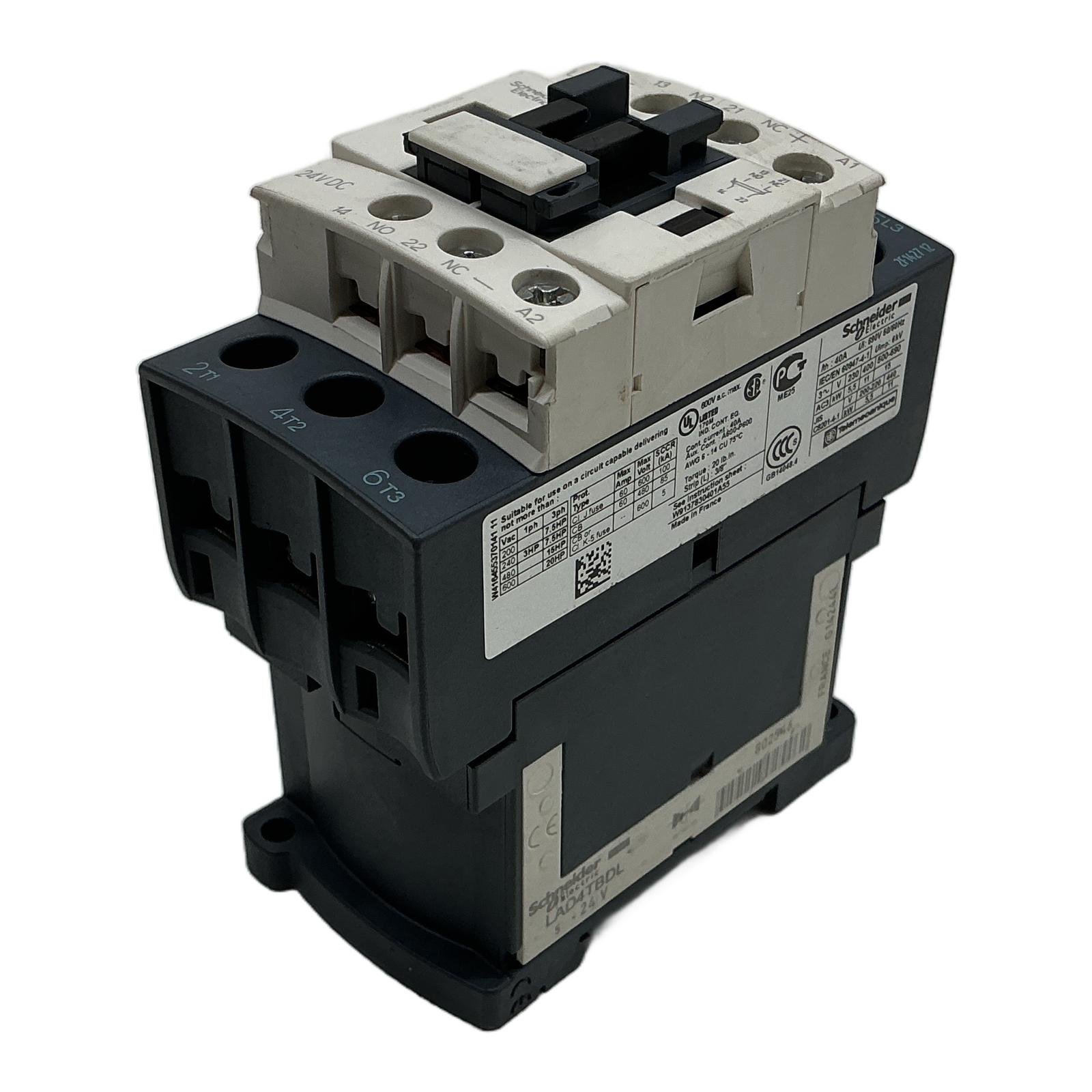

Schneider Electric LC1D25BD TeSys D Contactor Description The LC1D25BD is a high-performance 3-pole contactor from Schneider Electric’s trusted TeSys D range. It is engineered for controlling motors and other electrical loads with high reliability. This model features a 24V DC coil with low power consumption, making it suitable for direct control from PLC outputs. With its compact design and robust construction, it is an industry standard for automation and control panels. Specifications Manufacturer: Schneider Electric Series: TeSys D Model: LC1D25BD Poles: 3-Pole Coil Voltage: 24V DC AC-3 Rated Current (@ <= 440V): 25 A AC-1 Rated Current: 40 A Motor Power (AC-3 @ 400V): 11 kW Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV Label Info Model: LC1D25 BD Ith: 40A Standard: IEC/EN 60947-4-1 Application Ideal for motor starting applications, HVAC systems, switching resistive loads, and general use in industrial automation control circuits. Country of Origin Made in France. CO2 Impact Choosing this pre-owned component over a new one prevents the emission of approximately 15.0 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘BD’ suffix in the model number?The ‘BD’ suffix indicates that the contactor is equipped with a 24V DC low-consumption coil. This type of coil requires less power to actuate and is ideal for direct connection to PLC transistor outputs without the need for an interposing relay. Can I add more auxiliary contacts to this contactor?Yes, the TeSys D series is highly modular. You can easily add front-mount (LADN) or side-mount (LADC) auxiliary contact blocks to expand the number of NO and NC contacts as required by your application. Is this contactor suitable for direct PLC output control?Absolutely. The low-consumption DC coil is specifically designed for this purpose. It has a low inrush and holding current, making it fully compatible with the current limitations of typical 24V DC digital outputs on PLCs. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
