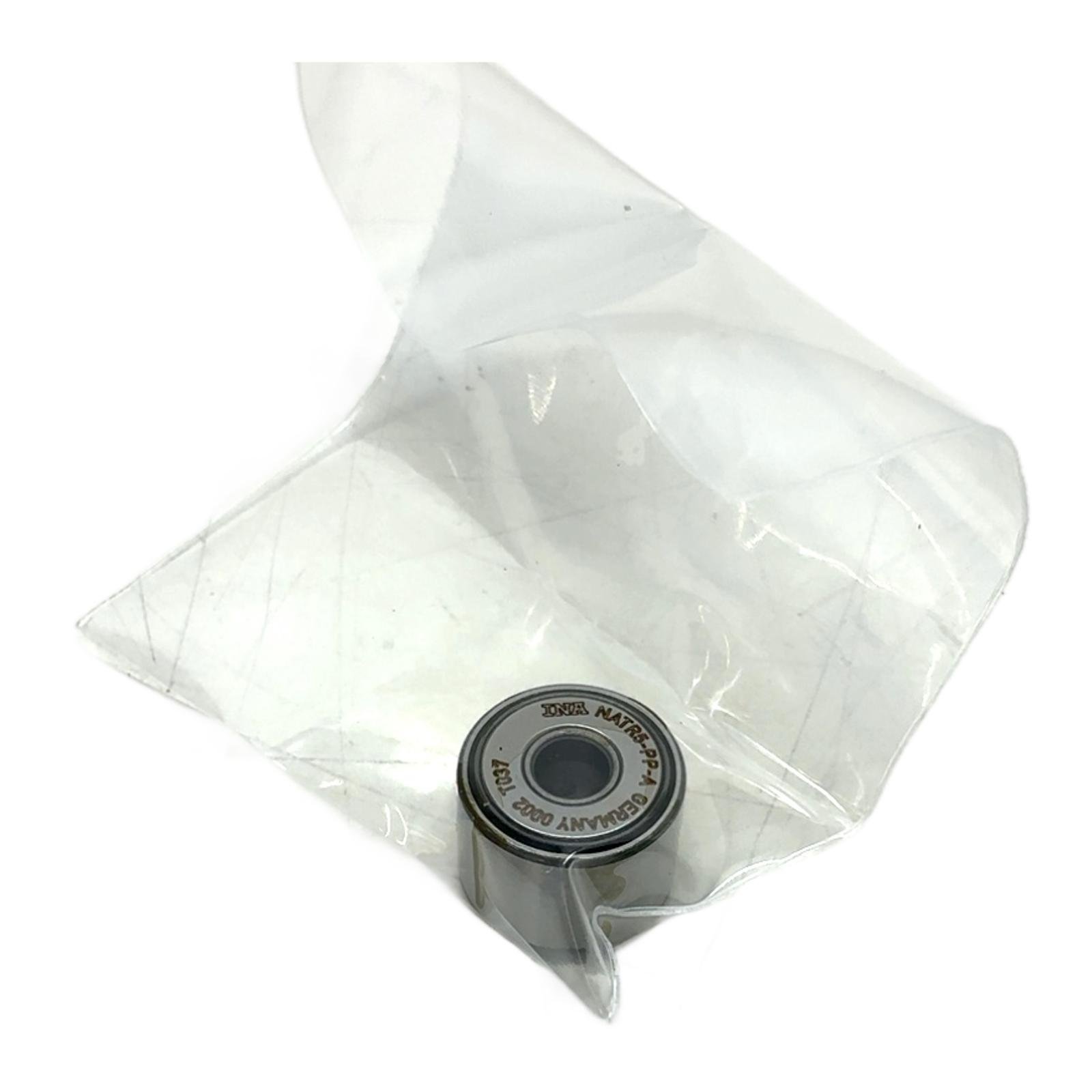

INA NATR5-PP-A

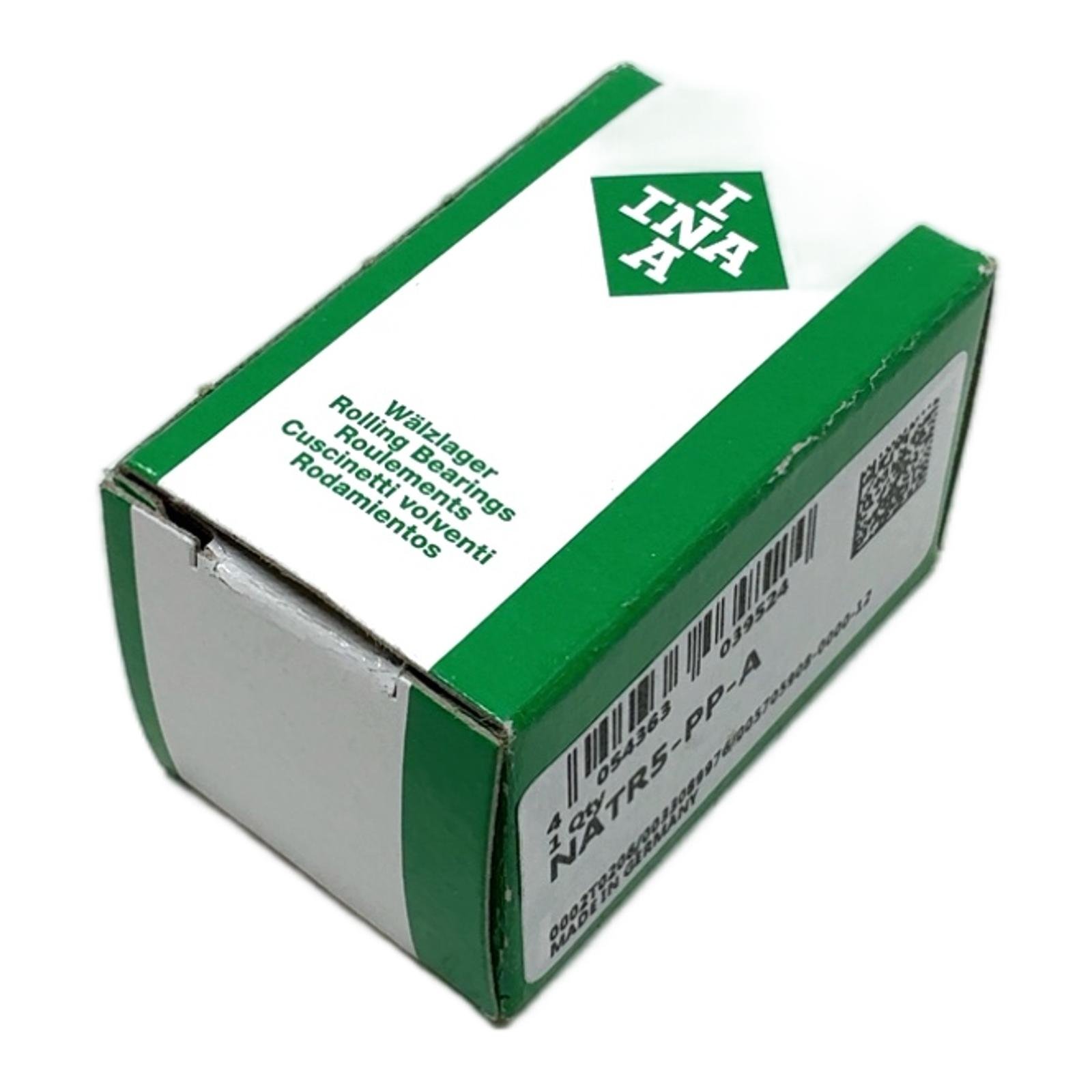

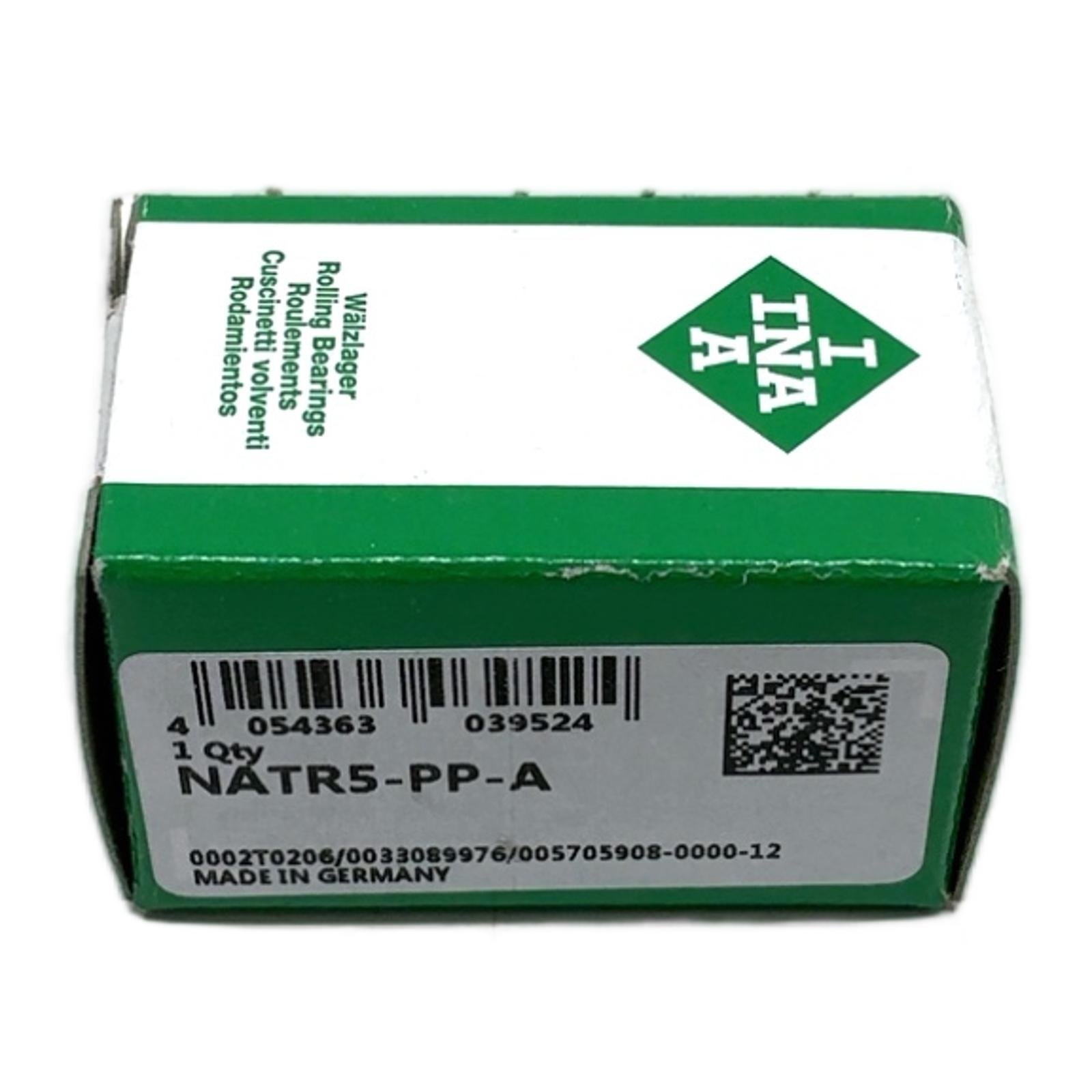

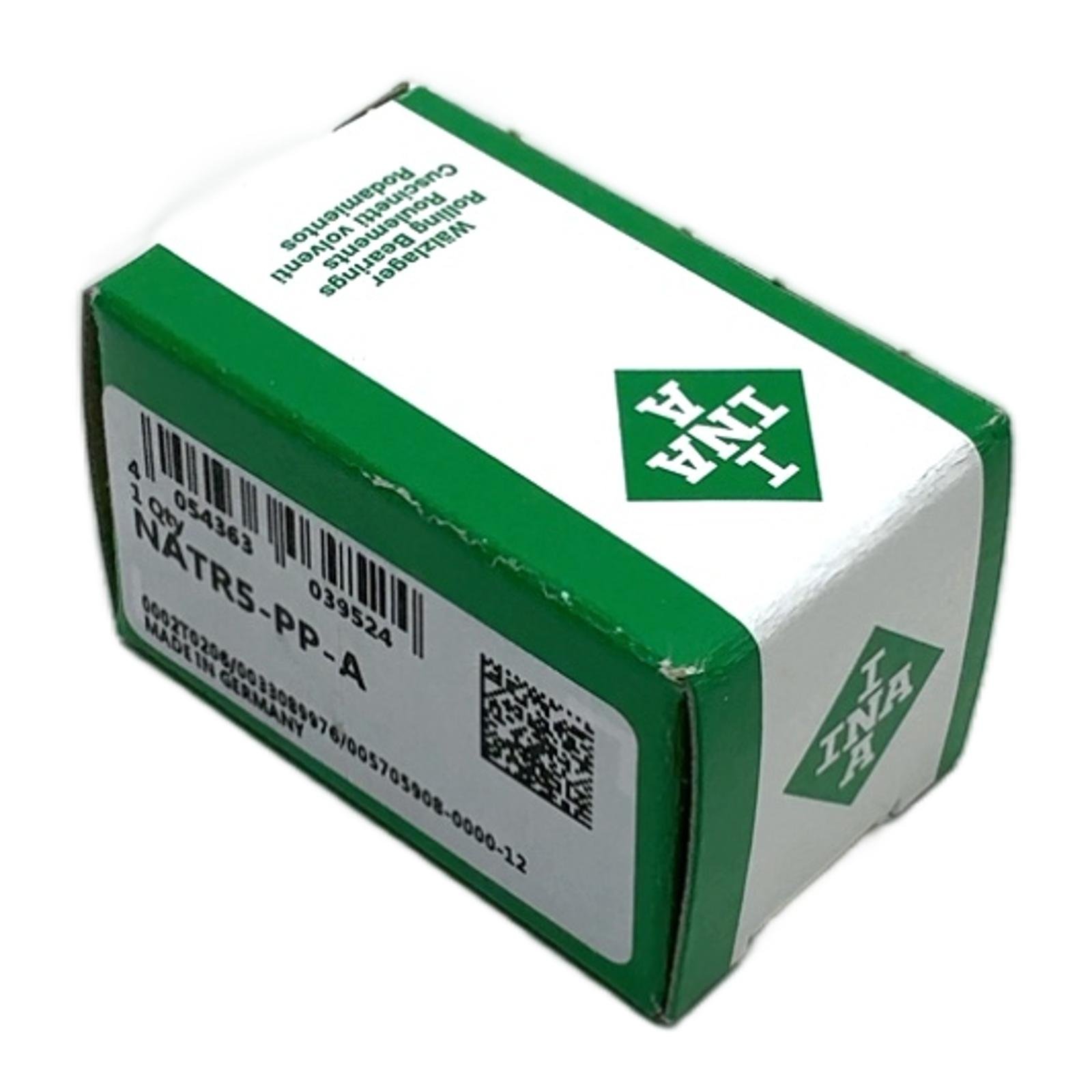

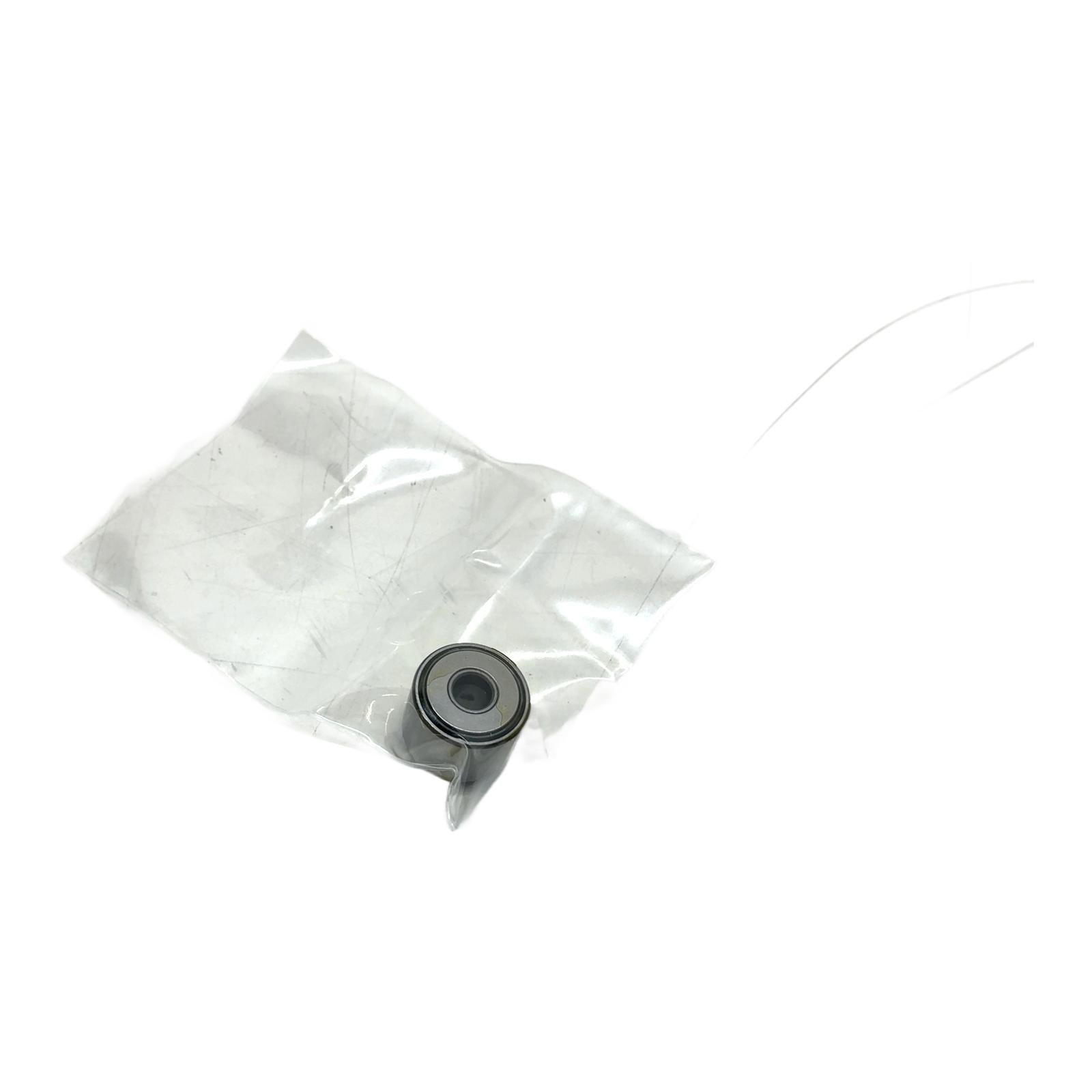

INA NATR5-PP-A Yoke Type Track Roller Description The INA NATR5-PP-A is a high-performance, single-row yoke type track roller designed for demanding industrial applications. It features a full complement of needle rollers, allowing it to support high radial loads. The robust PP seals on both sides provide excellent protection against contaminants and retain lubrication, ensuring a long and reliable service life. Its crowned outer ring helps to reduce edge stresses, making it ideal for applications where misalignment may occur. Specifications Bore Diameter (d): 5 mm Outer Diameter (D): 16 mm Width (B): 12 mm Sealing: Contact seals on both sides (PP) Outer Ring Profile: Crowned Cage: Full complement needle roller set (no cage) Basic Dynamic Load Rating, radial: 3950 N Basic Static Load Rating, radial: 4050 N Label Info Manufacturer: INA Type: NATR5-PP-A EAN: 4054363039524 Application Ideal for use in cam drives, conveyor systems, linear guidance systems, and other machinery requiring precise motion and high load support under challenging conditions. Country of Origin Made in Germany. CO2 Impact By choosing this pre-owned but unused component, you are contributing to a circular economy and avoiding approximately 0.03 kg of CO2 emissions. This is equivalent to the energy needed to fully charge a smartphone 4 times. Availability This item is in stock and ready for immediate dispatch. It is a new old stock (NOS) item in its original packaging. Order now from profideals for expert support and fast delivery. FAQ Question? What does the ‘PP’ suffix in NATR5-PP-A signify?The ‘PP’ designation indicates that the track roller is equipped with plastic axial plain washers and formed seal lips on both sides. These provide effective contact sealing against contamination and prevent lubricant leakage. Question? What is the advantage of a crowned outer ring?A crowned outer ring helps to reduce edge stresses if the track roller runs at an angle relative to the raceway. This prevents excessive wear and extends the operational life of both the roller and the track. Question? Is this bearing pre-lubricated?Yes, INA track rollers like the NATR5-PP-A are supplied filled with a high-quality lithium complex soap grease. They are generally considered lubricated for life under normal operating conditions, but relubrication requirements should be verified based on the specific application’s demands. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
