TELEMECANIQUE LX1 FH2402 055336

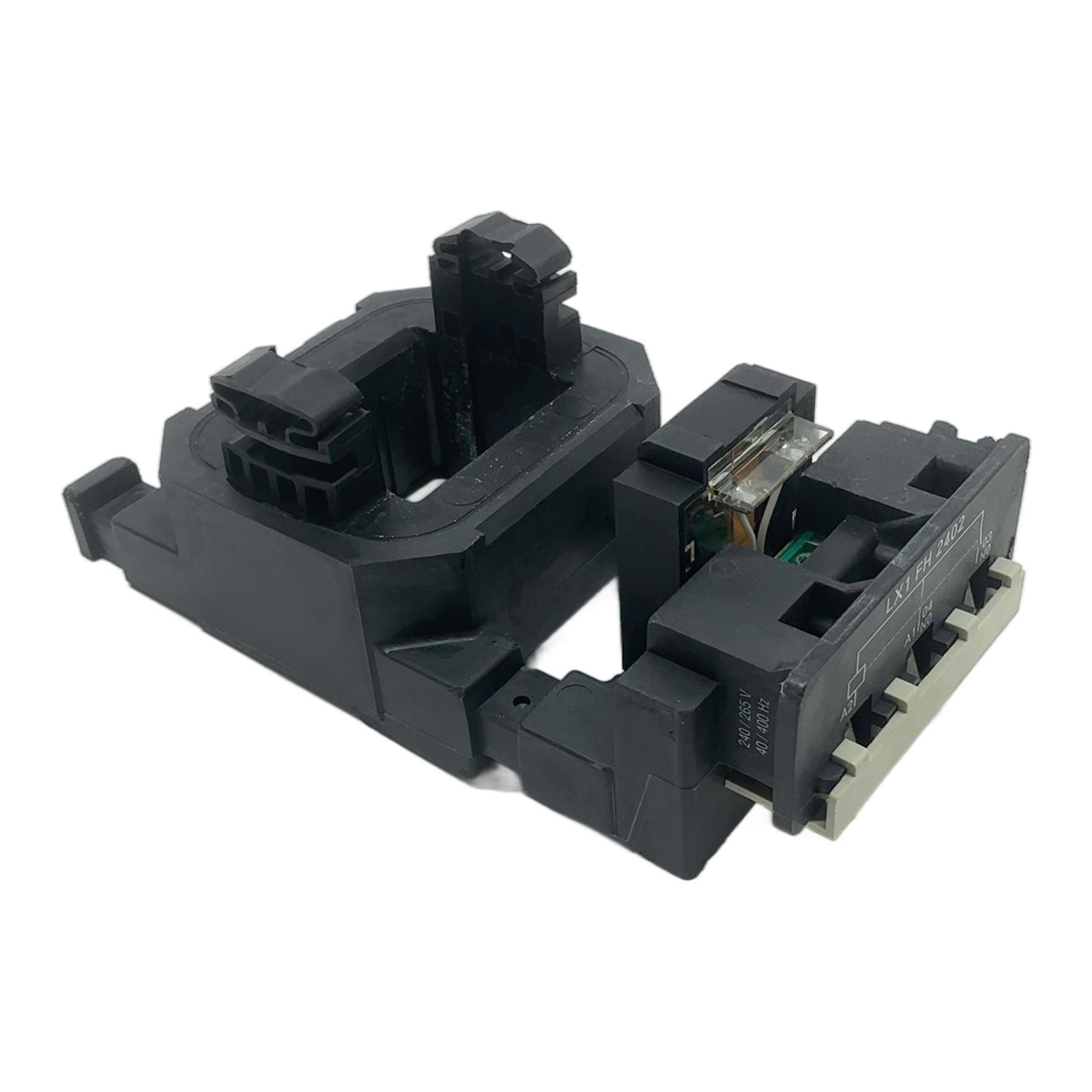

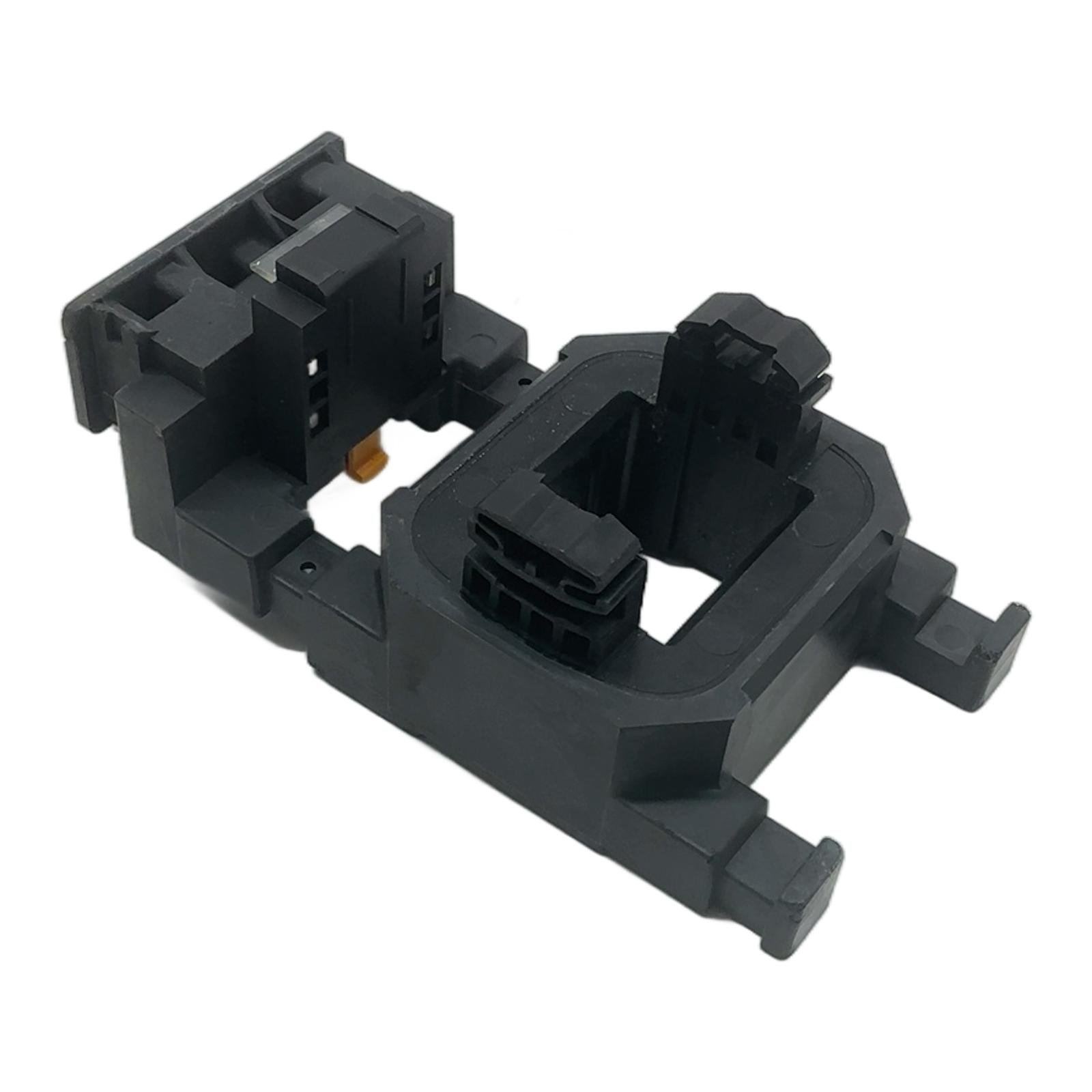

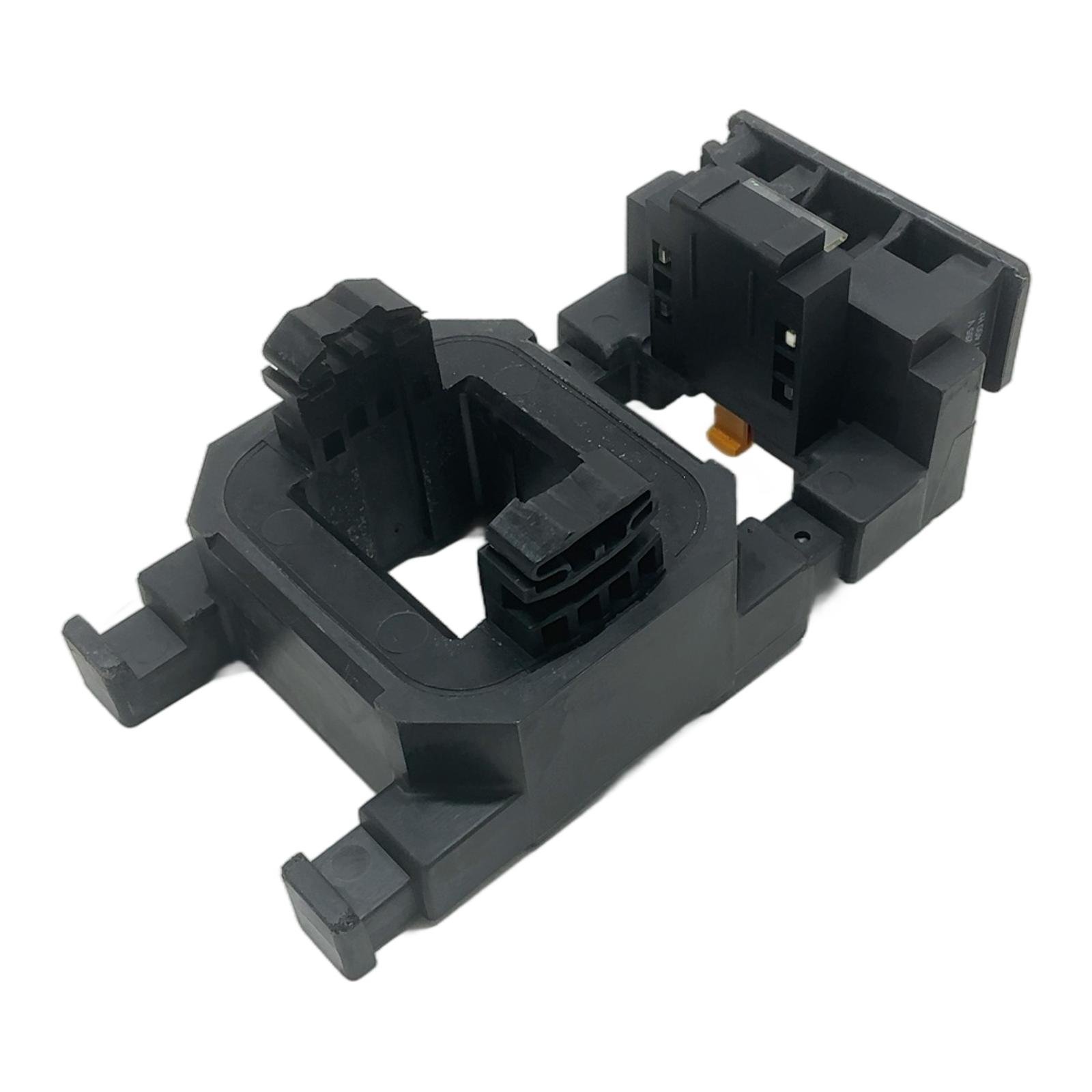

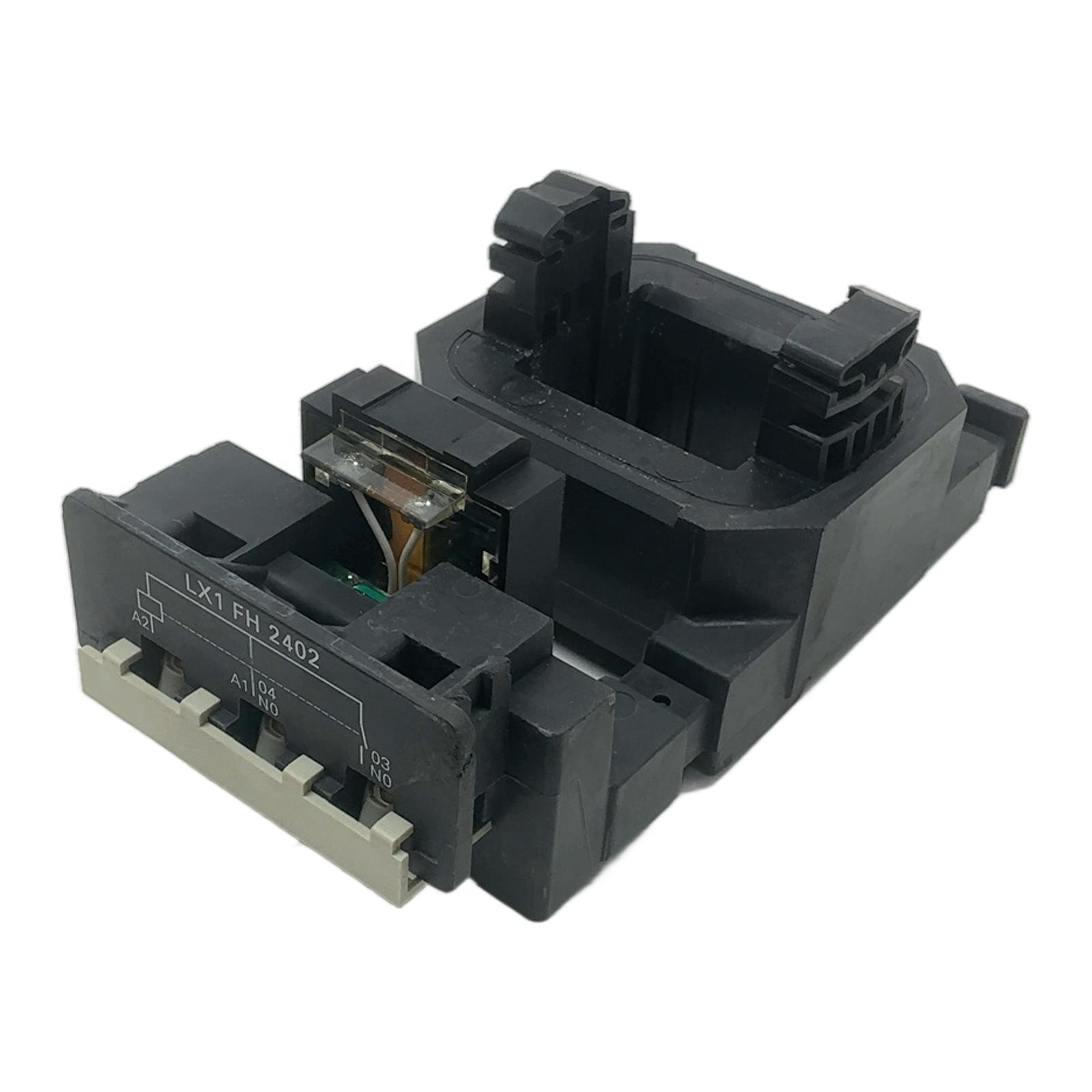

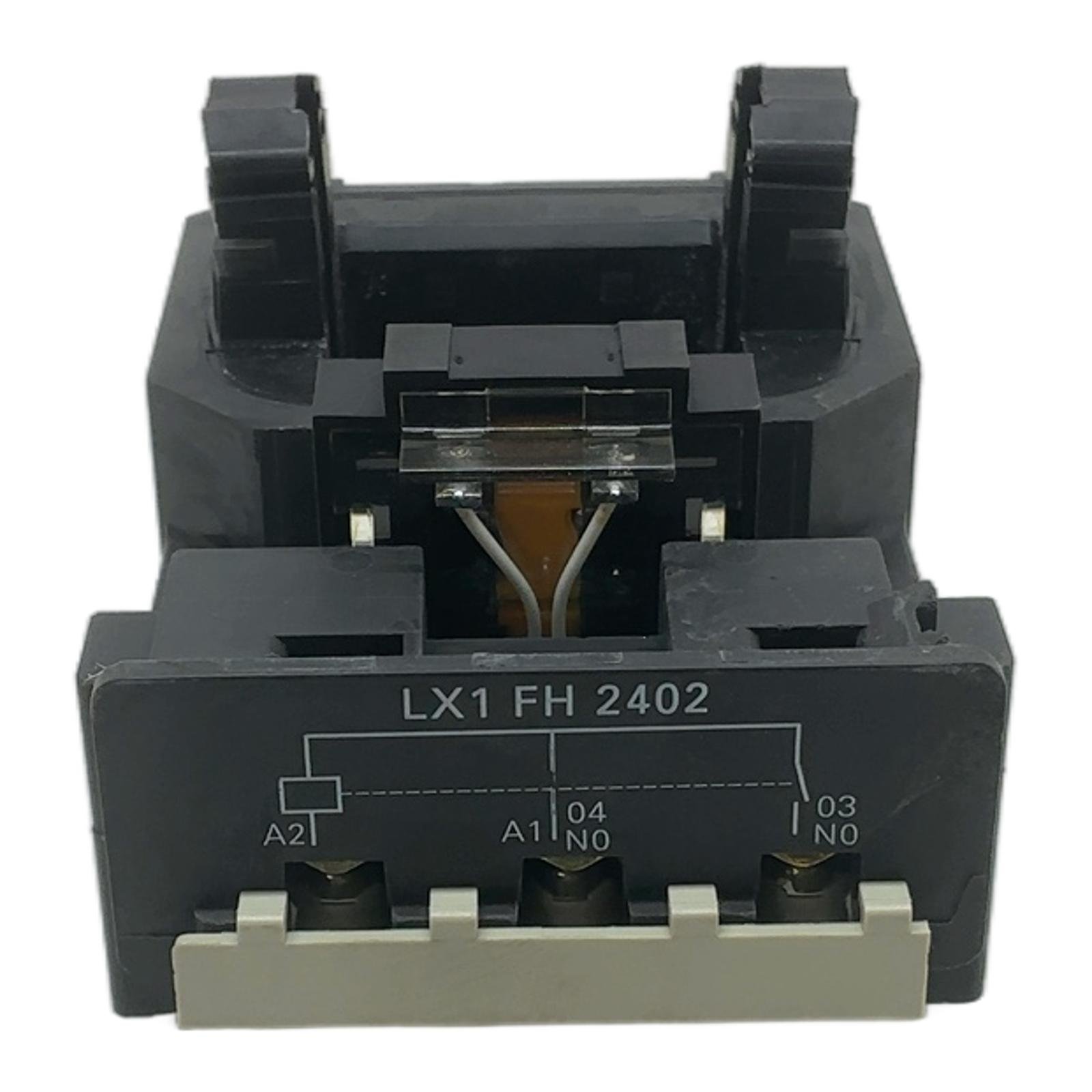

Telemecanique LX1 FH2402 Contactor Coil Description The Telemecanique LX1 FH2402 is a high-quality replacement coil designed for the TeSys F range of contactors. This component is essential for the proper electromagnetic operation of contactors, ensuring reliable switching of motor and power circuits. It operates on a versatile voltage range of 240-265V AC and a wide frequency of 40 to 400 Hz. Specifications Manufacturer: Telemecanique (Schneider Electric) Type: LX1 FH2402 Part Number: 055336 Product Type: Contactor Coil Control Circuit Voltage: 240-265V AC Operating Frequency: 40-400 Hz Compatibility: Suitable for LC1F115 to LC1F225 contactors Label Info Coil / Bobine / Spule 240/265V 40 a 400Hz LX1 FH2402 055336 Application This coil is used as a spare part for repairing or maintaining TeSys F contactors in various industrial settings, including motor control centers, HVAC systems, and manufacturing machinery. Country of Origin Made in France. CO2 Impact By choosing this pre-owned component, you are avoiding the production of a new one, which saves an estimated 10.0 kg of CO2. This is comparable to the emissions of driving a car for 50 kilometers. Availability This item is an obsolete, New Old Stock (NOS) product. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ How can I verify if this LX1 FH2402 coil is compatible with my specific LC1 F contactor?This coil is designed for TeSys F contactors in the range of LC1F115 to LC1F225. To confirm compatibility, check the data sheet of your specific contactor model or inspect the old coil for a matching part number. The physical dimensions and mounting points should align perfectly. What are the symptoms of a failing contactor coil like this one?Common symptoms of a failing coil include the contactor not pulling in (closing the contacts) when voltage is applied, a humming or buzzing sound louder than usual, or intermittent operation. Overheating of the coil body is also a clear sign of an internal fault. The specified frequency range is 40-400 Hz. Can I use this on a standard 50Hz or 60Hz supply?Yes, absolutely. The wide frequency range of 40-400 Hz makes this coil suitable for standard 50Hz and 60Hz power systems, as well as specialized applications like those found in aviation or military equipment. The coil will function correctly within this entire range. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
