PHOENIX CONTACT MT 2-PE/S-24 AC 2748072

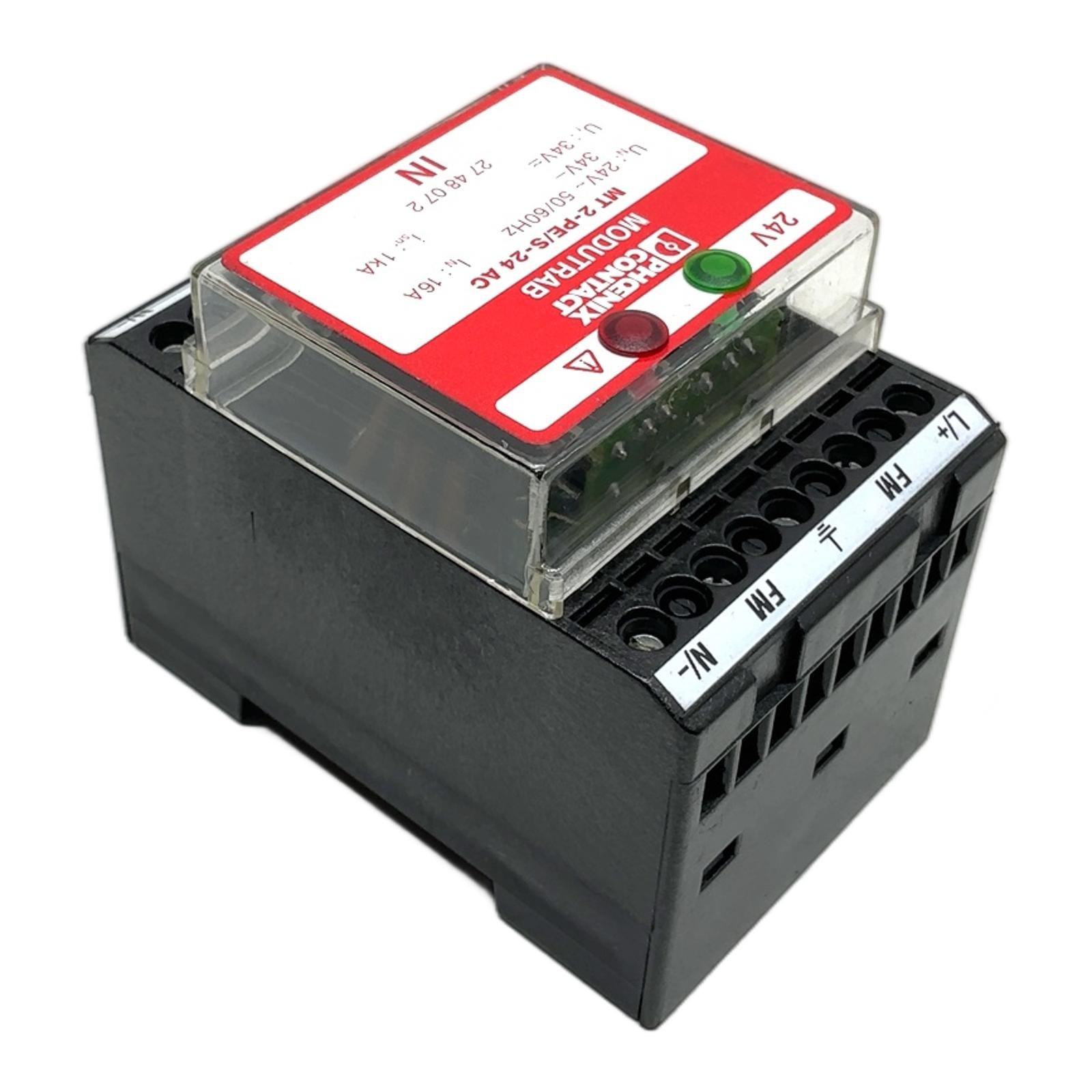

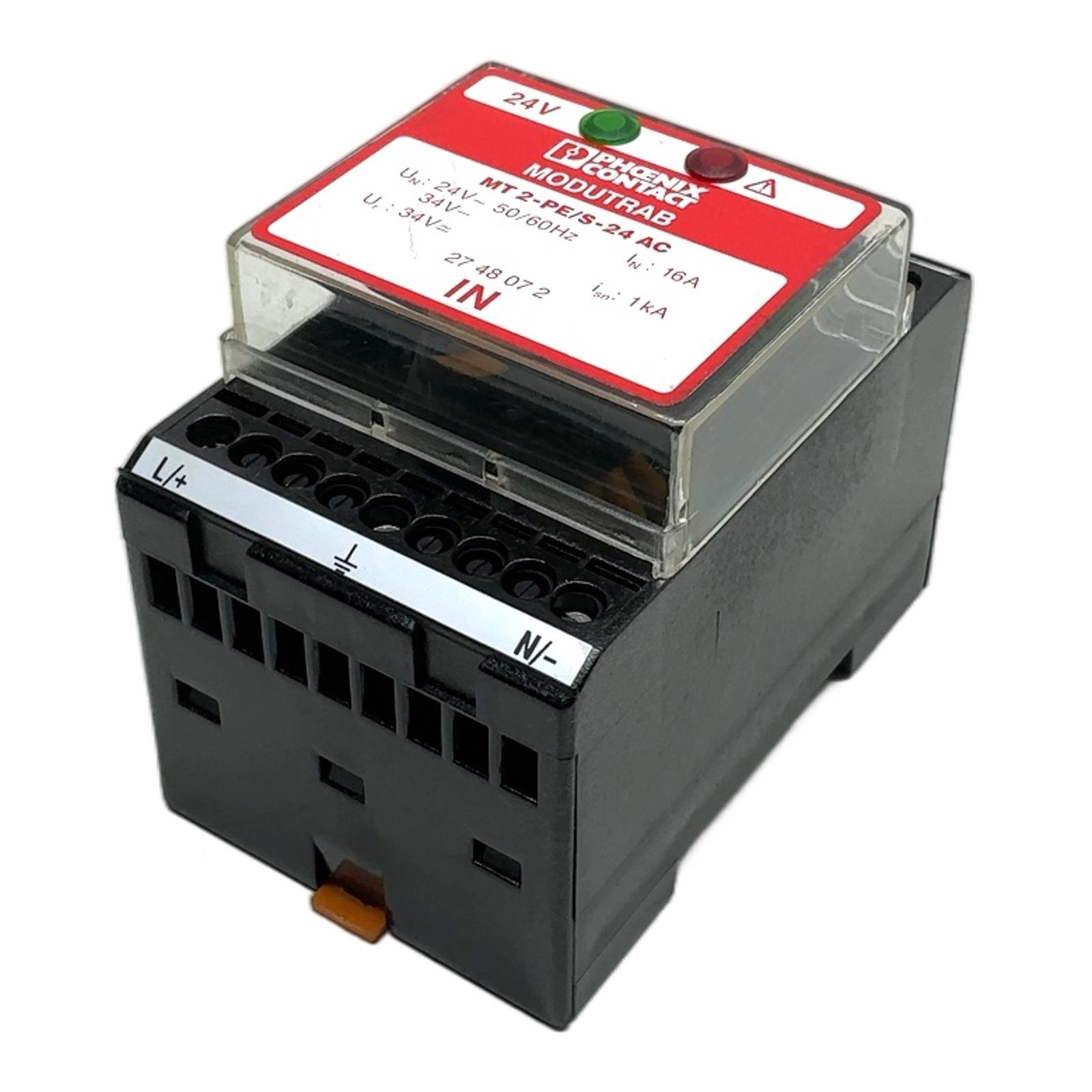

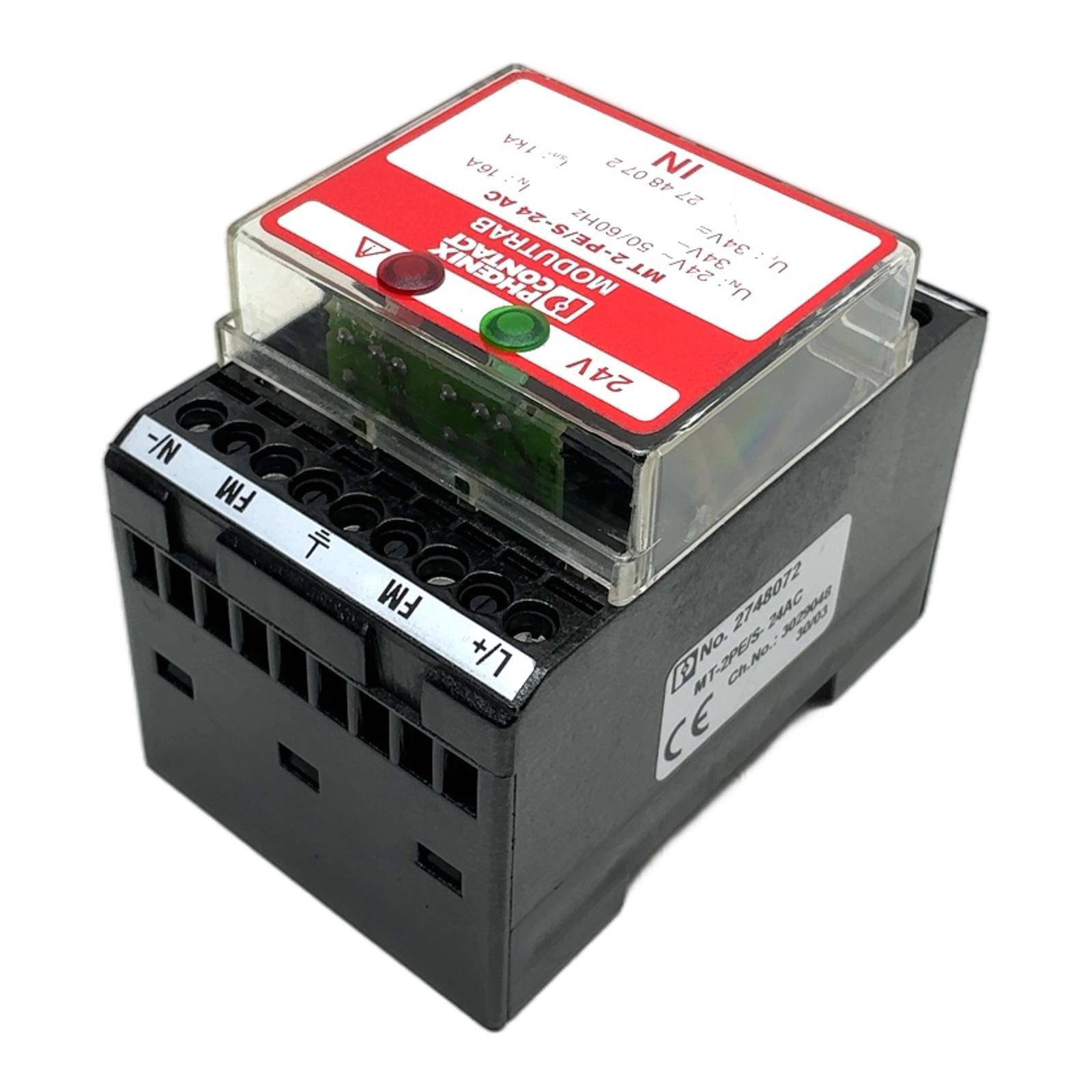

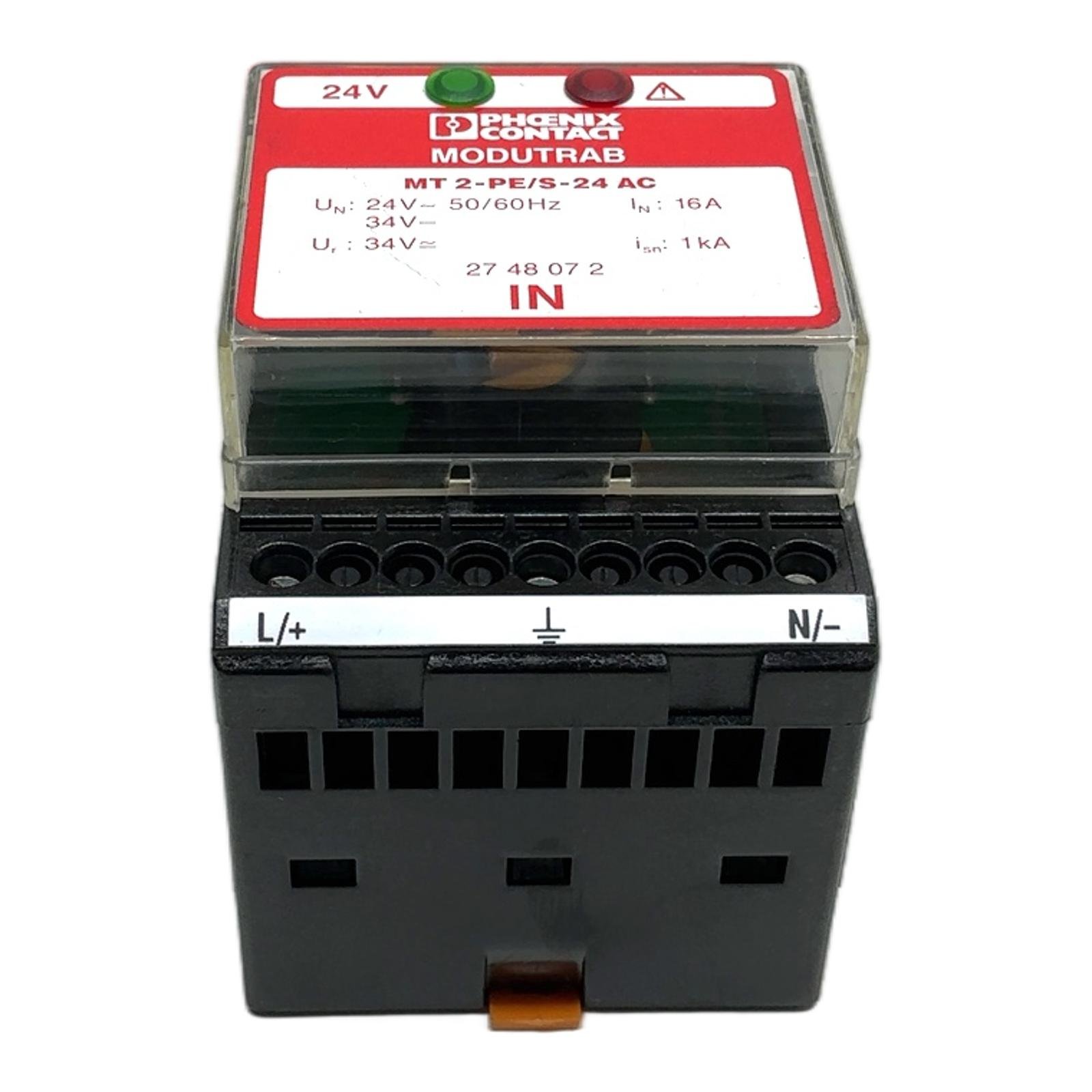

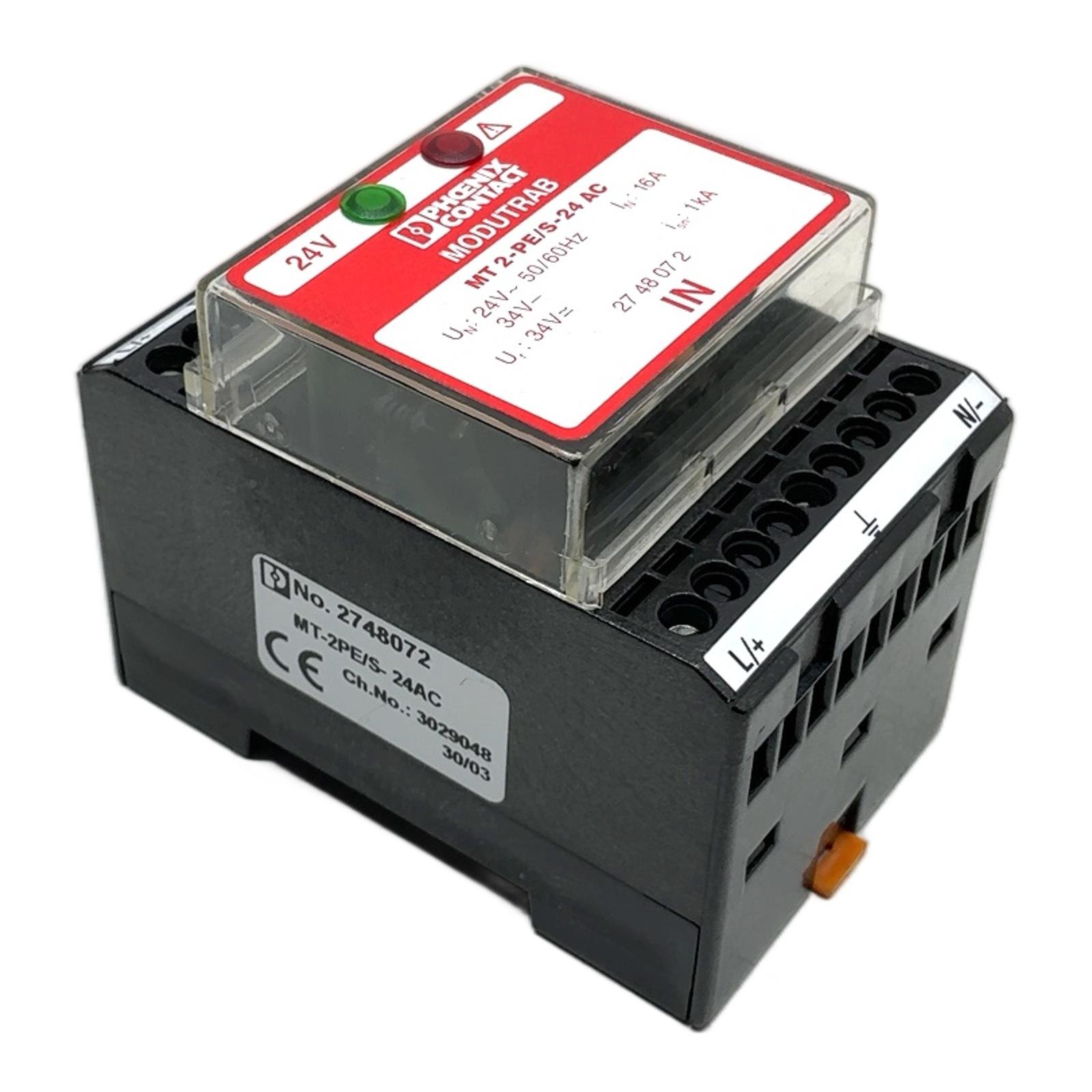

Phoenix Contact MODUTRAB Surge Protection Device Description The Phoenix Contact MT 2-PE/S-24 AC, with order number 2748072, is a pluggable surge protection device from the MODUTRAB series. It is engineered to safeguard 24V AC systems against transient overvoltages. This component is crucial for protecting sensitive electronic equipment in industrial control panels, ensuring system reliability and preventing downtime. The device features a base element for DIN rail mounting and a replaceable protective plug, allowing for easy maintenance. Visual status indicators provide immediate feedback on the protective status. Specifications Manufacturer: Phoenix Contact Type: MT 2-PE/S-24 AC Order Number: 2748072 Nominal Voltage: 24V AC (50/60Hz) Maximum Continuous Operating Voltage (UC): 34V AC/DC Nominal Load Current (IN): 16A Mounting: DIN Rail NS 35/7.5 Connection: Screw terminals Features: Pluggable protective element, remote signaling contact (FM) Label Info Model: MT-2PE/S-24AC Part No.: 2748072 Ch.No.: 3029048 Application This Type 3 surge arrester is ideal for installation in control cabinets to protect PLC inputs, sensors, actuators, and other low-voltage equipment from surges originating from the power supply network. It is commonly used in process automation, manufacturing, and building automation systems. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned device, you are contributing to the circular economy and have helped avoid approximately 6.0 kg of CO2 emissions associated with the production of a new unit. Availability This item is an obsolete component but is available from our stock. Order now from profideals for expert support and fast delivery. FAQ Question?What do the LED indicators on the MT 2-PE/S-24 AC signify?The green LED indicates that the 24V supply voltage is present and correct. The red LED indicates a fault in the protective circuit, signaling that the pluggable module needs to be replaced. Question?Is the protective plug on this MODUTRAB device hot-swappable?Yes, the protective plug can be removed and replaced without interrupting the power to the circuit, thanks to the base element’s design. This allows for quick maintenance without system downtime. Question?What is the function of the ‘FM’ (Floating Contact) terminals on this device?The FM terminals provide a remote signaling contact (a changeover contact). This can be integrated into a monitoring system (like a PLC) to remotely signal the status of the surge protector, such as when the protective element has failed and needs replacement. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
