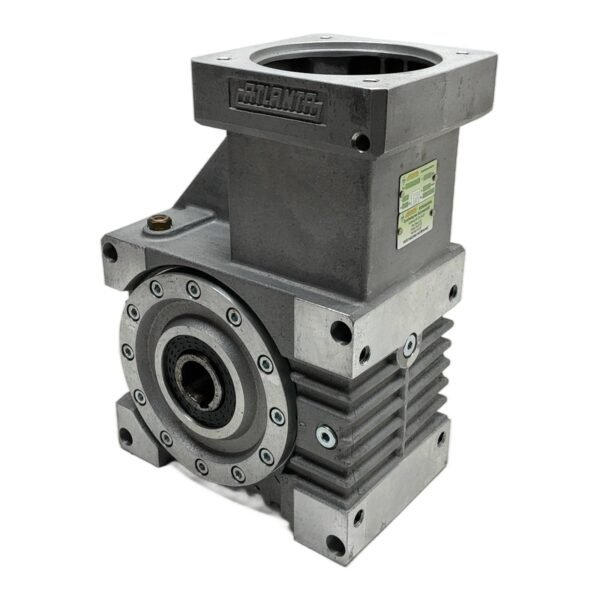

ATLANTA 58-45-409 10.3kW

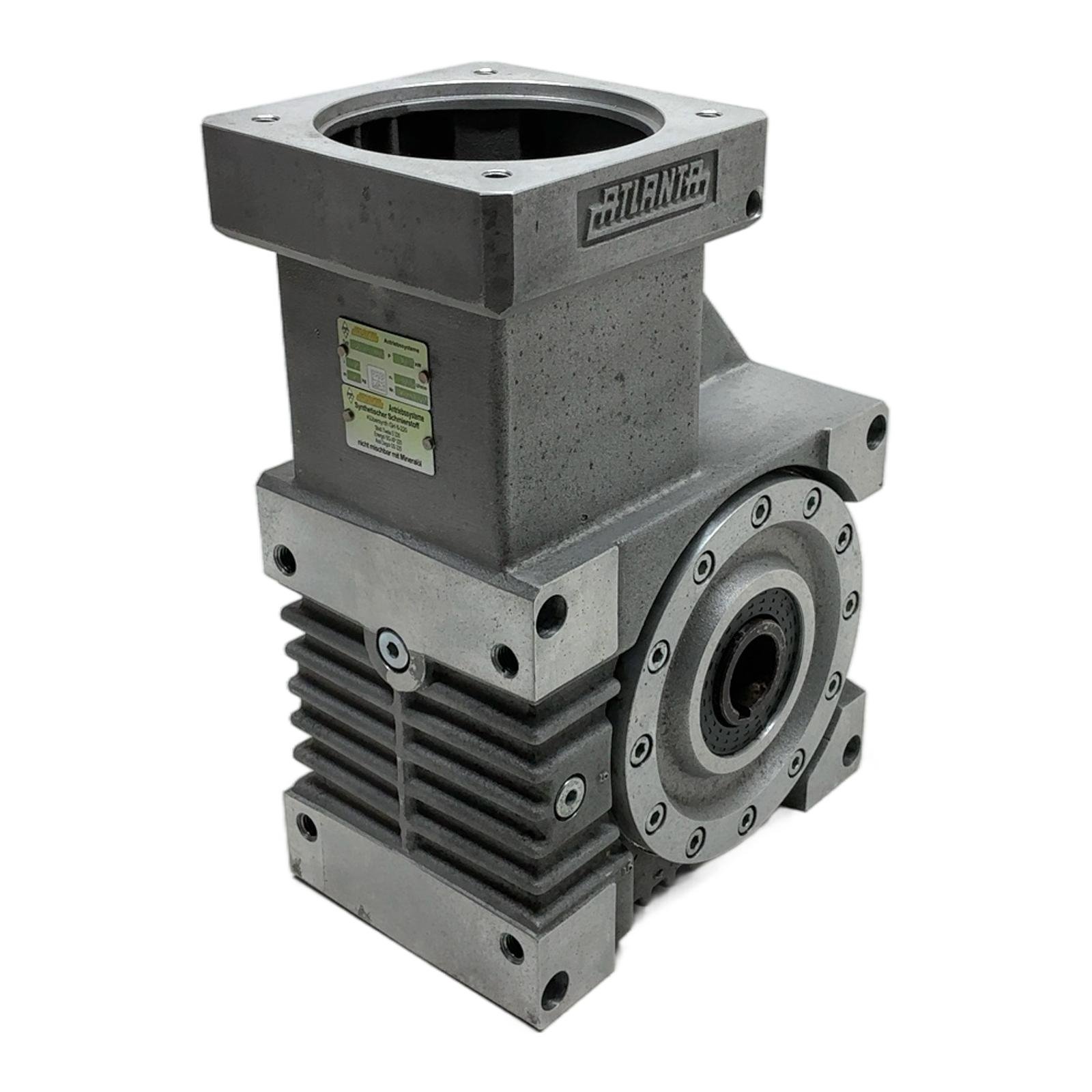

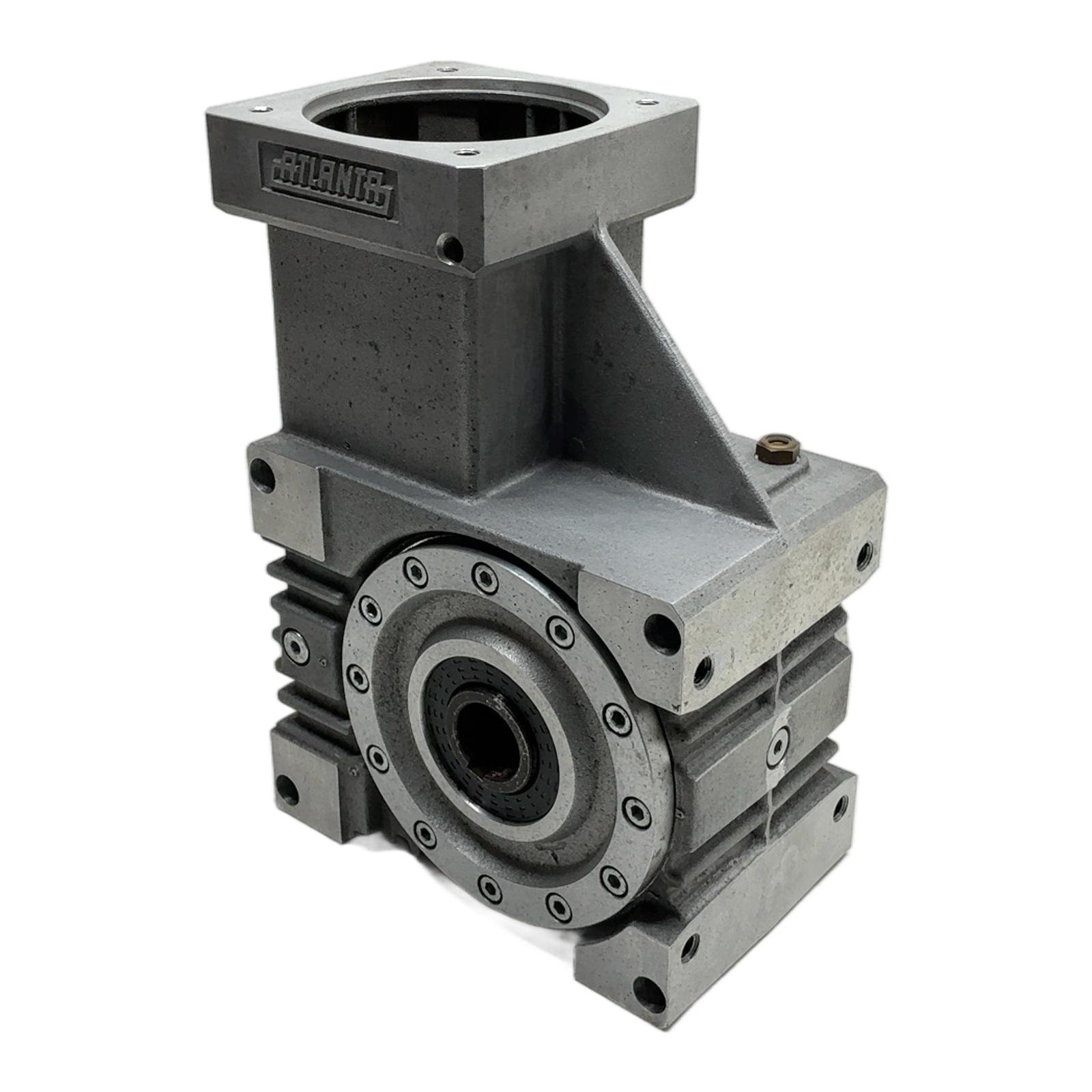

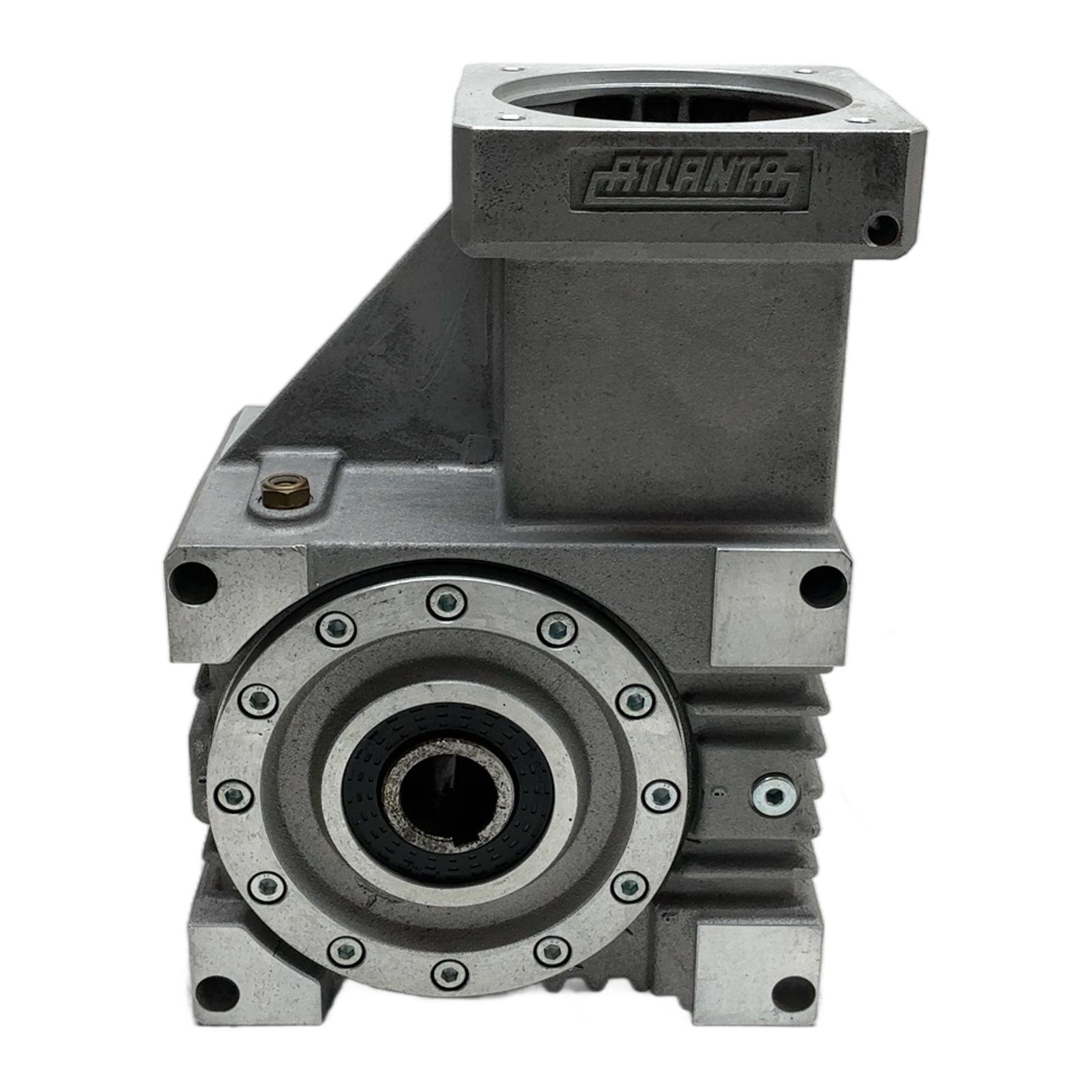

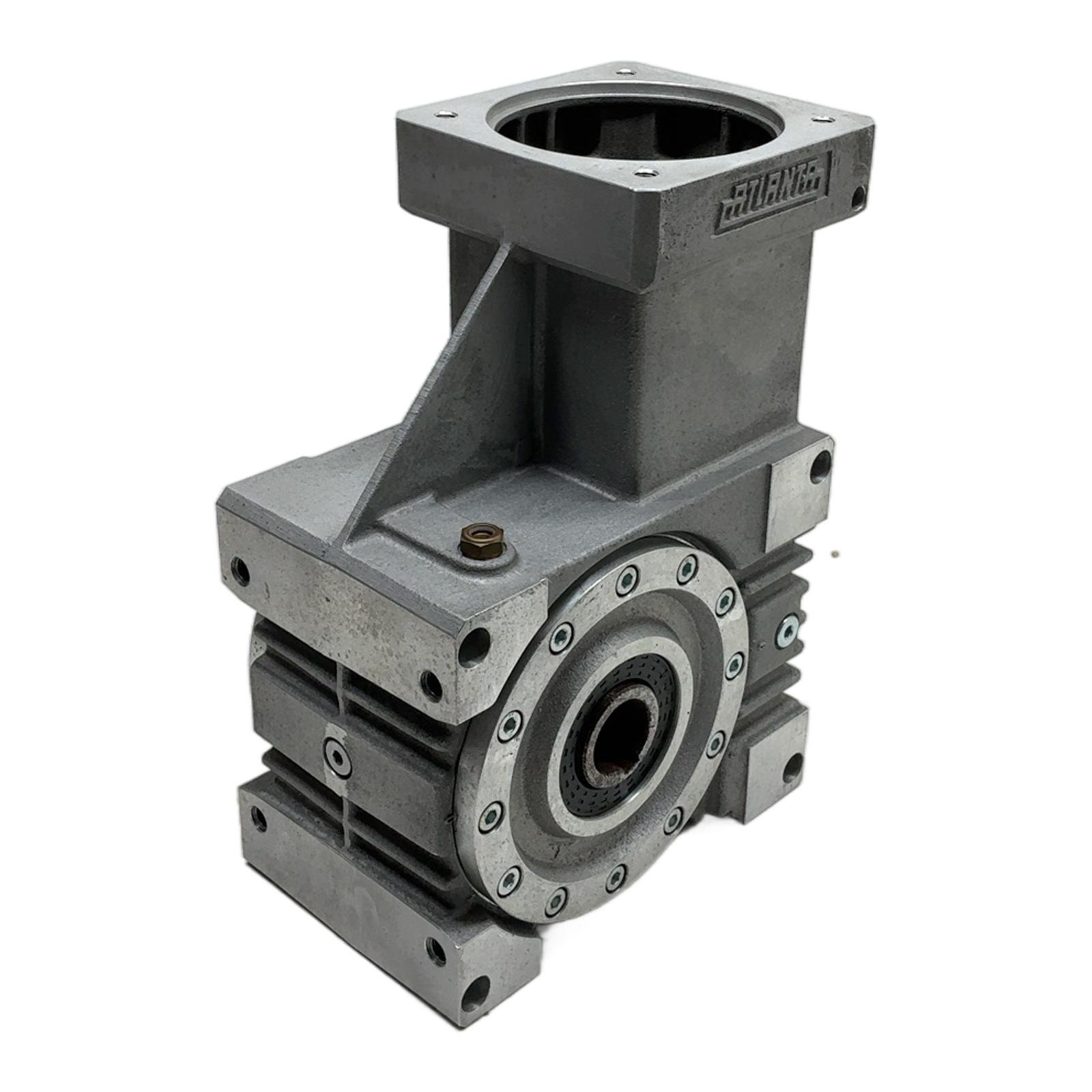

ATLANTA 58 45 409 P Servo Worm Gearbox Description This is a high-precision servo worm gearbox, type 58 45 409 P, from the renowned German manufacturer ATLANTA Antriebssysteme. Engineered for demanding servo applications, this gearbox provides excellent torque transmission with low backlash. It features a gear ratio of 9.25:1 and is rated for a maximum input power of 10.3 kW at an input speed of 3000 RPM. The unit’s robust construction and 25 kg mass ensure stability and durability in industrial environments. Specifications Manufacturer: ATLANTA Antriebssysteme Type: 58 45 409 P Category: Servo Worm Gearbox Gear Ratio (i): 9.25 Maximum Input Power (P): 10.3 kW Maximum Input Speed (n1): 3000 U/min Mass (m): 25 kg Label Info Serial Number: 148551 006 Lubrication: Synthetic lubricant required. Recommended types include Kluebersynth GH 6-220, Shell Tivela S 220, Energol SG-XP 220, Aral Degol GS 220. Warning: Do not mix with mineral oil. Application Ideal for use in robotics, CNC machinery, packaging machines, and other automated systems where precise motion control and high torque are required. The square input flange is designed for easy and direct mounting of servo motors. Country of Origin Made in Germany. CO2 Impact Reusing this gearbox saves an estimated 150 kg of CO2 compared to producing a new one. That is equivalent to the emissions of driving a car for approximately 750 kilometers. Availability This item is in excellent, like-new condition. Order now from profideals for expert support and fast delivery. FAQ What type of input flange does this gearbox have?This gearbox features a square input flange designed for direct mounting of a servo motor. The specific dimensions should be verified against your motor’s datasheet to ensure compatibility. Is this gearbox suitable for continuous operation?Yes, ATLANTA servo worm gearboxes are designed for high-performance and continuous duty cycles, provided they are operated within the specified limits for input speed, torque, and temperature. Proper lubrication is crucial for longevity. Can I use a mineral-based oil with this gearbox?No, the label explicitly states ‘nicht mischbar mit Mineraloel’ (not mixable with mineral oil). It is designed for synthetic lubricants like Kluebersynth GH 6-220 to ensure optimal performance and prevent damage. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
