TELEMECANIQUE CA2-EN 322B

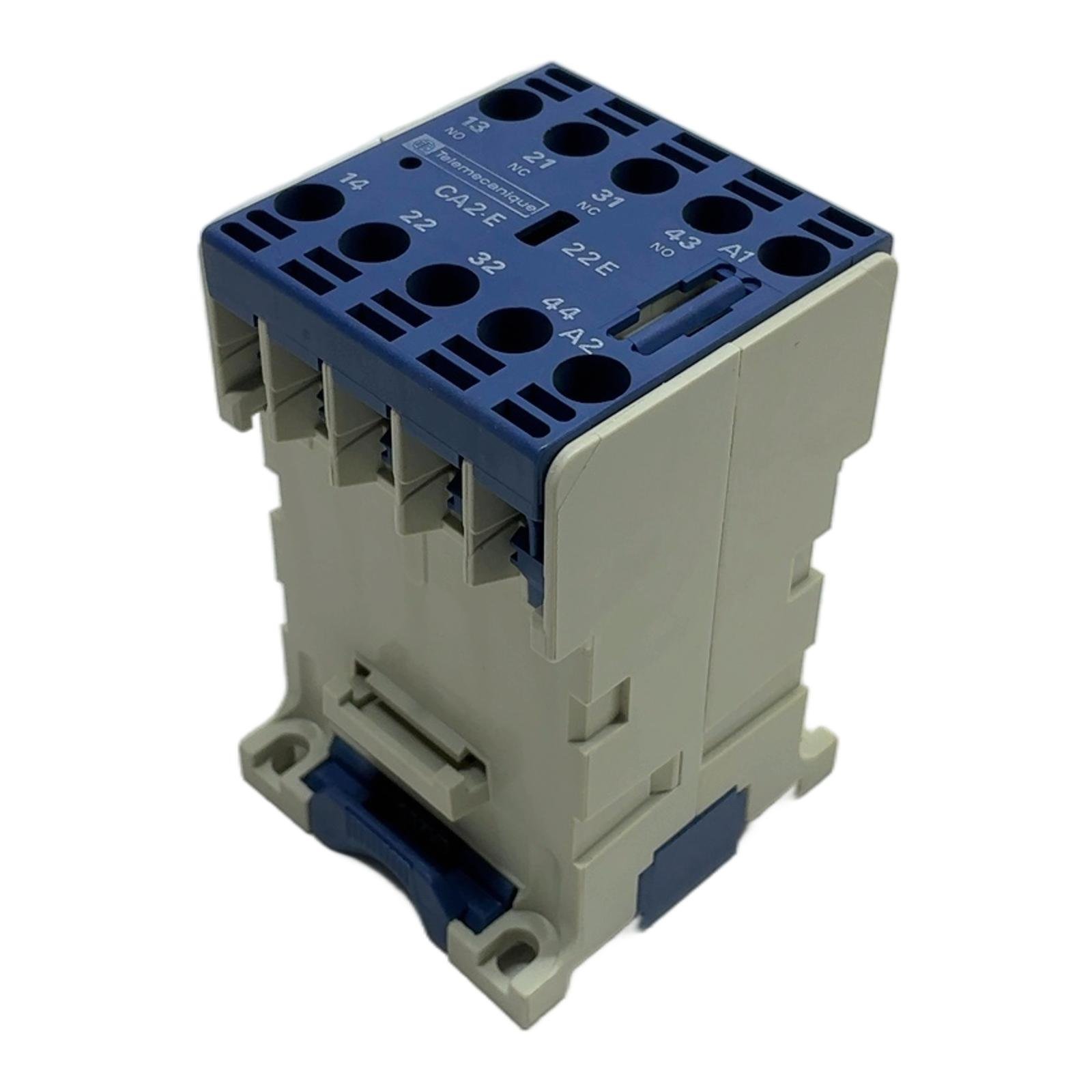

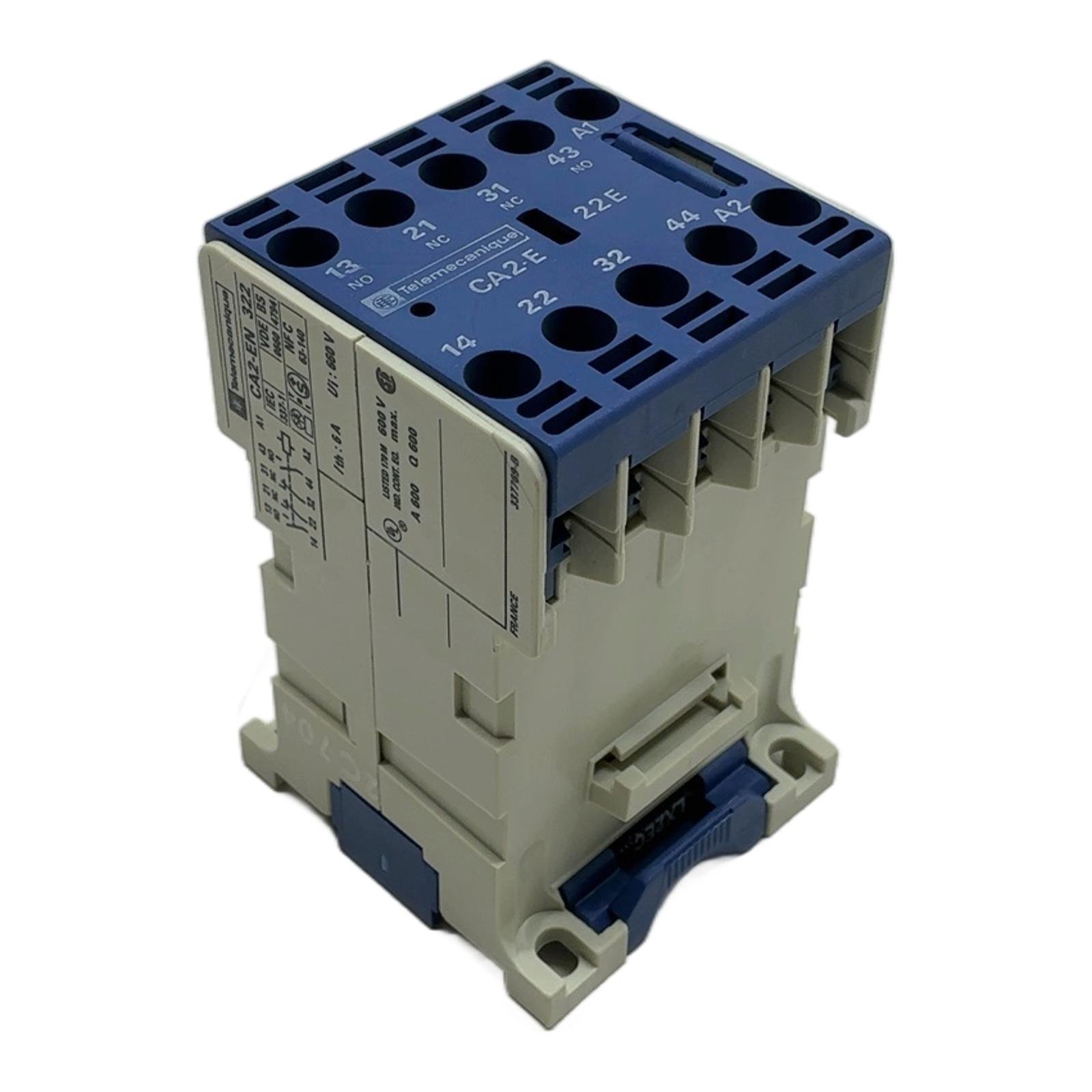

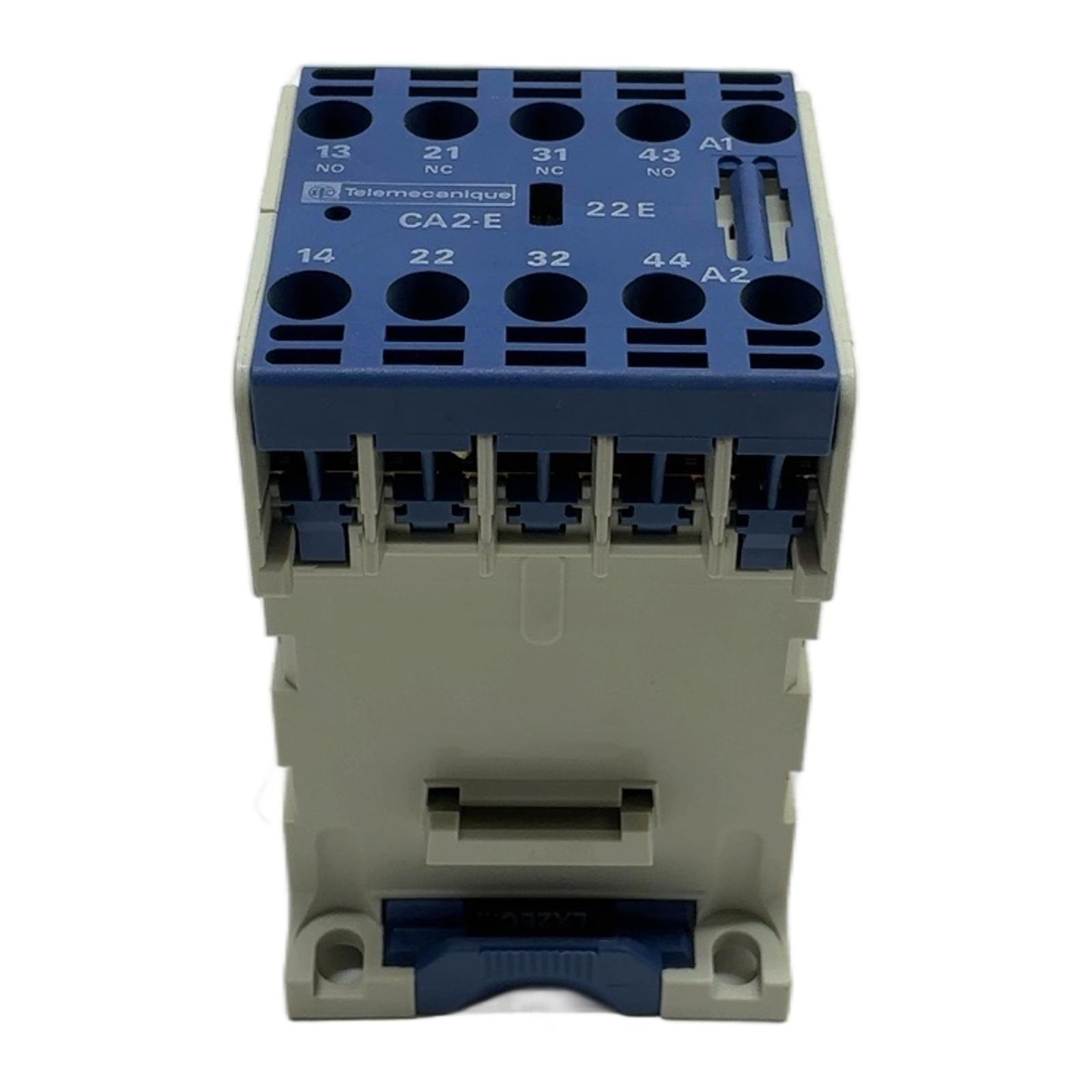

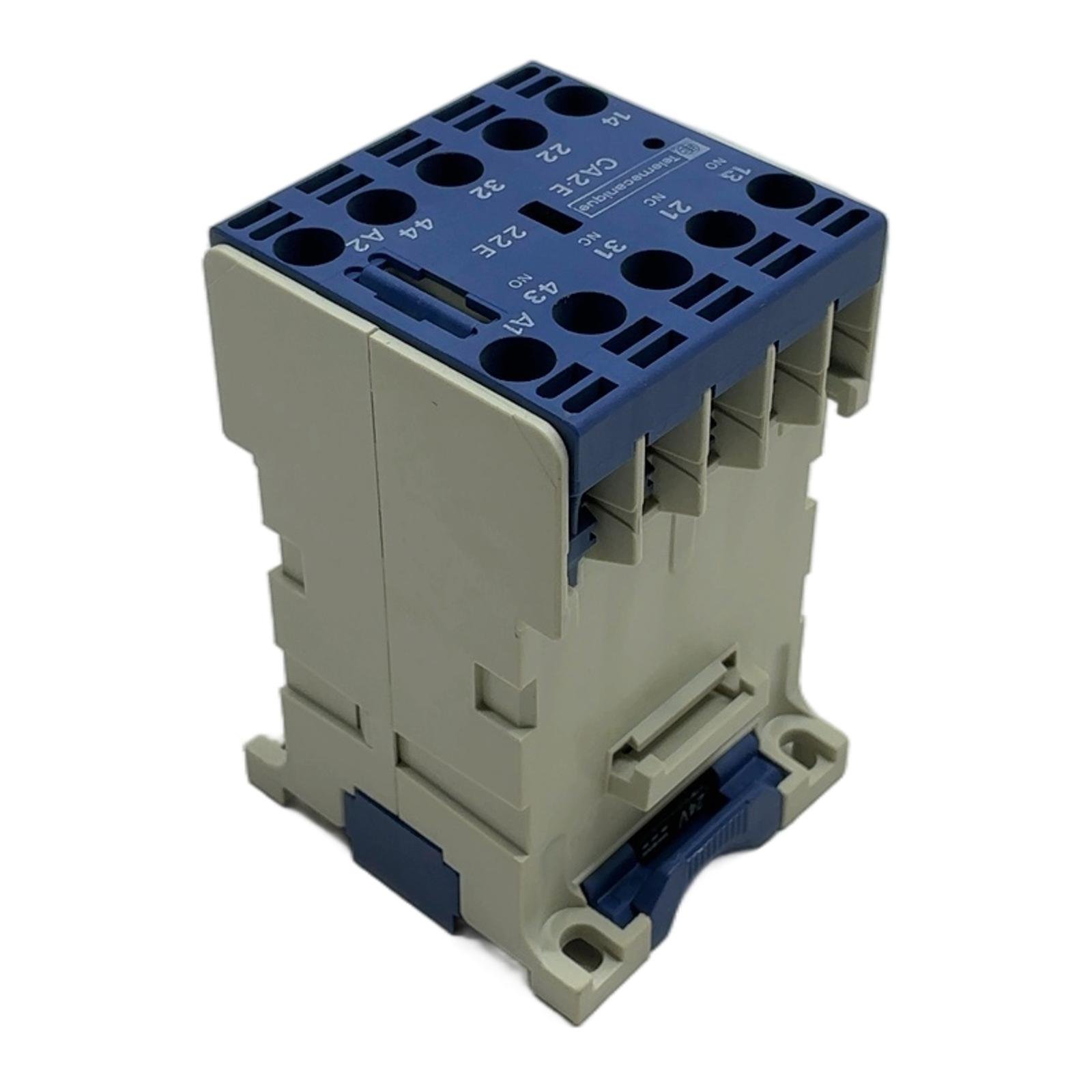

Telemecanique CA2-EN 322B Control Relay Description The Telemecanique CA2-EN 322B is an industrial control relay designed for switching control circuits and small loads. This particular model operates with a 24V DC coil and provides a contact arrangement of two normally open (2NO) and two normally closed (2NC) contacts. It is a highly reliable component from the classic Telemecanique range, known for its durability and performance in demanding industrial environments. This relay is an excellent choice for repairs and maintenance of existing automation systems that utilize this specific part number. Specifications Manufacturer: Telemecanique Model: CA2-EN 322B Coil Voltage: 24V DC Contact Configuration: 2NO + 2NC Conventional Thermal Current (Ith): 6 A Rated Insulation Voltage (Ui): 660 V Mounting: DIN Rail or Screw Mount Label Info IEC 337-1 VDE 0660 BS 4794 NFC 63-140 UL Listed 170M (A600, Q600) Application This control relay is suitable for a wide range of applications in industrial automation, including logic control circuits, signal switching, and interfacing between PLCs and higher power devices. Its robust design makes it ideal for use in control panels for manufacturing, material handling, and process control systems. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you are helping to avoid the CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial sector. Availability This is an obsolete item but available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the coil voltage and type for this CA2-EN 322B relay?The ‘B’ suffix in the model number CA2-EN 322B specifically indicates a 24 Volt DC (Direct Current) coil. Can this Telemecanique relay be used as a direct replacement for a modern Schneider Electric CAD series relay?No, not directly. While the Schneider CAD series is the modern functional replacement, the dimensions, wiring layout, and exact contact configurations may differ. The CA2-EN 322B is primarily for replacing an identical unit in an existing system. Retrofitting would require careful review of the technical datasheets. What are the A600 and Q600 ratings specified on the label?These are NEMA (National Electrical Manufacturers Association) and UL (Underwriters Laboratories) contact ratings. ‘A600’ refers to AC resistive loads, while ‘Q600’ refers to AC inductive loads (like motor control circuits), both with a maximum voltage of 600V. They define the current-making and breaking capabilities of the contacts under specific AC voltage conditions. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
