AIRTEC MC-07-530-HN SP-016-5148

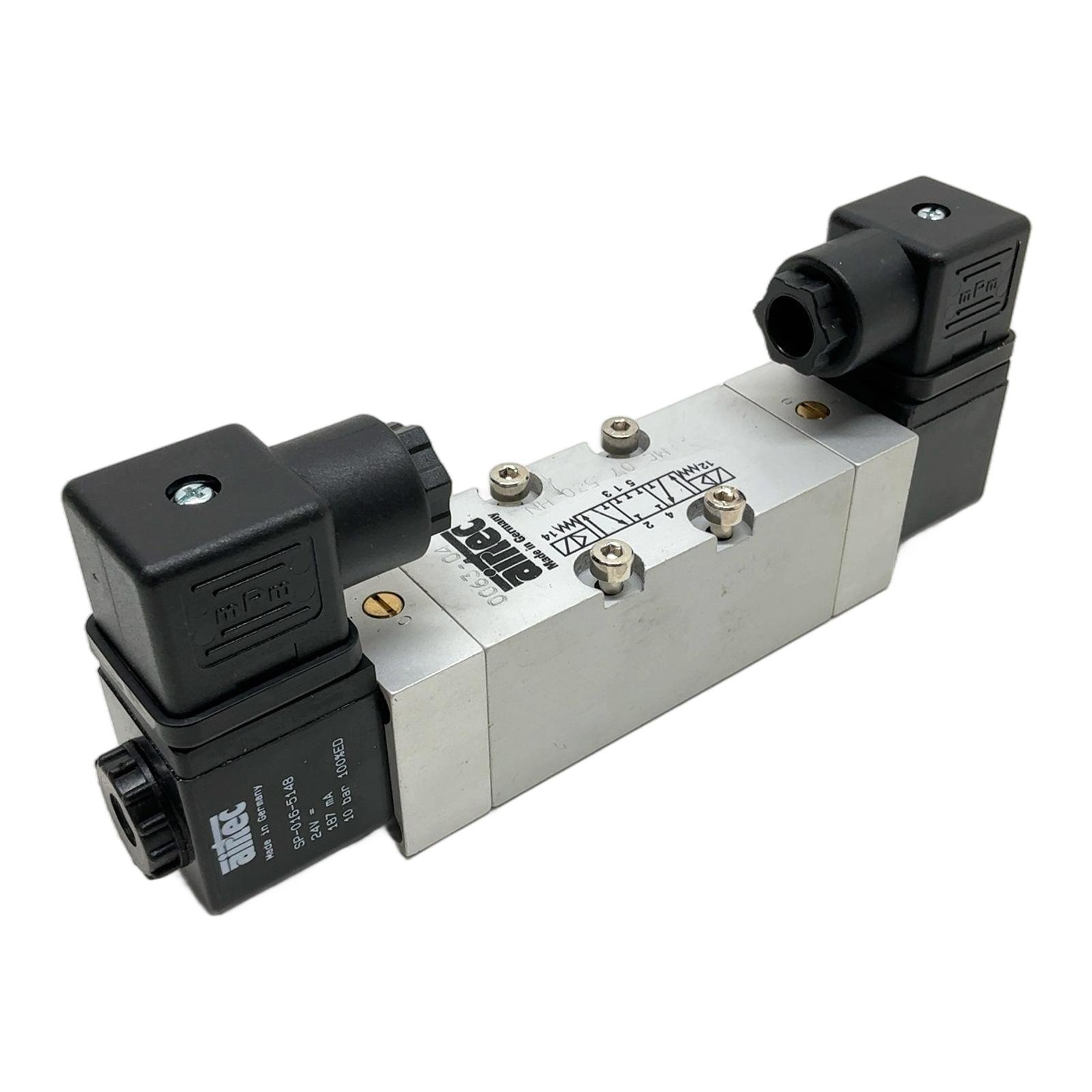

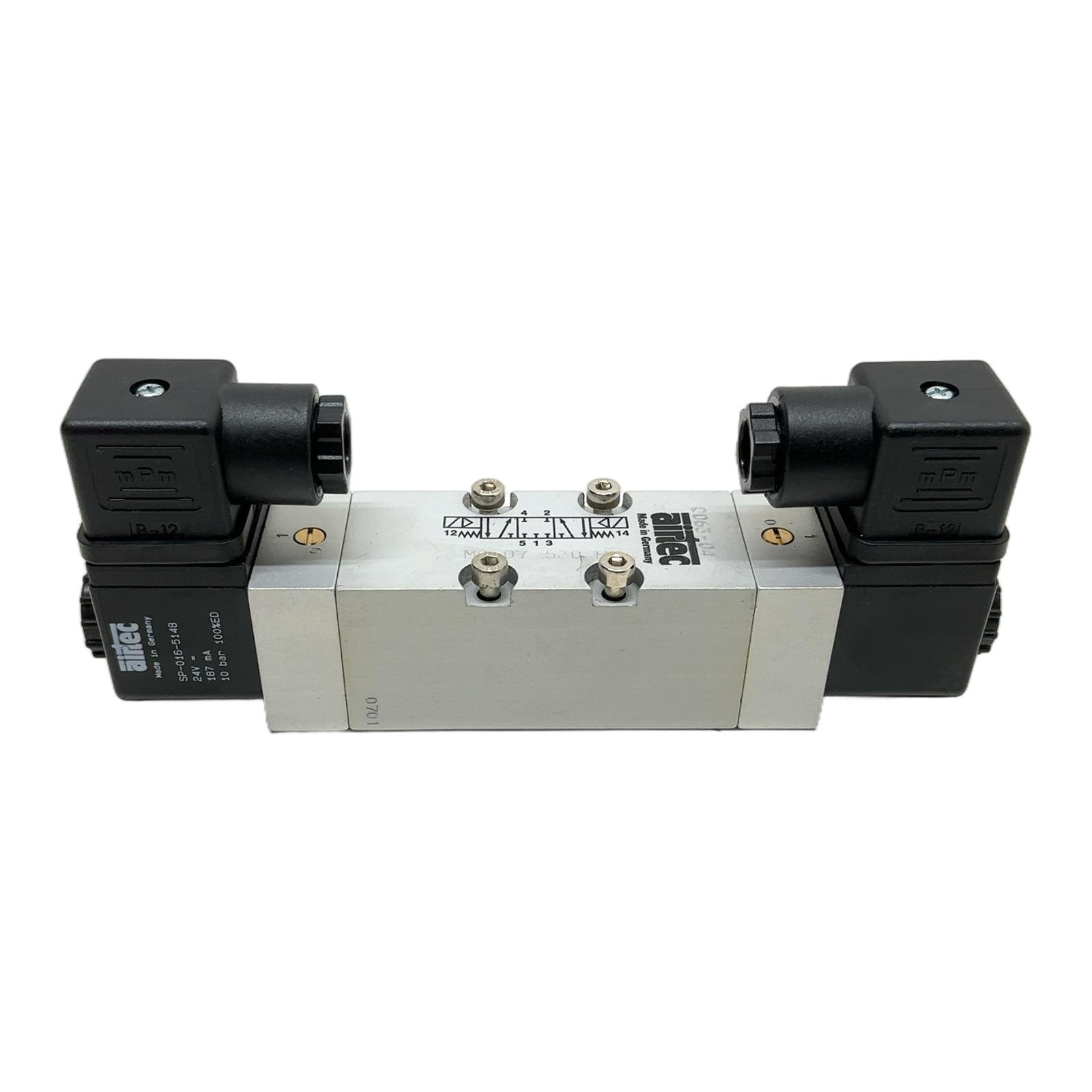

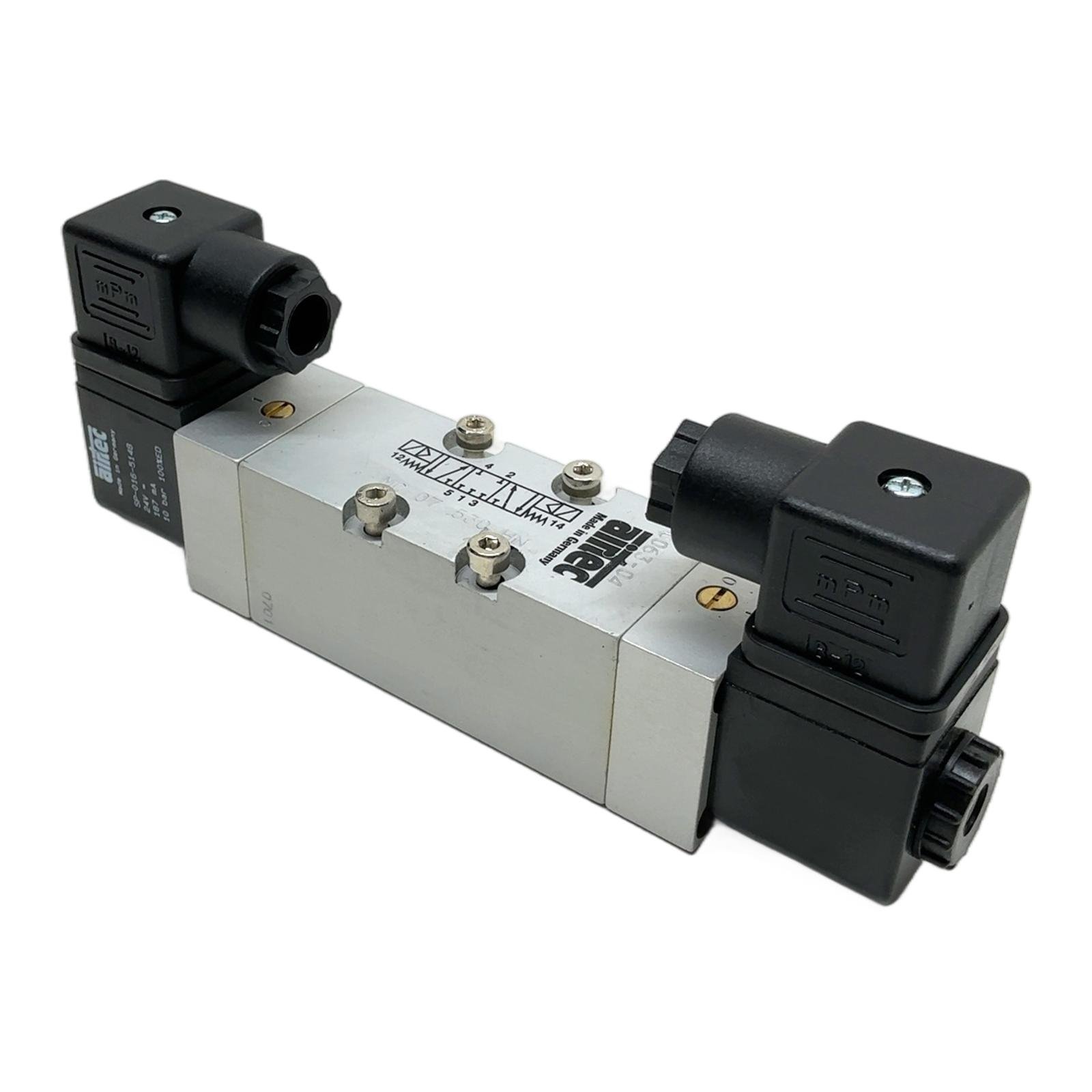

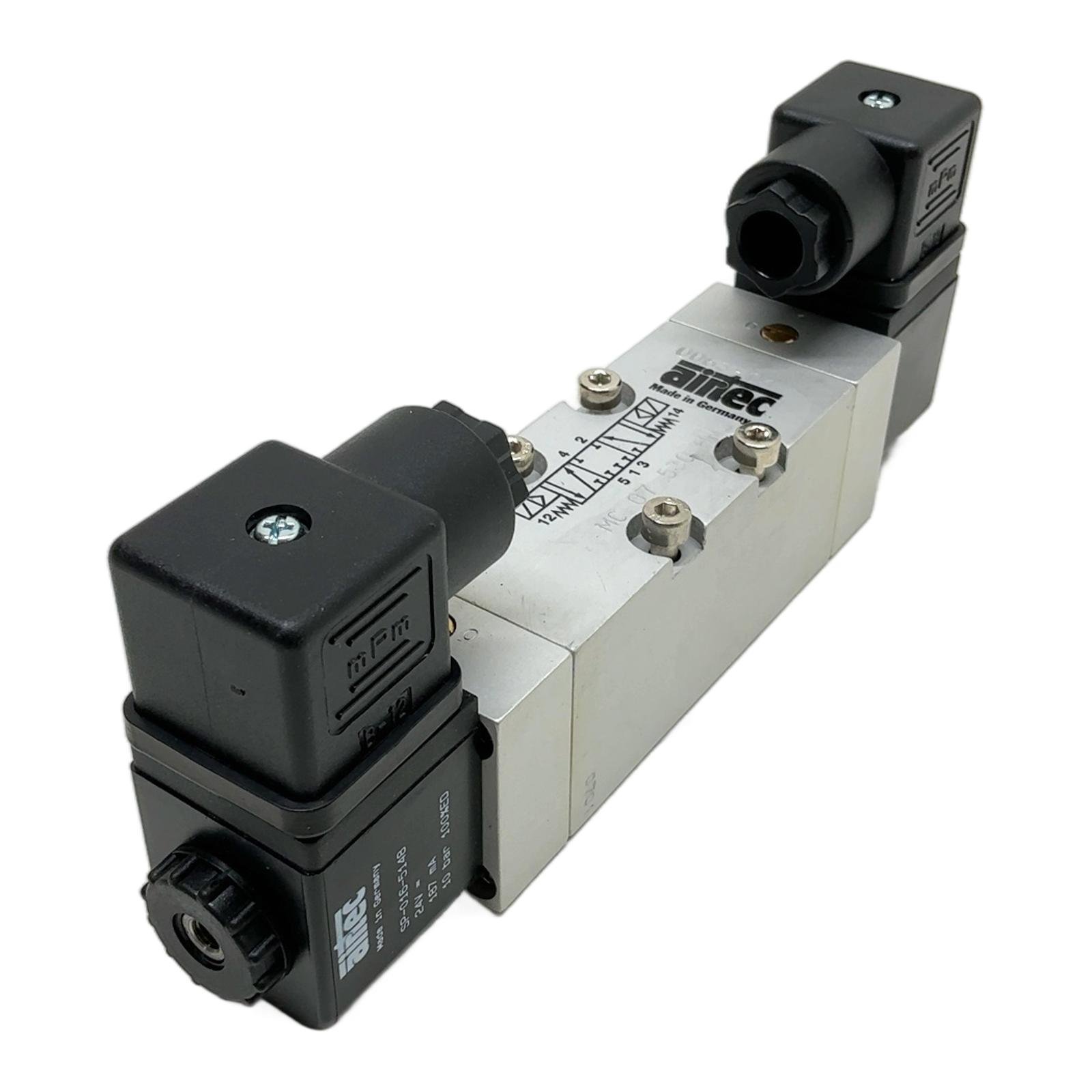

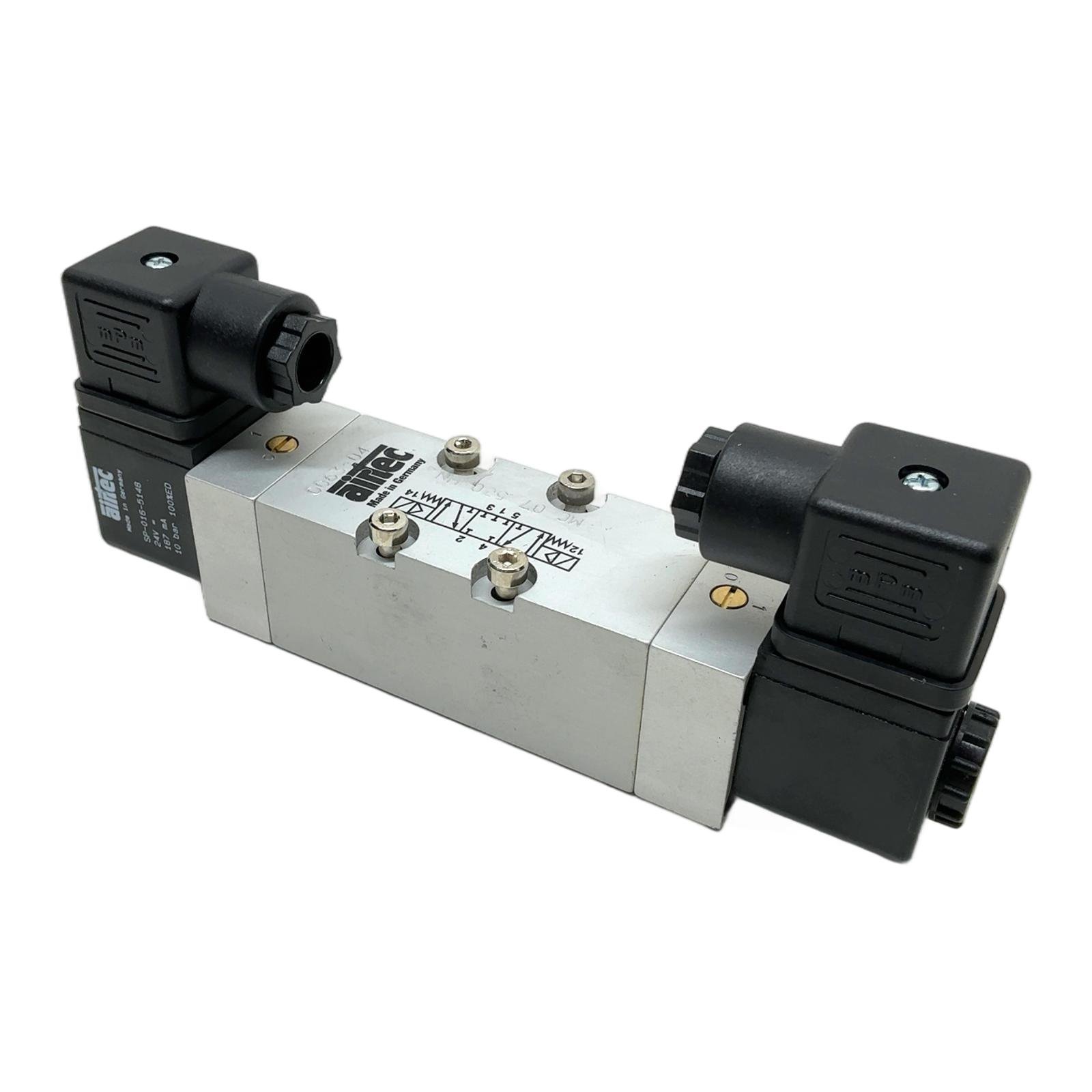

Airtec 5/3-Way Pneumatic Solenoid Valve Description This is the Airtec MC 07 530 HN, a high-performance 5/3-way pneumatic solenoid valve. It features a double solenoid design for bistable operation with a spring-return to a closed center position. Engineered in Germany, this valve provides reliable and precise control for pneumatic cylinders and actuators. It operates on a standard 24V DC supply and is rated for a maximum pressure of 10 bar, making it suitable for a wide range of industrial applications. Specifications Manufacturer: Airtec Valve Model: MC 07 530 HN Coil Model: SP-016-5148 Type: 5/3-Way, Double Solenoid, Closed Center Operating Voltage: 24V DC Current Consumption: 187 mA Maximum Operating Pressure: 10 bar Duty Cycle: 100% ED Label Info Valve Body Markings: MC 07 530 HN, 0063-04 Coil Markings: SP-016-5148, 24V =, 187 mA, 10 bar 100%ED Application Ideal for applications requiring precise intermediate positioning or locking of pneumatic cylinders, such as in material handling, packaging machinery, and automated assembly lines. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you are helping to avoid approximately 8.8 kg of CO2 emissions compared to manufacturing a new one. This saving is comparable to driving 44 km in a standard passenger car. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of a 5/3-way closed center valve?A 5/3-way valve has five ports and three positions. The ‘closed center’ configuration means that in the neutral (middle) position, all ports are blocked. This is useful for stopping a double-acting cylinder at any point in its stroke. What are the compatible connectors for the SP-016-5148 coils?These coils use standard DIN 43650 Form B connectors. The connectors visible in the image, marked ‘mpm’ and ‘B-12’, are this type and are included with the valve. Can this valve be manually operated in case of a power failure?Yes, each solenoid features a manual override button. This allows for manual actuation of the valve for testing, setup, or emergency operation without electrical power. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
