AIRTEC MG-07-510-HN-C12 201971758

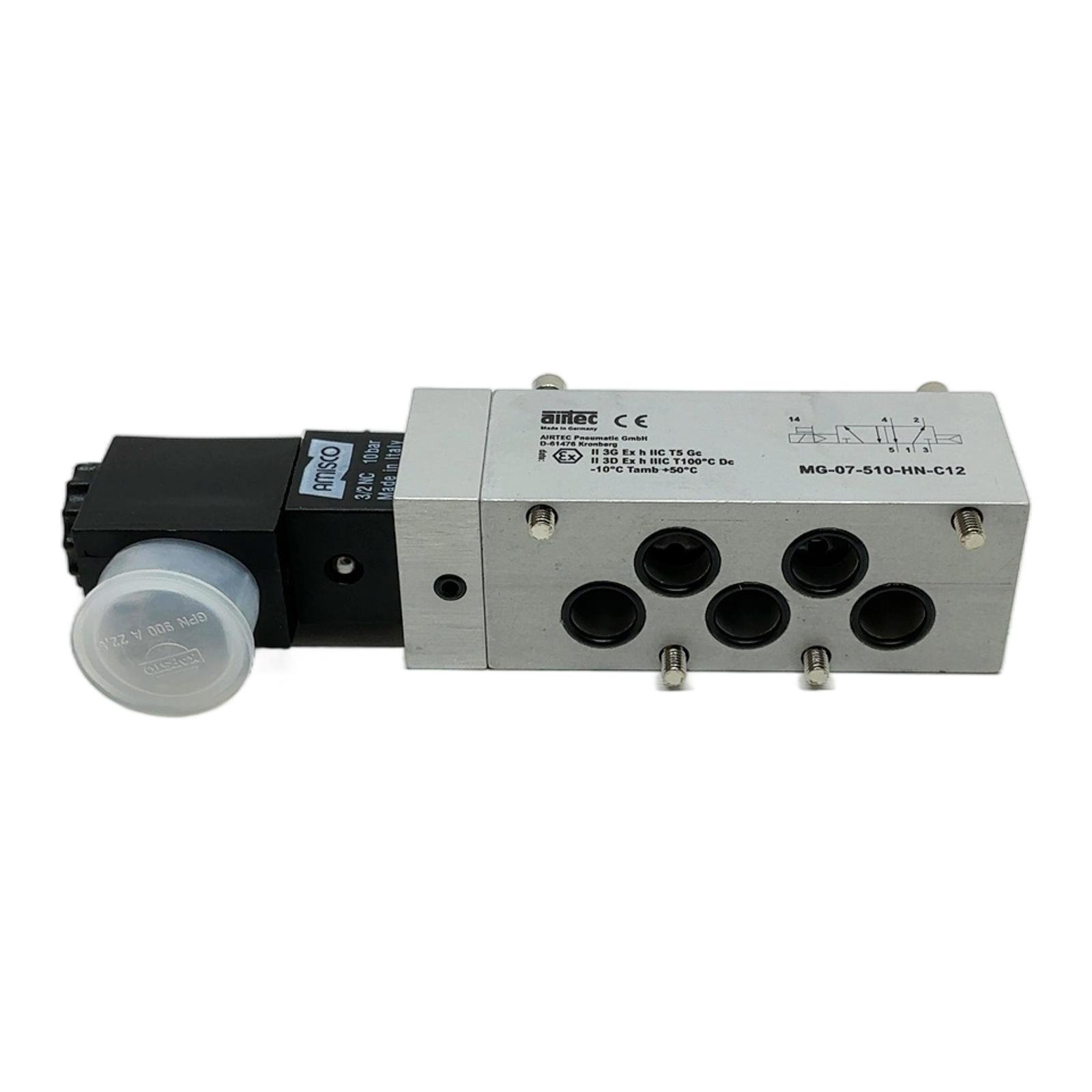

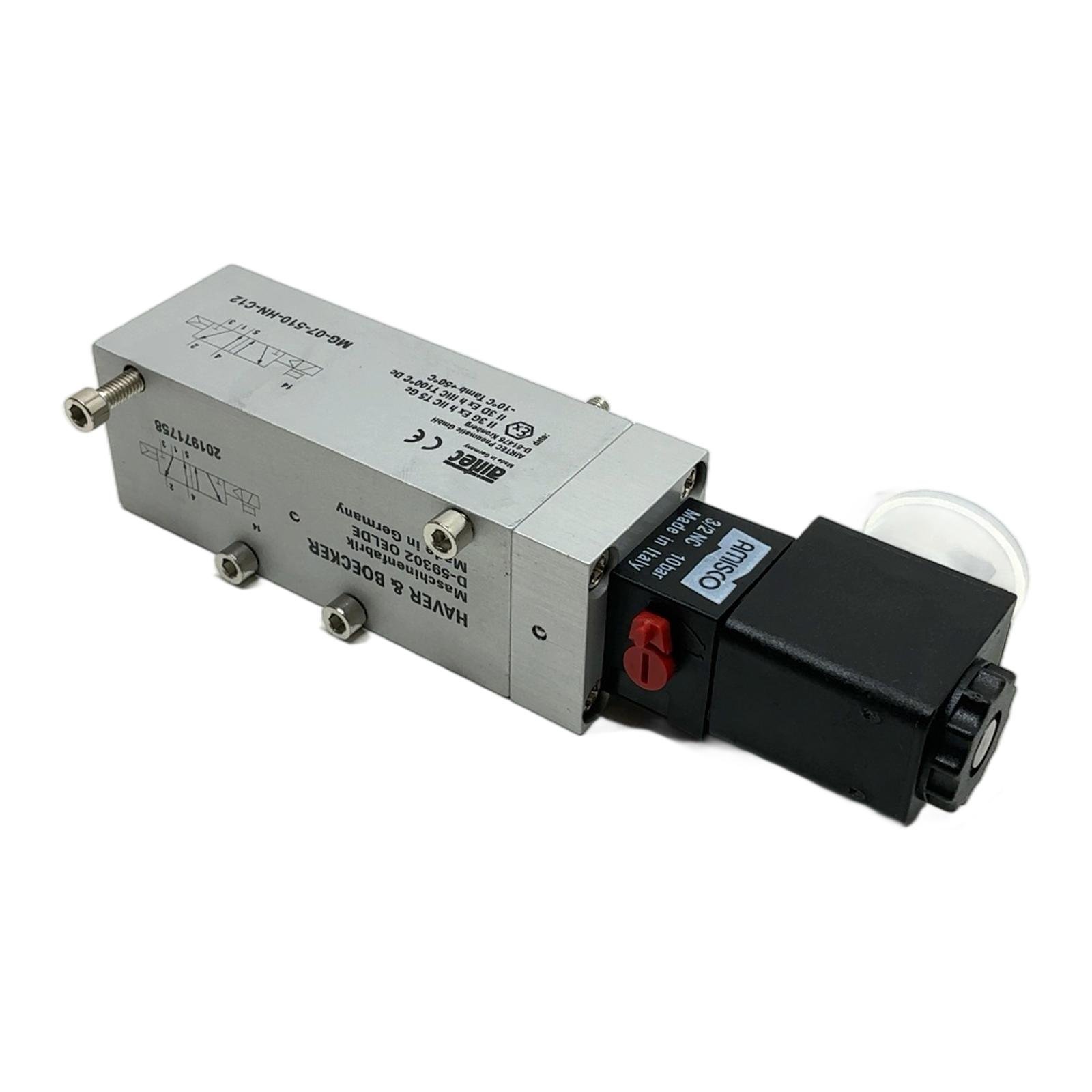

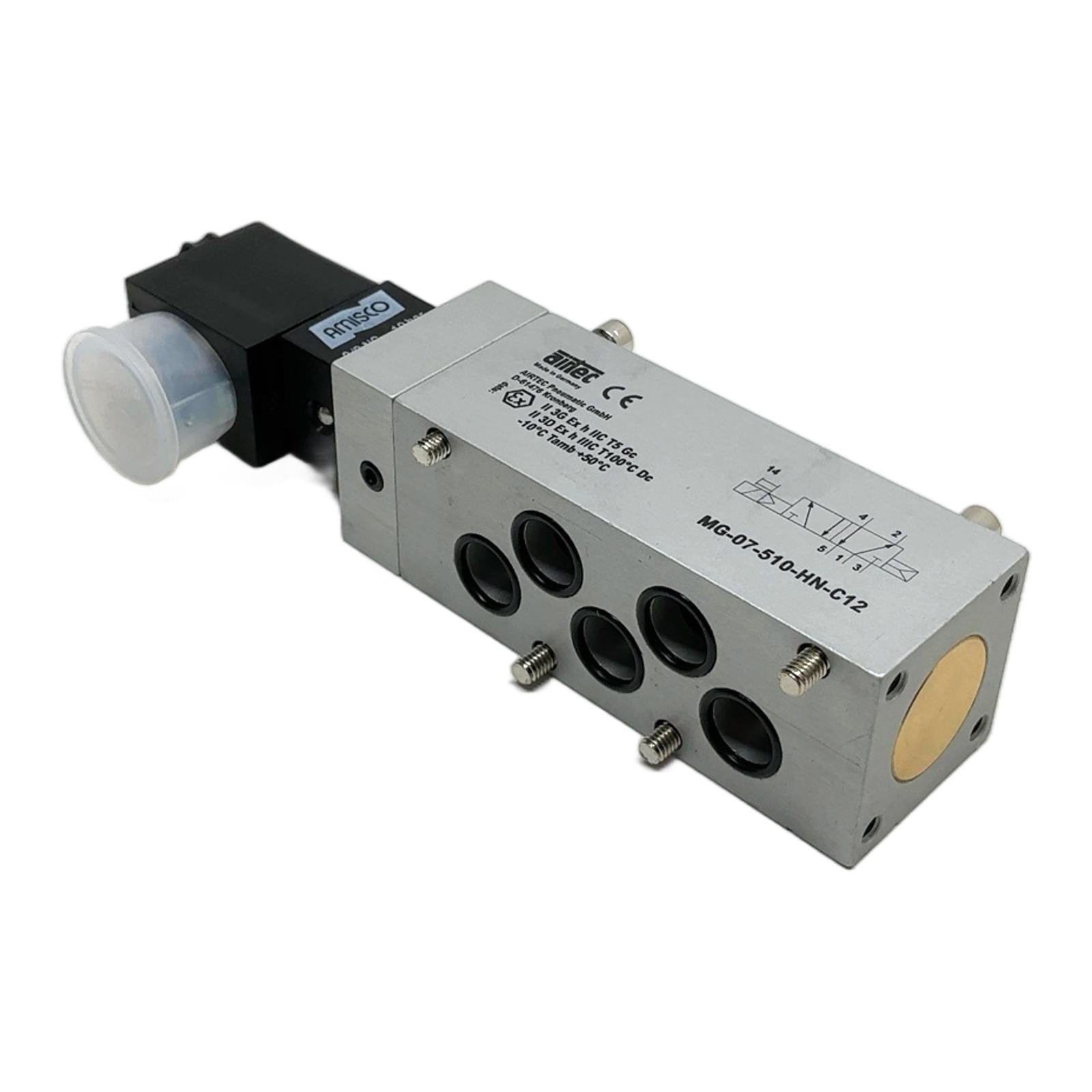

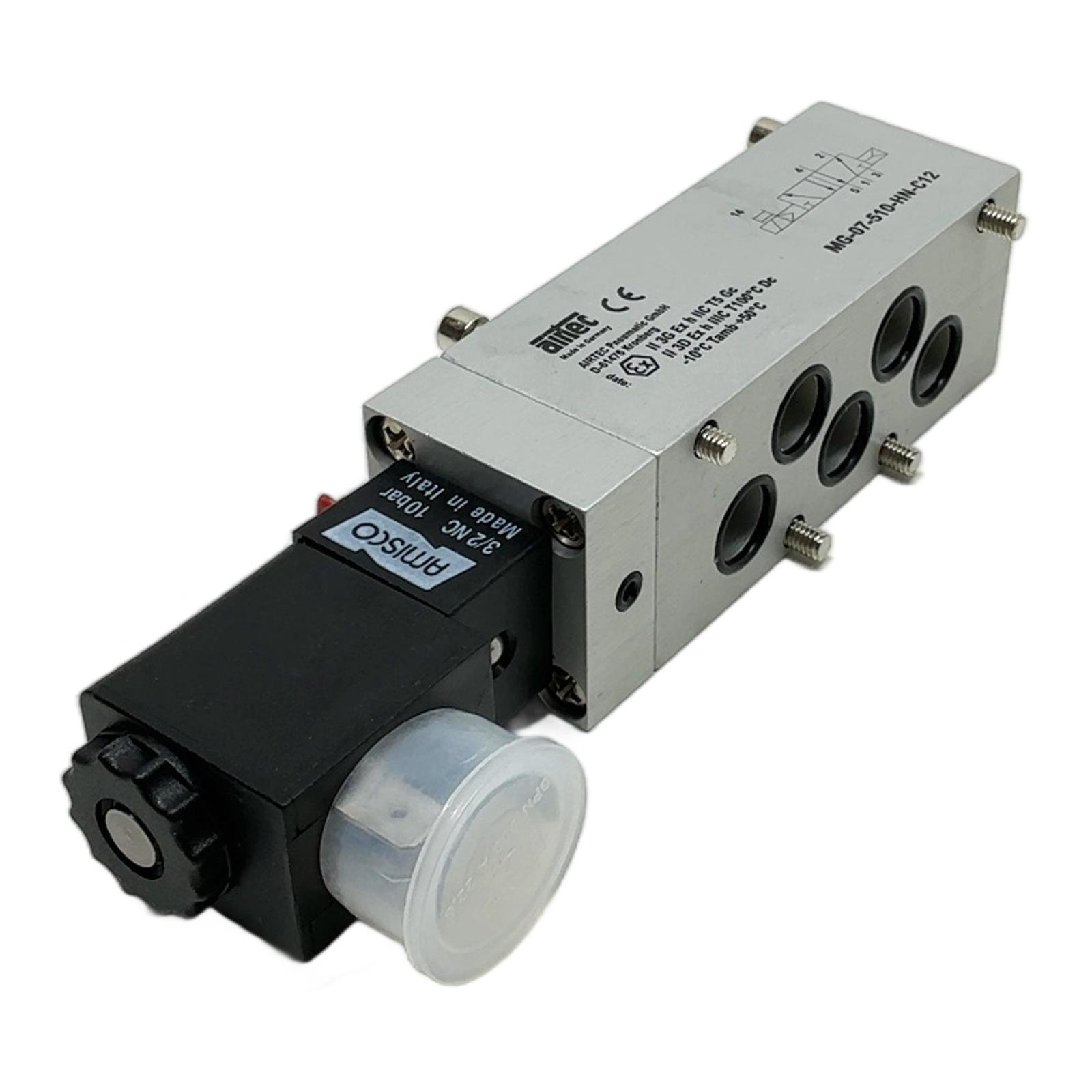

AirTEC MG-07 Series Pneumatic Solenoid Valve Description This is an MG-07-510-HN-C12, a high-quality 5/2-way single solenoid valve from AirTEC. It is designed for reliable control of pneumatic actuators in various industrial applications. The valve is actuated by a 24V DC Amisco solenoid coil, which is ATEX-certified for use in potentially explosive atmospheres. This specific unit is also identified by the Haver & Boecker material number 201971758, indicating its use in their high-end machinery. Specifications Manufacturer: AirTEC Pneumatic GmbH Valve Model: MG-07-510-HN-C12 Function: 5/2-way, Single Solenoid, Spring Return Operating Voltage: 24V DC Power Consumption: 3W / 120mA Coil Manufacturer: Amisco Coil Model: 0709SD02403AX IP Rating: IP65 Ambient Temperature: -10 deg C to +50 deg C ATEX Rating (Coil): II 3G Ex nA IIC T5 Gc / II 3D Ex tc IIIC T100C Dc Label Info Brand: amec (AirTEC) / Haver & Boecker Type: MG-07-510-HN-C12 Material No.: 201971758 Date: 27.09.2019 Application This solenoid valve is ideal for controlling double-acting pneumatic cylinders, grippers, and other actuators in automated systems. Its robust design and ATEX-rated coil make it suitable for industries such as packaging, material handling, and process automation. Country of Origin The valve body is made in Germany, and the solenoid coil is made in Italy. CO2 Impact By purchasing this reused component, you contribute to a more sustainable circular economy, saving an estimated 5.0 kg of CO2 compared to manufacturing a new one. This is equivalent to driving a car for 25 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of a 5/2-way valve?A 5/2-way valve has five ports and two positions. It is typically used to control a double-acting pneumatic cylinder, allowing pressurized air to be directed to either side of the cylinder’s piston to extend or retract it. What does the ATEX rating on the solenoid coil mean?The ATEX rating signifies that the coil is certified for safe operation in potentially explosive atmospheres. The specific codes (e.g., II 3G, II 3D) indicate it is suitable for zones where gas or dust hazards are present intermittently. Can I replace just the Amisco solenoid coil?Yes, on most modular valve designs like this one, the solenoid coil can be replaced independently of the valve body. This is useful for maintenance or if a different voltage is required, provided the replacement coil has the correct mechanical interface. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
