SCHNEIDER ELECTRIC LC1D09BL

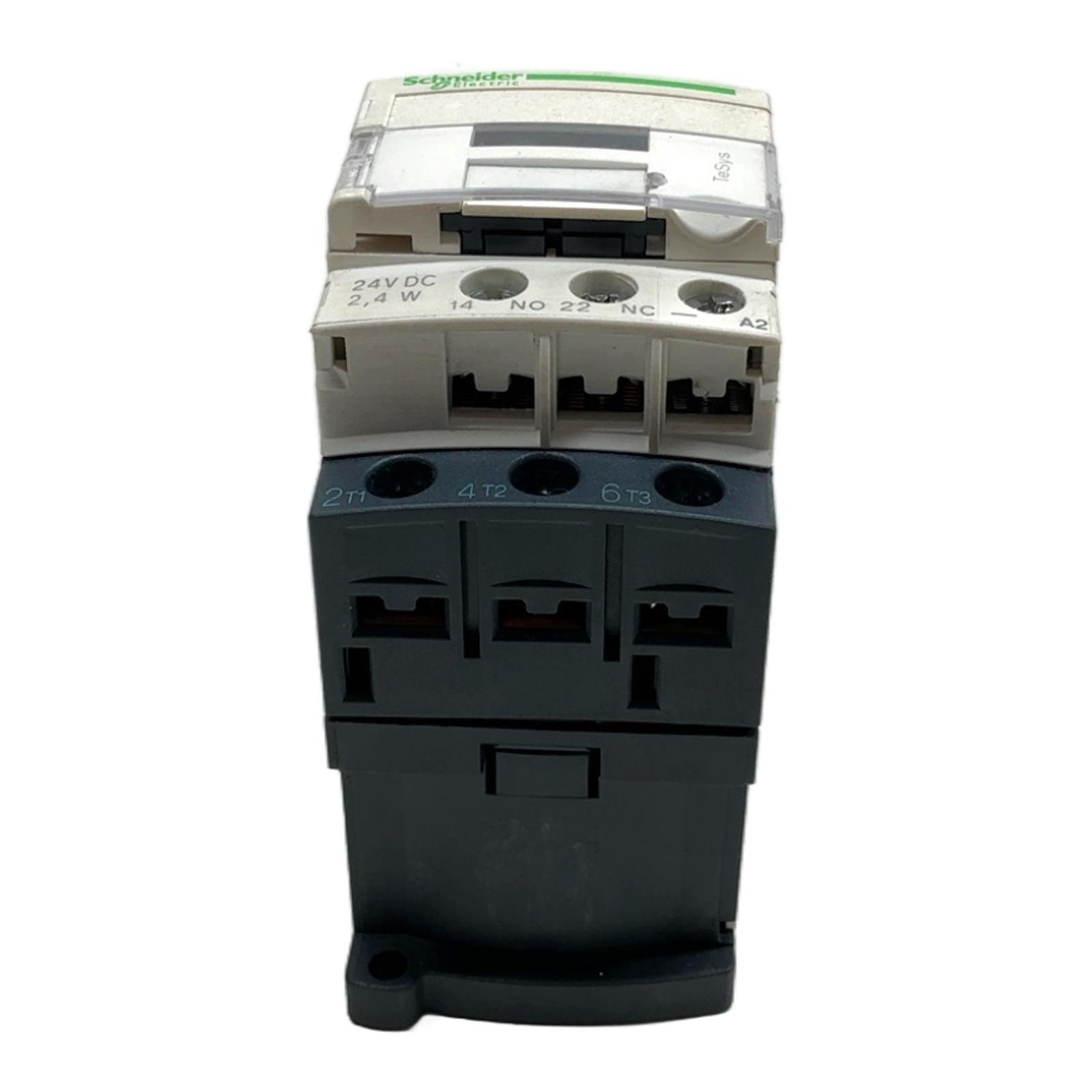

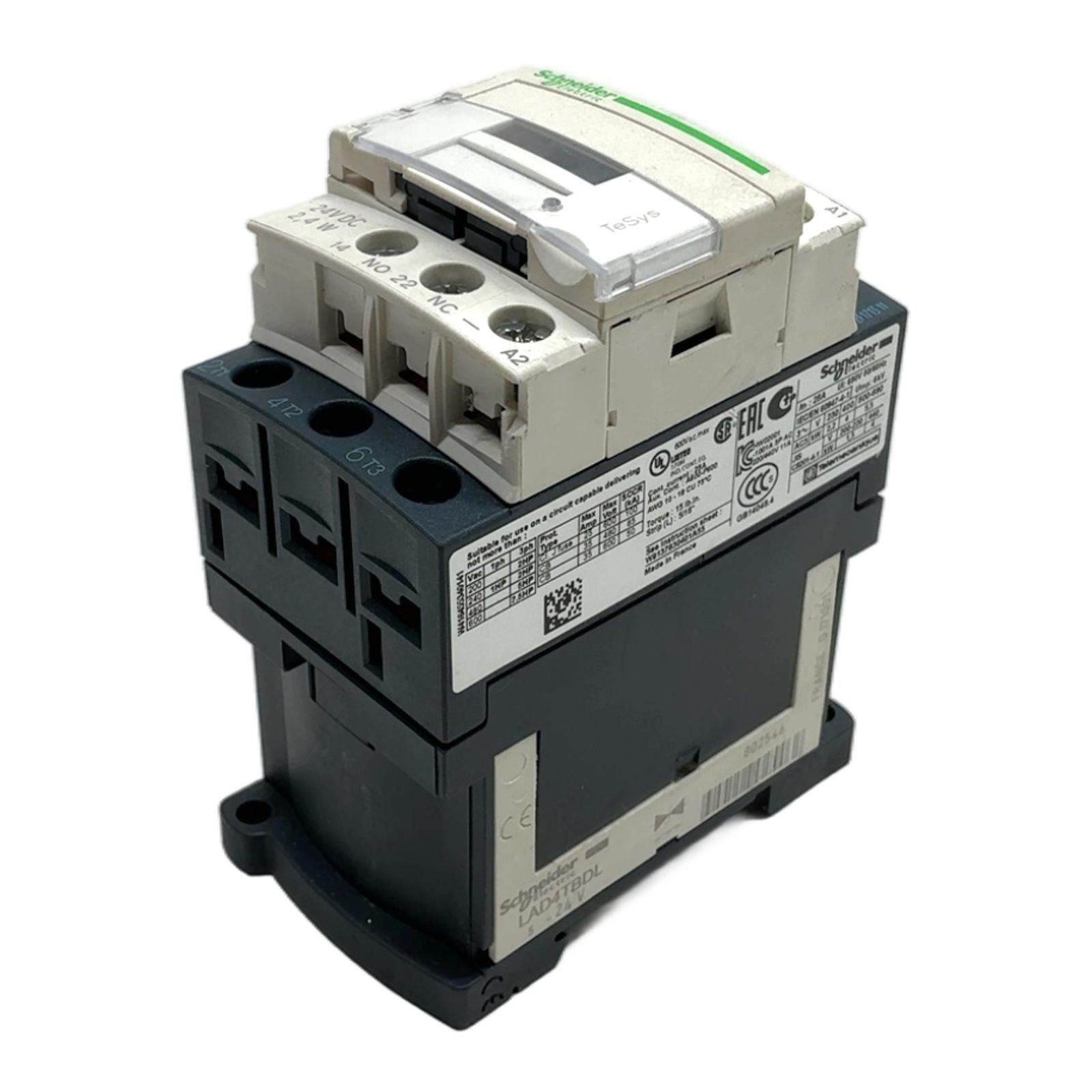

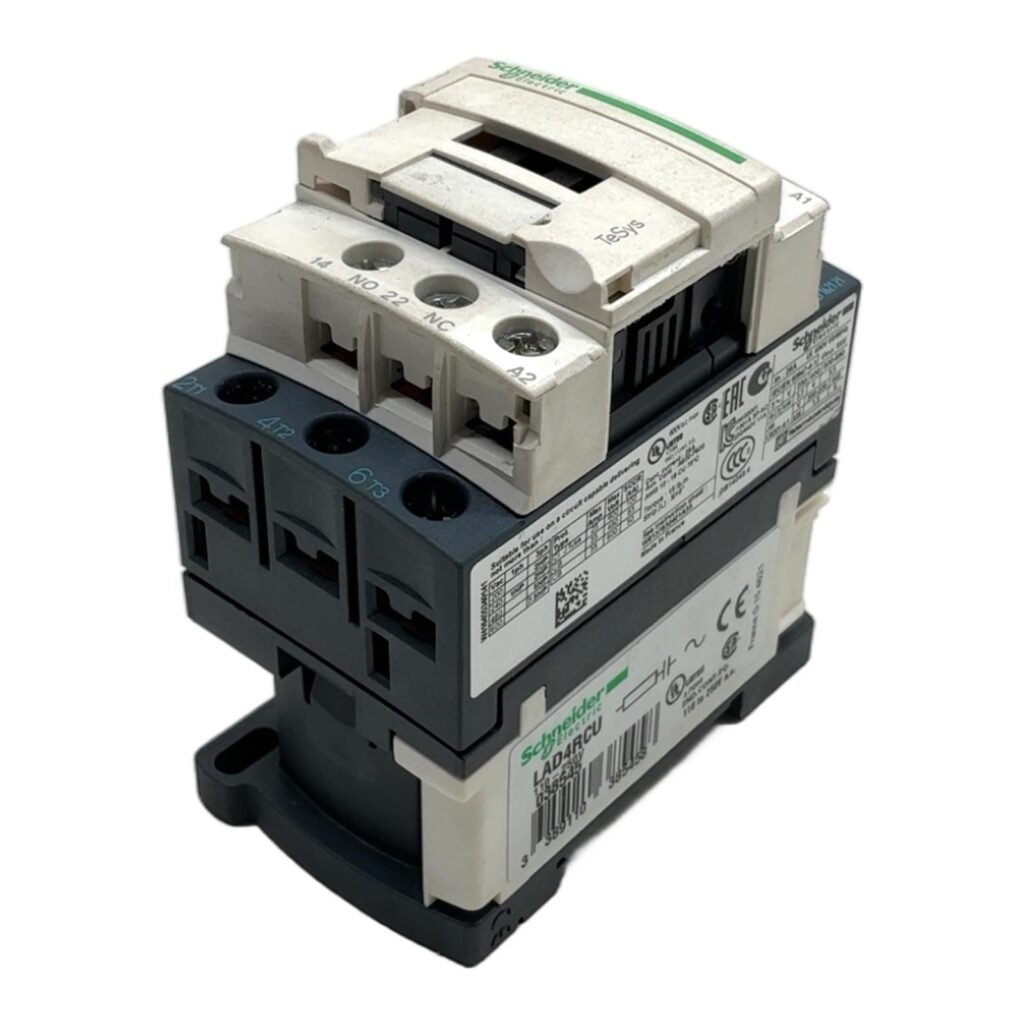

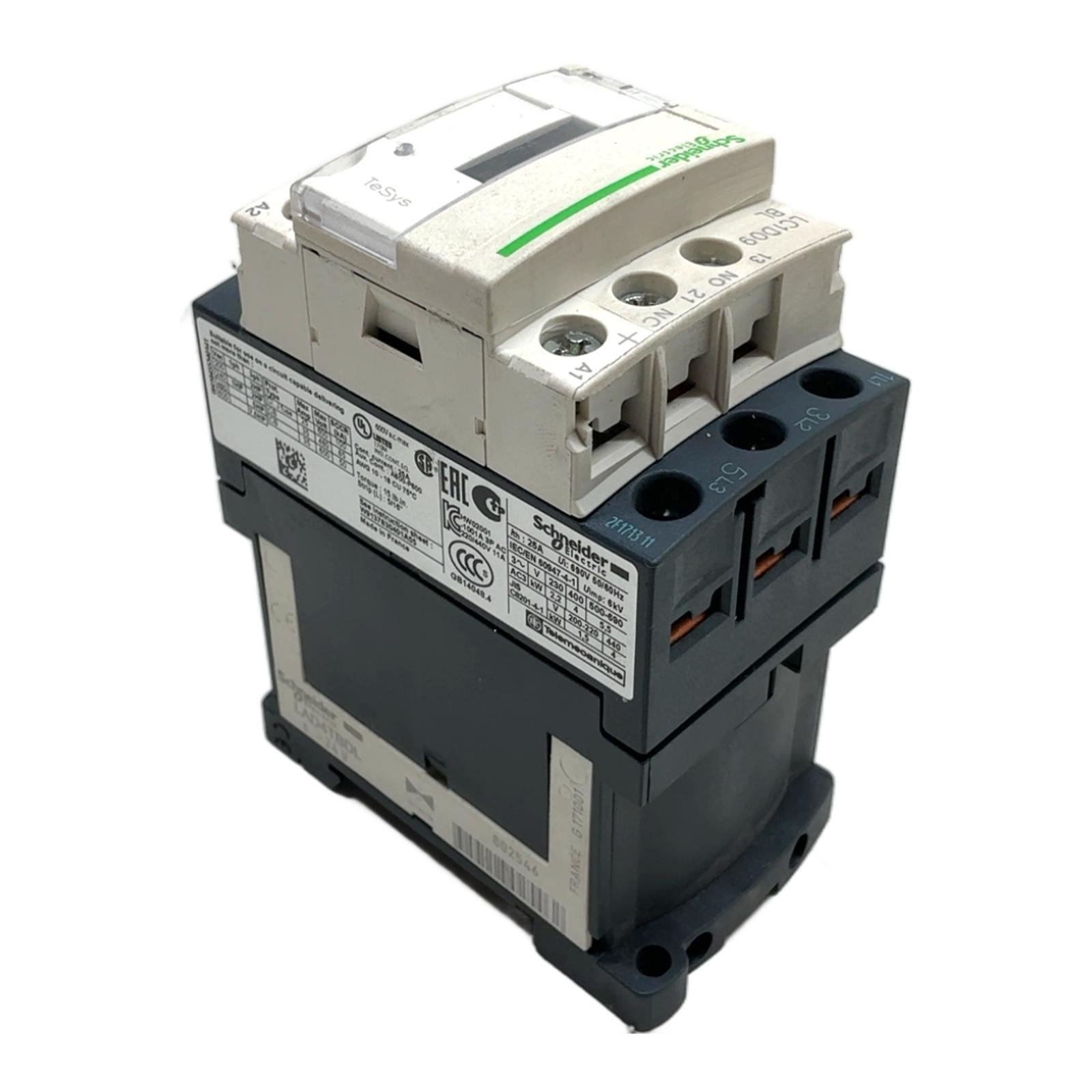

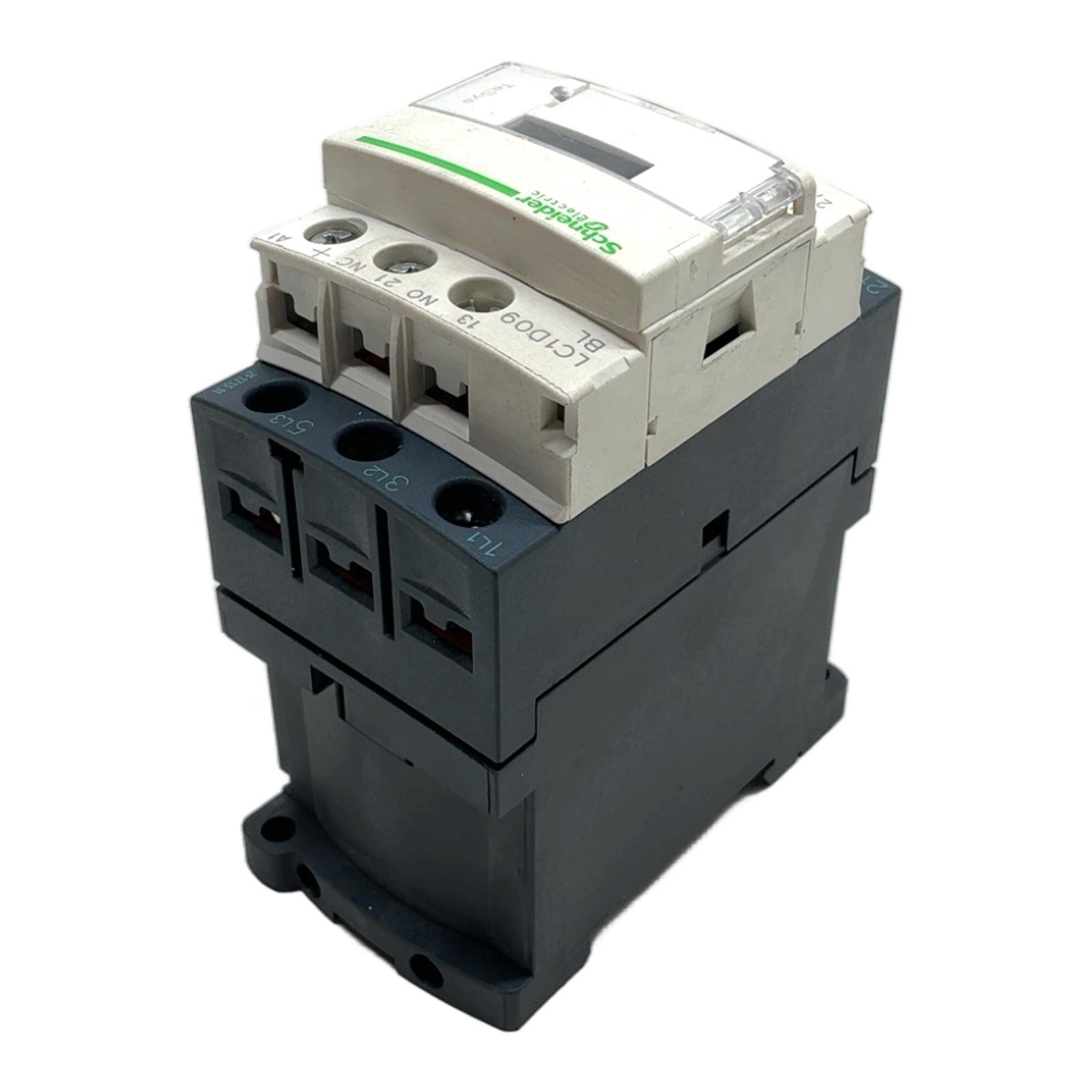

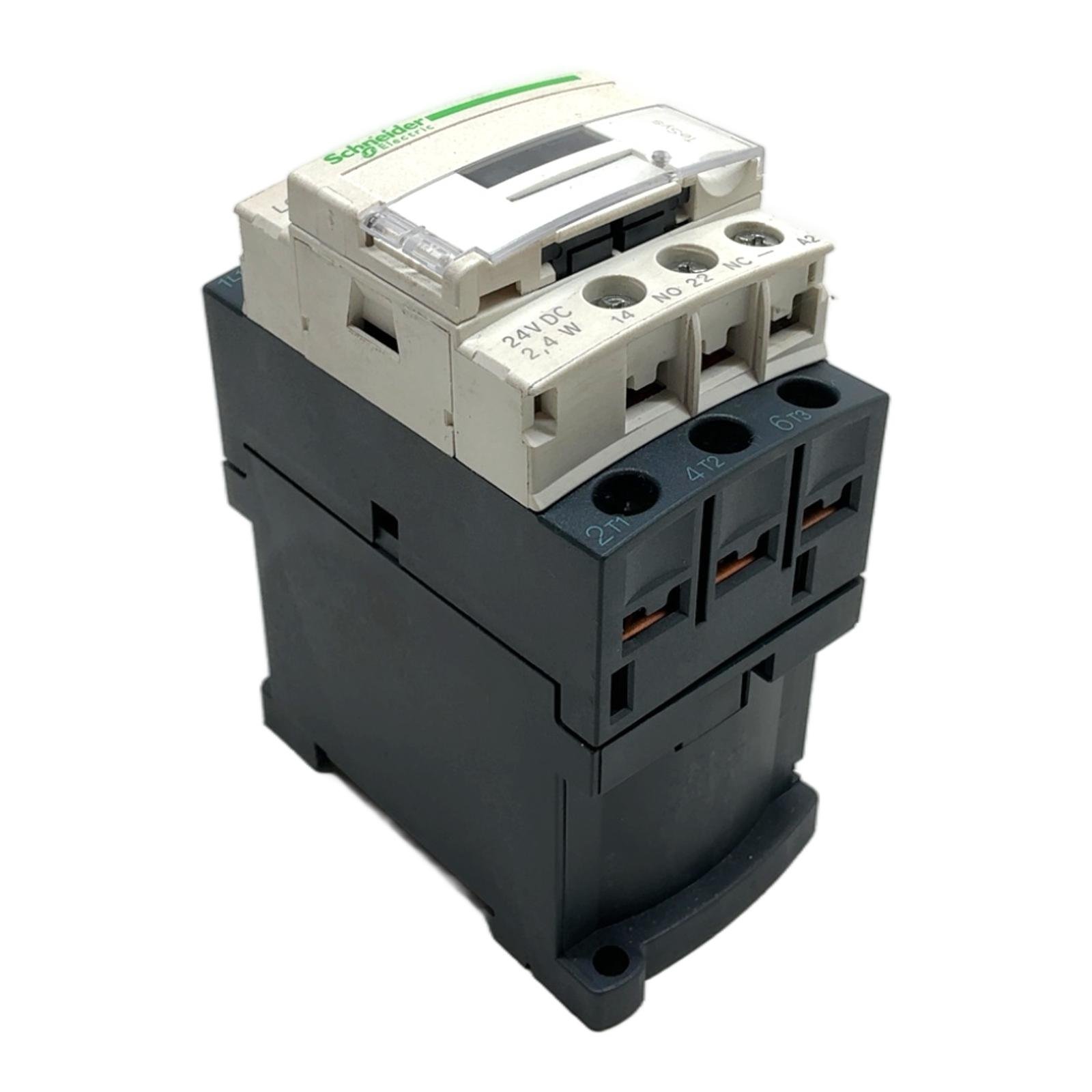

Schneider Electric LC1D09BL TeSys D Contactor Description The LC1D09BL from Schneider Electric is a high-performance 3-pole contactor belonging to the trusted TeSys D series. It is engineered for controlling motors and other electrical loads in demanding industrial environments. This model features a 24V DC low-consumption coil, making it compatible with modern PLC control systems while minimizing energy usage. With built-in auxiliary contacts, it offers enhanced flexibility for control circuit logic. Specifications Manufacturer: Schneider Electric Series: TeSys D Model: LC1D09BL Number of Poles: 3 Coil Voltage: 24V DC (Low Consumption) Rated Operational Current (AC-3): 9A at 440V Thermal Current (Ith, AC-1): 25A Auxiliary Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) Rated Insulation Voltage (Ui): 690V Standards: IEC/EN 60947-4-1, UL, CSA Label Info Part Number: LC1D09BL Coil: 24V DC, 2.4W Made in: France Application This contactor is ideal for direct-on-line (DOL) starting of three-phase motors, as well as for switching resistive, inductive, and capacitive loads. Its compact design and DIN rail mounting capability make it suitable for installation in control cabinets and machinery across various industries. Country of Origin This product is made in France. CO2 Impact By purchasing this pre-owned but fully functional component, you are contributing to a circular economy and preventing approximately 16 kg of CO2 emissions that would be generated from manufacturing a new unit. This saving is comparable to the emissions from a standard car driving 80 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What is the main advantage of the ‘BL’ low-consumption DC coil on the LC1D09BL? The low-consumption ‘BL’ coil is designed for direct control from a PLC’s digital output without needing an interposing relay. It draws significantly less power than standard coils, which reduces energy costs and heat buildup in the control panel. Question?Can I add more auxiliary contacts to this TeSys D contactor? Yes, the TeSys D series is modular. You can easily add front-mounted or side-mounted auxiliary contact blocks (LADN or LADC series) to increase the number of available control contacts for your application. Question?What is the recommended screw torque for the main power terminals to ensure a secure connection? According to the UL specifications on the label, the recommended torque for the main terminals is 15 lb.in (approximately 1.7 Nm). Proper torque is crucial to prevent overheating and ensure a reliable connection. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
