SCHNEIDER ELECTRIC GV2L16

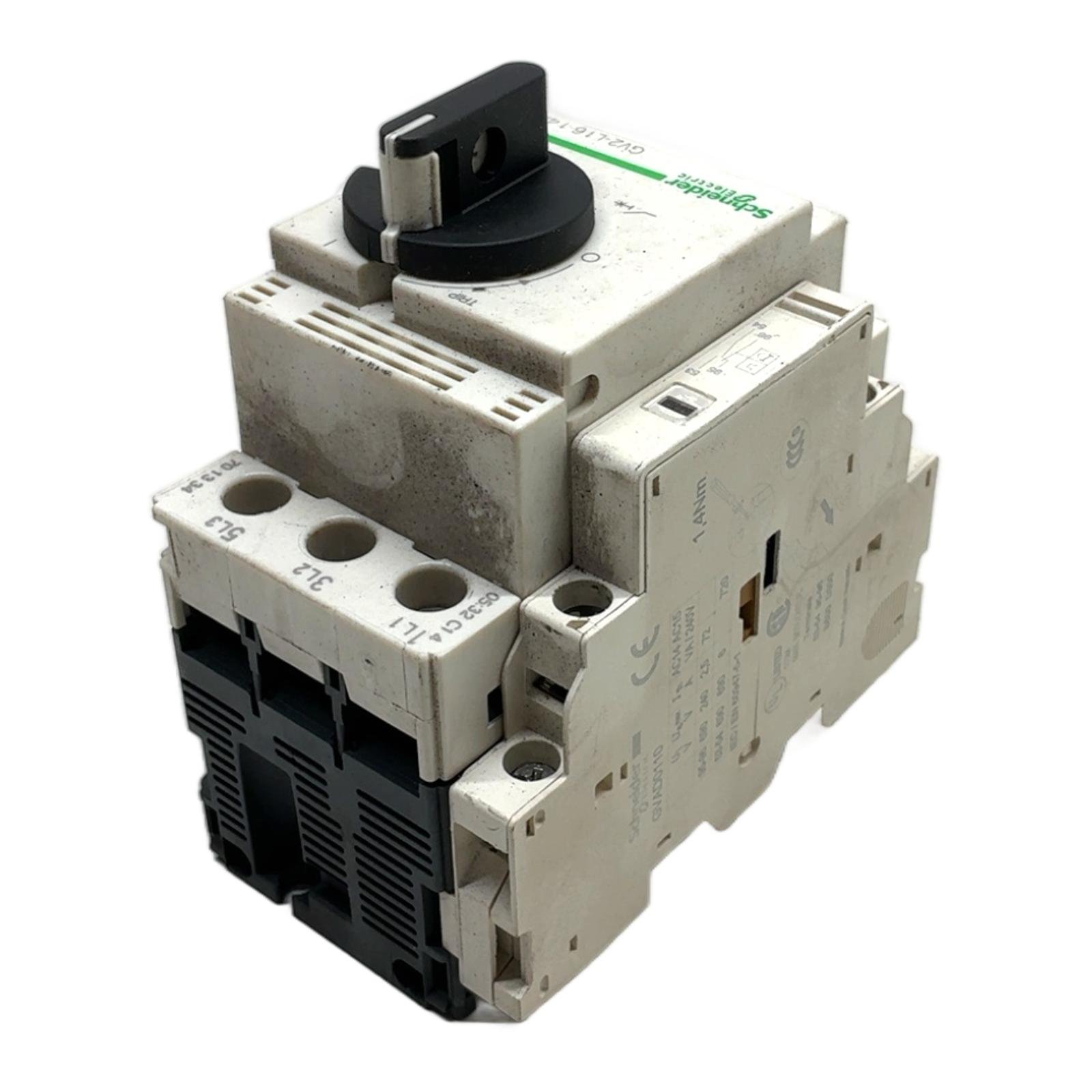

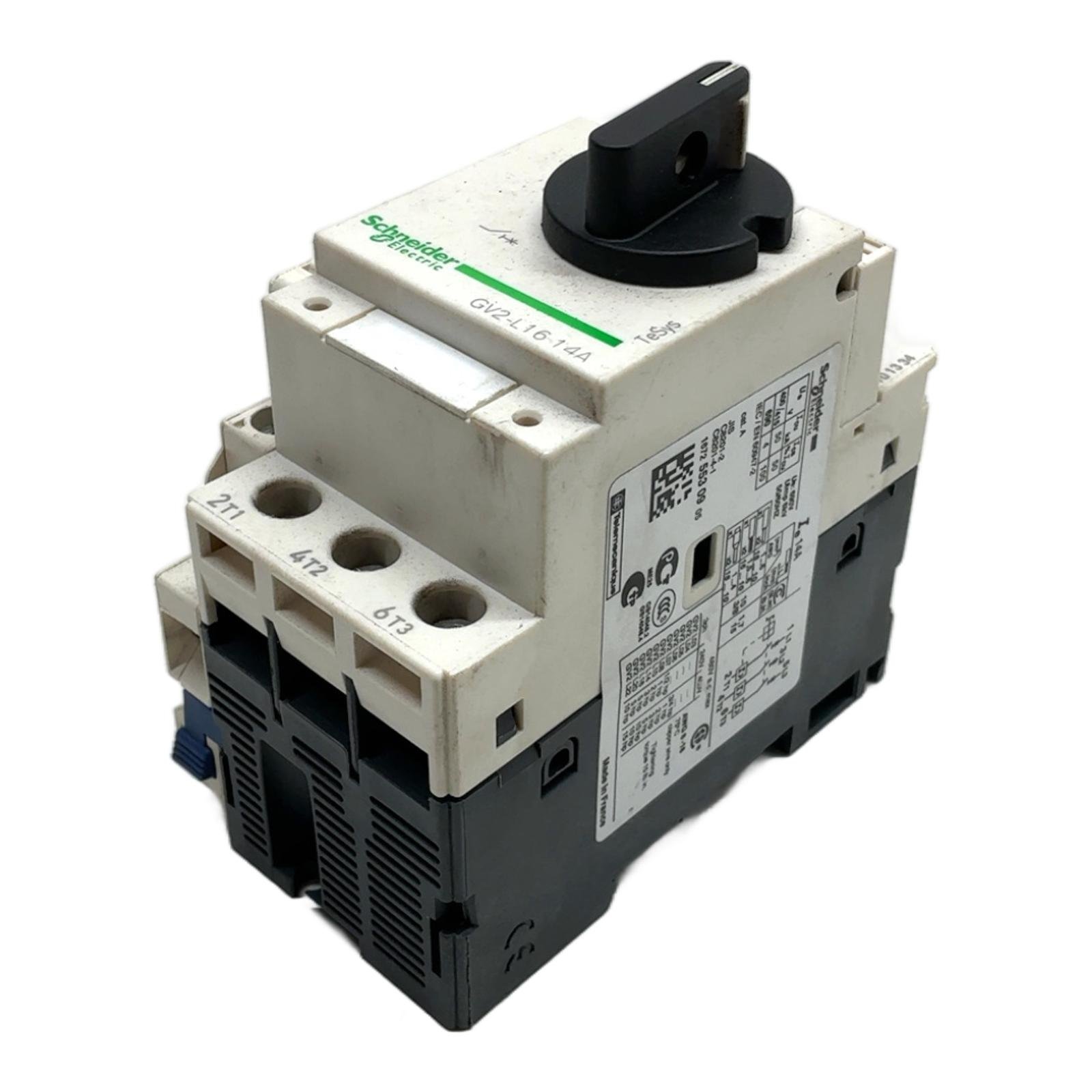

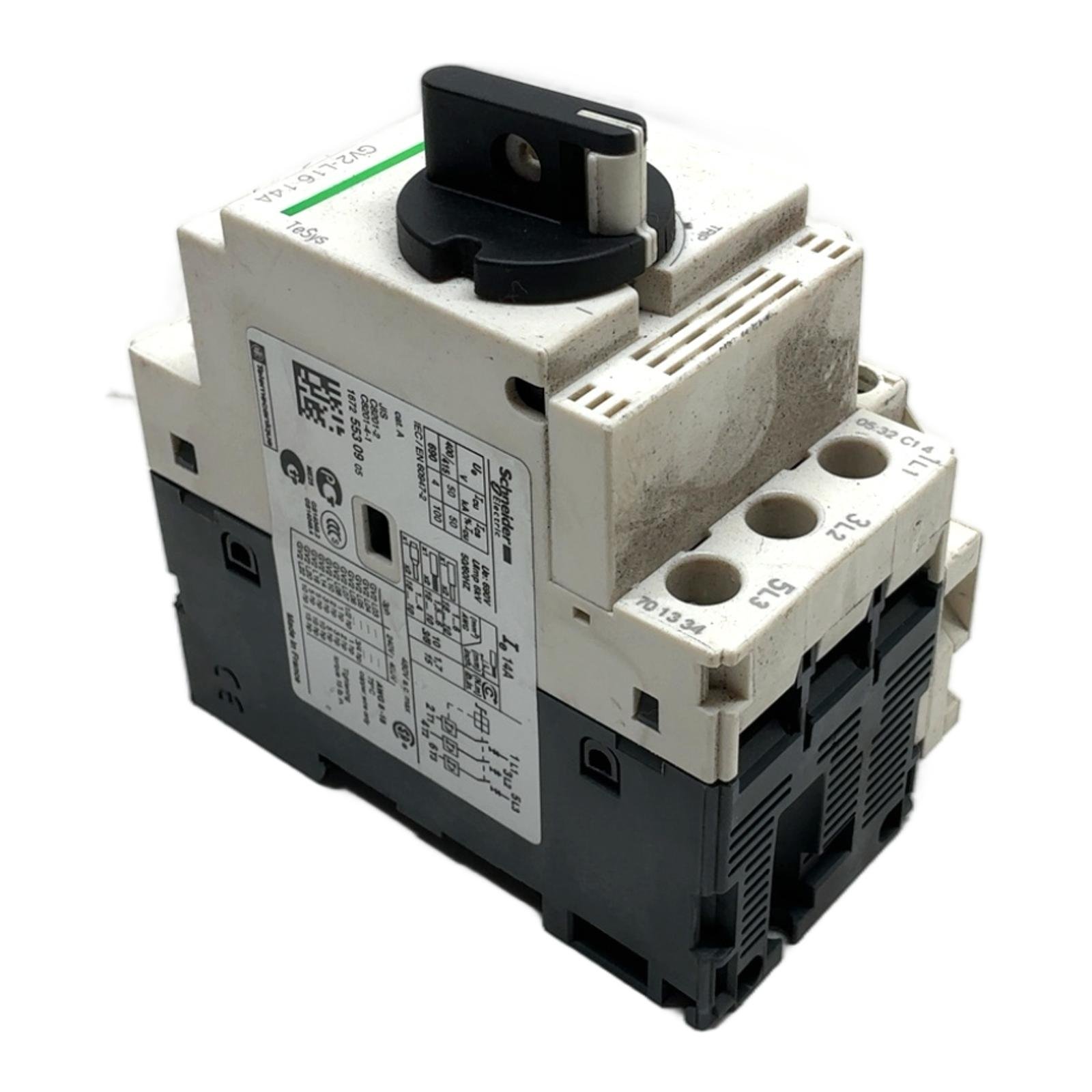

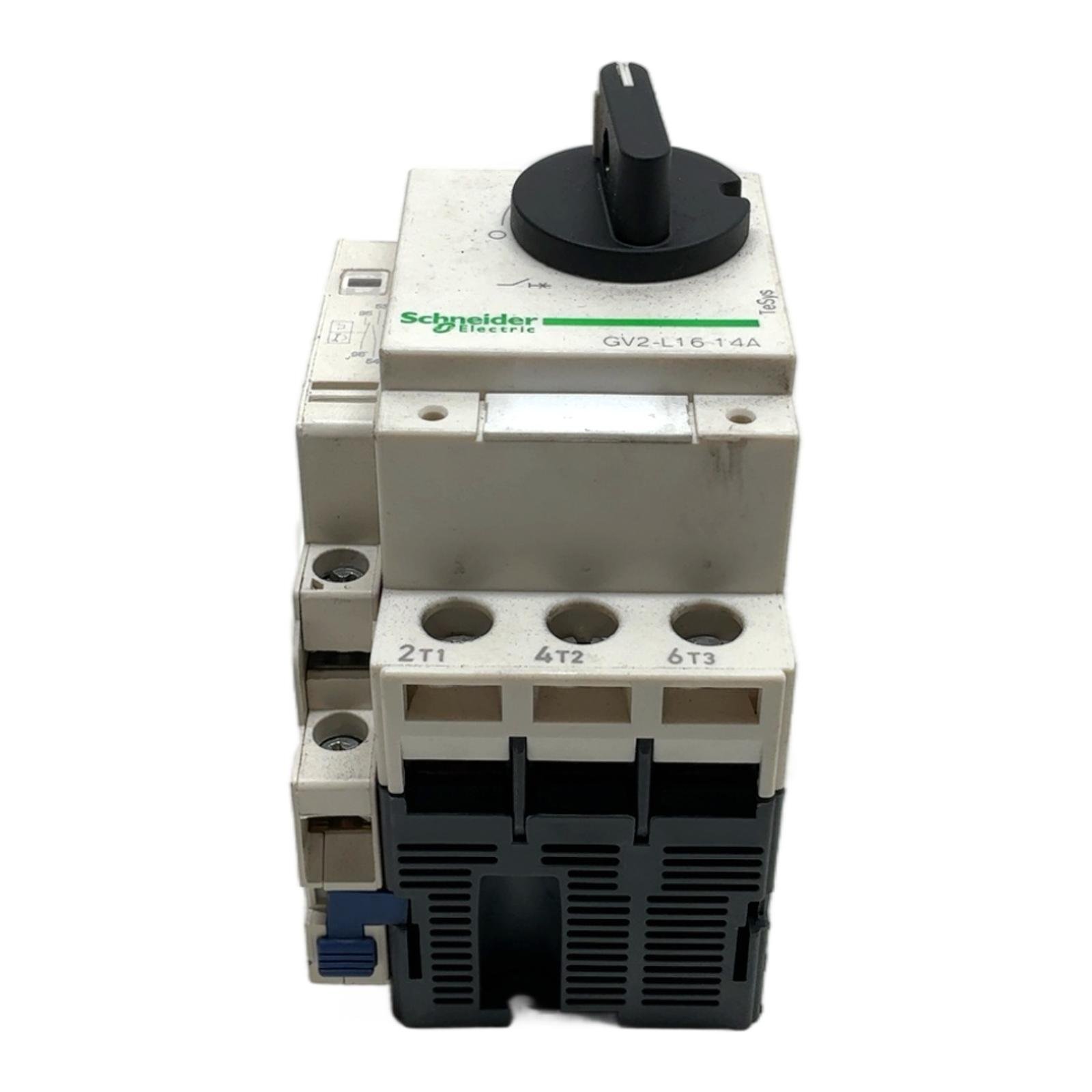

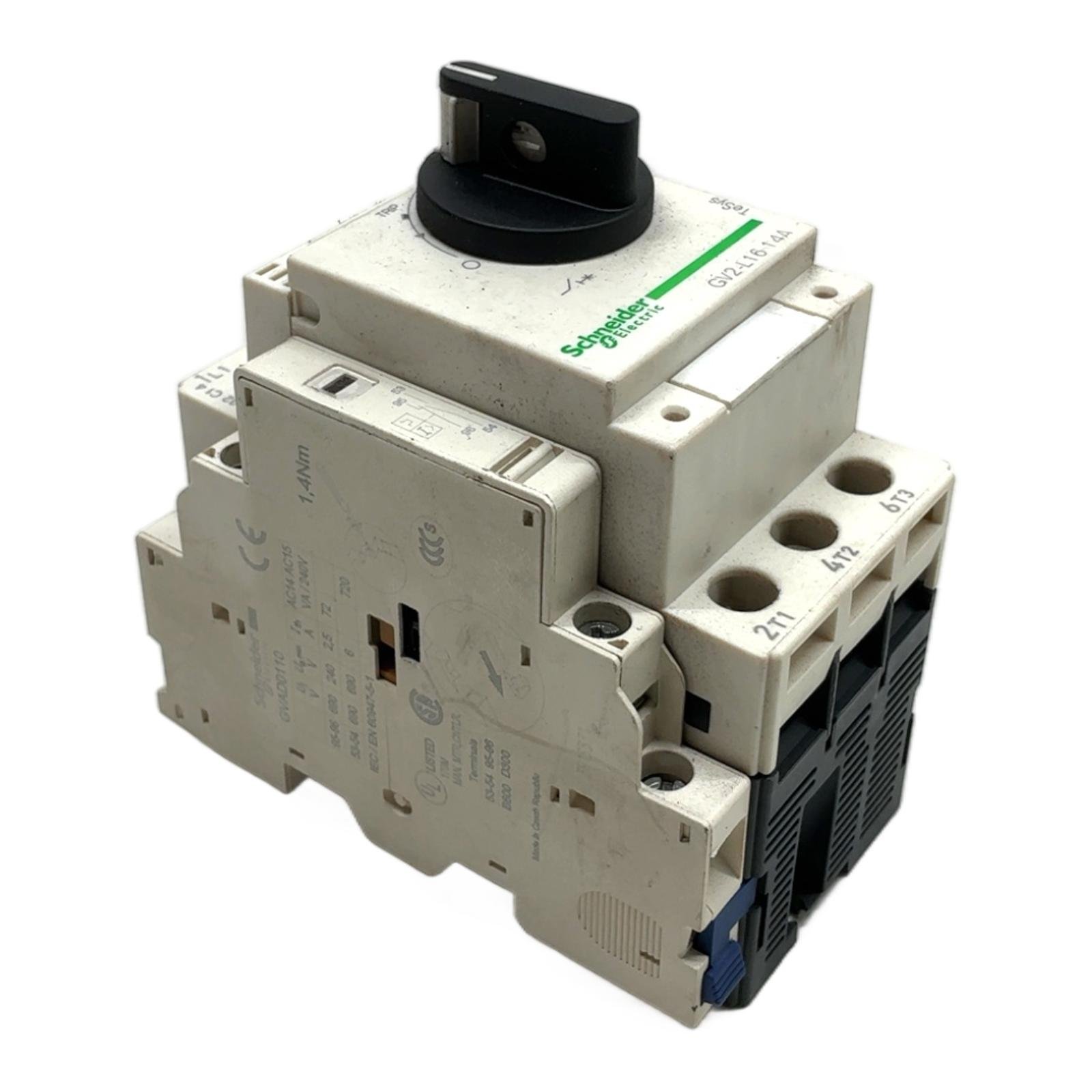

Schneider Electric TeSys GV2L16 Motor Circuit Breaker Description The Schneider Electric GV2L16 is a magnetic motor circuit breaker from the TeSys GV2 range. It provides reliable protection for motors against short-circuits. This model has a fixed magnetic trip of 14A and is designed for 3-phase motor applications. It comes equipped with a front-mounted GVAD0110 auxiliary contact block (1NO + 1NC) for additional control circuit functionality. This is a robust and dependable component for any industrial setting. Specifications Manufacturer: Schneider Electric Type: GV2L16 Product Range: TeSys GV2 Function: Magnetic Motor Circuit Breaker Rated Current (Ie): 14 A Rated Operational Voltage (Ue): Up to 690 V AC Number of Poles: 3 Control Type: Rotary Knob Auxiliary Contact: GVAD0110 (1 Normally Open, 1 Normally Closed) Label Info Breaking Capacity (400/415V): 50 kA Impulse Withstand Voltage (Uimp): 6 kV Standards: IEC/EN 60947-2, IEC/EN 60947-4-1, JIS C8201 Application The GV2L16 is primarily used for the control and protection of AC motors in industrial applications such as conveyor systems, pumps, fans, and other machinery. It must be used in conjunction with an overload relay for full motor protection. Country of Origin The main circuit breaker is Made in France. The auxiliary contact is Made in the Czech Republic. CO2 Impact By reusing this part, you contribute to the circular economy and avoid approximately 8 kg of CO2 emissions compared to purchasing a new one. Availability This is an obsolete item, but available from our stock. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a GV2L and a GV2ME circuit breaker?The GV2L series, like this GV2L16, provides only magnetic (short-circuit) protection. The GV2ME series provides both thermal (overload) and magnetic (short-circuit) protection. A GV2L must be used with a separate thermal overload relay for complete motor protection. Can the trip current be adjusted on this GV2L16?No, the GV2L16 has a fixed magnetic trip setting of 14A. There is no adjustment dial for the trip current on this model. What are the specifications of the included GVAD0110 auxiliary contact block?The attached GVAD0110 is a front-mounted auxiliary contact block. It provides one normally open (NO) contact and one normally closed (NC) contact, typically used for signaling and interlocking in control circuits. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
