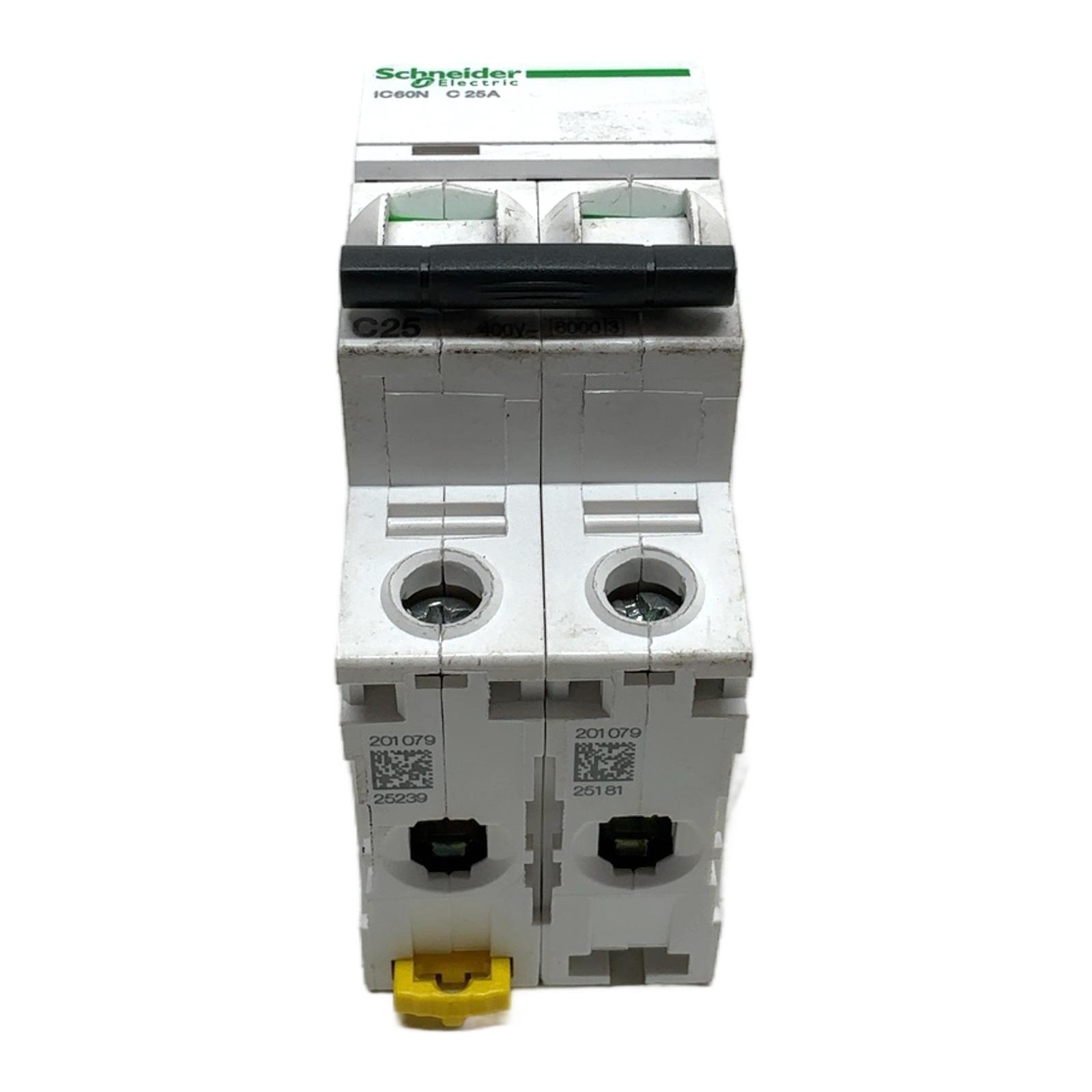

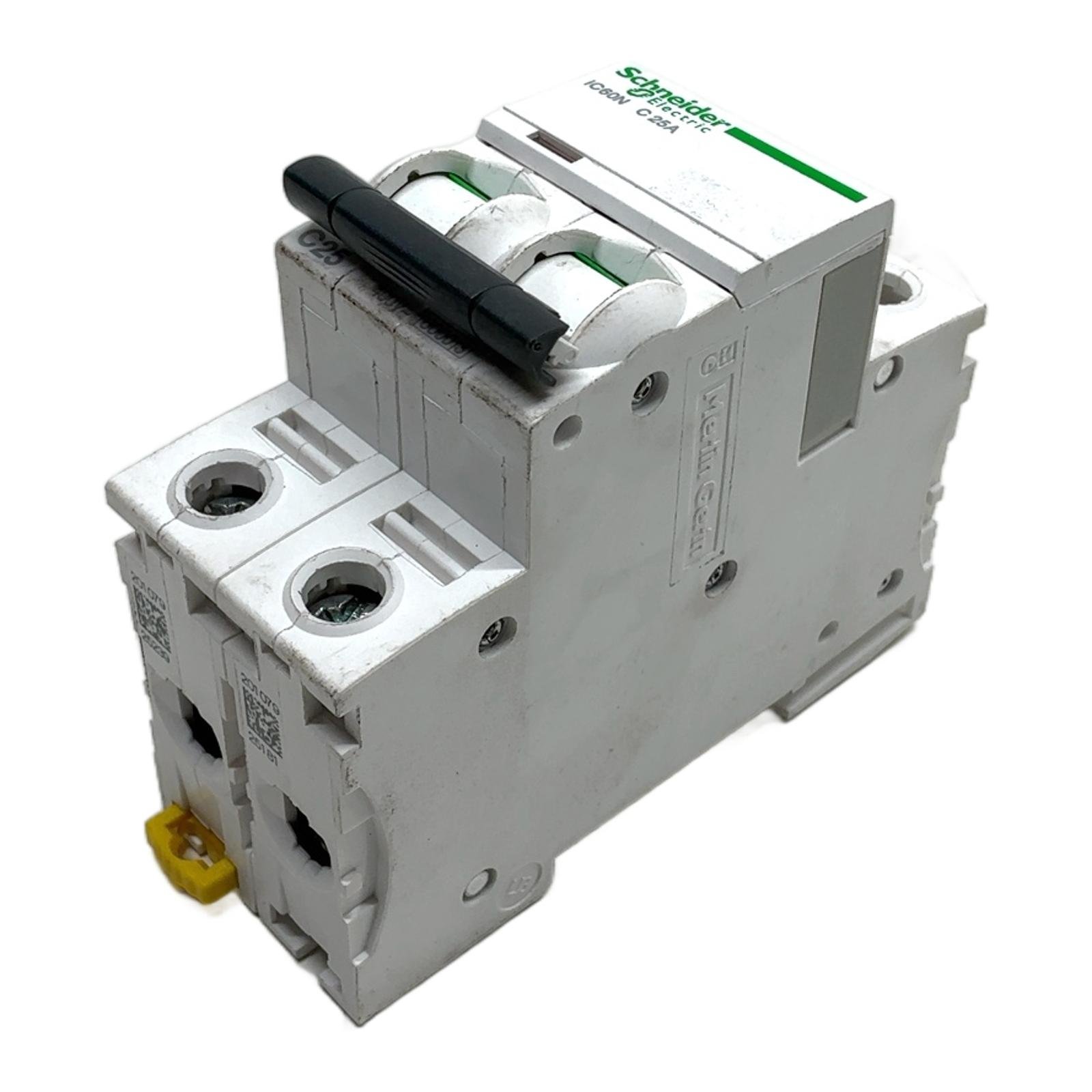

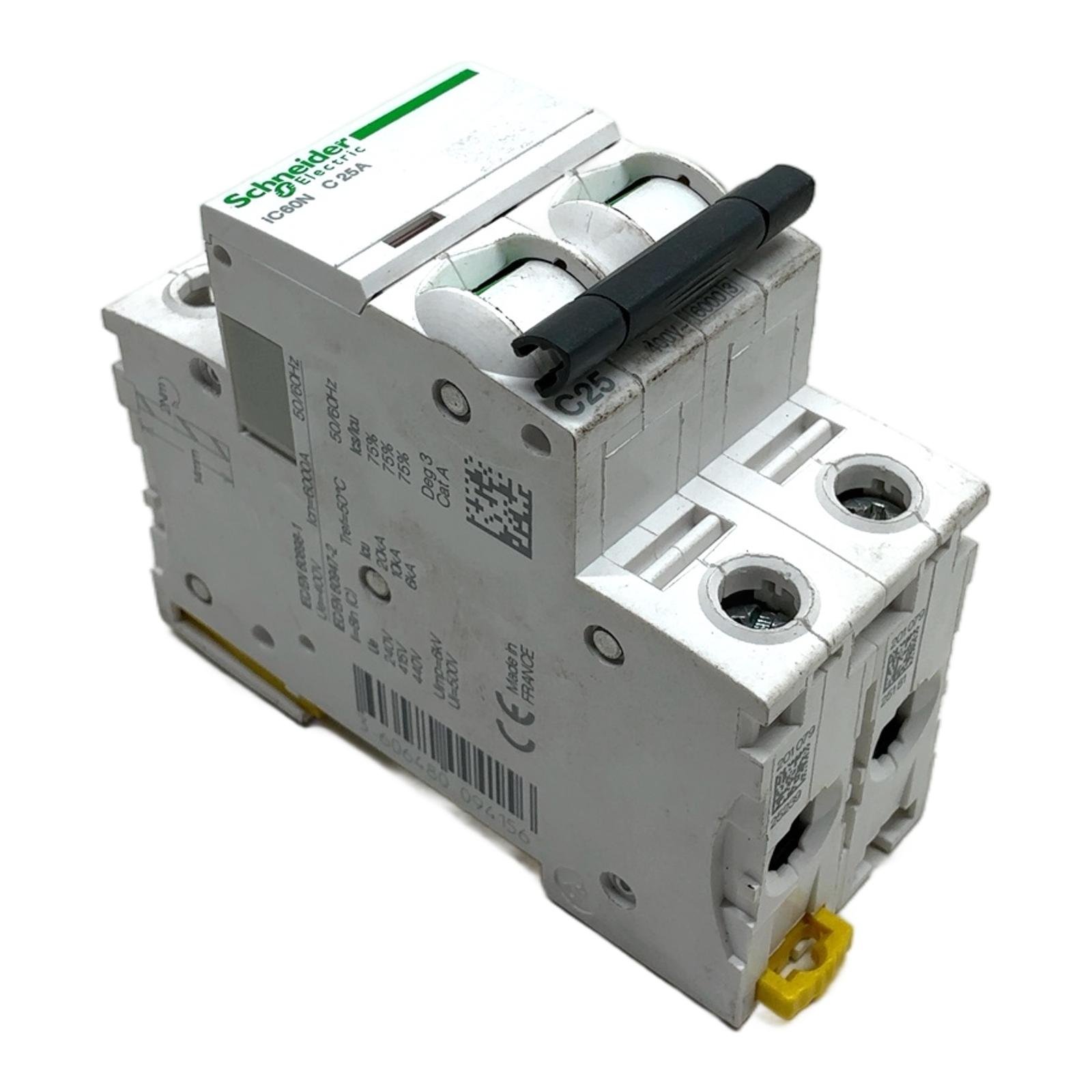

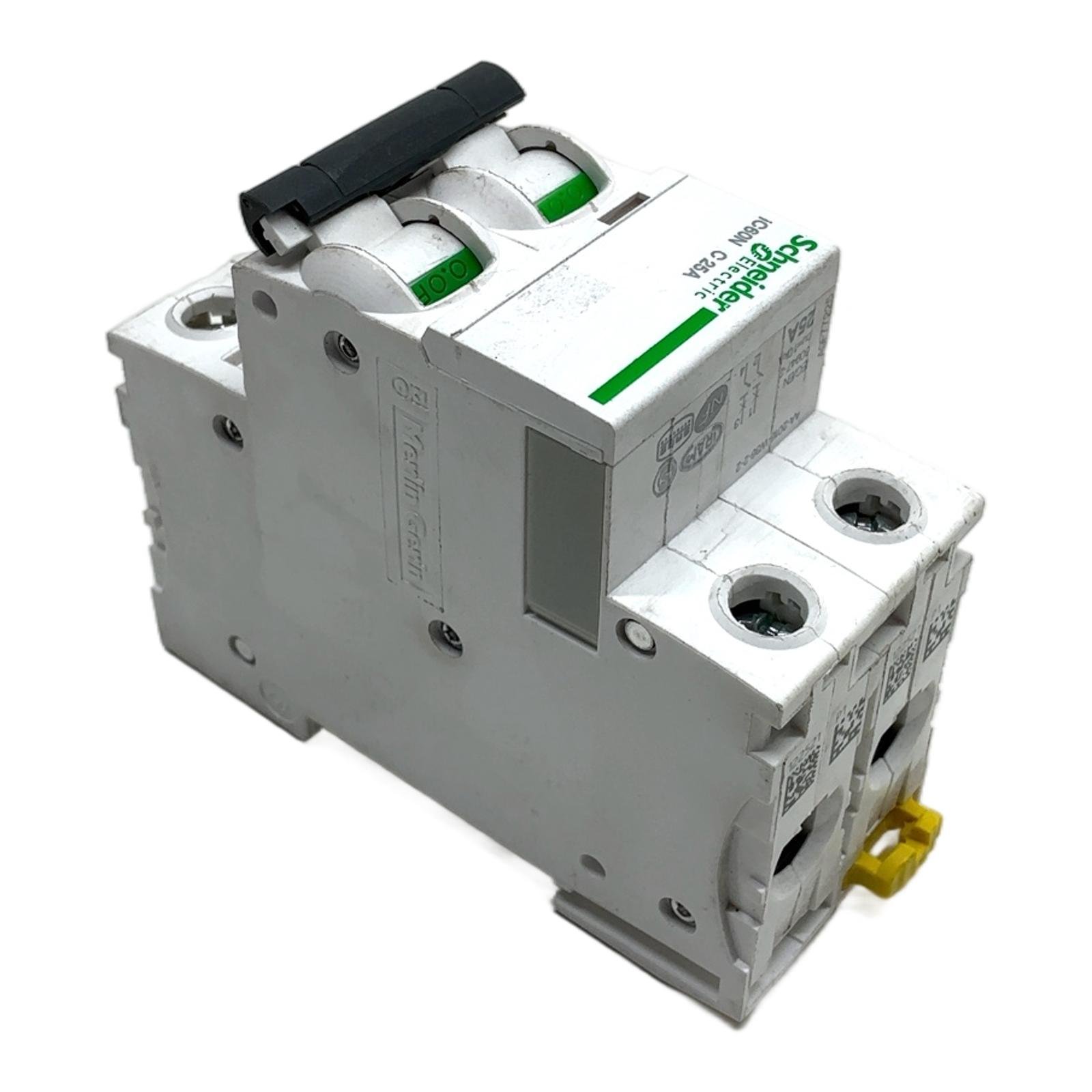

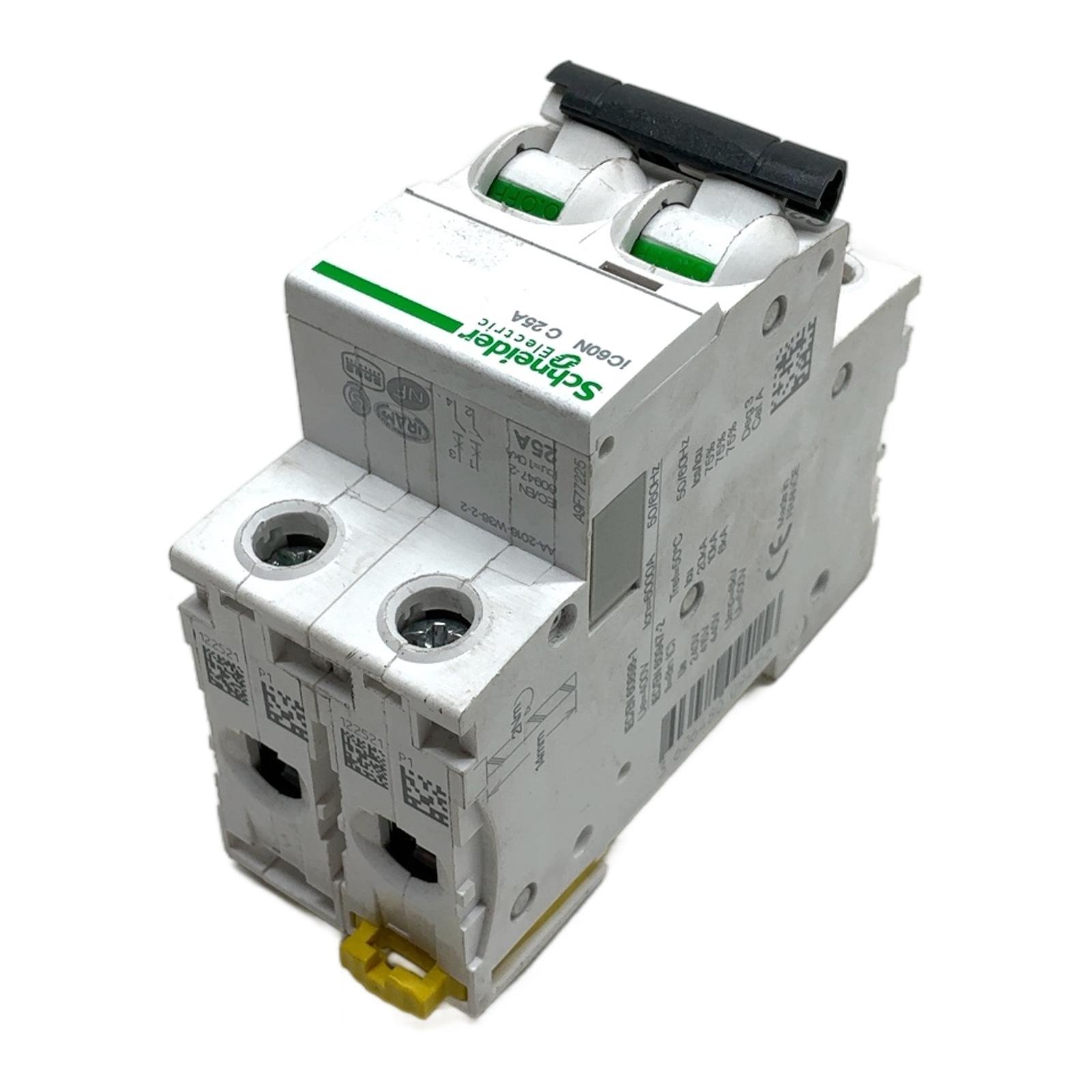

SCHNEIDER ELECTRIC iC60N C25A A9F04225

Schneider Electric Miniature Circuit Breaker 25A 2P iC60N A9F04225 Description The Schneider Electric A9F04225 is a 2-pole miniature circuit breaker (MCB) from the renowned Acti9 iC60N series. It is designed to provide superior circuit protection against overcurrents and short circuits in industrial, commercial, and residential settings. With a rated current of 25A and a C-type tripping characteristic, it is suitable for protecting circuits with moderate inrush currents such as lighting and general-purpose outlets. This MCB features VisiSafe, which guarantees the physical opening of the contacts to ensure downstream circuit safety during maintenance. Specifications Manufacturer: Schneider Electric Part Number: A9F04225 Series: Acti9 iC60N Number of Poles: 2P Rated Current: 25 A Tripping Curve: C Rated Operational Voltage (Ue): 400V AC 50/60 Hz Breaking Capacity (Icn): 6000 A at 400V AC conforming to IEC/EN 60898-1 Mounting: DIN Rail Connection: Screw terminals Label Info Standard: IEC/EN 60898-1, IEC/EN 60947-2 Uimp: 6kV Ui: 500V Icu at 415V: 10kA Application This MCB is ideal for final distribution circuits in commercial buildings, industrial facilities, and demanding residential applications. It provides essential protection for lighting circuits, socket outlets, and other electrical loads against thermal overloads and short circuits. Country of Origin This product is Made in France. CO2 Impact By reusing this component, you are actively contributing to the circular economy and avoiding approximately 10 kg of CO2 emissions. This is equivalent to the savings from driving a car for 50 kilometers. Availability This item is in stock and ready for immediate dispatch. All our products are tested and guaranteed to be fully functional. Order now from profideals for expert support and fast delivery. FAQ Question?What is the significance of the ‘C’ tripping curve on this MCB? The ‘C’ curve indicates that the breaker will trip magnetically between 5 to 10 times the rated current (25A). This makes it suitable for general applications with devices that have a moderate inrush current, such as lighting systems, pumps, and standard appliances, preventing nuisance tripping while providing effective short-circuit protection. Question?Can this iC60N breaker be used in a DC circuit? While the iC60N series is primarily designed for AC circuits, specific models have DC ratings. It is crucial to consult the Schneider Electric datasheet for the A9F04225 to verify its suitability and derating factors for DC applications. Using it outside of its specified ratings can compromise safety and performance. Question?What is the VisiSafe feature mentioned for the Acti9 range? VisiSafe is a safety feature by Schneider Electric. It provides a green indicator strip on the toggle that is only visible when the contacts are physically open, guaranteeing that the downstream circuit is de-energized and safe for maintenance, regardless of the toggle position. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
