RITTAL SK3361540
RITTAL SK3361540 € 460,50 excl. btw · € 557,21 incl. btw
Terug naar producten
RITTAL SK3305540
RITTAL SK3305540 € 1.658,50 excl. btw · € 2.006,79 incl. btw

RITTAL SK3361540

SKU: 2606111010

RITTAL SK3361540

€ 506,50 excl. btw · € 612,87 incl. btw

1 op voorraad

1 op voorraad

Levering en verzendinformatie · Retourneren

Twijfel je of dit artikel past? Vraag ons om hulp en vermeld het merk en artikelnummer.

Betaalmethode:

Specificatie

Gewicht41,00 kg
Verpakkingshoeveelheid1 Unit(s)
EenheidUnit(s)
MerkRITTAL
CategorieFans
OmschrijvingAir conditioning machines
MPNSK3361540
Andere aanduidingenSK3361540
Artikelnummer fabrikantSK3361540

Oudenbosch

Vandaag

Nederland

België

1-2 dagen
1-2 dagen

Omschrijving

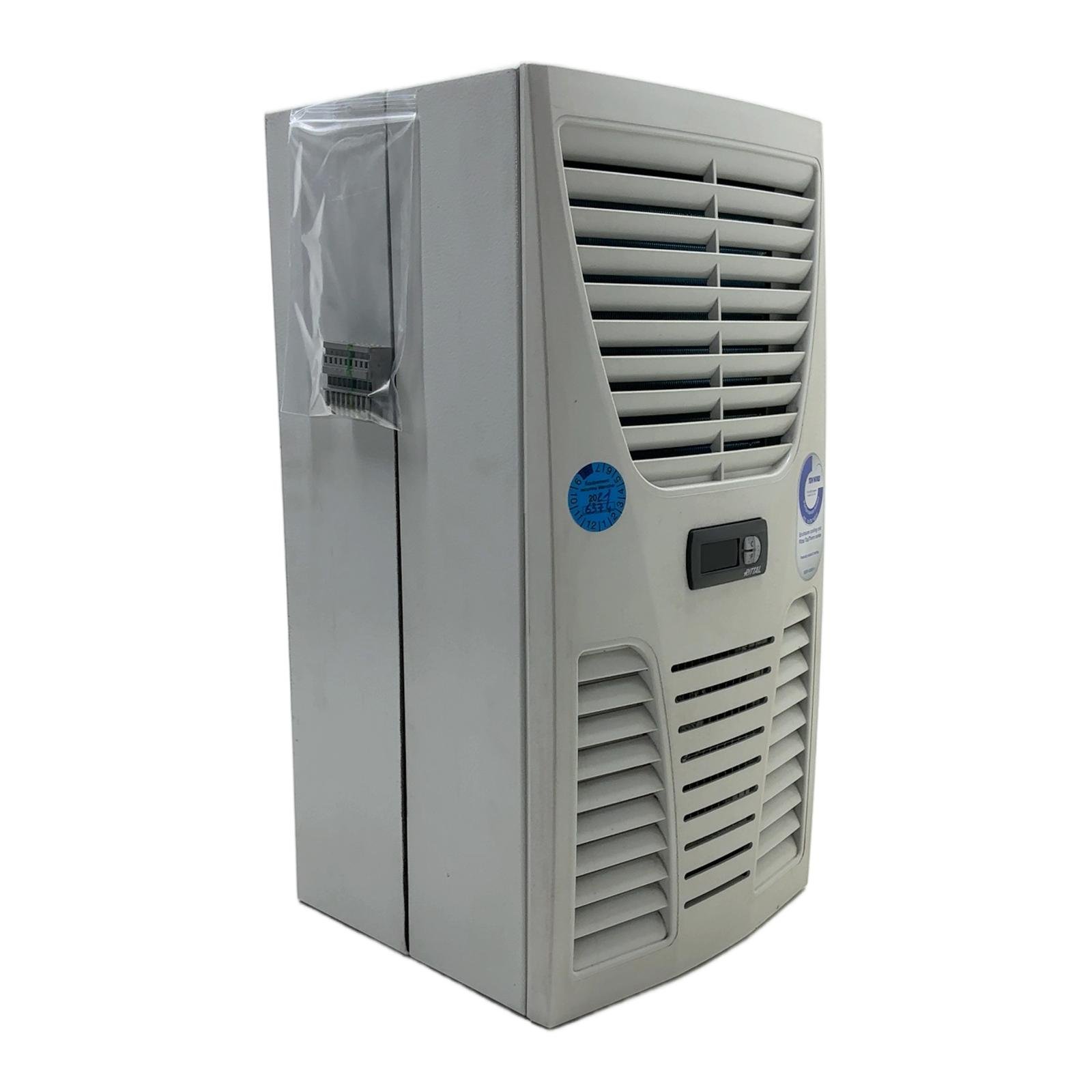

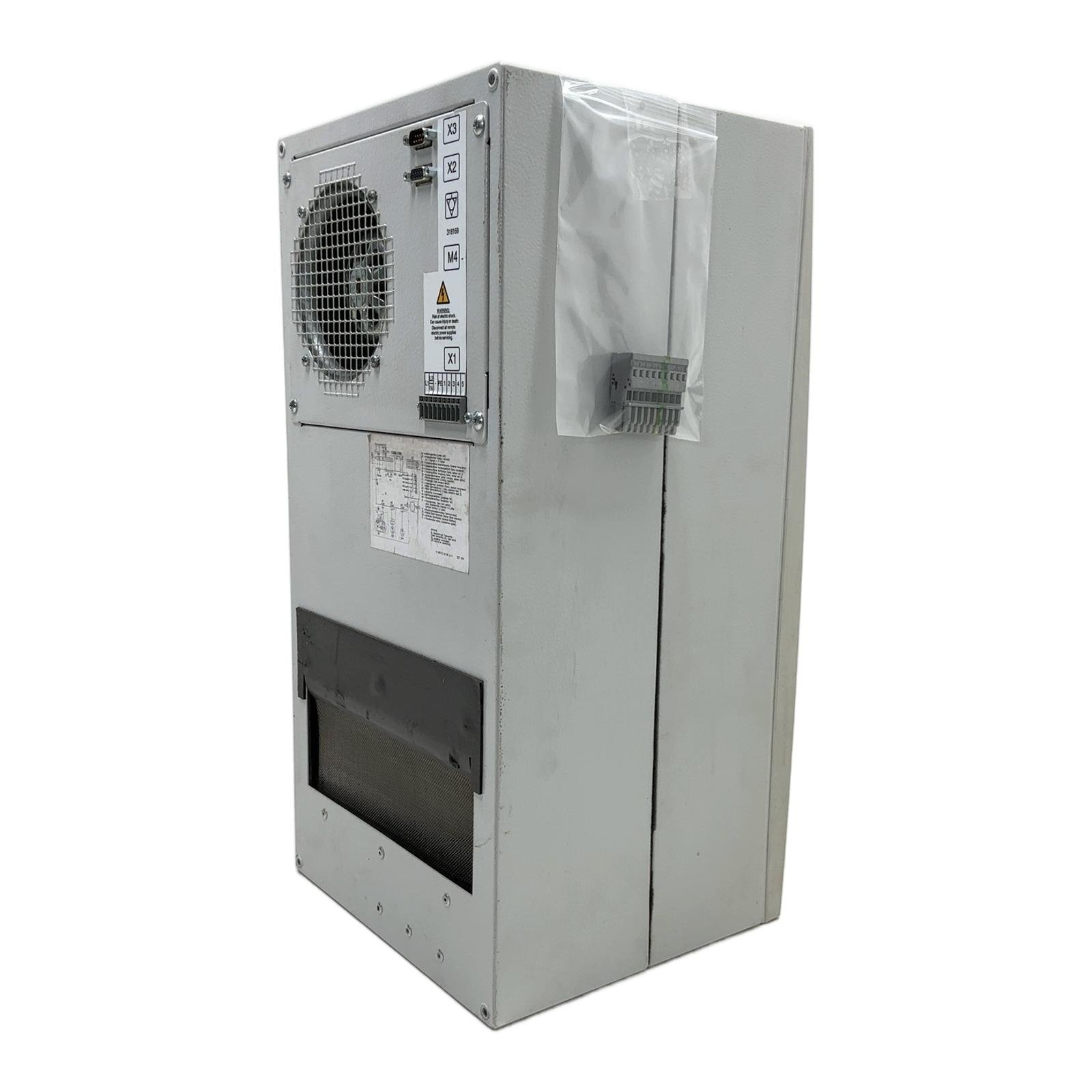

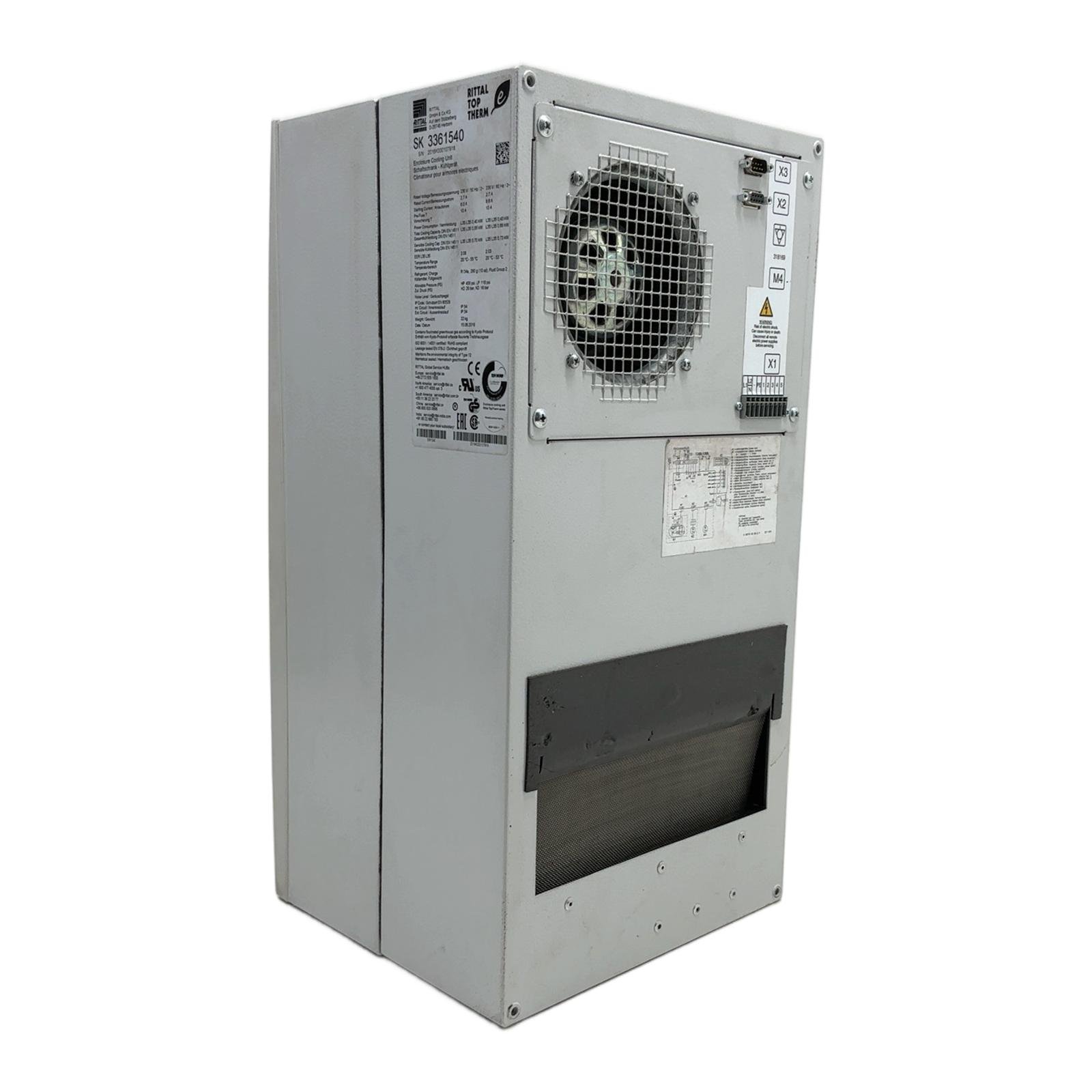

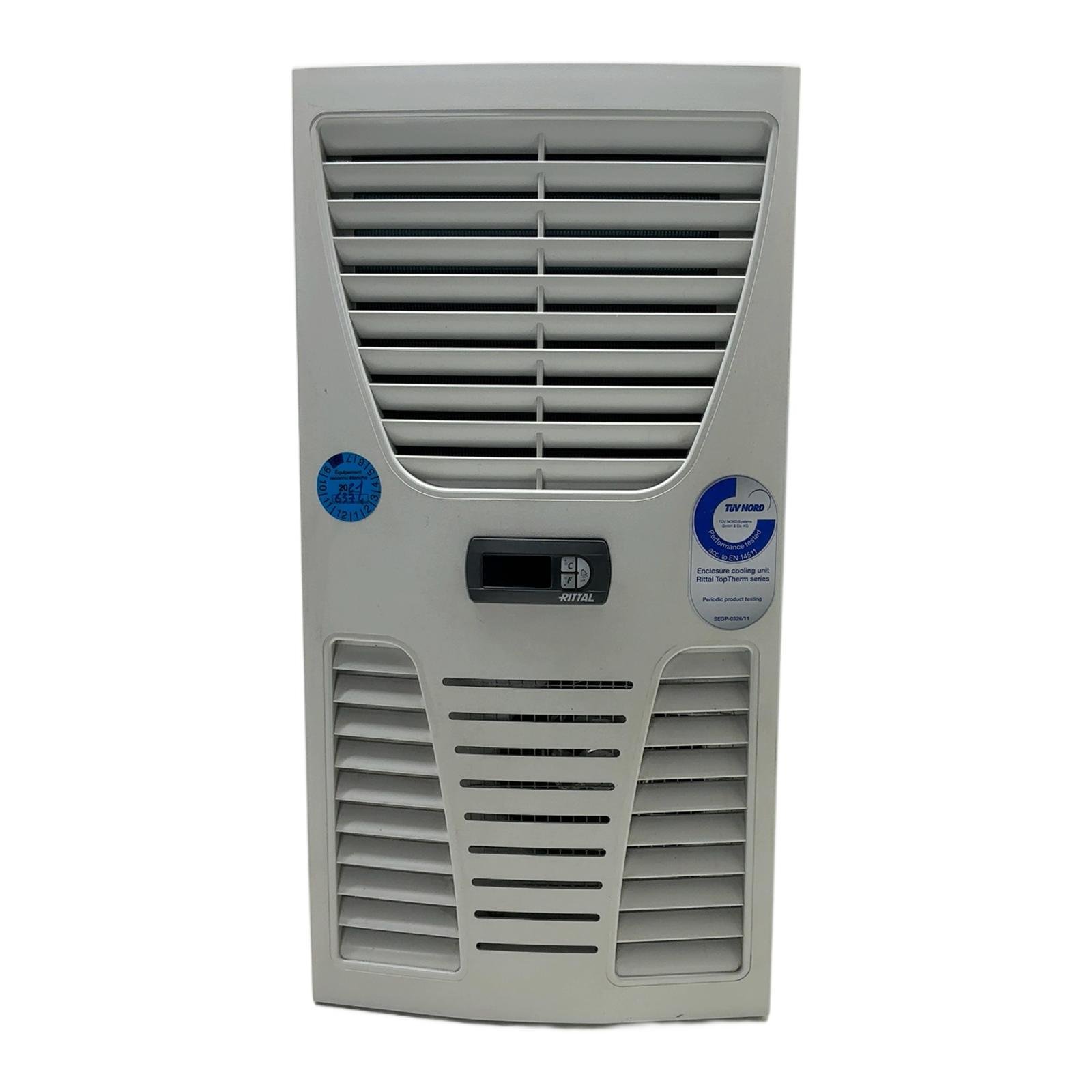

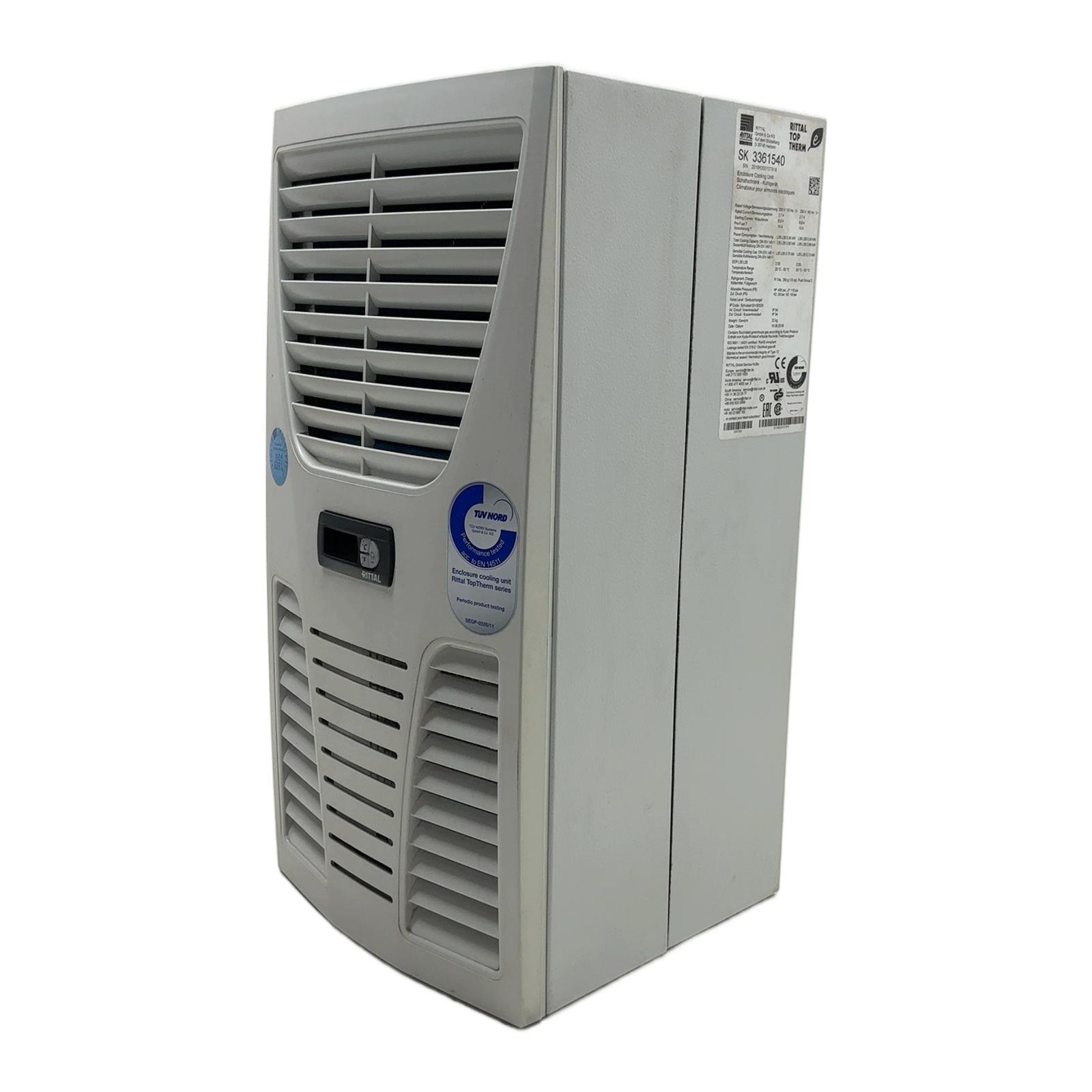

Rittal TopTherm SK 3361540 Enclosure Cooling Unit Description The Rittal TopTherm SK 3361540 is a high-performance, wall-mounted cooling unit designed to provide reliable climate control for industrial enclosures. It ensures that sensitive electronic components are protected from overheating, thus enhancing system reliability and longevity. This unit is built to Rittal’s high standards for durability and efficiency. Specifications Model: SK 3361540 Total Cooling Output (L35 L35, 50 Hz): 0.85 kW Total Cooling Output (L35 L35, 60 Hz): 0.89 kW Rated Voltage: 230 V, 50/60 Hz, 2-phase Rated Current (50/60 Hz): 2.7 A Power Consumption (L35 L35, 50 Hz): 0.40 kW Refrigerant: R134a (280 g) Operating Temperature Range: 20 deg C to 55 deg C Protection Rating (Internal Circuit): IP 54 Protection Rating (External Circuit): IP 34 Weight: 22 kg Label Info Manufacturer: Rittal GmbH & Co. KG Part Number: SK 3361540 Serial Number: 2016K000107918 Date of Manufacture: 15.06.2016 Application Ideal for use in control cabinets and enclosures in manufacturing, process control, and automation environments where consistent temperature management is critical for operational stability. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned unit, you help avoid the emission of approximately 205 kg of CO2 associated with the production of a new one. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the required mounting cut-out for the SK 3361540?The SK 3361540 requires a standard mounting cut-out. Please refer to the official Rittal datasheet for the precise dimensions (typically width and height) to ensure proper installation and sealing. Can this unit be used with a door switch to save energy?Yes, the TopTherm series can be connected to a cabinet door switch. This allows the cooling unit to deactivate when the enclosure door is open, preventing condensation and saving energy. What regular maintenance is required for the Rittal TopTherm cooling units?Regular maintenance includes checking and cleaning the condenser coils (external circuit) to ensure unobstructed airflow, verifying the condensate drain is clear, and checking fan operation. A periodic inspection schedule is recommended for optimal performance. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
