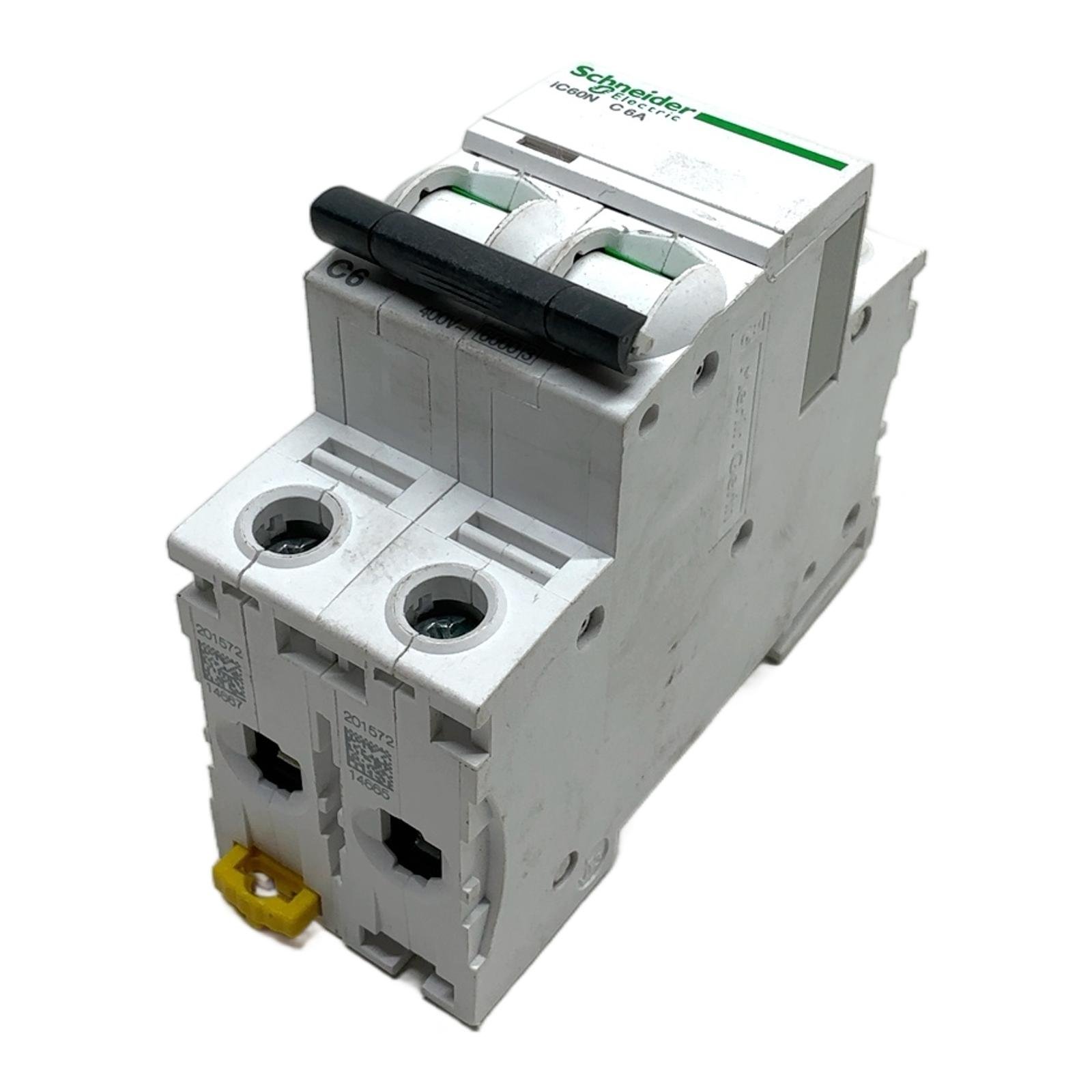

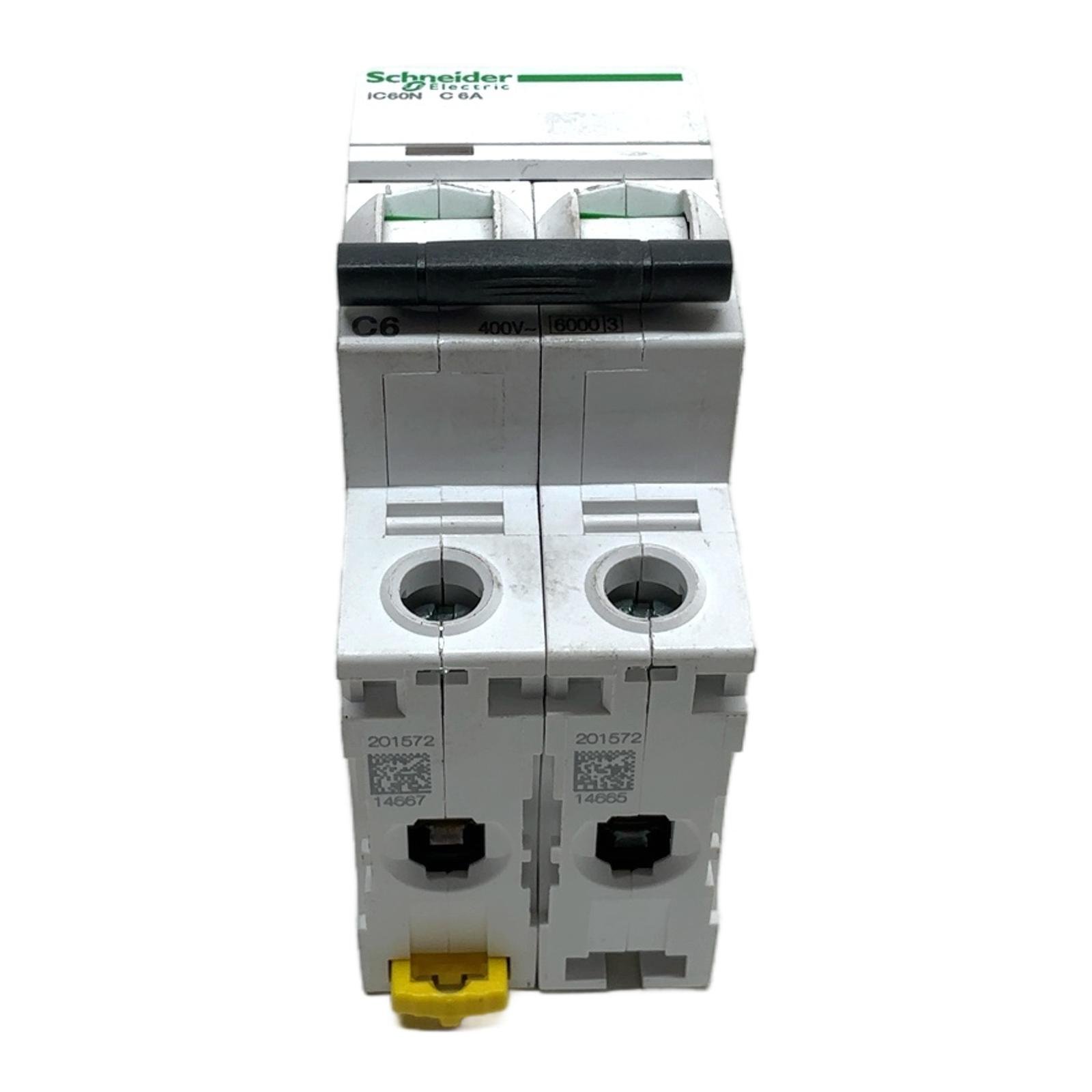

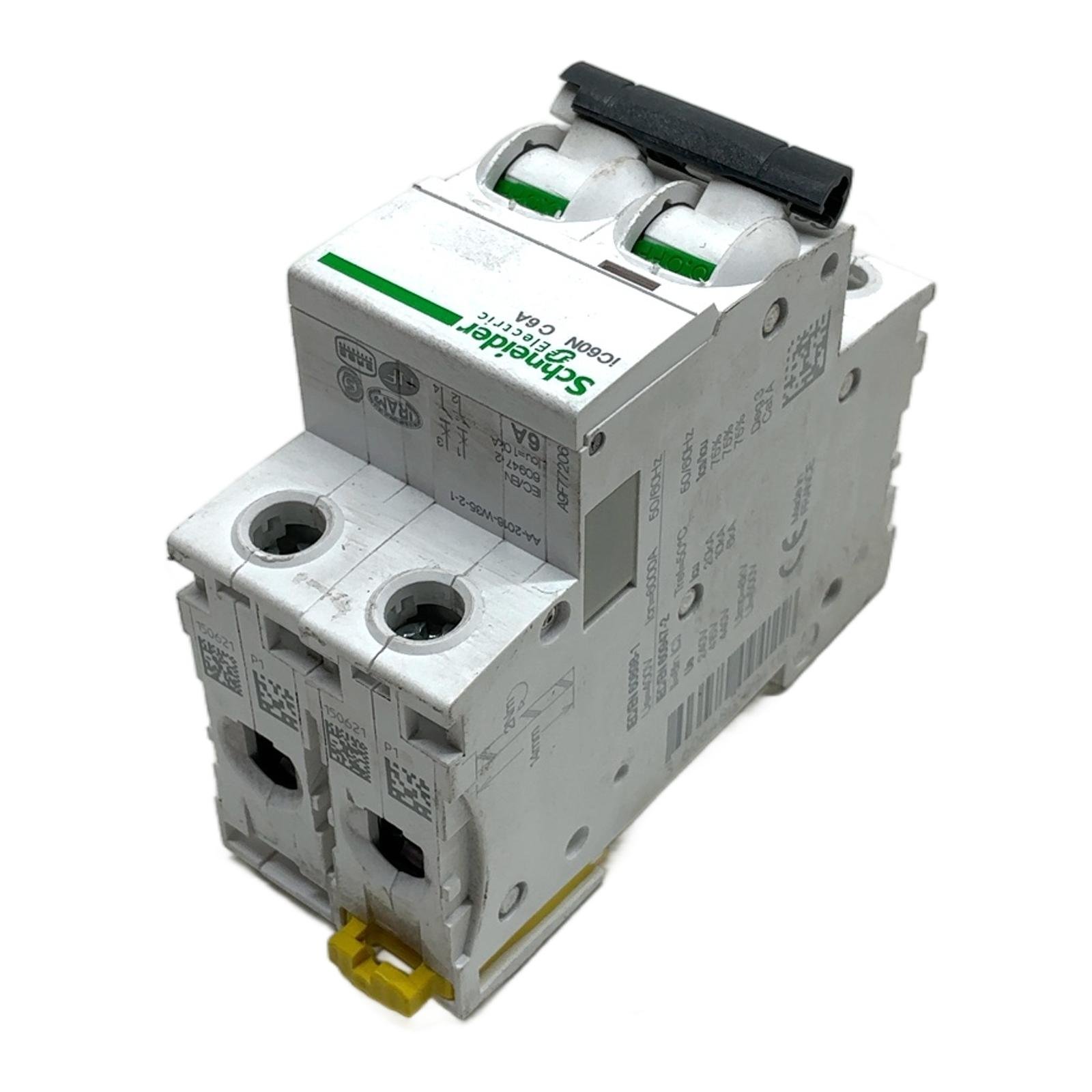

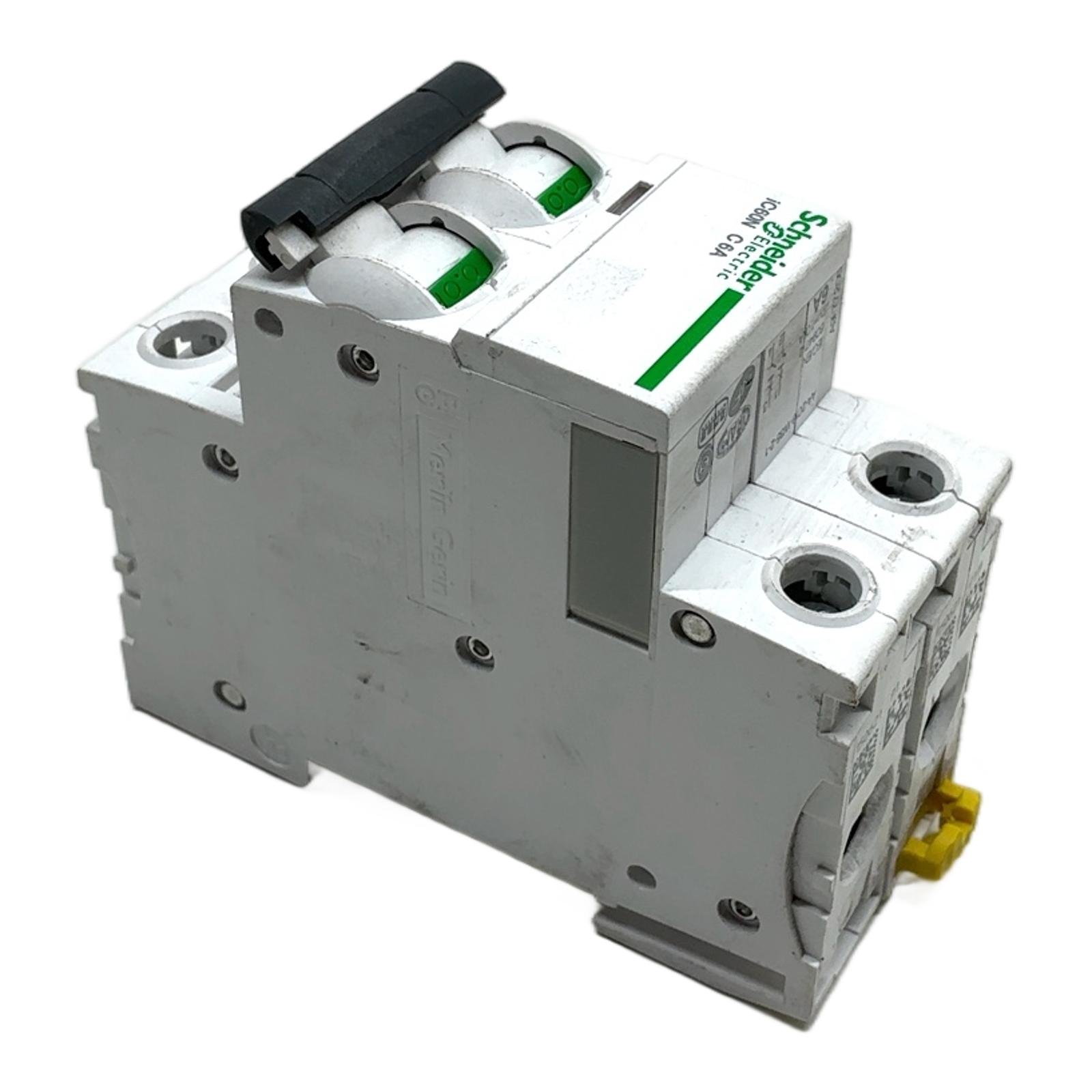

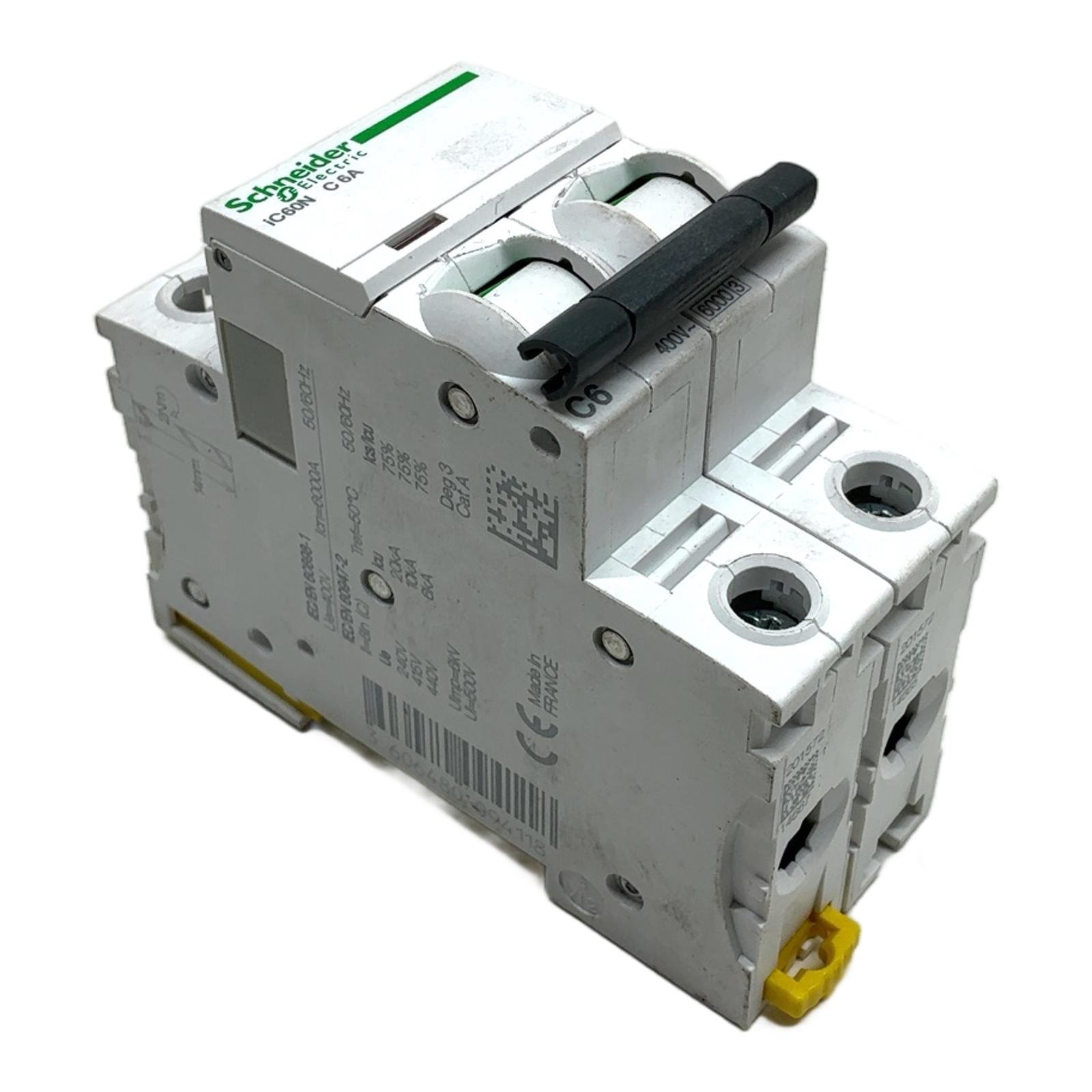

SCHNEIDER ELECTRIC iC60N A9F74206

Schneider Electric iC60N 2-Pole Miniature Circuit Breaker Description The Schneider Electric A9F74206 is a high-performance 2-pole miniature circuit breaker (MCB) from the renowned Acti9 iC60N series. It is engineered to provide superior circuit protection against both overloads and short circuits. With a 6A rating and a C-type tripping characteristic, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general-purpose outlets in commercial and industrial settings. This device ensures operational safety and continuity, conforming to both IEC/EN 60898-1 and IEC/EN 60947-2 standards. Specifications Manufacturer: Schneider Electric Model: iC60N Part Number: A9F74206 Poles: 2P Rated Current: 6A Tripping Curve: C Rated Voltage (Ue): up to 440V AC 50/60Hz Breaking Capacity (Icn): 6000A at 400V AC (acc. to IEC/EN 60898-1) Insulation Voltage (Ui): 500V AC Impulse Withstand Voltage (Uimp): 6kV Mounting: DIN Rail Label Info Brand: Schneider Electric Type: iC60N C6 EAN: 3606480094118 Application This MCB is commonly used in electrical distribution boards for final circuit protection in commercial buildings, industrial facilities, and infrastructure projects. Its C-curve characteristic makes it suitable for protecting resistive and inductive loads with low inrush current. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you are helping to avoid the emission of approximately 10 kg of CO2, which is equivalent to the savings from not driving a car for 50 kilometers. Availability This item is a tested, used product in excellent working condition. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the IEC/EN 60898-1 and IEC/EN 60947-2 standards for this MCB?IEC/EN 60898-1 is a standard specifically for circuit breakers used in household and similar installations (e.g., commercial buildings), focusing on operation by uninstructed persons. IEC/EN 60947-2 is a more stringent standard for industrial applications where operation is performed by trained personnel, and it specifies higher performance criteria like breaking capacity (Icu/Ics). Can this iC60N breaker be used in a DC circuit?While the iC60N series is primarily designed for AC circuits, some models are rated for DC applications. It is crucial to consult the official Schneider Electric datasheet for the A9F74206 to verify its specific DC voltage and breaking capacity ratings before using it in a DC system. What is the significance of the “C” curve in the C6 rating?The “C” curve defines the breaker’s tripping characteristic. It means the breaker will trip magnetically (for short-circuit protection) at 5 to 10 times its rated current (6A). This makes it suitable for general applications, as it tolerates small, brief surges (like motor start-ups) without nuisance tripping, while still protecting against genuine faults. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
