SCHNEIDER ELECTRIC iC60N A9F77206

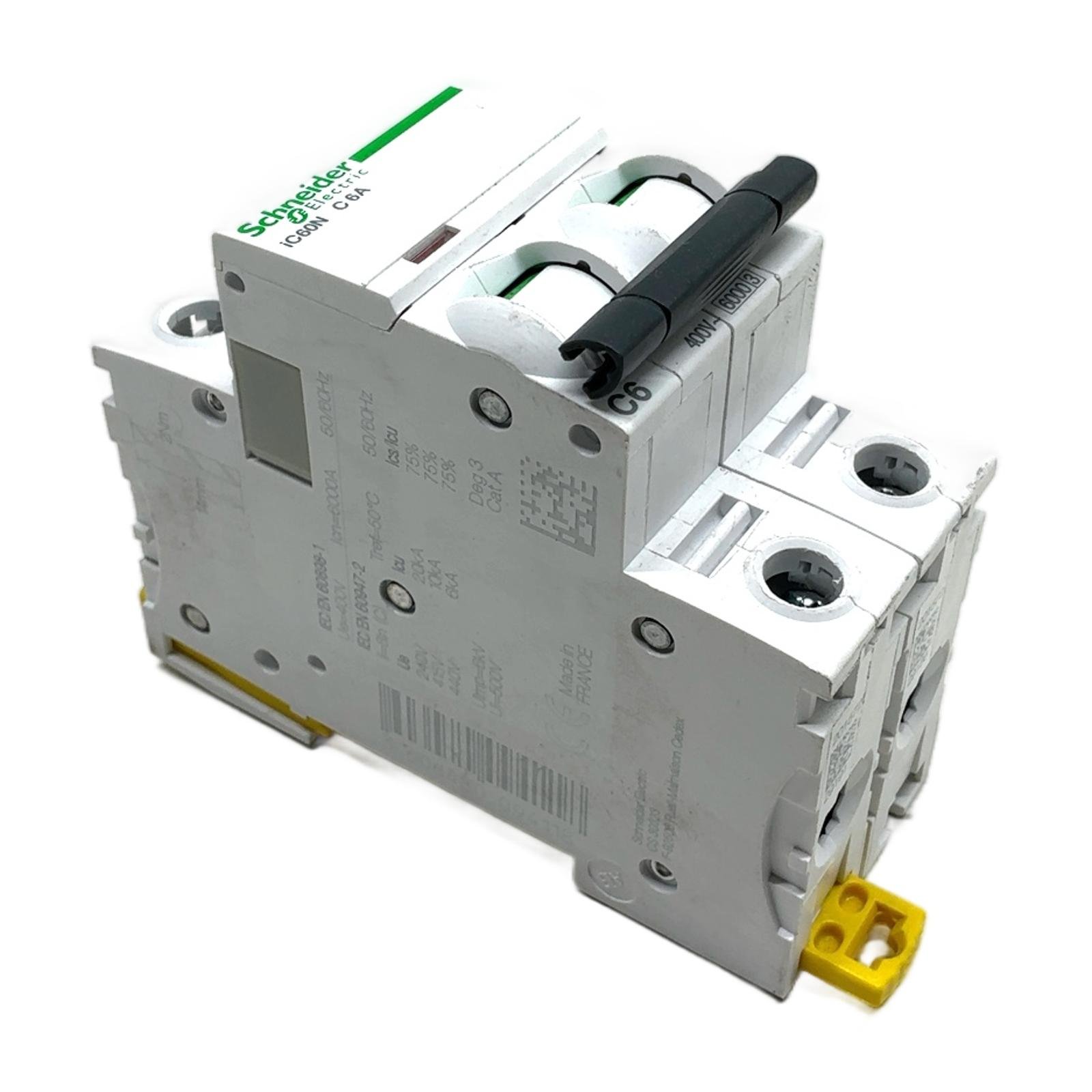

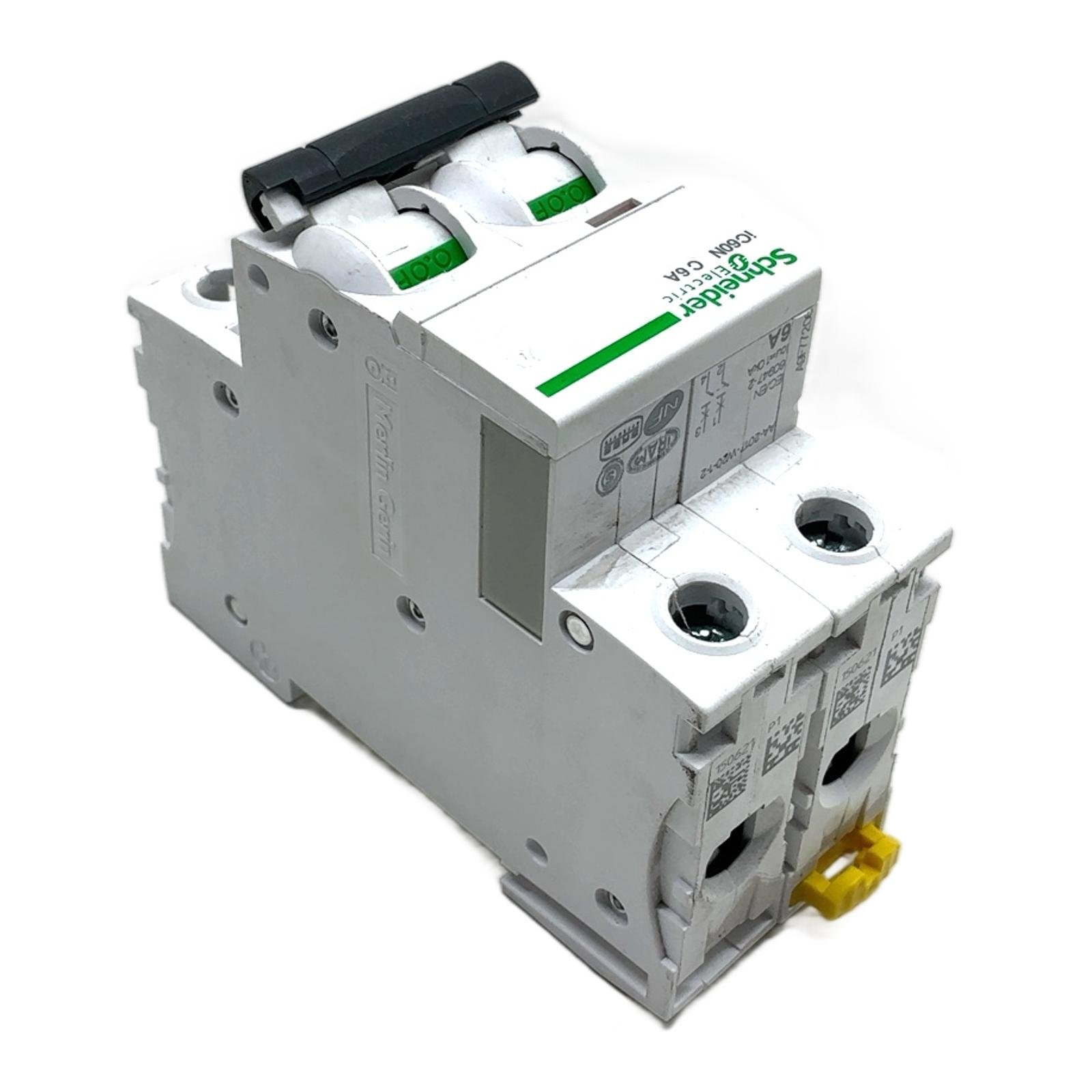

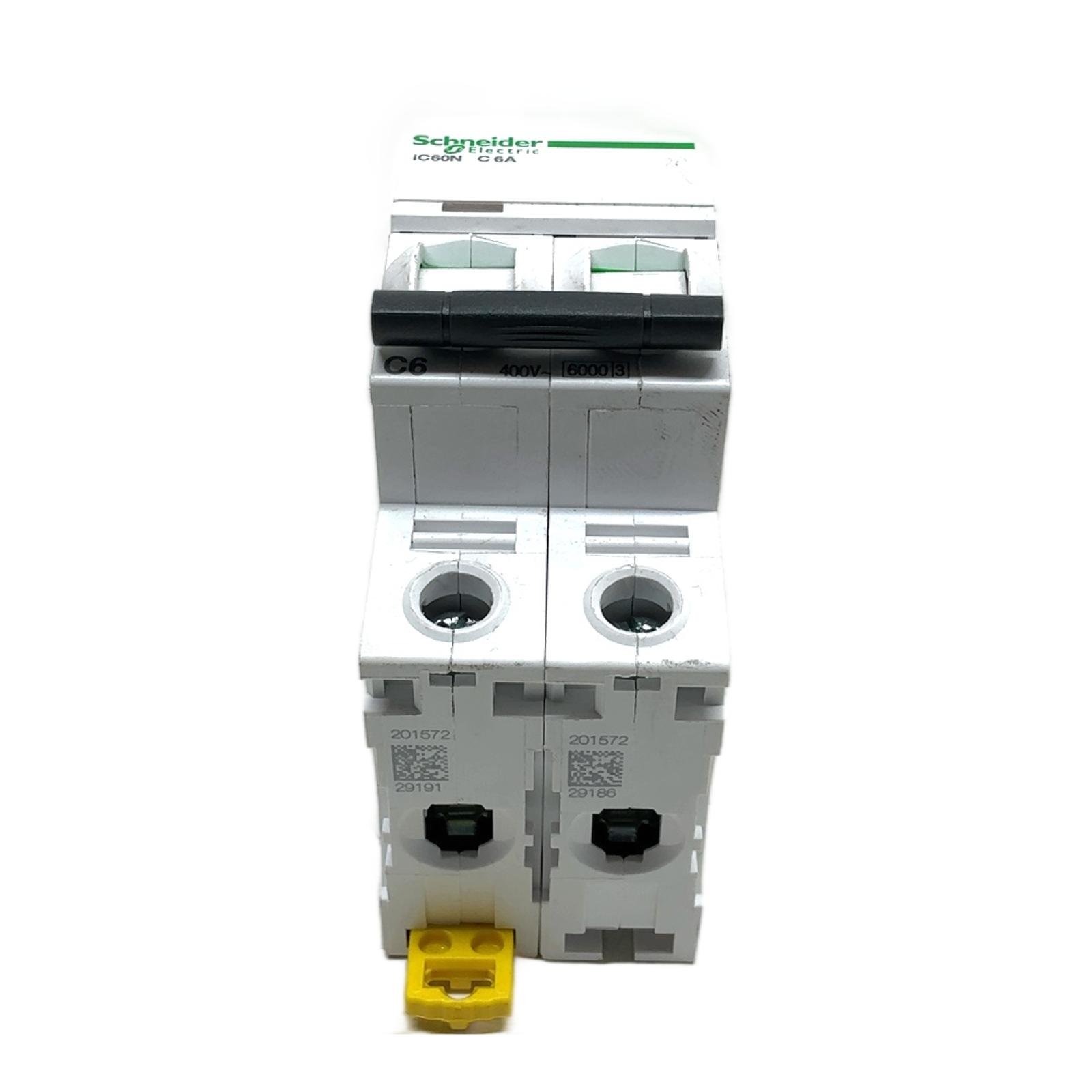

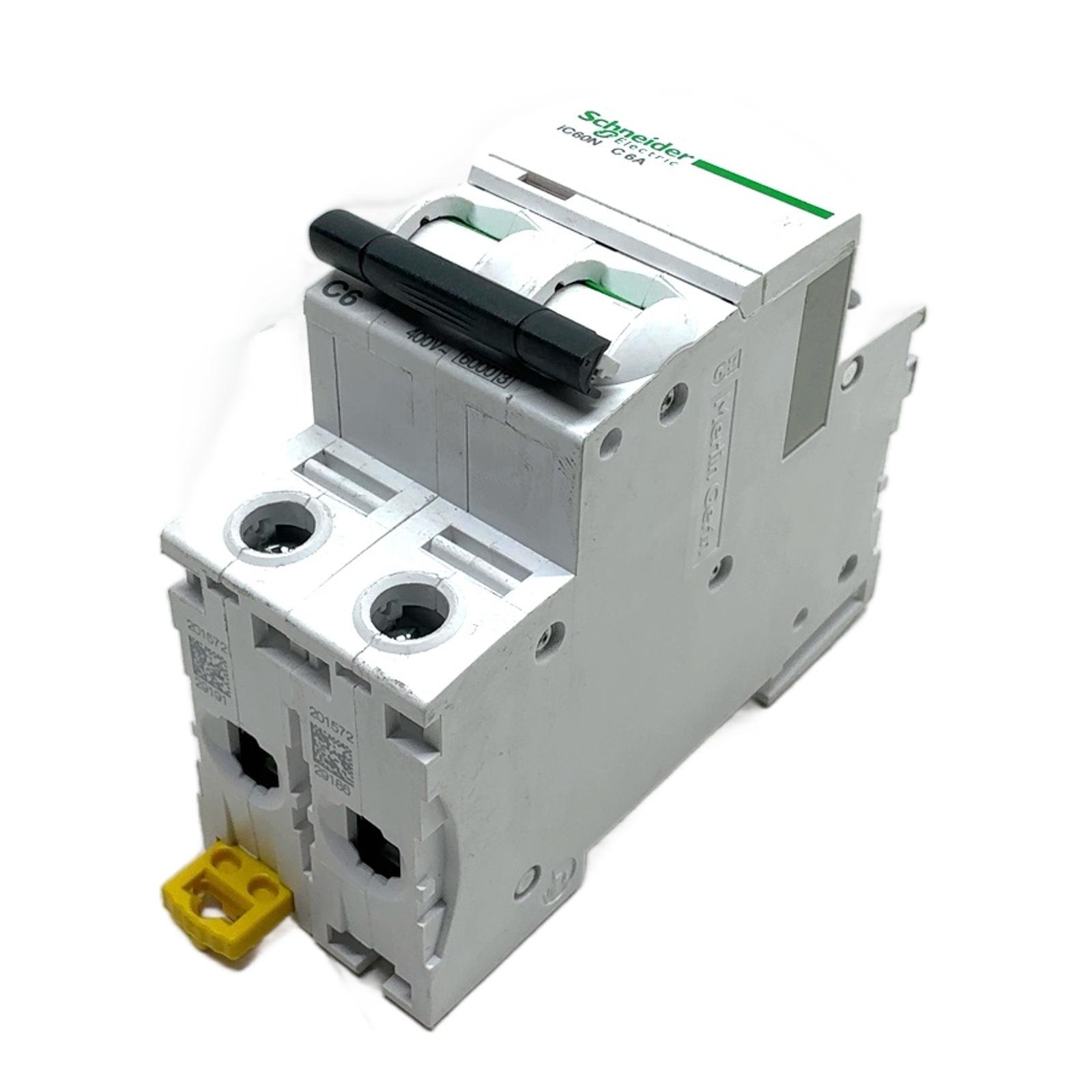

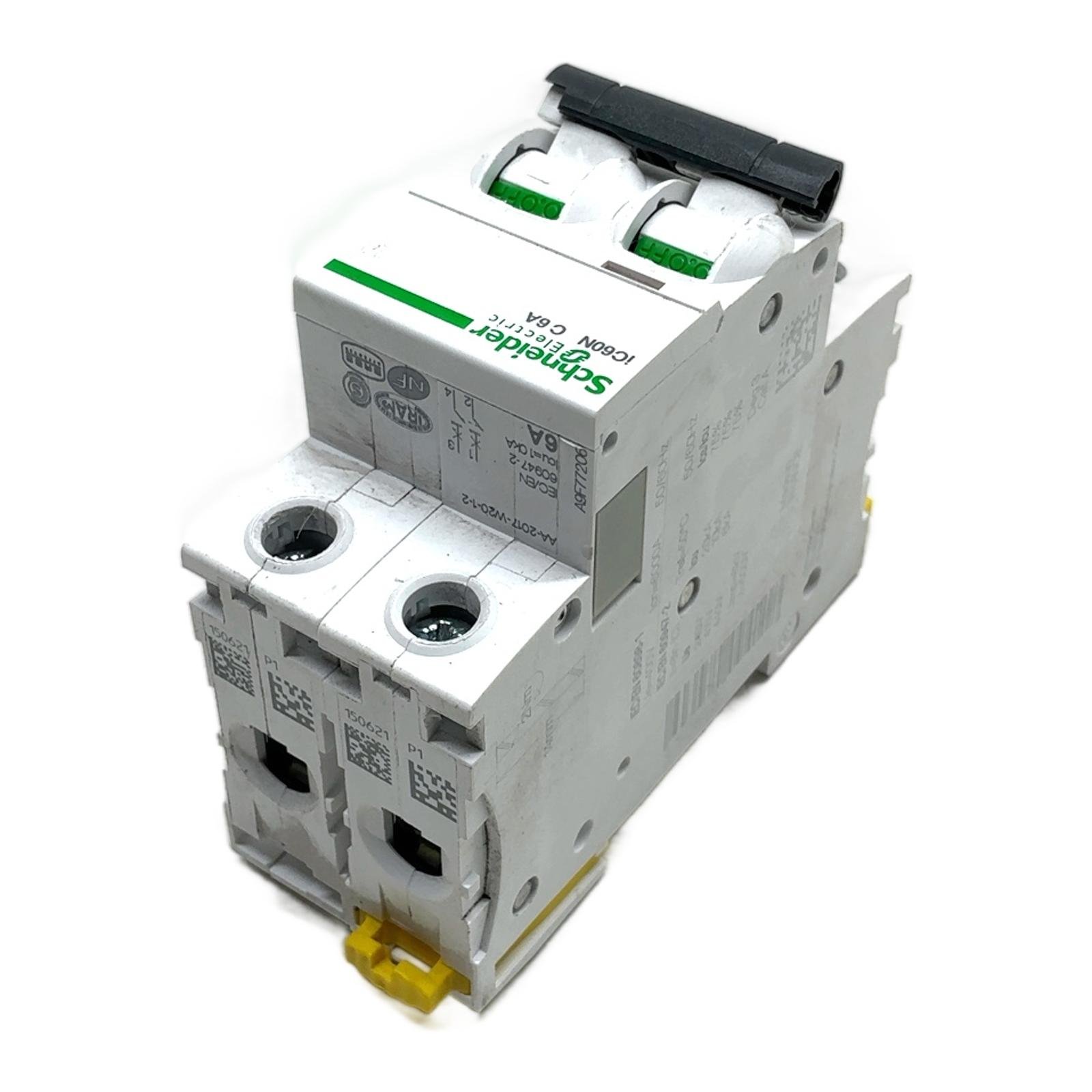

Schneider Electric iC60N 2-Pole Miniature Circuit Breaker Description This is a Schneider Electric Acti 9 iC60N miniature circuit breaker (MCB), model A9F77206. It is a 2-pole device with a 6A current rating and a C-type tripping curve. Designed for DIN rail mounting, it provides essential overcurrent and short-circuit protection for electrical circuits in industrial and commercial environments. Specifications Manufacturer: Schneider Electric Series: Acti 9 iC60N Model: A9F77206 Poles: 2P (2-Pole) Rated Current: 6 A Tripping Curve: C Rated Voltage (Ue): 400V AC 50/60Hz Breaking Capacity (Icn): 6000A according to EN/IEC 60898-1 Breaking Capacity (Icu): 20kA at 240V AC, 10kA at 415V AC according to EN/IEC 60947-2 Label Info Ui (Rated Insulation Voltage): 500V Uimp (Rated Impulse Withstand Voltage): 6kV Terminal Tightening Torque: 2 Nm Application Ideal for protecting final circuits in distribution boards against overloads and short circuits. Suitable for applications with moderate inrush currents such as lighting systems, socket outlets, and small motors. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned component, you are avoiding the emission of approximately 10 kg of CO2, contributing to a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘C’ curve rating on the A9F77206 signify?The ‘C’ curve is a general-purpose trip characteristic. It is designed to trip between 5 to 10 times the rated current (6A), making it suitable for protecting circuits with moderate inrush currents, such as lighting, sockets, and general appliances. Can this iC60N circuit breaker be used in a DC circuit?While primarily designed for AC applications as specified on the label, some iC60N models have DC ratings. However, for this specific model A9F77206, it is crucial to consult the official Schneider Electric datasheet for any DC application ratings and connection diagrams, as performance and breaking capacity will differ significantly from AC. What is the correct terminal tightening torque for this MCB?The correct tightening torque is crucial for a safe and reliable connection. As indicated on the side of the breaker, the recommended torque for the terminals is 2 Nm (Newton-meters). Using a calibrated torque screwdriver is highly recommended to prevent over-tightening or loose connections. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
