STRAUB OPEN-FLEX 1 60.3mm 2.37″ 35151

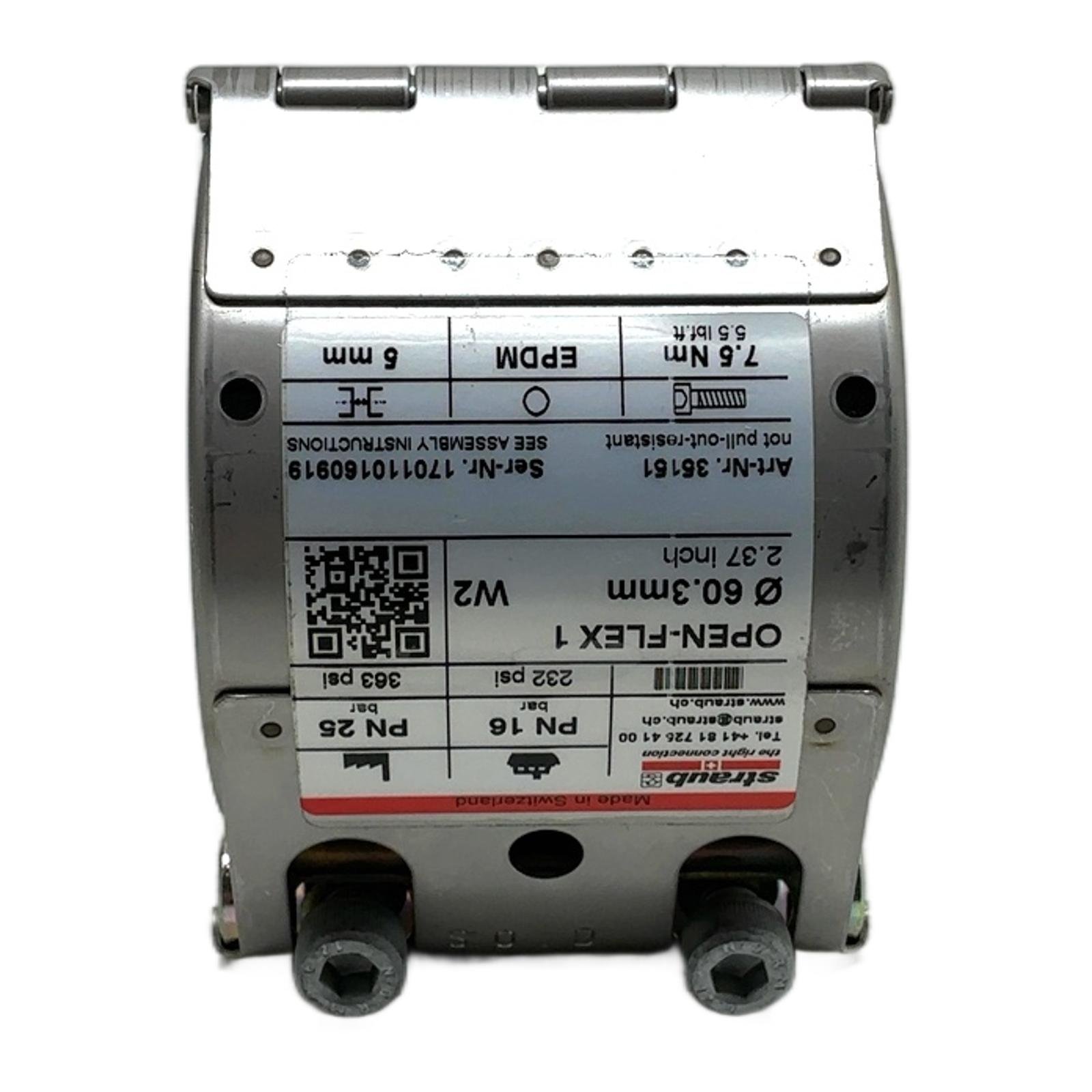

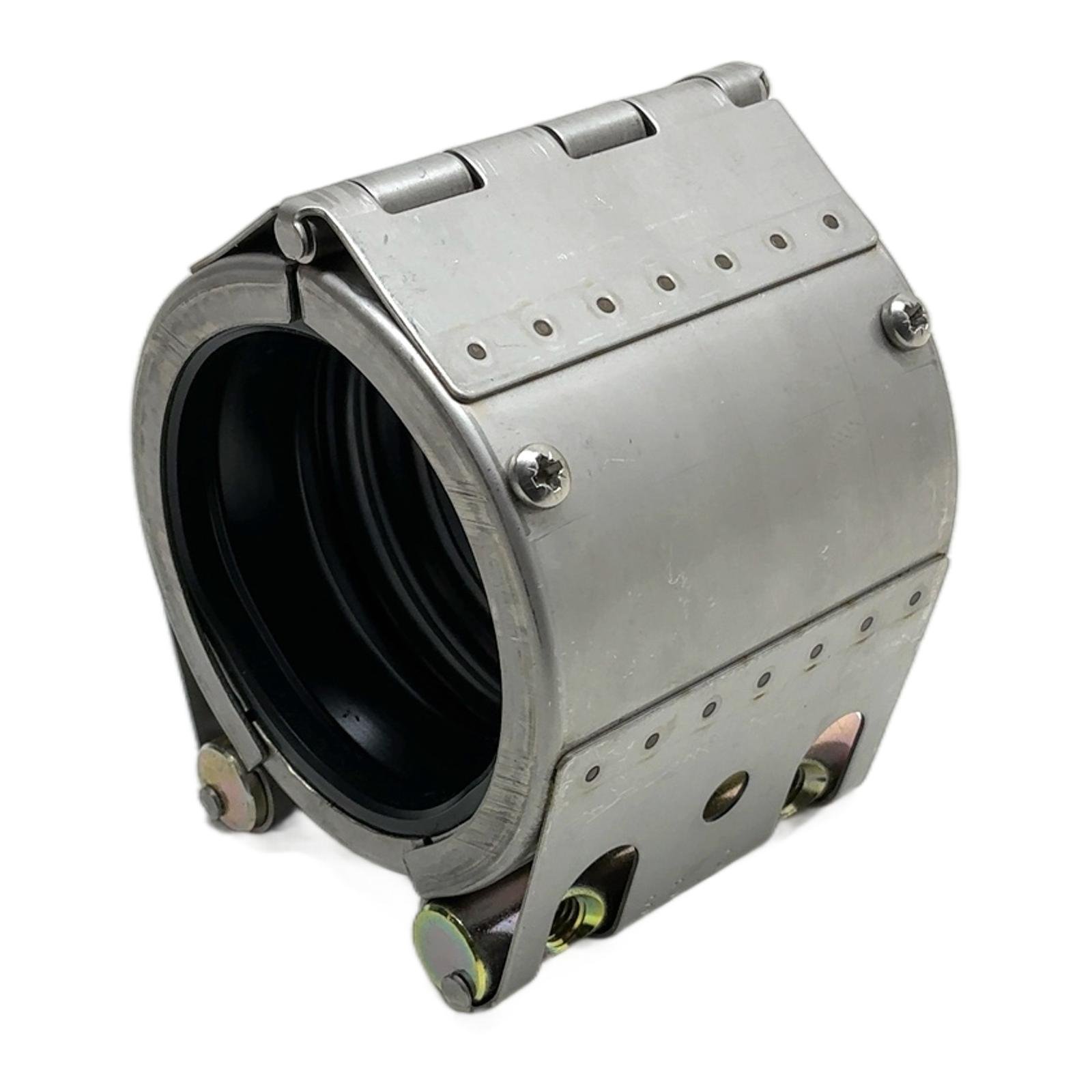

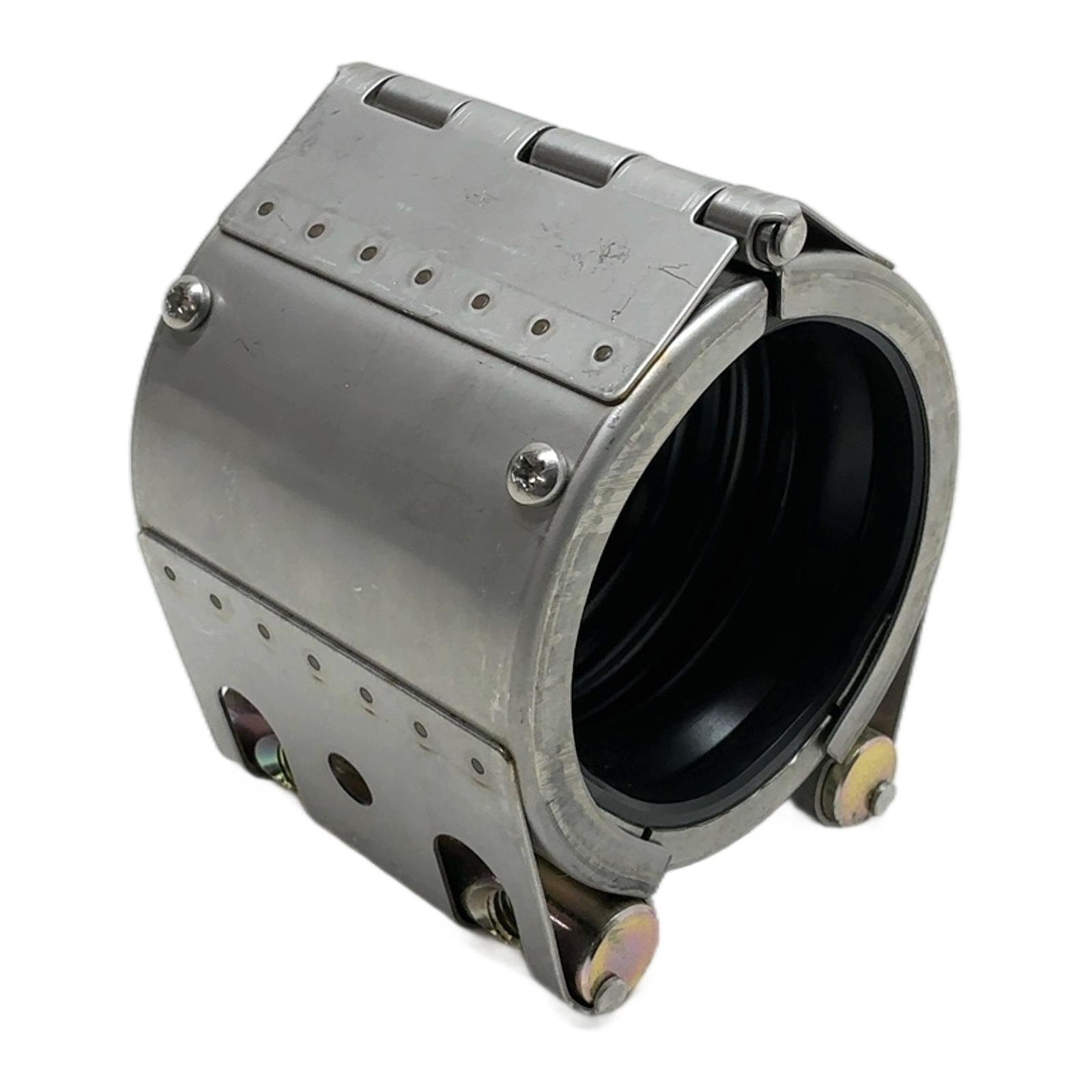

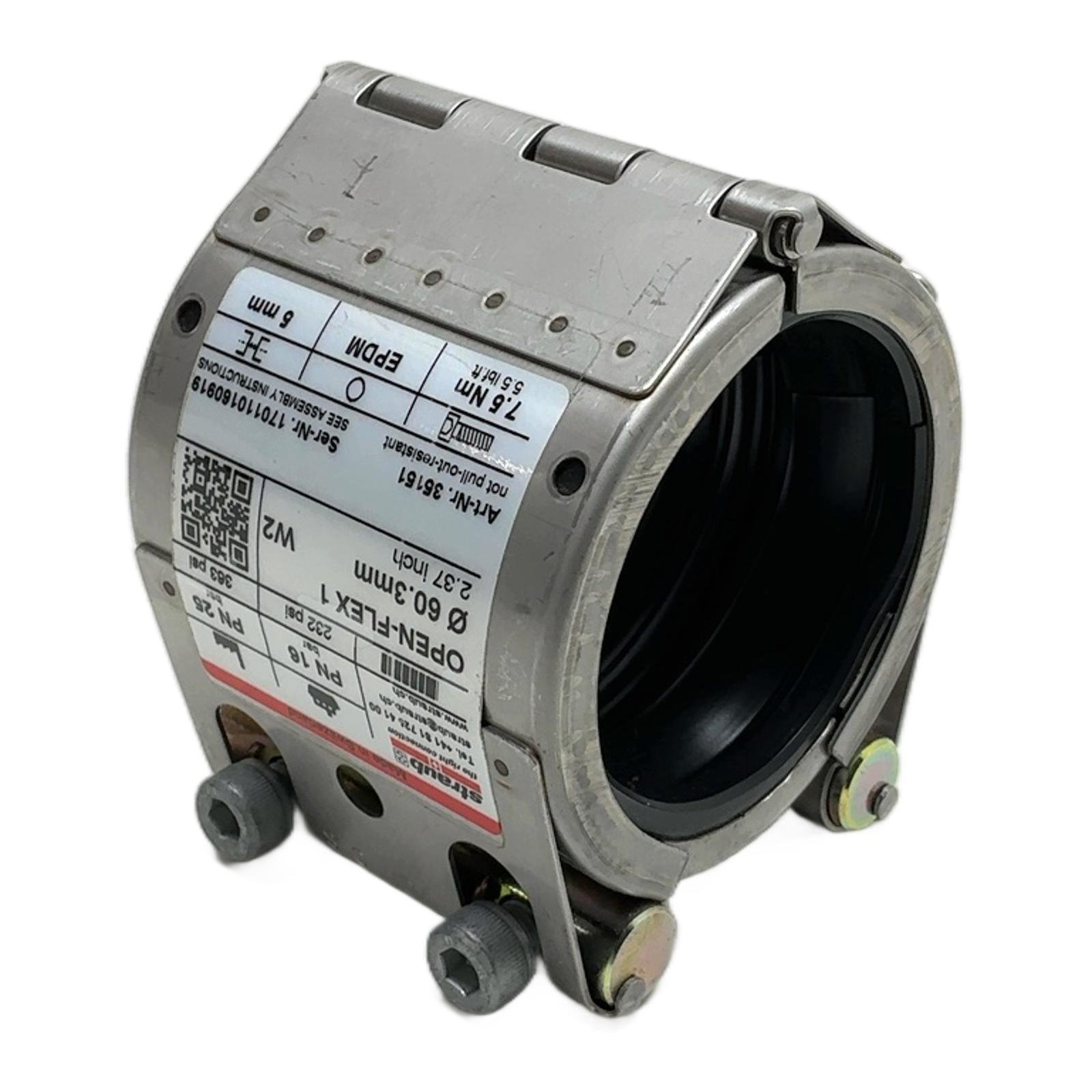

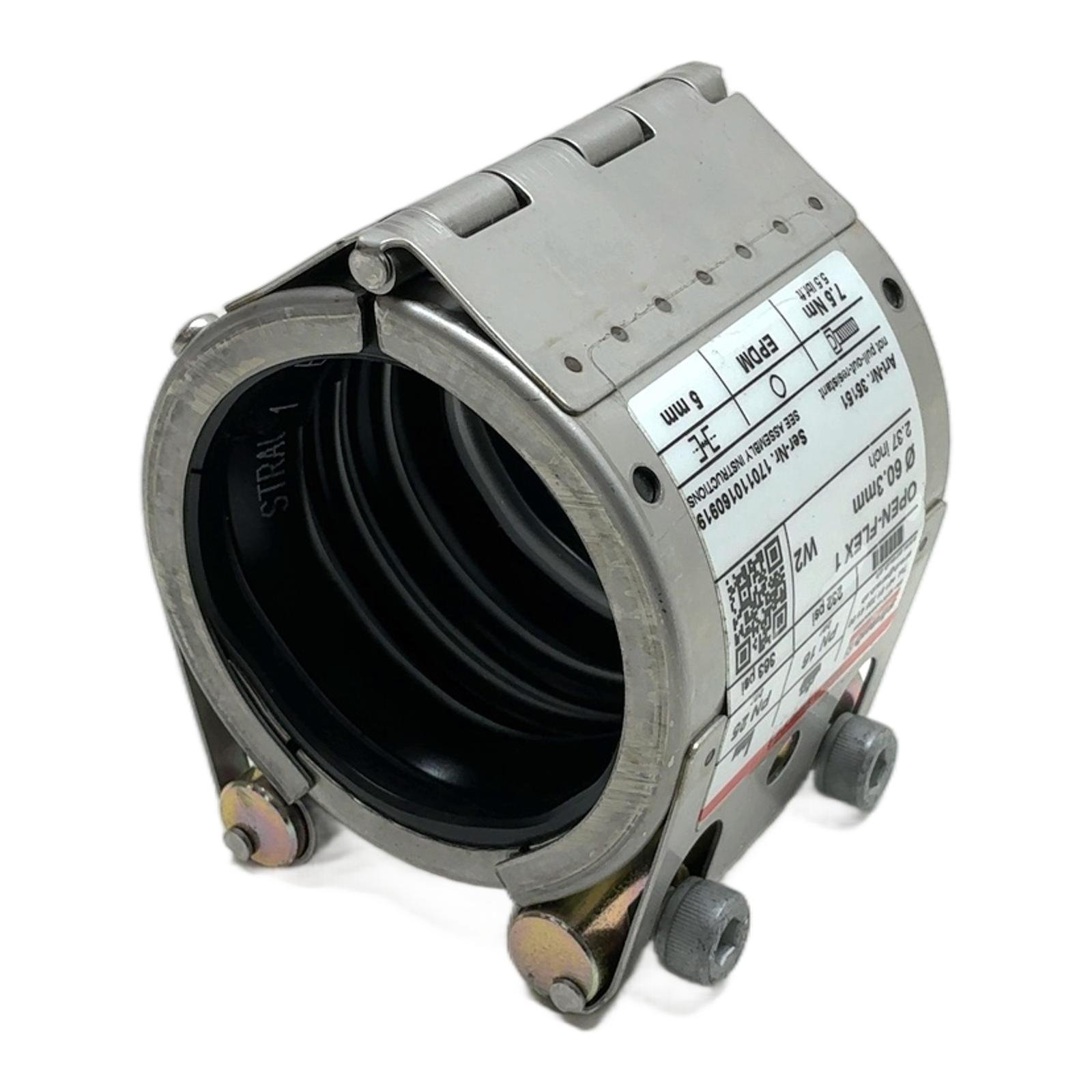

Straub OPEN-FLEX 1 Pipe Coupling for 60.3mm Pipes Description The Straub OPEN-FLEX 1 is a high-performance, hinged pipe coupling engineered in Switzerland for reliable and durable connections. This model is specifically designed for pipes with an outer diameter of 60.3 mm. Its openable, hinged construction allows for easy installation on existing pipe systems without the need for dismantling, making it an excellent solution for repairs, maintenance, and system extensions. The coupling is rated for pressures up to PN25. Specifications Manufacturer: Straub Model: OPEN-FLEX 1 Article Number: 35151 Pipe Diameter: 60.3 mm (2.37 inch) Maximum Pressure: PN 16 (232 psi) / PN 25 (363 psi) Gasket Material: EPDM Casing Material: W2 (Stainless Steel AISI 304 / 1.4301) Tightening Torque: 7.5 Nm (5.5 lbf.ft) Characteristic: Not pull-out-resistant Label Info Art-Nr: 35151 Ser-Nr: 170110160919 Application Ideal for use in water supply, wastewater treatment, industrial process piping, and shipbuilding. The EPDM gasket offers excellent resistance to water, air, and various chemicals. Country of Origin Made in Switzerland. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and helping to save 2.4 kg of CO2 compared to a new production. This is equivalent to the emissions of driving a car for 12 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does ‘not pull-out-resistant’ mean for this Straub coupling? This means the coupling seals the pipe connection but does not provide axial restraint. The pipes must be independently anchored to prevent them from pulling apart under pressure or thermal expansion. What types of fluids is the EPDM gasket suitable for? The EPDM (Ethylene Propylene Diene Monomer) gasket is excellent for water, wastewater, air, and many chemical applications. It is not suitable for hydrocarbon-based fluids like oils or fuels. Can the OPEN-FLEX 1 be used for pipe repair? Yes, the hinged ‘OPEN-FLEX’ design is specifically intended for easy installation on existing pipelines, making it ideal for repairs or modifications without needing to cut or dismantle the pipe system. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
