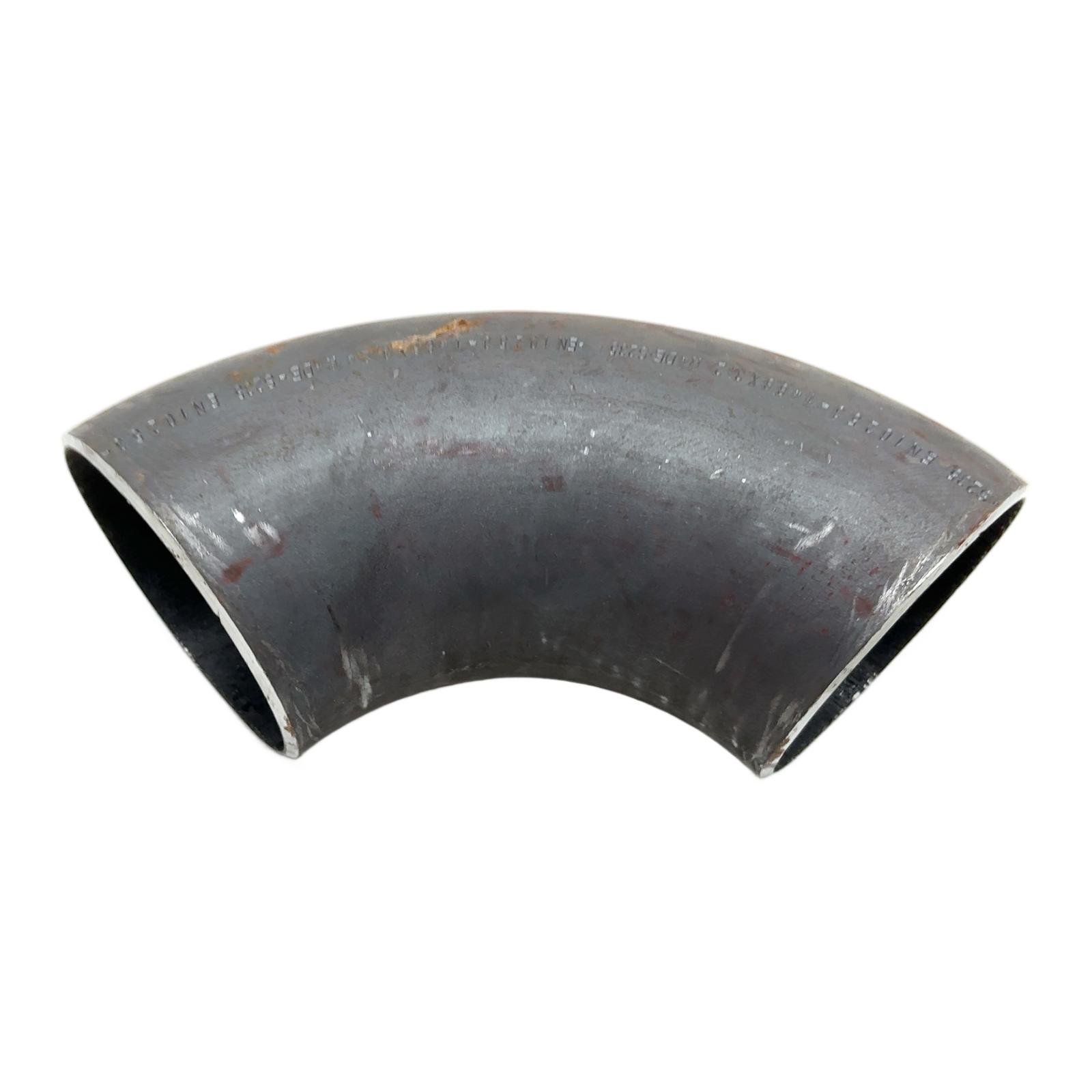

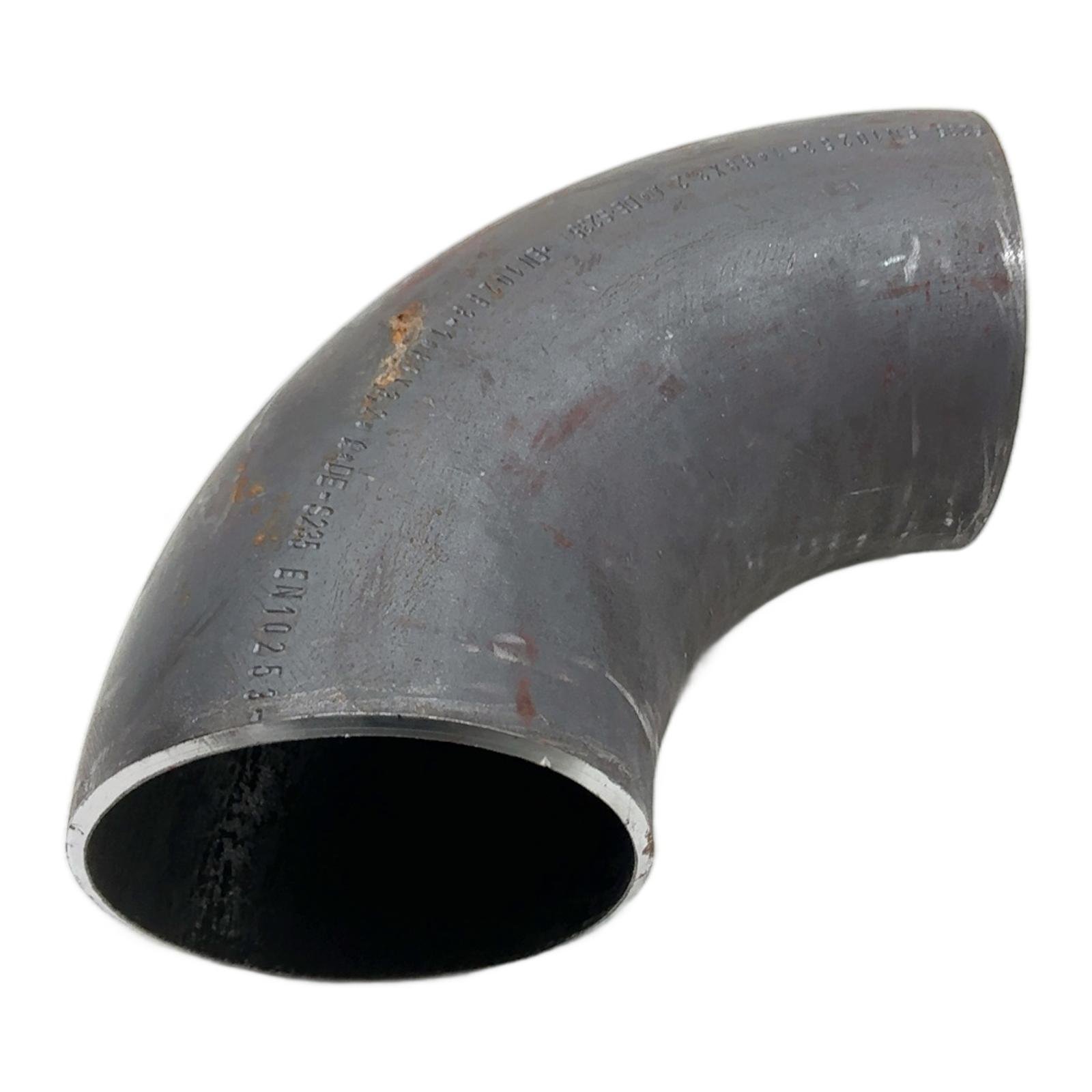

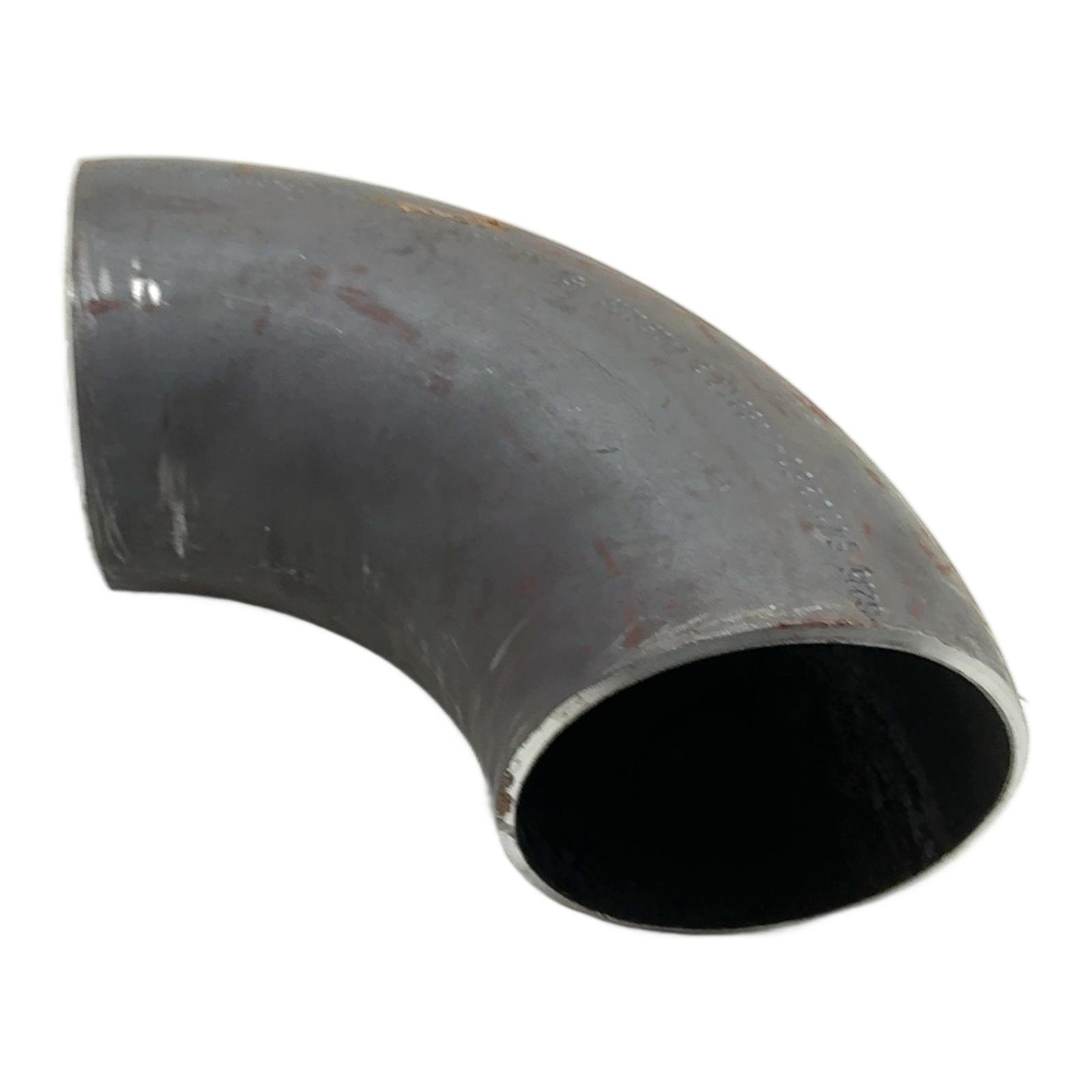

UNBRANDED / GENERIC 88.9×3.2 3D 90DEG Stahlrohrbogen EN 10253-1 S235

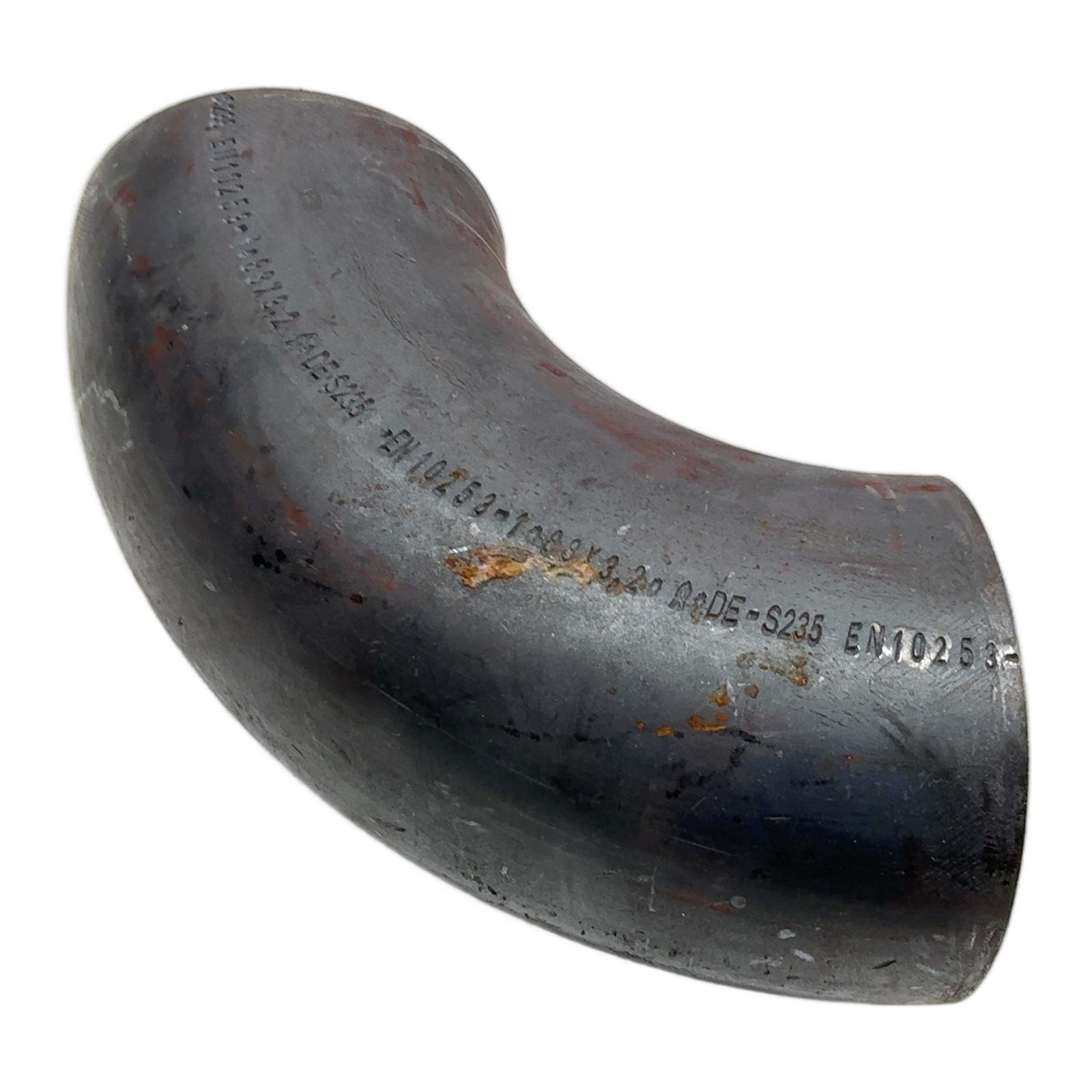

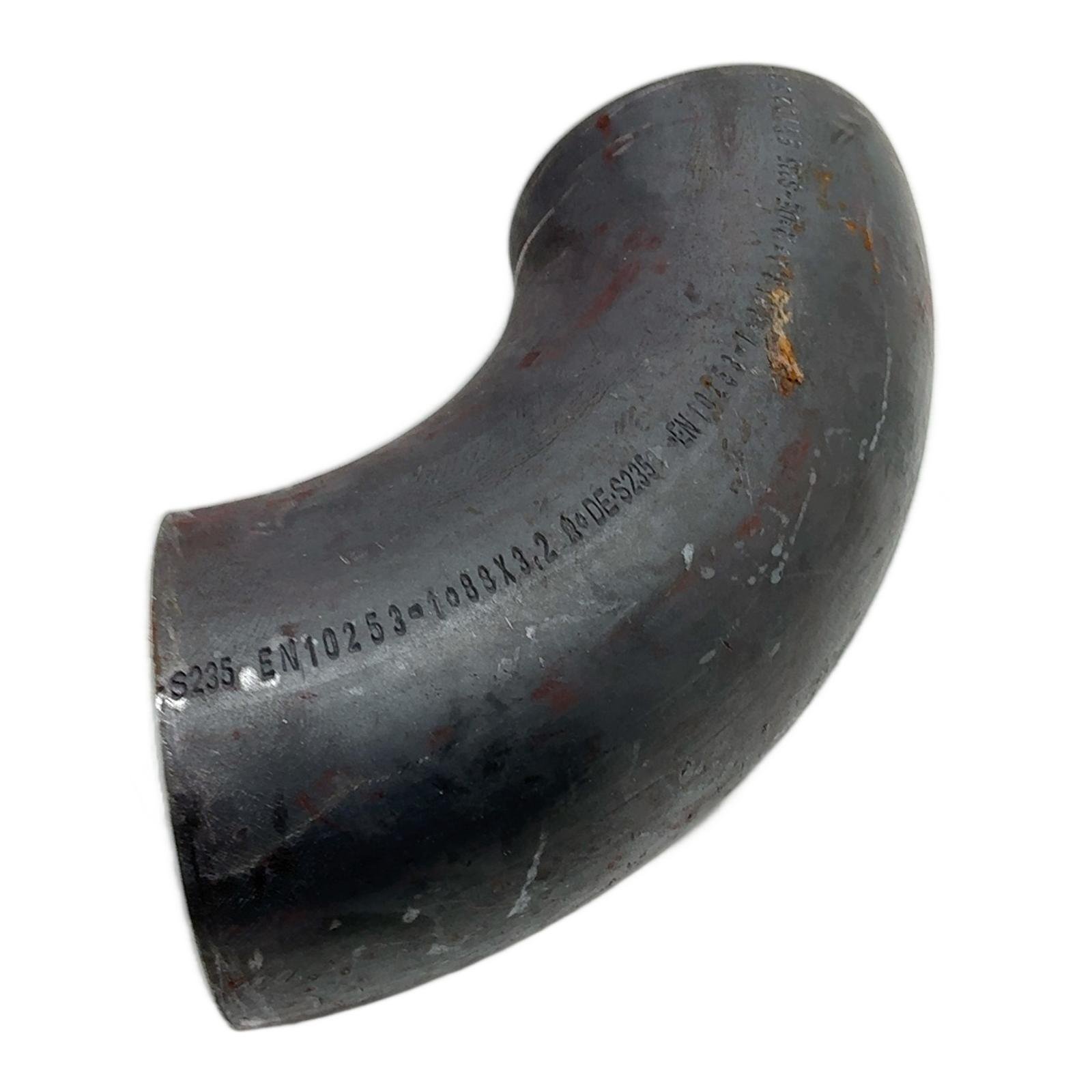

Unbranded 90-Degree 3D Butt-Weld Pipe Elbow Description This is a standard 90-degree butt-weld pipe elbow with a 3D bend radius, designed for industrial piping systems. Manufactured from S235 carbon steel according to the EN 10253-1 standard, it provides a durable and reliable solution for changing the direction of flow in a pipeline. Its dimensions of 88.9 mm outer diameter and 3.2 mm wall thickness make it suitable for a variety of general-purpose applications. Specifications Type: 90-Degree Elbow Bend Radius: 3D Connection Type: Butt-weld Material: S235 Carbon Steel Standard: EN 10253-1 Outer Diameter: 88.9 mm Wall Thickness: 3.2 mm Label Info The product is marked with the following information: CURVE 3D 90 deg Diam. 88.9 x 3.2 EN 10253-1 S235 Application This elbow is intended for butt-welding into piping systems used for transporting fluids, gases, or other media in industrial plants, construction, and mechanical engineering environments. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and avoiding 5.7 kg of CO2 emissions. This is comparable to the emissions from driving an average car for 28.5 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does “3D” mean for an elbow? The “3D” designation refers to the bend radius of the elbow. It means the radius of the bend’s centerline is three times the nominal pipe diameter (in this case, 3 x 88.9mm). This provides a more gradual turn compared to a standard 1.5D (Long Radius) elbow, which can reduce pressure drop. Is S235 steel weldable? Yes, S235 is a common structural steel with excellent weldability. It can be welded using standard welding processes without the need for pre-heating or post-weld heat treatment in this thickness. What does “EN 10253-1 Type A” signify? EN 10253-1 is the European standard for butt-welding fittings made of wrought carbon steel for general use. “Type A” specifies that the fitting has the same wall thickness at the welding ends and on the body of the fitting, making it suitable for systems where pressure is not the primary design constraint. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
