SCHNEIDER ELECTRIC C60H-DC A9N61521

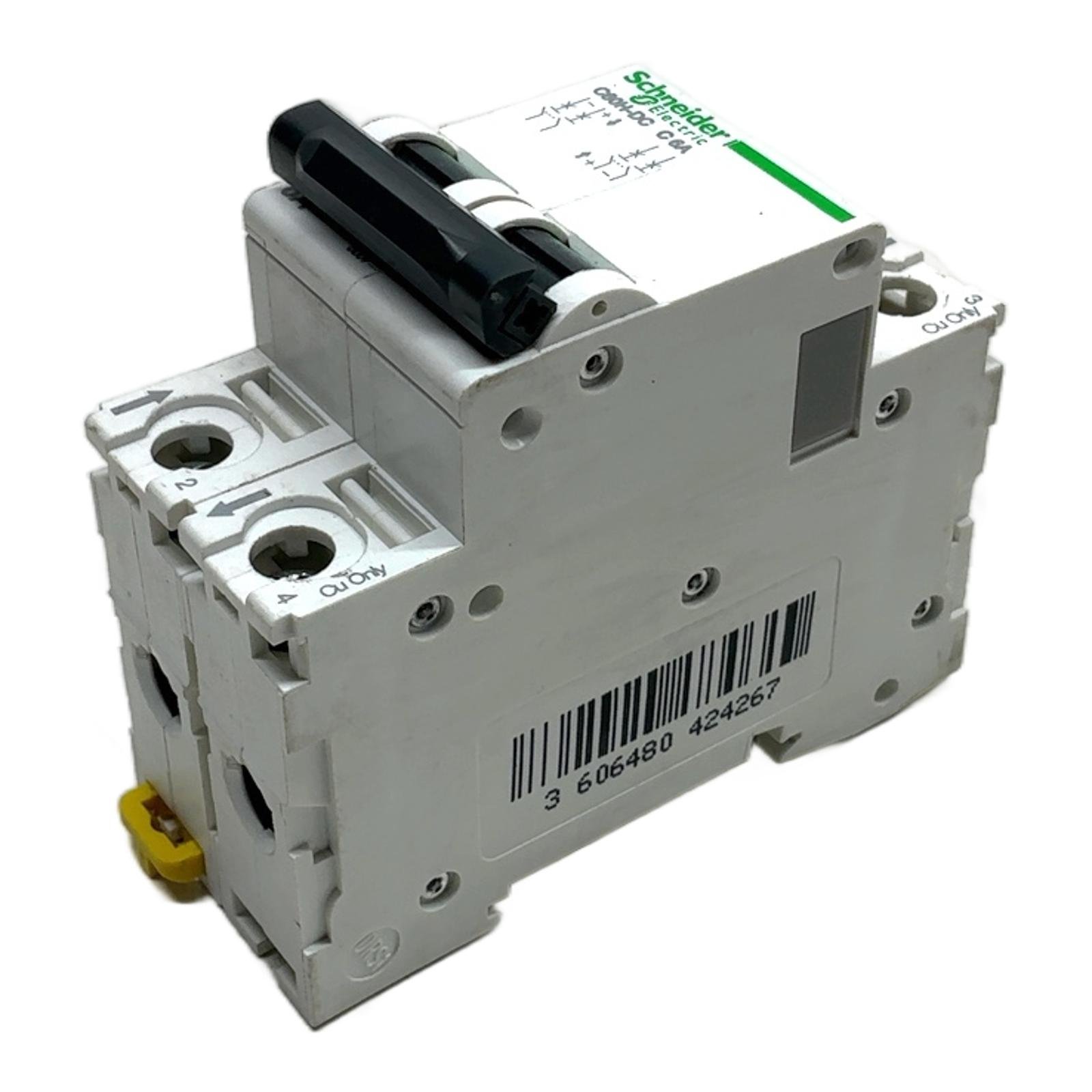

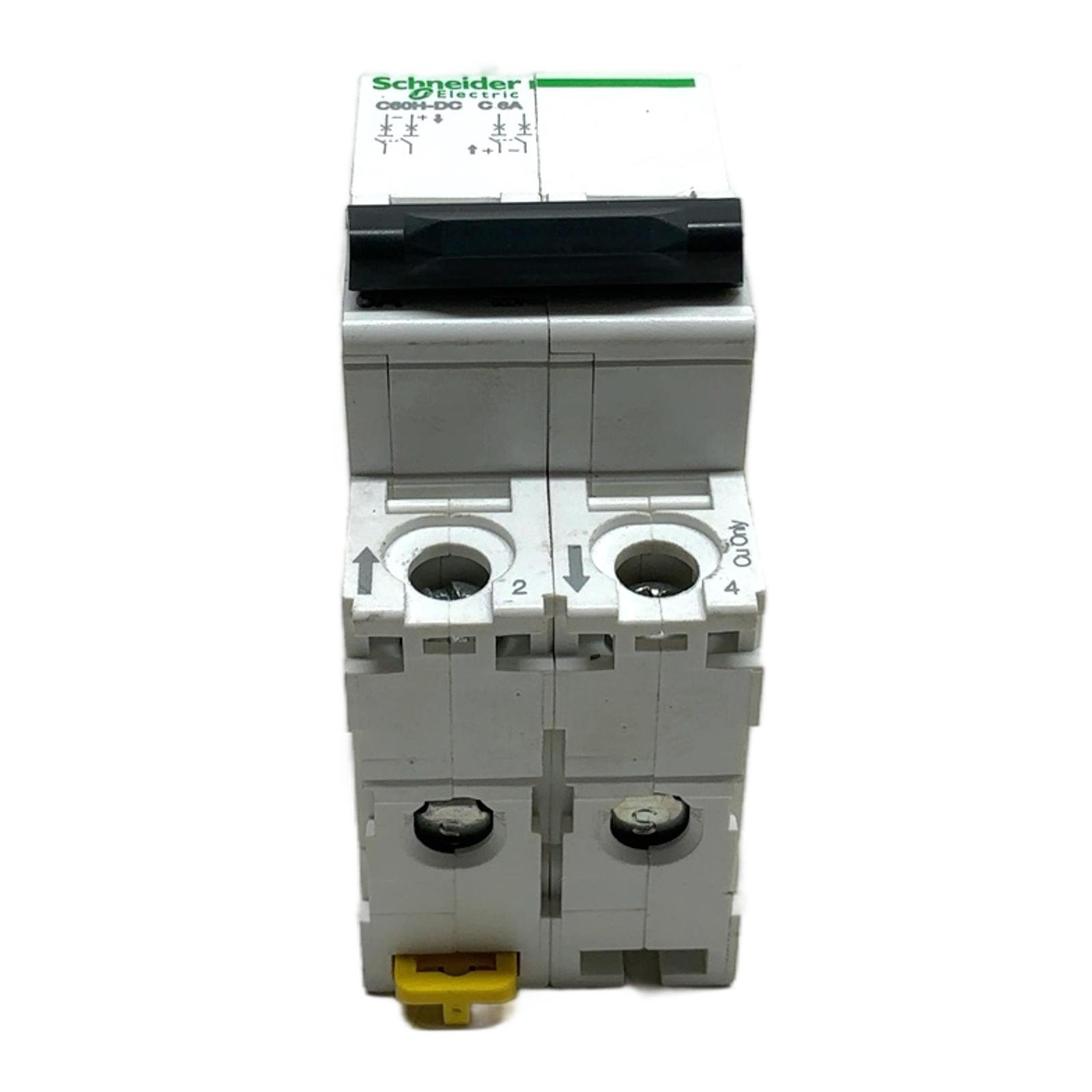

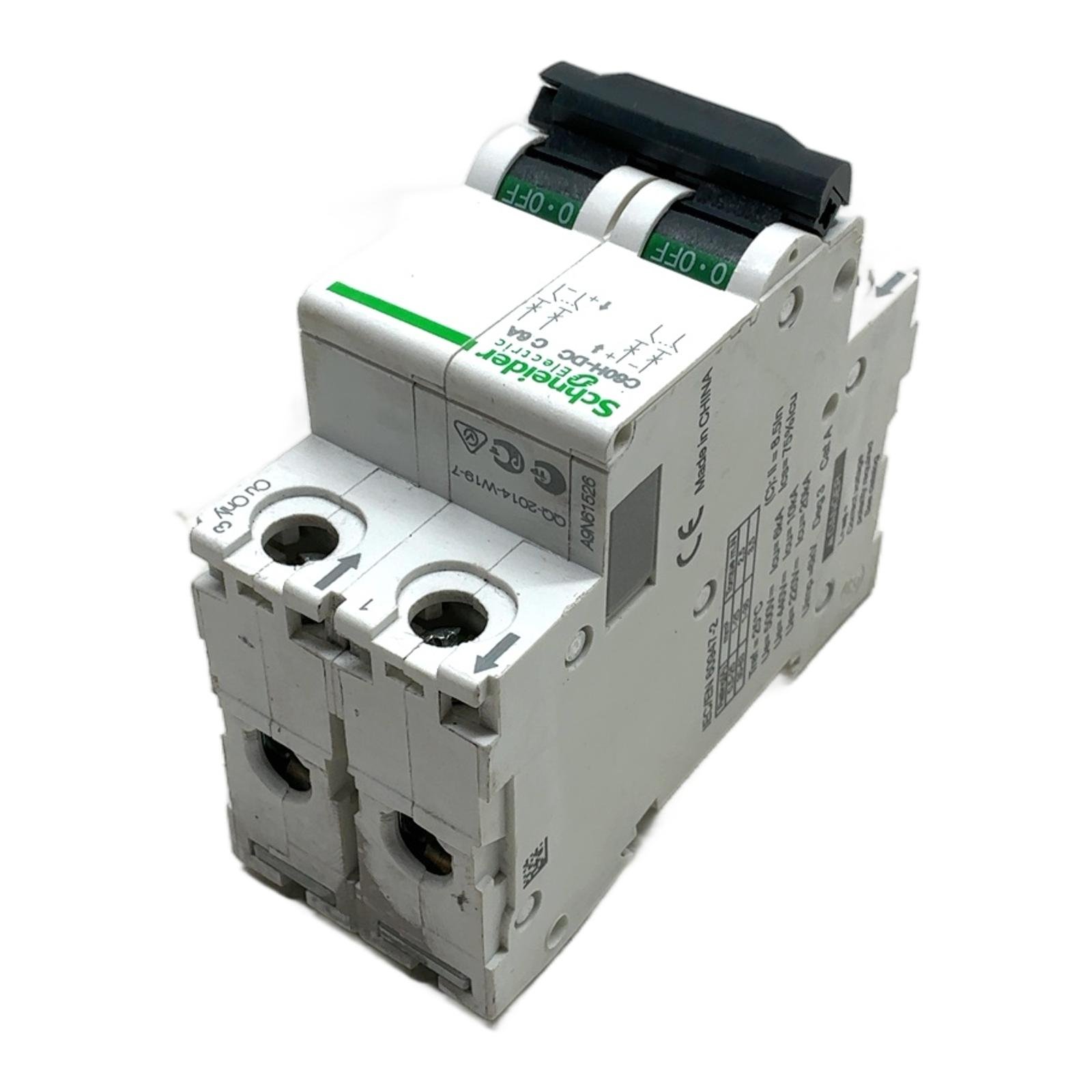

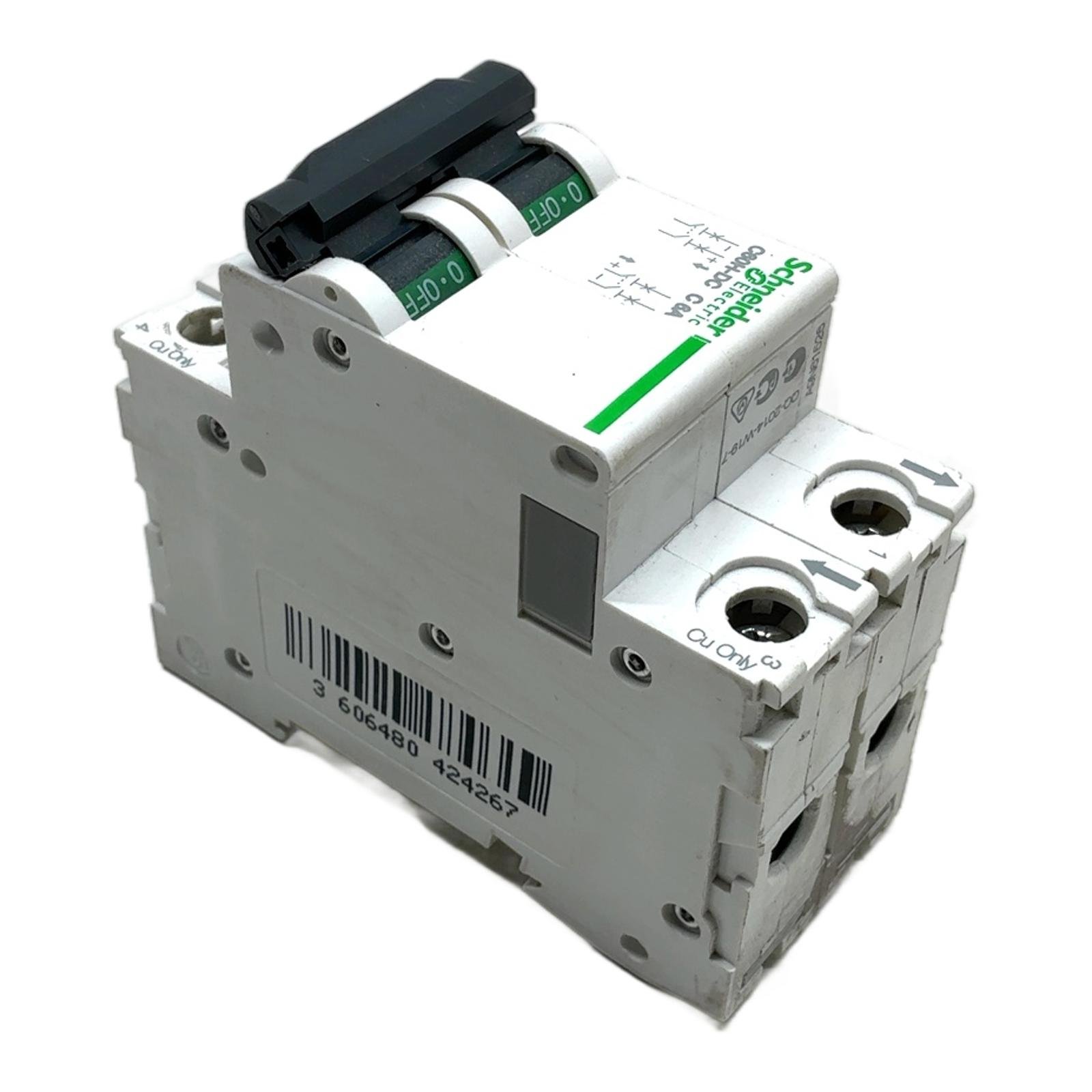

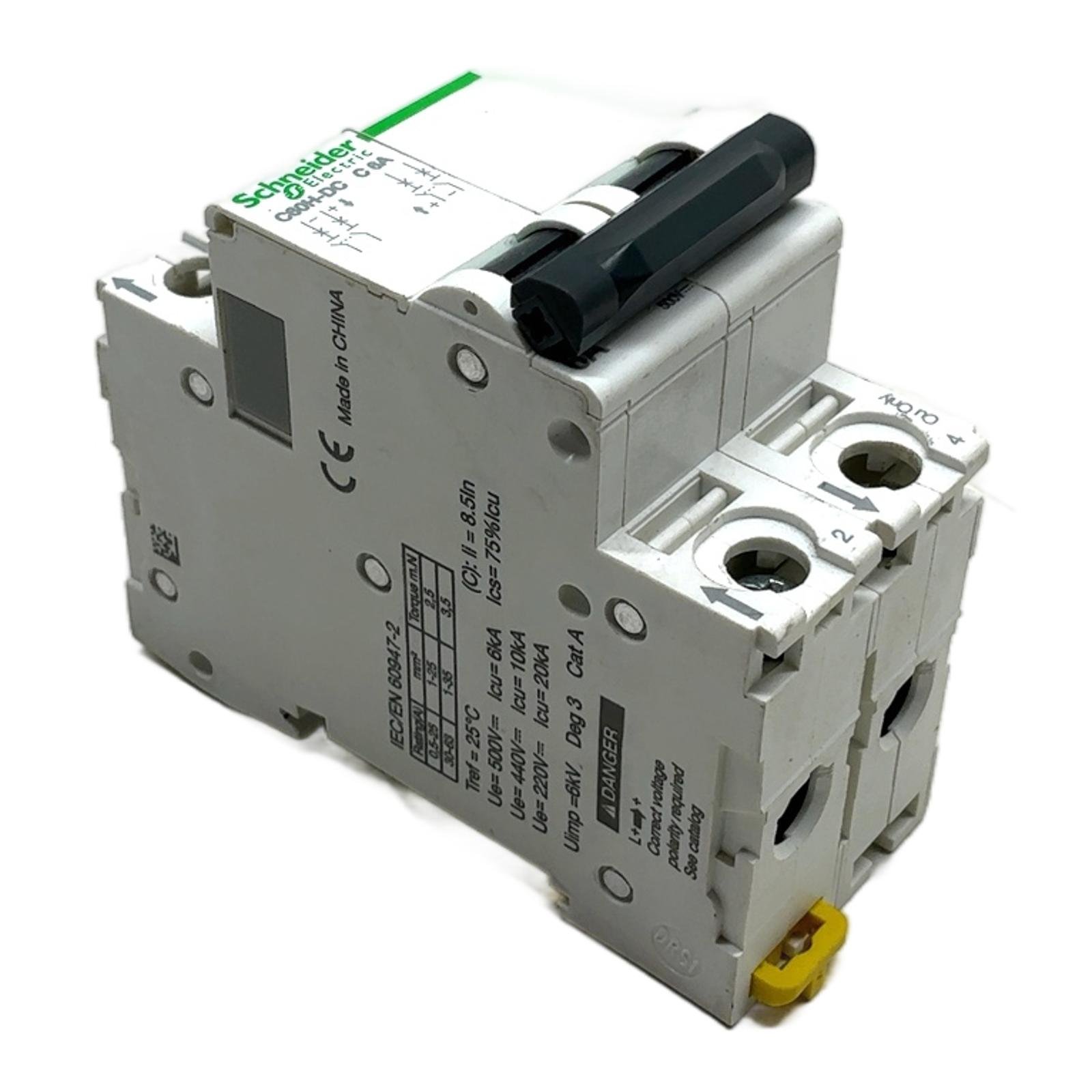

Schneider Electric C60H-DC MCB Description The Schneider Electric A9N61521 is a 2-pole miniature circuit breaker from the Acti9 C60H-DC range. It is specifically designed for protecting electrical circuits against overcurrents in direct current (DC) applications. With a rated current of 6A and a C-type tripping characteristic, it is ideal for systems in solar energy, battery storage, and industrial control. This MCB ensures safety and reliability, complying with the IEC/EN 60947-2 standard for industrial use. Specifications Manufacturer: Schneider Electric Part Number: A9N61521 Model: C60H-DC Poles: 2-Pole Rated Current: 6 A Tripping Curve: C Rated Voltage (DC): 500V Breaking Capacity (Icu): 6kA at 500V DC, 10kA at 440V DC, 20kA at 220V DC Standard: IEC/EN 60947-2 Label Info Uimp: 6kV Deg: 3 Cat: A (C): li = 8.5In Application This DC circuit breaker is commonly used in photovoltaic installations, uninterruptible power supplies (UPS), telecommunication systems, and DC motor protection circuits where reliable overcurrent protection is critical. Country of Origin This product is Made in China. CO2 Impact By purchasing this reused component, you are actively contributing to the circular economy and helping to reduce CO2 emissions by an estimated 10.0 kg, which would have been generated during the production of a new unit. Availability This item is a tested, used product in excellent condition. It is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the “C Curve” rating mean for this C60H-DC breaker?A C-curve rating indicates that the breaker will trip instantaneously at 5 to 10 times its rated current (6A). This makes it suitable for circuits with moderate inrush currents, such as small motors, transformers, and lighting systems, preventing nuisance tripping while still providing effective protection. Is this MCB suitable for AC applications, or only DC?This breaker is specifically designed and rated for DC (Direct Current) applications, as indicated by the “DC” in its model name. Using it in an AC circuit is not recommended as its arc extinguishing mechanism is optimized for DC, and it may not perform safely or reliably under AC fault conditions. What is the significance of the IEC/EN 60947-2 standard it complies with?Compliance with IEC/EN 60947-2 means the circuit breaker is suitable for industrial applications, which have more stringent requirements for performance, reliability, and safety than residential standards. It ensures the device has been tested for higher breaking capacities and operational endurance. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
