AKN GEEW20ES LS

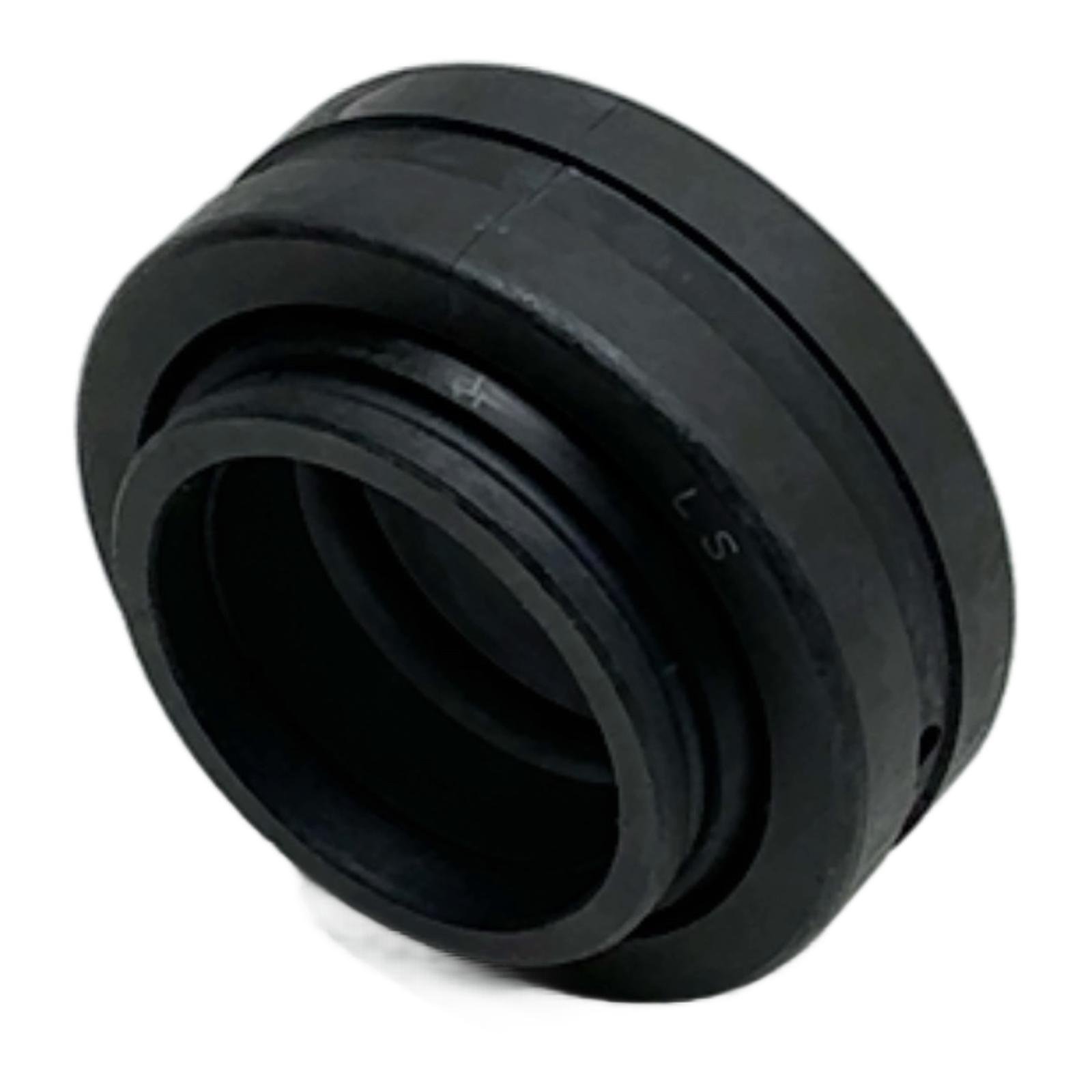

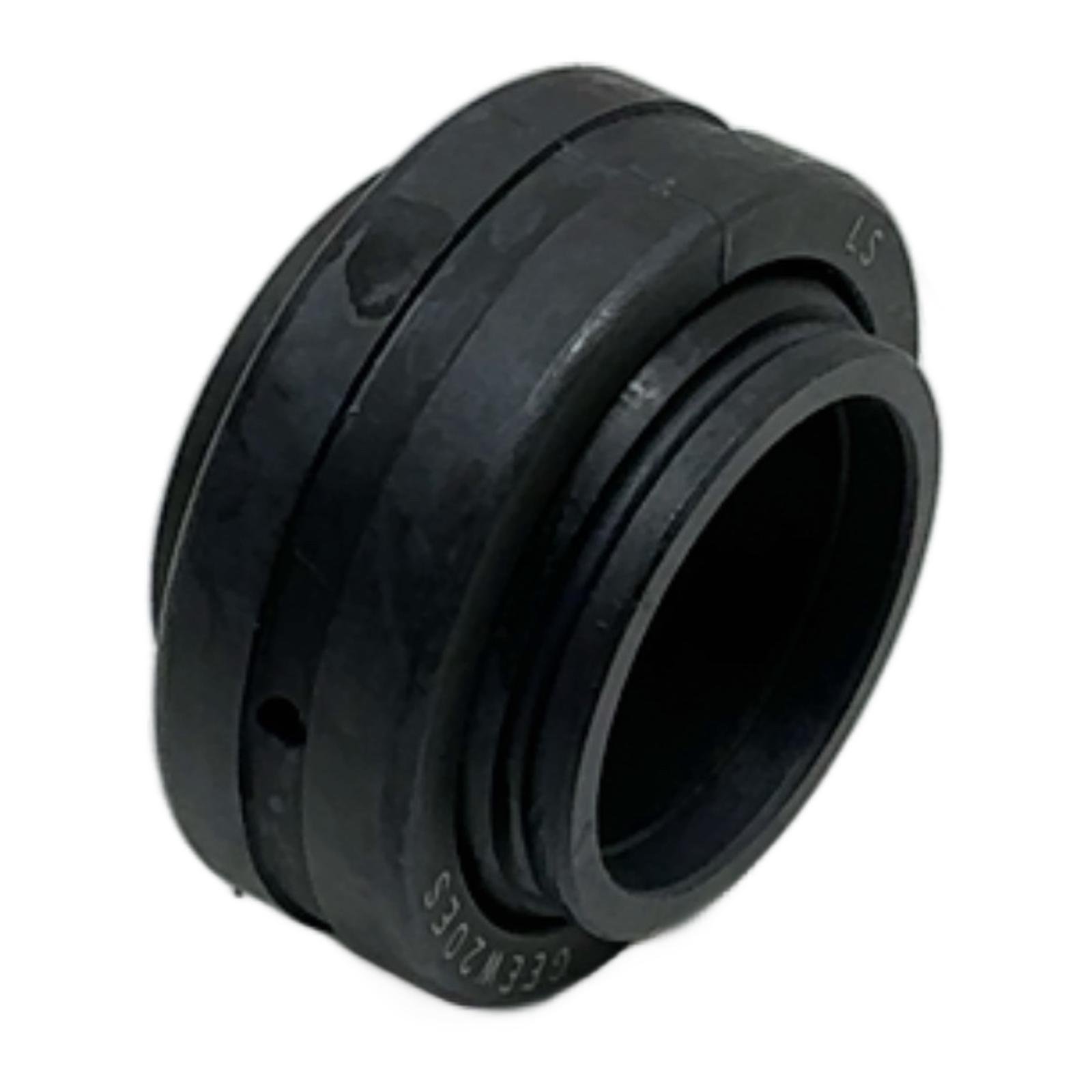

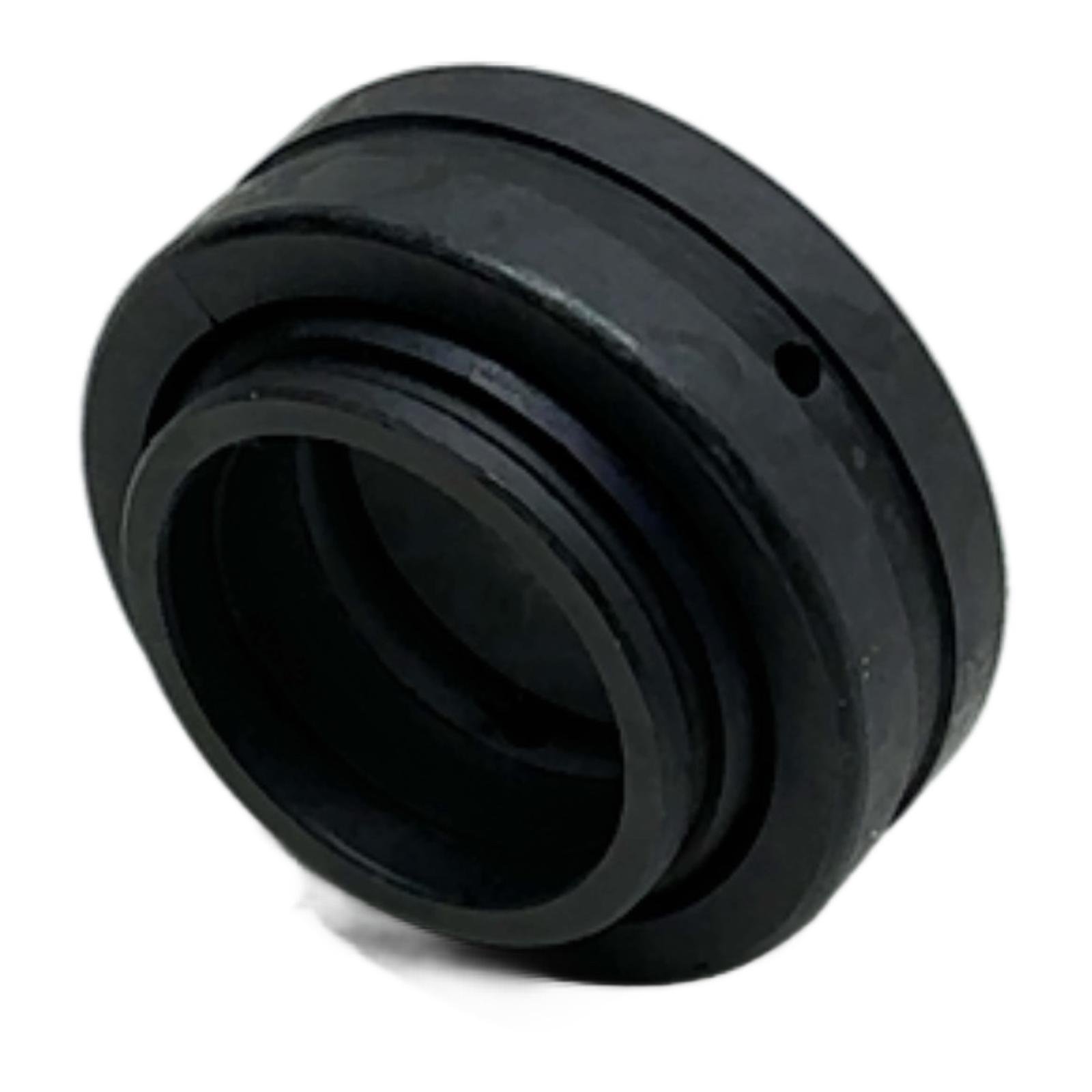

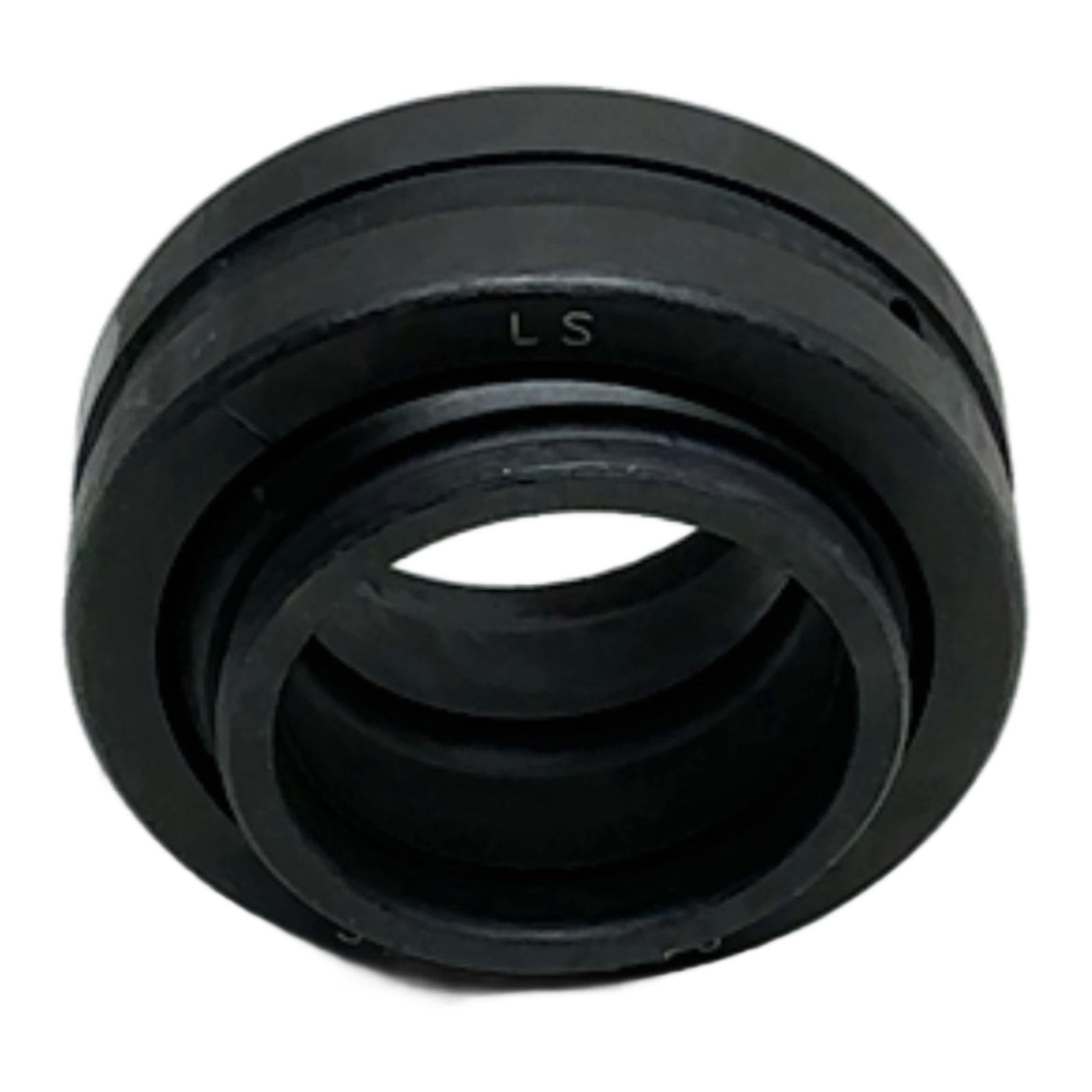

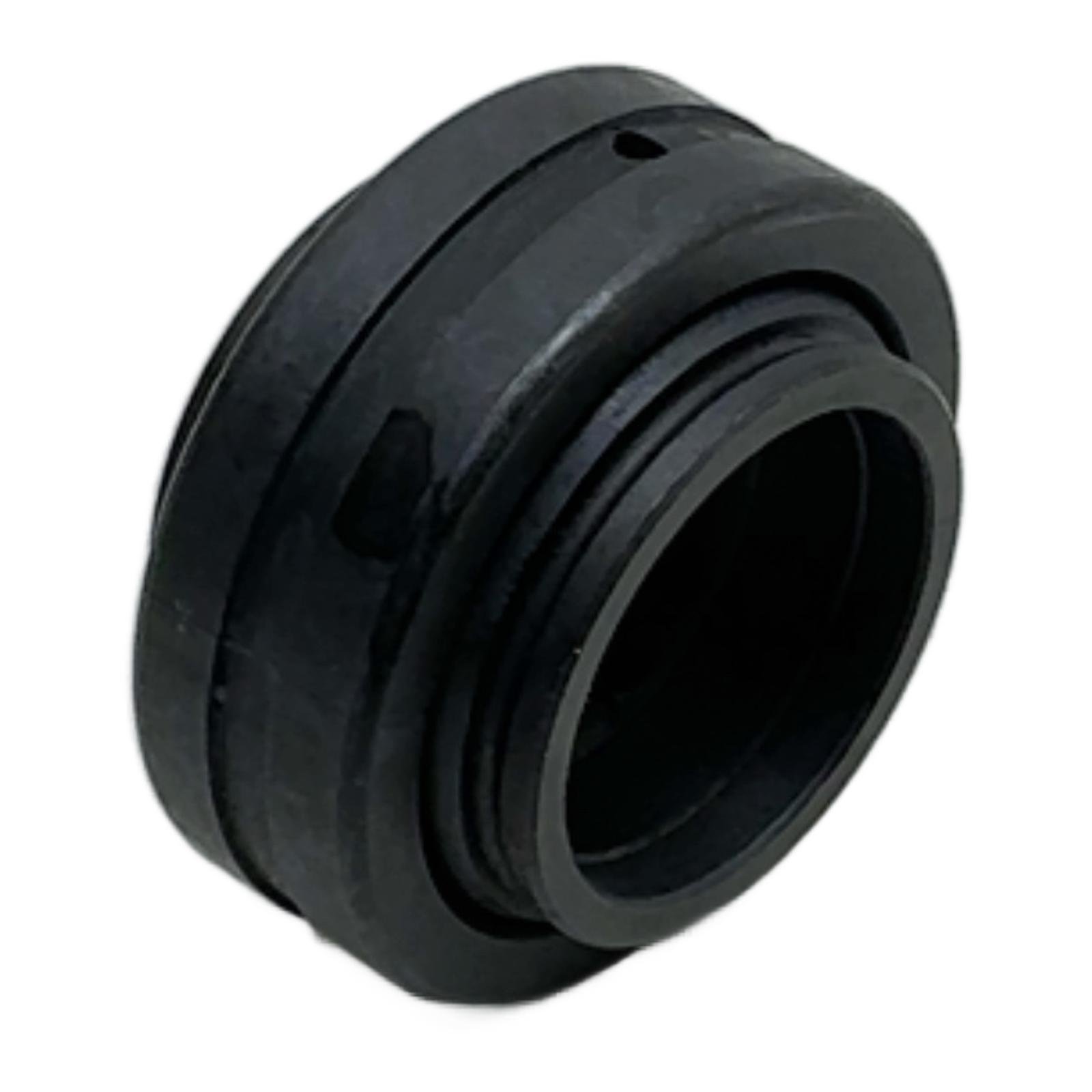

akn Spherical Plain Bearing 20mm Bore GEEW20ES LS Description This is a GEEW20ES LS spherical plain bearing from akn, a trusted brand for industrial power transmission components. Designed to handle radial loads and accommodate misalignment, this bearing is an excellent choice for linkages, pivots, and hinges in various machinery. The extended inner ring and integrated seals ensure durability and a long service life in demanding environments. Specifications Manufacturer: akn Type: Spherical Plain Bearing Model: GEEW20ES LS Bore Diameter: 20 mm Outer Diameter: 35 mm Inner Ring Width: 20 mm Outer Ring Width: 16 mm Seals: Sealed on both sides Label Info Marking on Bearing: GEEW20ES LS Marking on Box: GEG 20 ES (Note: The product itself is GEEW20ES) Application Ideal for use in agricultural machinery, construction equipment, hydraulic cylinders, and general mechanical engineering applications where angular motion and misalignment must be accommodated. CO2 Impact Choosing this refurbished or new-old-stock bearing saves an estimated 0.12 kg of CO2 compared to manufacturing a new one. This is equivalent to fully charging a standard smartphone more than 14 times. Availability This item is in stock and ready for immediate dispatch. We offer worldwide shipping options. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a GEEW20ES and a GEG20ES bearing?The primary difference is in the inner ring width. A GEEW series bearing, like this GEEW20ES, has an extended inner ring on both sides, making it wider than the outer ring. A GEG series bearing typically has an inner ring of the same width as the outer ring. Always verify dimensions for your specific application. What does the ‘ES’ suffix signify on this bearing?The ‘ES’ suffix in spherical plain bearing designations often indicates that the bearing is sealed on both sides. These seals, usually made of rubber or a similar material, protect the bearing from contaminants like dust and moisture and help retain lubricant, extending its service life. The bearing is marked GEEW20ES but the box says GEG 20 ES. Which is correct?The marking on the component itself (GEEW20ES) should always be considered the correct identifier for the part. While the box may be from the original manufacturer, it is possible for parts to be placed in incorrect packaging during storage or handling. We guarantee the product you receive is the GEEW20ES as pictured. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
