SKF SNL519-616

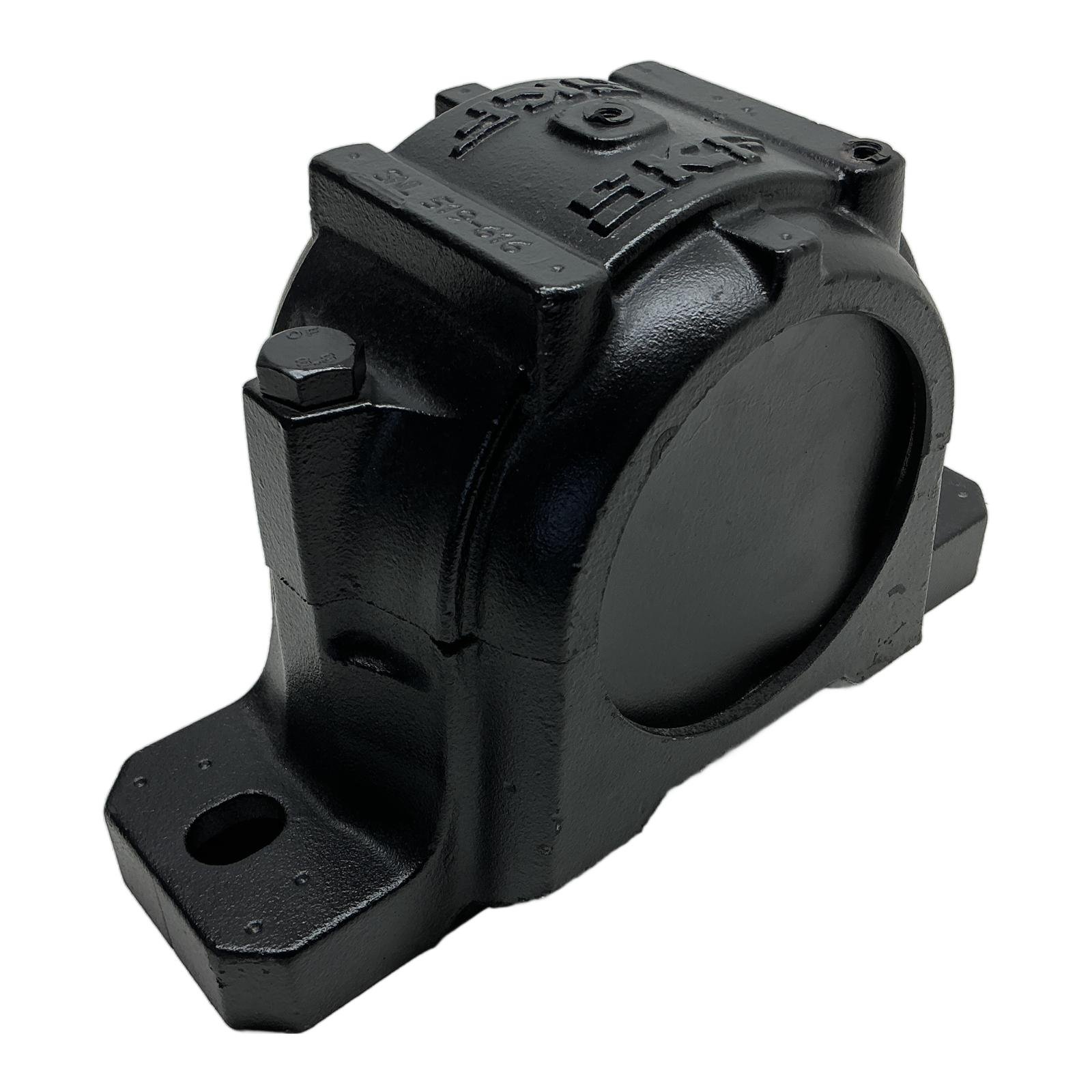

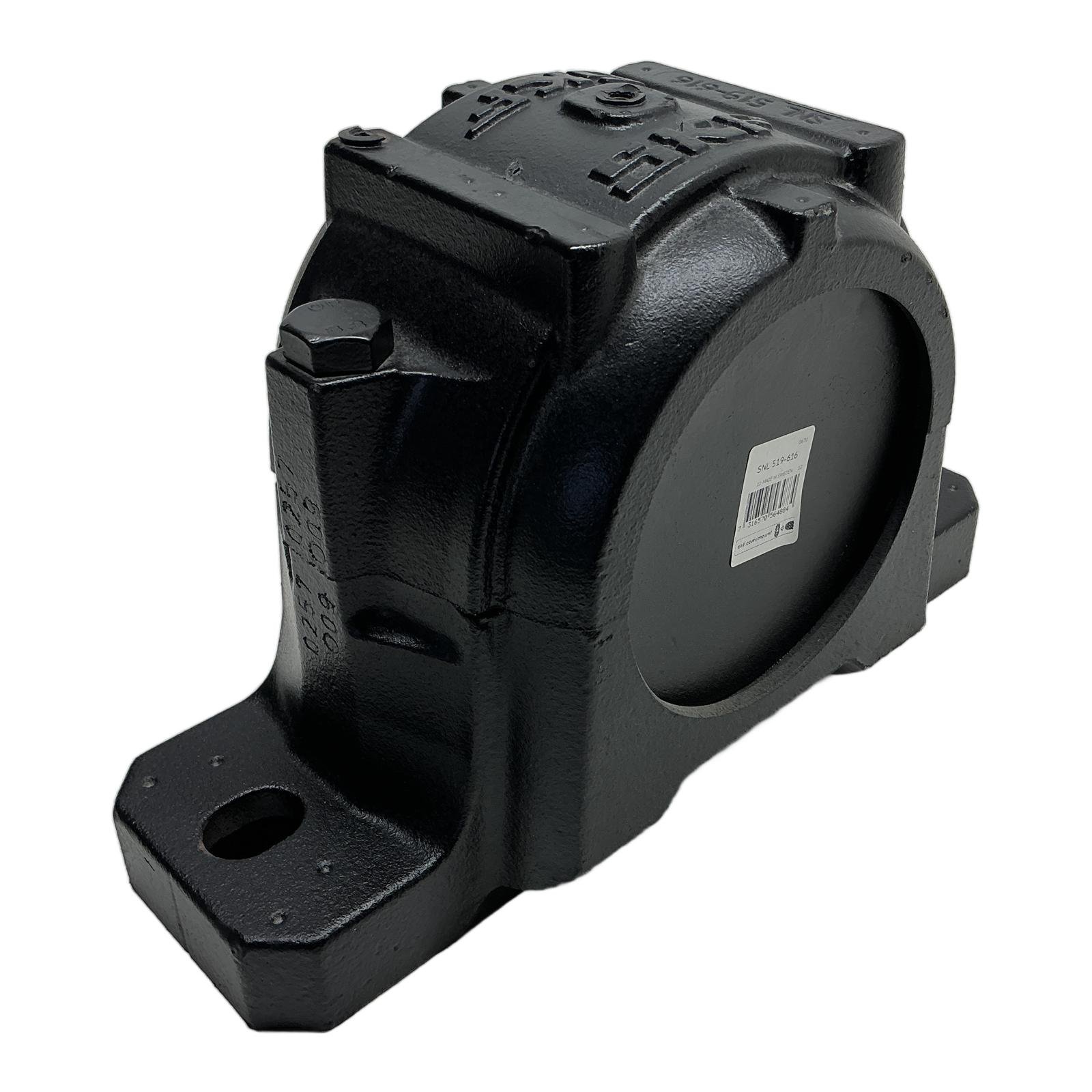

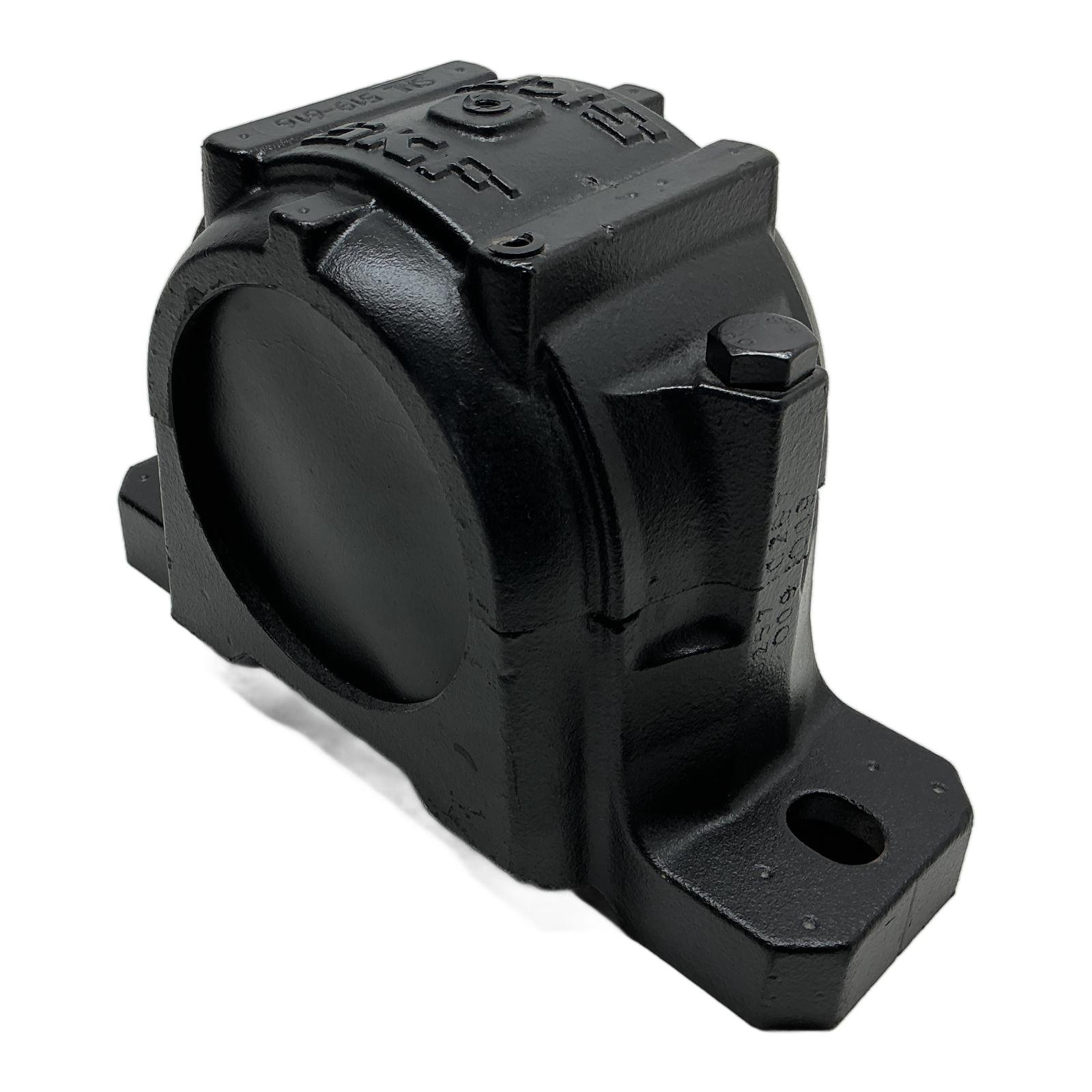

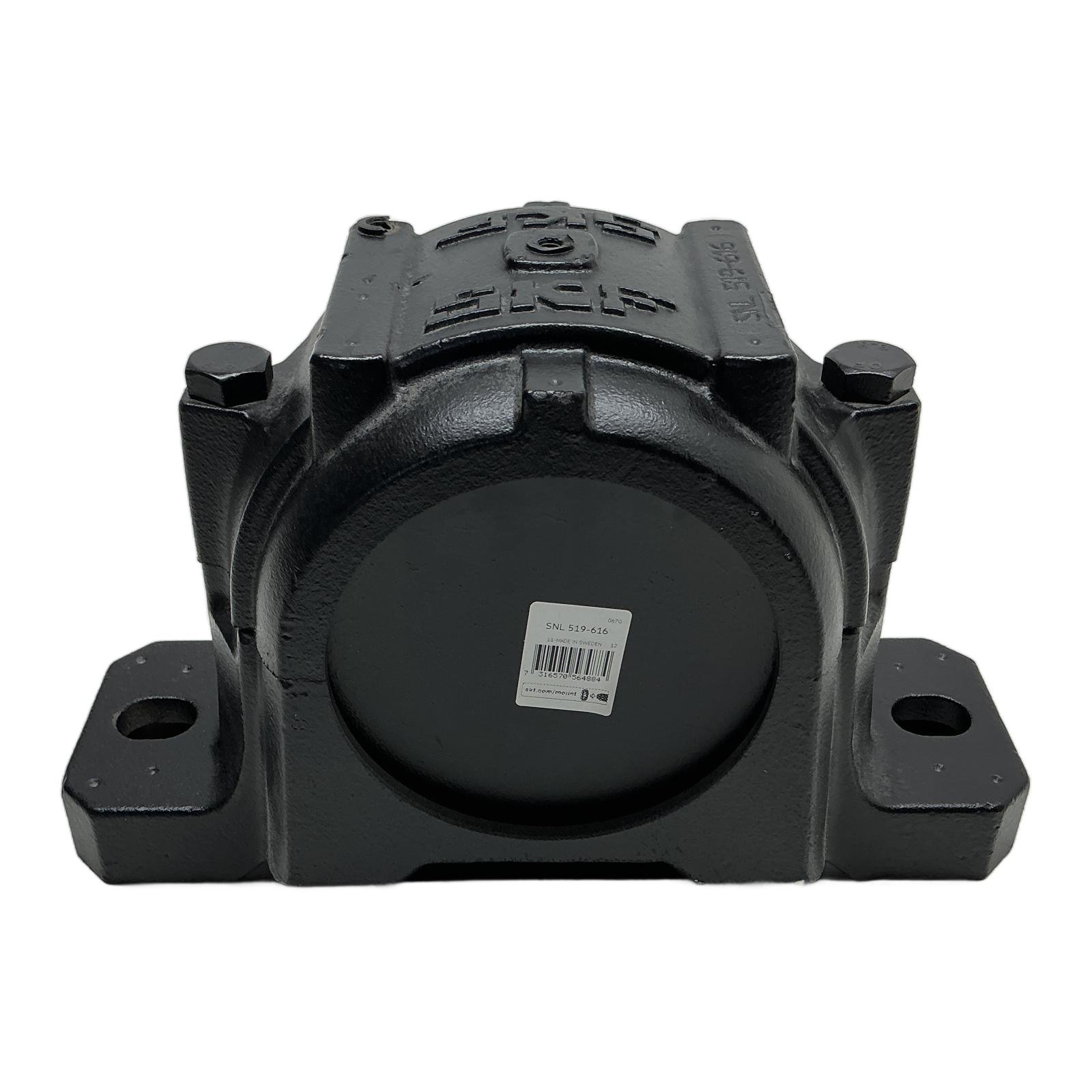

SKF SNL 519-616 Split Plummer Block Housing Description The SKF SNL 519-616 is a high-performance split plummer block housing designed for durability and ease of use. Its two-piece construction simplifies the mounting and dismounting of pre-assembled shafts. Engineered for use with various bearing types, it provides a versatile and reliable solution for rotating machinery in industries such as mining, pulp and paper, and manufacturing. The robust cast iron construction ensures excellent heat dissipation and rigidity, contributing to extended bearing service life. Specifications Manufacturer: SKF Part Number: SNL 519-616 Housing Series: SNL 500-600 Compatible Shaft Diameter: 85 mm Compatible Bearing (example): 22219 E(K) on H319 Adapter Sleeve Material: Cast Iron Mounting Holes: 2x Slotted Holes Sealing Solution: Designed for various standard SKF seals (e.g. TSN L) Label Info Model: SNL 519-616 EAN: 7316570564884 Application This housing is ideal for supporting rotating shafts in equipment such as conveyors, industrial fans, and crushers where reliability and simplified maintenance are critical. Country of Origin Made in Sweden. CO2 Impact Choosing this reused component prevents the emission of approximately 30 kg of CO2, which is equivalent to the savings from not manufacturing a new 15 kg cast iron part. Availability In stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What type of bearing is compatible with the SNL 519-616 housing?Answer:The SNL 519-616 housing is designed for several bearing types, including self-aligning ball bearings (12, 22 series), spherical roller bearings (222, 232 series), and CARB toroidal roller bearings (C 22 series). The most common combination is a 22219 series spherical roller bearing on an H319 adapter sleeve for an 85 mm shaft. Question?What is the recommended lubrication method for a bearing in this housing?Answer:This housing is suitable for both grease and oil lubrication. It features an integrated grease nipple hole for easy relubrication. The choice between grease and oil depends on the operating speed, load, and temperature of the application. Question?Can this SNL housing be directly replaced with the newer SE series housing?Answer:Yes, the SKF SE 519-616 is the modern replacement and is designed to be dimensionally interchangeable with the SNL 519-616. It offers the same critical dimensions (footprint, shaft height) for a seamless drop-in replacement while providing enhanced features. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
