SCHNEIDER ELECTRIC RM1XA016 020278

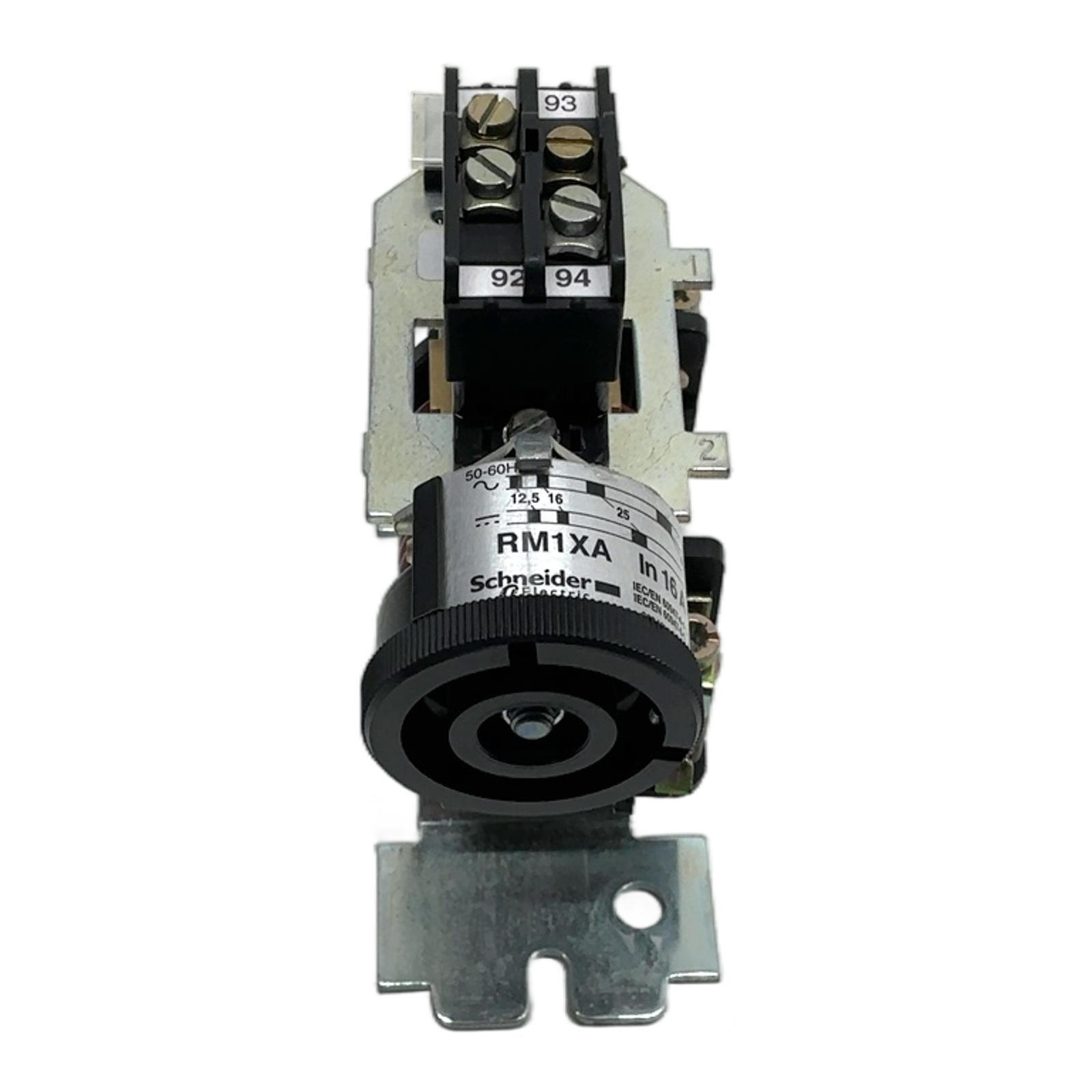

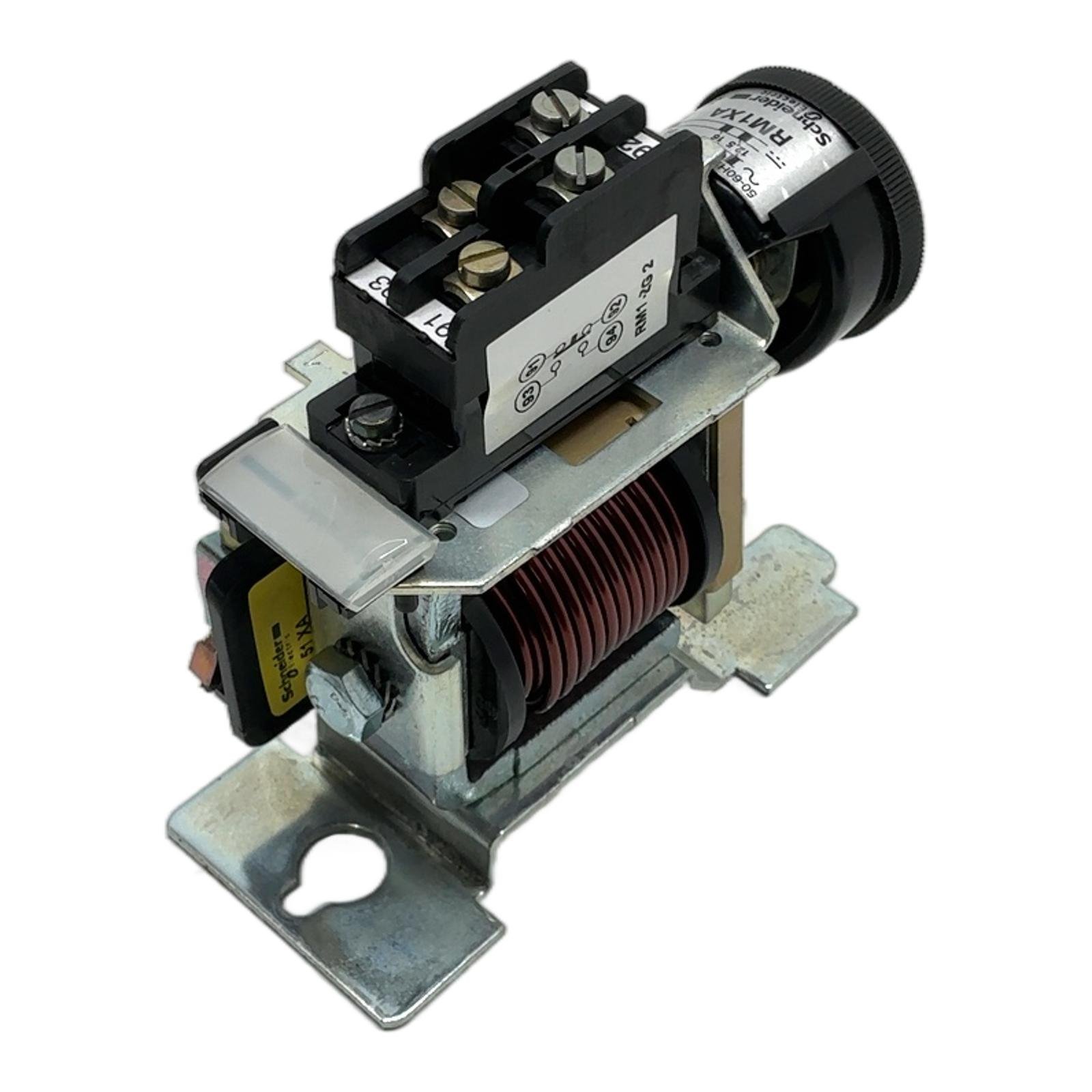

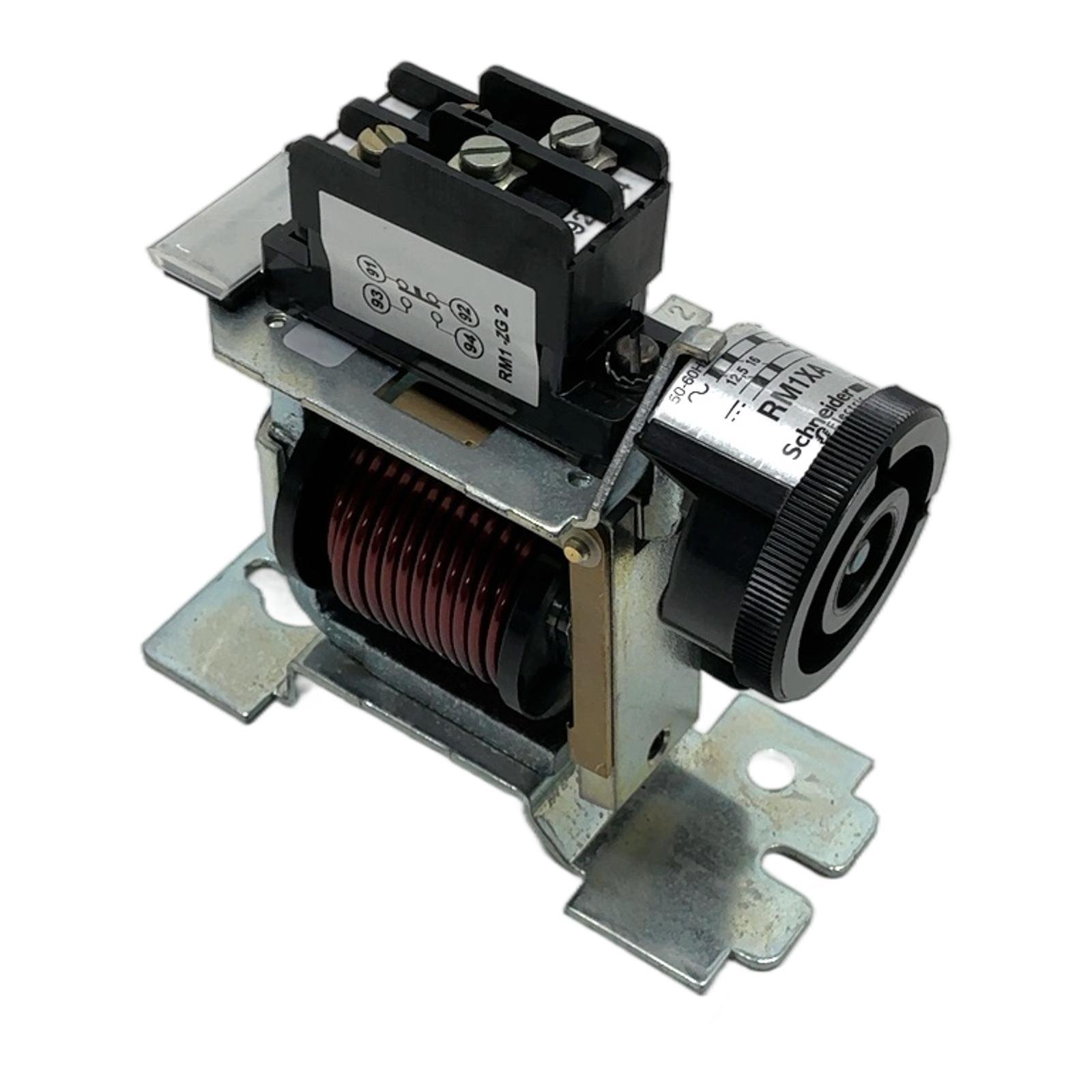

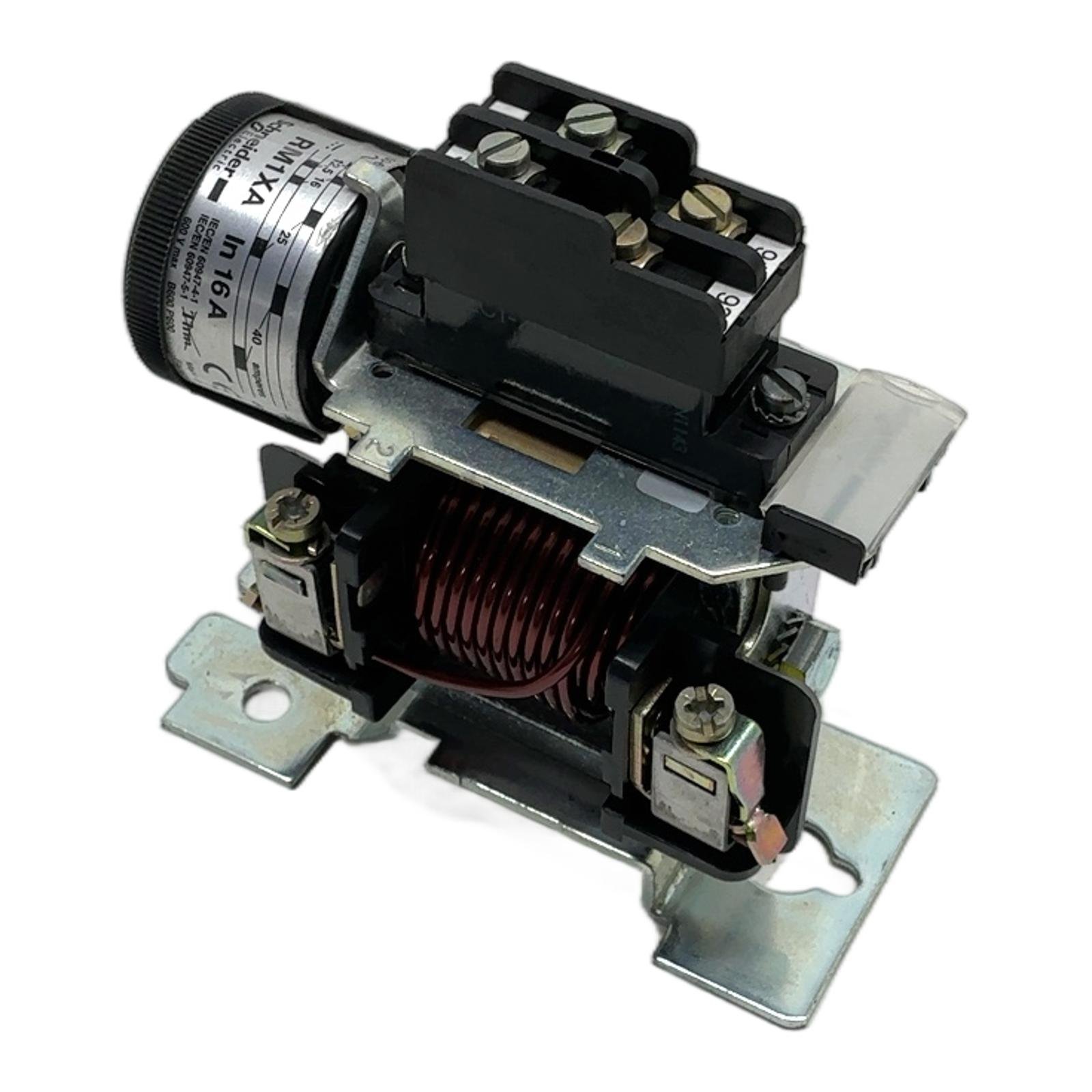

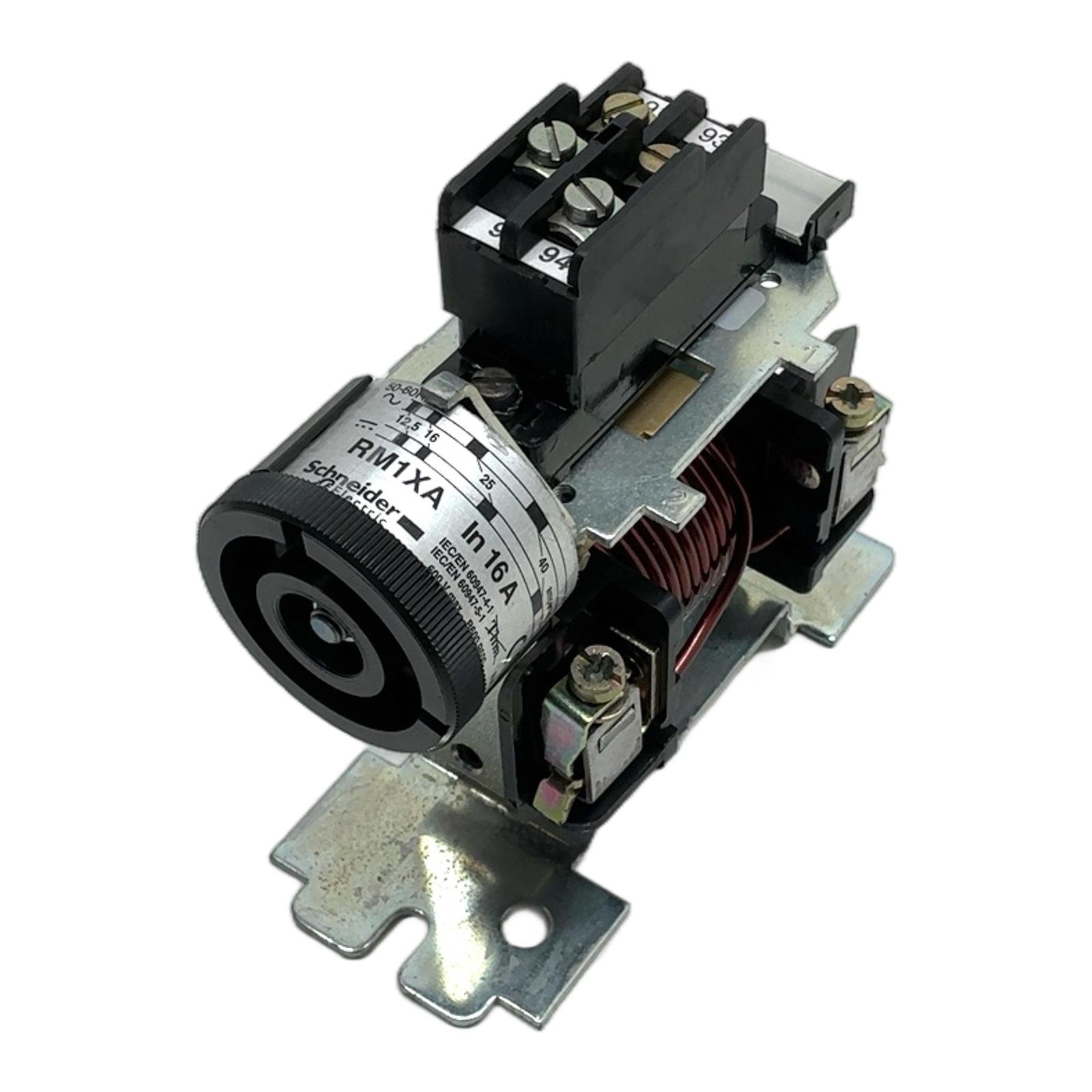

Schneider Electric RM1XA016 Overcurrent Relay Description The Schneider Electric RM1XA016 is a single-pole electromagnetic overcurrent relay from the robust TeSys product family. This device provides precise and reliable protection for electrical circuits against overcurrent conditions. It features an adjustable trip setting from 10 to 16 Amperes, making it suitable for a variety of motor and control applications. As this model is now obsolete, it serves as a critical spare part for the maintenance and repair of existing industrial installations. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Schneider Electric Part Number: RM1XA016 Order Code: 020278 Product Range: TeSys Type: Electromagnetic Overcurrent Relay Poles: 1-Pole Nominal Current: 16 A Adjustable Trip Range: 10 A to 16 A Contact Configuration: 1 Changeover Contact Label Info Relais unipolaire de surintensite 16 A Single pole over current relay 16 A Rele. uni. electromagnet 16 A Application This relay is designed for use in industrial control panels for motor protection, fault signaling, and general circuit protection where instantaneous response to overcurrents is required. Country of Origin Made in France. CO2 Impact Opting for this component helps avoid the CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial environment. Availability This is an obsolete item. Availability is limited to existing stock. Please contact us for current stock levels. FAQ Question?What is the tripping current range for this RM1XA016 relay?The tripping current is adjustable via the front dial, ranging from 10 A to 16 A. Question?Is this relay thermal-magnetic or purely electromagnetic?This is a purely electromagnetic overcurrent relay, providing instantaneous tripping when the set current is exceeded. It does not have a thermal delay element for overload protection. Question?What are the terminals 92, 93, and 94 used for on this relay?These are the terminals for the auxiliary changeover contact. Typically, 93-94 are the Normally Open (NO) contacts which close when the relay trips, used for alarm or control functions. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
