SCHNEIDER ELECTRIC DF103 18972

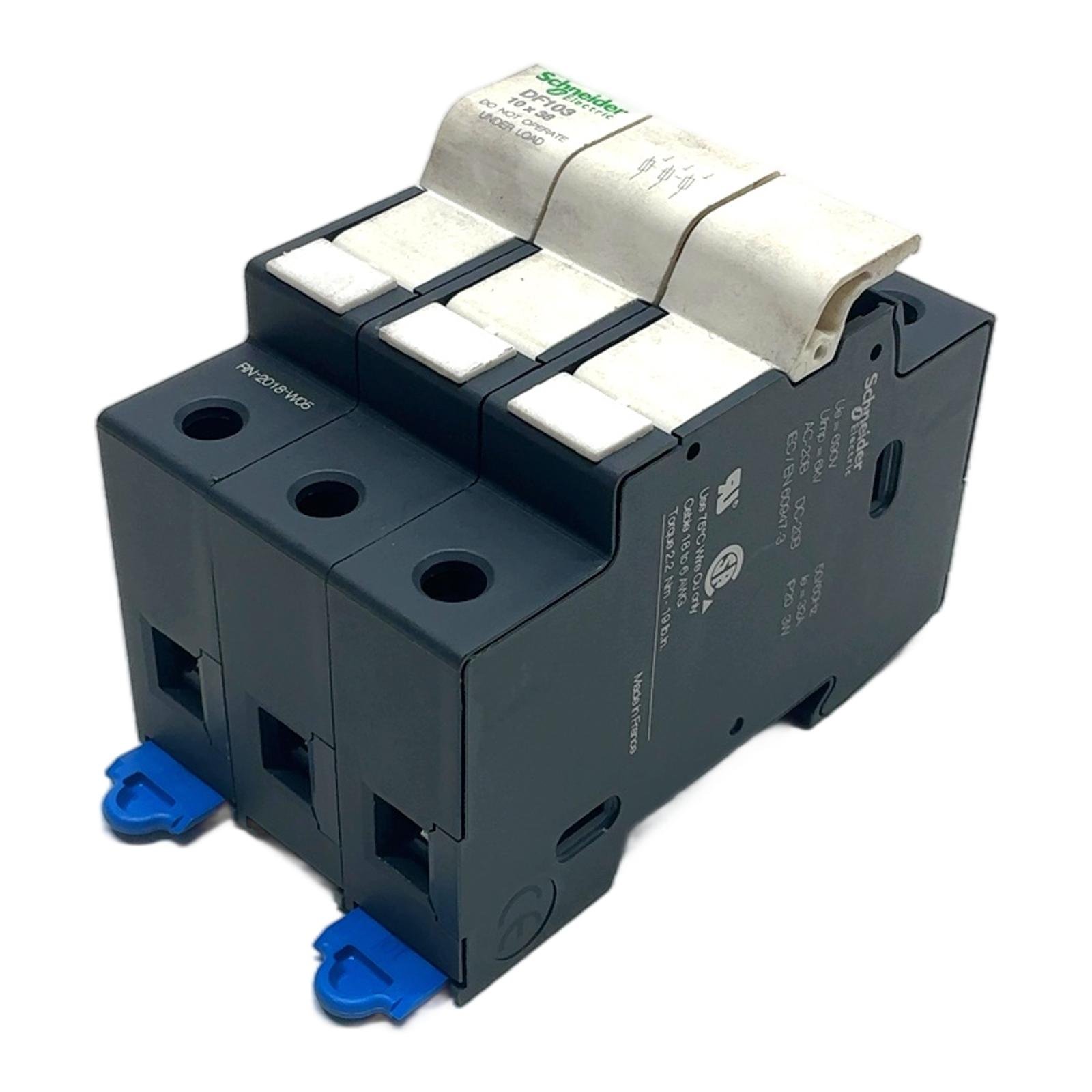

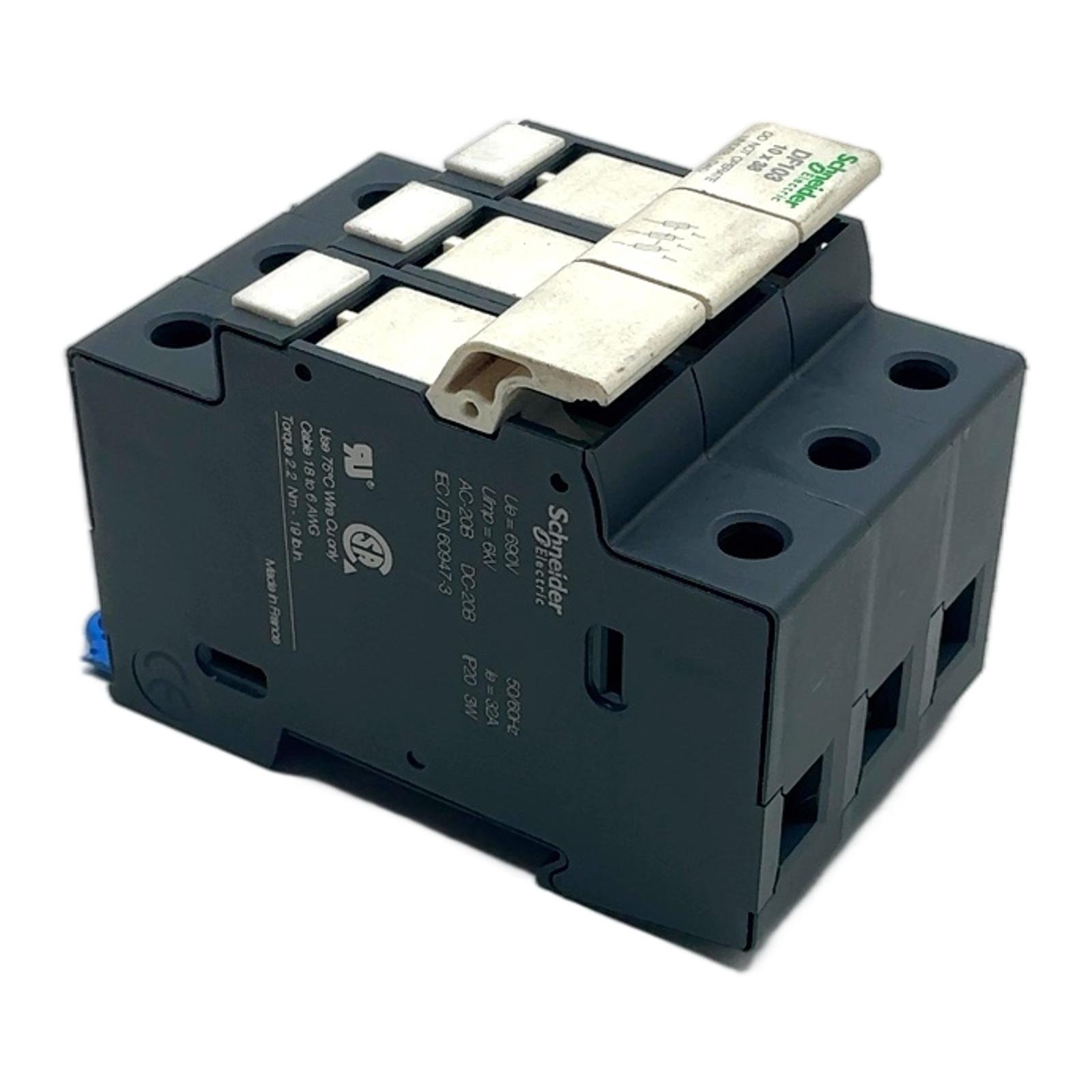

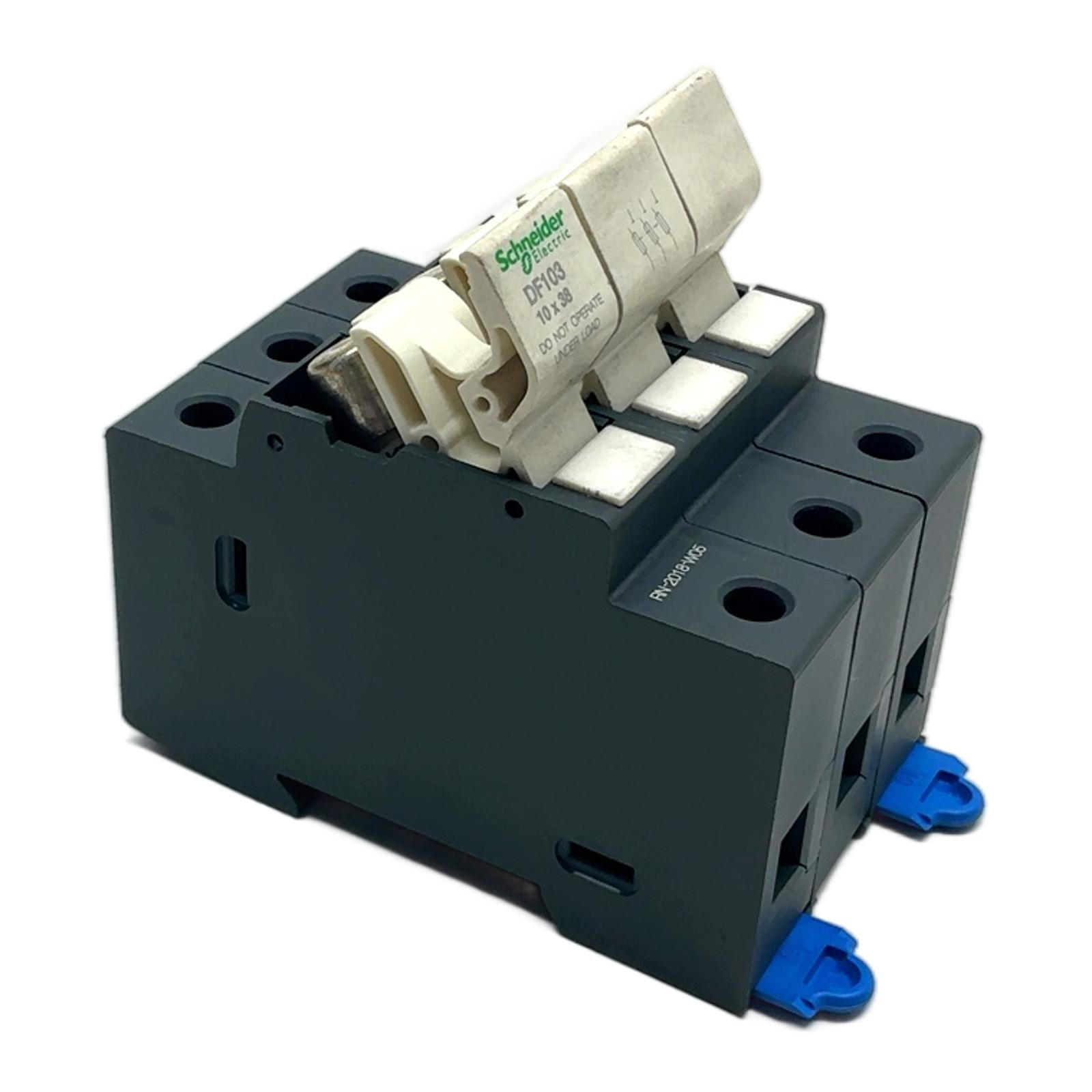

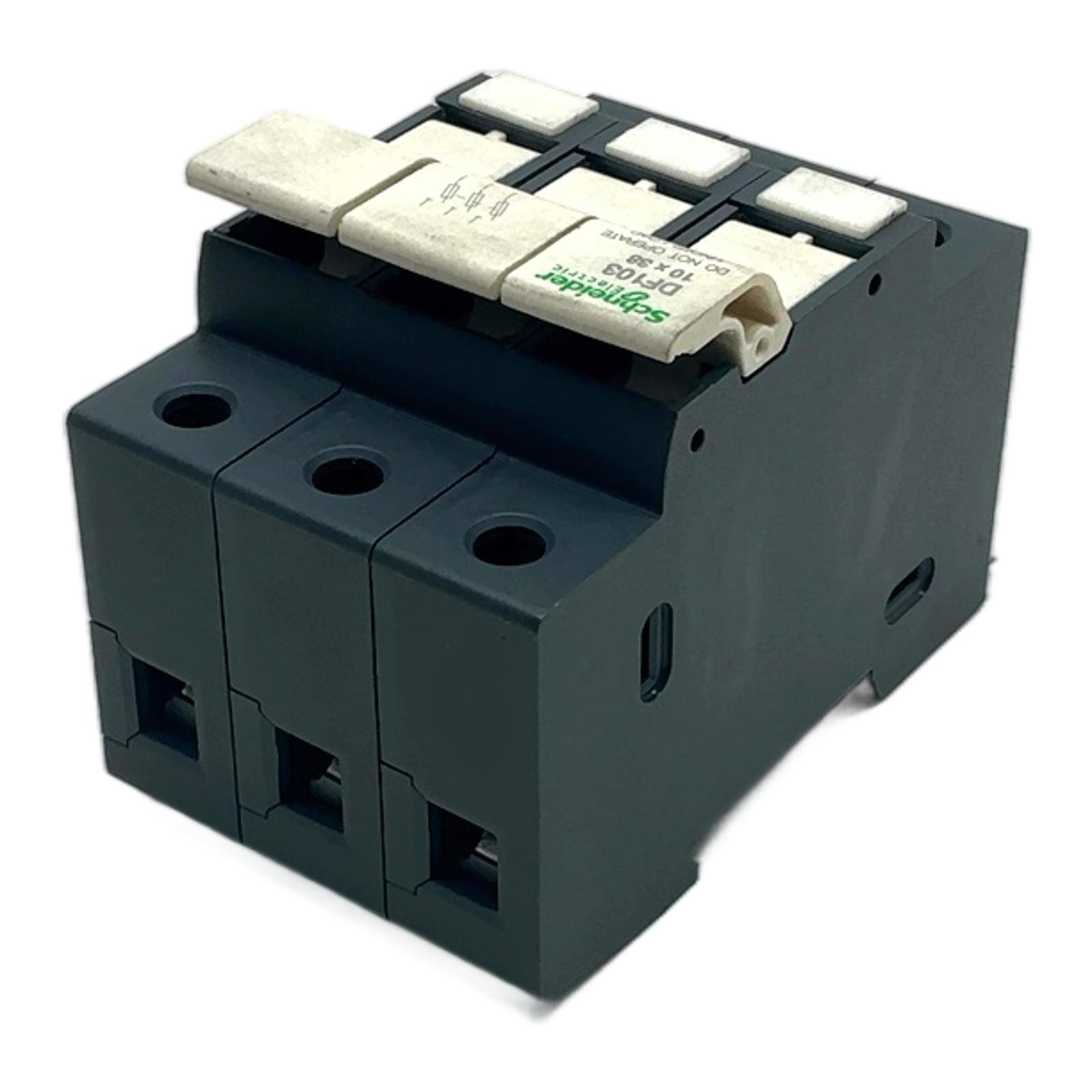

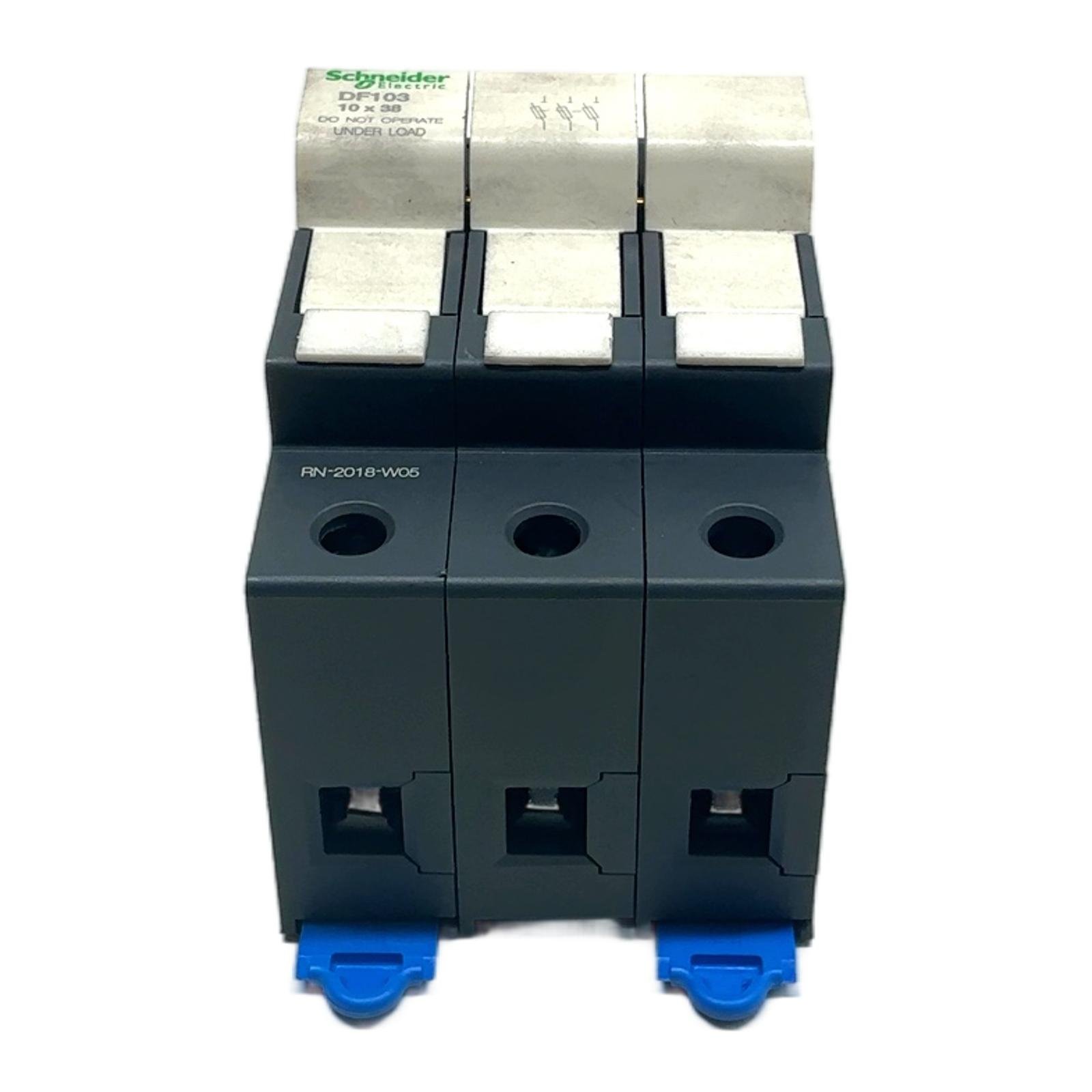

Schneider Electric TeSys DF103 Fuse Disconnector Description The Schneider Electric 18972, model DF103, is a high-performance 3-pole fuse disconnector from the TeSys range. It is engineered for reliable circuit protection in industrial control panels and machinery. This unit is rated for 32A and 690V AC, accommodating standard 10x38mm fuses. Its compact design and DIN rail mount capability make it an ideal choice for new installations and retrofits, ensuring compliance with IEC/EN 60947-3 standards. Specifications Manufacturer: Schneider Electric Model: DF103 Reference Number: 18972 Number of Poles: 3 Rated Operational Current (le): 32A Rated Operational Voltage (Ue): 690V AC, 50/60Hz Fuse Size: 10 x 38 mm Mounting: 35mm DIN Rail Protection Rating: IP20 Label Info Ue: 690V le: 32A Uimp: 6kV Standard: IEC/EN 60947-3 Application This fuse disconnector is commonly used for the protection of motor circuits, transformers, and other electrical loads in industrial automation, HVAC systems, and power distribution panels. Country of Origin Made in France. CO2 Impact Opting for this component helps avoid the emission of approximately 7.2 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of fuses should be used with this DF103 holder?This holder is designed for cylindrical fuses of size 10x38mm. You should use fuses with an appropriate interrupting rating for your application, such as Class aM or gG types, up to a maximum of 32A. What is the short-circuit withstand rating of this device?The short-circuit withstand rating depends on the installed fuse. Always pair it with a fuse that has a breaking capacity suitable for the prospective short-circuit current at the point of installation, typically up to 100kA. Are there any considerations for operating this fuse holder at high ambient temperatures?Yes, like most electrical components, its current-carrying capacity may need to be derated at ambient temperatures above the manufacturer’s specified reference (usually 40 deg C). Refer to the Schneider Electric technical datasheet for specific derating curves. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Laatst bijgewerkt: Friday, March 13, 2026
