FUJI ELECTRIC FVR022E7S-7EX

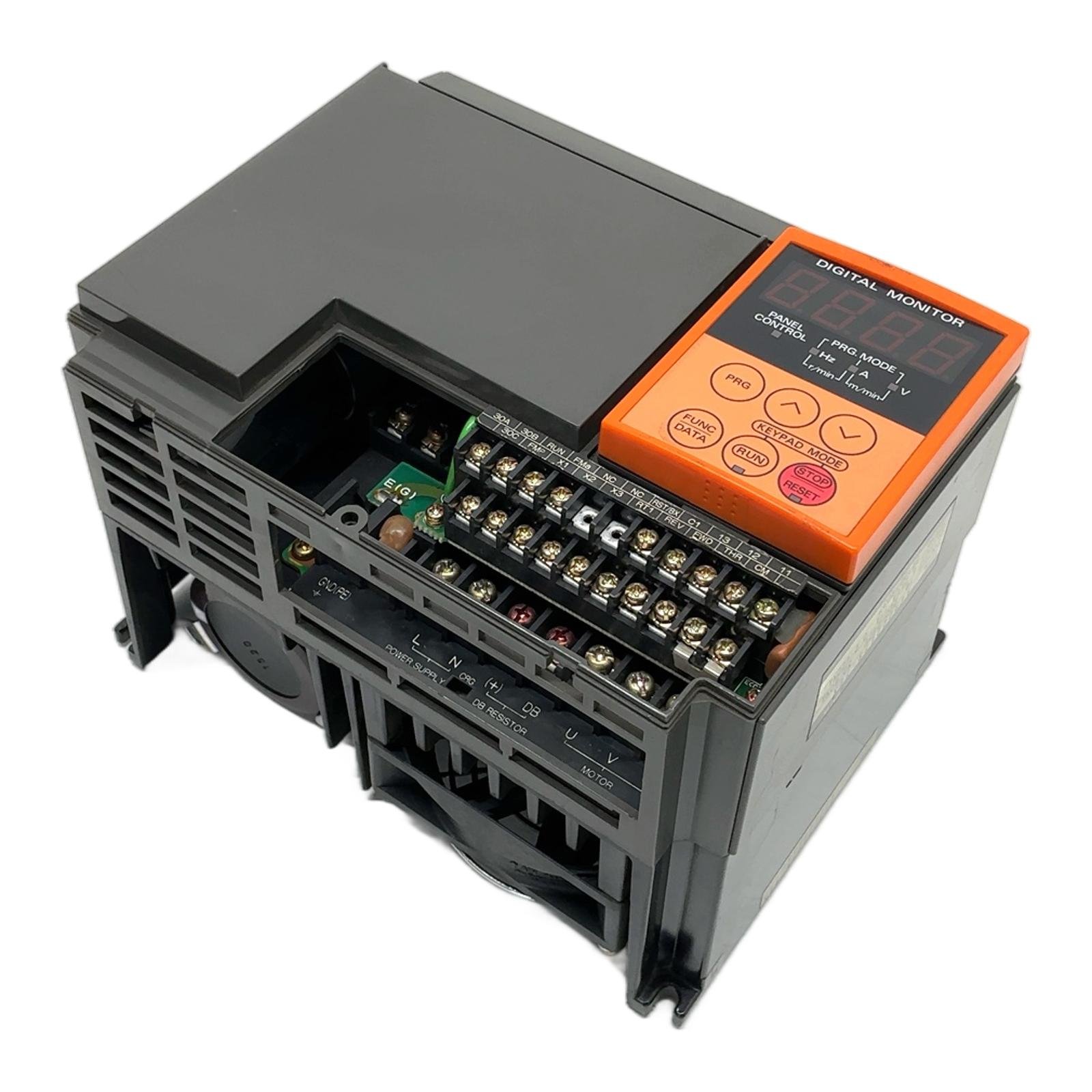

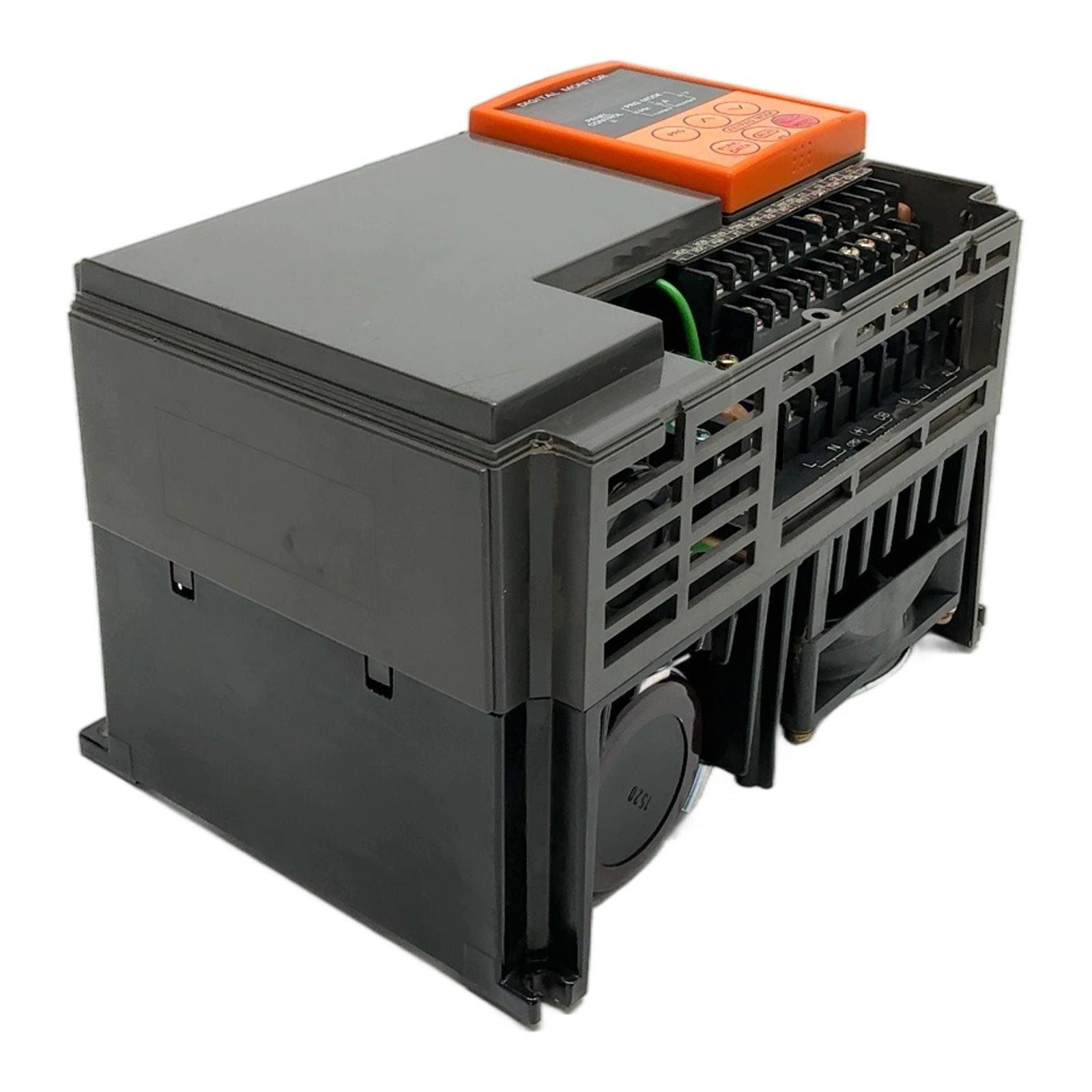

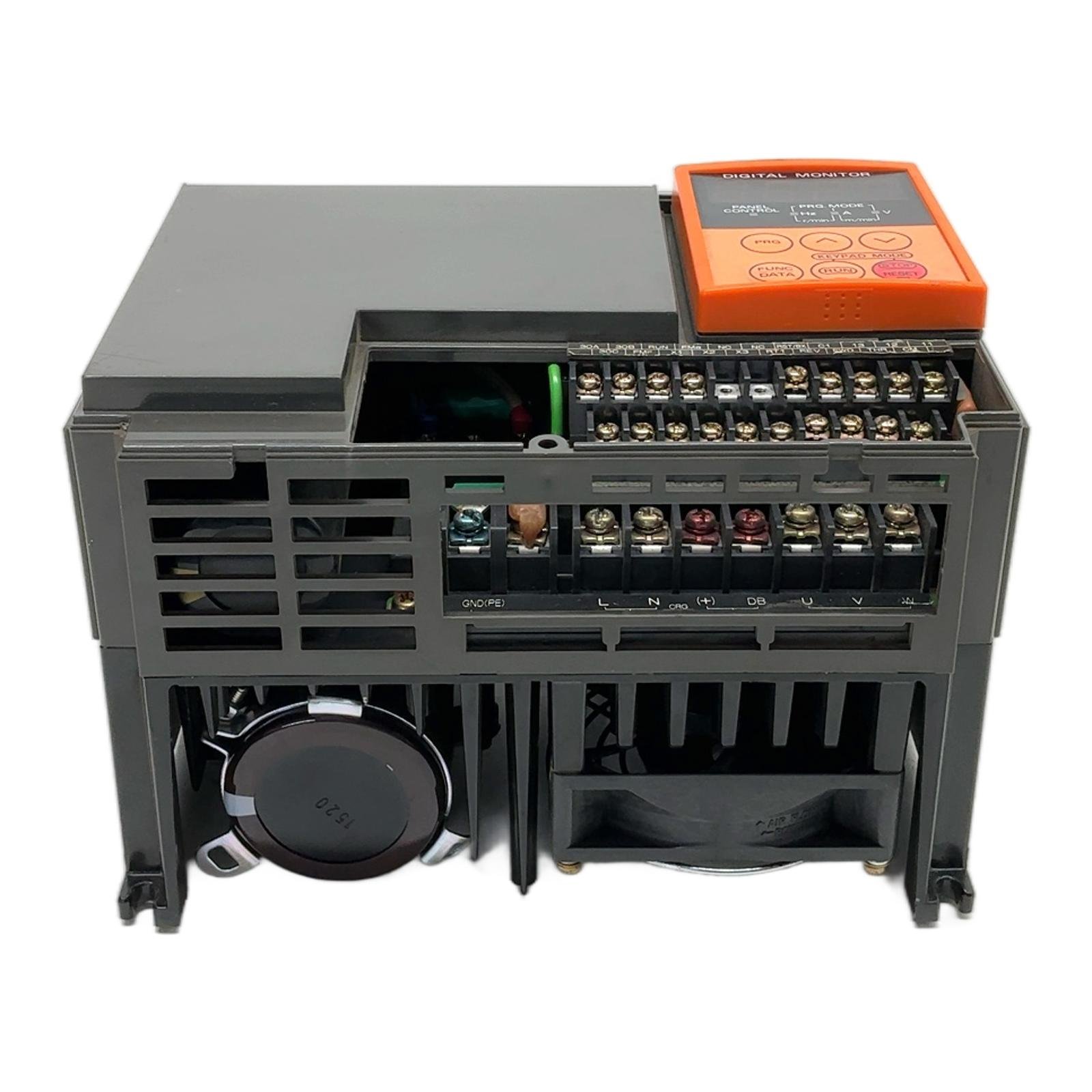

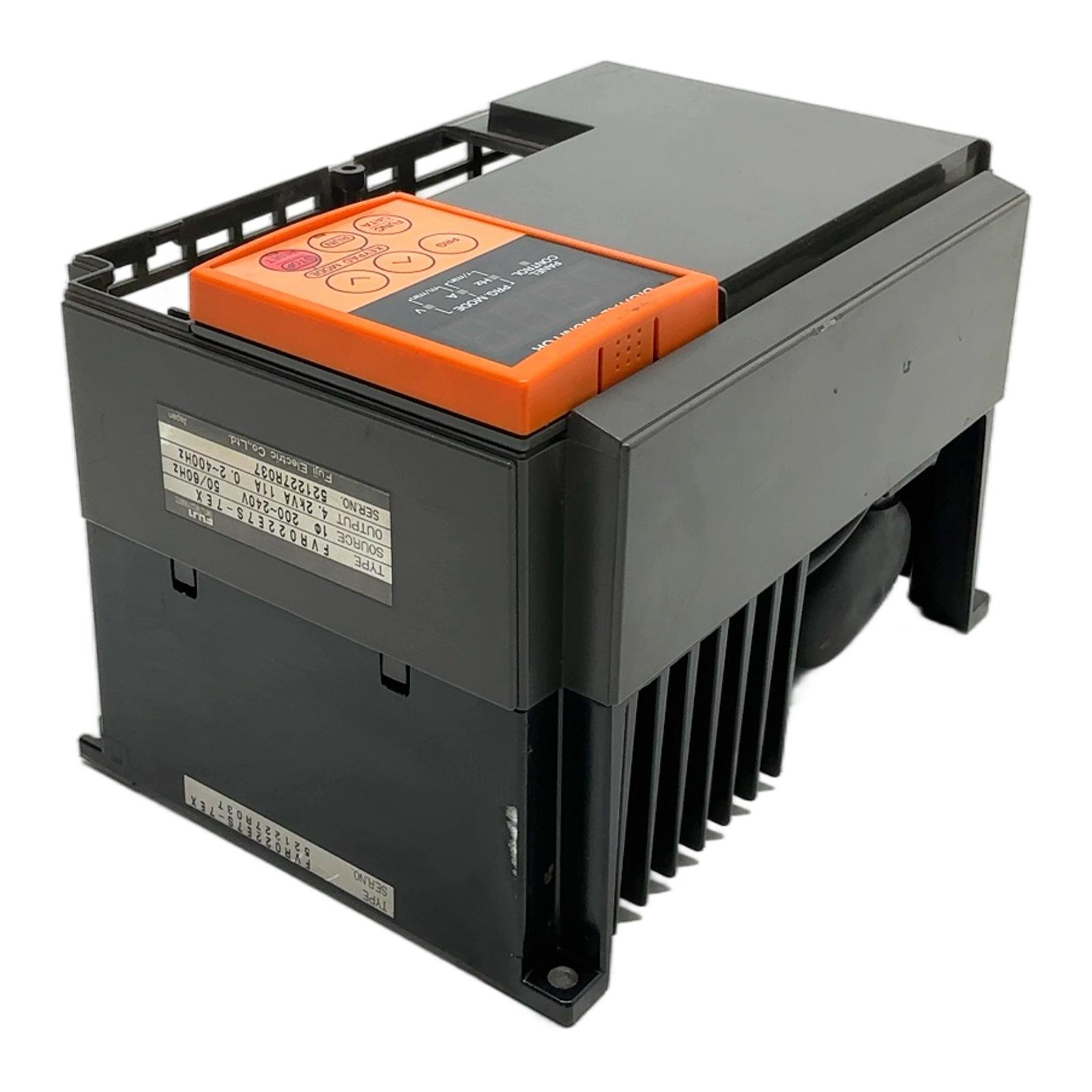

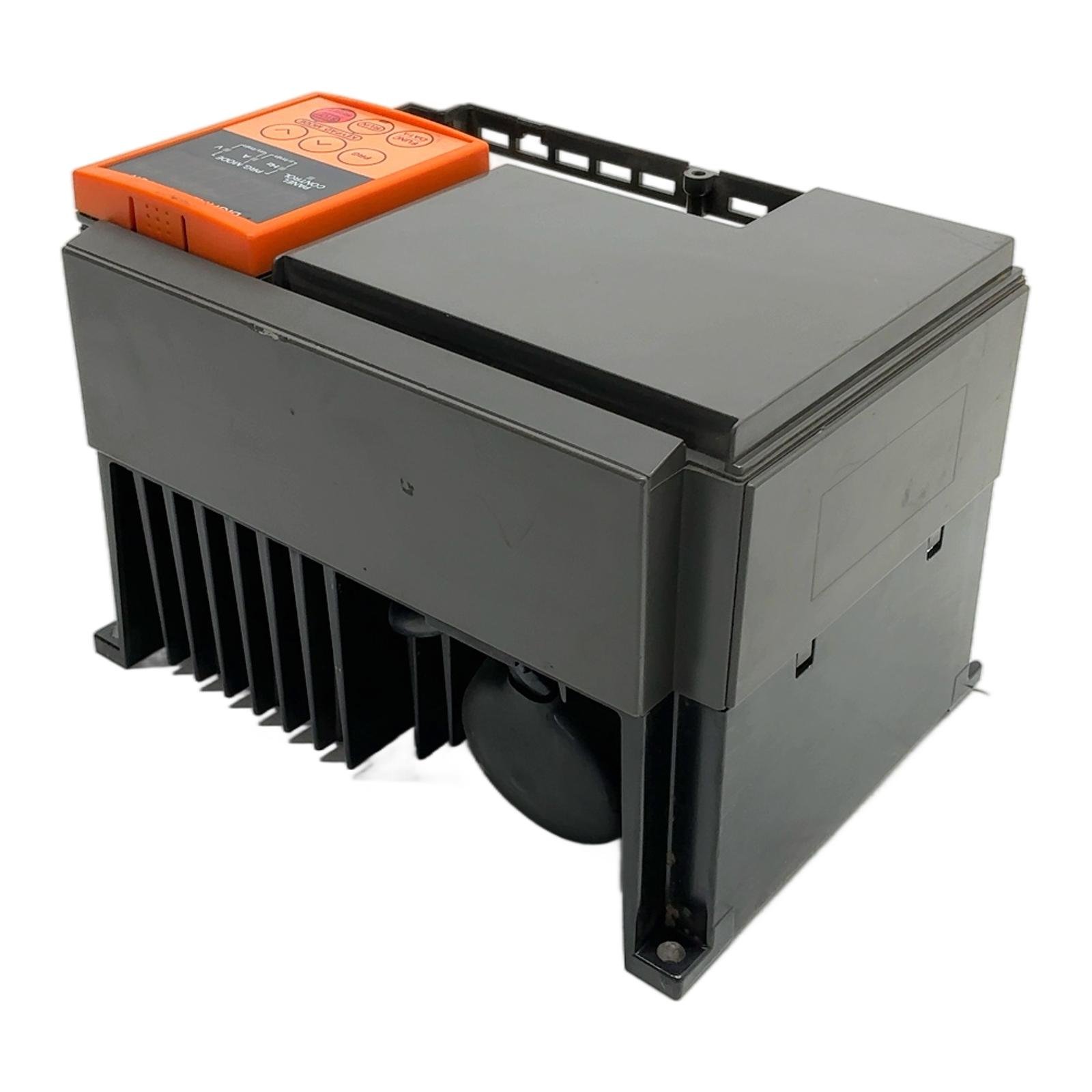

Fuji Electric FVR022E7S-7EX Frequency Inverter Description The FVR022E7S-7EX is a general-purpose frequency inverter from Fuji Electric’s FRENIC-5000 E7S series. It is engineered to control the speed of a 3-phase AC motor with a power rating up to 2.2 kW. This unit operates on a single-phase 200-240V input, making it suitable for a variety of industrial applications where three-phase power is not available at the source. The drive features a user-friendly digital keypad for easy setup and monitoring of operational parameters. Specifications Manufacturer: Fuji Electric Series: FRENIC-5000 E7S Model: FVR022E7S-7EX Input Voltage: 1-Phase 200-240V AC, 50/60Hz Output Voltage: 3-Phase 200-240V AC Max. Applicable Motor: 2.2 kW Rated Output Current: 11 A Rated Capacity: 4.2 kVA Output Frequency Range: 0.2 to 400 Hz Label Info TYPE: FVR022E7S-7EX SOURCE: 1O 200-240V 50/60Hz OUTPUT: 4.2KVA 11A 0.2-400Hz SER.NO: 521227R037 Application This inverter is ideal for controlling pumps, fans, conveyors, and other machinery requiring variable speed control to optimize processes and save energy. Country of Origin Made in Japan. CO2 Impact By purchasing this pre-owned inverter, you are contributing to a circular economy and avoiding approximately 140 kg of CO2 emissions associated with the production of a new unit. Availability This is an obsolete item but available from our stock. Ensure the longevity of your existing systems with this reliable spare part. Order now from profideals for expert support and fast delivery. FAQ What is the main difference between this FVR-E7S model and modern Fuji inverters like the FRENIC-Ace?Modern inverters like the FRENIC-Ace offer more advanced features such as improved V/f and sensorless vector control algorithms for better motor performance, higher efficiency, a more compact size, and built-in communication options like Modbus RTU, which are not standard on the older E7S series. Can this inverter be used with a 3-phase 230V input supply?No. The label clearly specifies a single-phase (1O) input of 200-240V. Connecting a 3-phase supply will damage the unit’s input rectifier circuit. How do I set up a simple start/stop control using the external terminals?For a basic 2-wire start/stop setup, you would typically connect a switch between the FWD (Forward) terminal and the CM (Common) terminal. Closing the switch starts the motor in the forward direction, and opening it stops the motor, assuming the parameters are set for external control. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
