VEGA VEGAPULS 69 PS69.AXCFAAHXKMAXX

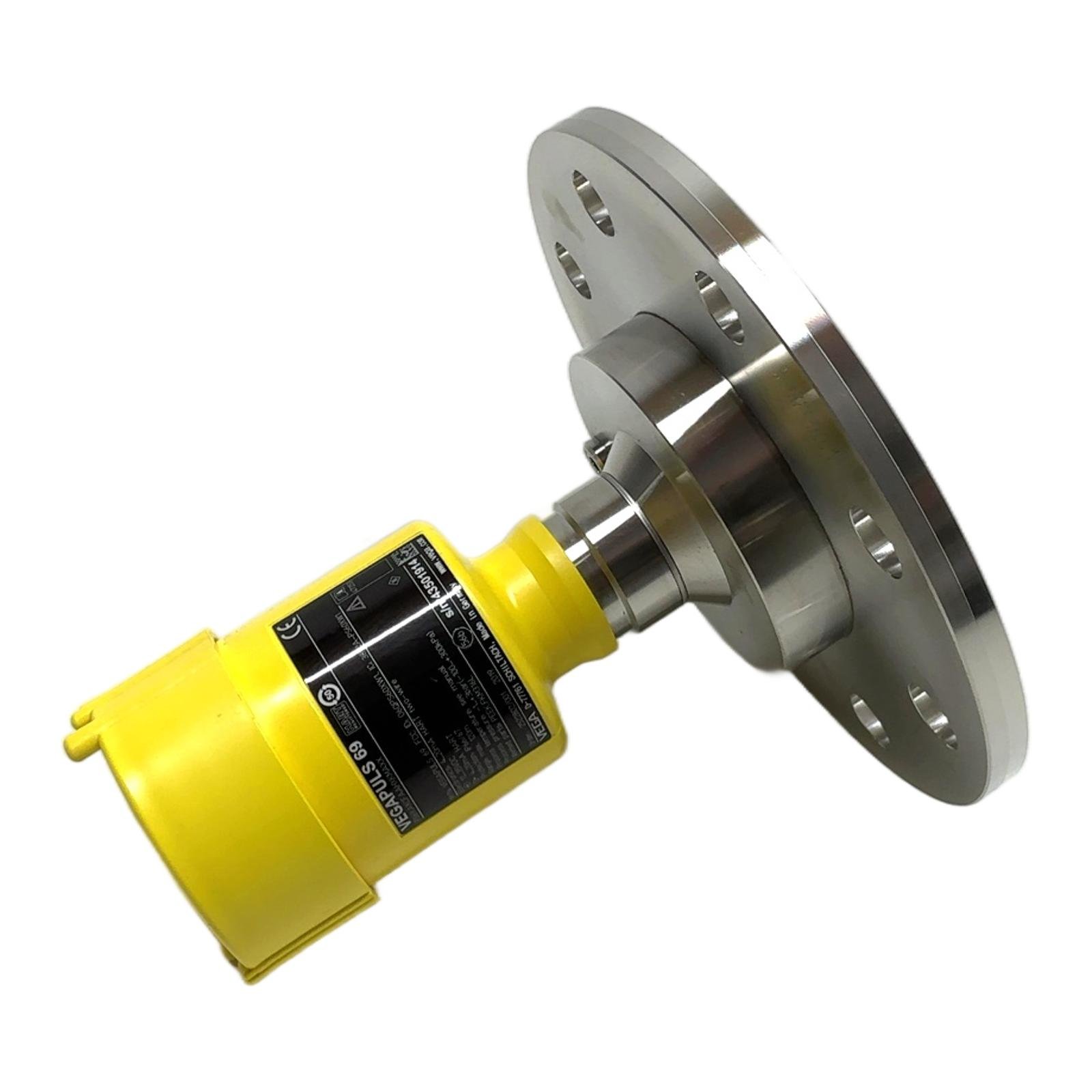

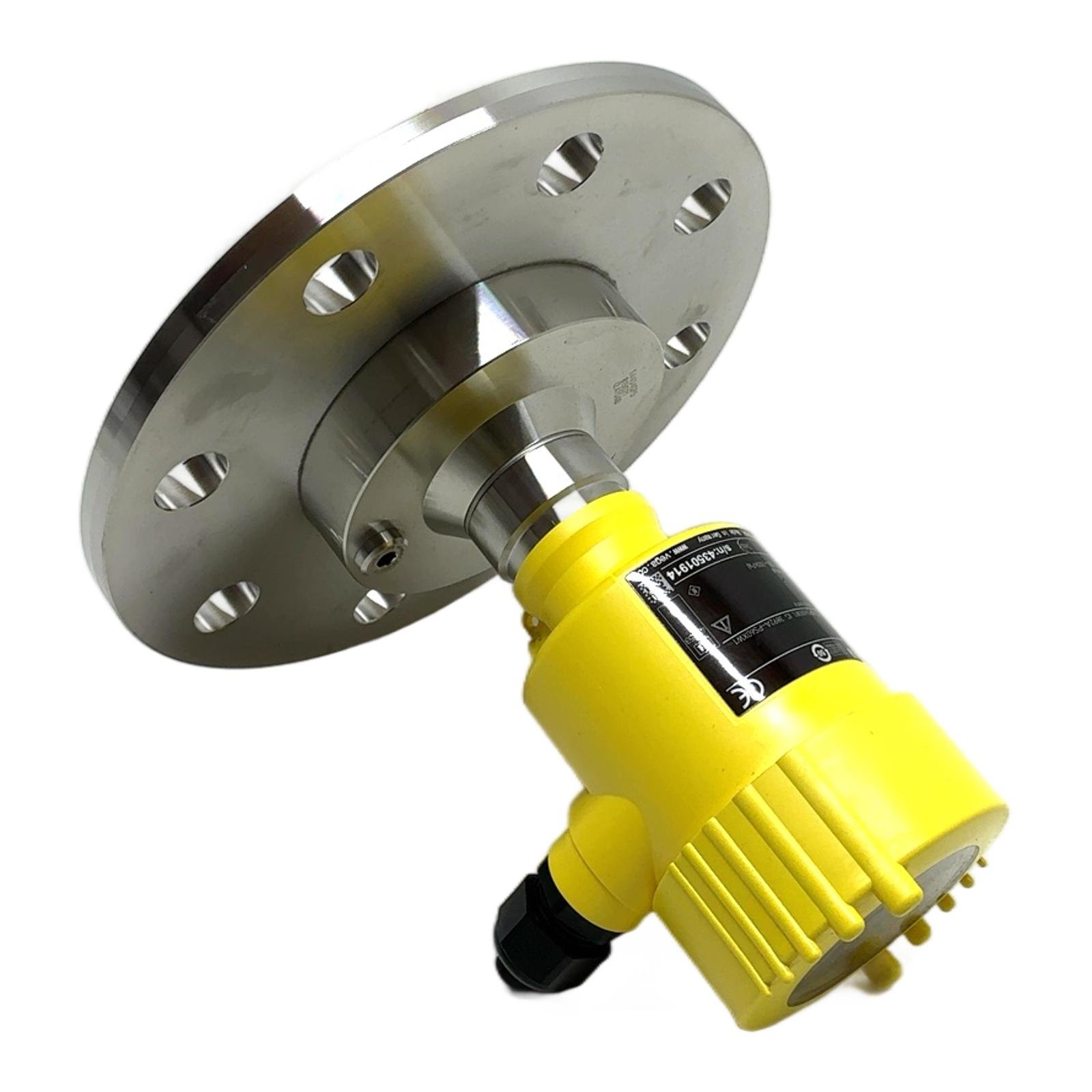

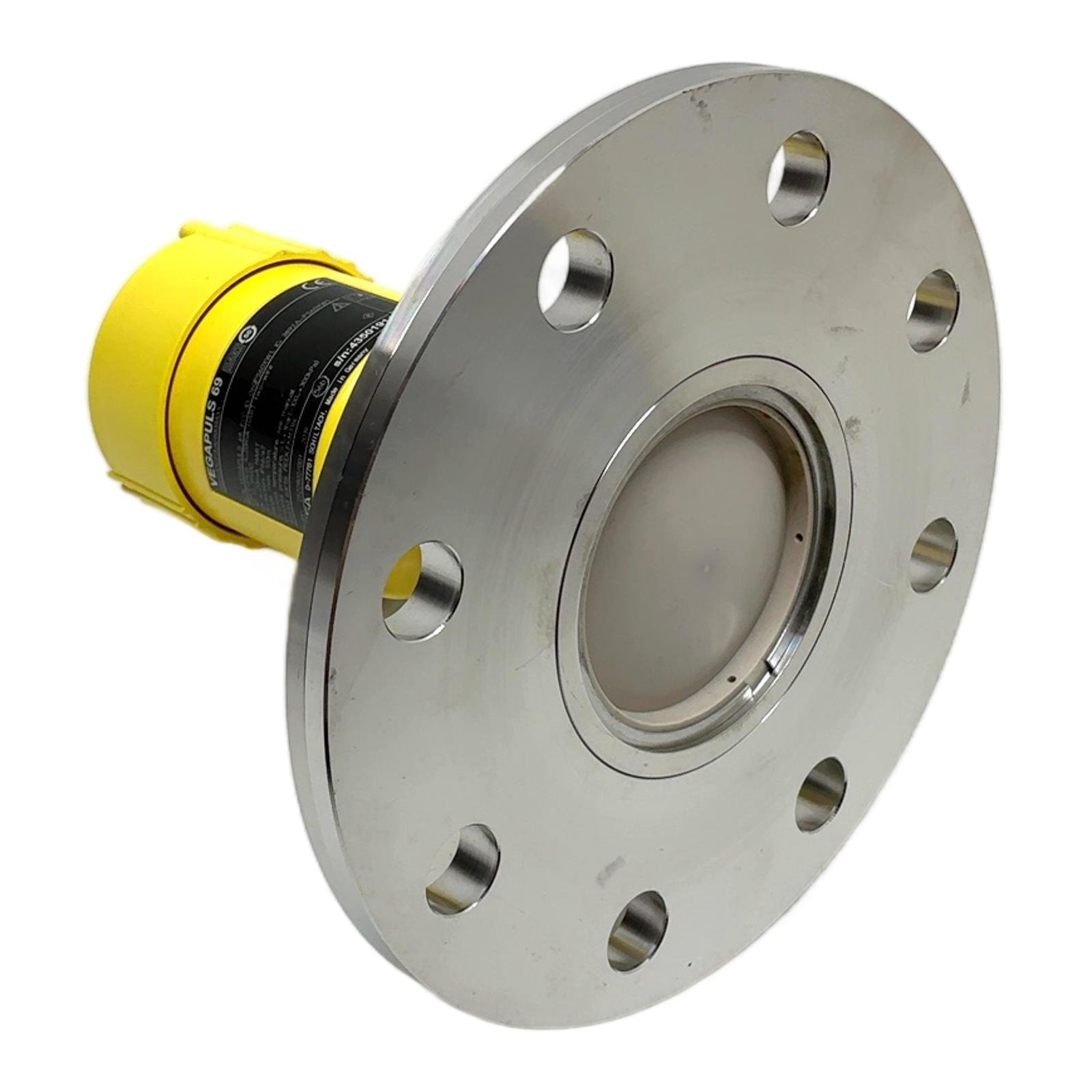

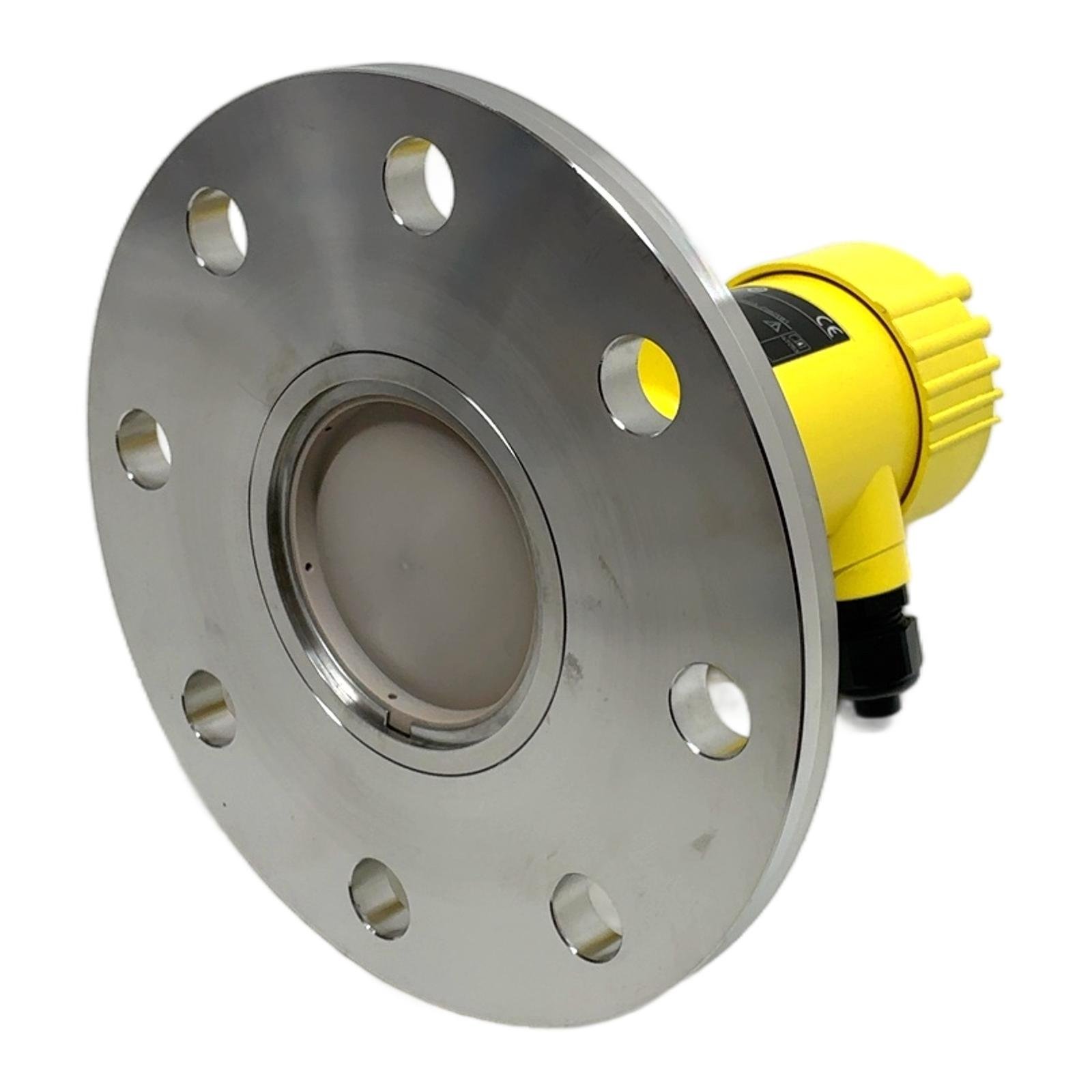

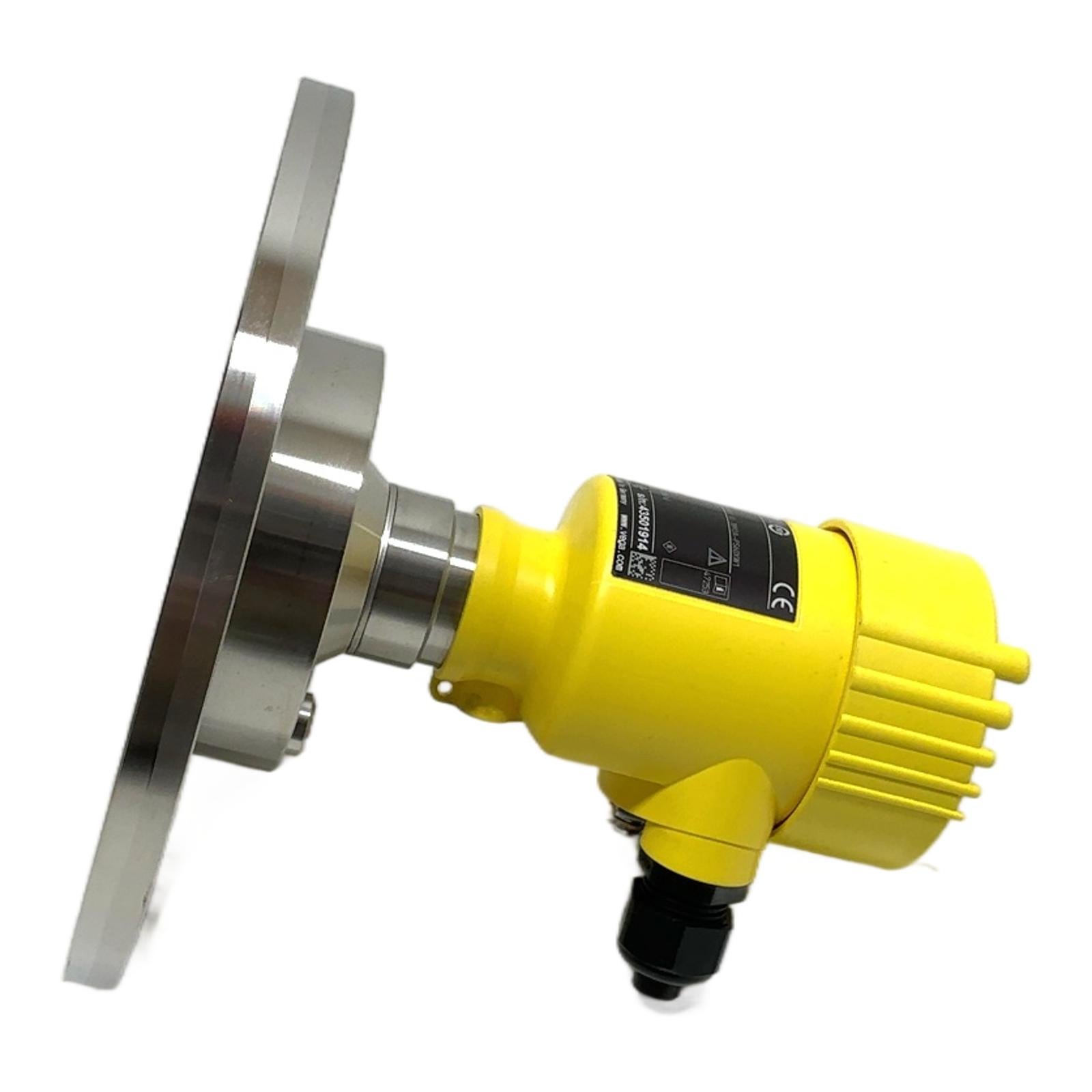

VEGA VEGAPULS 69 Radar Level Sensor Description The VEGAPULS 69 is a state-of-the-art sensor for continuous level measurement of bulk solids under various process conditions. Operating at a high frequency of 80 GHz, it provides excellent signal focusing, enabling reliable measurements in tall, narrow silos, even with internal installations or heavy dust generation. This particular unit comes equipped with a DN100 PN16 flange and features a 4-20mA HART two-wire output for seamless integration into existing control systems. Specifications Manufacturer: VEGA Model: VEGAPULS 69 Order Code: PS69.AXCFAAHXKMAXX Technology: 80 GHz Radar Measuring Range: max. 120 m Process Connection: Flange DN100 PN16 Process Pressure: -1 to +3 bar (-100 to +300 kPa) Wetted Parts Material: PEEK, FKM, 316L (1.4404) Output: 4-20mA HART two-wire Protection Rating: IP66/IP67 Display: Integrated PLICSCOM display/adjustment module Label Info Manufacturer: VEGA Grieshaber KG Model: VEGAPULS 69 Serial Number: 43501914 Year of Manufacture: 2019 Application Ideal for level measurement in silos, bunkers, and stockpiles containing bulk solids such as plastic granules, cement, grain, or wood chips. Its high-frequency technology makes it particularly suitable for applications with low-dielectric materials or challenging environments with dust and buildup. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you are helping to avoid approximately 114.0 kg of CO2 emissions associated with the production of a new unit. This is a significant contribution to sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main advantage of the 80 GHz frequency on the VEGAPULS 69?The 80 GHz frequency allows for a much narrower radar beam (as small as 3 degrees). This excellent signal focusing prevents interference from internal structures like agitators or buildup on the silo wall, resulting in higher measurement reliability compared to lower-frequency sensors. Can this sensor be configured without special software?Yes, this model is equipped with the PLICSCOM display and adjustment module. This allows for full configuration, commissioning, and diagnostics directly on the device using the four buttons and graphical display, without needing a separate HART communicator or PC software. Is the PEEK and 316L material combination suitable for abrasive bulk solids?Absolutely. The encapsulated antenna is made of PEEK, which offers excellent resistance to abrasion and chemical attack. The 316L (1.4404) stainless steel flange is a robust, corrosion-resistant material standard in the process industry, making the combination ideal for handling abrasive materials like sand or cement. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
