WOEHNER Eques 32459

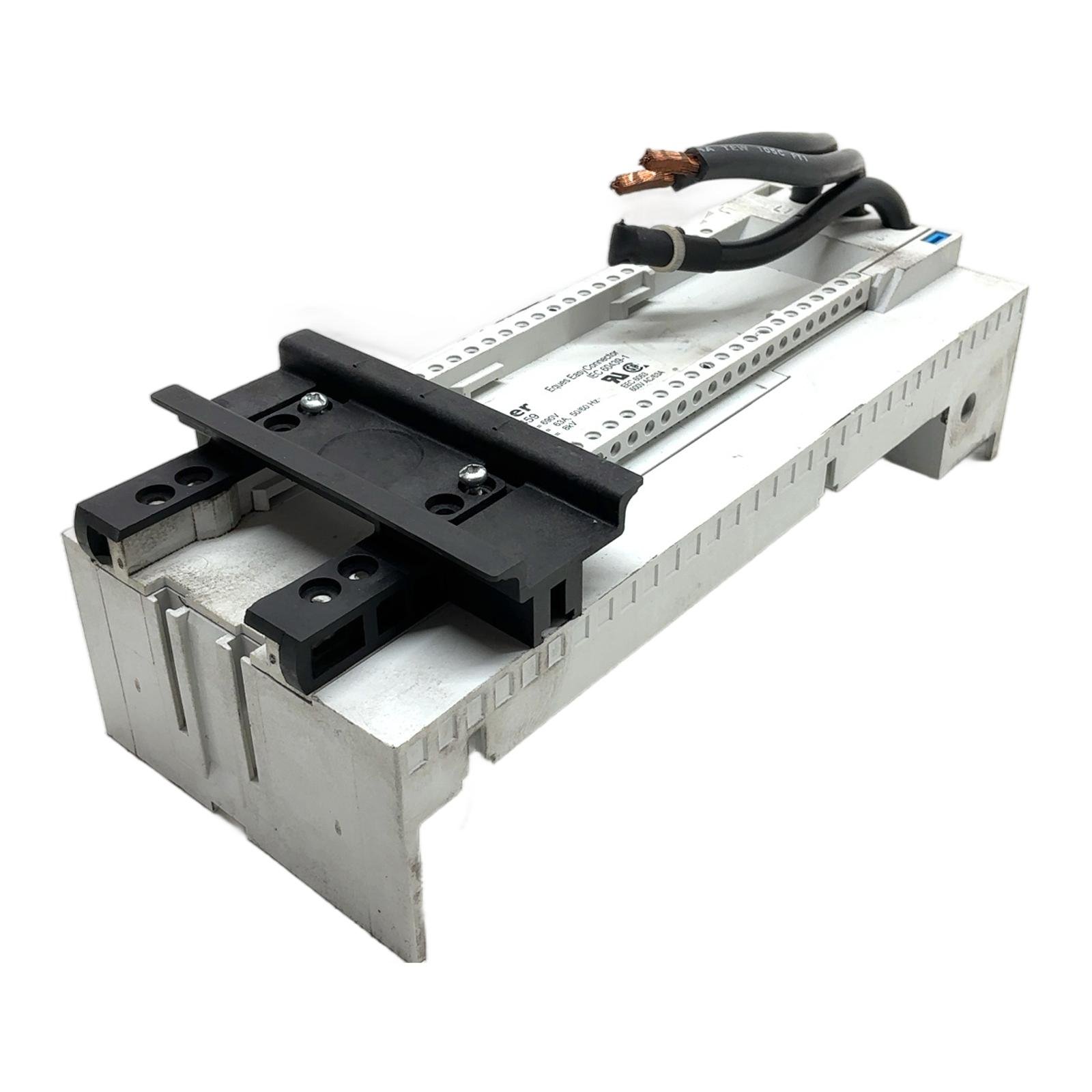

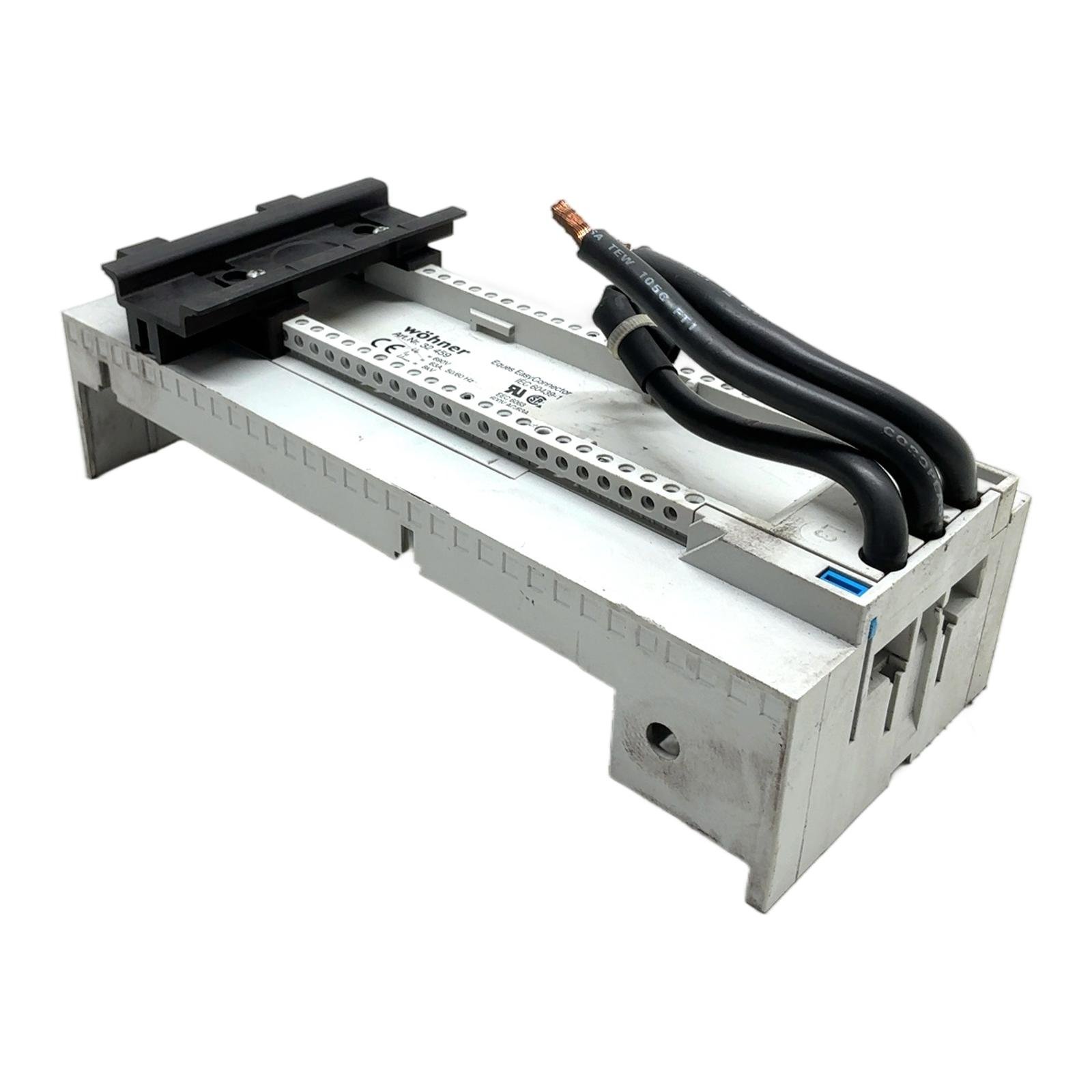

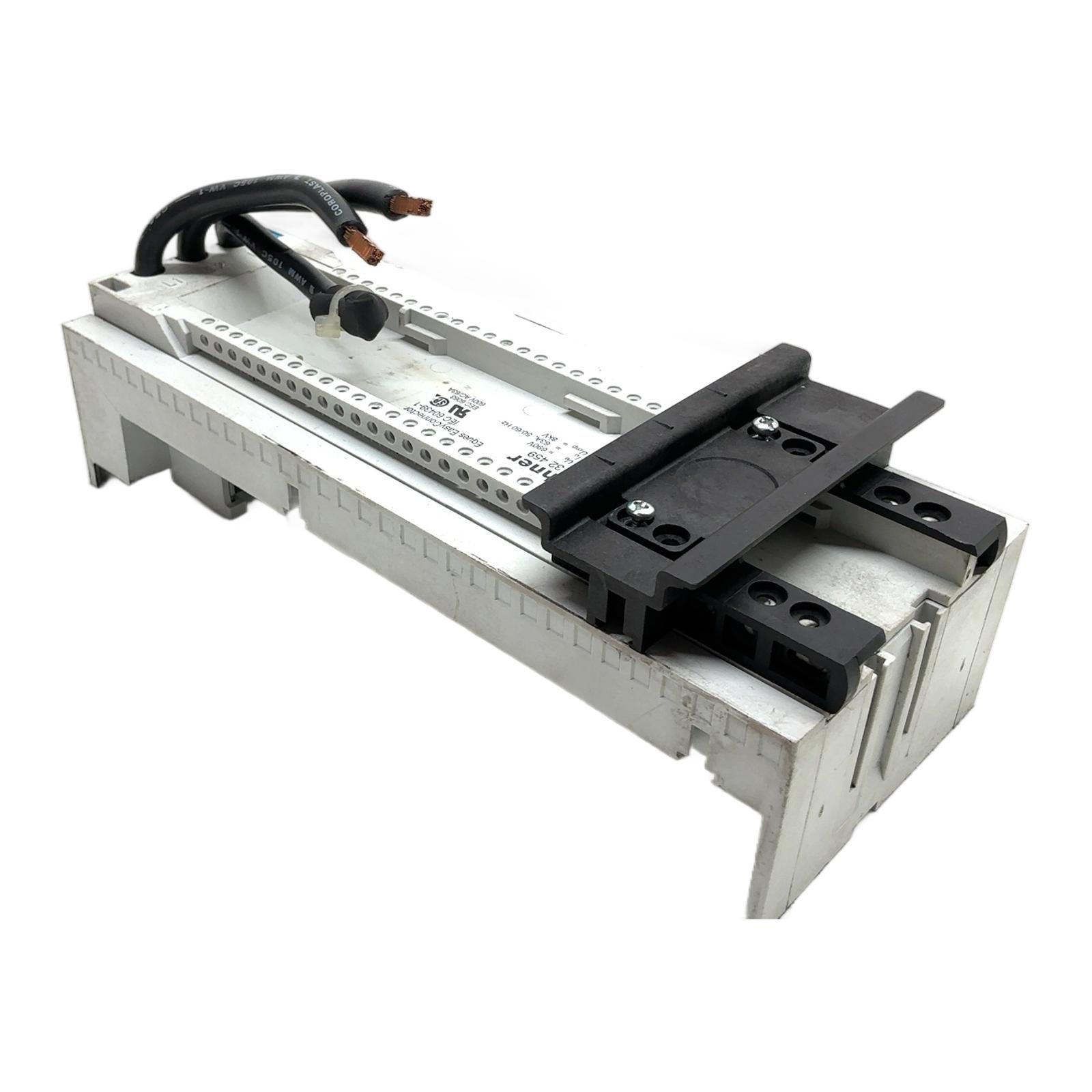

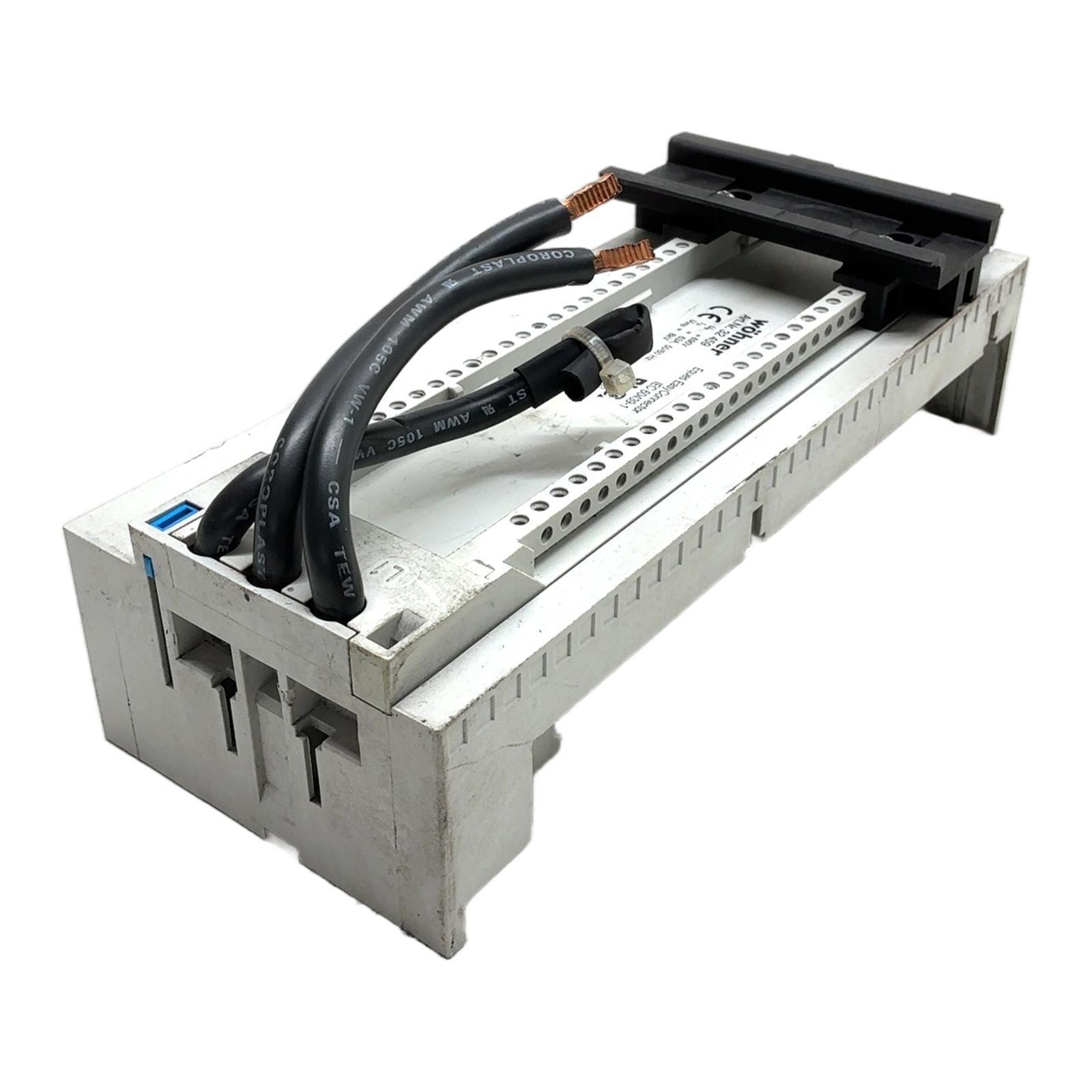

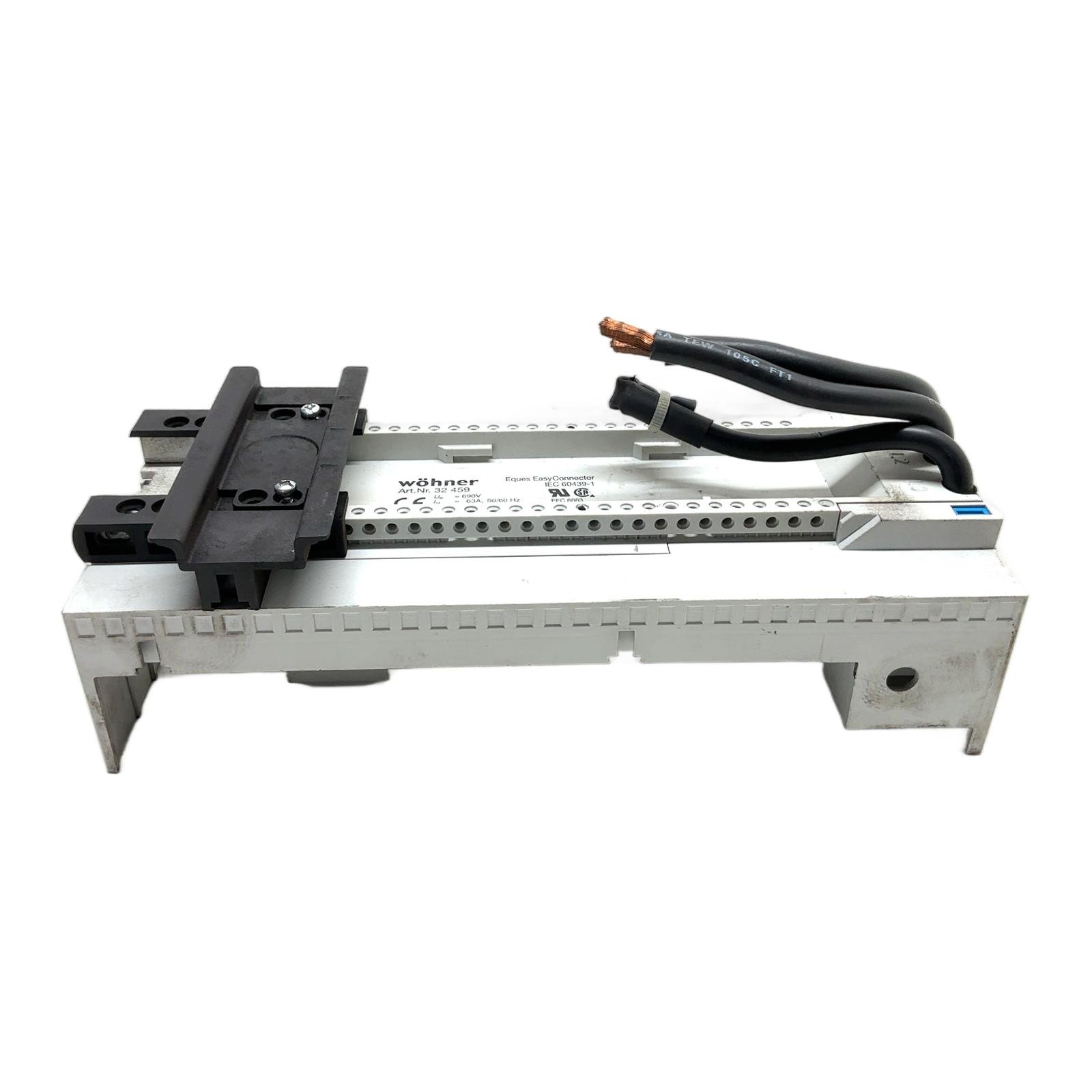

Woehner Eques 63A Busbar Adapter Description The Woehner 32 459 is an Eques EasyConnector busbar adapter designed for mounting standard DIN rail equipment onto a 60mm busbar system. This unit provides a safe, reliable, and fast method for power distribution within control cabinets, significantly reducing wiring time and complexity. Specifications Manufacturer: Woehner Model: Eques EasyConnector Article Number: 32 459 Rated Operational Voltage (Ue): 690V AC Rated Current (Iu): 63A Frequency: 50/60 Hz Rated Impulse Withstand Voltage (Uimp): 8kV Compatibility: For 60mm busbar systems Device Mounting: For devices with DIN rail mounting Label Info Brand: Woehner Art.Nr: 32 459 Standards: IEC 60439-1, EEC 6063 Approvals: UL, CSA (600V AC/63A) Application Ideal for use in industrial control panels, power distribution units, and machinery for connecting components such as circuit breakers, motor starters, and contactors to the main power bus. Country of Origin Made in Germany. CO2 Impact Opting for this reused Woehner adapter saves an estimated 16 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for approximately 80 km. Availability This item is a tested, used product in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum conductor cross-section for the terminal connections on this adapter?The terminals are typically designed for solid or stranded conductors up to a specific cross-section, often around 16mm squared for a 63A rating. Always consult the official datasheet for precise specifications. Is this adapter compatible with other busbar systems besides Woehner’s 60Classic?This adapter is specifically designed for 60mm busbar systems with a specific bar thickness. While it may fit other brands with identical dimensions, compatibility is only guaranteed with Woehner systems. What is the short-circuit withstand rating (Icw) for this adapter?The short-circuit rating is a system property that depends on the busbars and the upstream protective device. The adapter itself has a high conditional short-circuit current rating (Icc), typically in the range of several kiloamperes when protected by an appropriate fuse or breaker. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
