LEGRAND TFCE 42626

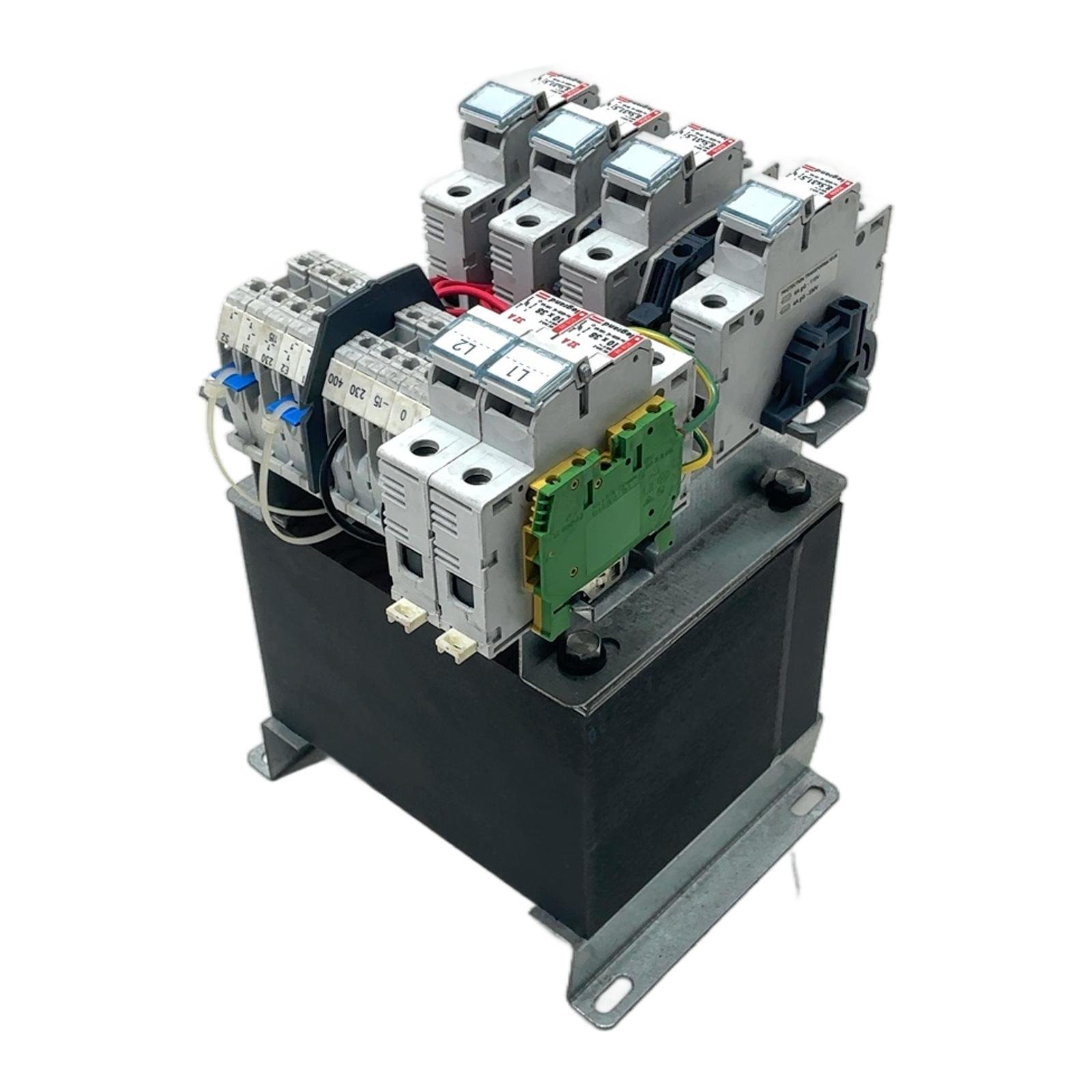

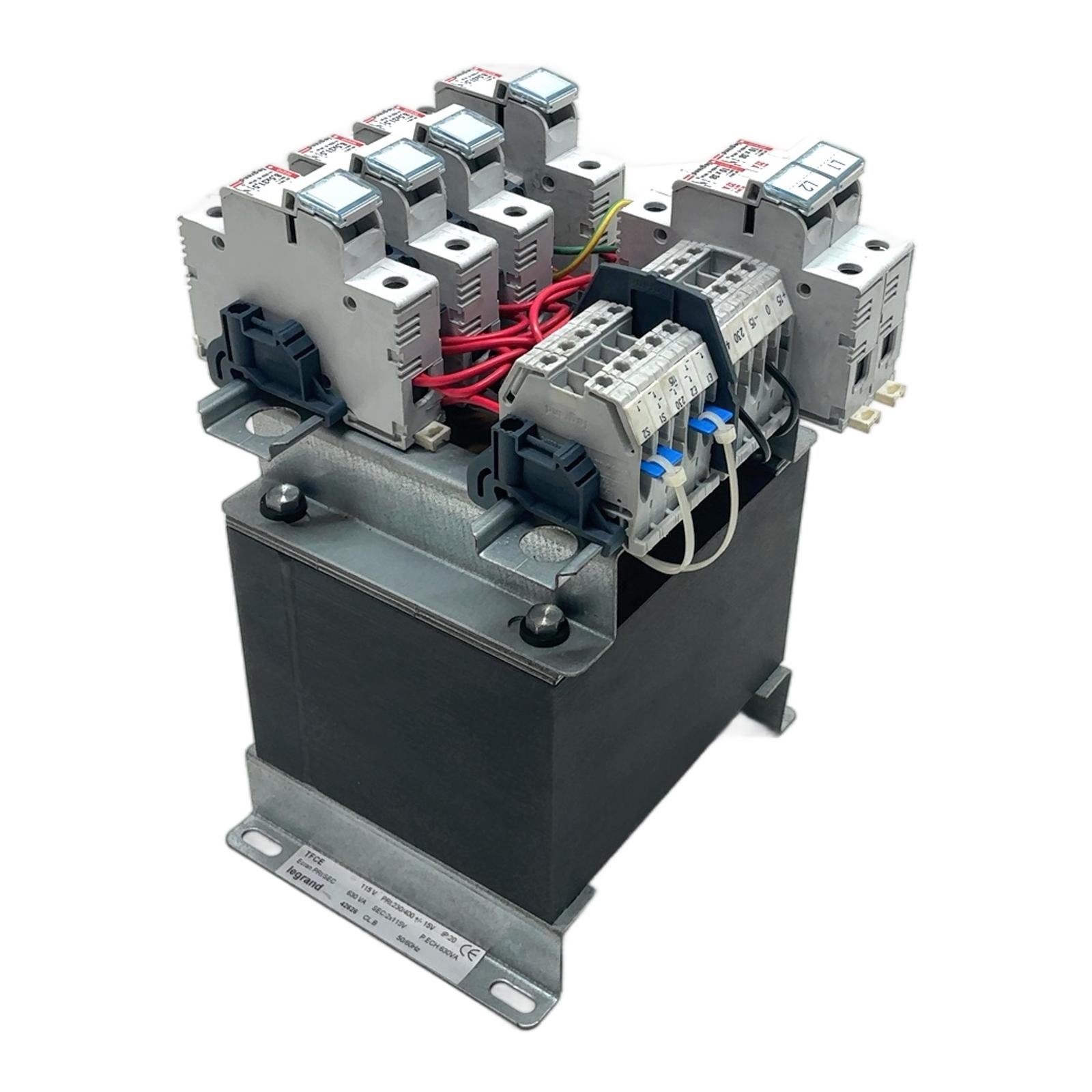

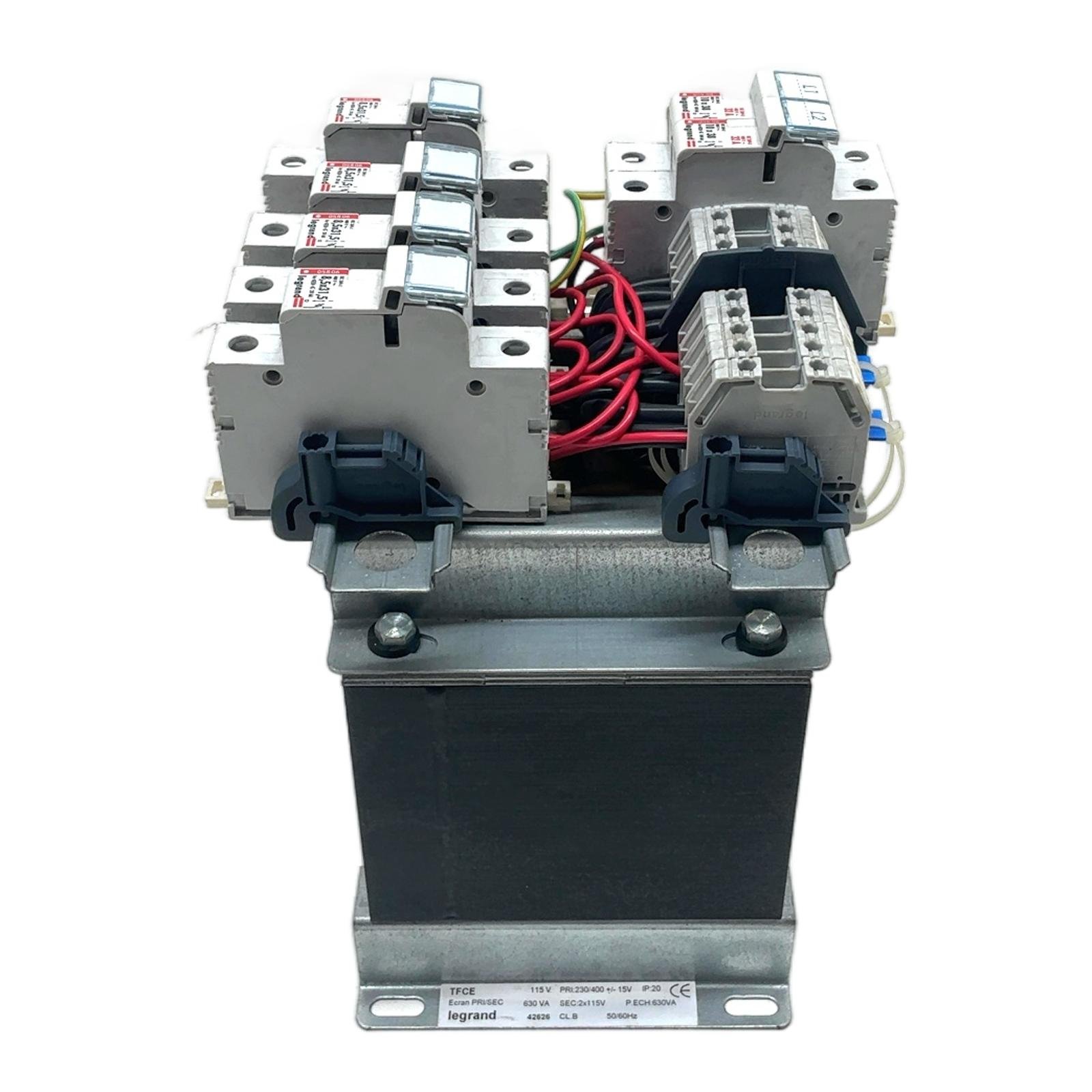

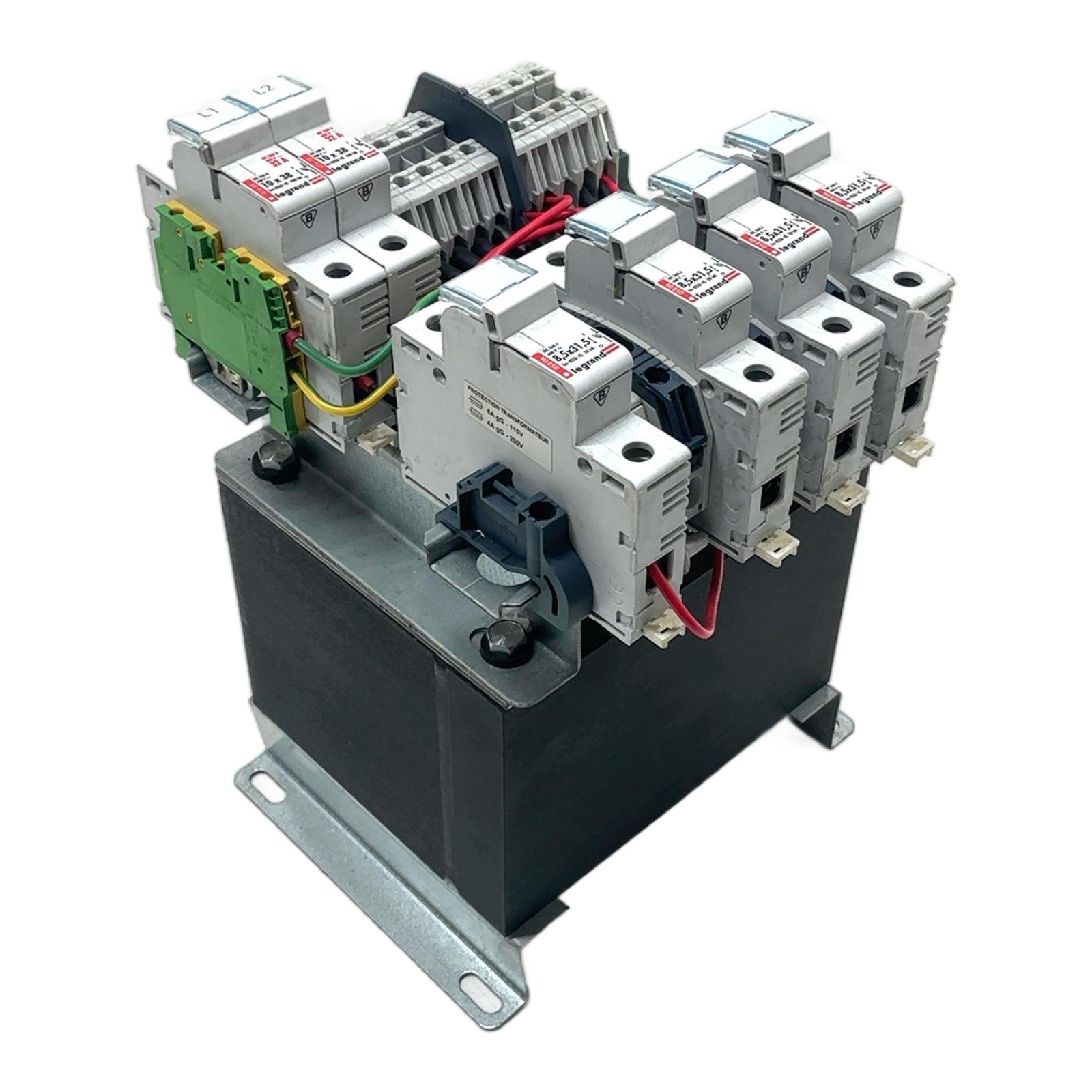

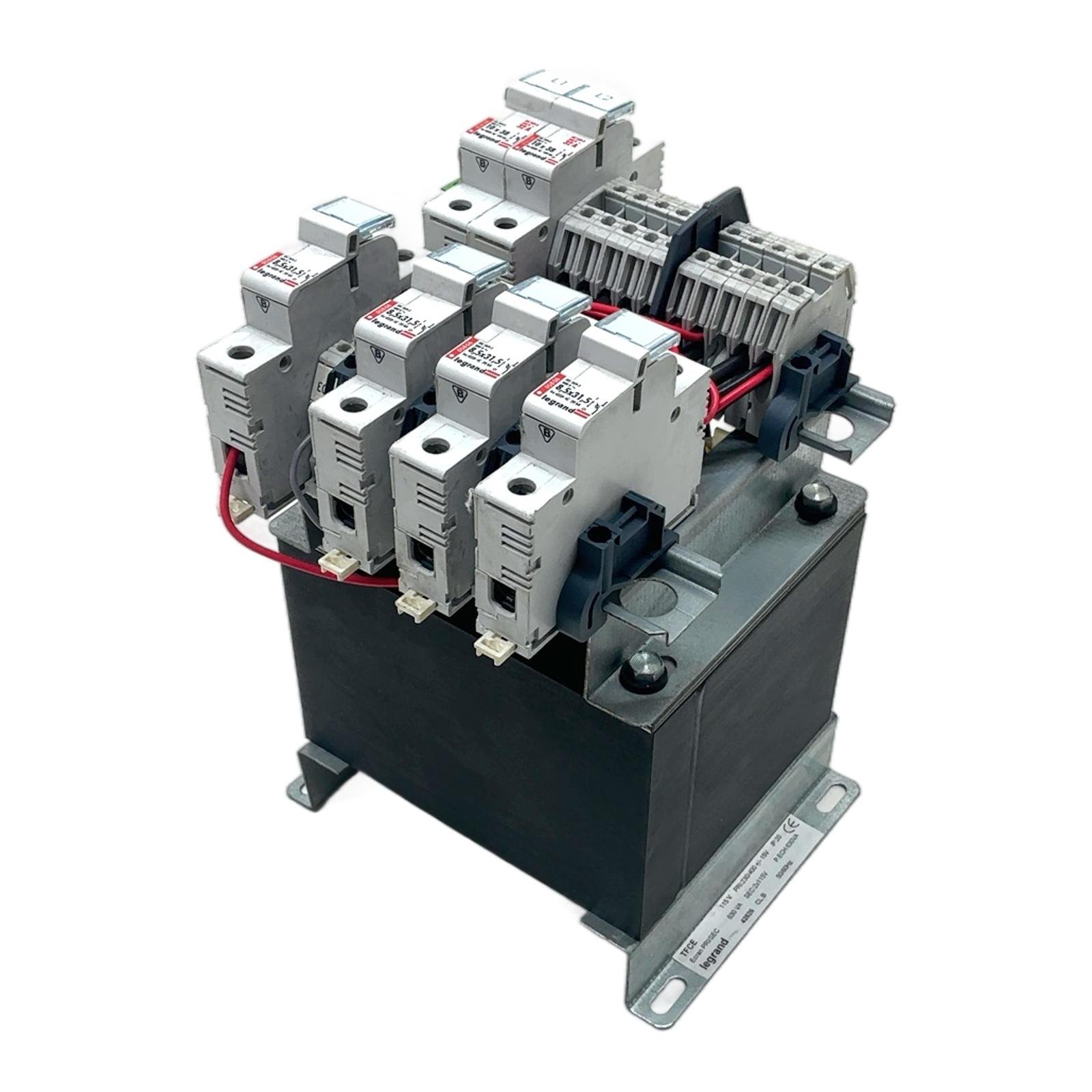

Legrand 630 VA Single-Phase Control Transformer Description This Legrand TFCE 426 26 is a robust single-phase control, safety, and isolating transformer. It is designed to provide reliable AC voltage for control circuits in industrial machinery and automation panels. With a power rating of 630 VA, it offers flexible input and output voltage options to suit various applications. This unit comes pre-assembled with terminal blocks and Legrand fuse holders for simplified installation and circuit protection. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Legrand Type: TFCE 426 26 Power Rating: 630 VA Primary Voltage: 230/400 V AC (+/- 15 V) Secondary Voltage: 115/230 V AC Frequency: 50/60 Hz Phase: Single-phase Label Info Type: TFCE Ref: 426 26 PRI: 230/400V +/-15V SEC: 115/230V Power: 630VA Application Ideal for powering control systems, contactors, relays, and other automation components that require a stable and isolated power source within an industrial control cabinet. Country of Origin Made in Italy. CO2 Impact By purchasing this pre-owned item, you are helping to avoid approximately 57.0 kg of CO2 emissions that would be generated from manufacturing a new one. Availability This is an obsolete item, but it is available from our stock. Limited quantities are available. FAQ How do I select between the 230V and 400V primary inputs?You need to connect your input power lines to the appropriate terminals on the primary side of the transformer. The terminal block is typically marked. For 230V, you would use terminals 0 and 230. For 400V, you would use terminals 0 and 400. Always consult the wiring diagram for this specific model before making any connections. Can the secondary side output 115V and 230V simultaneously?No, this transformer is designed to provide either 115V or 230V on the secondary side, not both at the same time. The output voltage is determined by how the secondary windings are connected. This configuration must be set before operation. What is the IP rating of this transformer assembly?This is an open-style transformer (IP00) intended for installation inside a protective enclosure, such as a control cabinet. The terminals are exposed, and it does not offer protection against dust or water ingress. It must be mounted in an enclosure that provides the required environmental protection. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
