BELDEN RKWT/LED P 4-225/5 M 934 656 105

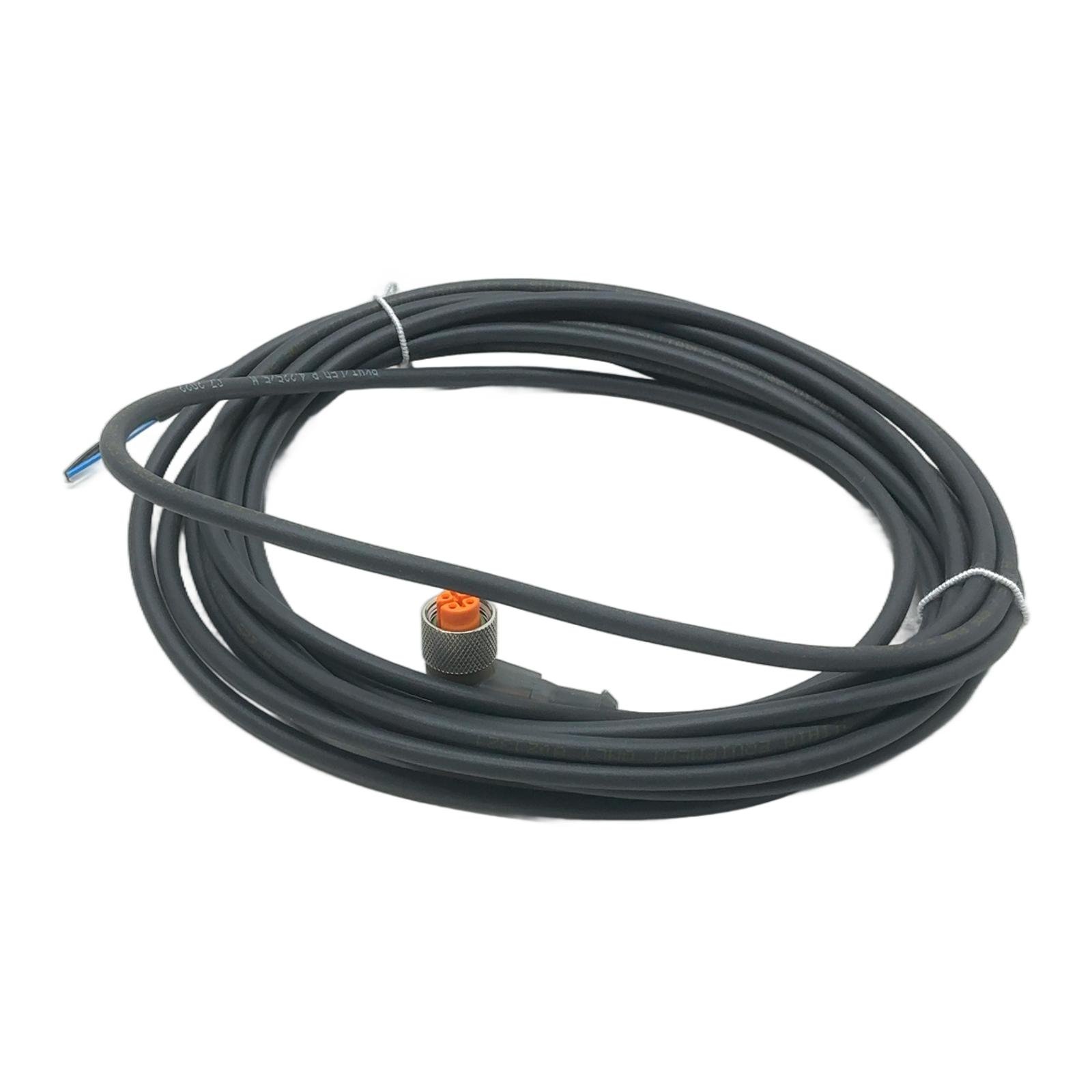

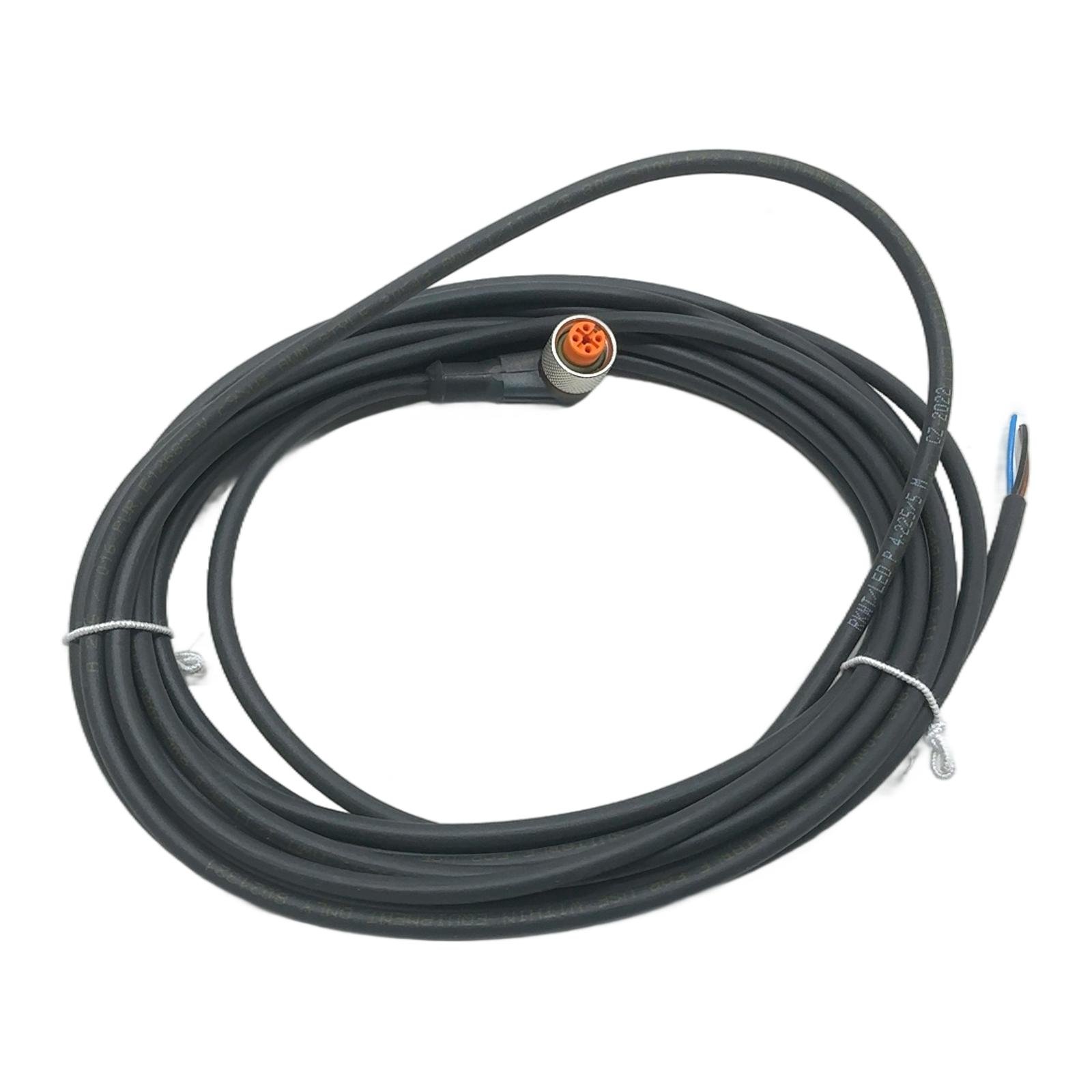

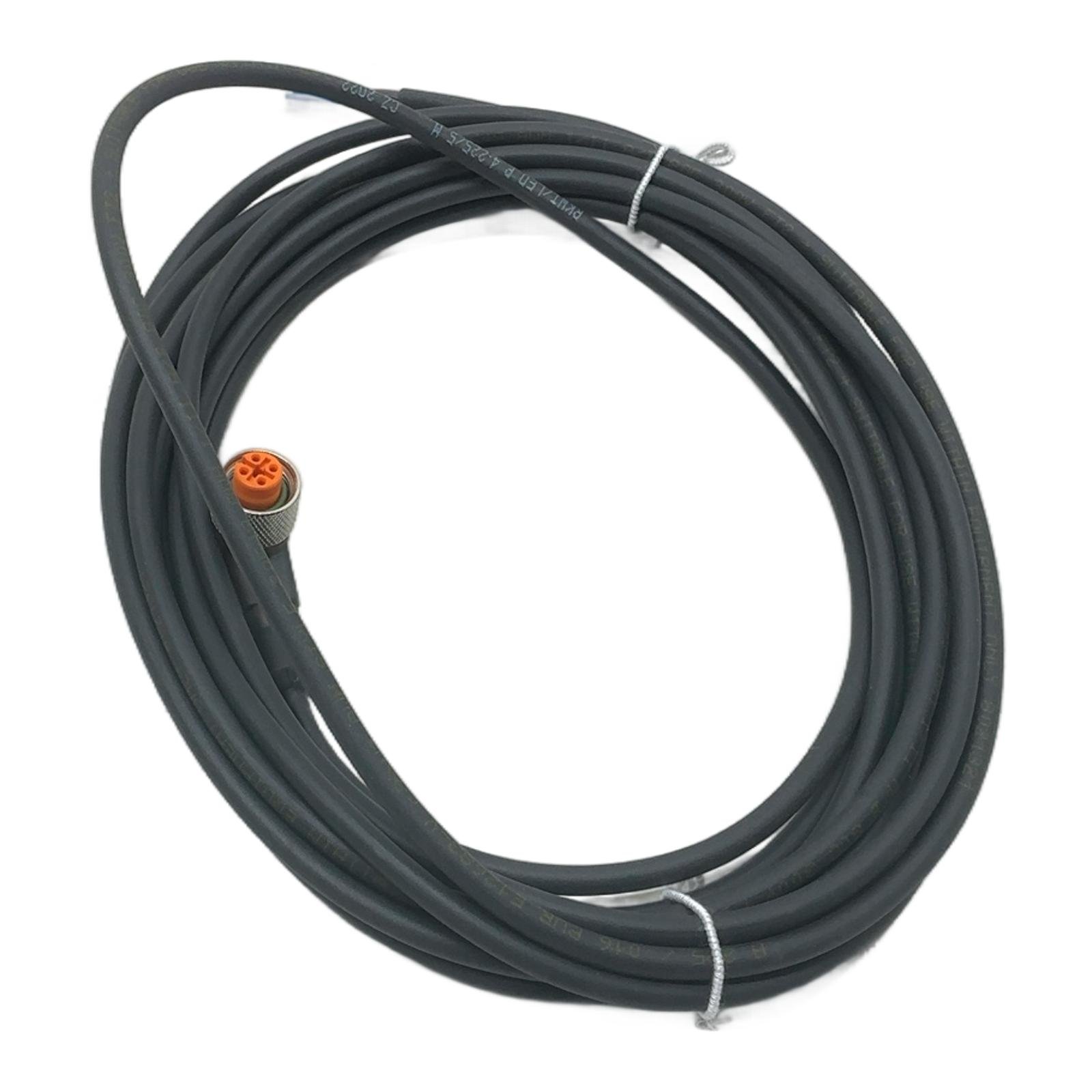

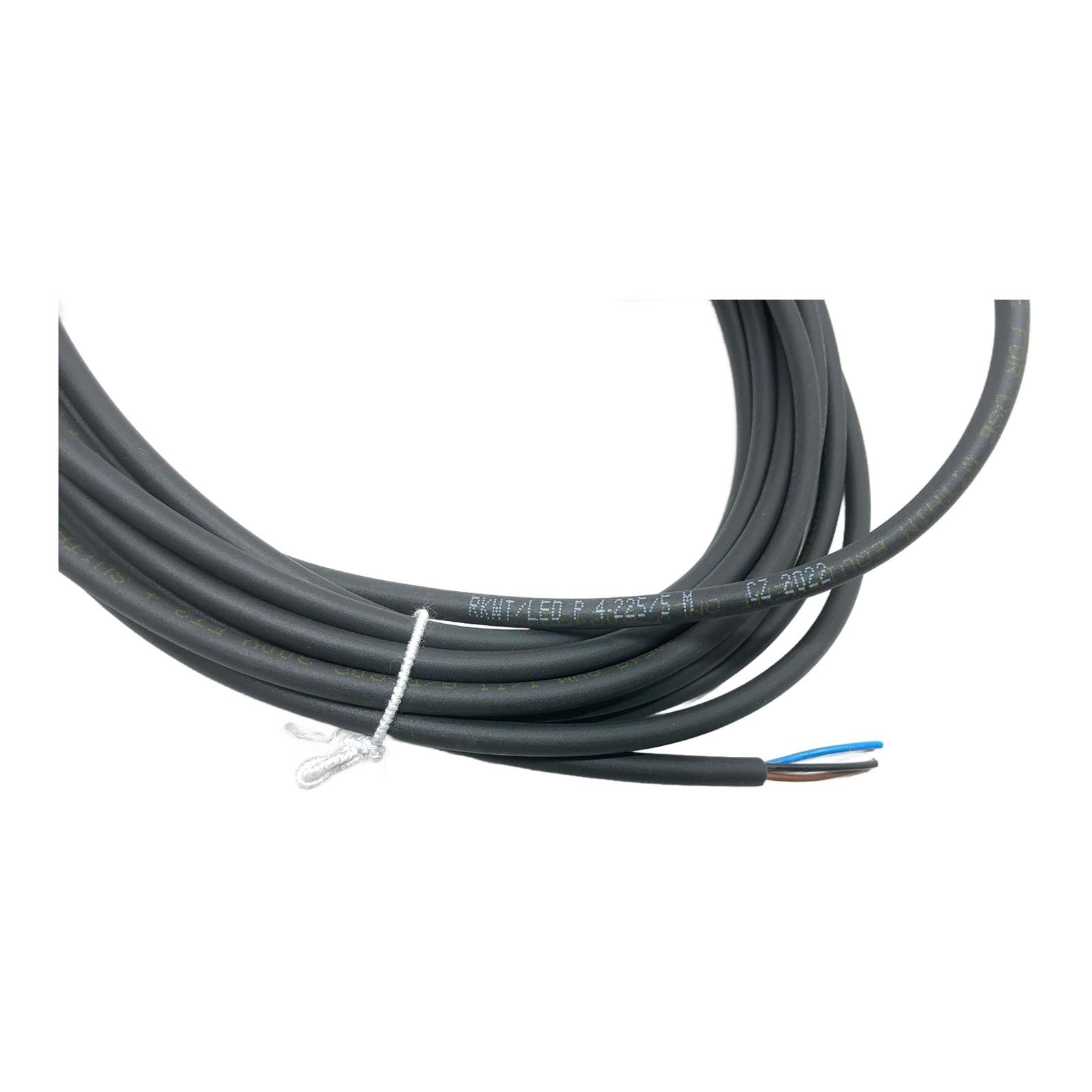

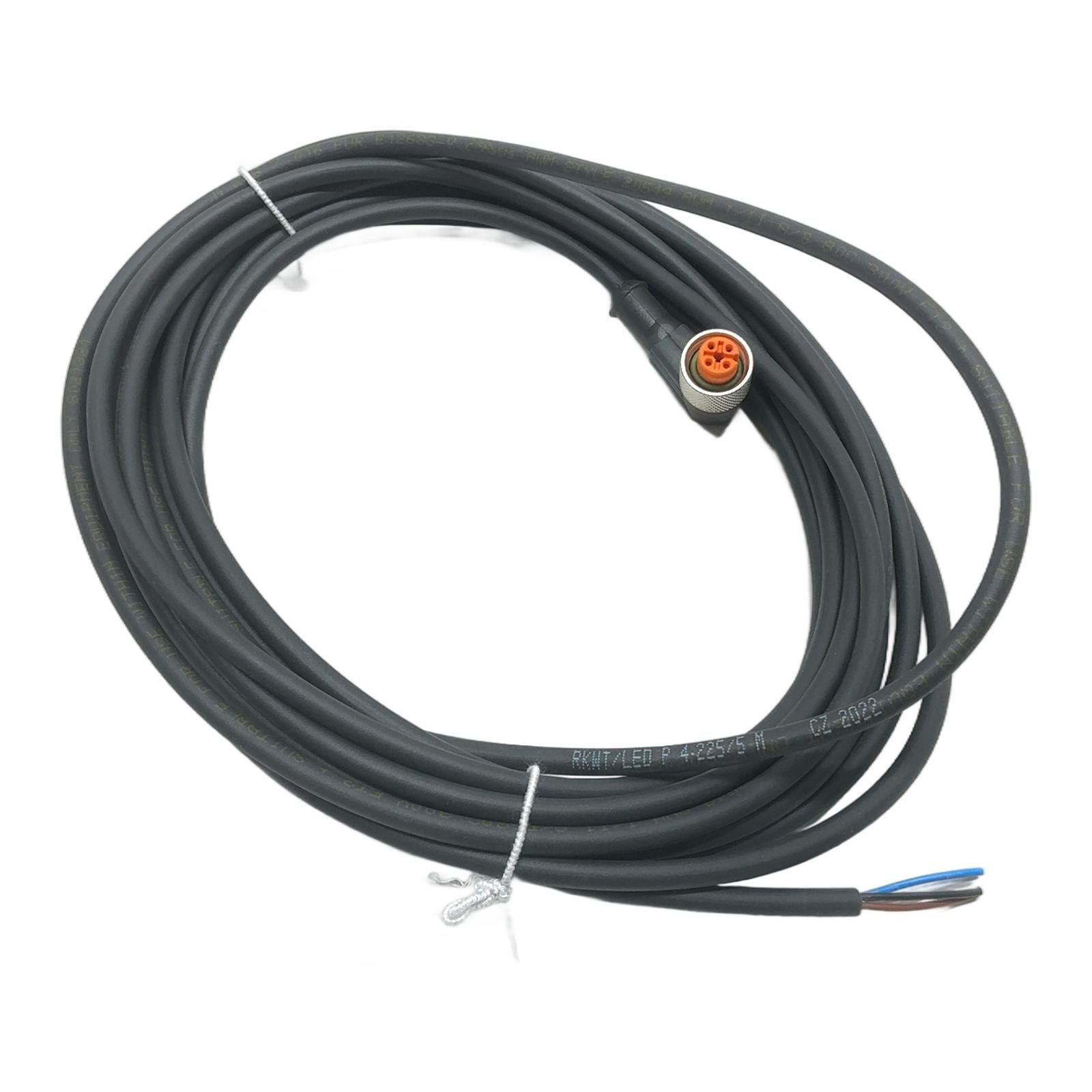

Belden 5m Sensor/Actuator Cable with M12 Connector Description This is the Belden (Lumberg Automation) sensor/actuator cordset, model RKWT/LED P 4-225/5 M with part number 934 656 105. It is a single-ended cable assembly featuring a robust, angled female M12 connector and 5 meters of high-quality PUR cable. The integrated LEDs provide instant visual feedback on operational status, making it ideal for automation, robotics, and manufacturing applications where reliability and quick diagnostics are essential. Specifications Manufacturer: Belden (Lumberg Automation) Part Number: 934 656 105 Model: RKWT/LED P 4-225/5 M Connector Type: M12 Female, Angled Number of Poles: 4-Pole, A-Coded Cable Length: 5 meters Cable Jacket Material: PUR (Polyurethane), black LED Indicators: 3 (Power, N/O, N/C) Operating Voltage: 10-30V DC Protection Class: IP67 / IP69K (when properly mated) Label Info On Cable: RKWT/LED P 4-225/5 M Date Code: CZ-2022 Application Perfect for connecting sensors, actuators, and other field devices in industrial automation systems. The durable PUR jacket ensures longevity in environments with exposure to oils, chemicals, and mechanical stress. Country of Origin This product is manufactured in the Czechia. CO2 Impact Choosing this reused industrial part saves an estimated 10.0 kg of CO2, equivalent to the emissions from driving a standard car for 50 kilometers. Make a sustainable choice for your operations. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What do the LEDs on the M12 connector indicate?The three LEDs provide visual status for power (green), and switching states for normally open (N/O – yellow) and normally closed (N/C – yellow) signals, which is typical for PNP sensors. What is the benefit of the PUR (Polyurethane) cable jacket?A PUR jacket offers excellent resistance to oils, coolants, and chemicals, as well as high abrasion resistance. This makes the cable suitable for use in demanding industrial environments like machine tools and automotive manufacturing. Is this cable suitable for drag chain (C-track) applications?While the PUR jacket is durable, this specific model (225 cable type) is not explicitly rated for high-flex or continuous motion in drag chains. For such applications, a cable with a specific high-flex rating should be selected. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
