HYDAC 4WE 10 J S01-24DG/V 6063163

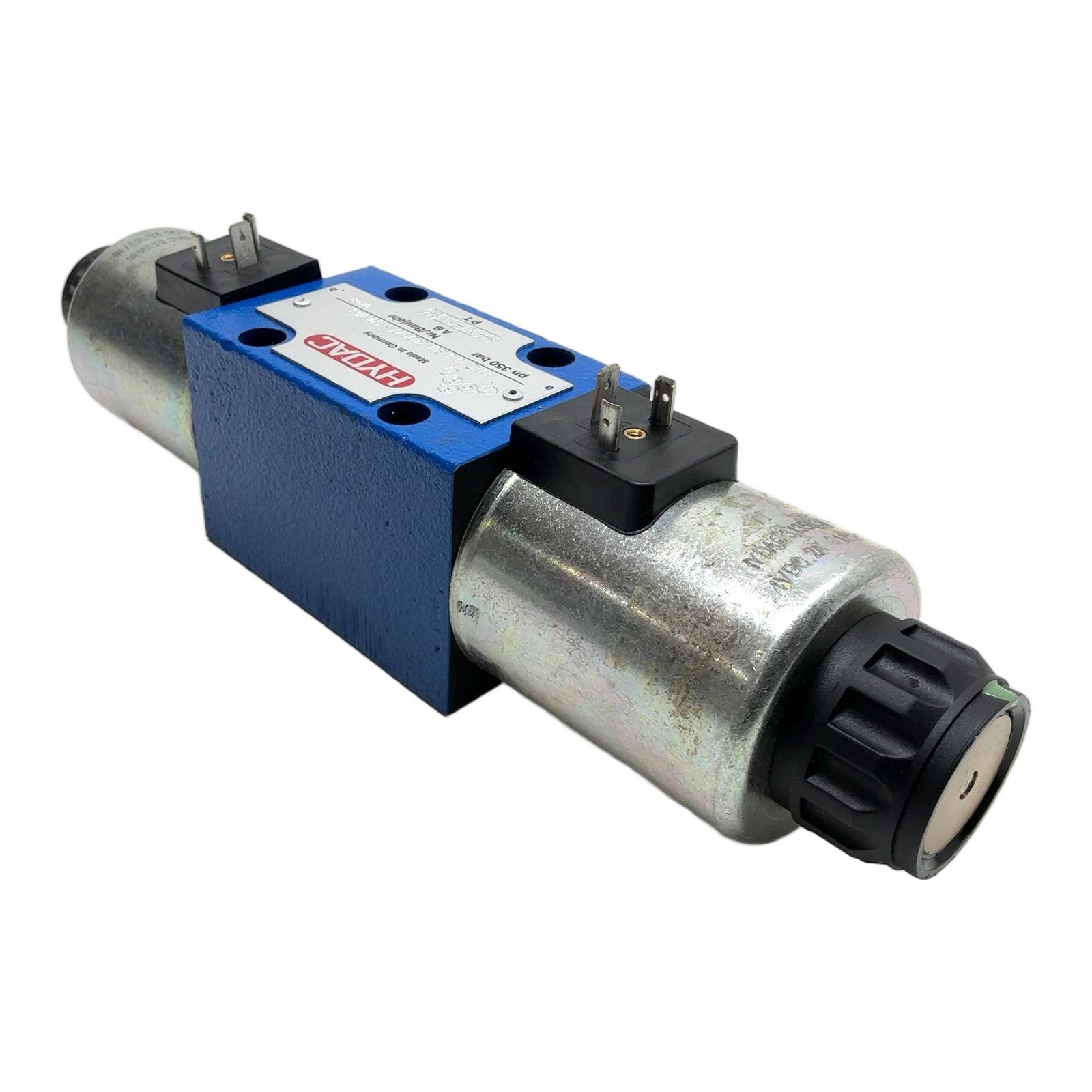

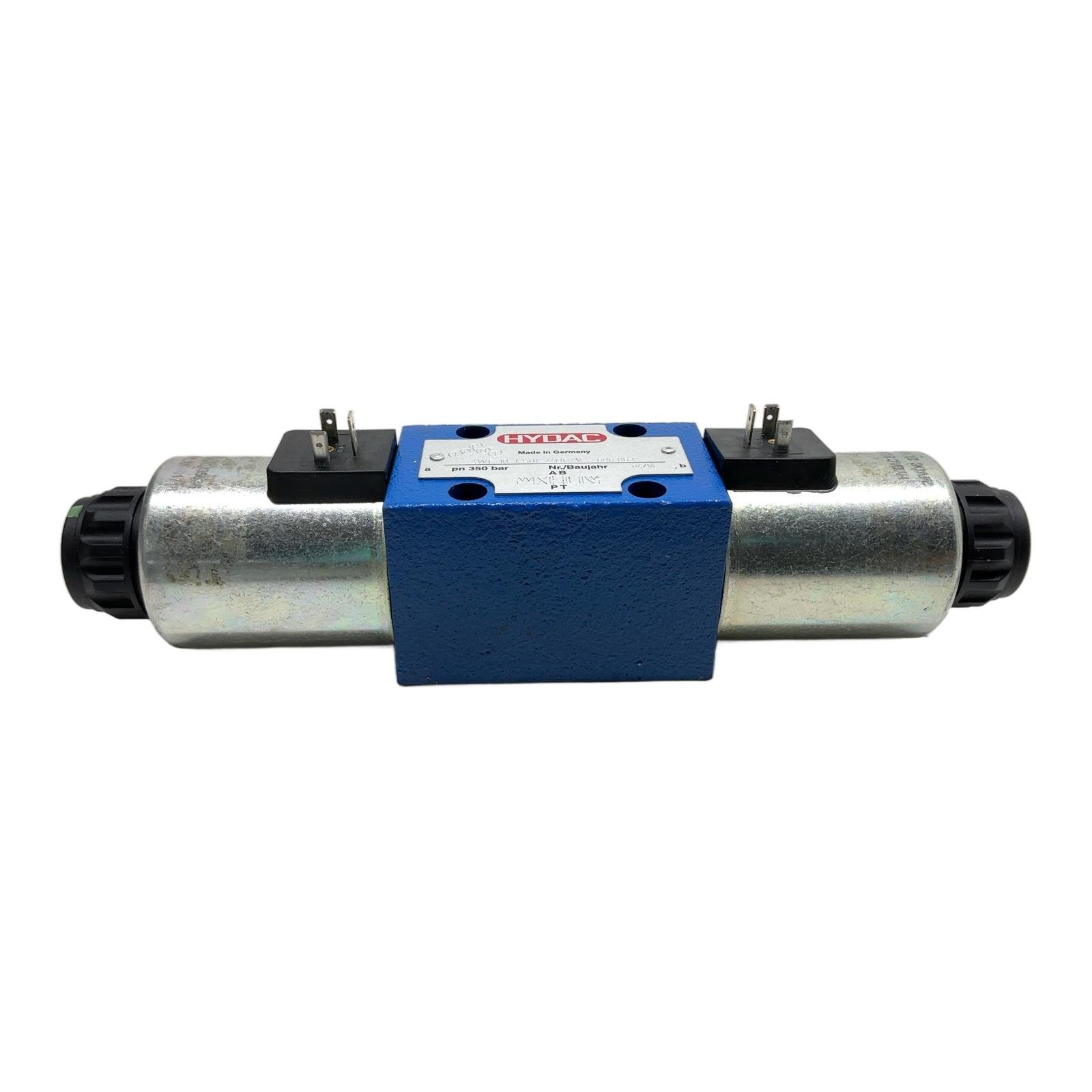

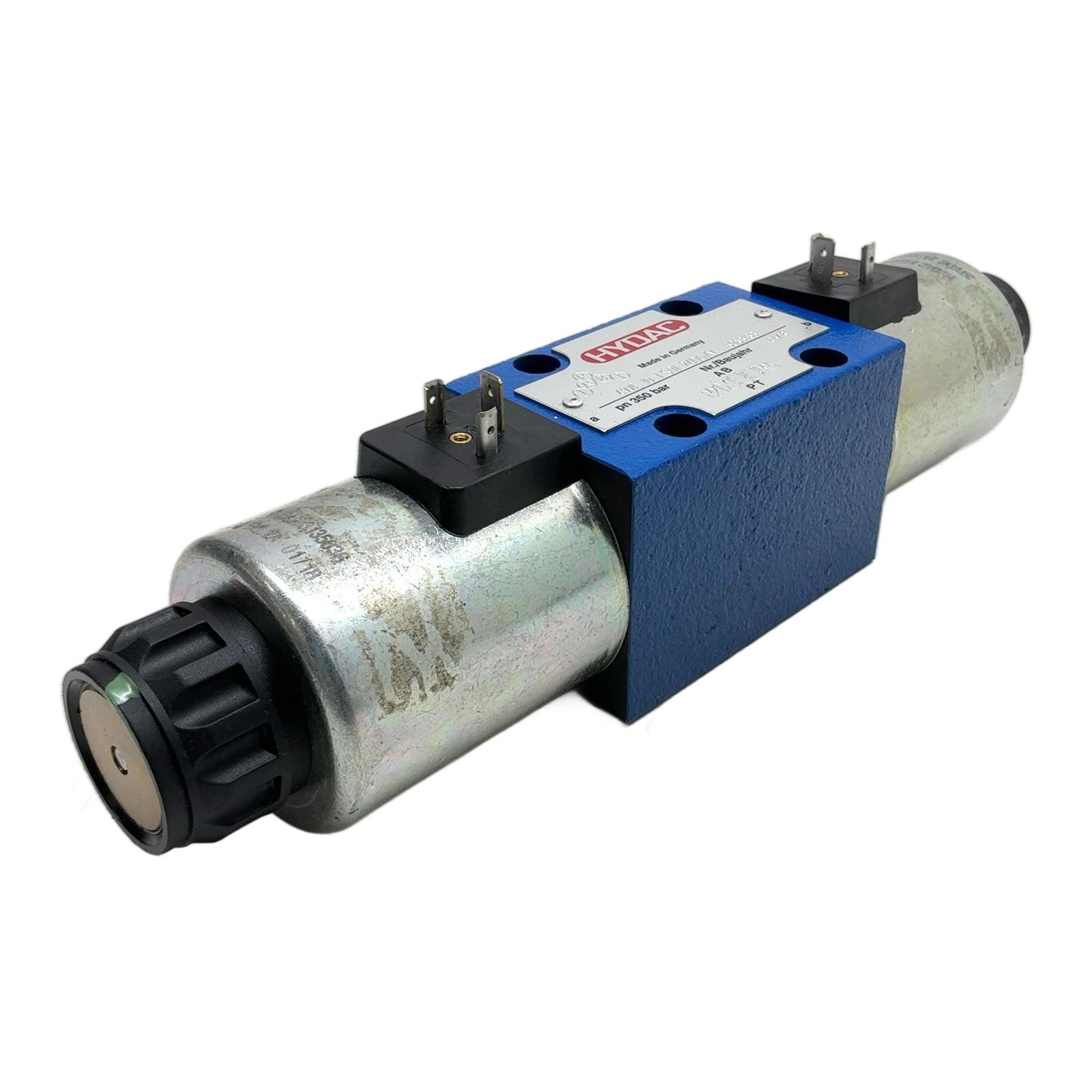

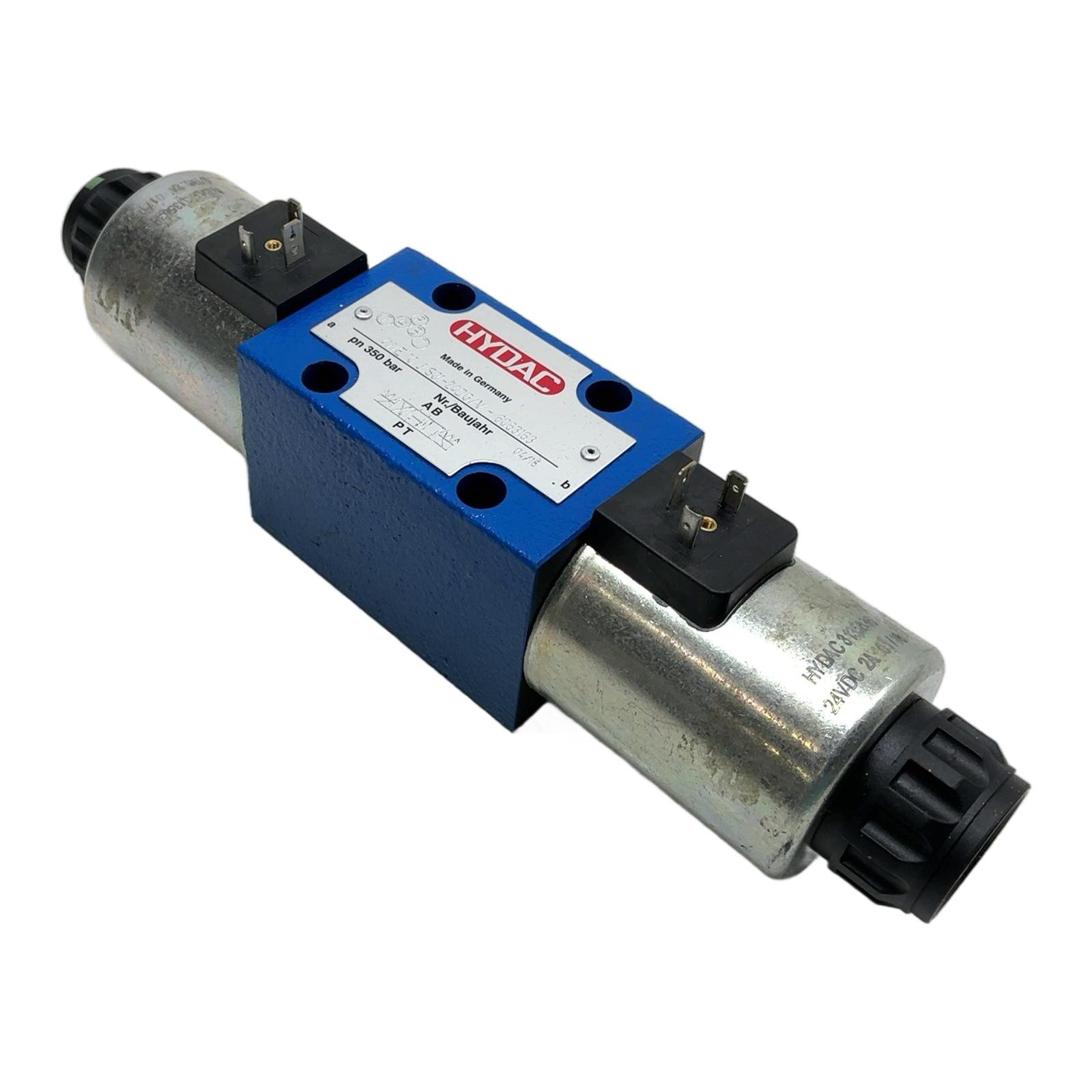

HYDAC 4WE 10 J S01-24DG/V Solenoid Directional Valve Description This is a HYDAC 4WE 10 series solenoid-operated directional spool valve. It is designed for controlling the start, stop, and direction of fluid flow in a hydraulic system. This specific model is a 4-way, 3-position valve with a ‘J’ type spool, which blocks all ports in the neutral position. It is built for reliability and high performance in demanding industrial environments. Specifications Manufacturer: HYDAC Model: 4WE 10 J S01-24DG/V Part Number: 6063163 Nominal Size: NG10 (CETOP 5) Maximum Operating Pressure: 350 bar Actuation: Solenoid-operated, 24V DC Coil Part Number: 3135636 Spool Type: J (Closed-center) Seals: Viton (V) Features: Manual override Label Info pn 350 bar Nr./Baujahr: 04/18 (April 2018) Application This valve is suitable for a wide range of applications, including machine tools, presses, plastic injection molding machines, and mobile hydraulic systems where precise control and a secure load-holding function are required. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned valve saves approximately 9.8 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable industrial operation. Availability In stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the “J” spool type in this 4WE 10 valve?The ‘J’ spool is a closed-center configuration. In the neutral (unactuated) position, it blocks all ports (P, T, A, and B), effectively locking a hydraulic actuator in place and preventing fluid flow. Are the 24VDC coils (part no. 3135636) individually replaceable?Yes, the coils are designed for easy replacement without needing to open the hydraulic circuit. You can simply unscrew the retaining nut, slide the old coil off the armature tube, and install the new one. What type of electrical connector is required for these coils?These coils use a standard DIN 43650-A / ISO 4400 (EN 175301-803) connector, which is a very common interface for industrial solenoid valves. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
