FESTO DSW-32-50P B 161423

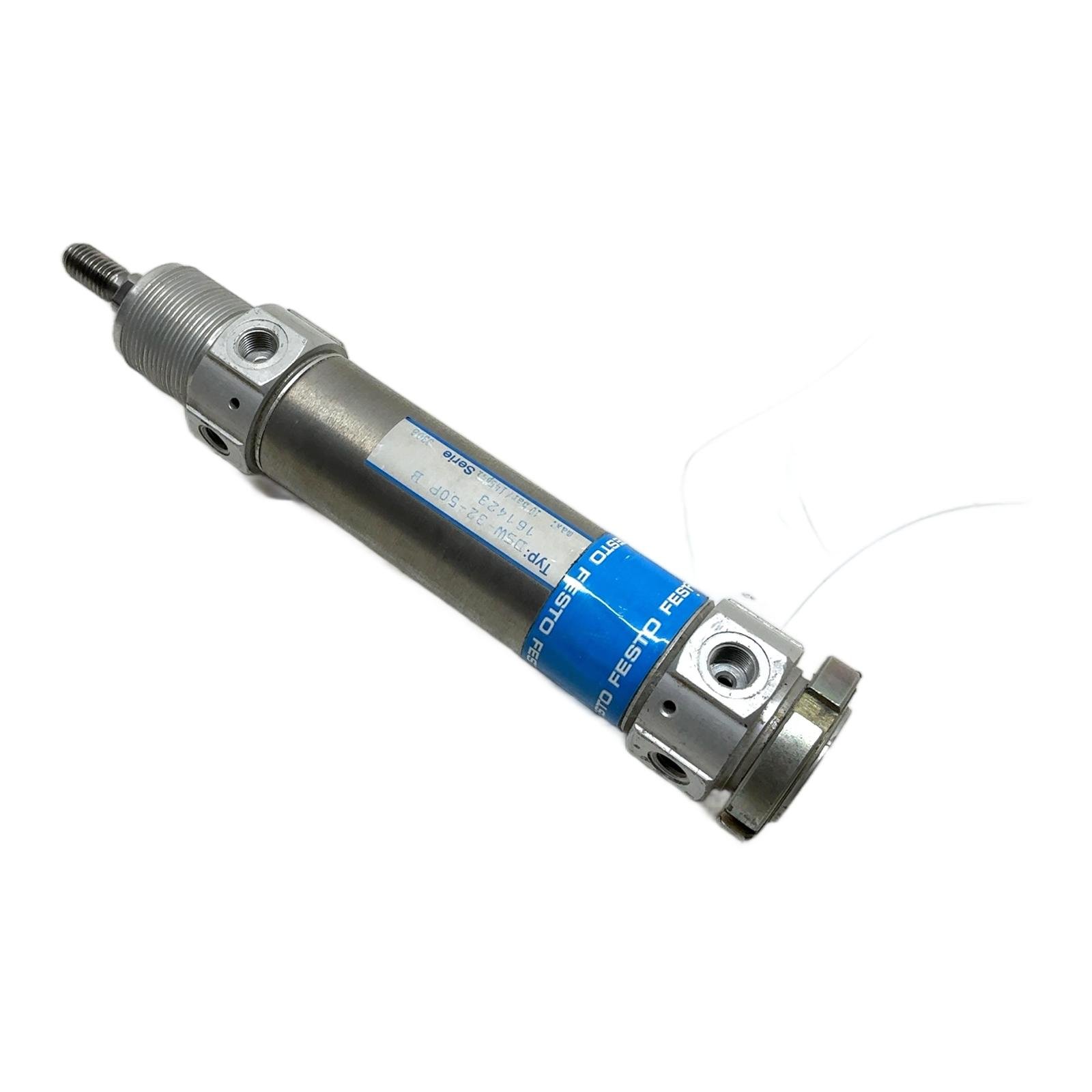

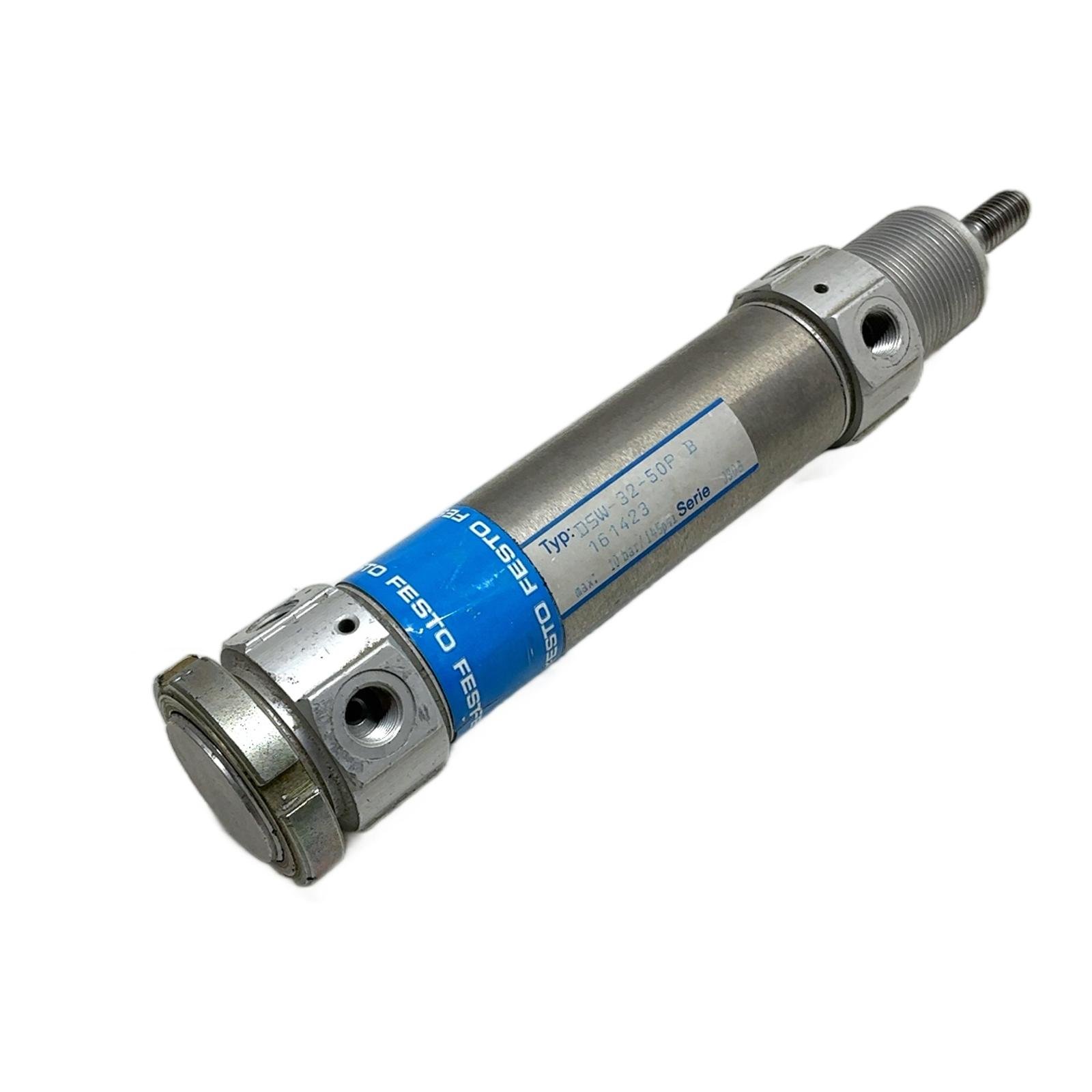

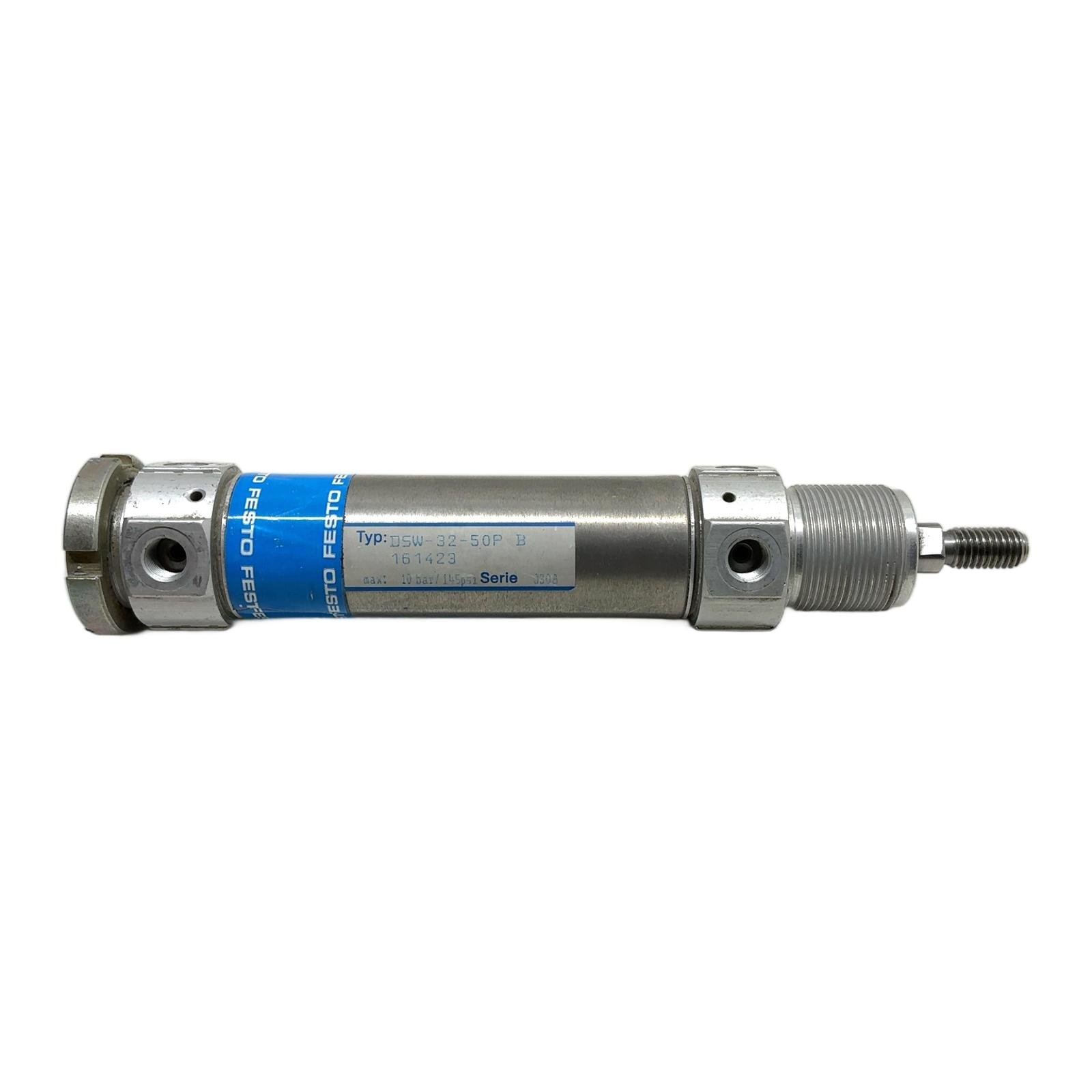

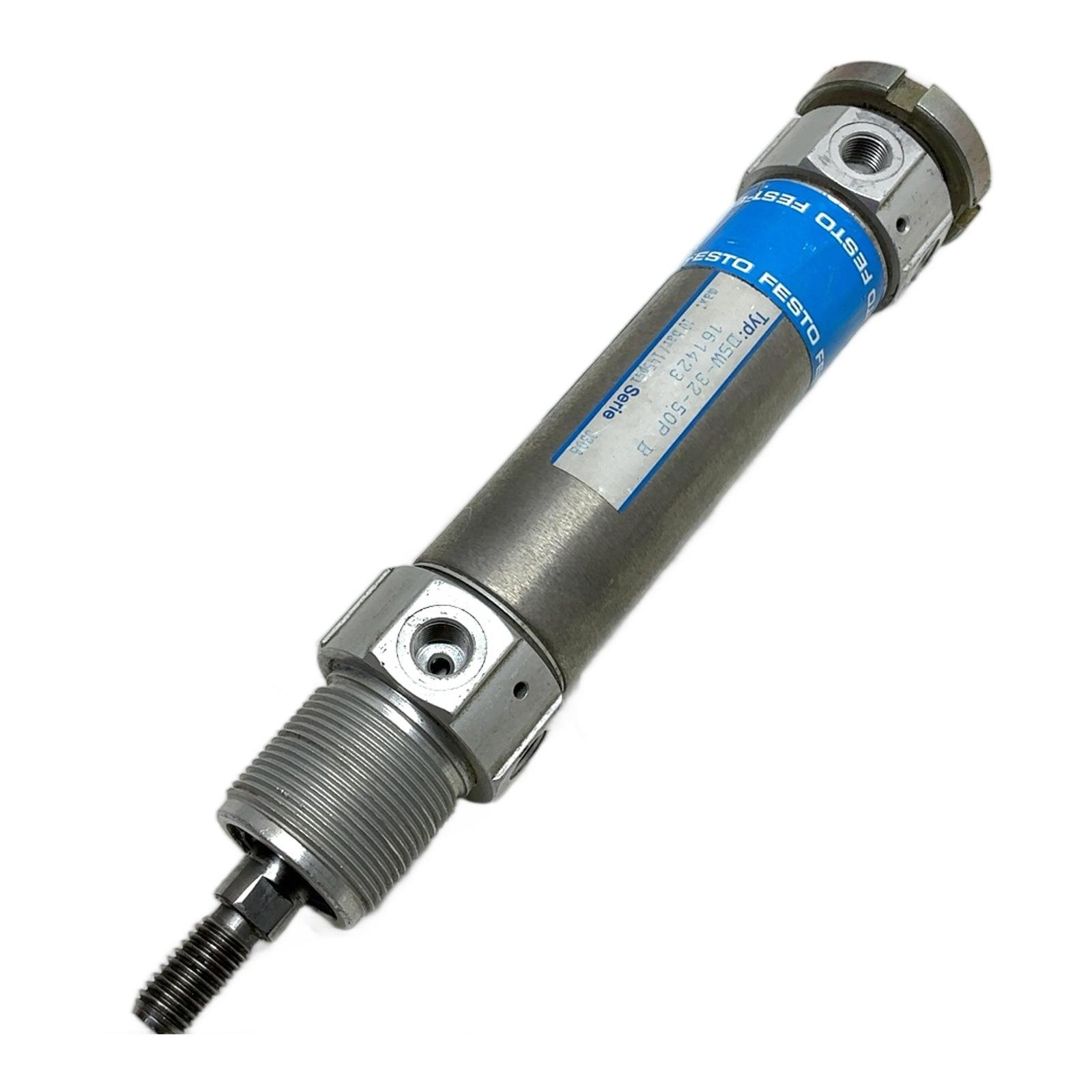

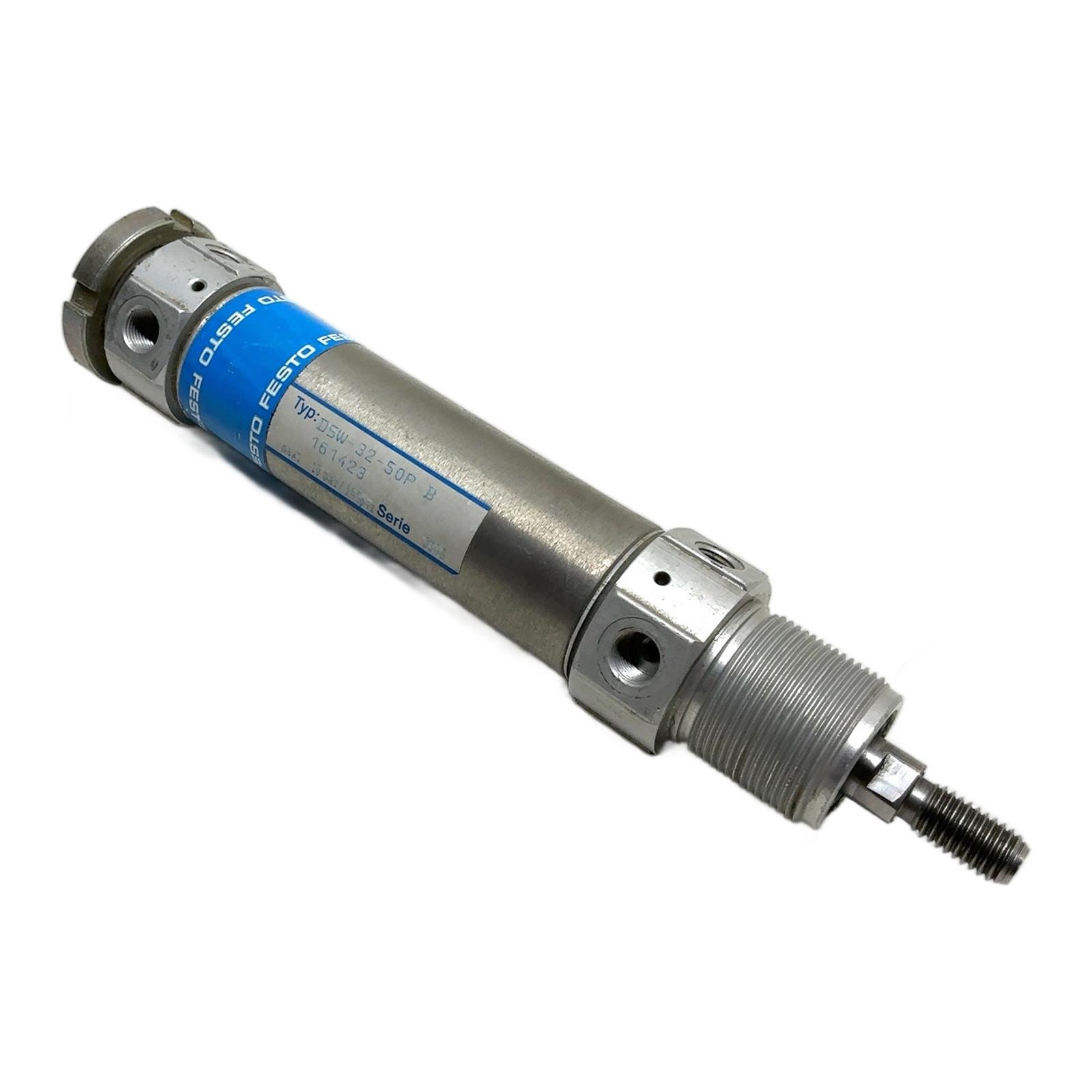

Festo DSW-32-50P B Pneumatic Round Cylinder Description The Festo DSW-32-50P B is a high-quality, double-acting pneumatic round cylinder designed for reliable operation in various industrial applications. With a piston diameter of 32 mm and a stroke of 50 mm, it provides precise linear motion. The integrated adjustable pneumatic cushioning at both ends ensures smooth deceleration, reducing wear and extending the service life of both the cylinder and the machine. This cylinder is engineered to withstand pressures up to 10 bar. Specifications Manufacturer: Festo Type: Pneumatic Round Cylinder Model: DSW-32-50P B Part Number: 161423 Piston Diameter (Bore): 32 mm Stroke Length: 50 mm Action: Double-acting Cushioning: Pneumatic, adjustable at both ends Maximum Operating Pressure: 10 bar / 145 psi Piston Rod Thread: M10x1.25 Label Info Typ: DSW-32-50P B Part No: 161423 Max Pressure: 10 bar / 145psi Application This cylinder is ideal for automation tasks requiring linear movement, such as clamping, positioning, pushing, and lifting in manufacturing, packaging, and material handling systems. Country of Origin Made in Germany. CO2 Impact Opting for a reconditioned component like this Festo cylinder saves approximately 4.0 kg of CO2 compared to manufacturing a new one. This choice supports sustainable industrial practices. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does the ‘P’ in the type number DSW-32-50P B signify?The ‘P’ indicates that the cylinder is equipped with adjustable pneumatic cushioning at both ends. This feature allows for controlled deceleration of the piston at the end of its stroke, reducing impact and noise. Is this cylinder compatible with magnetic position sensors?No, the standard DSW series cylinder is not designed for use with proximity sensors for position detection. For applications requiring position sensing, the Festo DSNU series with a magnetic piston (variant ‘A’) is recommended. What is the recommended operating medium and pressure for this cylinder?The recommended medium is compressed air, filtered and optionally lubricated. While the maximum pressure is 10 bar, for optimal performance and longevity, it is often best to operate within a range of 4 to 8 bar depending on the application’s force requirements. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
