HYDAC 4WE 10 E S01-24DG/V 6063157

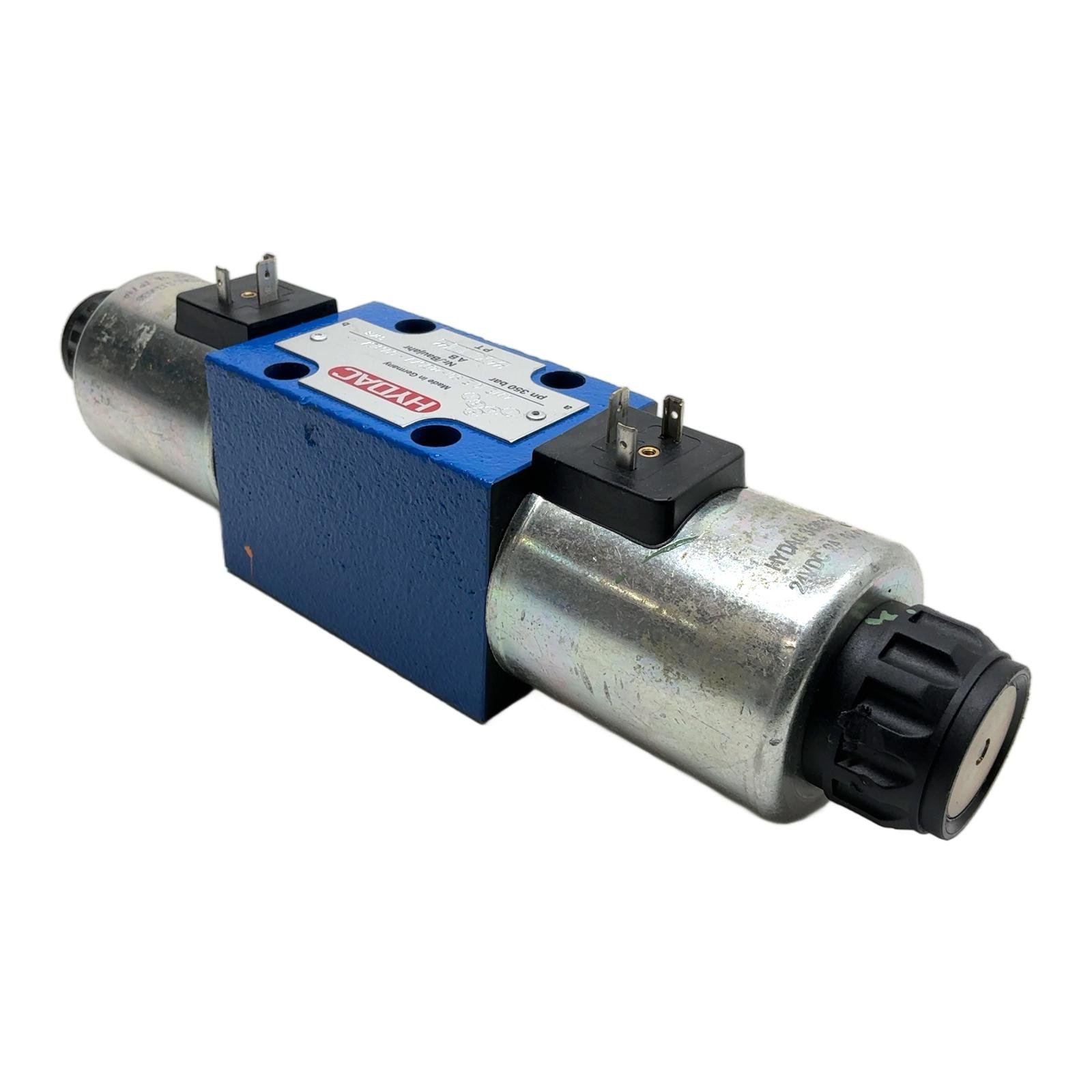

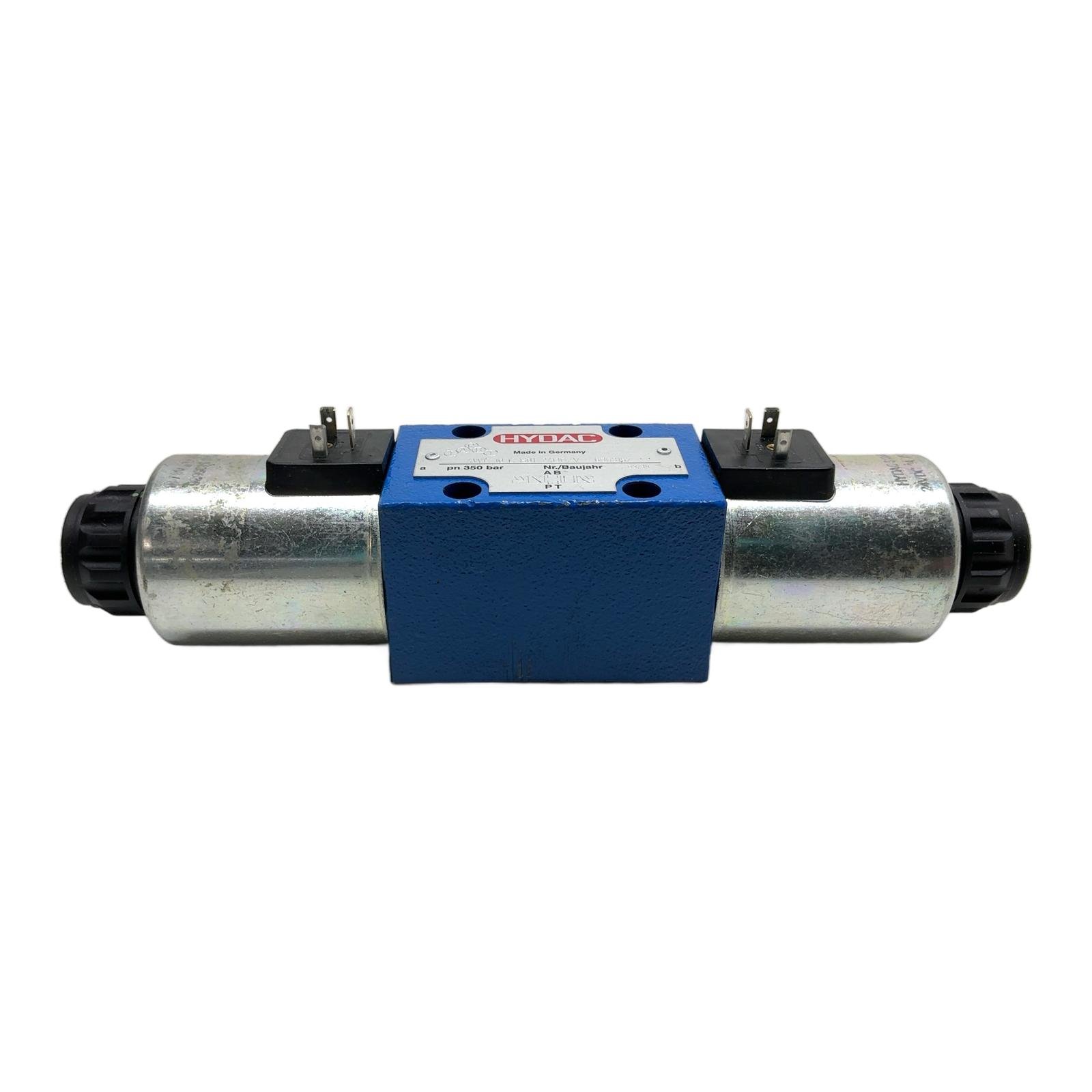

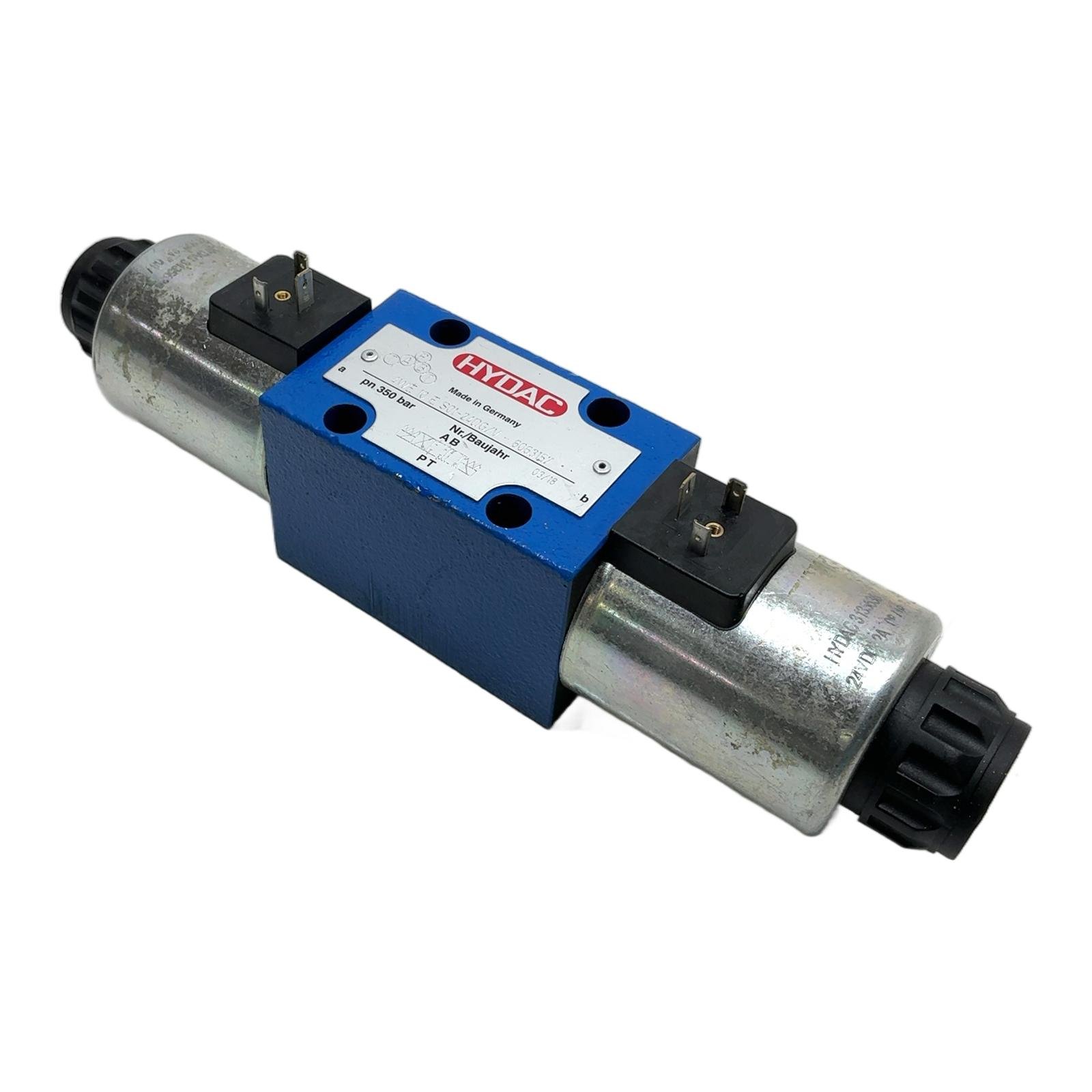

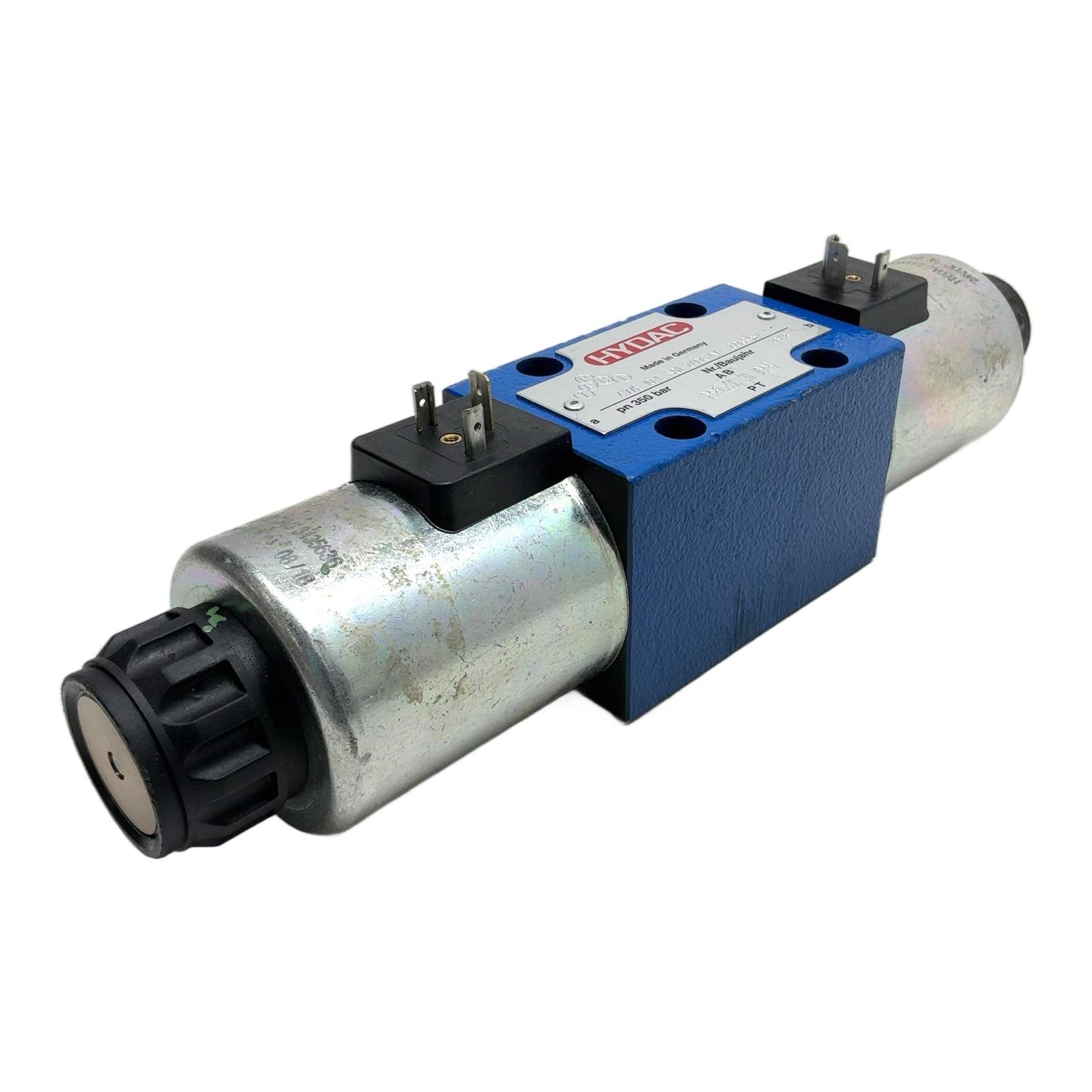

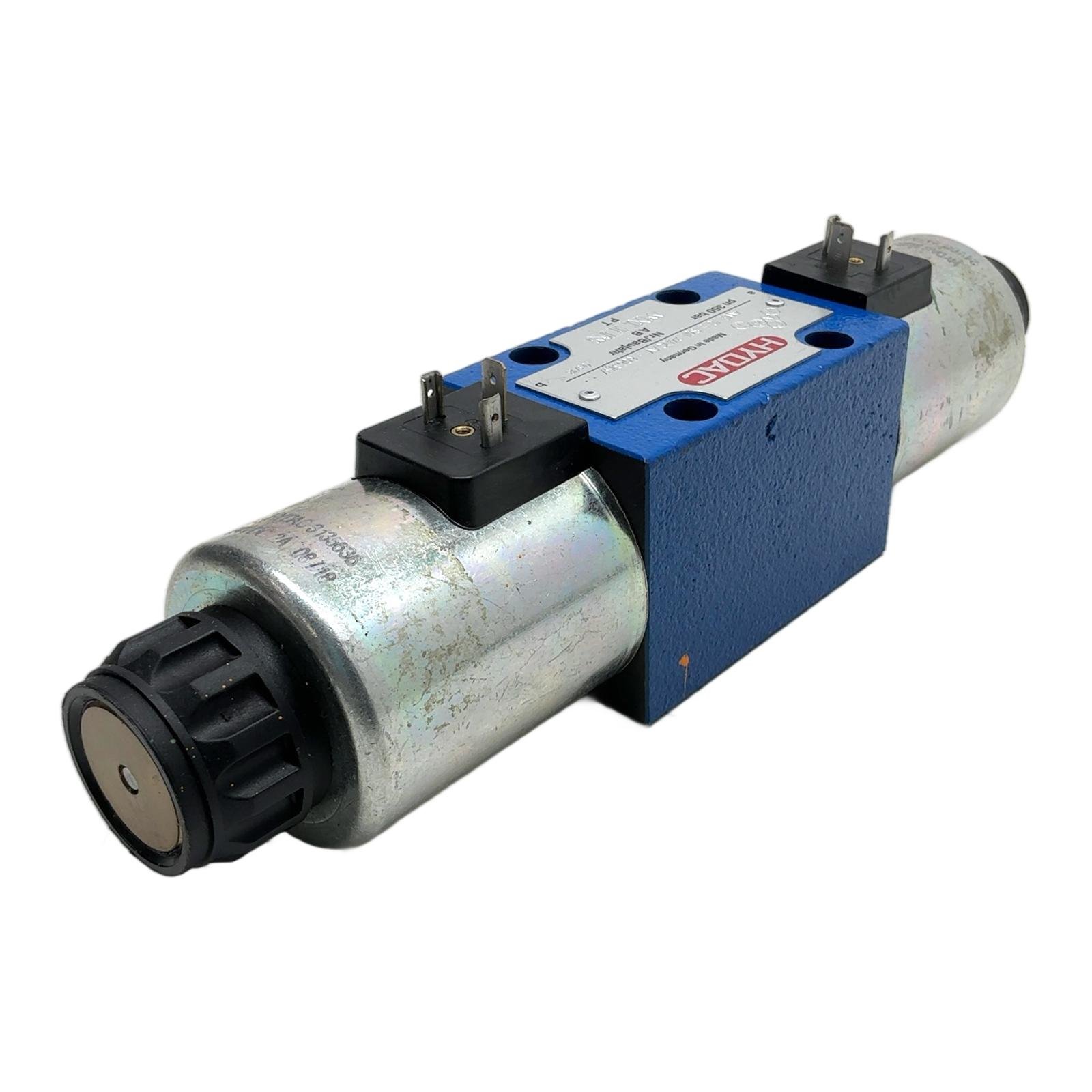

HYDAC 4WE 10 Directional Control Valve Description This is a direct solenoid operated 4/3-way directional spool valve, model 4WE 10 E S01-24DG/V, from HYDAC. Engineered in Germany for high-performance hydraulic applications, it operates at pressures up to 350 bar. It features an NG10 (CETOP 5) mounting pattern for easy integration into standard hydraulic manifolds. The dual 24V DC solenoids provide reliable and fast switching, while the spring-centered ‘E’ spool ensures all ports are blocked in the neutral position for secure load holding. Specifications Manufacturer: HYDAC Type: 4/3-Way Directional Spool Valve Nominal Size: NG10 / CETOP 5 Actuation Type: Direct Solenoid Operated, Spring Centered Operating Voltage: 24V DC Maximum Operating Pressure: 350 bar Spool Symbol: E (Closed Center) Seals: FKM (Viton) Label Info Model: 4WE 10 E S01-24DG/V Part Number: 6063157 Date of Manufacture: March 2018 Solenoid Coil P/N: 3135636 Application This valve is suitable for a wide range of industrial and mobile hydraulic systems, including machine tools, presses, injection molding machines, and material handling equipment where precise directional control is required. Country of Origin Made in Germany. CO2 Impact By purchasing this reconditioned valve, you are preventing the emission of approximately 72 kg of CO2 associated with the production of a new one. This saving is comparable to the emissions from a 360 km car journey. Availability This is a used, tested item in excellent working condition. It is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘E’ in the type code 4WE 10 E?The ‘E’ designates the spool type. In this case, it indicates a closed-center configuration, meaning that in the neutral, de-energized position, all ports (P, T, A, and B) are blocked, which prevents fluid flow and holds the actuator in position. Are the 24V DC solenoids included and what is their part number?Yes, the two 24V DC solenoids are included with the valve body. The HYDAC part number for these coils, as seen on the component, is 3135636. What type of hydraulic fluid is compatible with the FKM (/V) seals?The FKM (Viton) seals offer excellent chemical resistance, making them compatible with a wide range of fluids including mineral oils (HL, HLP), synthetic fluids (HFD), and many biodegradable hydraulic fluids. They also provide a high operating temperature range. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
