SIEMENS 6GK1901-1BB10-2AA0

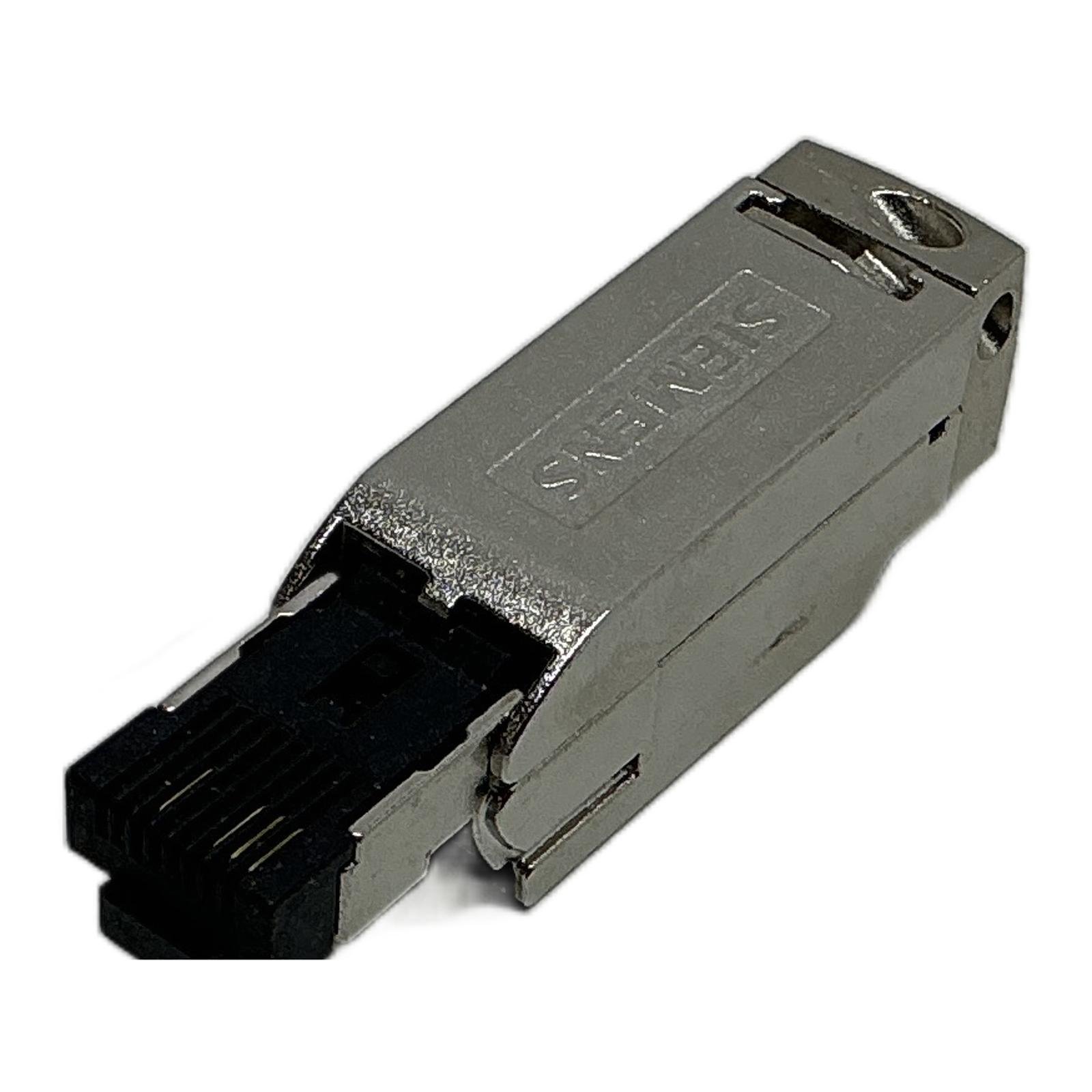

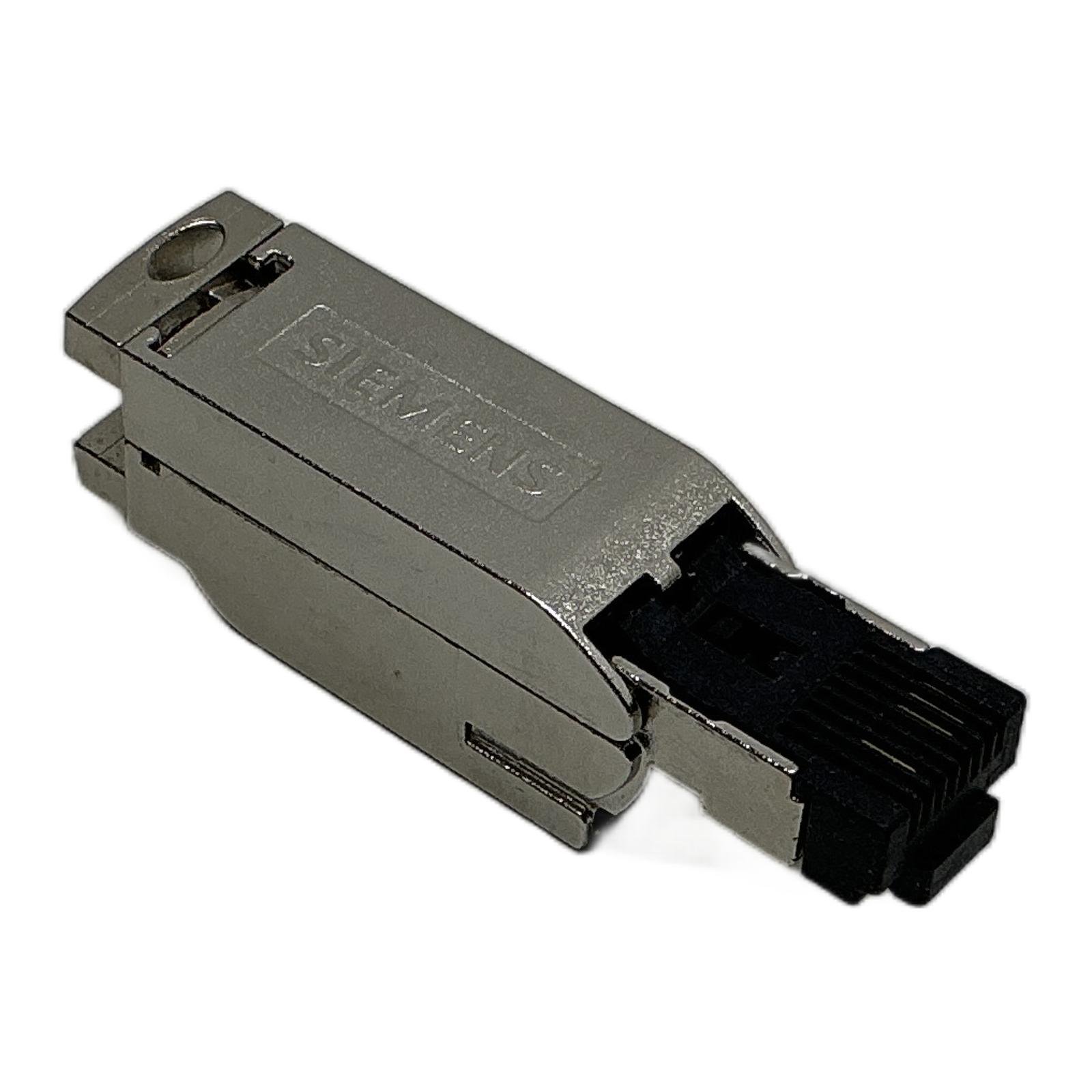

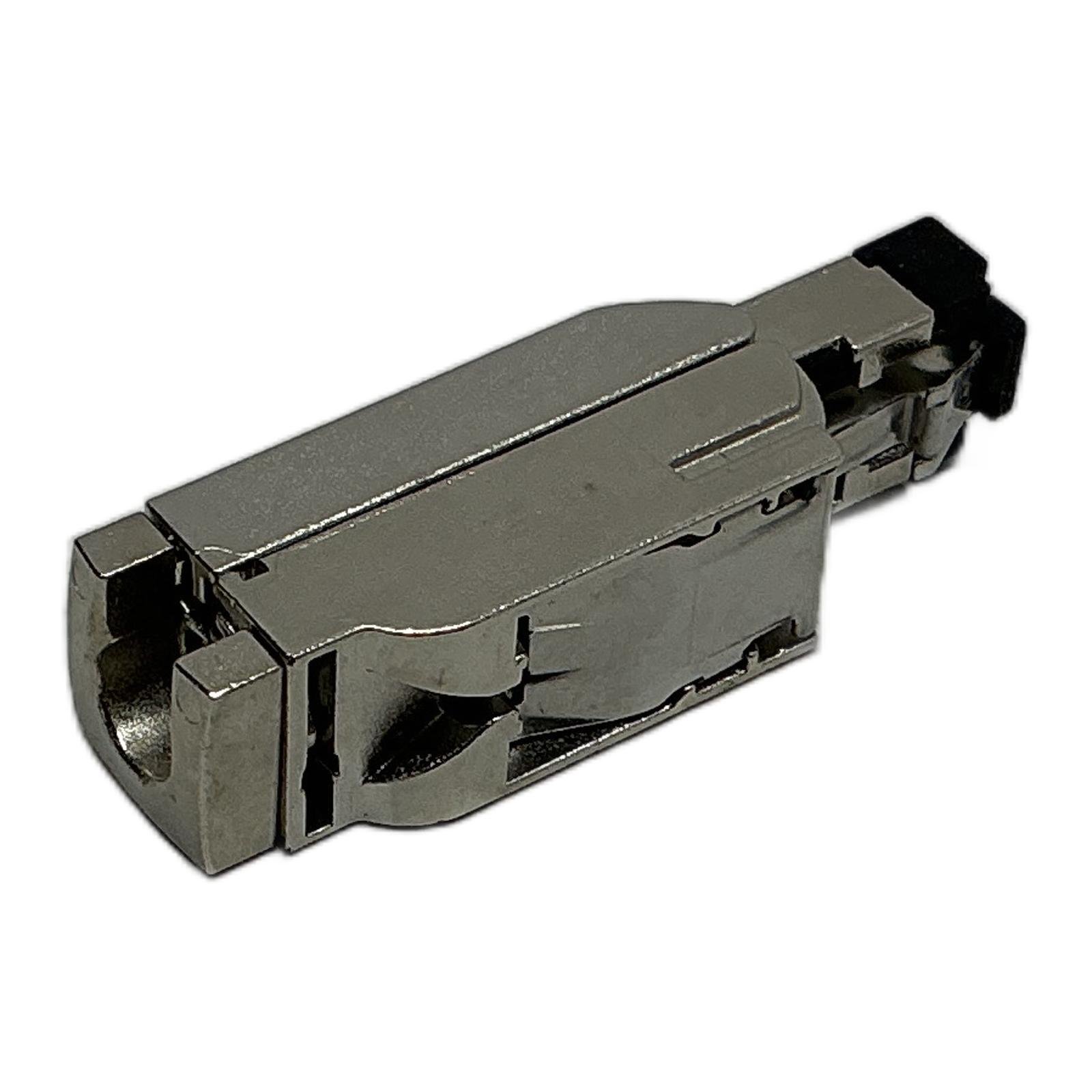

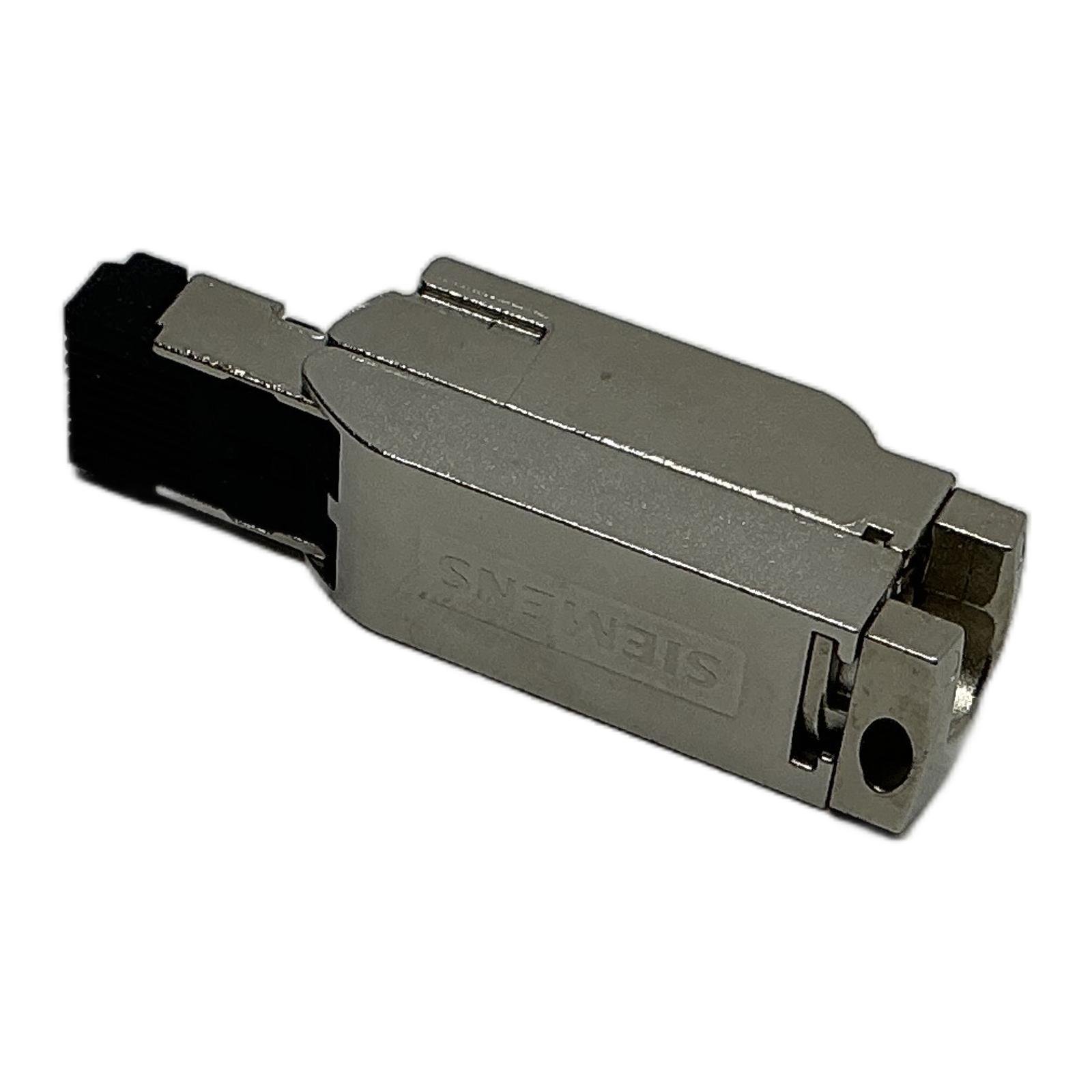

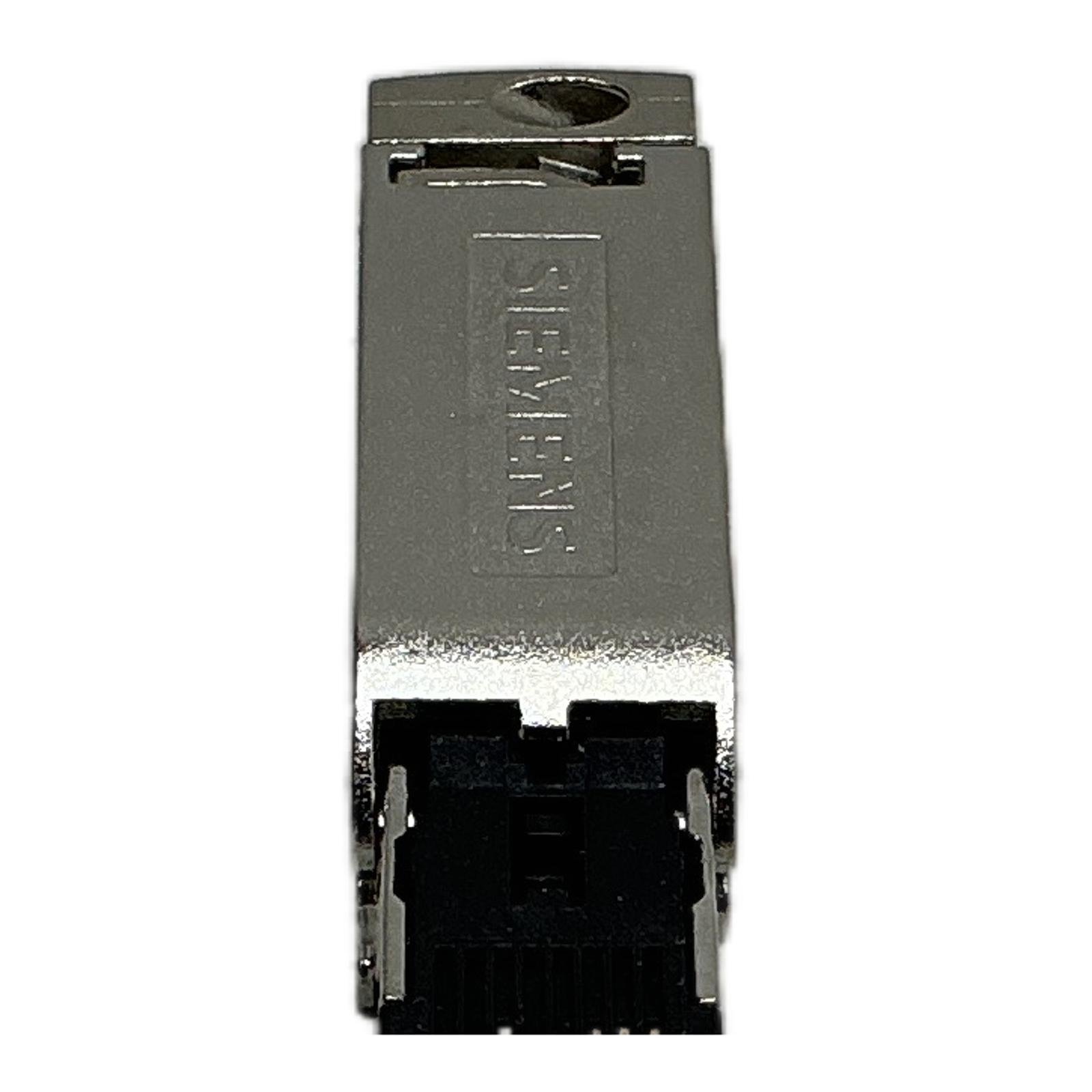

Siemens SIMATIC NET PROFINET Connector Description The Siemens 6GK1901-1BB10-2AA0 is an Industrial Ethernet FastConnect (IE FC) RJ45 plug with a 180-degree straight cable outlet. Engineered for reliability in industrial settings, it features a rugged metal housing that provides excellent EMC shielding and strain relief. The FastConnect system allows for rapid and error-free on-site assembly of 4-wire twisted pair cables (2×2) without the need for specialized tools, making it a go-to solution for PROFINET applications. Specifications Manufacturer: Siemens Part Number: 6GK1901-1BB10-2AA0 Product Type: IE FC RJ45 Plug 180 Network Protocol: PROFINET Transfer Rate: 10/100 Mbit/s Number of connections: 1 Connection Type: RJ45 Cable Outlet: 180 deg (straight) Housing Material: Metal Protection Class: IP20 Label Info FS (Functional State): 03 File-No.: E252546 Application This connector is suitable for creating reliable network connections in industrial automation, machinery, and plant engineering where PROFINET is used. Its robust design is ideal for environments with high electromagnetic interference. Country of Origin Made in Poland. CO2 Impact By purchasing this reused component, you are helping to avoid the emission of approximately 1.6 kg of CO2, which would be generated in the production of a new unit. This saving is comparable to the emissions from a car driving 8 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main advantage of the FastConnect (FC) system?The FastConnect system uses insulation-displacement connection (IDC) technology. This means you don’t need to strip the individual wires before termination. You simply place the wires in the color-coded guides and close the housing, which significantly speeds up installation and reduces potential wiring errors. Which type of cable is compatible with this 6GK1901-1BB10-2AA0 connector?This connector is designed for Siemens Industrial Ethernet FC TP cables, specifically the 2×2 type (4-core, twisted pair) for PROFINET applications. It can accommodate solid and stranded conductors with diameters specified in the Siemens documentation. How effective is the metal housing for EMC shielding?The full metal housing provides excellent electromagnetic compatibility (EMC) shielding, protecting the data transmission from interference caused by nearby motors, drives, and power lines. This is crucial for maintaining network stability in industrial environments. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
