SOCOMEC SIRCO MV160 22003016

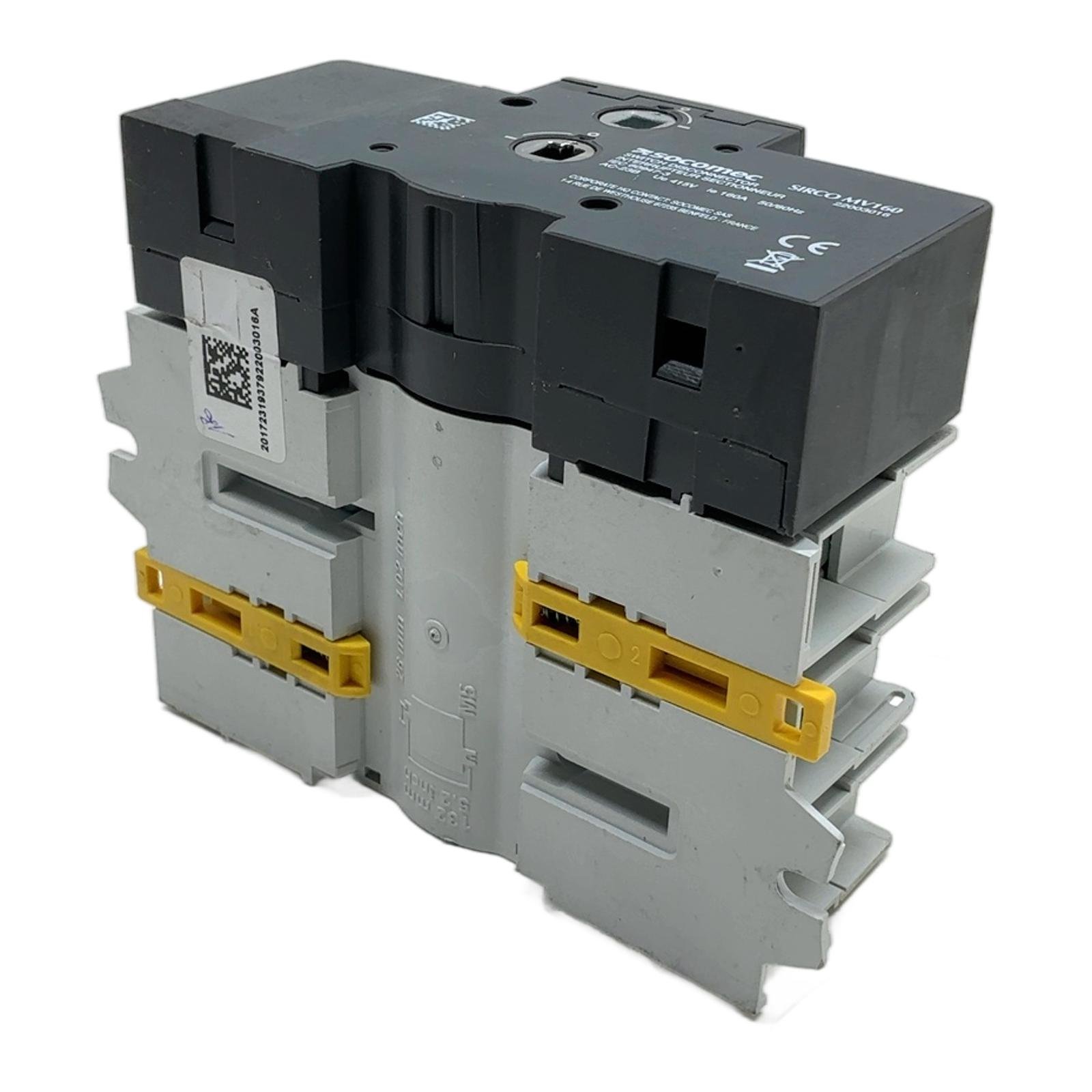

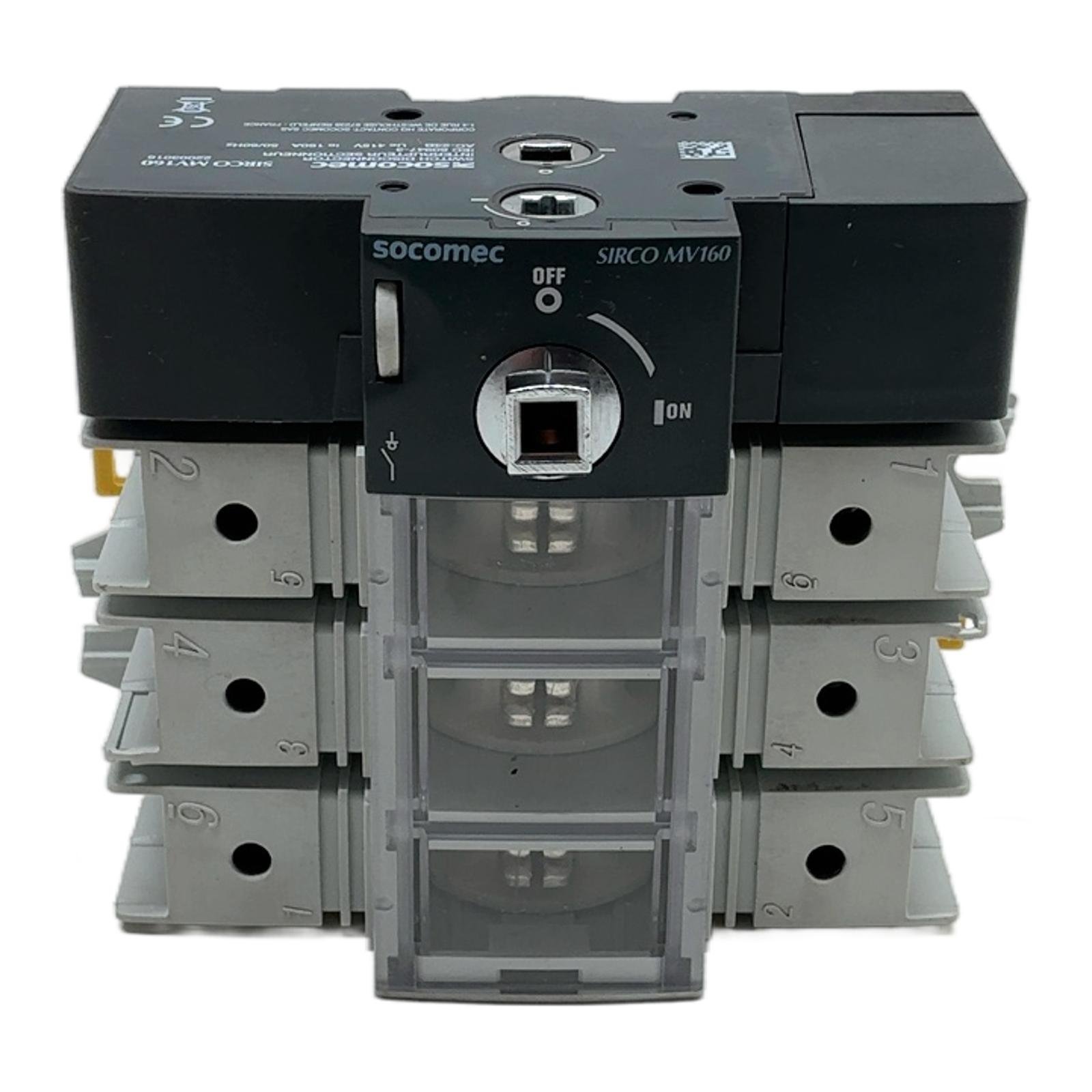

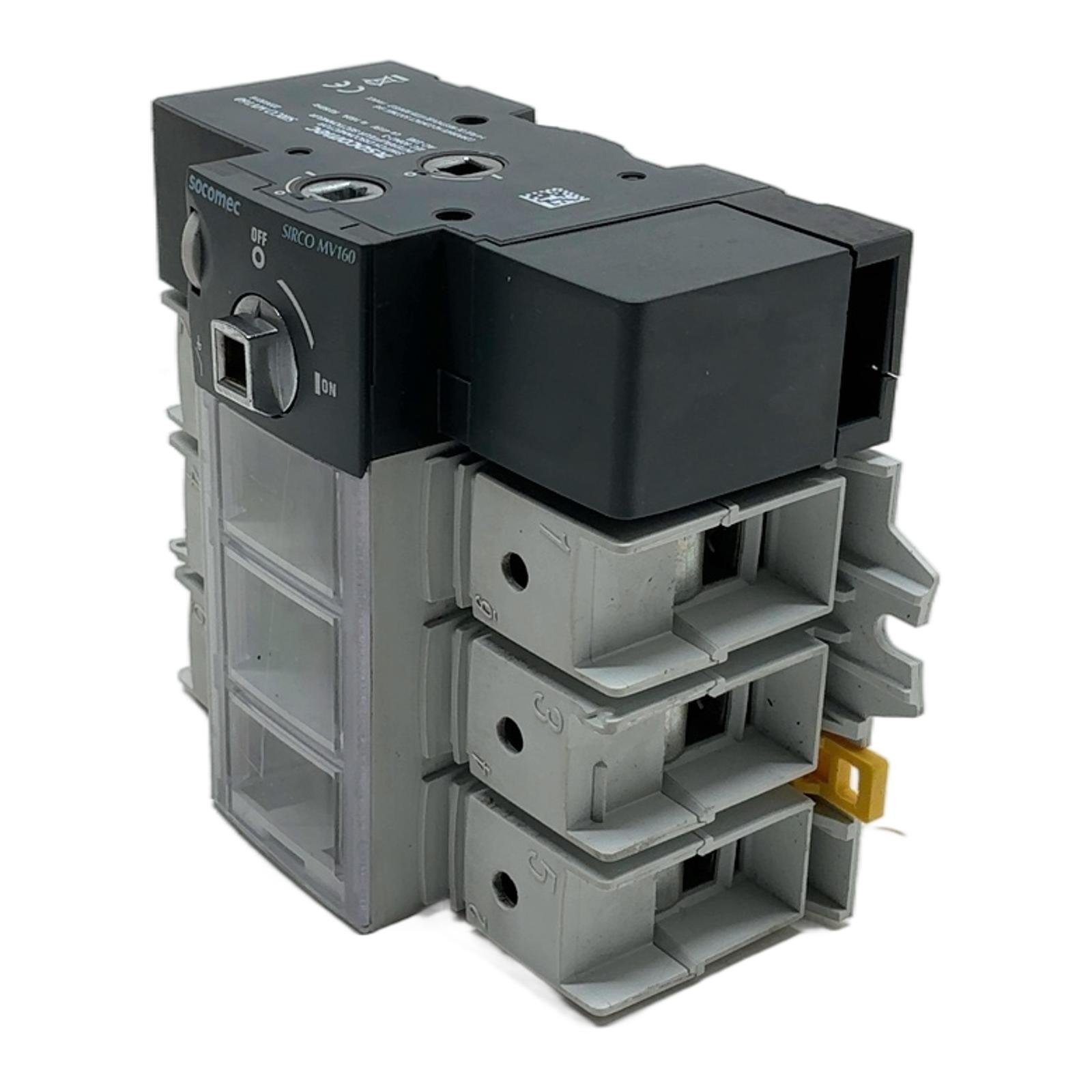

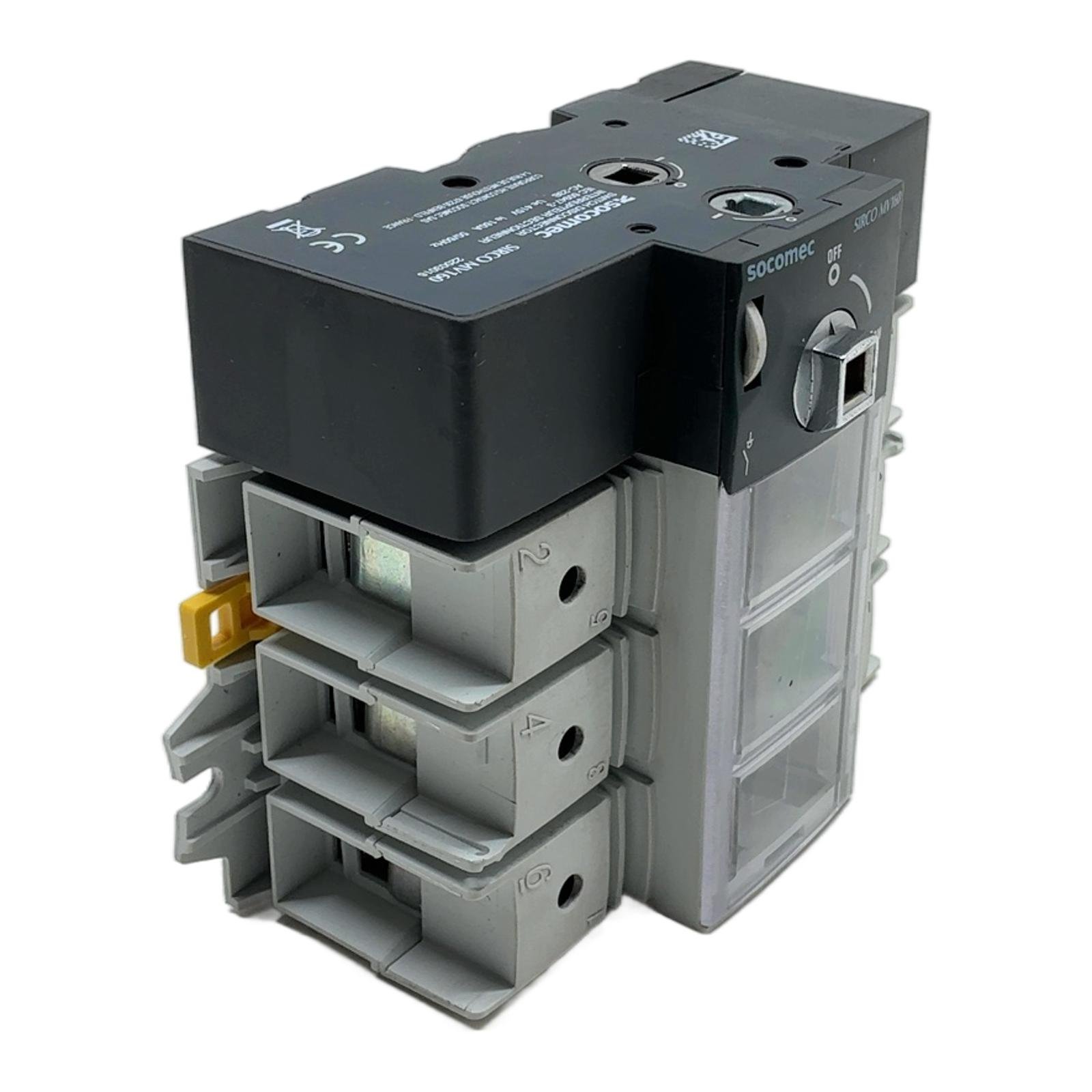

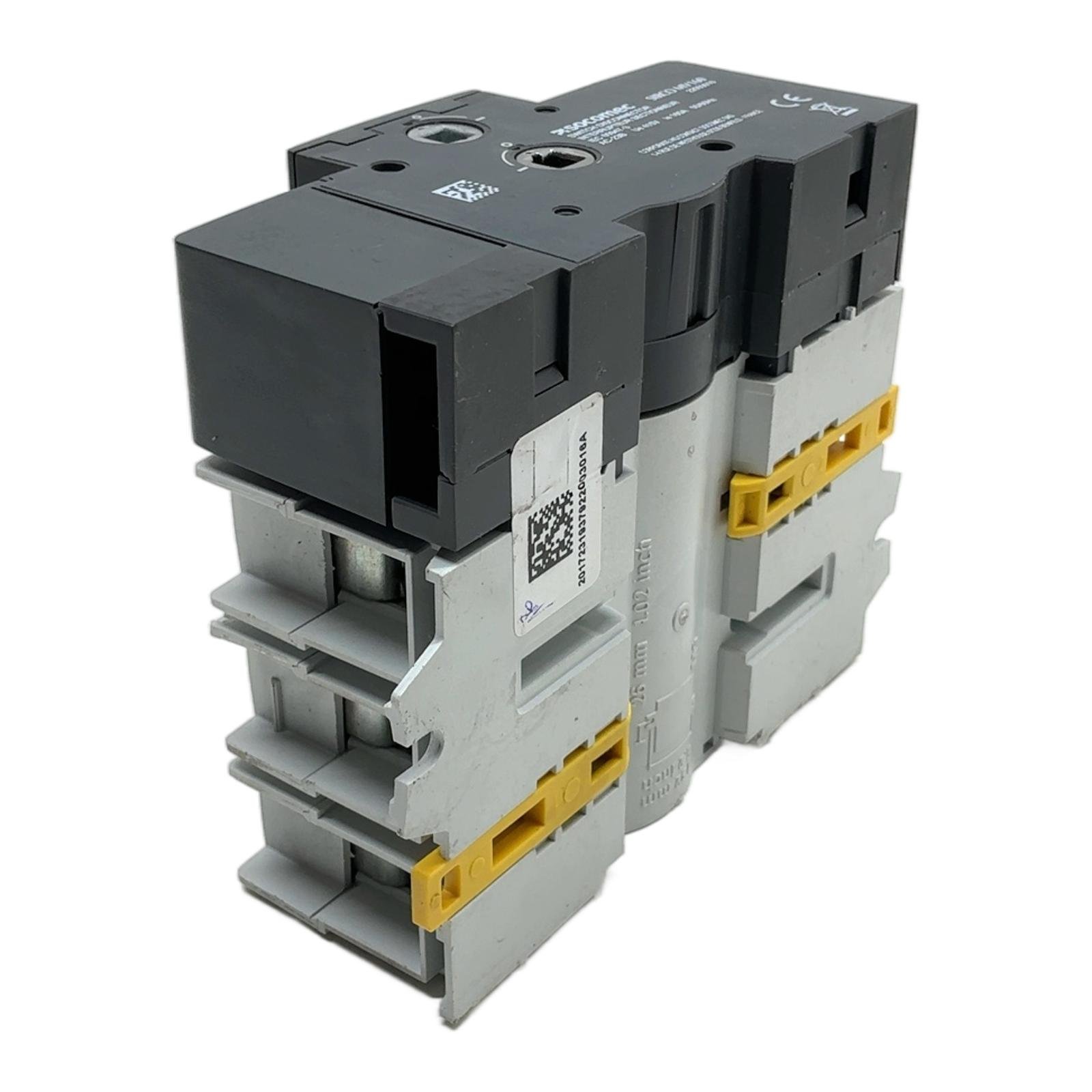

Socomec Switch Disconnector 160A SIRCO MV160 22003016 Description The Socomec SIRCO MV160 is a high-performance, manually operated 3-pole switch disconnector designed for safety isolation and load breaking in low-voltage industrial systems. With a nominal current of 160A and a voltage rating of 415V AC, this device ensures reliable performance in a wide range of applications, from power distribution to motor control. Its robust construction and compliance with IEC 60947-3 make it a dependable choice for any industrial environment. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Socomec Model: SIRCO MV160 Part Number: 22003016 Poles: 3 Rated Operational Current (Ie): 160 A Rated Operational Voltage (Ue): 415 V AC Frequency: 50/60 Hz Utilization Category: AC-23B Label Info Brand: socomec Type: SIRCO MV160 Order Code: 22003016 Standard: IEC 60947-3 Application This switch disconnector is ideal for use as a main switch in low-voltage switchboards, for local isolation of machinery, and in motor control centers to safely disconnect motor loads for maintenance. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you contribute to a circular economy and help avoid approximately 24 kg of CO2 emissions associated with the production of a new one. Availability This item is in stock and ready for immediate dispatch. FAQ Can this SIRCO MV160 switch be motorized?The SIRCO MV series itself is designed for manual operation. However, Socomec offers a separate motorized control module that can be attached to these switches for remote operation. What type of handle is required for this switch disconnector?This switch requires a direct or external handle with a standard square shaft. Socomec provides a range of compatible handles, such as the S-type, which must be ordered separately. What is the short-circuit withstand rating for this 160A model?The short-circuit withstand current (Icw) for the SIRCO MV160 typically depends on the upstream protection device (fuses). According to the datasheet, when protected by appropriate gG or aM fuses, it can withstand high short-circuit currents, often up to 100 kA. Always consult the official technical documentation for precise coordination tables. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
