SCHNEIDER ELECTRIC NSYCCOTHC

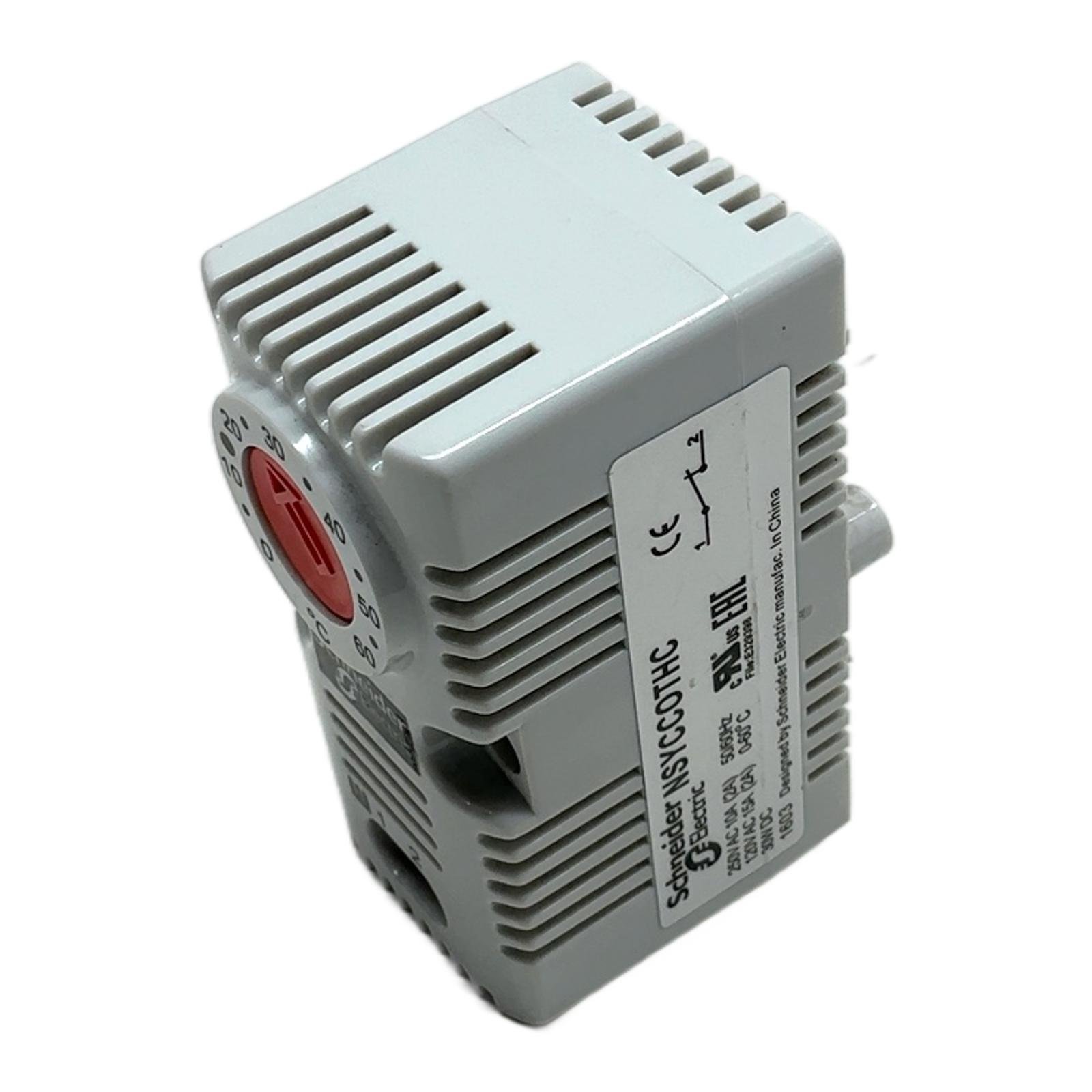

Schneider Electric NSYCCOTHC Enclosure Thermostat Description The Schneider Electric NSYCCOTHC is a reliable and compact mechanical thermostat from the ClimaSys CC range, designed for precise temperature control within industrial enclosures. This model features a normally closed (NC) contact, making it the ideal choice for regulating cabinet heaters to prevent condensation and maintain stable operating conditions for your electronic equipment. Its wide adjustment range and simple DIN rail mounting make it a versatile solution for various automation and control applications. Specifications Manufacturer: Schneider Electric Model: NSYCCOTHC Product Range: ClimaSys CC Contact Type: Normally Closed (NC), bimetallic Temperature Setting Range: 0 to 60 deg C Maximum Switching Voltage: 250V AC Switching Current (Resistive): 10A at 250V AC / 15A at 120V AC Switching Current (Inductive): 2A DC Rating: 30W Mounting: 35 mm DIN rail Label Info Schneider Electric NSYCCOTHC 250V AC 10A (2A) 50/60Hz 120V AC 15A (2A) 0-60 deg C 30W DC Application This thermostat is primarily used in control cabinets, switchgear, and electrical enclosures to control heating elements. It helps protect sensitive components like PLCs, drives, and power supplies from low temperatures and moisture, thereby increasing their lifespan and reliability. Country of Origin Designed by Schneider Electric, manufactured in China. CO2 Impact By purchasing this reused component, you are helping to avoid approximately 2.0 kg of CO2 emissions associated with the production of a new one. This is a small but significant step towards a more sustainable industrial practice. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between this red-knob (NC) thermostat and the blue-knob (NO) version?The red-knob NSYCCOTHC has a Normally Closed (NC) contact. It is designed to control a heater; the circuit is closed (heater on) until the set temperature is reached, at which point it opens (heater off). The blue-knob version has a Normally Open (NO) contact, ideal for controlling a cooling fan; the circuit is open (fan off) until the temperature rises to the set point, then it closes (fan on). What is the switching hysteresis of this thermostat?According to the manufacturer’s datasheet, the Schneider Electric NSYCCOTHC thermostat has a switching difference (hysteresis) of approximately 7K (Kelvin) plus or minus 4K tolerance. This prevents the connected device from rapidly cycling on and off. Can this thermostat be used in a DC circuit?Yes, the label indicates it is rated for DC applications up to 30W. It’s important to respect this power limit to ensure the longevity of the contacts and safe operation. Laatst bijgewerkt: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
