BALLUFF BES01LP BES 516-377-G-S49-C

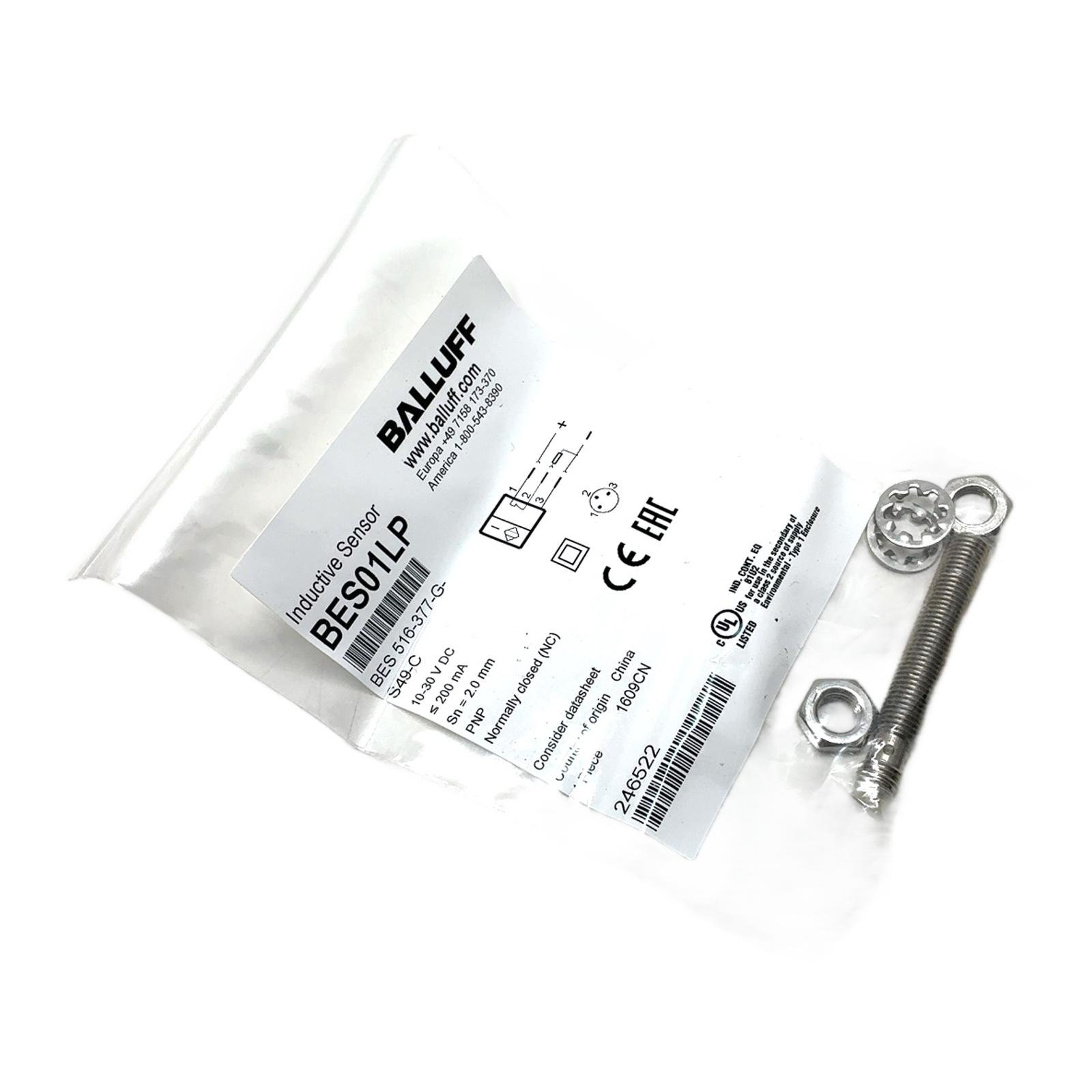

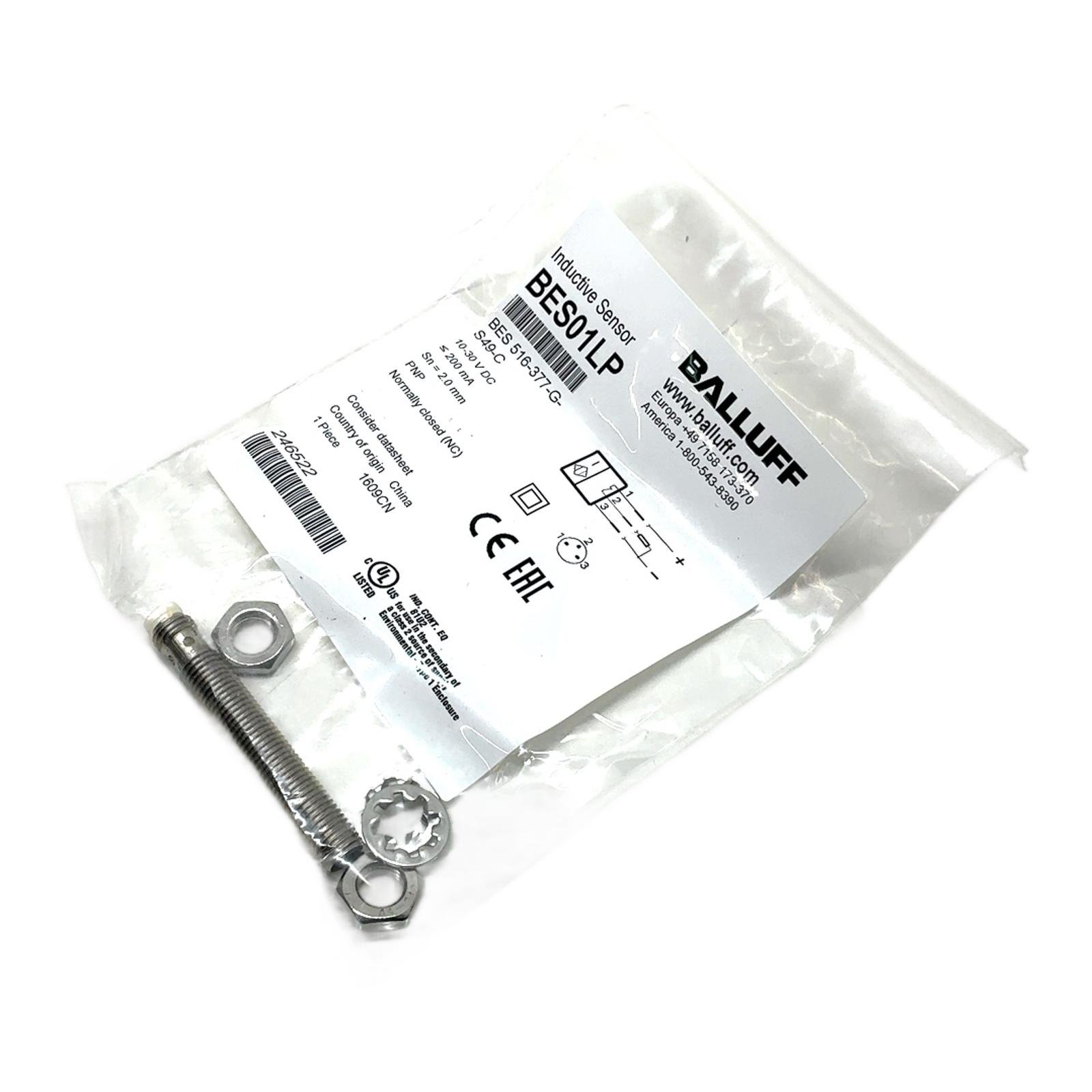

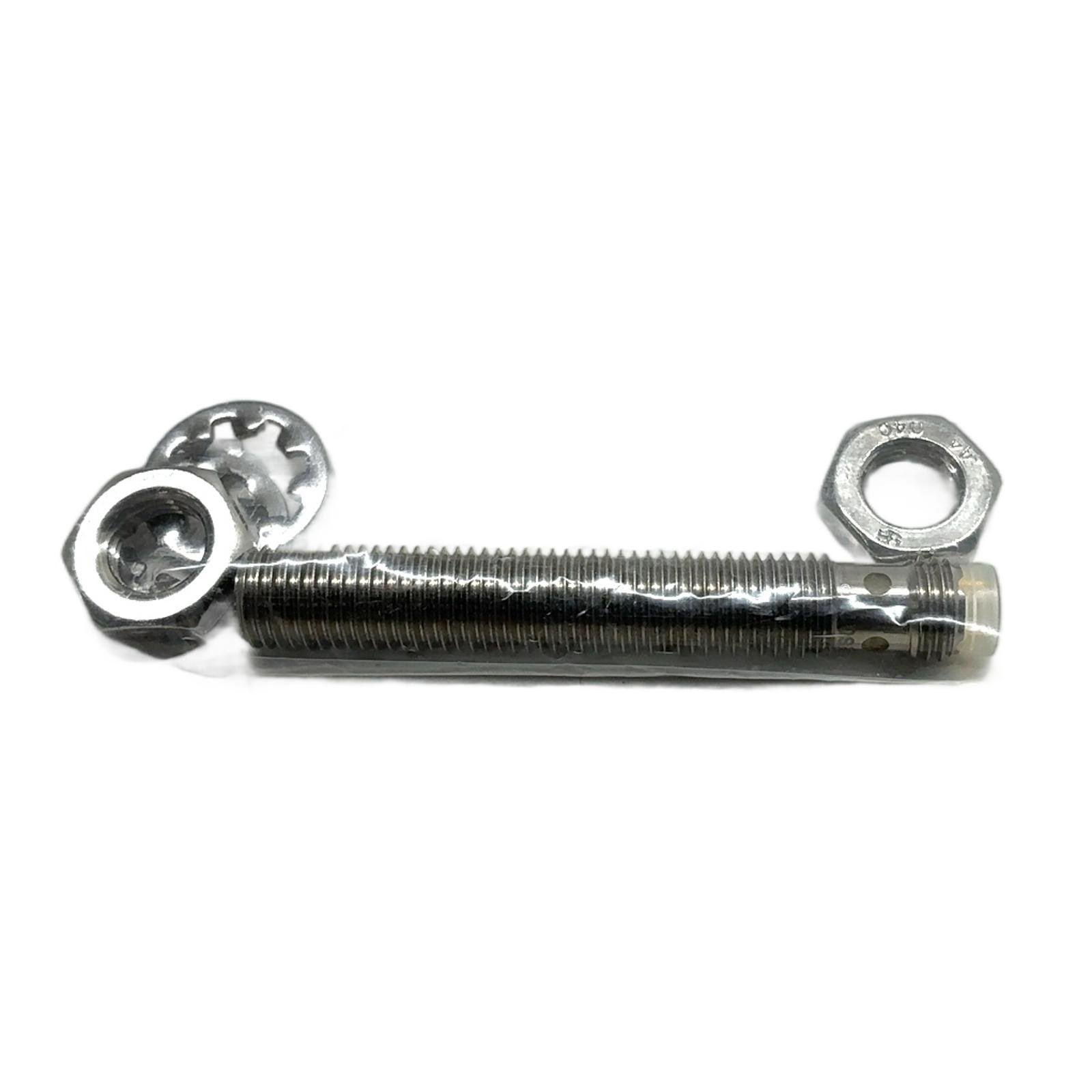

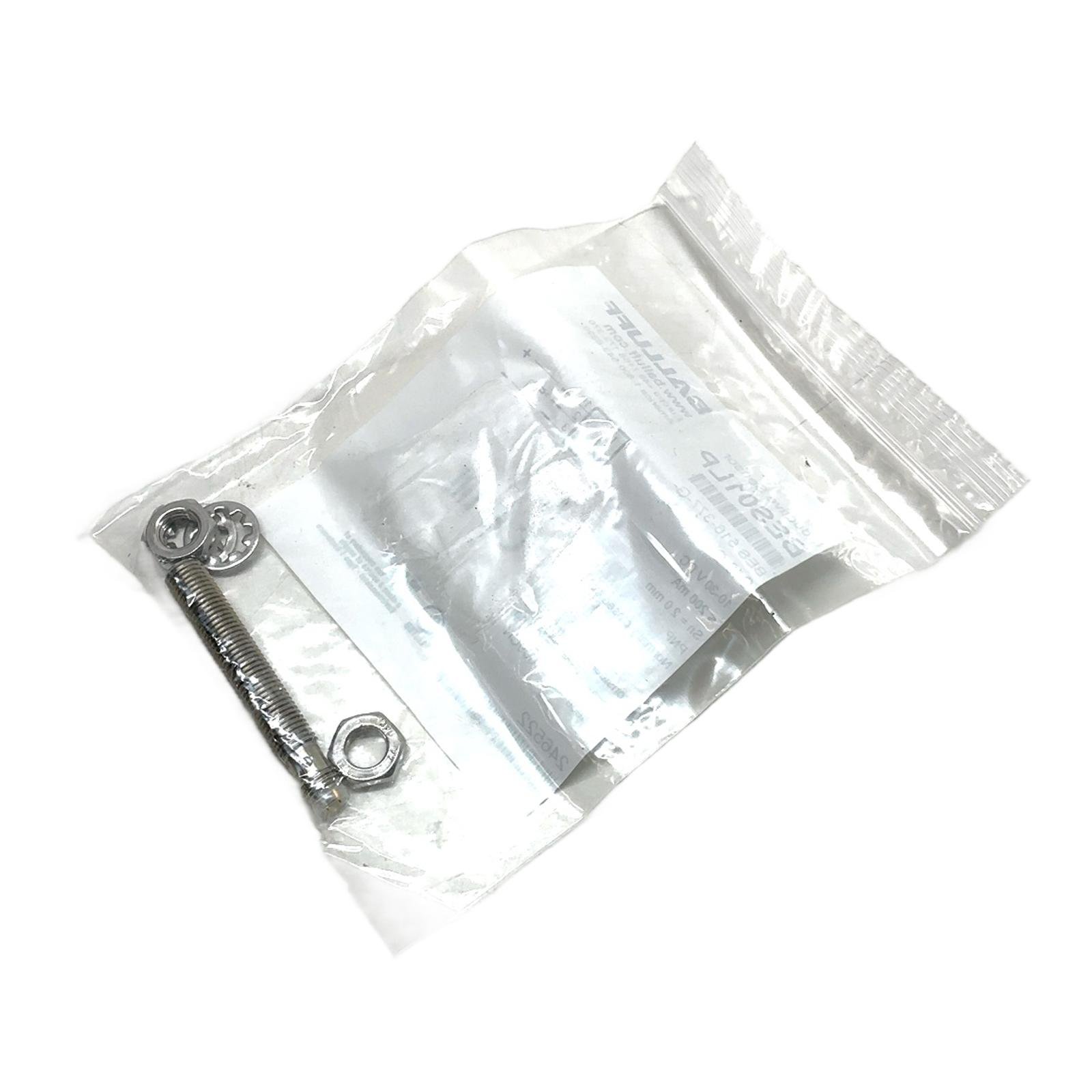

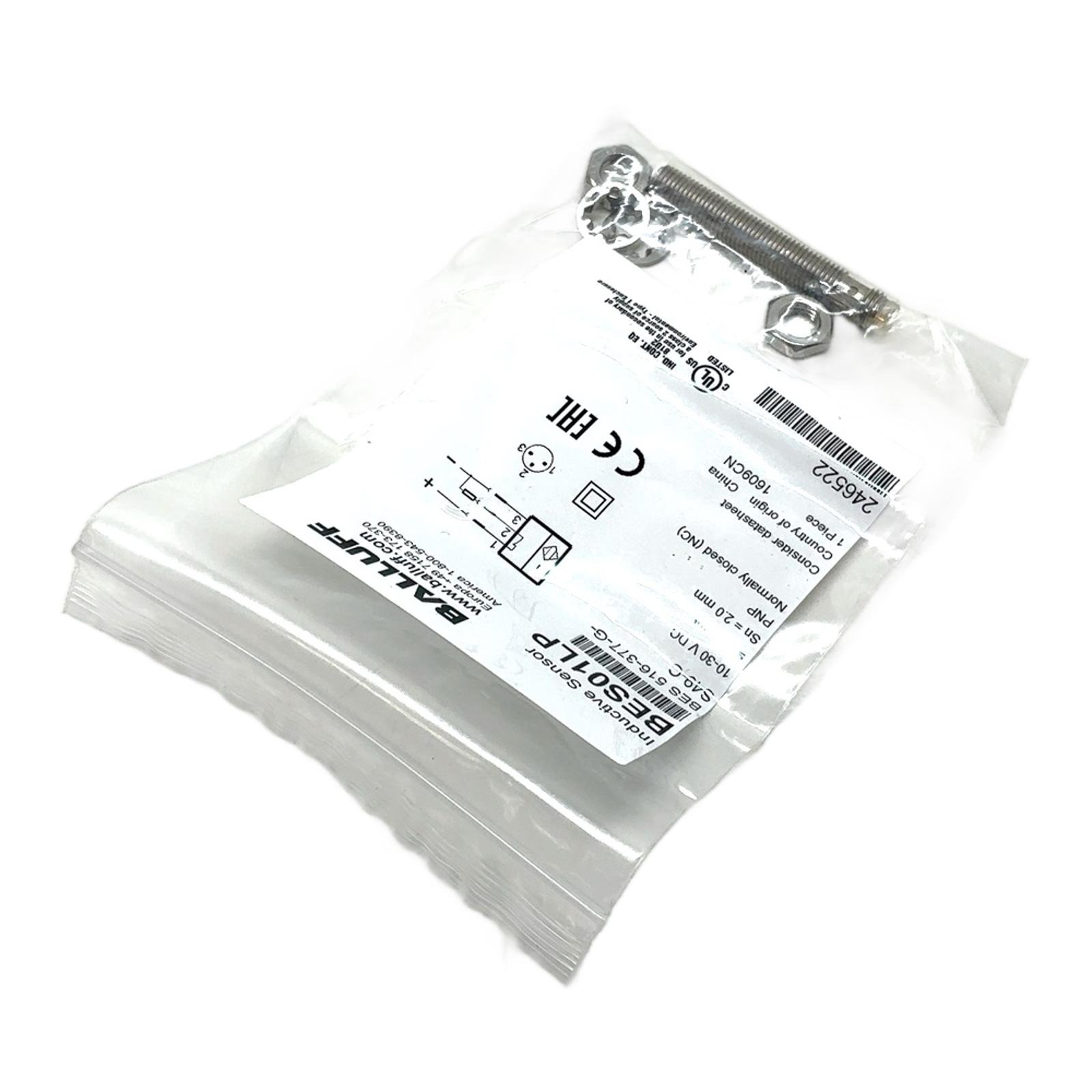

Balluff Inductive Sensor BES01LP Description The Balluff BES01LP, with part number BES 516-377-G-S49-C, is a high-performance inductive proximity sensor designed for non-contact detection of metallic objects in industrial environments. Its compact M8 threaded housing allows for easy installation in tight spaces. This sensor provides a reliable PNP normally closed output, making it a staple in factory automation for position sensing, counting, and control tasks. Specifications Manufacturer: Balluff Model: BES01LP Part Number: BES 516-377-G-S49-C Operating Voltage: 10-30V DC Sensing Distance (Sn): 2.0 mm Output Type: PNP Switching Function: Normally Closed (NC) Max Output Current: 200 mA Housing Size: M8 x 1 Installation: Flush mountable Label Info IND. CONT. EQ. 81U2 cULus Listed CE and EAC certified Application This sensor is ideal for applications in manufacturing, packaging, and material handling systems where precise and reliable detection of metal parts is crucial for machine operation. Country of Origin This product is manufactured in China. CO2 Impact Opting for this component helps avoid the emission of approximately 0.6 kg of CO2 compared to manufacturing a new one. This saving is comparable to driving a car for 3 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the housing material of the BES 516-377-G-S49-C?The housing is made of nickel-plated brass, providing durability and resistance to harsh industrial environments. What is the maximum switching frequency for this sensor?This sensor has a maximum switching frequency of 1500 Hz, making it suitable for high-speed applications. Is this sensor flush mountable?Yes, the BES 516-377-G-S49-C is designed for flush installation, which means the sensing face can be mounted level with the surrounding metal surface without affecting its performance. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
