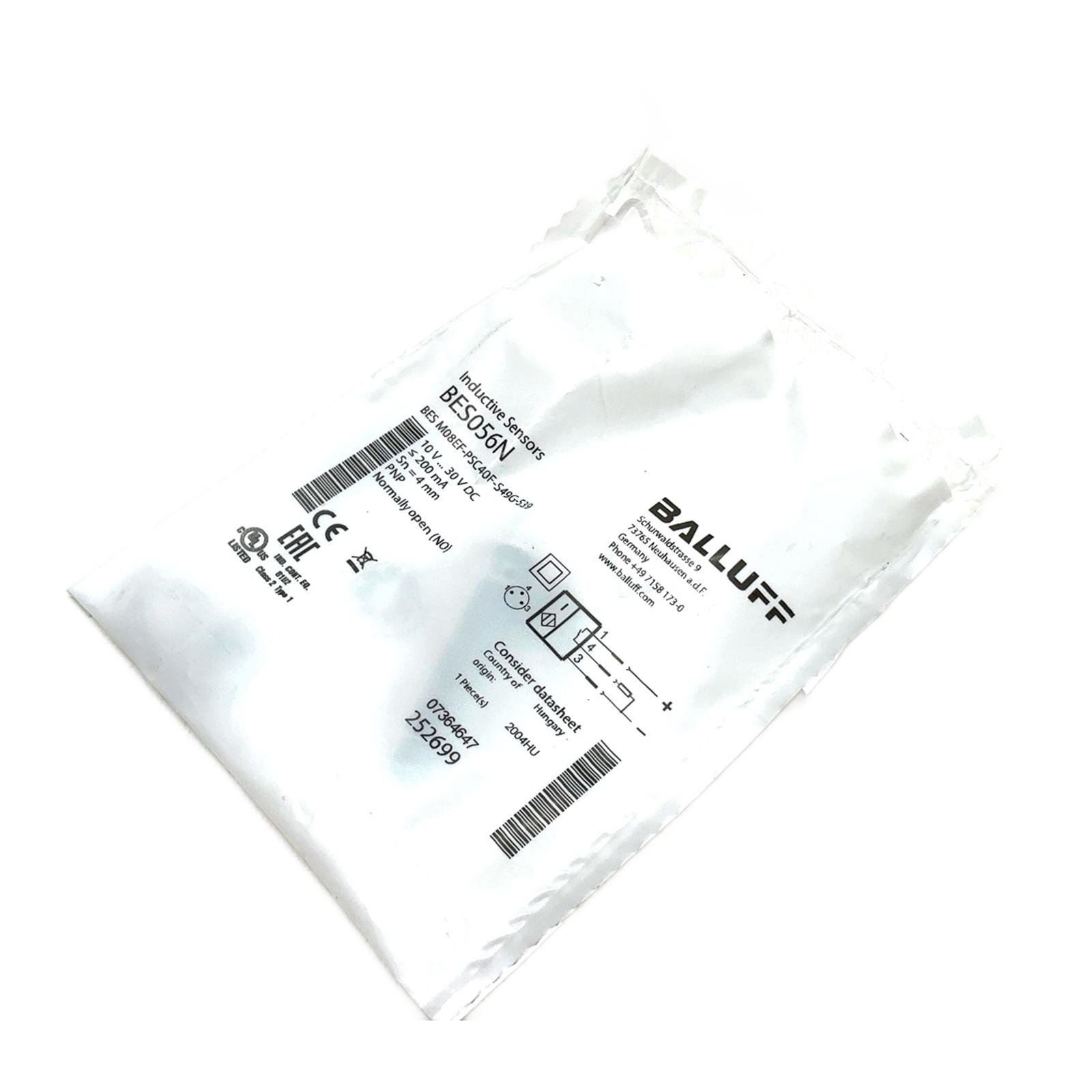

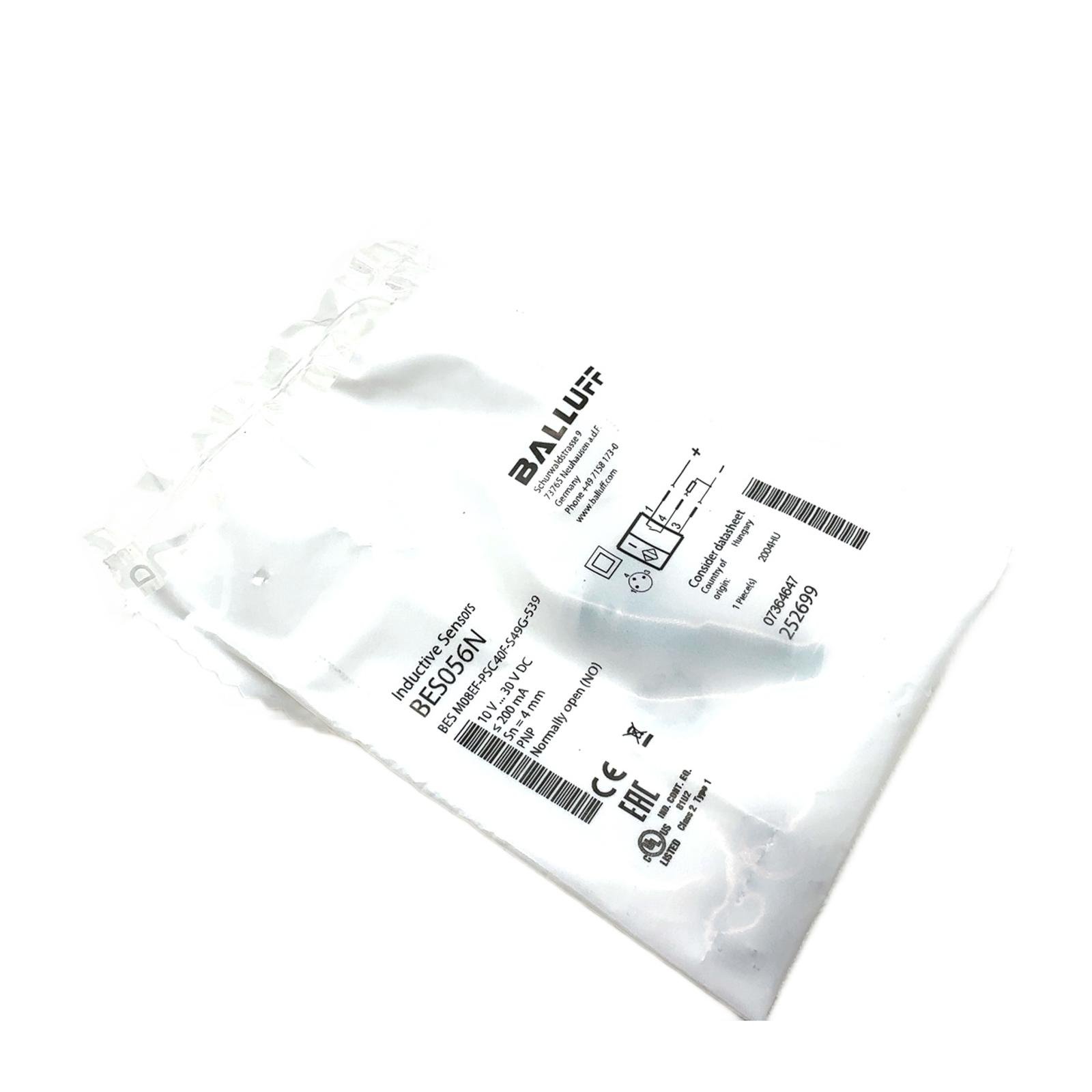

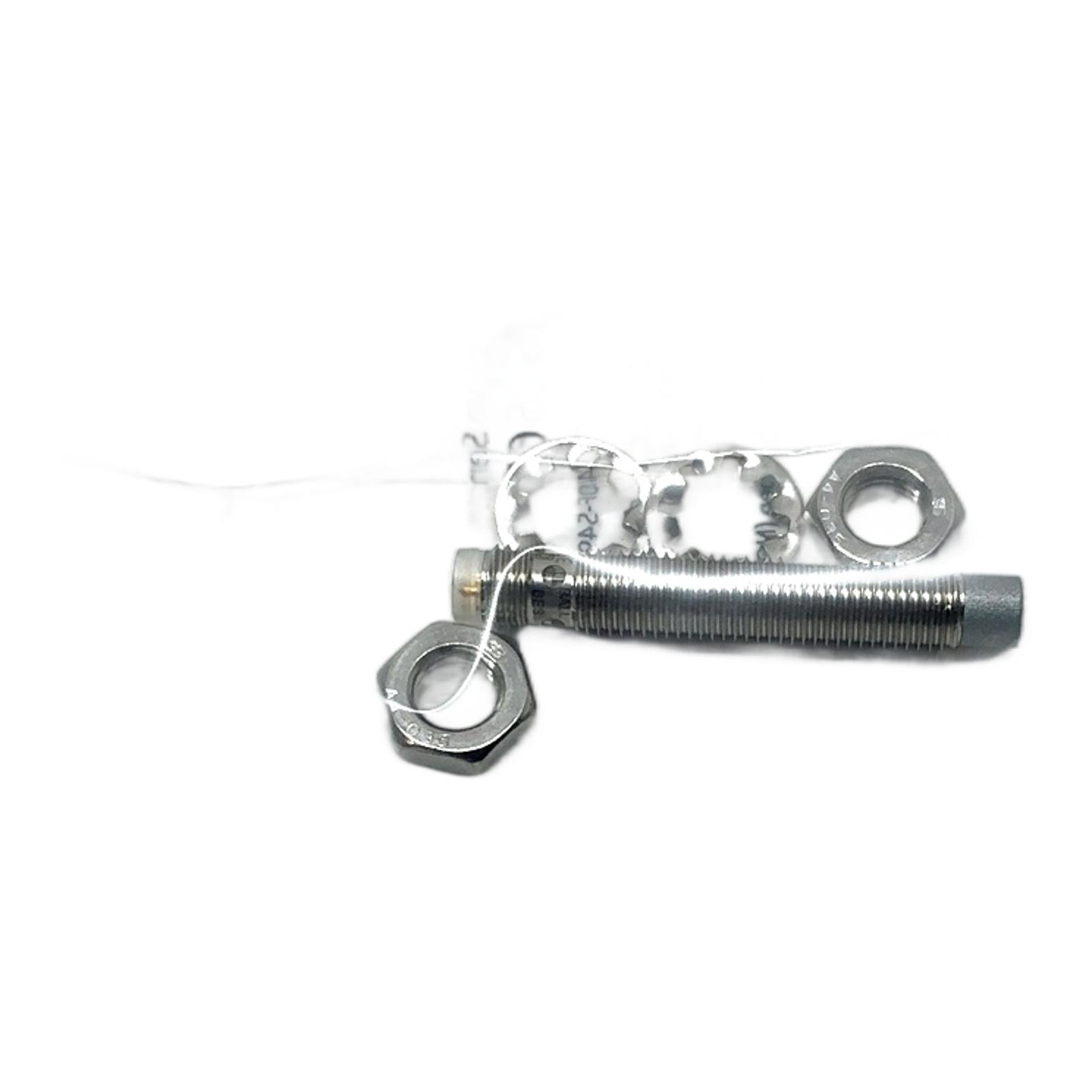

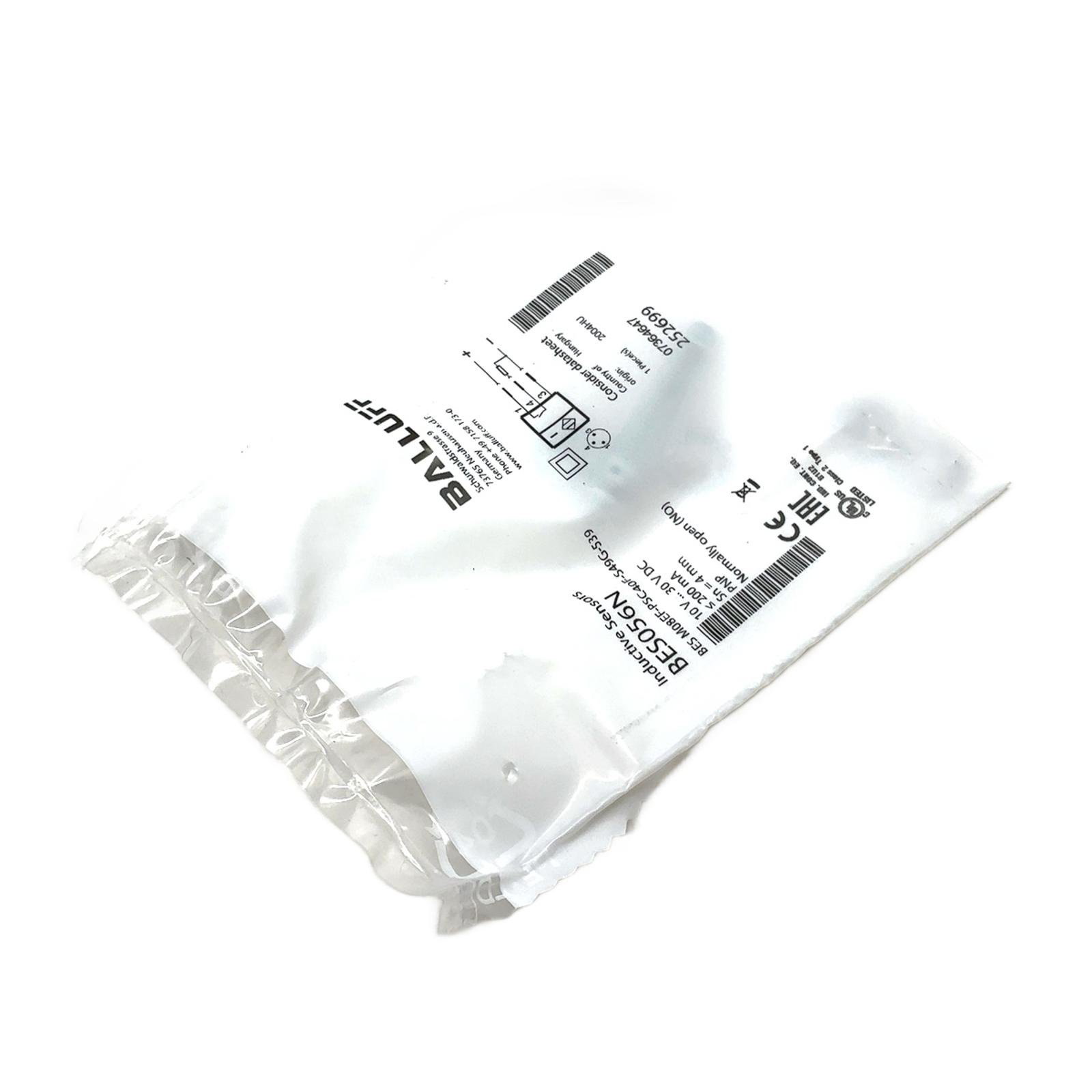

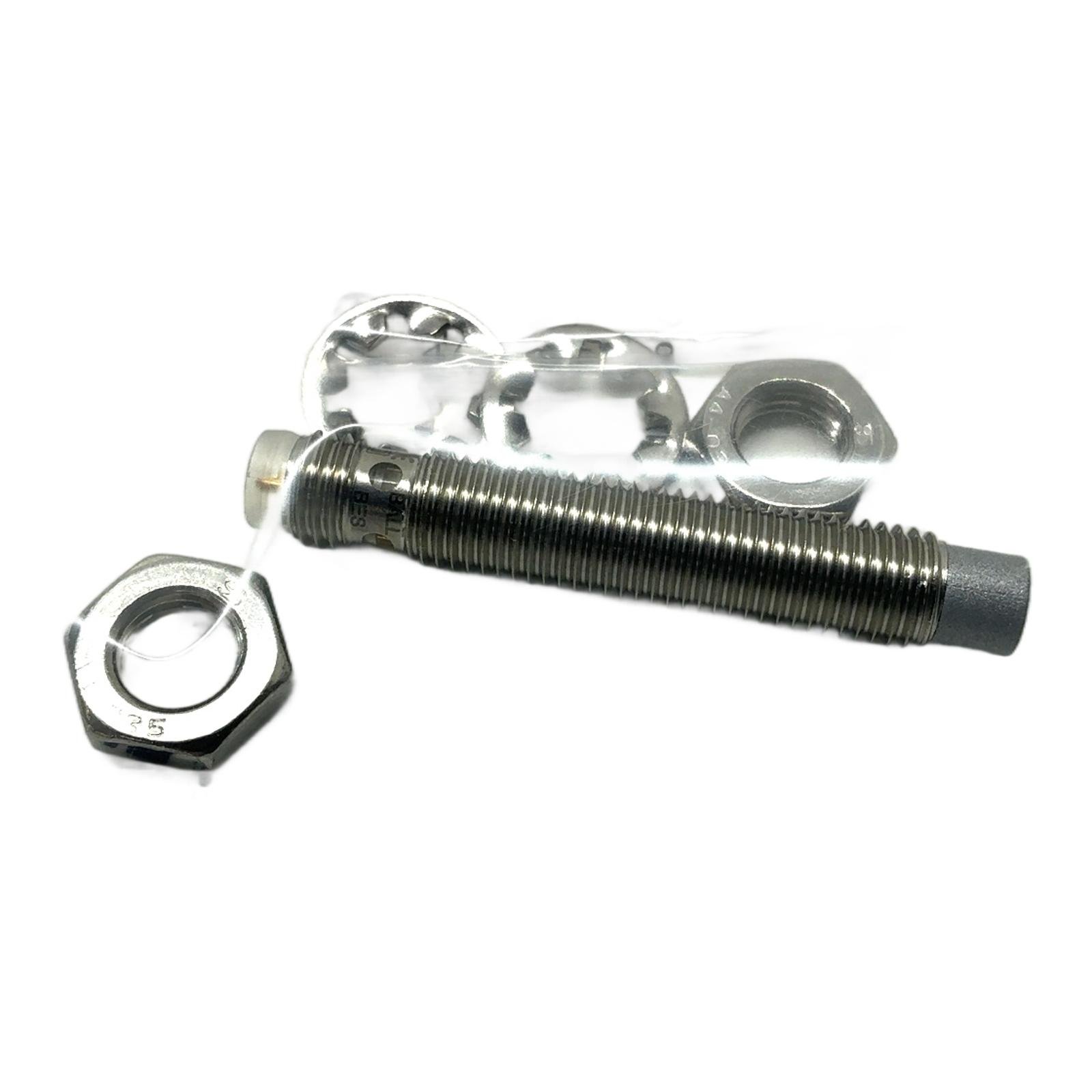

BALLUFF BES056N BES M08EF-PSC40F-S49G-539

Balluff BES056N Inductive Sensor for Industrial AutomationDescriptionThe Balluff BES056N is a high-performance inductive proximity sensor designed for reliable and accurate detection of metal objects in industrial environments. With its M8 threaded body and 4mm sensing range, it offers a versatile solution for positioning, counting, and presence detection tasks. The PNP normally open output and standard M8 connector ensure seamless integration with modern PLC and control systems.SpecificationsManufacturer: BalluffType: BES056N / BES M08EF-PSC40F-S49G-539Sensing Principle: InductiveSensing Distance (Sn): 4 mmOperating Voltage: 10 to 30 V DCOutput Type: PNP, Normally Open (NO)Max. Output Current: 200 mAHousing: M8 x 1 Threaded, Stainless SteelConnection: M8 Male Connector, 3-pinMounting Type: Flush mountableIP Rating: IP67 (when connected)Label InfoModel: BES056NFull Type: BES M08EF-PSC40F-S49G-539Part No.: 07364647 / 252699ApplicationIdeal for use in factory automation, packaging machinery, assembly lines, robotics, and conveyor systems where reliable detection of metal parts is critical.Country of OriginMade in Hungary.CO2 ImpactBy purchasing this reused sensor, you are contributing to a circular economy and helping to avoid approximately 1.0 kg of CO2 emissions associated with the production of a new unit.AvailabilityThis item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.FAQQuestion?What is the advantage of a flush-mountable sensor like the BES056N?Answer:A flush-mountable sensor can be installed so its sensing face is level with the surrounding metal mounting surface. This provides mechanical protection and is ideal for applications where space is tight or the sensor could be easily damaged.Question?What does PNP ‘Normally Open’ (NO) mean for this sensor’s output?Answer:PNP means the sensor is a ‘sourcing’ type, switching the positive (V+) voltage to the output when an object is detected. ‘Normally Open’ (NO) means the output is OFF when no object is in the sensing range and turns ON when an object is detected. This is the most common configuration for industrial sensors.Question?Is the M8 connector on this sensor a standard type?Answer:Yes, the BES056N uses a standard M8x1, 3-pin male connector, which is widely used in industrial automation. This allows for quick and secure connection using standard M8 female cordsets, simplifying installation and replacement.profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.Last Update: Friday, March 13, 2026
