VAN DE CALSEYDE HYDRAULICS MA-20-14-04 WEV 10L 1/4 NPT

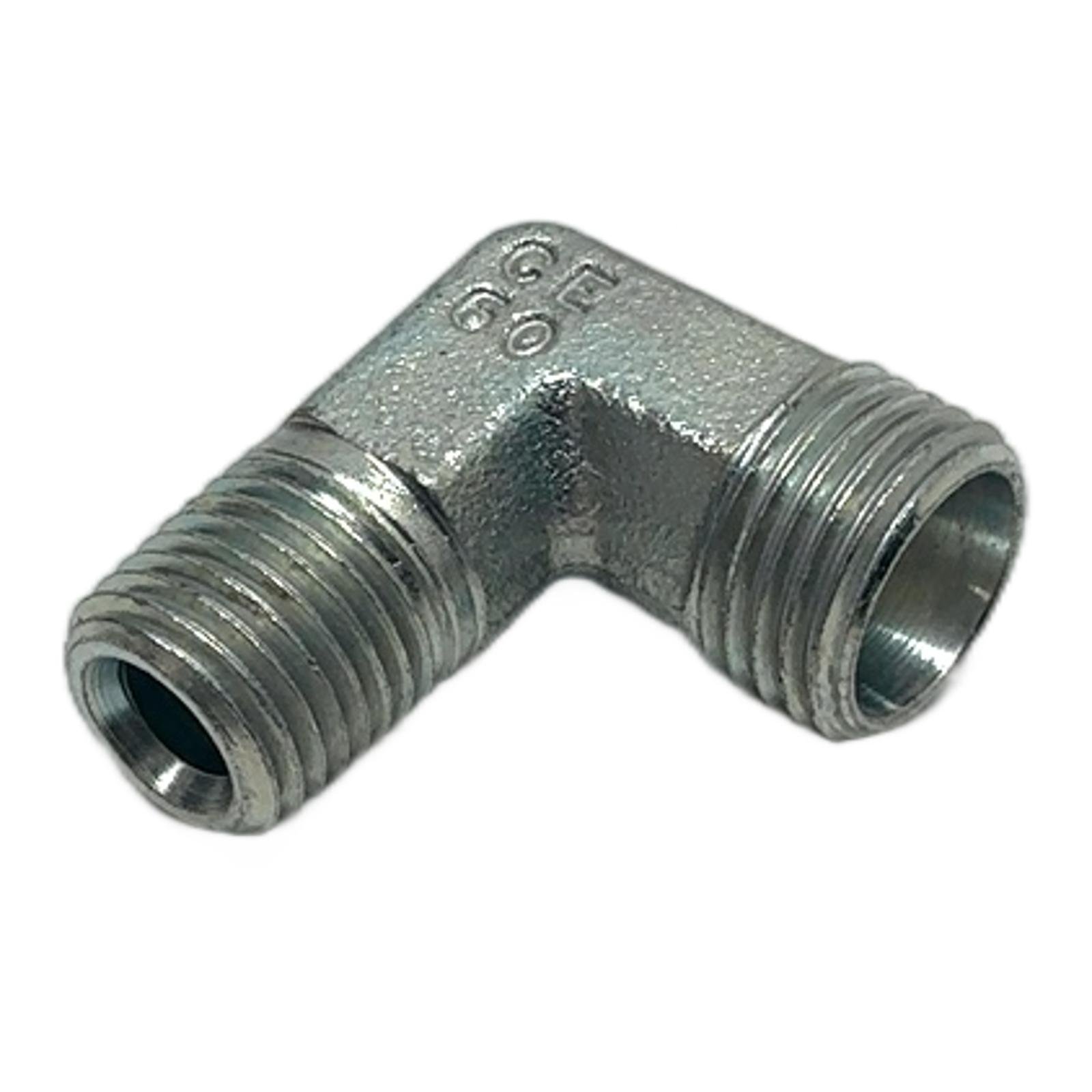

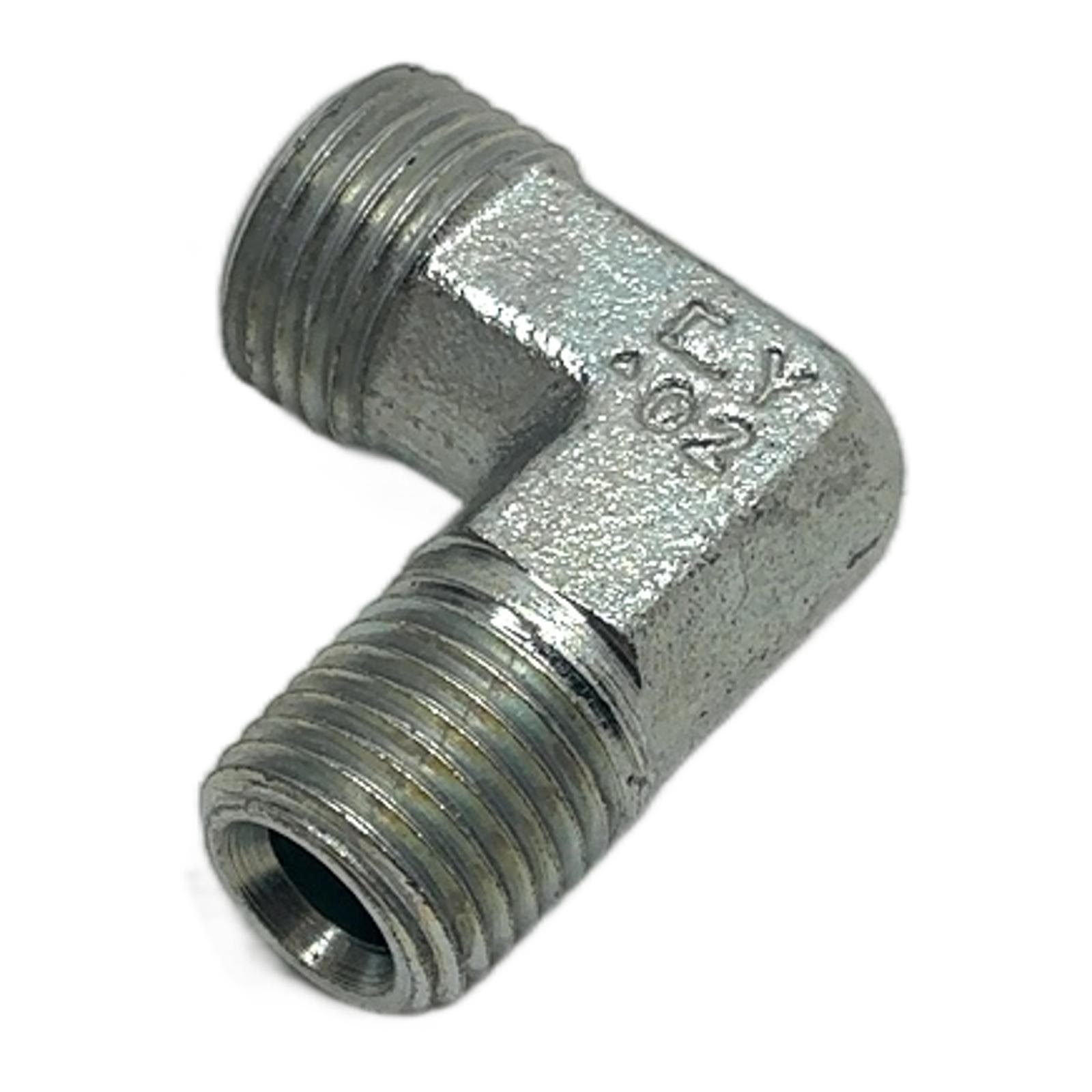

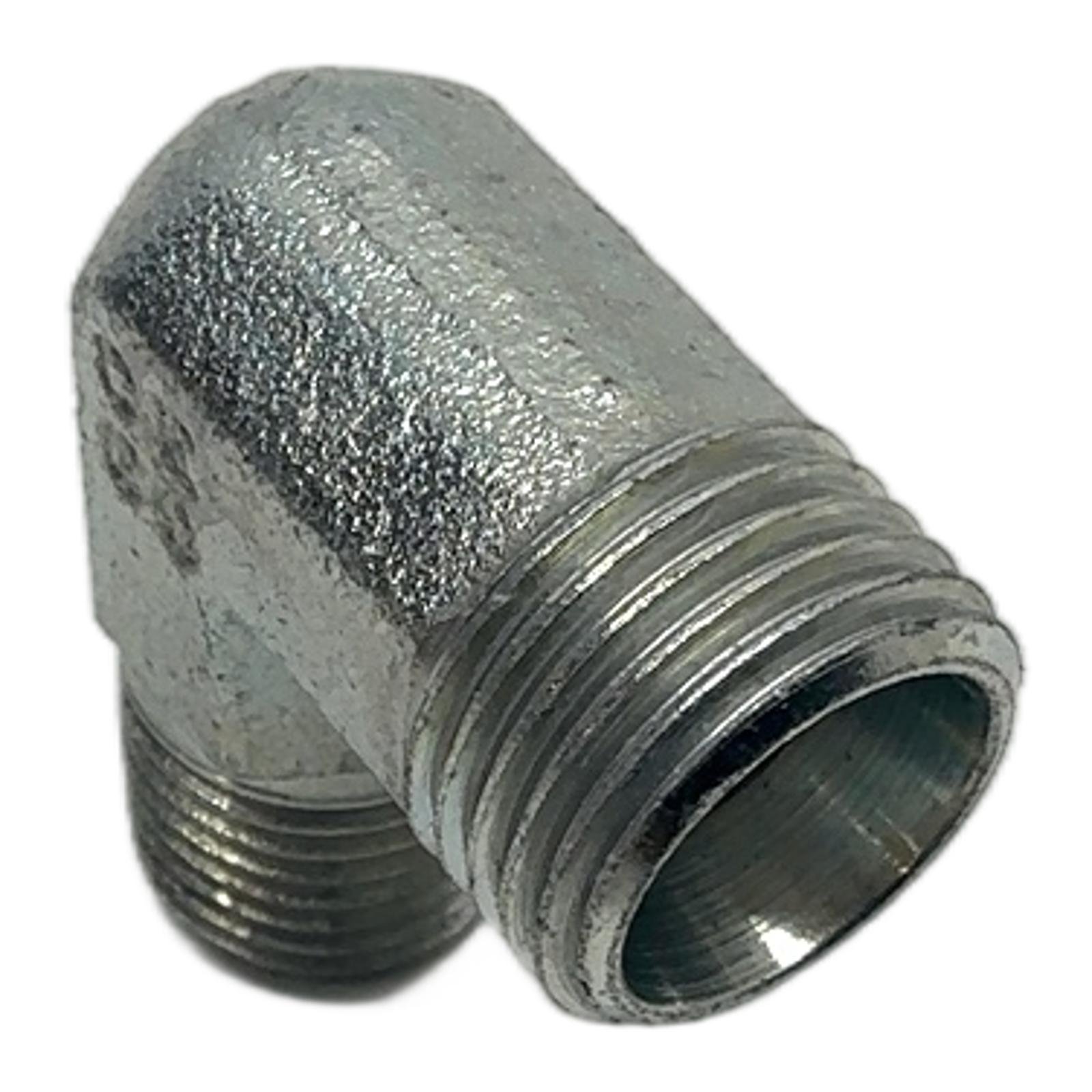

VOSS Male Stud Elbow Fitting 10L 1/4 NPT Description This is a WEV series male stud elbow fitting manufactured by VOSS, a leader in hydraulic connection technology. This 90-degree fitting is designed to connect a 10mm OD tube to a port with a 1/4 inch NPT thread. Its robust steel construction with zinc plating ensures high durability and resistance to corrosion, making it suitable for a wide range of hydraulic applications. Specifications Manufacturer: VOSS Part Number: WEV 10L 1/4NPT Type: Male Stud Elbow Fitting Connection 1: For 10 mm Outer Diameter Tube (Light Series) Connection 2: 1/4 inch NPT Male Thread Material: Zinc-Plated Steel Standard: Conforms to DIN 2353 / ISO 8434-1 Label Info Brand: VOSS (Visible on part) Model: 10L (Visible on part) Distributor Part Number: MA-20-14-04- Application Ideal for use in industrial machinery, mobile hydraulics, construction equipment, and general fluid power systems requiring a reliable 90-degree connection. Country of Origin Manufactured in Germany. CO2 Impact Reusing this component saves approximately 0.15 kg of CO2, equivalent to the energy needed to charge a smartphone 18 times. This choice supports a circular economy and reduces industrial waste. Availability In stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the pressure rating for this VOSS WEV 10L 1/4NPT fitting?The pressure rating for VOSS 10L series fittings depends on the specific application and tubing used, but it is typically rated for a nominal pressure (PN) of up to 315 bar (approx. 4568 PSI) in steel. Always consult the VOSS technical datasheet for the exact pressure rating corresponding to your tube material and wall thickness. What is the correct assembly procedure for this fitting to ensure a leak-proof connection?Proper assembly involves using a pre-assembly tool or manually tightening the nut 1.5 turns past the point of initial resistance where the cutting ring bites into the tube. Over-tightening or under-tightening can compromise the seal. VOSS provides detailed assembly instructions which should always be followed. Is this fitting compatible with fittings from other manufacturers like Parker or Eaton?While VOSS fittings conform to the DIN 2353 / ISO 8434-1 standard, which makes them dimensionally interchangeable with other compliant brands, it is always best practice not to mix components (like nuts or cutting rings) from different manufacturers in a single connection to guarantee performance and safety. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
