BOSCH REXROTH 4WE6J62/EG24N9K4 R900561288

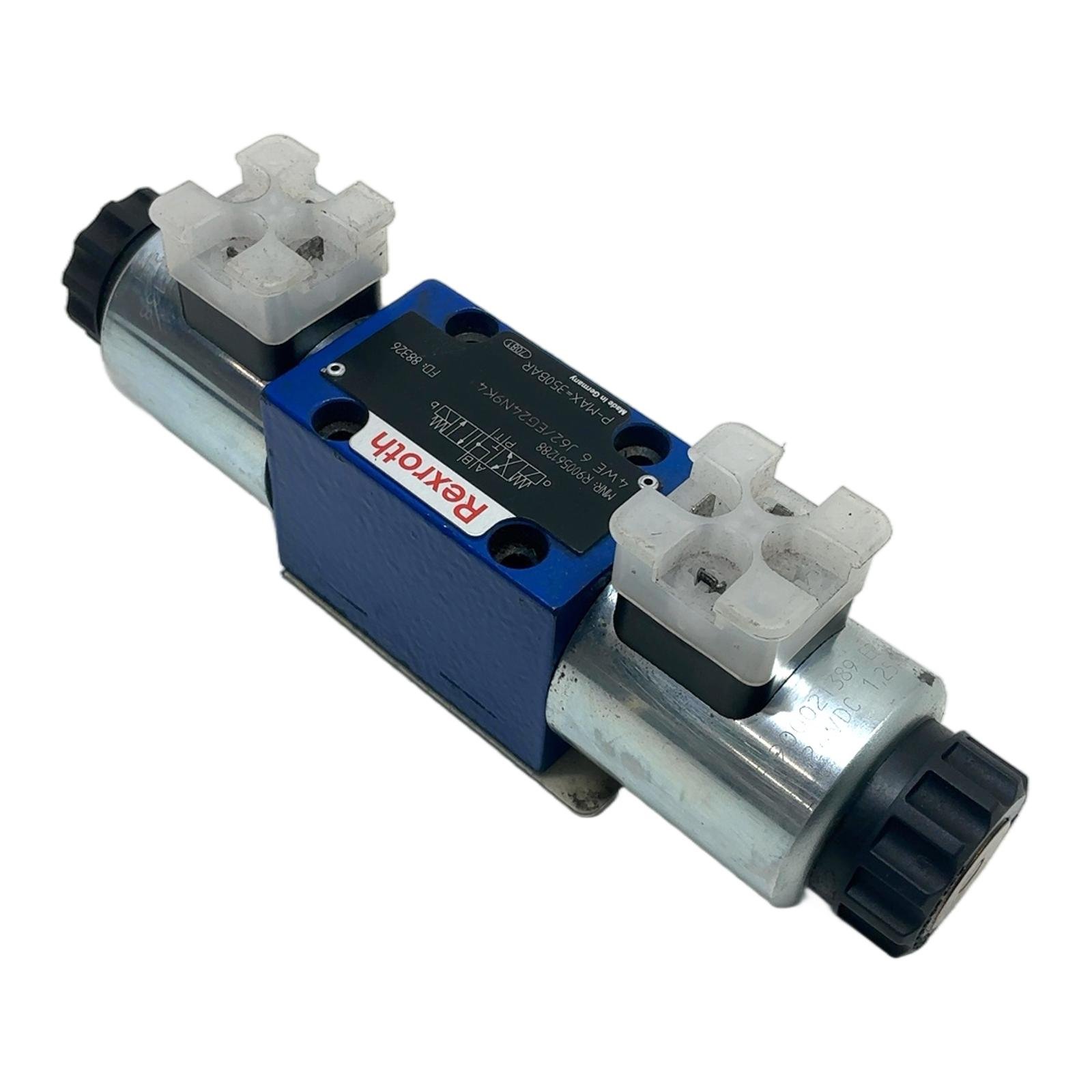

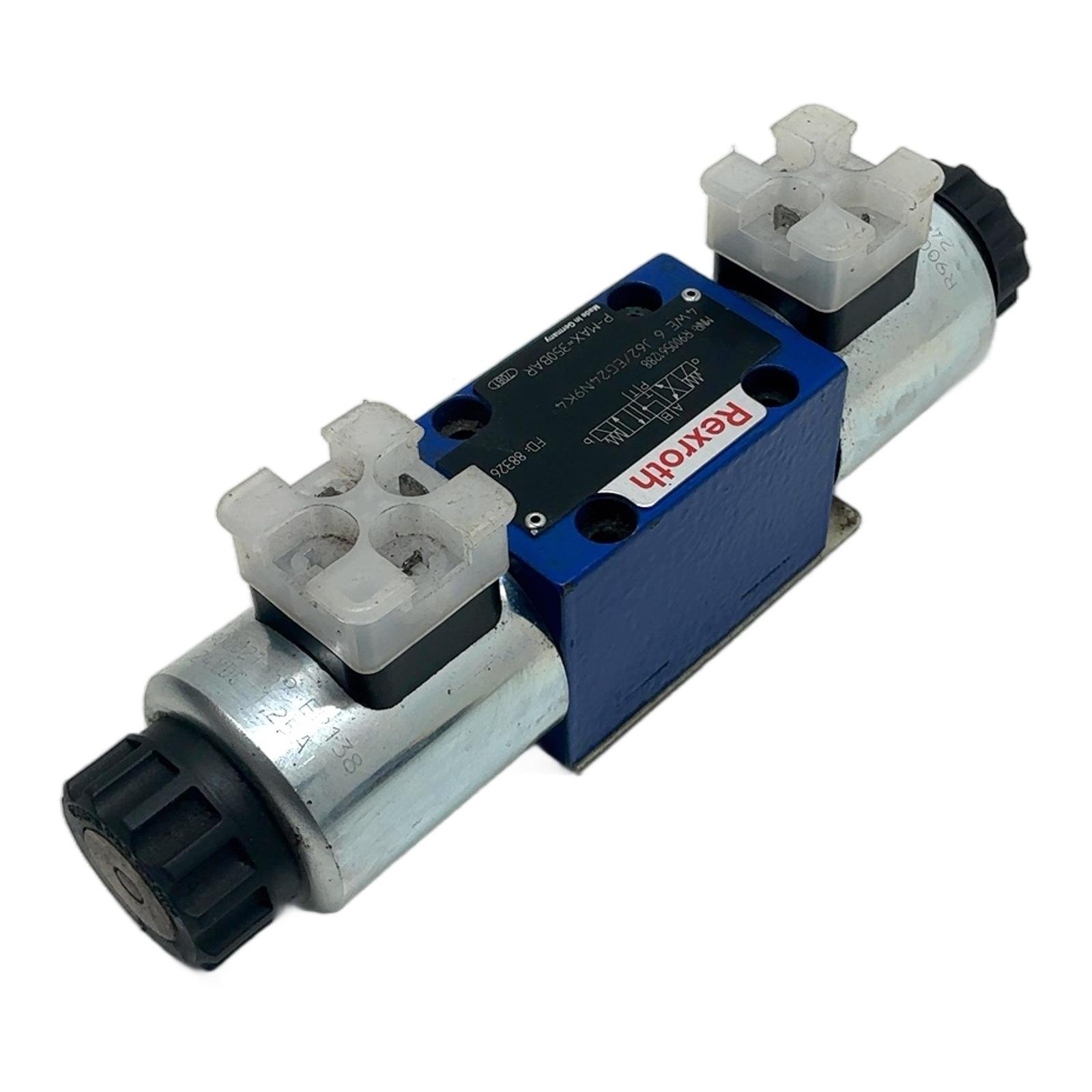

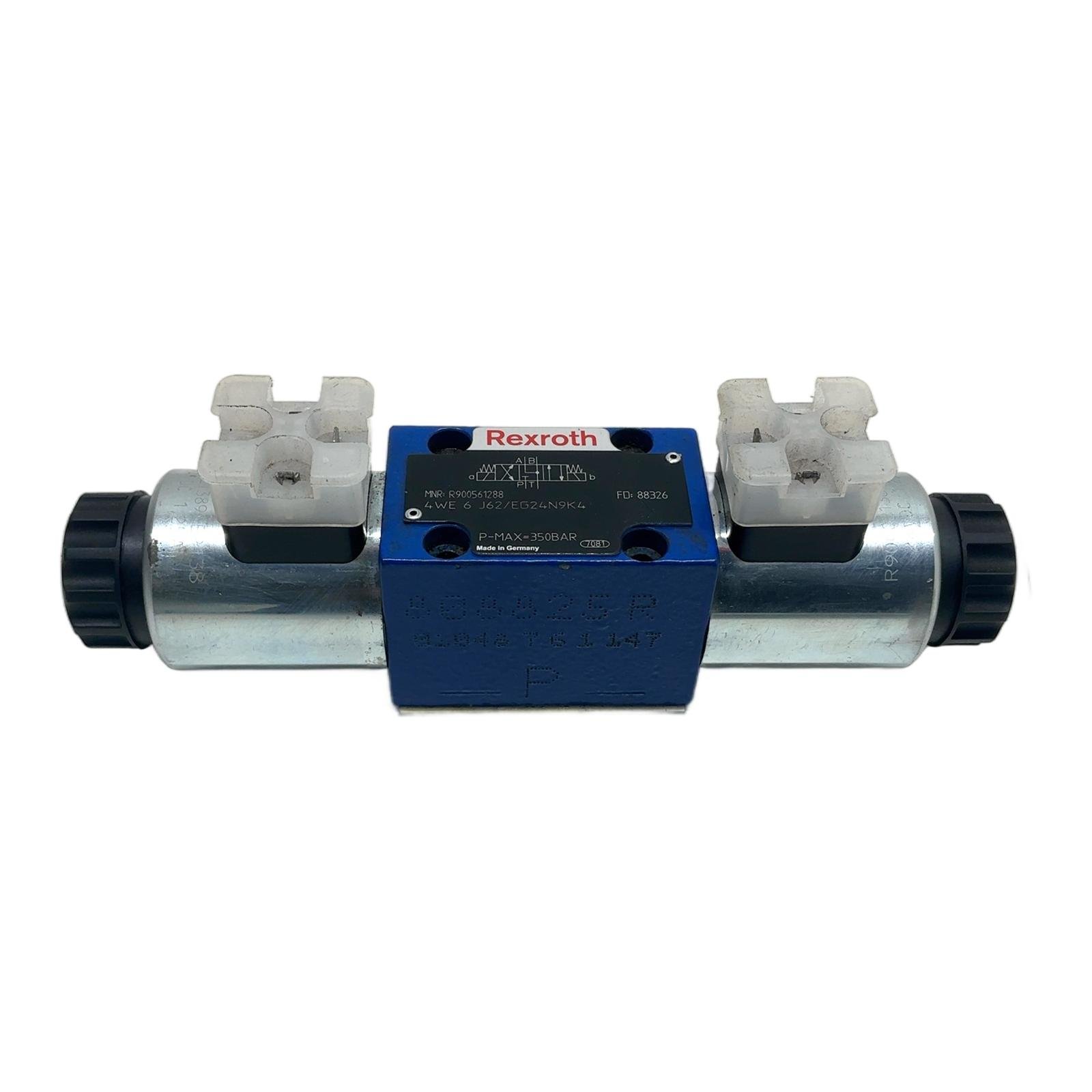

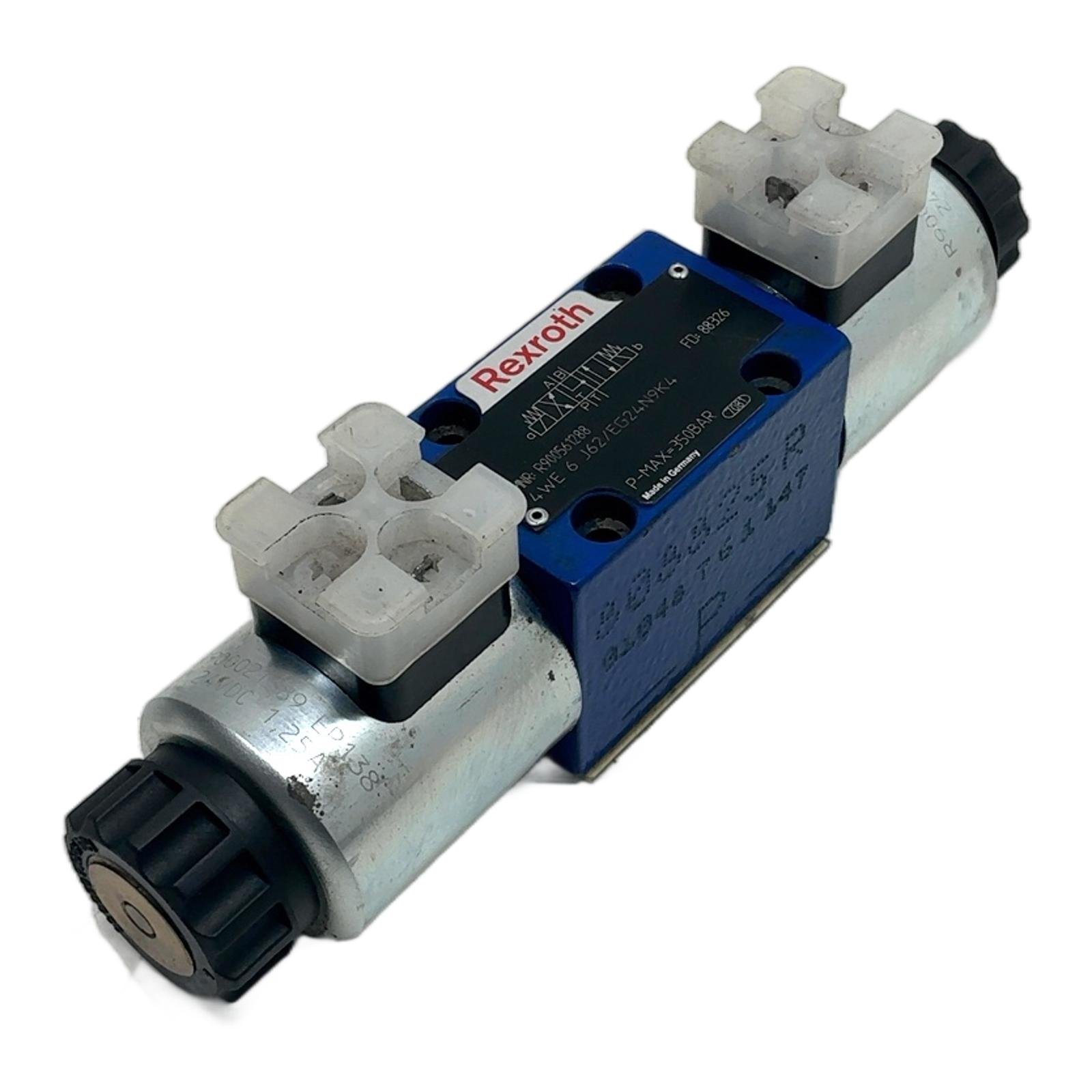

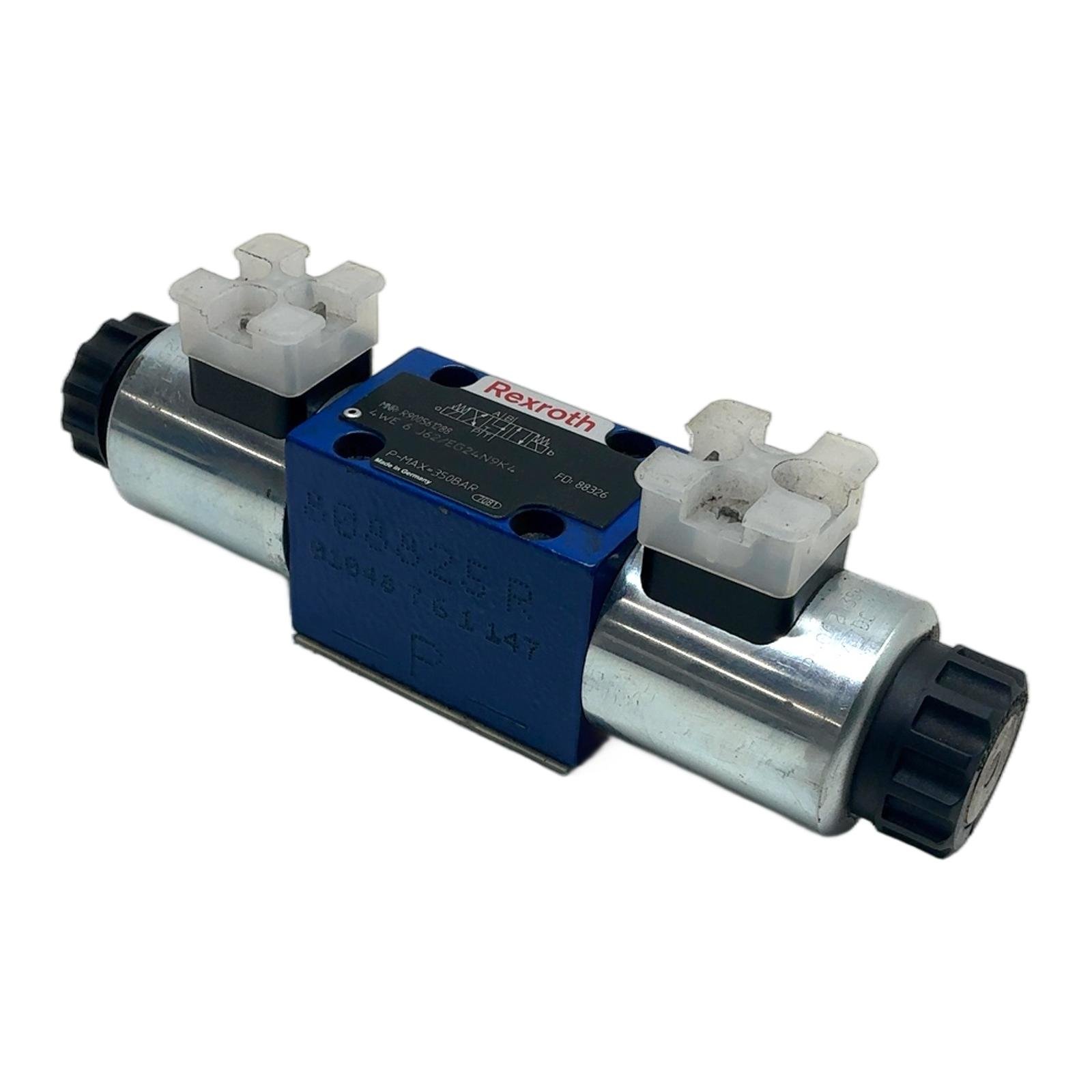

Bosch Rexroth 4WE 6 Hydraulic Directional Valve Description This is a direct-operated directional spool valve, model 4WE 6 J62/EG24N9K4, from Bosch Rexroth. It is a high-quality component designed for controlling the start, stop, and direction of fluid flow in hydraulic systems. With its dual 24V DC solenoids and robust design, it offers precise and reliable performance. This valve is built for subplate mounting according to the ISO 4401 standard, making it a versatile choice for a wide range of industrial applications. Specifications Manufacturer: Bosch Rexroth Type: 4WE 6 J62/EG24N9K4 Material Number: R900561288 Valve Type: 4/3-way Directional Spool Valve Size: NG6 / CETOP 3 Mounting Interface: ISO 4401-03-02-0-05 Operating Pressure (Max): 350 bar Actuation: 2 Solenoids Solenoid Voltage: 24V DC Spool Symbol: J Manual Override: Yes, concealed Label Info MNR: R900561288 Model: 4WE 6 J62/EG24N9K4 P-MAX: 350 BAR FD: 88326 Application This valve is commonly used in machine tools, manufacturing equipment, mobile hydraulics, and general industrial machinery where reliable directional control of hydraulic actuators is required. Country of Origin Made in Germany CO2 Impact Choosing this reused valve saves an estimated 18.0 kg of CO2 compared to a new one. This is equivalent to the CO2 absorption of a mature tree over a year. Availability This product is a used item that has undergone a thorough inspection. It is a reliable and cost-effective solution for your spare parts needs. Order now from profideals for expert support and fast delivery. FAQ What type of connector plug is required for this valve?This valve uses the K4 connection type, which requires a DIN EN 175301-803 (formerly DIN 43650) Form A connector. The plugs are not included with this unit. Can the solenoids on this 4WE 6 valve be replaced individually?Yes, the solenoids on the Rexroth 4WE 6 series are replaceable. The corresponding part number for the 24V DC solenoid coil can be found in the Bosch Rexroth datasheet for this valve series. The label text says spool ‘J’, but the diagram looks different. Which one is correct?The material number R900561288 and type code 4WE 6 J62/EG24N9K4 officially correspond to the ‘J’ spool configuration, where ports P, A, B, and T are all connected in the center (unactuated) position. The diagram on the nameplate is likely a generic graphic. Always rely on the official type code and material number for accurate specifications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
