SCHNEIDER ELECTRIC C60H-DC C 3A A9N61523

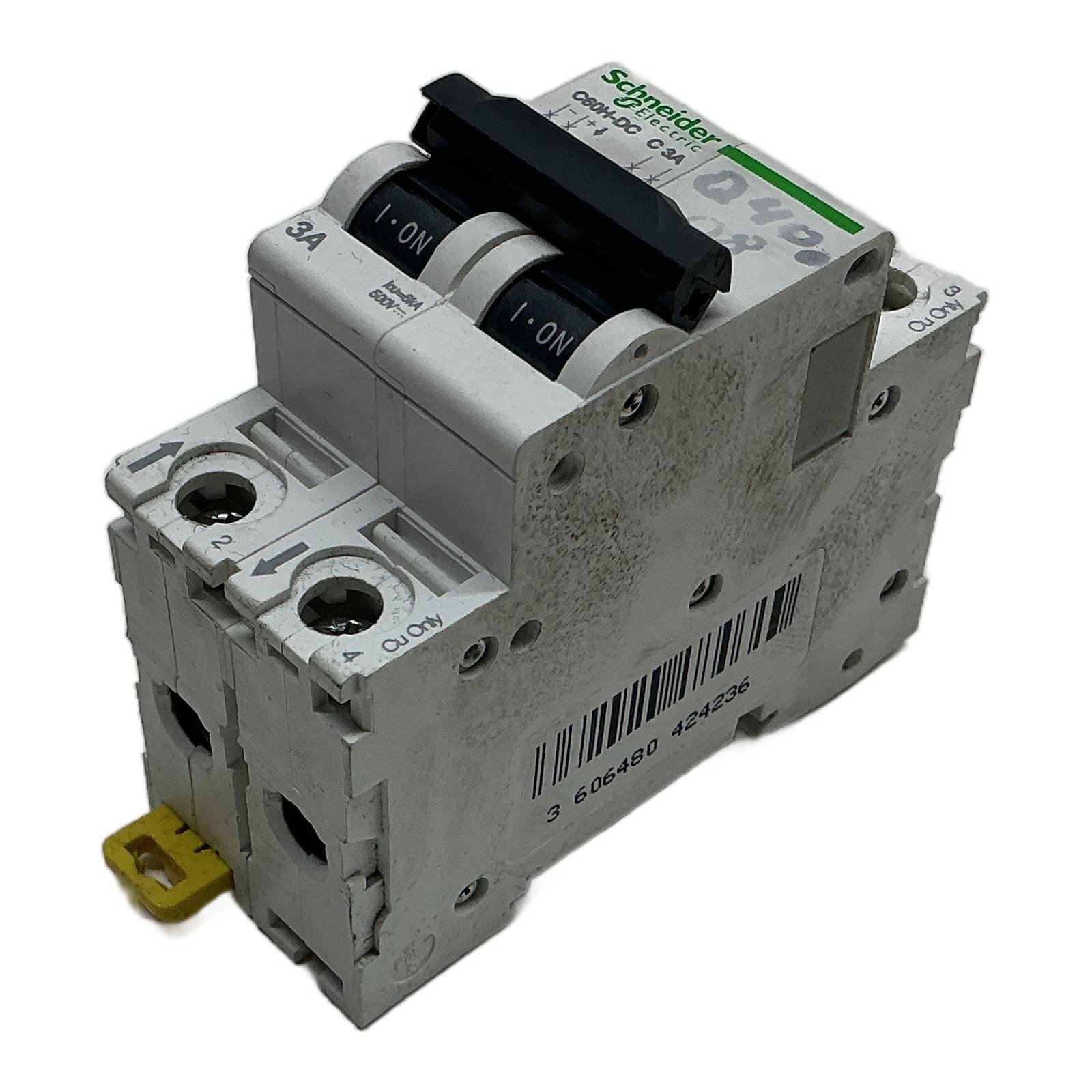

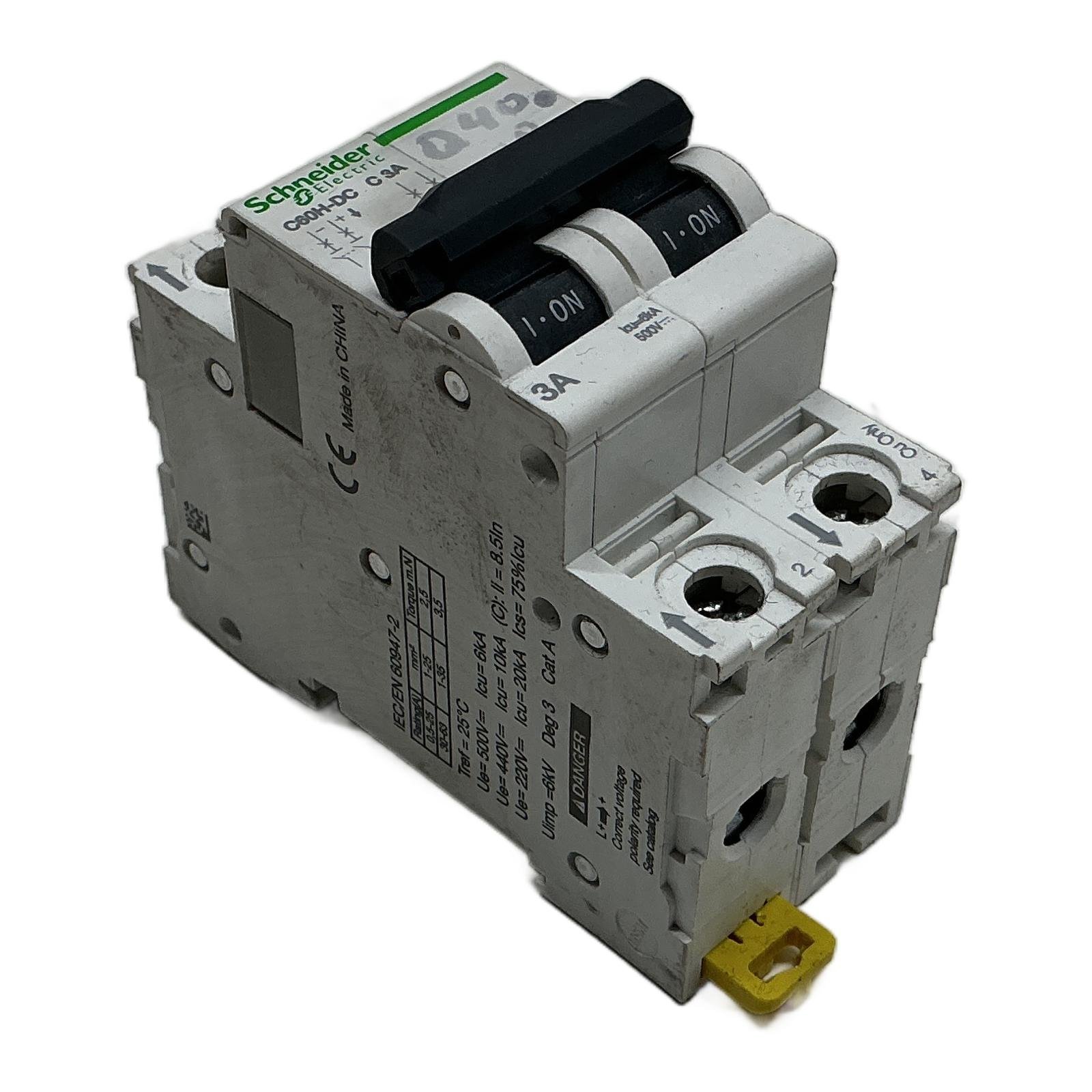

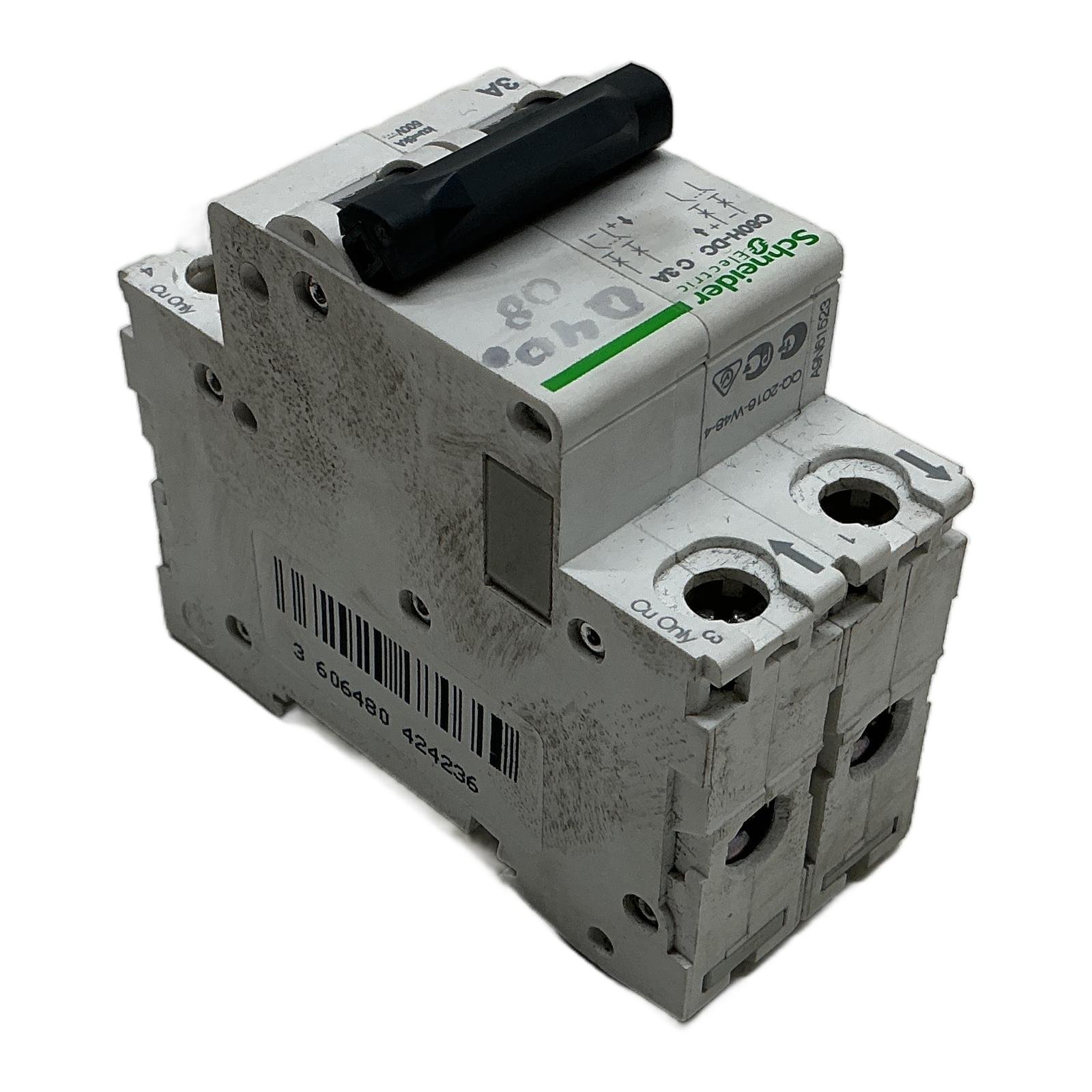

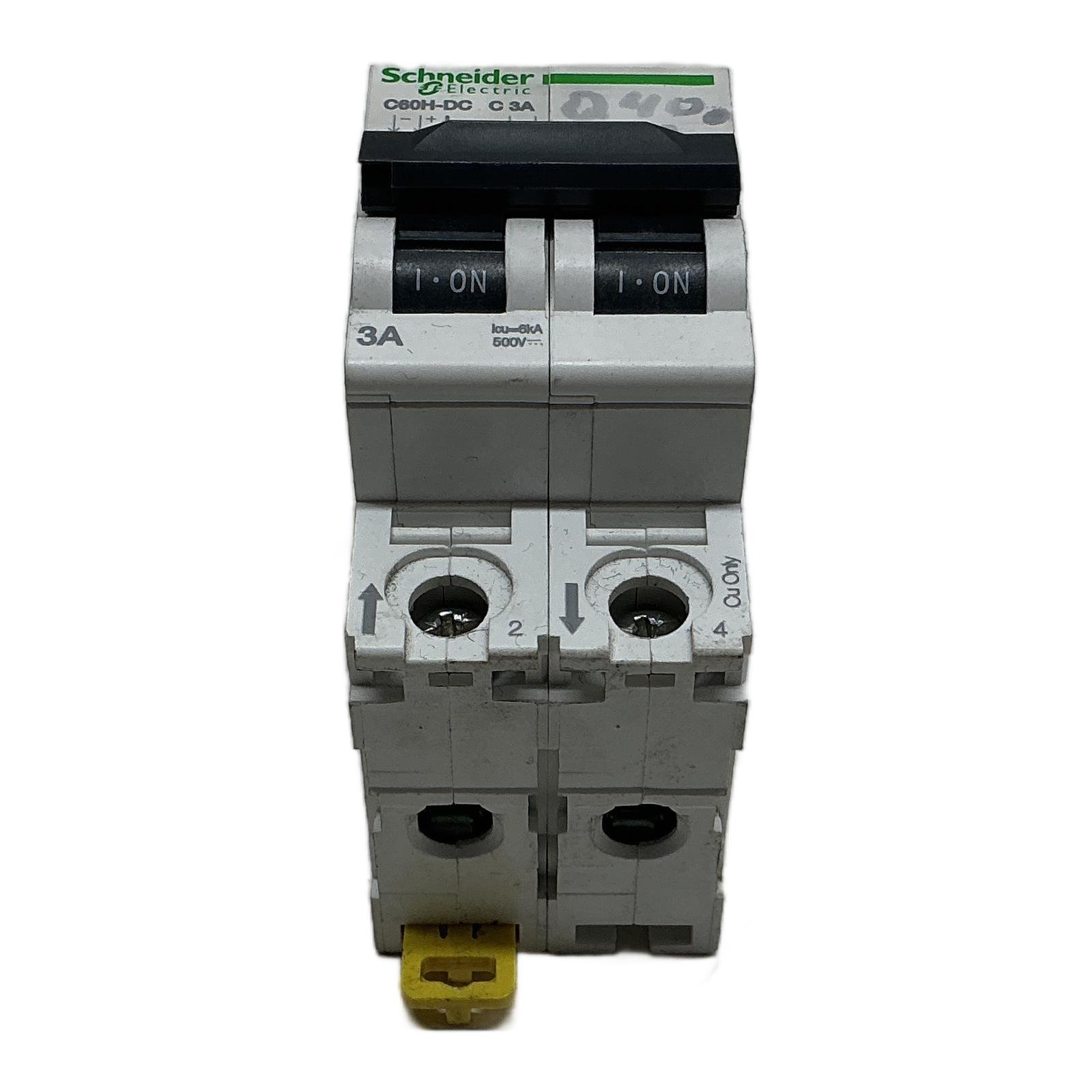

Schneider Electric C60H-DC Miniature Circuit Breaker Description The Schneider Electric A9N61523 is a C60H-DC series miniature circuit breaker (MCB) designed for superior protection in direct current (DC) electrical systems. This 2-pole device has a rated current of 3A and features a C tripping curve, making it suitable for circuits with moderate inrush currents. It provides essential protection against both short-circuits and overloads, ensuring the safety and reliability of your DC installations, such as solar power systems, battery backup units, and industrial control panels. Specifications Manufacturer: Schneider Electric Model: C60H-DC Part Number: A9N61523 Poles: 2P Rated Current: 3 A Tripping Curve: C Rated Voltage (Ue): Up to 500V DC Breaking Capacity (Icu): 6kA at 500V DC, 10kA at 440V DC, 20kA at 220V DC Impulse Withstand Voltage (Uimp): 6kV Mounting Type: DIN Rail Standard: IEC/EN 60947-2 Label Info Brand: Schneider Electric Type: C60H-DC C 3A EAN: 3606480424236 Application This DC circuit breaker is ideal for use in photovoltaic installations, energy storage systems, uninterruptible power supplies (UPS), telecommunications equipment, and transportation applications where reliable DC circuit protection is critical. Country of Origin This product is Made in China. CO2 Impact By purchasing this refurbished component, you contribute to a circular economy and help avoid approximately 10 kg of CO2 emissions compared to a new purchase. This is equivalent to the CO2 captured by a tree in over a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ‘C’ curve rating on this C60H-DC breaker?The ‘C’ curve indicates that the breaker is designed for general purpose applications with moderate inrush currents, like resistive or small inductive loads. It will trip between 5 to 10 times the rated current (3A) on a short circuit, providing a balance between protection and avoiding nuisance tripping. Can this DC circuit breaker be used for an AC application?No, this C60H-DC model is specifically designed and rated for Direct Current (DC) circuits. Using it in an Alternating Current (AC) system is unsafe and not compliant with electrical standards, as the arc-quenching mechanism is different for DC and AC. The label mentions “Correct voltage polarity required”. What does this mean for installation?Unlike AC breakers, DC breakers like this one are polarized. This means the positive (+) and negative (-) wires from the power source and to the load must be connected to the specific terminals marked on the breaker. Reversing the polarity can compromise its ability to safely interrupt a fault current. profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
