SCHNEIDER ELECTRIC LX1FG220 008326

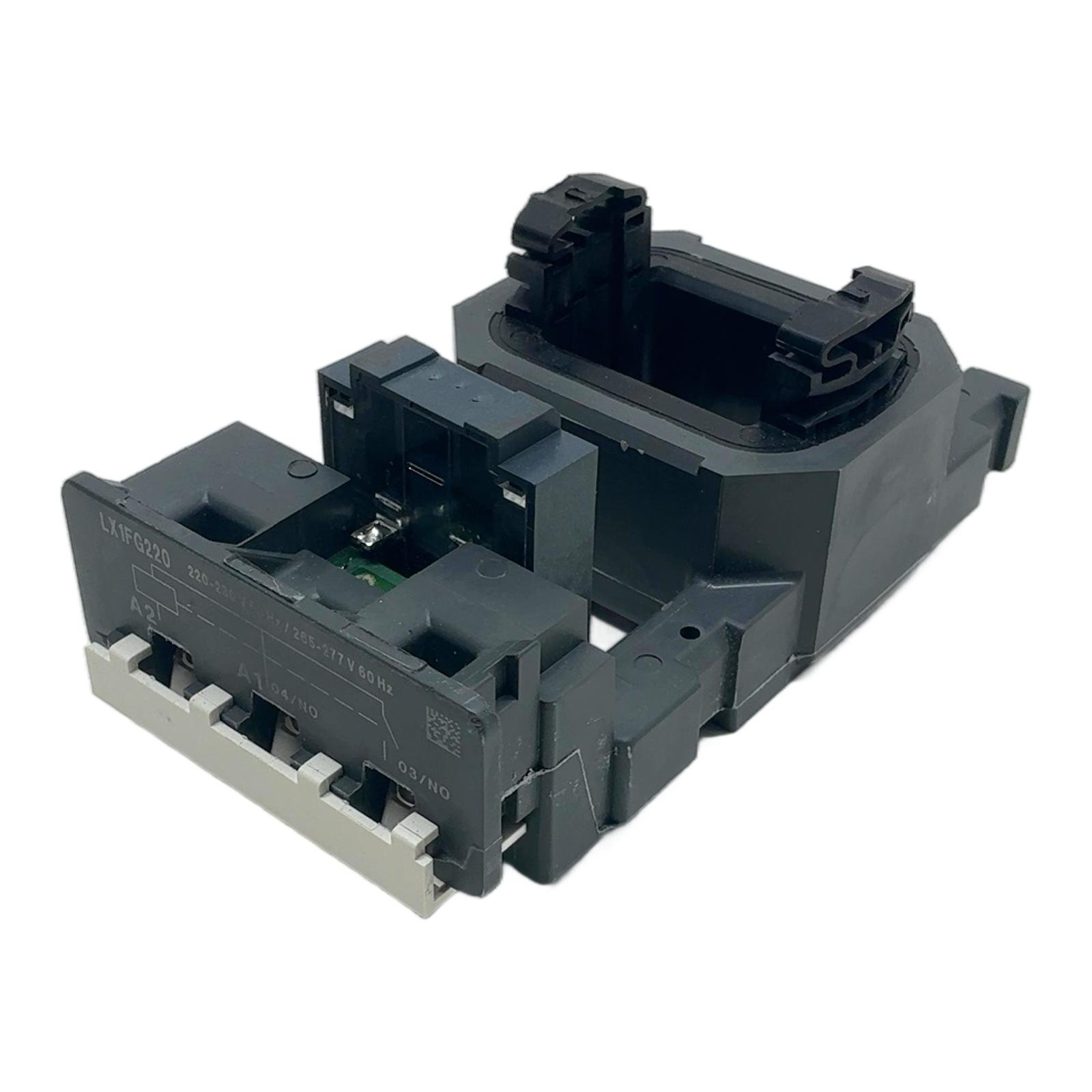

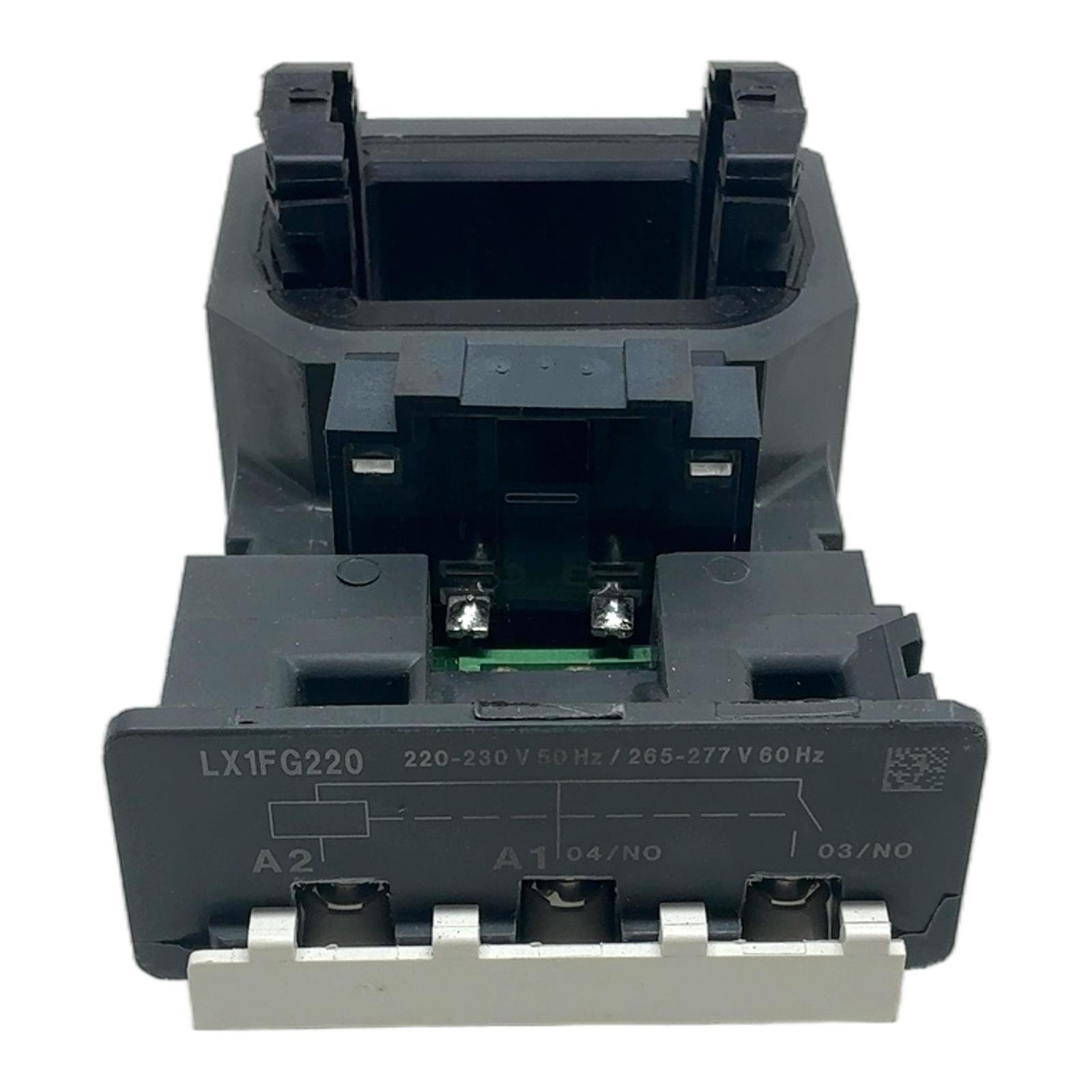

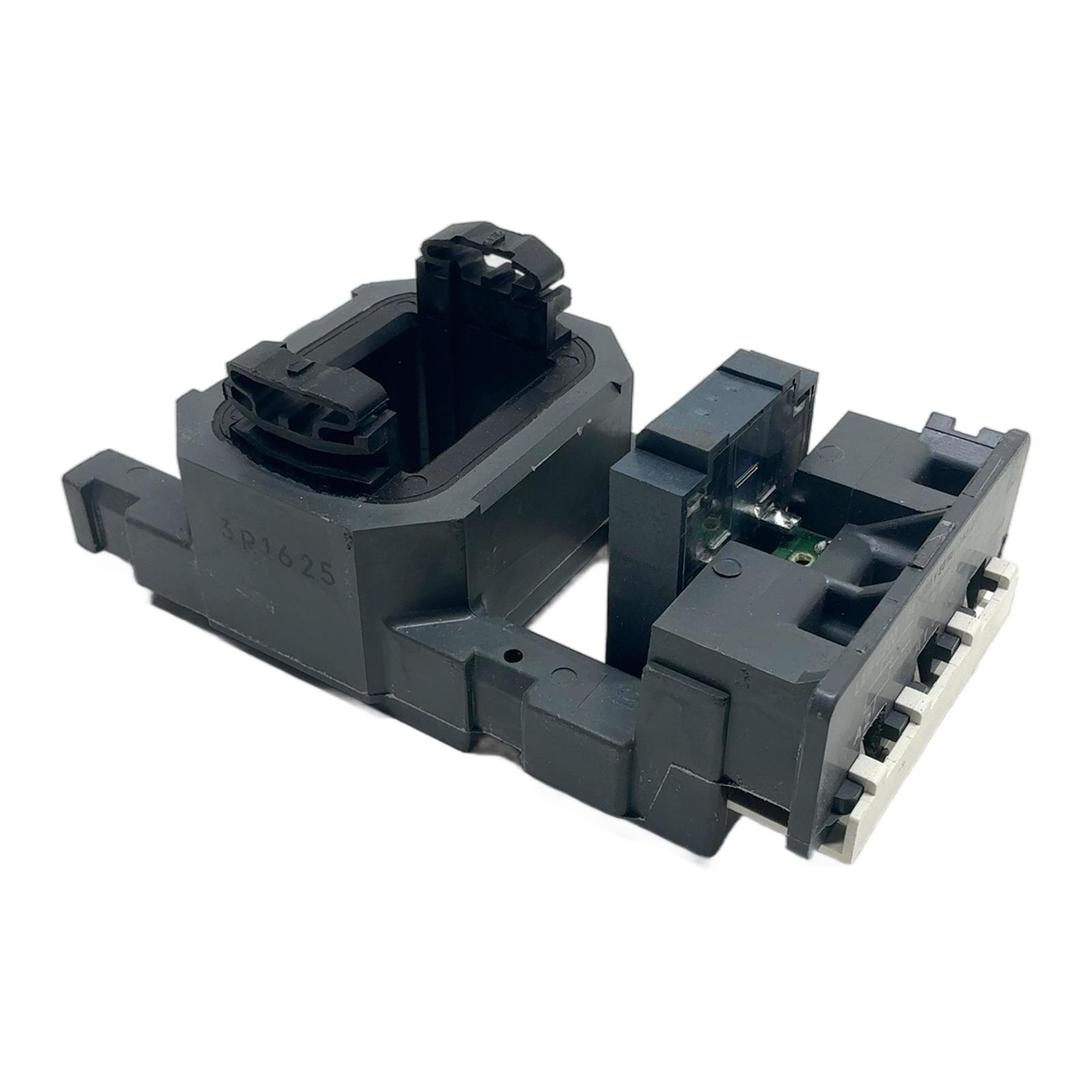

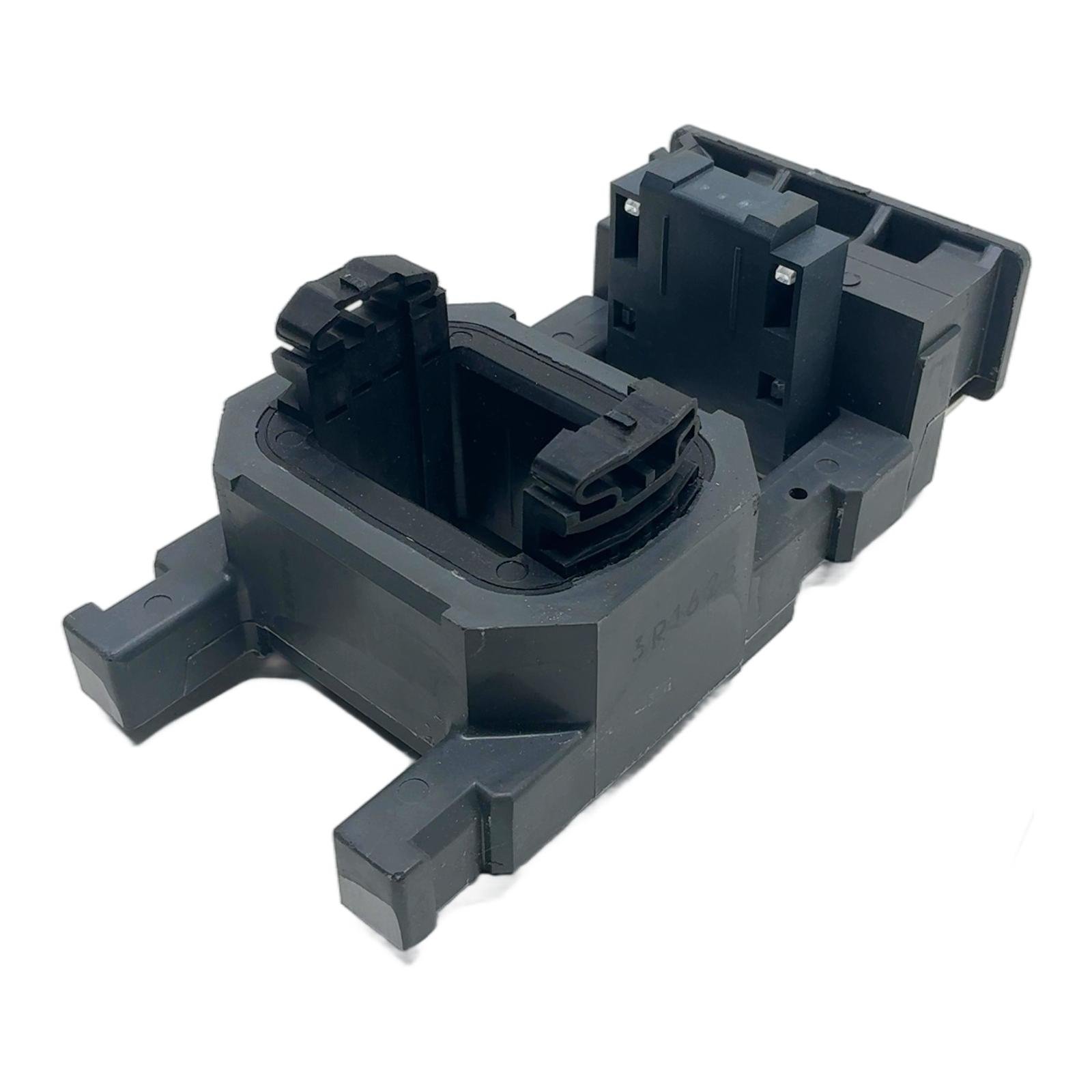

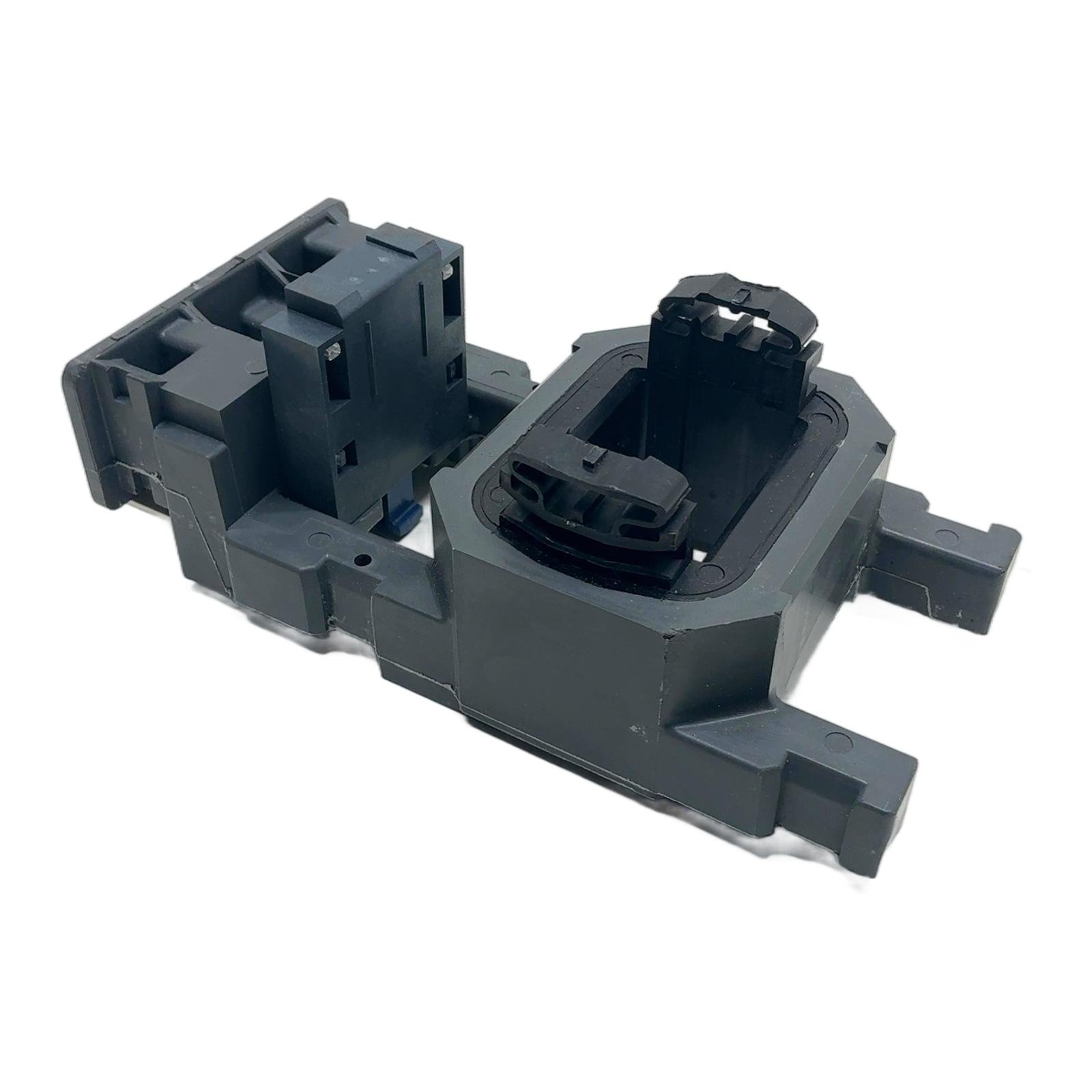

Schneider Electric LX1FG220 TeSys F Contactor Coil Description The LX1FG220 is a high-quality replacement coil designed for the Schneider Electric TeSys F range of contactors. This component is essential for the electromagnetic operation of contactors, providing reliable switching for demanding motor control applications. It operates on a control circuit voltage of 220-230V AC at 50/60 Hz. Specifications Manufacturer: Schneider Electric Product Range: TeSys F Model: LX1FG220 Product Type: Contactor Coil Control Circuit Voltage: 220-230V AC at 50 Hz, 265-277V AC at 60Hz Compatibility: Suitable for TeSys F contactors LC1F115 through LC1F265 Average Resistance: 104 Ohm at 20 deg C Label Info Brand: Schneider Electric Part Number: LX1 FG220 Commercial Reference: 008326 EAN: 3389110083262 Application This coil is used as a spare part for repairing or maintaining TeSys F contactors in various industrial environments, including manufacturing, HVAC, and material handling systems, to ensure continued and reliable operation. Country of Origin Made in Czech Republic. CO2 Impact By purchasing this pre-owned component, you are helping to avoid the emission of 18.8 kg of CO2, which is equivalent to the carbon footprint of manufacturing a new unit. This is comparable to driving a car for 94 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ How can I verify if this LX1FG220 coil is compatible with my specific TeSys F contactor?The LX1FG220 coil is designed for Schneider Electric TeSys F contactors in the range of LC1F115 to LC1F265. Always check the datasheet of your contactor to confirm the correct coil replacement part number before installation. What is the inrush and sealed power consumption of this coil?The inrush power consumption at 20 deg C is approximately 650-800 VA, and the sealed (holding) consumption is around 6-10 VA at 50/60 Hz. These values are crucial for calculating power supply requirements and heat dissipation. Does this coil have built-in surge suppression?No, the standard LX1FG220 coil does not include a built-in surge suppression device. For applications requiring surge protection, a separate suppressor module, such as the LA4DFB, should be added. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
